American Time SQA261RSAEA User manual

Installation and Operation Manual
Part # H004242
Rev. 4
October 2011
Wireless Digital Clock/ Elapsed Time
Indicator with Code Blue

WARNING: Hazardous voltage in electrical equipment can cause severe personal injury or death. Inspection,
installation, and preventive maintenance should only be performed on equipment to which power has been turned
off, disconnected and electrically isolated so no accidental contact can be made with energized parts.
Electrostatic Sensitive Devices
CAUTION: This equipment contains electronic devices that are sensitive to static electric charges. To guarantee
protection for the circuitry of this unit, it is required that electrostatic handling precautions be observed
when installing or repairing this equipment. Any technician or other personnel working on this unit must
wear a static grounding wrist strap or similar device to provide protection of sensitive components.
Electric Shock Hazard
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES

© American Time & Signal Co. 2
Table of Contents
Digital Clock/Timer (ETI)
Description 3
Installation Instructions ................................................................................................................................................ 4
ATSTCS Control Station
Switch Functions ......................................................................................................................................................... 7
Installation Instructions ................................................................................................................................................ 8
Operation
Power Up .................................................................................................................................................................. 9
Setting Time ................................................................................................................................................................ 9
Setting the Up Counter Preset Time.............................................................................................................................. 9
Up Counter Elapsed Time Operation ........................................................................................................................... 10
Setting the Down Counter Preset Time....................................................................................................................... 10
Down Counter Elapsed Time Operation ...................................................................................................................... 10
Code Blue
Description 11
Operations 11
Wiring ................................................................................................................................................................ 11
Important Considerations........................................................................................................................................................ 12
Operating Maintenance ........................................................................................................................................................... 13
Cleaning ................................................................................................................................................................ 13
Battery Maintenance.................................................................................................................................................. 13
System Maintenance ................................................................................................................................................. 13
Appendix 1: Using the Digital Clock/Timer as a Count Down Elapsed Timer Only....................................................................... 14
Appendix 2: Using the Digital Clock/Timer as a Count Up Elapsed Timer Only ........................................................................... 14
Appendix 3: Operator's Flowchart............................................................................................................................................. 15
American Time
140 3rd Street South
PO Box 707
Dassel, MN 55325-0707
Phone: [phone]
Fax: [phone]
www.atsclock.com

© American Time & Signal Co.
Appendix Maintenance
Code Blue
Operation Control Station Clock/Timer
The Digital Clock/Timer is a six digit multi-function clock/timer. This clock functions in a 12 or 24 hour mode which is
updated by the SiteSync IQ wireless clock system.
When combined with the ATSTCS Control Station, the clock can also be used as an up or down counting elapsed timer. The
elapsed timers can be started, stopped, resumed, and reset. Both timer modes have a programmable preset value. When the
timer reaches the preset value, a two second audible alarm sounds from a speaker in the control station. The clock/control
station contains a Code Blue count-up timer that overrides all other modes of operation.
Indications
Audible Alarm - Used to indicate that a timer is done counting.
6 Digit Clock Display - Used for displaying time of day, displaying counter value, for setting time, and setting up or down
counter preset values.
3

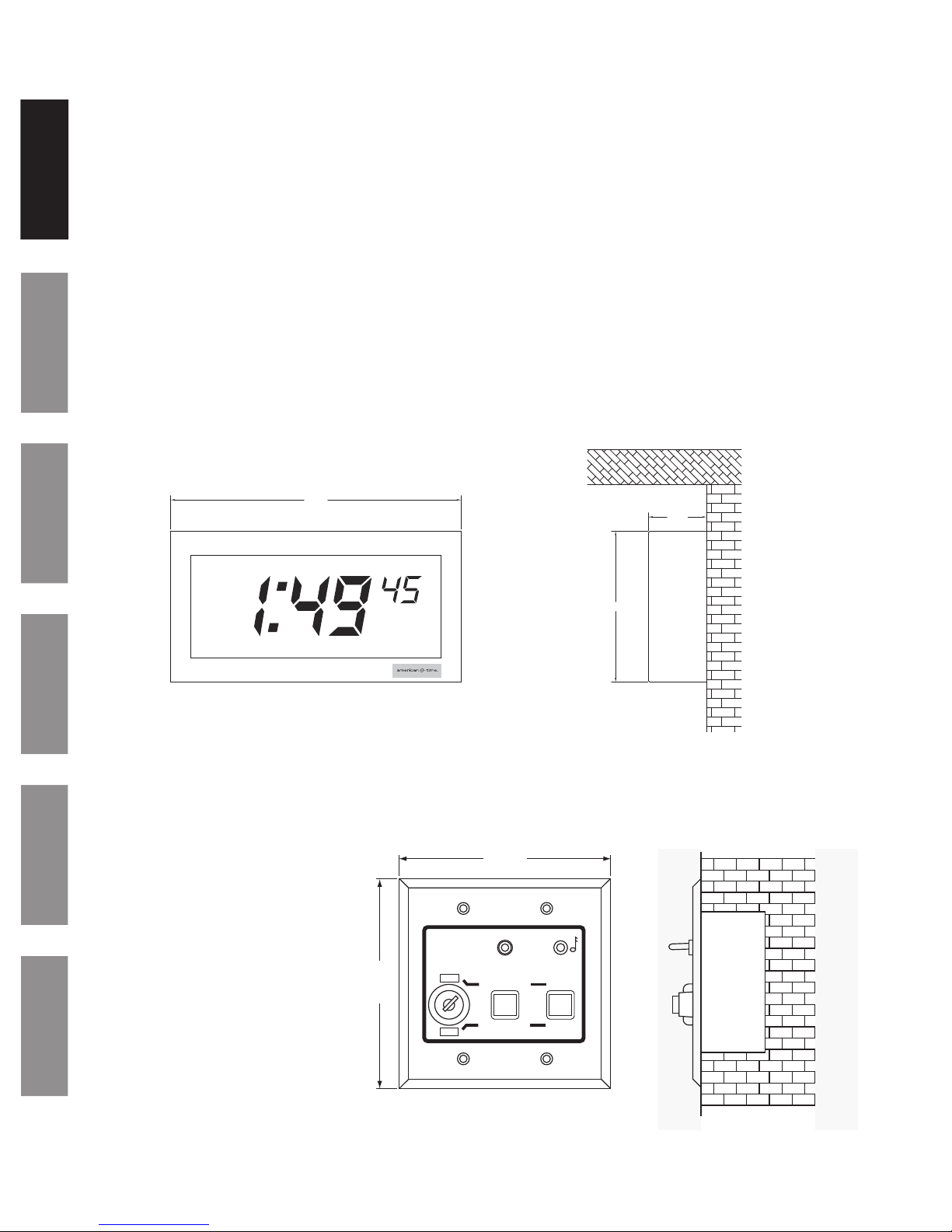

Clock/Timer Description
12 3/8 ”
5 3/8”
3.0”
Digital Clock/Timer
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK
4 9/16”
4 1/2”
Control Station

© American Time & Signal Co.
AppendixMaintenance
Code Blue
OperationControl StationClock/Timer
4
Clock/Timer Installation
For the SQA261RSAES Digital Clock/Timer
The Digital Clock/Timer can be mounted to a single or double gang box. The secondary bushing is to be used for the control
station and SQA261RSAEAS communication low voltage wiring. To install the Digital Clock/Timer, follow the instructions
below. Ensure that installation conforms to the National Electrical Code and local wiring codes.
CAUTION: Electric Shock Hazard! Disconnect and lock out power to the electrical box before installing or servicing the
clock.
u
Disassemble back plate from the clock (A) by removing the 4 sheet metal screws (2 top and 2 bottom). Be sure to keep
the screws for reassembly.
vMake electrical connections in gang box (G) (hot, neutral, ground wires) to non-switched electrical circuit wiring using
UL approved wire nuts. Route eld wiring away from sharp projections, corners and internal components. For Molex,
white to negative/common, black to ositive/hot and green to ground.
wJoin the two Molex connectors (B) together, placing excess wiring and Molex connectors into the gang box (D).
x
Connect the 3-Communication Wire (C) which will be wired to the SQA261RSAEA (master clock) using UL approved wire
nuts. See wiring details on page 5.
y
Mount back cover (A) to electrical box (D) using 2 screws (single gang) or 4 screws (double gang). Screws not provided.
zAssemble the clock cover (E) to the back plate (A) using the screws saved in Step 1 above.
Install SQA261RSAEA (master clock) before applying power to the circuit. See page 6.
CAUTION: Electric Shock Hazard! When installing, route eld wiring away from sharp projections, corners, and internal
components.
A
C
D
E
F
G
B
See page 6 for Master Clock
Installation Instructions

© American Time & Signal Co.
5

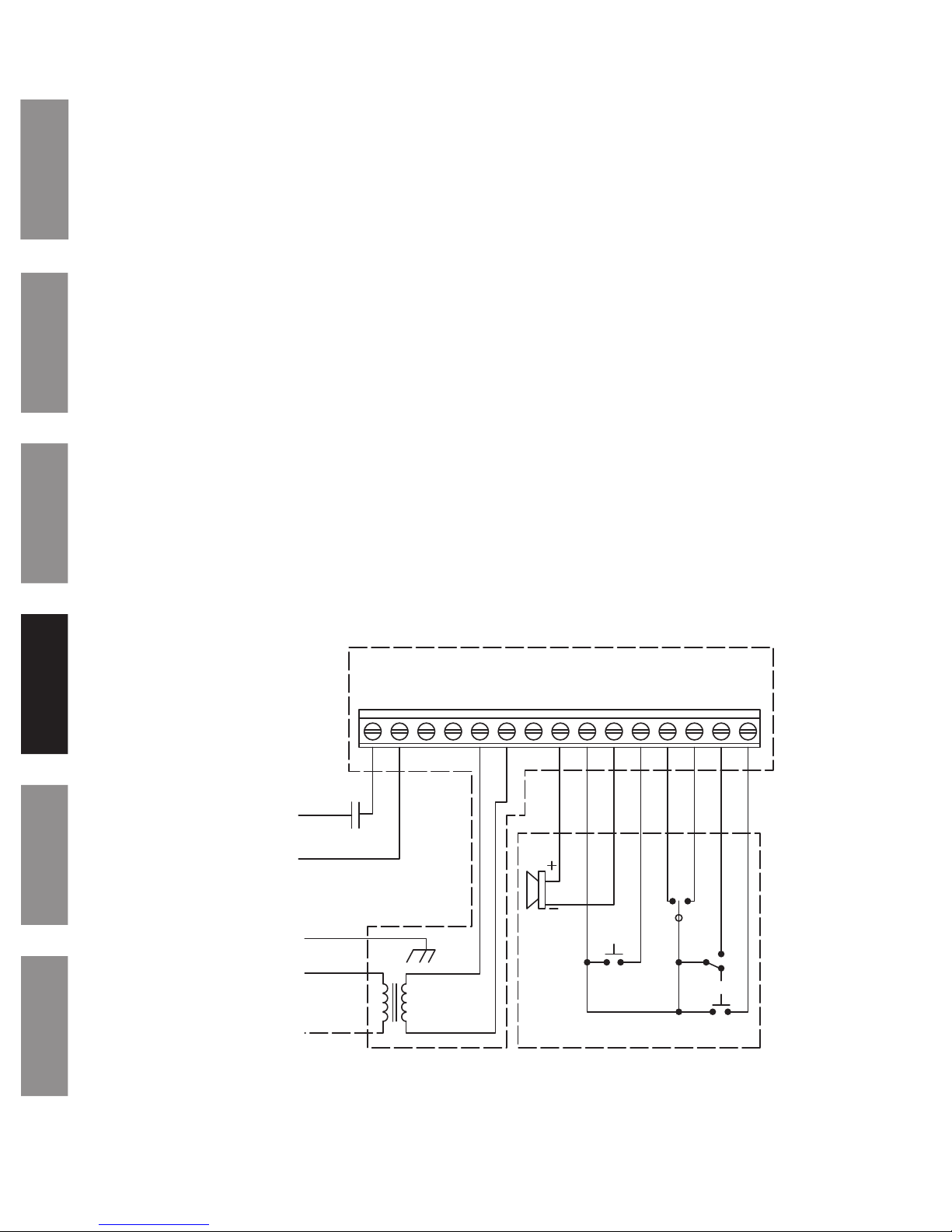

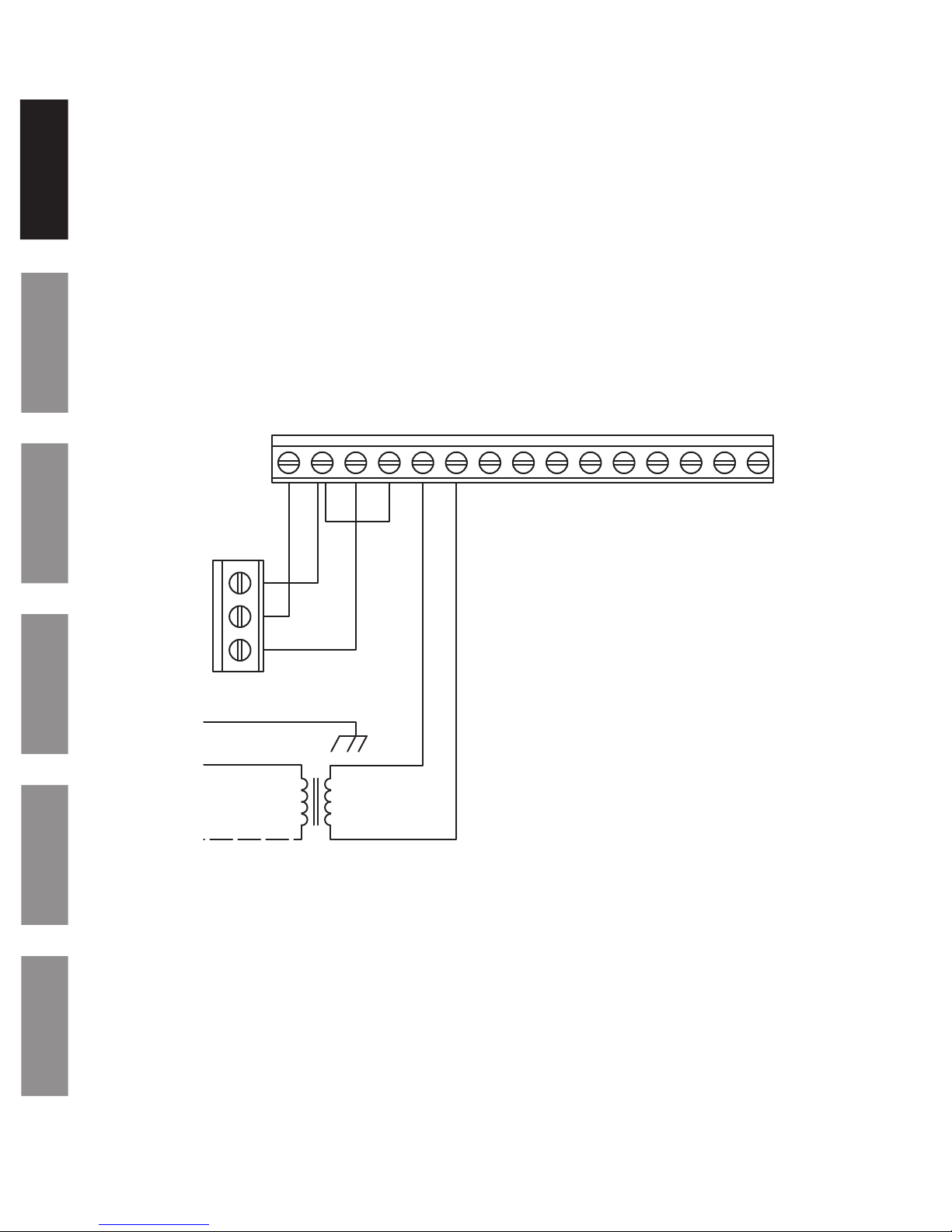

SQA261RSAES Typical Wiring
Appendix Maintenance
Code Blue
Operation Control Station Clock/Timer
K2+ K2– K1+ K1– 12VAC 12VAC UNREG GND PIEZO S5 S4 S3 S2 S1
CHASSIS
NEUTRAL
120VAC
MASTER CLOCK TERMINAL BLOCK
Typical wiring for the
Slave Digital Timer
GND
CLK
DATA
LABEL #
H004273S

© American Time & Signal Co. 6
Clock/Timer Installation
AppendixMaintenance
Code Blue
OperationControl StationClock/Timer

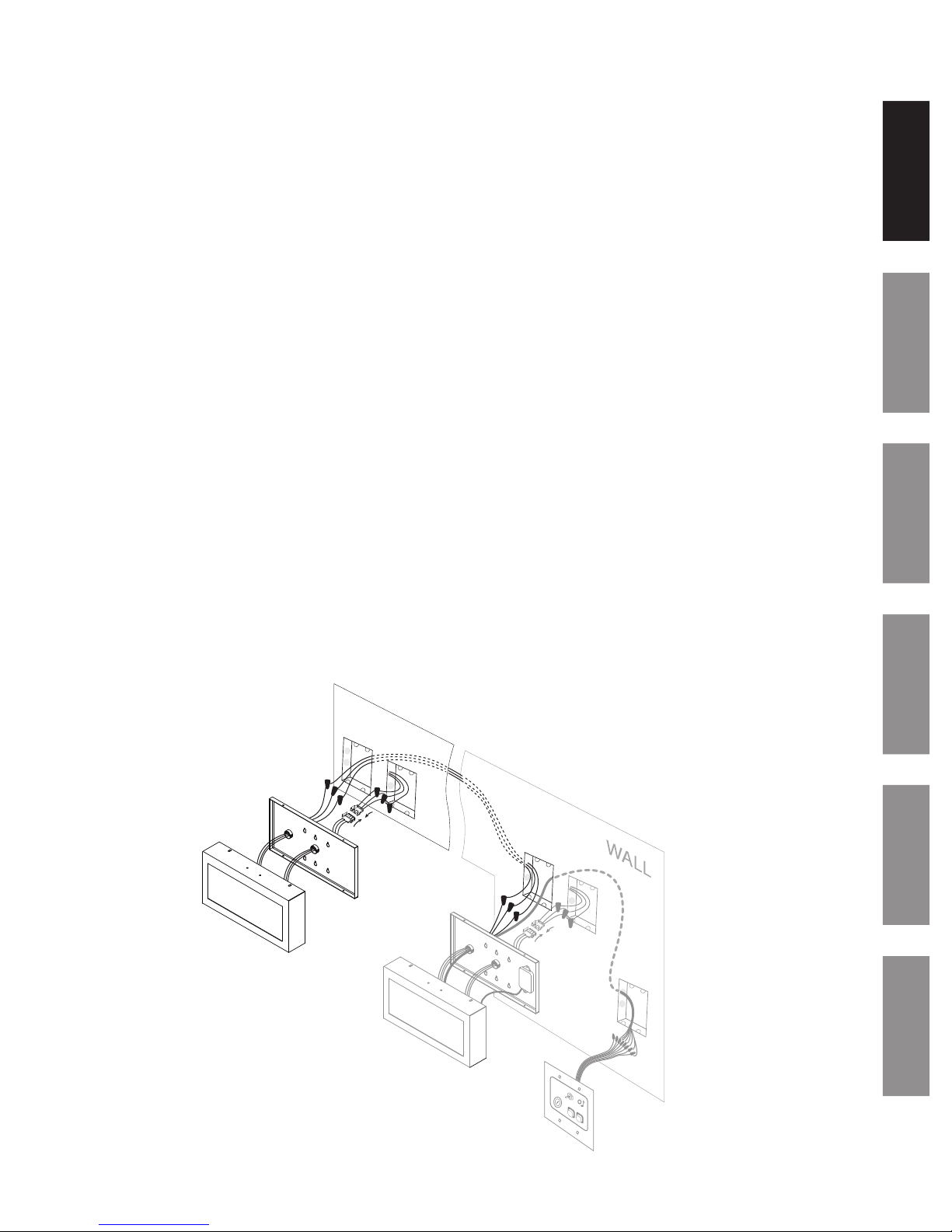

For the SQA261RSAE & SQA261RSAEA Digital Clock/Timers
The Digital Clock/Timer can be mounted to a single or double gang box. The secondary bushing is to be used for the conrol
station and SQA261RSAEAS communication low voltage wiring. To install the Digital Clock/Timer, follow the instructions
below. Ensure that installation conforms to the National Electrical Code and local wiring codes.
CAUTION: Electric Shock Hazard! Disconnect and lock out power to the electrical box before installing or servicing the
clock.
u
Disassemble back plate from the clock (A) by removing the 4 sheet metal screws (2 top and 2 bottom). Be sure to
keep the screws for reassembly.
vPull the eight wires of the control station bundle (B) through the secondary bushing of the back plate (A).
wMake electrical connections in gang box (D) (hot, neutral, ground wires) to non-switched electrical circuit wiring using
UL approved wire nuts. Route eld wiring away from sharp projections, corners and internal components. For Molex,
white to negative/common, black to ositive/hot and green to ground.
x
Join the two Molex connectors (C) together, placing excess wiring and Molex connectors into the gang box (D).
yIf installing an SQA261RSAEA (Master Clock) connect the 3 Interconnecting Wires (J) from the SQA261RSAES (Slave
Clock) using UL approved wire nuts.
z
Mount back cover (A) to electrical box (D) using 2 screws (single gang) or 4 screws (double gant). Screws not provided.
Make electrical connections from the ATSTCS Control Station (G) to the clock with the eight (8) wires from the control
station (H) at this time. See wiring detail on page 8.

Connect the RJ11 connector (E) and harness into the RJ11 socket in the receiver module.
Assemble the clock cover (F) to the back plate (A) using the screws saved in Step 1 above.

Make sure the SiteSync IQ system controller and other equipment is set up and operational.
nNote: Clocks should be installed within 24 hours of installing the system controller. After 24 hours, the system controller will
enter Quiet Mode. Pressing 3-5-7 on the keypad will disable Quiet Mode for 6 hours.
Apply power to the circuit and conrm correct operation.
Upon startup, the clock will ash the version number and then correct with the rst valid signal. This should take less
than one minute. If the clock is not updating, review the steps listed above and consult the SiteSync IQ Installation and
Operation Manual for additional troubleshooting assistance. If SQA261RSAES was installed, it will copy the display of
the SQA261RSAEA.
CAUTION: Electric Shock Hazard! When installing, route eld wiring away from sharp projections, corners, and internal
components.
11
12
(3) WIRES - ONLY USED
WITH SLAVE CLOCK
A
B
C
D
E
F
G
H
I
J

© American Time & Signal Co.
Appendix Maintenance
Code Blue
Operation Control Station Clock/Timer
7

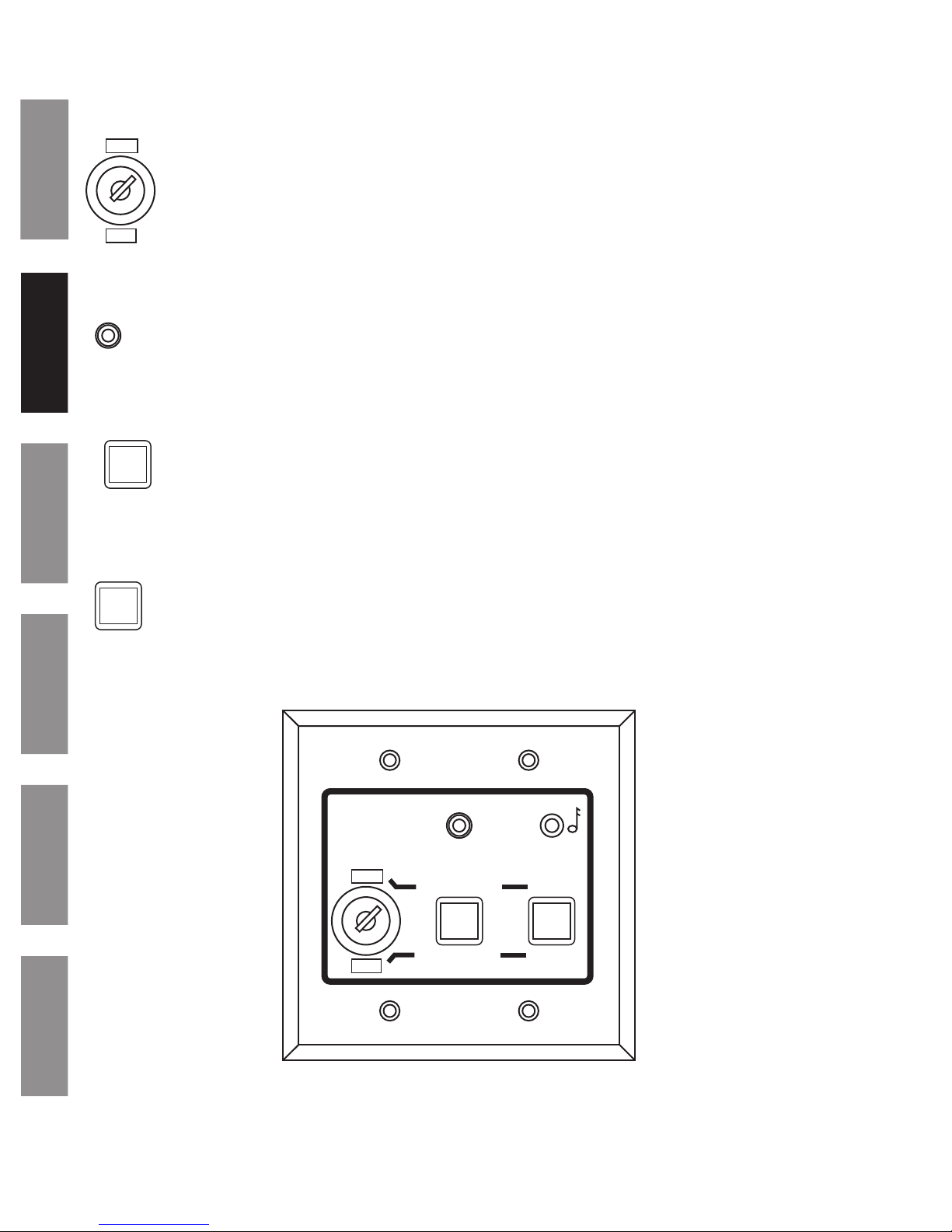

Control Station Switch Functions
Run/Set Switch -
Set Position: This position is used to set a preset up or down counting time (Timer). It is also used
to reset the Code Blue timer.
This position is not used for setting time. The controller will allow you to enter in a
12/24 hour mode and set a time. However the time will be controlled and updated by
the SiteSync IQ system controller.
Run Position: This position is used to permit Clock/Timer to operate.
Up/Clock/Down Switch -
Up Position: This position is used to choose up counting elapsed timer mode.
Clock Position: This position is used to choose clock mode.
Down Position: This position is used to choose down counting elapsed timer mode.
Start/Stop/Increment Switch -
This button is used to start, stop, and resume timer count, when Run/Set Switch is in the Run position
(Code Blue timer can only be stopped).
This button is also used to increment/advance the number value being set when the Run/Set Switch
is in Set position.
Reset/Enter Switch -
This button is used to used to return a timer (excluding the Code Blue timer) to the beginning of its
count, when the Run/Set Switch is in Run position.
This button can also be used to select a eld (i.e. format, minute digits, hour digits) when the Run/Set
Switch is in Set position.
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK
RESET
ENTER
RUN
SET
UP
DOWN
CLOCK
START/STOP
INCREMENT

© American Time & Signal Co.
AppendixMaintenance
Code Blue
OperationControl StationClock/Timer
8
Control Station Installation Instructions
The ATSTCS Control Station can be mounted to a double gang box, 11/2inch deep or deeper. The Control Station can be
mounted up to 30 feet away from the Digital Clock/Timer. The recommended minimum interconnecting eld wire size is
#22.8 AWG stranded wire. Ensure that installation conforms to the National Electrical Code and local wiring codes.
CAUTION: Electric Shock Hazard! Ensure that no electrical power is present on any wire before installation.
uPull interconnecting eld wires into the double gang box.
vConnect eld wiring interconnecting the ATSTCS Control Station with the Digital Clock/Timer to the appropriate wires of
the Control Station. See wiring detail below.
wMount the Control Station to the double gang box using the machine screws provided.
K2+ K2– K1+ K1– 12VAC 12VAC UNREG GND PIEZO S5 S4 S3 S2 S1
K2+ K2– K1+ K1–
GND CLK DATA
RED BLACK VIOLET GREY BROWN BLUE ORANGE YELLOW
CHASSIS
NEUTRAL
120VAC
TERMINALS K2+ AND K2– ARE USED FOR CODE BLUE MODE
Typical wiring for the Master Digital Timer with Control Station
PIEZO
BUZZER
30 ft. maximum
#22 AWG wire
(minimum) with
1/32” insulation
(minimum)
RESET
ENTER
START/STOP
INCREMENT
UP CLOCK DOWN
SET
RUN
LABEL #
H004273M
Master Clock Terminal Block
Slave Clock Terminal Block
nNote: Just for use if installing
master/slave clocks.

© American Time & Signal Co.
Appendix Maintenance
Code Blue
Operation Control Station Clock/Timer
9
Operation
Powering Up
u
Before applying power, place the SET/RUN switch to the RUN position and the UP/DOWN/CLOCK switch to the CLOCK
position.
v
Apply power to the unit. The displays may rotate during the power on self test and then a version number will appear
for a few seconds. Once the receiver inside the clock receives a signal from the SiteSync IQ system controller the clock
will display and begin keeping time. At rst startup the clock may display a time such as 1:00:00 until it receives the
rst time update from the SiteSync IQ system controller. This should only take a few seconds, after which the correct
time from the SiteSync IQ system controller should appear.
w
If using an SQA261RSAES, this clock will only copy what is displayed on the SQA261RSAEA it is connected to. If power
is turned off to the master clock, this clock will also turn off.
Setting Time
Setting of the time is not needed for the digital clock or control station. The time information is automatically updated by the
SiteSync IQ system controller. The 12 or 24 hour mode option is congured by the display settings of the system controller.
The ATSTCS control station will allow the user to set a 12 or 24 mode and time when the SET/RUN switch is in the SET
position. However, as soon as the SiteSync IQ system controller updates the 12/24 hour mode chosen the time will be reset
to the time sent by the SiteSync IQ system controller and the 12/24 mode congured in the system controller. Set the SET/
RUN switch to the RUN position and the UP/DOWN/CLOCK switch to the CLOCK position to return the clock display.
Setting up the Counter Preset Time
If you want to use the alarm and hold feature with the UP timer, you will need to set a preset time for the UP timer.
u
Set the UP/DOWN/CLOCK switch to the UP position.
v
Set the SET/RUN switch to the SET position. The hours digits will be ashing.
w
Using the INCREMENT switch, set the desired hours for the preset time, then press ENTER. The minutes digits will now
be ashing.
x
Set the desired minutes the same way, then press ENTER. The seconds digits will then be ashing.
y
Set the desired seconds the same way, then press ENTER. The display will then ash donE.
z
Set the SET/RUN switch back to the RUN position.
Note: A preset of 00:00:00 allows the digital clock/timer to be used as a standard elapsed timer with a maximum elapsed
time of 99:59:59.

© American Time & Signal Co.
AppendixMaintenance
Code Blue
OperationControl StationClock/Timer
10
Operation
Up Counter Elapsed Time Operation
Once the desired preset value has been set, the unit is now ready to function as an UP count elapsed timer.
u
Be sure the SET/RUN switch is in the RUN position.
v
Set the UP/DOWN/CLOCK switch to the UP position.
w
Press RESET to display 00:00:00.
x
Press the START/STOP switch to begin counting elapsed time.
y
Press the START/STOP switch again to stop and hold the count.
z
Press the START/STOP switch again to resume elapsed time counting.

To start over press RESET to display 00:00:00 again.
When the timer reaches the preset value, it will sound the audible alarm for 2 seconds and hold the time count.
During an UP count elapsed time operation, you can display any of the other time functions using the UP/DOWN/CLOCK switch
as desired.
Setting the Down Counter Preset Time
If you are using the clock as a down counting elapsed timer, you will need to set a preset time to count down from. In this
mode, the alarm and hold will occur at 00:00:00.
u
Set the UP/DOWN/CLOCK switch to the DOWN position.
v
Set the SET/RUN switch to the SET position. The hours digits will be ashing.
w
Using the INCREMENT switch, set the desired hours for the preset time, then press ENTER. The minutes digits will now
be ashing.
x
Using the INCREMENT switch, set the desired minutes for the preset time, then press ENTER. The seconds digits will
then be ashing.
y
Using the INCREMENT switch, set the desired seconds for the preset time, then press ENTER. The display will then ash
donE.
z
Set the SET/RUN switch back to the RUN position.
Down Counter Elapsed Time Operation
Once the desired preset value has been set, the unit is now ready to function as a DOWN count elapsed timer.
u
Set the UP/DOWN/CLOCK switch to the DOWN position.
v
Be sure the SET/RUN switch is in the RUN position.
w
Press RESET to display the preset value which was set previously.
x
Press the START/STOP switch to begin counting down elapsed time.
y
Press the START/STOP switch again to stop and hold the count.
z
Press the START/STOP switch again to resume elapsed time counting.

To start over press RESET to display the preset value again.
When the timer reaches 00:00:00, the timer will stop counting and the audible alarm will sound for 2 seconds.
During a DOWN count elapsed time operation, you can display any of the other time functions using the UP/DOWN/CLOCK
switch as desired

© American Time & Signal Co.
Appendix Maintenance
Code Blue
Operation Control Station Clock/Timer
11
Code Blue
Description
The Code Blue feature provides an override which forces the clock into a special count up elapsed time mode. No matter
which of the three normal functions is being displayed, Code Blue input will cause the unit to begin counting elapsed time
from 00:00:00. All other functions of the unit continue to operate in the background during a Code Blue.
Operation
A Code Blue is initiated by applying a signal ranging from 12vac/vdc to 30vac/vdc to the K2+ and K2- terminals. See the
sample wiring diagram below for more detail.
The Code Blue timer is the highest priority function of the clock/timer while in the run mode. No matter which of the 3 normal
functions is being displayed, the Code Blue input will cause the clock to begin counting up elapsed time from 00:00:00.
The Code Blue timer can be stopped and the time held for viewing by pressing the START/STOP button on the ATSTCS switch
panel. The Code Blue timer cannot be restarted from the switch panel.
To reset the clock back to normal operation, the RUN/SET switch must be set to the SET position momentarily and then
returned to the RUN position.
All other functions of the clock continue to operate in the background during a Code Blue. Time of day and time corrections
from the SiteSync IQ system controller will not be affected. The standard count up timer and the count down timer will
continue as well. However, if one of these timers is switched on for display when a Code Blue occurs, that particular timer
will be reset when the clock is reset back to normal operation.
K2+ K2– K1+ K1– 12VAC 12VAC UNREG GND PIEZO S5 S4 S3 S2 S1
RED BLACK VIOLET GREY BROWN BLUE ORANGE YELLOW
CHASSIS
NEUTRAL
120VAC
12 VAC/DC TO 30 VAC/DC
SUPPLIED BY OTHERS
CODE BLUE CONTACT
FROM OTHER EQUIPMENT
Digital Clock/Timer Code Blue wiring using Control Station.
The Control Station is connected as normal.
PIEZO
BUZZER
RESET
ENTER
START/STOP
INCREMENT
UP CLOCK DOWN
SET
RUN
CODE BLUE WIRING

© American Time & Signal Co.
AppendixMaintenance
Code Blue
OperationControl StationClock/Timer
12
Important Considerations
The ATSTCS must be in the RUN mode for Code Blue to override.
The 12vac/vdc to 30vac/vdc signal that starts the Code Blue timer originates from equipment external to the Digital Clock/
Timer. The external equipment usually employs a switch device (i.e., a relay contact) to apply this signal. That switching
device is often referred to as the Code Blue contact.
The Code Blue contact does not have to open before resetting the clock/timer back to normal operation, but must be opened
before another Code Blue can occur. The transition from no voltage to applied voltage (across the K2+ and K2- terminals)
initiates a Code Blue.
If the Code Blue contact opens and closes again before the clock/timer is reset back to normal operation, the Code Blue timer
will start over from 00:00:00.
If a power failure occurs during a Code Blue and the back up battery is in place, and the Code Blue contact is still closed
when the power returns, the Code Blue timer will start over from 00:00:00. If the Code Blue contact is open when the power
returns, the Code Blue timer will continue counting the elapsed time including the time while the power was off.
If a power failure occurs during a Code Blue after the Code Blue timer has been stopped for viewing, and the Code Blue
contact is still closed when the power returns, the Code Blue timer will start over from 00:00:00. If the Code Blue contact
is open when the power returns, the elapsed time where the Code Blue timer was stopped prior to the power failure will be
displayed.

© American Time & Signal Co.
Appendix Maintenance
Code Blue
Operation Control Station Clock/Timer
13
Operator Maintenance
Cleaning
Occasionally the Digital Clock/Timer and the Control Station will need to be cleaned. Dampen a soft, nonabrasive cloth with
alcohol or a mild detergent. Do not use abrasives or solvents! Gently wipe the exteriors of the units with the cloth.
Battery Maintenance
The Digital Clock/Timer uses a single 9vdc Ni-Cad battery rechargeable via an on board charger. This battery retains the time
of day and timer counts when 120vac power is lost. If each in a series of 120vac power losses occur for a similar length of
time, the battery can be conditioned to provide only that amount of backup capacity. This phenomenon is called “memory”
effect. The Ni-Cad battery’s “memory” can be erased by deeply discharging the battery and recharging it.
It is recommended that the operator remove 120vac power from the Digital Clock/Timer once per year for at least four hours.
nNote: There is no 9v battey in the SQA261RSAES clock. Only the SQA261RSAEA clock it is connected to has a battery.
System Maintenance
The Digital Clock/Timer and ATSTCS Control Station have been manufactured for years of dependable, reliable use. However,
to assure the reliability of this product, it is recommended that the Digital Clock/Timer be tested at least every six (6) months
with the Control Station and Code Blue contact for operation in accordance with wiring congurations used.
WARNING
Replace the battery only with a 9v Ni-Cad battery.
Do not replace with a regular (primary) 9v transistor
battery (i.e., zinc carbon battery, alkaline battery)!
An incompatible battery may leak or explode,
causing equipment damage and/or personal injury!
If battery must be replaced, contact American Time
at 866-748-3796.

© American Time & Signal Co.
AppendixMaintenance
Code Blue
OperationControl StationClock/Timer
14
Appendix
Appendix 1

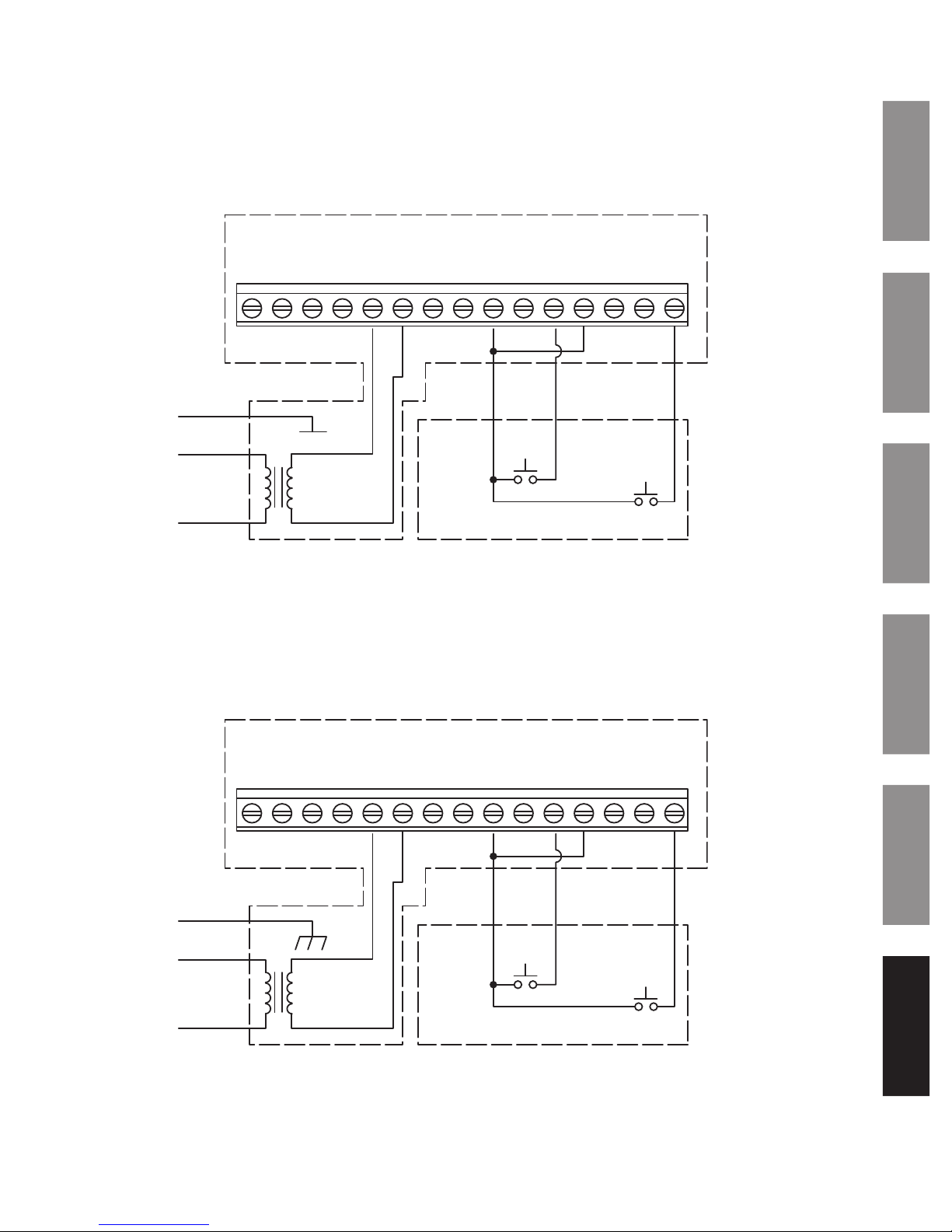

Using the Digital Clock/Timer as a Count Up Elapsed Timer Only
For applications where the user does not want to use the clock and down count functions, the terminal block can be wired as
shown below. When wired in this manner, the preset time cannot be changed and the alarm will not sound.
Appendix 2
Using the Digital Clock/Timer as a Count Down Elapsed Timer Only
For applications where the user does not want to use the clock and up count functions, the terminal block can be wired as
shown below. When wired in this manner, the preset time cannot be changed and the alarm will not sound.
K2+ K2– K1+ K1– 12VAC 12VAC UNREG GND PIEZO S5 S4 S3 S2 S1
BLACK GREY YELLOW
CHASSIS
NEUTRAL
120VAC
RESET
START/STOP
K2+ K2– K1+ K1– 12VAC 12VAC UNREG GND PIEZO S5 S4 S3 S2 S1
BLACK GREY YELLOW
CHASSIS
NEUTRAL
120VAC
RESET
START/STOP

© American Time & Signal Co.
15
Appendix
Appendix Maintenance
Code Blue
Operation Control Station Clock/Timer

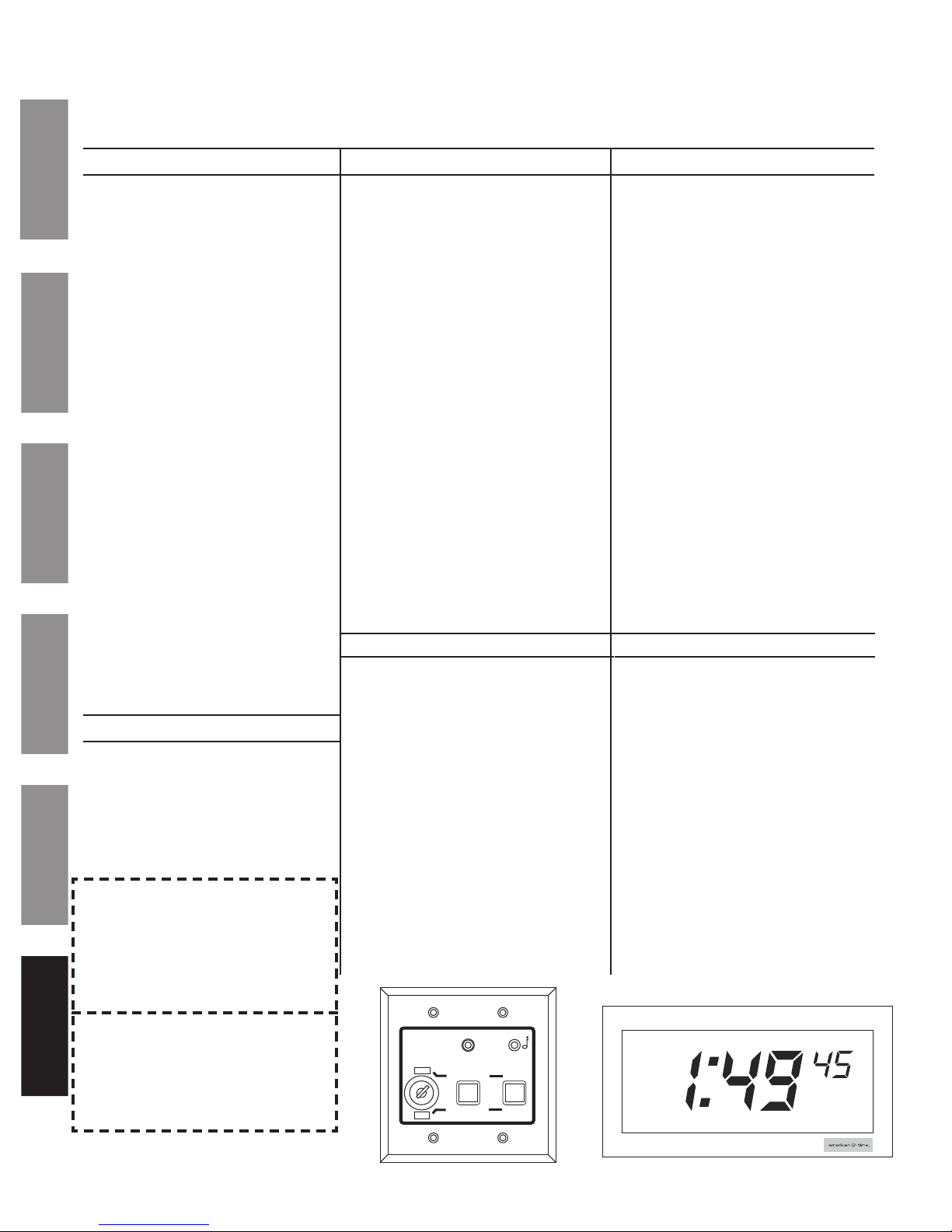

Appendix 3
Operator's Flowchart
To Set Time
UP/CLOCK/DOWN switch in
CLOCK position
SET/RUN switch in SET position
Clock display 24Hr or 12Hr
Push INCREMENT to change
Push ENTER
Clock displays ashing hours
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing minutes
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing seconds
digits
Push INCREMENT to change
Push ENTER
Display shows DONE
Place SET/RUN switch in RUN
position
To Use as a Clock
Place SET/RUN switch in RUN
position
UP/CLOCK/DOWN switch in
CLOCK position
Code Blue Operation
SET/RUN switch MUST be in
RUN position
To stop and hold code blue time
for viewing, press START/STOP
To Reset Clock/Timer to
Normal Operation
Place SET/RUN switch
momentarily in SET position and
return switch to RUN position
To Set UP Counter Preset
UP/CLOCK/DOWN switch in UP
position
SET/RUN switch in SET position
Clock displays ashing hours
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing minutes
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing seconds
digits
Push INCREMENT to change
Push ENTER
Display shows DONE
Place SET/RUN switch in RUN
position
To Use UP Counter
UP/CLOCK/DOWN switch in UP
position
Place SET/RUN switch in RUN
position
Place RESET to display 00:00:00
Place START/STOP to Begin
Place START/STOP to Hold
Place START/STOP to begin
again
Alarm will sound when preset
time is reached
Press RESET to reset counter
To Set DOWN Counter Preset
UP/CLOCK/DOWN switch in
DOWN position
SET/RUN switch in SET position
Clock displays ashing hours
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing minutes
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing seconds
digits
Push INCREMENT to change
Push ENTER
Display shows DONE
Place SET/RUN switch in RUN
position
To Use DOWN Counter
UP/CLOCK/DOWN switch in
DOWN position
Place SET/RUN switch in RUN
position
Place RESET to display preset
time
Place START/STOP to Begin
Place START/STOP to Hold
Place START/STOP to begin
again
Alarm will sound 00:00:00 is
reached
Press RESET to reset counter
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK
12 3/8 ”
5 3/8”
3.0”
Digital Clock/Timer
