Wi-Fi Installation Manual
Introduction
The Wi-Fi clock(s) should be installed in a secure location protected from:
– Physical damage
– Water, including condensation
– Direct sunlight
– Operation by untrained personnel
Operation of this product in a manner inconsistent with the instructions in the manual may result in damage to
the product and will void the warranty.
American Time
140 3rd Street South, PO Box 707
Dassel, MN 55325-0707
Phone: [phone]
Fax: [phone]
american-time.com
Safety Precautions

Wi-Fi Installation Manual
3
© American Time
Table of Contents
Introduction ..................................................................................................................................................................4
Specifications...............................................................................................................................................................5
Installation ................................................................................................................................................................ 6-8
Battery Analog Clocks .............................................................................................................................................6
Electric Analog Clocks .............................................................................................................................................7
Digital Clocks...........................................................................................................................................................8
Button operation .....................................................................................................................................................9 -10
Analog Button Operation .........................................................................................................................................9
Digital Button Operation......................................................................................................................................... 10
Conguration......................................................................................................................................................... 12-18
Limited Access Point Mode ................................................................................................................................... 12
Clock Conguration ............................................................................................................................................... 13
Wi-Fi Conguration ................................................................................................................................................ 14
Administrator Settings............................................................................................................................................ 18
Homing clock (check hand position) ........................................................................................................................... 19
Firmware update ........................................................................................................................................................20
Factory Defaults restore............................................................................................................................................ 21
Troubleshooting ....................................................................................................................................................22-23
Analog Clock .........................................................................................................................................................22
Digital Clock...........................................................................................................................................................23
Appendix A - SNTP Time Servers ............................................................................................................................. 24
Appendix B - Supported Time Zones.......................................................................................................................25
Appendix C - Enterprise Security Conguration .....................................................................................................26

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
4
Wi-Fi Installation Manual
Introduction
Wi-Fi is a popular technology that allows an electronic device to exchange data or connect to the internet wirelessly
using radio waves. Wi-Fi and Simple Network Time Protocol (SNTP) are used to make installation and setup as
simple as possible. All you need to do is apply power to your precongured clock in an area where the intended
Wireless Local Area Network (WLAN) signal strength is sufficient.
Each Wi-Fi clock can be factory-congured to receive the precise time signal from your network server. They also
automatically correct for the Daylight Saving Time changes and require little maintenance. Wi-Fi clocks only require
synchronization twice per day using SNTP and create very little network trafc with staggered wake times. The electric
and digital models can be user-selected to synchronize at a desired frequency.
Network
Precongured Wi-Fi Clocks are plug and play on networks with Dynamic Hosting Conguration Protocol (DHCP).
A limited access point mode is also available for clocks that are not precongured at American Time as recommended.
Introduction

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
Wi-Fi Installation Manual
5
Specifications
Optional Product:
Security Bracket (part number varies by size)
Features:
• Supports 2 static IP address SNTP servers for redundancy or Pool domain names
• 802.11n (b/g compatible, 2.4 GHz only)
• Data rates: 72, 65, 58, 43, 29, 22, 14, 7 Mb ps (8 0 2.11n)
54, 48, 36, 24, 18, 12, 9, 6 Mbps (8 02.11g)
11, 5.5, 2, 1 Mbps (8 02.11b)
• Security protocols: WEP, WPA/WPA2 and Enterprise (PEAPv0-MSCHAPv2)
• DHCP or Static IP addressing
• Limited Access point operation for configuration
• Clocks may be precongured (SSID, Passphrase, time zone, time servers) for plug-n-play installation
• Staggered wake times for reduced network load
• Wi-Fi Alliance Radio/FCC/ICES certified
• RoHS Compliant
Wi-Fi Analog Clock Features:
• WLAN time synchronization
• Status LED
• Plug and play installation with no manual adjustments
• ±1 second accuracy
• Battery clocks use six AA lithium batteries (included domestically)
• Electric clocks - 120vac and 24vac
• Plastic case clocks are high-impact resistant with a shatter-resistant polycarbonate crystal
• Metal case clocks are durable steel, with powder-coat nish and convex glass crystal
Wi-Fi Digital Clock Features:
• Super-bright red LED for high readability
• WLAN time synchronization
• Non-glare lens
• Selectable 12 or 24-hour format
• ±1 second accuracy
• Black anodized aluminum frame (except American series digital clocks use steel enclosures)
• Visibility: 1.8 inches=75 ft.; 2.5 inches=150 ft.; 4 inches=250 ft.
Specifications:
Dimensions: Varies by model
Weight: Varies by model
Operating Humidity: 0% to 95%, non-condensing
Operating Temperature: 41˚F to 131˚F
Storage Temperature: 41˚F to 131˚F
Accuracy: ±1 se cond

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
6
Wi-Fi Installation Manual
Introduction
AC
DC
To
wiring
box
Battery Analog Clocks
Before installing verify:
• Dynamic Host Conguration Protocol (DHCP) settings
• Firewall port 123 is open for UDP data
• Good Wi-Fi coverage at intended installation location.
• Red gear locking pin (A) is removed from the movement
1. Adjustments/Conguration via limited access Point mode
If clock was precongured at American Time as recommended, skip to step 2.
Otherwise, refer to Button Operation (pg 9) and Conguration (Limited Access Point mode, pg 12)
to congure clock manually.
2. Apply power to the clock by inserting the barrel plug (C) of the battery pack into the left side of the Wi-Fi
module where the power connection is located.
n Note:If red gear locking pin (A) has not been removed, remove it prior to applying power.
i. Verify the LED (B):
1. Flashes red when power is applied to the clock.
2. Turns solid green within 60 seconds. Signies normal operation and connection.
3. Solid orange indicates a time server connection failure
4. Solid red indicates a failed Wi-Fi connection
ii. Verify the clocks hands begin to spin rapidly within 3 minutes after applying power.
iii. Verify the correct time on the clock within 10 minutes of applying power.
3. Place the clock on the wall using the hanger on the back of the clock or the optional security bracket
(sold separately).
A - Red gear
locking pin
C - Battery pack
power input
B - LED
Analog Clock Installation
Security Bracket
Keyhole Hanger

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
Wi-Fi Installation Manual
7
AC
DC
To
wiring
box
Electric Analog Clocks
Before installing verify:
• Dynamic Host Conguration Protocol (DHCP) settings
• Firewall port 123 is open for UDP data
• Good Wi-Fi coverage at intended installation location.
• Red gear locking pin (A) is removed from the movement
1. Adjustments/Conguration via limited access Point mode
If clock was precongured at American Time as recommended, skip to step 2.
Otherwise, refer to Button Operation (pg 9) and Conguration (Limited Access Point mode, pg 12)
to congure clock manually.
2. Apply power to Wi-Fi module by inserting the barrel plug of the power cord into the left side of the Wi-Fi
module where the power connection is located for the electric clocks. Insert the other end of the power
cord into the appropriate power source.
n Note:If red gear locking pin (A) has not been removed, remove it prior to applying power.
i. Verify the LED (B):
1. Flashes red when power is applied to the clock.
2. Turns solid green within 60 seconds.
3. Solid orange indicates a time server connection failure
4. Solid red indicates a failed Wi-Fi connection
ii. Verify the clocks hands begin to spin rapidly within 3 minutes after applying power.
iii. Verify the correct time on the clock within 10 minutes of applying power.
3. Place the clock on the wall using the hanger on the back of the clock or the optional security bracket
(sold separately).
A - Red gear
locking pin
B - LED
Security Bracket
Keyhole Hanger
Power Source
Analog Clock Installation

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
8
Wi-Fi Installation Manual
Introduction
12”
6”
6”
6 1/8”
9 1/8”
CEILING
Digital Clocks
Before installing verify:
• Dynamic Host Conguration Protocol (DHCP) settings
• Firewall port 123 is open for UDP data
• Good Wi-Fi coverage at intended installation location.
Digital Single Display Surface Mounting
CAUTION: Risk of Electrical Shock - Disconnect and lock out power to the electrical box before
installing or servicing the clock.
1. Remove the hanger from the clock by removing
the screw on top of the clock.
2. Mount the hanger on the wall to a single or double gang box.
3. Make electrical connections (black to hot, white to neutral and
green to ground) for the Molex cable (not wired to the clock) to
a non-switched electrical circuit wiring using UL approved wire
nuts. Route eld wiring away from sharp projections and corners.
4. Join the wall and clock Molex together.
5. Mount the clock on the hanger and secure
with the screw removed in Step 1.
6. Remove plastic protector from display face.
7. Apply power to the circuit and conrm correct operation.
Digital 2-Sided Display - Ceiling or Wall Mount
CAUTION: Risk of Electrical Shock - Disconnect and lock out power
to the electrical box before installing or servicing the clock.
1. Make electrical connections (black to hot, white to neutral and green to ground) for the
Molex cable (not wired to the clock) to non-switched electrical circuit wiring using UL
approved wire nuts. Route eld wiring away from sharp projections and corners.
2. Join the wall/ceiling and clock Molex together.
3. Mount the clock to the ceiling (4" box) or wall (single or double gang box).
4. Remove plastic protector from display face.
5. Apply power to the circuit and conrm correct operation.
nNote for Digital Clocks: If the clock displays the following message: Nt-F (network failure) or
tS-F (time server failure), there is a connection failure with the network and time servers.
Digital Clock Installation
Surface mount
12”
4 5/8”
7 5/8”
6 1/8”
Ceiling mount
Wall mount

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
Wi-Fi Installation Manual
9
Analog Button Operation
A recessed push button is located in the lower central part of the Wi-Fi module. It can be used to initiate 4
different operations:
1. Conguration (via Limited Access Point). See also, page 12.
2. Clock homing (sending clock hands to 12 O’clock). See also, page 19.
3. Firmware updates (internet access is required). See also, page 20.
4. Factory defaults restore (restores to the conguration
that the clock was shipped). See also, page 21.
Each operation is proceeded by a number of orange ashes. If the button is released after the operational ash count
(see list below) it will attempt the specic operation listed.
Movement for Analog Clocks
Sync Button: This button is not applicable for Wi-Fi products.
Home Button: This button is used to return the clock hands to the 12:00 or
Home position. Can be used to verify if the hands are set in the right position.
Reset Button: This button is not applicable for Wi-Fi products.
Orange LED
Flash Count
Button
Press Duration Operation LED Indication Description
0 < 1 second
Wi-Fi
Module Sleep OFF Wi-Fi module will immediately go back to sleep
1 1 - 5 seconds Configuration
Flash
GREEN/ORANGE
Wi-Fi Limited Access Point is available for clock and
Wi-Fi conguration (web browser 192.168.240.1)
25-10 seconds Clock Homing
6 seconds RED
5 seconds ORANGE
10 seconds rapid
GREEN flash
Send clock hands to 12 O'clock position then stop
until power is reset
310-15 seconds
Firmware Update
Flash GREEN/
ORANGE/RED Update the rmware from the internet (port 80)
4 15+ seconds
Factory
Defaults Restore Flash RED/GREEN Reset conguration to factory settings
LED
HOME SYNC
RESET

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
10
Wi-Fi Installation Manual
Introduction
Digital Button Operation
Provisioning Clock
60T0SEtU
Scrolling
SEtUP
Press Enter Button
Setting Clock to 12 or 24 Hour Mode
12or SEt
SEt
CANC
CANC
SOFt
dONE
dONE
Scrolling
12or24 Hr
Scrolling
SEt 12 Hr
Scrolling
SEt 24 Hr
Scrolling
CANCEL
Scrolling
CANCEL
Press Enter Button Press Enter Button
Press Enter Button
Press Enter Button
Press Enter Button
Press Increment Button
When Clock is Connected
Press Increment Button
Press Increment Button
Continue to Software Update
on Following Page
Press Increment Button
Press Increment Button
Display Software Version
SOFt Press Enter Button SOFt
Scrolling
sOFt UPdAtE
Press Enter Button
Press Increment Button
Fig. 1
Set the clock
into provisioning
mode in which
the settings can
be changed.
Go to the top of the clock case to change settings on the
digital clock. Begin by switching to Set and using the Enter and
Increment buttons as required, referencing the Figures below.
When complete, switch back to the Run position.
Fig. 3
Display the
software version
currently installed.
Fig. 2
Sets the clock
display to a 12
hour or 24 hour
time format.
Run
SetIncrement
Enter
3”
Edge of casing
.95”
SEtU
Scrolling
SEtUP
The buttons on the digital clock can be used for general clock conguration and advanced debug.

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
Wi-Fi Installation Manual
11
Digital Button Operation
Press Increment Button
Press Increment Button
Press Increment Button
Software Update
YES
NO
UPdA
FACt
Press Enter Button Press Enter Button
Press Enter Button
SOFt
Scrolling
sOFt UPdAtE
Scrolling
UPdAtE DONE
Scrolling
FACt DEfAULt
Press Increment Button
Factory Default
YES
NO
FACt Press Enter Button Press Enter Button
Press Enter Button
Press Increment Button
Scrolling
FACt DEfAULt
dONE
d1A6
Diagnostics
IP
Press Enter Button Press Enter Button
Press Enter Button
Press Enter Button
Press Enter Button
NEt-
-065
d1A6
Press Increment Button
Scrolling
NEt-P SNtP-p
Range Example
Optimal is: -070
XXX_ XXX_ XXX_ XXX_
Press Increment Button
Press Increment Button
CANC
Scrolling
CANCEL
SEtUSEtU
Scrolling
SEtUP
Scrolling
SEtUP
Fig. 4
Update the
rmware via
access to the
internet through
port 80.
Fig. 5
Restore the
clock to the
precongured
factory settings.
Fig. 6
Run connection
diagnostics on
the clock.

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
12
Wi-Fi Installation Manual

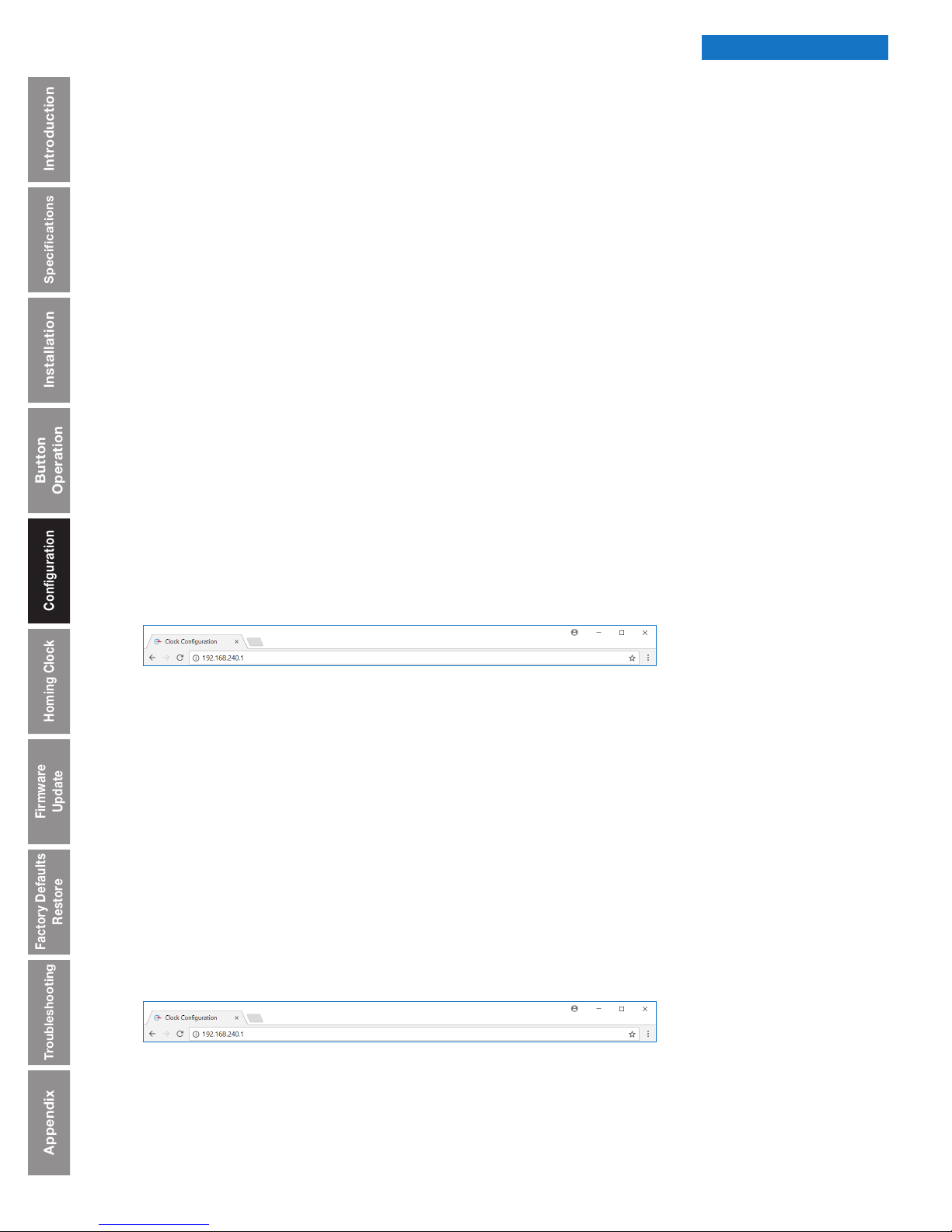

Introduction
The clock will act as a limited access point for direct Wi-Fi communication to complete conguration.
After connecting to the clock with a wireless device it can be congured with a web browser.
n Note: If your clock was precongured by American Time this process is unneeded unless changes are required.
Analog Configuration
To enter conguration (limited access point mode) complete the following process:
Analog Battery Clocks: Apply power to Wi-Fi module by inserting the barrel plug (C) of the battery pack into the
left side of the Wi-Fi module where the power connection is located.
Analog Electric Clocks: Apply power to Wi-Fi module by inserting the barrel plug of the power cord into the left
side of the Wi-Fi module where the power connection is located for the electric clocks. Insert the other end of the
power cord into the appropriate power source.
nNote: If red gear locking pin (A) has not been removed, remove it prior to applying power.
1. Verify the LED (B) starts flashing red.
2. Wait for the LED to either stop ashing (Battery clock) or turn a solid color (Analog clock).
3. Press and hold the button located on the middle of the Wi-Fi module.
a. The LED (B) should turn solid green to indicate the button press (continue holding the button).
b. Wait for the LED (B) to ash orange one time.
This will take about 2 seconds (additional ashes indicate other modes).
4. Release the button.
a. Verify the LED (B) ashes green/orange indicating Limited Access Point mode is active.
5. Connect to the clock with a Wi-Fi enabled device (SSID will show up as American Time - xxxxxx
under available wireless networks, where xxxxxx is the last 6 digits of the mac address.
6. Enter 192.168.240.1 into the URL of a web browser of the Wi-Fi enabled device.
7. Refer to Clock Conguration (page 9) to congure clock settings and
Wi-Fi Conguration (page 14) to congure Wi-Fi settings.
8. Disconnect power from the Wi-Fi module by disconnecting the barrel plug (C) of the battery
pack from the left side of the Wi-Fi module where the power connection is located.
nNote: Power should be applied at the intended installation location to verify good Wi-Fi coverage.
Digital Configuration
To enter conguration (limited access point mode) complete the following process:
Ensure that the clock is powered up and move the Run/Set switch from Run to Set. The clock will display a
scrolling message: SEtUP. Press the Enter button and the clock Wi-Fi module will go into provisioning mode.
1. Connect to the clock with a Wi-Fi enabled device (SSID will show up as American Time - xxxxxx
under available wireless networks, where xxxxxx is the last 6 digits of the mac address.
2. Enter 192.168.240.1 into the URL of a web browser of the Wi-Fi enabled device.
3. Refer to Clock Conguration (page 13) to congure clock settings and Wi-
Fi Conguration (page 14) to congure Wi-Fi settings.
4. When the clock Wi-Fi module is connected to the Wi-Fi enabled device, the clock will
scroll the message: CANCEL across the screen. Press the Enter button to cancel the
provisioning and disconnect the Wi-Fi module from the Wi-Fi enabled device.
Conguration (Limited Access Point Mode)

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
Wi-Fi Installation Manual
13
Clock Configuration
1. Clock Display Format – Sets the clock displays to a 12 hour or 24 hour time format. Applicable to
Digital Clocks only.
2. Sync Frequency – Sets the frequency of the clock sync from 1 to 12 hours. Applicable to Electric and
Digital clocks only.
3. Time Zones – The Time Zone entry sets the time zone. Reference Appendix B for a list of all available time zone
configurations.
4. Daylight Saving Time – Enable (Auto, Custom Fixed or Custom Floating) or Disable (Off) Daylight Saving
Time adjustments.
5. Use IP Address – When Use IP Address is selected "Primary SNTP IP and "Secondary SNTP IP" static IP
addresses are used for SNTP synchronization.
6. Use DNS – When Use DNS is selected "Pool Domain Name" is used for SNTP synchronization.
7. Primary SNTP IP – This is the rst SNTP time server from which the Wi-Fi clock will receive time. This server will
be attempted rst. If it fails to provide a valid time the secondary server is tried next.
8. Secondary SNTP IP – This is the second SNTP time server from which the Wi-Fi clock will receive time. This
server is attempted only after the Primary SNTP server IP fails.
9. Pool Domain Name – This text is used to retrieve an IP address from a DNS server for SNTP synchronization (i.e.
Pool.ntp.org or time.nist.gov).
10. Save button – This button is used to save on screen settings.
11. Wi-Fi Conguration – This button moves to client settings menu page. Through the client settings menu page
wireless network conguration pages can also be reached.
12. Exit Setup – This button exits limited Access Point mode and returns to normal operation.
13. Current SSID – The current Service Set Identier (SSID) is the name of the wireless network the Wi-Fi clock will
attempt to use if left unchanged.
14. FW Version – The current rmware version used on the Wi-Fi clock.
15. MAC Address – The Media Access Control (MAC) address is a unique identier assigned to the Wi-Fi clock
network hardware for communications.

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
14
Wi-Fi Installation Manual
Introduction
Wi-Fi Configuration
1. Click on “WiFi Conguration” button from clock conguration pages.
2. Click on “Wireless and Network Configuration”.
3. Select Wi-Fi conguration entry method.
a. Click on “Select an Existing Network" if beacon is active and available (this is normally the case) from
desired network. If you select this option, go to "a. Select an Existing Network" on page 15.
b. Click on “Manual Conguration to Join a Network” if beacon is not active or is unavailable.
If you select this option, go to "b. Manual Conguration to Join a Network" on page 17.
Wi-Fi Configuration

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
Wi-Fi Installation Manual
15
Wi-Fi Configuration
a. Select an Existing Network
4. (a) If you selected the existing network option the screen below will
appear while the clock scans for available networks.
5. (a) The screen below will appear when the clock has completed the SSID scan process.
6. (a) Click on the "Select" button next to the SSID you wish to congure your clock to.
7. (a) Enter security information (if required for your network) and click next.
Example
Example
Example
Example
Example
Example
Example
Example
Example

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
16
Wi-Fi Installation Manual
Introduction
nNote: If a static IP address is required, check the Advanced Options and select
“Static IP Address Conguration” radial button.
n Note: For Enterprise Security, see Appendix C
8. (a) Select "Save and Apply" button to save and exit to normal operation.
Wi-Fi Configuration

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
Wi-Fi Installation Manual
17
Wi-Fi Configuration
b. Manual Conguration to Join a Network
4. (b) If you selected “Manual Conguration to Join a Network” in step 3 the screen below will appear.
5. (b) Enter the SSID, security type and security settings.
n Note: If a static IP address is required, check the Advanced Options and select “Static IP Address
Conguration” radial button.
n Note: For Enterprise Security, see Appendix C.
6. (b) Click the next button to continue.
7. (b) Click on the Save and Apply button to save and exit to normal operation.

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
18
Wi-Fi Installation Manual
Introduction
The Administrator Settings are used to enable/disable security for the clock and Wi-Fi browser
pages. Enter your security settings (Username and Password) to enable security. Blank out the
username and password to disable security.
1. Click on “WiFi Conguration” button from clock conguration pages.
2. Click on “Administrator Settings” in the Client Settings menu.
3. Enter Username into text eld (leave blank to disable security for limited access point mode).
4. Enter Password and conrm in to the the password text elds (leave
both blank to disable security for limited access point mode).
5. Click on click on “Save and Apply”.
Administrator Settings

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
Wi-Fi Installation Manual
19
Homing Clock
If the clock is dropped it is possible for the clock hands to move from the correct placement. The Wi-Fi
module can tell the clock movement to go to 12 o’clock to verify hand placement is still correct.
1. To check hand placement complete the following process:
2. Apply power to Wi-Fi module by inserting the barrel plug from the power source into
the left side of the Wi-Fi module where the power connection is located.
3. Verify the LED starts flashing red.
4. Wait for the LED to either stop ashing (Battery clock) or turn a solid color (Analog clock).
5. Press and hold the button located on the middle of the Wi-Fi module.
a. The LED should turn solid green to indicated the button press (continue holding the button).
b. Wait for the LED to ash orange one time (do not release the button).
c. Wait for the LED to ash orange twice.
6. Release the button.
a. Verify the LED turns solid red.
b. Verify the LED turns solid orange.
c. Verify the LED flashes green.
7. Hands should begin moving rapidly within 30 seconds.
a. If not, remove power and start with step 1 again.
8. Wait for hands to stop moving (this may take up to 20 minutes).
9. Verify all three hands (second hand, minute hand and hour hand) stop at the 12 position.
a. If not, contact American Time technical support at 800-328-8996.
10.Power cycle Wi-Fi module by disconnecting barrel plug from the power source for 5 seconds and reconnecting.
AC
DC
To
wiring
box
A - Red gear
locking pin
C - Battery pack
power input
Battery Electric
B - LED
AC
DC
To
wiring
box
Power Source
AC
DC
To
wiring
box
AC
DC
To
wiring
box

Introduction
Appendix
Troubleshooting
Configuration
Homing Clock
Firmware
Update
Factory Defaults
Restore
Button
Operation
Installation
Specifications
© American Time
20
Wi-Fi Installation Manual
Introduction
Occasionally American Time will have new rmware updates available. Contact American Time for the most recent
rmware version available. Firmware updates require access to the internet through port 80.
nNote: If trafc is redirected on port 80, rmware updates will fail. Prior to completing the rmware update process
verify internet access is available on port 80.
To complete a rmware update, complete the following process:
nNote: To update rmware on digital clocks, see page 11, Fig.4.
1. Apply power to Wi-Fi module by inserting the barrel plug from the power source into the left side of the
Wi-Fi module where the power connection is located. If clock is currently running, go to step 3.
2. Verify the LED starts flashing.
3. Wait for the LED to either stop ashing (Battery clock) or turn a solid color (Electric clock).
4. Press and hold the button located on the middle of the Wi-Fi module.
a. The LED should turn solid green to indicate the button press (continue holding the button).
b. Wait for the LED to ash orange one time quickly (do not release the button).
c. Wait for the LED to ash orange twice quickly (do not release the button).
d. Wait for the LED to ash orange three times quickly.
5. Release the button.
a. Verify the LED alternates green/orange/red.
b. Verify LED turns off.
c. Verify LED flashes red.
nNote: If the LED turns solid red for approximately 3 seconds, the rmware update process failed.
To verify rmware update process is successful connect to the clock in conguration mode and verify rmware
version at the bottom of the browser page. Contact American Time technical support at 800-328-8996.
6. Power cycle Wi-Fi module by disconnecting barrel plug from the power source for 5 seconds and reconnecting.
Firmware Update
AC
DC
To
wiring
box
AC
DC
To
wiring
box
