Ancheer AM001907 User manual

Caution : Please read the manual before your first ride!
E-Bike
PRODUCT INSTRUCTION
MANUAL

Safety Instruction
General Information
Bike Use
Installation And Adjustment
Meter Operation
Battery And Charging: Further Information
Maintenance
Warranty
Attachment
Warnings
01
03
06
08
12
13
15
16
17
CONTENTS
19

ANCHEER
1
Thank you for choosing our products.
To ensure your safety and health, we encourage you to read this manual thoroughly before
you assemble the bike and take the first ride.Safe and effective use can only be assured if
the equipment is assembled, maintained, and used properly. More importantly, this will
offer you a general understanding and get the most out of your bike.Please check your
electric bike before every ride, especially when traveling long distances.
This manual is intended as a general guide to your new e-bike. For technical support,
including repair information, please consult your dealer.
Things to know before use
Do not use the product before carefully reading the instructions from this manual
and understanding the performance of the item;
Don't lend this product to people who can't operate it, so as not to cause harm; if
you lend the bike, please let the user follow instructions, it could help to decrease
the risk of accident;
The E-bike cannot be used as off-road vehicles or used for extreme bicycle sports;
when riding the bicycle, please wear a safety helmet and protective gear. It is
forbidden to ride with one hand;
Please abide by the traffic rules and prohibit riding on motorized lanes and roads
with multiple pedestrians;
Carry people or objects in accordance with the requirements of laws and
regulations, and do not park in the building's lobby, evacuation stairs, walkways, and
safe entrances and exits;
It is recommended to charge and park in an outdoor dedicated parking hall, while
avoiding rain; when charging, keep away from combustibles, and the charging time
should not be too long;
For safety reasons, please do not change the default speed setting of the electric
bicycle and do not exceed speed limit in accordance with the traffic rule. Riding on
non-motorized lanes, downhills and paved roads not exceeding 15km/h;
When adjusting the handlebar or saddle, please be careful not to exceed the safety
line markings on the handlebar and saddle;
Please check the tire pressure before riding, the recommended tire pressure is 35-
45PSI;
Please check the power circuit, lighting circuit, etc. before riding;
●
●
●
●
●
●
●
●
●
●
Safety Instruction

ANCHEER
2
Safety Instruction
Before riding, please check whether the front and rear brakes work normally, check
the fastening status of the handlebars and front and rear wheels, and check whether
the reflector is damaged or contaminated;
When using the motor, please be careful not to hit vigorously and keep the rotating
shaft lubricated;
Try to avoid traveling in severe weather such as heavy rain;
Riding in rain or snow, the braking distance will be extended, pay attention to slow
down;
It is not allowed to exceed the maximum load of the vehicle body when riding (the
maximum load is 120KG);
It is suitable for people of 16+ years old and physically fit adults, and it is strictly
forbidden to drive electric bicycles on the road by people under 16 years old.
●
●
●
●
●
●

ANCHEER
3
General Information
1. About ANCHEER Electric Bike
ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only
dedicating to innovation, cutting-edge technology and premium materials, but also
providing cost effective e-bikes, to satisfy riders' various needs of transportation and even
desire of exploring sports & outdoors life. Just ride freely with ANCHEER!
2. What’s In the Box (Parts List)
Description Quantity
ANCHEER Electric Bike
Pedal
Stem
Reflector
2
1
1
1
User Manual
Saddle 1
1
Key
Saddle Tube 1
2
Charging Adapter
Kickstand
Throttle 1
1
1
Battery
Quick Release Skewer
Tools Bag 1
1
1
We will decide whether to include the throttle in your product package in accordance
with local laws and regulations. If it is included, it will come as a single part and will
not be pre-installed. You can choose whether to install or not. If you choose to install,
please use the throttle accurately under the guidance of laws and regulations.
Note:

ANCHEER
4
General Information

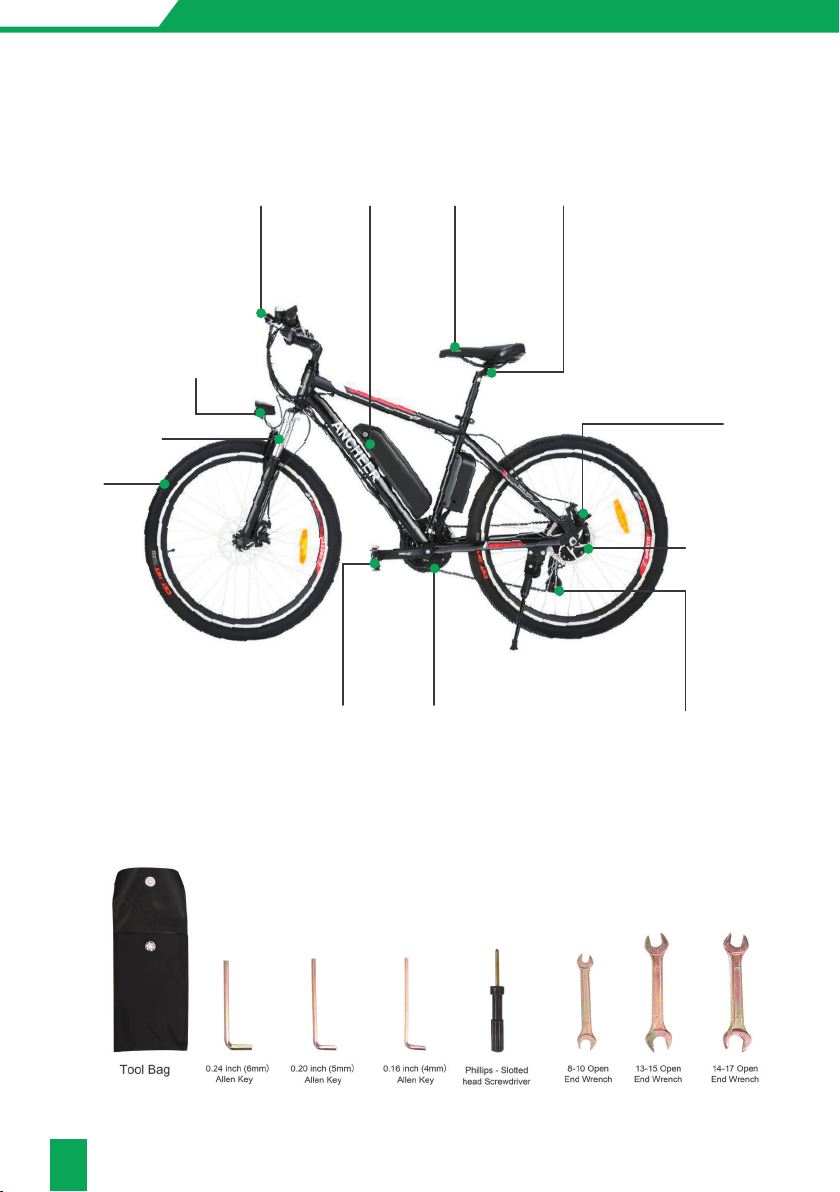

3. Bike Components
Handlebar Battery Saddle
Freewheel
Motor
Height Adjustment
Chainwheel & Cranks Rear Derailleur
Lamp
Front Fork
Tire
Pedal
4. Tool List

ANCHEER
5
General Information
CORRECT FRAME SIZE
For safe and comfortabel riding there should be clearance of 78cm/31in from ground to the
crotch of the intended rider. Also, at least 3-8cm/1-3in between the crotch and the top tube
of the bicycle with both feet flat on the ground. Women can use a men's style bicycle to
determine the correct size for women's model.

ANCHEER
6
Bike Usage
Before Riding
During riding
Before riding the bike on the open road, try all the settings on the electric bike, and get
used to various results in a safe and controllable environment.
Please check the power circuit, lighting circuit, and test the brake system before
cycling.
Always check the tire pressure before starting to ride, and make sure that the tire is
inflated to a pressure within the specified range.
In order to ensure the safety of riding, please check regularly for loose parts or screws.
The places that need to be checked include but not limited to the seat tube, wheels,
handlebars and pedals.
If necessary, please confirm whether the battery capacity can meet you riding demand.
2.
1.
If the pressure exceeds the recommended maximum value, the tire may blow
out of the rim, which may damage the bicycle and cause injury to the cyclist and
nearby people.
If the pressure is too low, the wheel may be damaged, or the inner tube may be
squeezed, causing the tire to leak air.
Please wear helmets and riding gear that meet the requirements in accordance with
regulations.
Avoid traveling in severe weather such as heavy rain.
Carry people or objects in accordance with the requirements of laws and regulations,
and the load of the entire bike should not exceed 120kg.
Obey the traffic rules.
●
●
●
●
●
●
●
●
●
After riding
After heavy use, do not touch the hot surface, such as the disc brake rotor or the side
edge of the brake rim.
When folding the kickstand, always make sure that the stand is secure and the base is
firm to prevent the bicycle from falling.
If the bicycle is splashed with moisture, please wipe it dry and clean in time.
●
●
●

ANCHEER
7
Bike Usage
Shifting Recommendations
Brake Adjustment
In order to increase the range, we recommend shifting according to the speed.
For starting and low-speed riding, it is best to use a low-speed gear.
At higher speeds, a higher gear should be selected.
Loosen or tighten the barrel adjuster at the end of the brake cable lever. This will make
a small adjustment to the gap of the brake pads. If this is not enough to create the
correct gap, then:
Loosen the two positioning bolts, but do not remove them. Slowly rotate the wheel and
check the space between the rotor and the brake pad; adjust the position of the brake
pad so that the rotor does not rub and is slightly close to the outer pad (the gap between
the rotor and the pad should be just enough to prevent friction). Make sure that the rotor
and the pads are parallel to each other. After the adjustment is complete, tighten the
bolts.
If the rotor always rubs against the brake pads or the gap is too large, you can adjust
the brake pad gap by loosening the cable clamp bolts and slightly releasing the cable
to increase the gap or tightening the cable to reduce the gap, and then tighten the
bolts again.
Ensure that the brake cables are properly inserted into the brake levers before aligning a
mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first.
●
●
●
2.
1.

ANCHEER
8
Installation And Adjustment
Open the package of the bike, take out the electric bike and all the parts inside and use the
tool to cut off the packing rope.

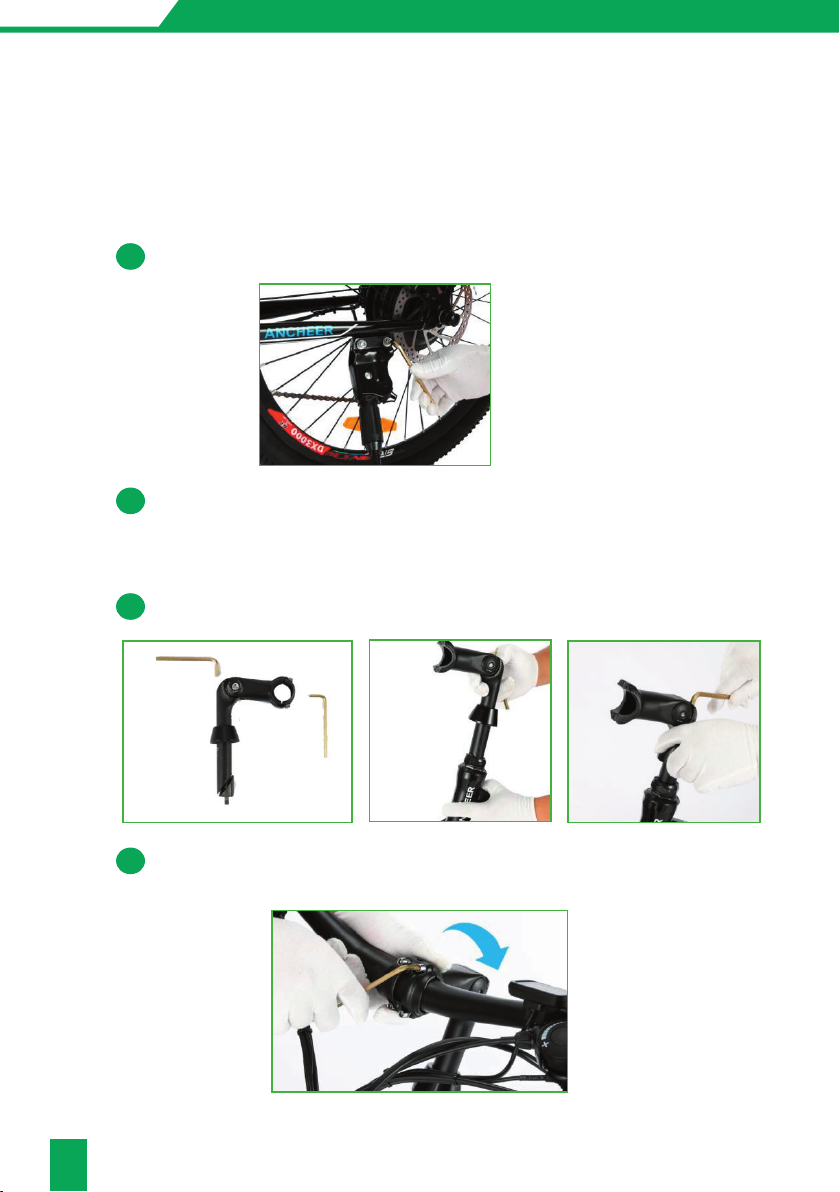

1. Install Kickstand
2. Install the Stem and Handlebar
1.1
1.2
2.1
2.2
Unscrew the screw in the kickstand,and install the kickstand.
Then tighten with tool.
Install the stem and tighten the screw.
Using the wrench from tool kit to loosen the four screws and put the stem into the bike
in balance and you can adjust the handlebar in a property angel and position.

ANCHEER
9
Installation And Adjustment
3. Install the front wheel
3.1
3.2
3.3
Using the tool to loosen the fixing rod of the front fork and remove it (this accessory
is to prevent the front fork from being deformed during delivery).
Take out the quick release from Wheel and unscrew the bolt from the quick release.
Set front wheel into front fork. Make sure fork hanger hold onto wheel axle, and
make sure the disc put into middle of brake.

ANCHEER
10
Installation And Adjustment

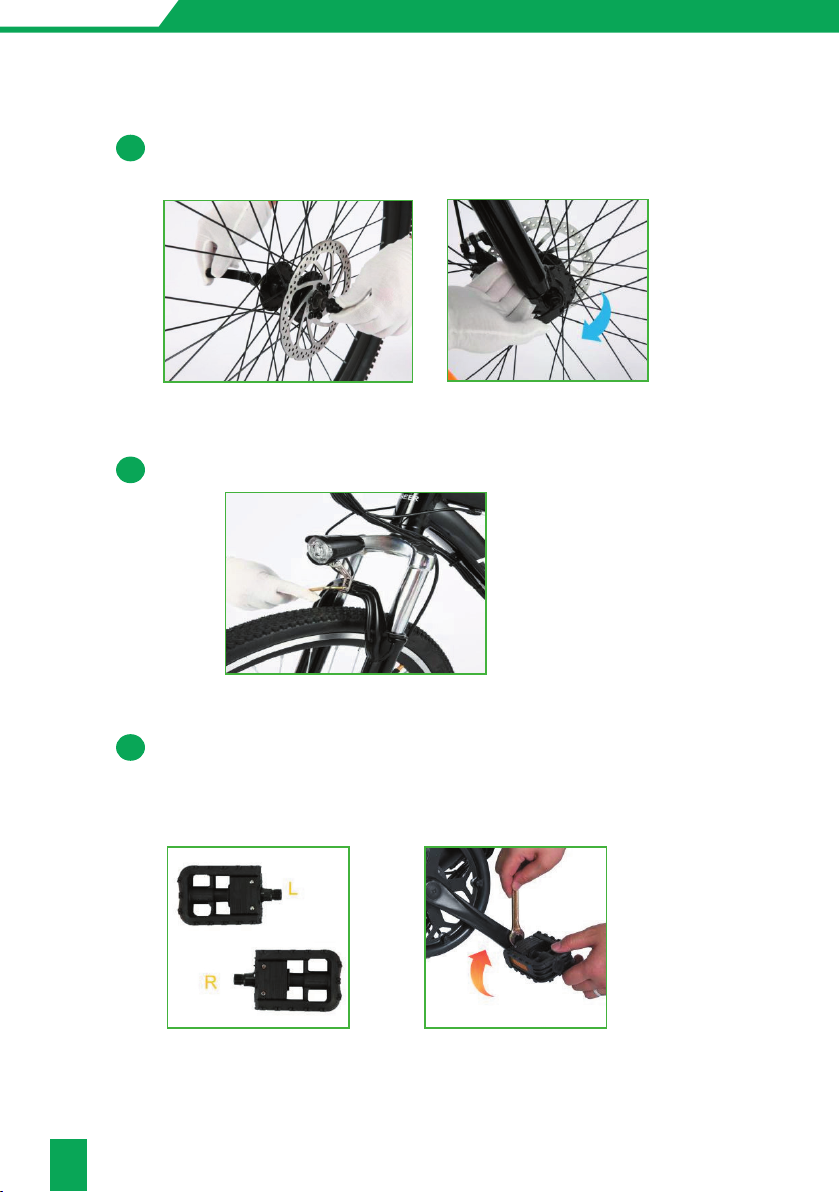

4. Assemble the headlight
5. Install the pedals
3.4
4.1
5.1
Insert quick-release axle into spring and tighten screw(Quick release nut to be at the
same end as the brake).
Screw front light right on front fork holder as shown.
Ensure that the thread of each pedal is fully inserted into the crank arm. Tighten
the pedals completely with a wrench. (Counterclockwise screw the pedal marked
"L" on the left side crank. Clockwise screw the pedal marked "R" on the right side
crank.)

ANCHEER
11
Installation And Adjustment
6. Assemble the saddle tue .
8. Install Battery
7. Adjust angle of brake lever, meter, gear shifter, throttle and louder
controller on handlebar, then tightens them with tools.
First connect the seat and the seat tube. Insert seat post into post receiver, set right
its position and adjust heightto fit your ridding habit.Tighten seat by clamp.
Open the box of battery. Tube the battery to correct angle and insert the battery into
the holder gently, press it down and lock automatically.
So far, congratulations! You have completed the assembly of the entire bike.
6.1
8.1

ANCHEER
12
Meter Operation
1. Meter Instruction
2. Meter Operation
3. Operation Cautions
MODE
POWER
M
+ -
Assistance Level:Low
Assistance Level:Mid
Assistance Level:High
Battery Indicator
DOWN UPON/OFF
Operating instructions
To switch on/
off the E-Bike
system, hold
the “M” key for
2s. The default
value is “low”
pedal assist
level.
Press “+” again
to move into
pedal assist
level “high”.
“high” is the
maximum
power of PAS.
Full Electric
Function (Pure
electric mode):
Press“-”, until
all the three
“low”,“mid”,
“high” indicators
are off.
Press “+” to
crease into
pedal assist
level “mid”.
Avoid the risk of collision.
Don’t modify system parameters to avoid parameters disorder.
Contact the seller when error code appears.
●
●
●
MODE
POWE R
high
M + -
MODE
POWER
M + -
MODE
POWER
M + -
MODE
POWER
M + -
midlow highmidlow highmidlow highmidlow

ANCHEER
13
Battery And Charging: Further Information
Please follow the instructions for use, otherwise the consequences are at his own risk.
Please use the original special charger. It is strictly prohibited to use other chargers.
Pay attention to the battery type and applicable voltage that the charger can charge,
and it is strictly forbidden to mix them. The charging time shall not exceed 12 hours,
and the charging current shall not exceed 2A.
When charging, it should be placed in a ventilated environment, and it is strictly
forbidden to charge in a confined space, residential building or in a hot environment.
When charging, insert the battery first, then add the mains. After charging fully
(the green light will be on), first cut off the mains, and then unplug the battery. It is
forbidden to connect the charger to the AC power supply without load for a long
time. During the charging process, if the indicator light is abnormal, a peculiar smell
appears, or the charger casing is overheated, stop charging immediately, and repair
the charger or replace the charger.In the process of use and storage, pay attention
to avoid the entry of foreign objects, especially avoid the inflow of water or other
liquids, so as to avoid short circuit inside the charger.
The charger should not be carried with the car as much as possible. If it is really
necessary to carry it, it should be placed in the toolbox after the shock absorption
treatment is done. It is not allowed to disassemble or replace the components in the
charger by yourself.
When not in use for a long time, keep the battery in a cool and dry place, and charge
the battery for two hours a month.
●
●
●
●
●
●
Battery: Further information
Charging: Safe operation guide
Keep the battery out of reach of children.
Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please do
not store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F.
Keep the battery dry, do not put the battery in acidic or alkaline liquid, keep away from rain,
fire and high temperature environment.
It is strictly forbidden to connect the positive and negative poles of the battery reversely,
and it is strictly forbidden to damage, disassemble or short-circuit the battery.
Used batteries are hazardous chemicals, and the used batteries should not be disassembled
without authorization, and recycled by relevant professional departments.
Use the original battery. Do not replace it with other brand’s or product’s battery.
●
●
●
●
●
●

ANCHEER
14
Reminder
Battery and charging: Further Information
Battery must be recycled or disposed of in an environmentally sound manner.
Do not dispose of the battery in a fire. The battery may explode or leak.
Do not dispose of a battery in your regular household trash.
●
●
●
Battery Disposal
Charge a new battery 6-8 hours before you use it in your product for the first time.
If the battery is dropped or damaged due to a bicycle accident, there may be a danger of
electrolyte leakage. Please stop using it immediately.
It is better not to wait until the power is completely exhausted before charging, which
can more effectively extend the battery life. Besides, Overheating or undercharging the
battery may shorten battery life.
How far can a fully charged battery go? It depends on the load weight, road conditions
and battery capacity. But under the same conditions, the average speed can last longer
riding distances. Using pedal assist mode allows you to go further.

ANCHEER
15
Maintenance
The front and rear wheels of the vehicle should be located in the center of the front
fork or frame.
After riding, please store the bike in a place without sunlight and rain.
Water showering is forbidden, and the surface of the car body can be wiped with a
semi-dry cloth.
Do not touch the charging hole on the bicycle, or touch it with metal, otherwise, it
may cause an accident due to an instantaneous short circuit of the current.
Check all cables and cable housings for fraying, breaks, rust, or corrosion and replace
if necessary.
Check the motor and brake frequently, and do not fill the brake area with oil.
Additionally, check the brake pads for any damage as they will be worn over time and
eventually need replacement.
Regularly check the various screws of the car and the places that need to be fastened,
and regularly reinforce to prevent injury and unnecessary wear and tear on your
e-bike..
Recommended torque (unit: kgf.cm): the horizontal screw 60-80, the stem screw 175-
200, the seat cushion screw 175-250, the wheel screw 320-450.
Regularly check the tension of the chain, which can be adjusted by the chain regulator.
Always check the tire for scratches, cracks, or excessive wear. The inner tube and
the valve should be perpendicular to the wheel hub and not crooked. Accidentally
punctured, damaged or excessively worn inner and outer tires need to be replaced
immediately, please seek professional technicians to repair or replace your tires.
It is forbidden to modify key structural parts such as the frame, front fork, standpipe,
and electrical function parts. If damaged, use the original parts to replace it.
Otherwise, the guarantee service will not be provided. Any loss or damage caused by
the modification shall be solely responsible.
●
●
●
●
●
●
●
●
●
●
●

ANCHEER
16
Warranty
One-Year Limited Hardware Warranty
Your electric bike includes a One Year Limited Hardware Warranty. ANCHEER provides
warranty service for the electric bikes. If there is a hardware defect and a valid claim is
received during the warranty period, we will resend new parts within the scope permitted
by law.
The Warranty covers product defects in materials and workmanship under normal use. This
Warranty is limited to original purchasers and is not assignable or transferable.
The Warranty starts on the date of your purchase and lasts for one year (the "Warranty
Period") and the Warranty Period is not extended if the product is repaired or replaced.
The Warranty does not cover any damage due to: improper use; failure to follow the
product instructions or to perform any preventive maintenance; unauthorized repair;
external causes such as accidents, abuse, or other actions or events beyond our reasonable
control.
Support Services
We provide lifetime customer support services. For any questions about the product,
please contact customer service from where you brought the equipment. We will be happy
to answer your questions.
You can also email us your inquiries at [email protected].
Accessories WarrantyPeriod Service Content Quality Problem
A year
A year
A year
A year
A year
Motor
Controller
Charger
Lithium
Battery
Accelerator
Free delivery of parts
Free delivery of parts
Free delivery of parts
Free delivery of parts
Free delivery of parts
Motor will not be able to
use
Natural conditions (such
as impact force cannot be
used except damage)
Failure occurs under normal
use
Failure occurs under normal
use
Can't charge discharge
under normal use

ANCHEER
17
Attachment
Technical parameters
Performance index Project Parameter
Wheel Size
Vehicle Size
26*1.95 Inches
Frame Material Aluminium Alloy
Maximum Load 265 lbs (120KG)
Vehicle Weight 55 lbs (25KG)
Maximum Speed 20 mph (32km/h)
Maximum Gradient 15 -20 Degrees
Rear Derailleur 7-Speed
Front Derailleur 3-Speed
Mileage Range 20~30 miles (32-48 km)
Working Temperature 23°F-104°F (-5℃~40℃)
Rated Voltage 36V
Battery Capacity 12.5Ah
Service Life
Output Current
500 Times
2A
Motor Power
Display
500W
LED Display
Motor Type
Brake
Brake
Suspension
Brushless Gear Motor
Disc brake
Front light
Suspension front fork
Maximum Torque 64N.m
Input Voltage 100-240V
Input Current 1.8A
Output Voltage DC42V
1680*650*1080mm
Basic Parameters
Performance Parameters
Battery Parameters
Motor Parameters
Other Parameters
Charger Parameters

ANCHEER
18
Remarks:
Attachment
The amount of battery remaining, load of the bike(weight of rider and cargo), tire
pressure, road environment, chain and wheel axle lubrication, etc. will affect the
maximum speed;
Riding habits, temperature, load, tire pressure, road environment and other factors
will affect the riding range.
●
●
