Anritsu MP1590B-30 User manual

MP1590B-30
High Precision
Jitter Analysis
Operation Manual
Fourth Edition
•For safety and warning information, please read this
manual before attempting to use the equipment.
•Additional safety and warning information is pro
-
vided within the MP1590B Network Performance
Tester Operation Manual. Please also refer to this
document before using the equipment.
•Keep this manual with the equipment.
ANRITSU CORPORATION
Document No.: M-W2352AE-4.0

Safety Symbols
To prevent the risk of personal injury or loss related to equipment malfunction, Anritsu Corporation uses the follow-
ing safety symbols to indicate safety-related information. Insure that you clearly understand the meanings of the
symbols BEFORE using the equipment. Some or all of the following five symbols may not be used on all Anritsu
equipment. In addition, there may be other labels attached to products which are not shown in the diagrams in
this manual.
Symbols used in manual
DANGER This indicates a very dangerous procedure that could result in serious injury or
death if not performed properly.
WARNING This indicates a hazardous procedure that could result in serious injury or death if
not performed properly.
CAUTION This indicates a hazardous procedure or danger that could result in light-to-severe
injury, or loss related to equipment malfunction, if proper precautions are not taken.
Safety Symbols Used on Equipment and in Manual
The following safety symbols are used inside or on the equipment near operation locations to provide information
about safety items and operation precautions. Insure that you clearly understand the meanings of the symbols
and take the necessary precautions BEFORE using the equipment.
This indicates a prohibited operation. The prohibited operation is indicated sym-
bolically in or near the barred circle.
ii
This indicates an obligatory safety precaution. The obligatory operation is indi-
cated symbolically in or near the circle.
This indicates warning or caution. The contents are indicated symbolically in or
near the triangle.
This indicates a note. The contents are described in the box.
These indicate that the marked part should be recycled.
MP1590B-30
High Precision JitterAnalysis
Operation Manual
2 March 2004 (First Edition)
10 June 2009 (Fourth Edition)
Copyright © 2004-2009,ANRITSU CORPORATION.
All rights reserved. No part of this manual may be reproduced without the prior written permission of the
publisher.
The contents of this manual may be changed without prior notice.
Printed in Japan

iii
Equipment Certificate
Anritsu Corporation certifies that this equipment was tested before
shipment using calibrated measuring instruments with direct traceabil-
ity to public testing organizations recognized by national research labo-
ratories including the National Institute of Advanced Industrial Science
and Technology, and the National Institute of Information and Commu-
nications Technology, and was found to meet the published specifica-
tions.
Anritsu Warranty
Anritsu Corporation will repair this equipment free-of-charge if a mal-
function occurs within 1 year after shipment due to a manufacturing
fault, provided that this warranty is rendered void under any or all of the
following conditions.
•The fault is outside the scope of the warranty conditions described in
the operation manual.
•The fault is due to mishandling, misuse, or unauthorized modification
or repair of the equipment by the customer.
•The fault is due to severe usage clearly exceeding normal usage.
•The fault is due to improper or insufficient maintenance by the cus-
tomer.
•The fault is due to natural disaster including fire, flooding, earth-
quake, etc.
•The fault is due to use of non-specified peripheral equipment, periph-
eral parts, consumables, etc.
•The fault is due to use of a non-specified power supply or in a
non-specified installation location.
In addition, this warranty is valid only for the original equipment pur-
chaser. It is not transferable if the equipment is resold.
Anritsu Corporation shall assume no liability for injury or financial loss of
the customer due to the use of or a failure to be able to use this equipment.
Anritsu Corporation Contact
In the event that this equipment malfunctions, contact an Anritsu Ser-
vice and Sales office. Contact information can be found on the last page
of the printed version of this manual, and is available in a separate file
on the CD version.

Notes On Export Management
This product and its manuals may require an Export License/Approval by
the Government of the product's country of origin for re-export from you
r
country.
Before re-exporting the product or manuals, please contact us to confirm
whether they are export-controlled items or not.
When you dispose of export-controlled items, the products/manuals are
needed to be broken/shredded so as not to be unlawfully used for military
purpose.
iv

CE Conformity marking
Anritsu affixes the CE Conformity marking on the following product (s)
in accordance with the Council Directive 93/68/EEC to indicate that they
conform to the EMC and LVD directive of the European Union (EU).
CE marking
1. Product Model
Option: MP1590B-30 High Precision Jitter Analysis
2. Applied Directive and Standards
When the MP1590B-30 High Precision Jitter Analysis are installed in
the MP1590B, the applied directive and standards of these options are
conformed to those of the MP1590B main frame.
PS: About main frame
The kind of main frame (a measuring apparatus) will be to increase.
Please, contact us about the newest information of the main frame.
v

C-tick Conformity marking
Anritsu affixes the C-tick marking on the following product (s) in accor-
dance with the regulation to indicate that they conform to the EMC
framework of Australia/New Zealand.
C-tick marking
1. Product Model
Option: MP1590B-30 High Precision Jitter Analysis
2. Applied Directive and Standards
When the MP1590B-30 High Precision Jitter Analysis are installed in
the MP1590B, the applied directive and standards of these options are
conformed to those of the MP1590B main frame.
PS: About main frame
The kind of main frame (a measuring apparatus) will be to increase.
Please, contact us about the newest information of the main frame.
vi

About This Manual
The MP1590B Network Performance Tester operation manual contains
those of the main unit, control software, remote control and options as
shown below.
MP1590B
Operation Manual
configuration
MX159001B Network Performance Tester
Control Software Operation Manual SDH Edition
Explains operations for the MP1590B control
software (SDH Edition).
Explains specification for EoS module.
Explains MP1590B basic operations
Explains specification for SDH/SONET module.
Explains specification for MU150121B/23B.
MU150121A 10/10.7G Optical Unit (Tx)
MU150122A 10/10.7G Optical Unit (Rx Narrow)
MU150123A 10/10.7G Optical Unit (Rx Wide)
MU150134A 10/10.7G Optical Unit (Tx Ex. Mod)
Operation Manual
Explains specification for EO/OE module.
Shows this document.
Explains specification for Jitter module.
MU150121B 10/10.7G Optical/Electrical Unit (Tx )
MU150123B 10/10.7G Optical/Electrical Unit (Rx
Wide)
Operation Manual
MU150100A 10/10.7G Unit
Operation Manual
MU150125A 10/10.7G Jitter Unit Operation Manual
MU150101A 2.5/2.6G EoS Unit
Operation Manual
MP1590B Network Performance Tester
Operation Manual
MX159001B Network Performance Tester
Control Software Operation Manual SONET Edition
Explains operations for the MP1590B control
software (SONET Edition).
Explains specification for MU150124B.
MU150124B 10.3G Optical/Electrical Unit (Rx
Wide)
Operation Manual
I

Explains the remote control via RS-232C, GPIB
and Ethernet Interfaces.
MP1590B Network Performance Tester
Remote Control
Operation Manual
Explains specification for MP1590B-30.
MP1590B-30 High Precision Jitter Analysis
Operation Manual
Explains operation for the software that monitors
traffics on Ethernet.
A
pplication Traffic Monitor
Operation Manual
Ethernet Module
Operation Manual
Explains basic operations for each Ethernet
module.
II

III
This Operation Manual supports MP1590B-30 High Precision Jitter
Analysis (for MP1590B).
It is explained in the text in the case of MP1590B-30 High Precision Jit-
ter Analysis.

IV.
Table of Contents
About This Manual........................................ I
Chapter 1 Overview.................................... 1-1
1.1 Overview....................................................................... 1-2
1.2 O.172 New Recommendation and Verification
Method for Jitter Measurement Accuracy..................... 1-2
1.3 Product Configuration................................................... 1-3
Chapter 2 Specifications ........................... 2-1
2.1 Specifications................................................................ 2-2

Chapter 1 Overview
1-1
This chapter provides an overview and describes the product configura-
tion of the MP1590B-30 High Precision Jitter Analysis.
1.1 Overview.................................................................... 1-2
1.2 O.172 New Recommendation and Verification
Method for Jitter Measurement Accuracy.................. 1-2
1.3 Product Configuration................................................ 1-4

Chapter 1 Overview
1-2.
1.1 Overview
MP1590B-30 High Precision Jitter Analysis provides MP1590B with a
higher precision, and more accurate Jitter measurement. This option
enhances the measurement accuracy and repeatability of Jitter Genera-
tion Measurement. The Jitter measurement accuracy of MP1590B with-
out MP1590B-30 High Precision Jitter Analysis is correctly calibrated by
the Phase Analysis Calibration Method, and is guaranteed. And fur-
thermore, MP1590B-30 High Precision Jitter Analysis gives highly pre-
cise tuning to the MP1590B.
The Phase Analysis Calibration Method was adopted in the ITU-T
O.172(April,2005).
Therefore, this method is Global Standard of the Jitter measurement in-
strument.
1.2 O.172 New Recommendation
Verification Method for Jitter Measurement Accuracy
The ITU-T O.172(April,2005) defines the process for Jitter generation
measurement. The largest percentage of the Jitter generated by an op-
tical transmitter is the Pattern Dependent Jitter (PDJ). It is the re-
quired function for a Jitter measuring instrument to measure PDJ cor-
rectly. Anritsu established a unique method to measure PDJ accurately
using a digital sampling oscilloscope. This verification method was
proposed to ITU-T and adopted in the ITU-T O.172(April,2005). The
MP1590B is fully designed to measure PDJ accurately and is verified by
the newly adopted method.

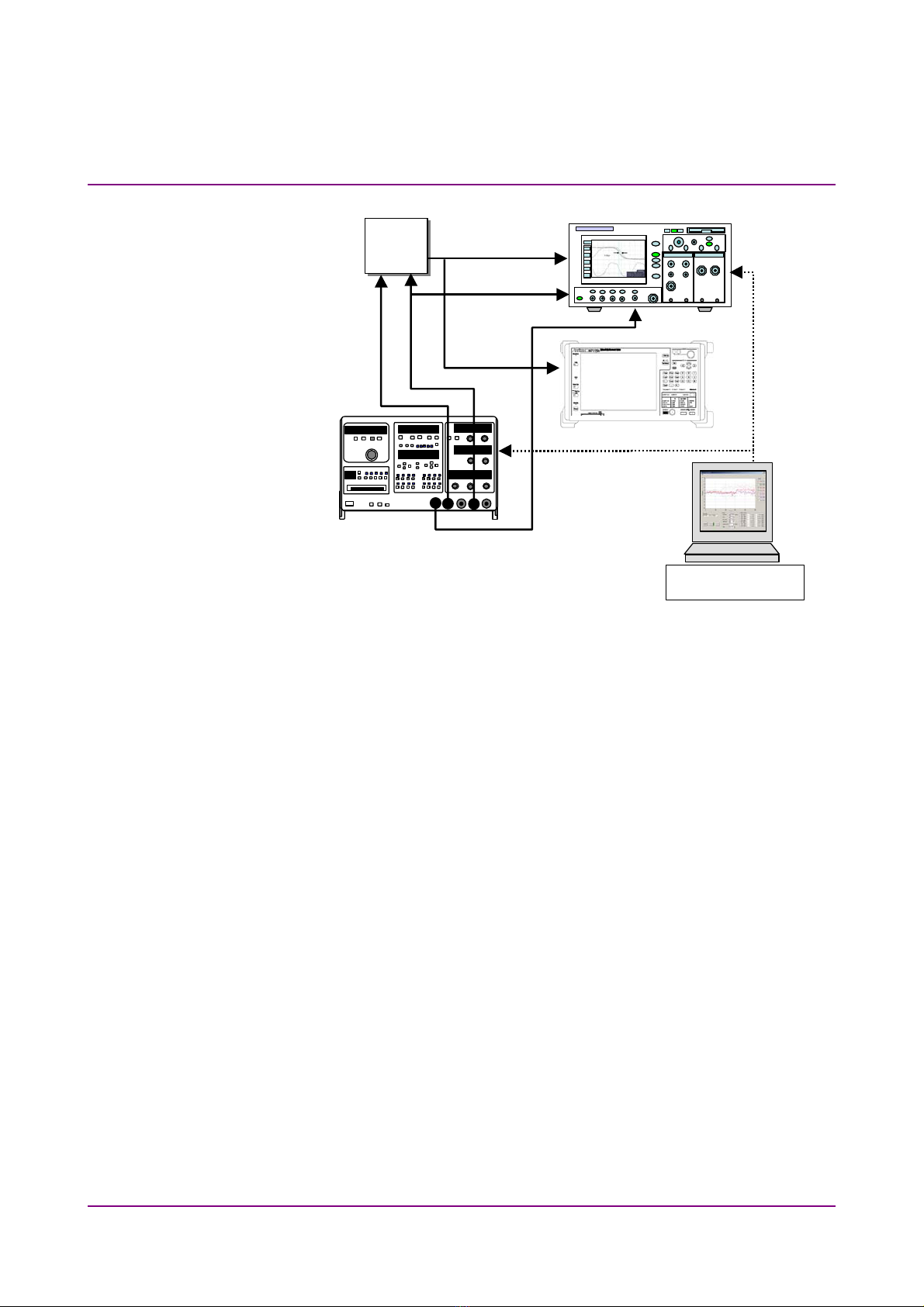

1.2 O.172 New Recommendation Verification Method for Jitter Measurement Accuracy
Ch4: Reference clock
Ch3: Optical data
Data
Trigger: Pattern sync signal
O.172
Phase Analysis Method
Clock
DUT
Sampling oscilloscope
Pulse pattern generator
MP1590B
GPIB
1-3

Chapter 1 Overview
1.3 Product Configuration
The MP1590B-30 option can only be installed in one of the following set-
ups. Once installed, the setup cannot be changed.
You cannot add this option once it is shipped, as this option is selected
when the MP1590B and the unit is delivered.
Configuration 1
MP1590B Main Frame
MU150100A 10/10.7 G unit
MU150110A Multirate unit *2
MU150121A 10/10.7 G Optical unit (Tx)
MU150121B 10/10.7 G Optical/Electrical unit (Tx)
*1
MU150123A 10/10.7 G Optical unit (Rx wide)
MU150123B 10/10.7 G Optical/Electrical unit (Rx wide)
MU150125A 10/10.7 G Jitter unit
*1
*1
Configuration 2
MP1590B Main Frame
MU150100A 10/10.7 G unit
MU150110A Multirate unit *2
MU150134A 10/10.7 G Optical unit (Tx Ex.Mod)
MU150123A 10/10.7 G Optical unit (Rx wide)
MU150123B 10/10.7 G Optical/Electrical unit (Rx wide)
*1
*1
MU150125A 10/10.7 G Jitter unit
*1:Either or two units.
*2:MU150110A function and performance are not guaranteed when
using 2.5G/2.G.
The models and serial numbers of the mounted units are confirmed dur-
ing MP1590B startup. If they are different from those of the units
whose performance is guaranteed to apply the MP1590B-30 option, an
alarm message will be displayed during MP1590B application startup.
When the MP1590B application is started up as is (ignoring the alarm
message), the MP1590B can be used for normal operation, but the func-
tion and performance of the MP1590B-30 option are not guaranteed.
1-4.

Chapter 2 Specifications
2-1
This chapter provides the specifications of the MP1590B-30 High Preci-
sion Jitter Analysis.
2.1 Specifications............................................................. 2-2

Chapter 2 Specifications
2.1 Specifications
No. Item Specifications
1 Measurement accuracy ±20 mUIpp (with respect to the amount of jitter from the trans-
mitter that conforms to Phase Analysis Method recommended in
ITU-T O.172 (April,2005) Appendix Ⅷ.)
1.1 Measurement conditions Measurement time: 1 min.
Average: 5 measurements
Filter: 10 G: 20 kHz to 80 MHz, 50 kHz to 80 MHz
2.5 G: 5 kHz to 20 MHz, 12 kHz to 20 MHz
Transmitter: MU150121A/B, MU150134A, or an optical
transmitter specified by Anritsu
Pattern: OC-192c/STM-64c (J0/Z0 = “AA” + “CC”)
OC-48c/STM-16c (J0/Z0 = “AA” + “CC”)
Payload: All 0 (Scrambled to PRBS7)
Optical input power: −10 to −12 dBm
1.2 Measurement system
For 10 G
Connection on the left side of MP1590B
(for 10GTx MU150121A/B)
2-2

2.1 Specifications
No. Item Specifications
2 Pattern dependent jitter of
transmitter
Reference value based on Phase Analysis Method in ITU-T O.172
(April,2005) Appendix Ⅷ.)
2.1 Jitter Generation of Trans-
mitter
MU150121A/B: 60 mUIpp or less
MU150134A: 50 mUIpp or less
The amount of the pattern dependent jitter generated within the
range above will be attached as a reference value for the meas-
urement accuracy (Item 1).
2.2 Measurement conditions Filter: 10 G: 20 kHz to 80 MHz, 50 kHz to 80 MHz
2.5 G: 5 kHz to 20 MHz, 12 kHz to 20 MHz
Pattern: OC-192c/STM-64c (J0/Z0 = “AA” + “CC”)
OC-48c/STM-16c (J0/Z0 = “AA” + “CC”)
Payload: All 0 (Scrambled to PRBS7)
Sampling oscilloscope: > 20 GHz band
2.3 Measurement system
ClockData Pattern sync trigger
Ch4: Reference clock
Ch3: Optical data
Clock
GPIB
Pulse pattern generator
Sampling oscilloscope
MP1590B transmitter pattern jitter measurement system
(for 10G Tx MU150121A/B)
Phase Analysis Method
2-3

Chapter 2 Specifications
2-4.
No. Item Specifications
3 Measurement repeatability
±5 mUIpp (under constant measurement conditions)
3.1 Measurement conditions Looped back by measuring equipment.
Transmission: 10 G: MU150121A/B, MU150134A
2.5 G: MU150100A
Average: 5 measurements
Measurement time: 1 min.
Filter: 10 G: 20 kHz to 80 MHz,
50 kHz to 80 MHz, 4 MHz to 80 MHz
2.5 G: 5 kHz to 20 MHz, 12 kHz to 20 MHz,
1 MHz to 20 MHz
Pattern: OC-192c/STM-64c, OC-48c/STM-16c
Payload: PRBS23,31
Optical input power: −10 to −12 dBm
3.2 Measurement system See Item 1.2.
4 Other Temperature: 20 to 30°C
Calibration cycle: One year
A fee will be charged for calibration.
MP1590B-90 (extended 3-year warranty service) does not apply
to the functions and performance of the MP1590B-30.
