Antunes Roundup VCT-2000 User manual

P/N 1011334 Rev. I 04/20
®
Vertical Contact Toaster
Owner’s Manual
Model VCT-2000
Manufacturing Numbers:
9210307
www.antunes.com
Scan with mobile device or enter URL
for product and service information.
VCT-2000
http://tiny.cc/AJA-JITB-VCT

VERTICAL CONTACT TOASTER
2P/N 1011334 Rev. I 04/20
®
General
This manual provides the safety, installation, and
operating procedures for the Vertical Contact Toaster
Model VCT-2000. We recommend that all information
contained in this manual be read prior to installing and
operating the unit.
Your Vertical Contact Toaster Model VCT-2000 is
manufactured from the finest materials available and
assembled to our strict quality standards. This unit
has been tested at the factory to ensure dependable
trouble-free operation.
Warranty Information
Please read the full text of the Limited Warranty in this
manual.
OWNER INFORMATION
TABLE OF CONTENTS
IMPORTANT! Keep these instructions for future reference. If the unit changes
ownership, be sure this manual accompanies the equipment.
If the unit arrives damaged, contact the carrier imme-
diately and file a damage claim with them. Save all
packing materials when filing a claim. Freight damage
claims are the responsibility of the purchaser and are
not covered under warranty.
The warranty does NOT extend to:
• Damages caused in shipment or damage as
result of improper use.
• Installation of electrical service.
• Normal maintenance as outlined in this manual.
• Malfunction resulting from improper maintenance.
• Damage caused by abuse or careless handling.
• Damage from moisture into electrical
components.
• Damage from tampering with, removal of, or
changing any preset control or safety device.
Owner Information .....................................................2
General......................................................................2
Warranty Information .................................................2
Service/Technical Assistance ....................................3
Specifications .............................................................5
Dimensions................................................................5
Electrical Ratings.......................................................5
Electrical Cord & Plug Configurations .......................5
Model & Mfg. No........................................................5
Description.................................................................5
Configuration .............................................................5
Installation...................................................................6
Unpacking..................................................................6
Equipment Setup.......................................................6
Assembling the Unit ..................................................6
Operation.....................................................................8
Operating Instructions ...............................................8
Temperature Adjustments..........................................8
Hi-Limit Reset Button ..............................................10
Fault Codes .............................................................10
Maintenance.............................................................. 11
Daily.........................................................................11
Replacing the Black and Silver Release Sheet (Every
4–6 Weeks) .............................................................12
Replacing the Belt Wraps
(Every 3–6 Months) .................................................12
Checking the Conveyor Belt Chains
(Every 3–6 Months) .................................................13
Checking the Roller Tensioners
(every 3–6 months) .................................................14
Cleaning the Top Fan ..............................................15
Troubleshooting .......................................................16
Replacement Parts ...................................................20
Wiring Diagram.........................................................26
Notes..........................................................................27
Limited Warranty ......................................................28

3
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
Use only genuine Antunes replacement parts in this
unit. Use of replacement parts other than those sup-
plied by the manufacturer will void the warranty.
OWNER INFORMATION (CONTINUED)
Service/Technical Assistance
If you experience any problems with the installation
or operation of your unit, contact Antunes Technical
Service at [phone] (toll free).
Fill in the information below and have it handy when
calling Antunes Technical Support for assistance. The
serial number is on the specification plate located on
the rear of the unit.
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
IMPORTANT
Antunes reserves the right to change specifications and product design without notice.
Such revisions do NOT entitle the buyer to corresponding changes, improvements,
additions, or replacements for previously purchased equipment.

VERTICAL CONTACT TOASTER
4P/N 1011334 Rev. I 04/20
®
In addition to the warnings and cautions in this manual,
use the following guidelines for safe operation of the
unit:
• Read all instructions before using equipment.
• For your safety, the equipment is furnished with
a properly grounded cord connector. Do NOT
attempt to defeat the grounded connector.
• Install or locate the equipment only for its intend-
ed use as described in this manual. Do NOT use
corrosive chemicals in this equipment.
• Do NOT operate this equipment if it has a dam-
aged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
• This equipment should be serviced by quali-
fied personnel only. Contact Antunes Technical
Support for adjustment or repair.
• Do NOT block or cover any openings on the unit.
• Do NOT immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do NOT allow cord to hang over edge of table or
counter.
The following warnings and cautions appear
throughout this manual and should be carefully
observed.
• Turn the power off, unplug the power cord,
and allow unit to cool down before performing
any service or maintenance.
• The toaster should be grounded according to
local electrical codes to prevent the possibil-
ity of electrical shock. It requires a grounded
receptacle with separate electrical lines pro-
tected by fuses or a circuit breaker of the
proper rating.
• Bread may burn. Therefore toasters must
NOT be used near or below curtains or other
combustible walls and materials. Failure to
maintain safe operating distances may cause
discoloration or combustion.
• When installing a Conveyor Belt Wrap, be
careful NOT to wrap it over the Upper and
Lower Support Rods or permanent damage to
belt will occur. Make sure Belt Wrap is posi-
tioned inside the Upper and Lower Support
Rods.
• Make sure both ends of the Belt Wrap are
aligned evenly before installing Belt Wrap Pin.
• Failure to use Release Sheets may result in
damage to the equipment and loss of war-
ranty coverage.
• Do NOT clean this appliance with a water jet.
• If supply cord is damaged, it must be replaced
by the manufacturer, its service agent, or a
similarly qualified person.
• All electrical connections must be in accor-
dance with local electrical codes and any
other applicable codes.
• WARNING, ELECTRICAL SHOCK HAZARD.
FAILURETOFOLLOWTHESEINSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR
DEATH.
- Electrical ground is required on this
appliance.
- Do NOT modify the power supply cord
plug. If it does not fit the outlet, have a
proper outlet installed by a qualified elec-
trician.
- Do NOT use an extension cord with this
appliance.
- Check with a qualified electrician if you are
unsure if appliance is properly grounded.
IMPORTANT SAFETY INFORMATION

5
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
Dimensions
SPECIFICATIONS
Electrical Ratings
Electrical Cord & Plug Configurations
Model &
Mfg. No. Description Configuration
VCT-2000
9210307
L6-20P, 20 Amp.,
250 Volt, Straight
Twist Lock
Model &
Mfg. No. Volts Watts Amp. Hz.
VCT-2000
(Heated Base)
9210307
208 3329 15.9 60
Model &
Mfg. No.
Width
(A)
Depth
(B)
Height
(C)
VCT-2000
9210307
21 1/4”
(540 mm)
10 3/4”
(273 mm)
23 1/4”
(591 mm)

VERTICAL CONTACT TOASTER
6P/N 1011334 Rev. I 04/20
®
CAUTION
Bread may burn. Therefore toasters must not be
used near or below curtains or other combustible
walls and materials. Failure to maintain safe oper-
ating distances may cause discoloration or com-
bustion.
Unpacking
1. Remove the unit and all packing materials from
shipping carton.
2. Open the included large box. It should contain
the following:
• Bun Feeder
• Two Release Sheets
• Owner’s Manual
• Butter Wheel and Pan
3. Remove all shipping tape and protective
coverings from the unit and parts.
NOTE: If any parts are missing or damaged,
contact Antunes Customer Service IMMEDIATELY
at 1-877-392-7856 (toll free).
Equipment Setup
Before placing the toaster into service, pay attention to
the following guidelines:
• Make sure power is off and the toaster is at room
temperature.
• Do NOT block or cover any openings on the unit.
• Do NOT immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do NOT allow cord to hang over edge of table or
counter.
• Connect the unit to the proper power supply.
Refer to the specification plate for the proper
voltage.
INSTALLATION
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appliance.
• Do NOT modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do NOT use an extension cord with this
appliance.
• The toaster should be grounded according to
local electrical codes to prevent the possibil-
ity of electrical shock. It requires a grounded
receptacle with separate electrical lines pro-
tected by fuses or a circuit breaker of the prop-
er rating.
• Check with a qualified electrician if you are in
unsure if the appliance is properly grounded.
Assembling the Unit
NOTE: The factory has pre-installed a Release
Sheet over the Platen (Figure 1). Verify that it is
properly in place before proceeding.
1. Remove Butter Wheel, Butter Pan, and Bun
Feeder from the box and install (Figure 1).
CAUTION
Failure to use Release Sheets may result in
damage to the unit and loss of warranty coverage.
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.

7
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
Bun Feeder
(some models only)
Heat Shield
Release
Sheet
Retainer
Clips
Rear Conveyor
Cover Assembly
(with Roller
Tensioner)
Release
Sheet
Platen
Front
Conveyor
Belt Chain
Rear Belt
Wrap
Front Belt
Wrap
Front Conveyor
Cover Assembly
Roller Tensioner
Rear
Conveyor
Belt Chain
Figure 1. VCT-2000 Toaster
INSTALLATION (CONTINUED)
Butter
Wheel
Butter
Pan

VERTICAL CONTACT TOASTER
8P/N 1011334 Rev. I 04/20
®
OPERATION
Figure 3. Bun Thickness Adjustment Controls
(Default settings circled)
Operating Instructions
1. Set the Bun Thickness Adjustment Controls
(Figure 3) to desired setting.
NOTE: Recommended settings are 4 for Heels and
F for Crowns.
2. Turn the power on and allow the toaster to warm
up for 30 minutes before proceeding.
NOTE: The temperature display (Figure 2) will flash
“LO” until the toaster reaches its preset operating
temperature. When the toaster approaches the pre-
set temperature of 600°F (316°C), “USE” appears
in the temperature display and the unit is ready to
toast buns. If “USE” does not appear in the win-
dow after approximately 30 minutes, contact your
Authorized Service Agency.
3. Drop Crowns and Heels into the slot (Figure 2).
NOTE: Cut sides of Heels and Crowns must face
each other.
4. Toasted buns will drop into the Bun Landing Area
(Figure 2) in approximately 10 seconds.
5. Test at least four buns before putting the toaster
into service.
6. Turn the power off when finished toasting for the
day and proceed with the Daily Cleaning as out-
lined in the Maintenance section of this manual.
Temperature Adjustments
The VCT-2000 uses a Platen Heater and two Auxiliary
Air Heaters. The Platen Heater consists of a heating
element built into the Platen to toast the cut side of the
bun. The two Auxiliary Heaters assist in providing addi-
tional heat to the buns. The first Auxiliary Air Heater is
located between the conveyor in the front of the toast-
er. The second Auxiliary Heater is located between the
conveyor at the rear of the unit.
RECOMMENDED TEMPERATURES
Recommended temperature setting for the Platen
heater is 530°F (277°C).
Recommended temperature setting for the Auxiliary Air
Heaters is 400°F (204°C).
NOTE: The toaster is tested and shipped with the
heaters set at the above recommended temperatures.
THICKNESS
THICKNESS











2 = 3/4" (19mm)
3 =13/16" (21mm)
4 = 7/8" (22mm)
5 =15/16" (24mm)
6 = 1" (25mm)
1 = 5/8" (16mm)
B = 7/8" (22mm)
F = 1 1/8" (29mm)
D = 1" (25mm)
E = 1 1/16" (27mm)
C = 15/16" (24mm)
A = 3/4" (19mm)
Bun Thickness
Adjustment Control
(See Figure 3)
Bun Landing Area Power
Switch
Temperature
Controls
& Temperature
Display
Hi-Limit
Reset
Power
Cord

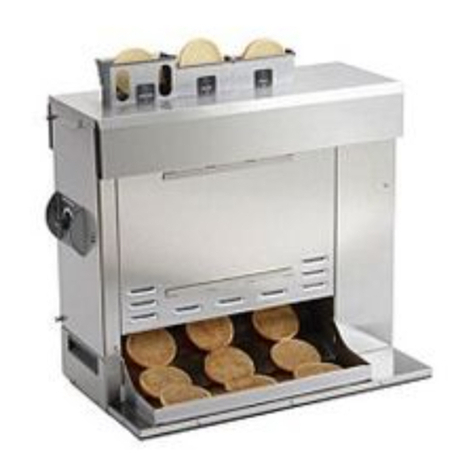

Figure 2. VCT-2000 Toaster
Butter Wheel and Butter Pan not shown
THICKNESS
THICKNESS











2 = 3/4" (19mm)
3 = 13/16" (21mm)
4 = 7/8" (22mm)
5 = 15/16" (24mm)
6 = 1" (25mm)
1 = 5/8" (16mm)
B = 7/8" (22mm)
F = 1 1/8" (29mm)
D = 1" (25mm)
E = 1 1/16" (27mm)
C = 15/16" (24mm)
A = 3/4" (19mm)

9
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
TEMPERATURE CONTROL PANEL
NOTE: The term “setpoint temperature” refers to
the desired temperature setting.
To display the actual Platen temperature—providing it
is over 440°F (227°C)—press the TEMP UP button.
To display the actual Auxiliary Air Heater temperature—
providing it is over 360°F (182°C)—press the TEMP
DOWN button.
To switch the temperature display between Fahrenheit
(°F) and Celsius (°C), press and hold the TEMP
SCALE button for 5 seconds.
PLATEN HEATER TEMPERATURE ADJUSTMENT
1. Turn the power on and wait for the Temperature
Display to finish the power-up sequence
(Figure 4).
2. Press and hold the TEMP UP and TEMP DOWN
buttons for over 1 second until the display flashes
the Platen setpoint temperature (Figure 5), then
release.
3. Press the TEMP UP button to raise the setpoint
temperature or press the TEMP DOWN button to
lower the setpoint temperature.
NOTE: The Platen can be programed to a maxi-
mum setpoint temperature of 550°F (278°C). If no
change in temperature is made within 5 seconds,
the display reverts back to the previous setpoint
temperature.
4. Release the button when the desired setpoint
temperature is displayed.
AUXILIARY AIR HEATER TEMPERATURE ADJUSTMENT
1. Turn the power on and wait for Temperature
Display to finish the power-up sequence (Figure
4).
2. Press and hold the TEMP UP and TEMP SCALE
buttons for over 1 second until the display flashes
the setpoint temperature (Figure 6), then release.
3. Press the TEMP UP button to raise the setpoint
temperature or press the TEMP DOWN button to
lower the setpoint temperature.
NOTE: The maximum Auxiliary Air Heater setpoint
temperature is 400°F (204°C).
4. Release the button when the desired setpoint
temperature is displayed.
NOTE: If no change in temperature is made within
5 seconds, the display reverts back to the previous
setpoint temperature.
TEMP
UP
TEMP
DOWN
TEMP
SCALE
°F
°C
POWER
TEMP
UP
TEMP
DOWN
TEMP
SCALE
°F
°C
POWER
SP - P 585
TEMP
UP
TEMP
DOWN
TEMP
SCALE
˚F
˚C
POWER
TEMP
UP
TEMP
DOWN
TEMP
SCALE
˚F
˚C
POWER
400
SP - A
Figure 4. Temperature Power-Up Sequence
3. SP-A (Setpoint Auxiliary)
is displayed.
1. SP-P (Setpoint Platen)
is displayed.
“Heat On” LED will blink on/off during warm-up and when either
platen or auxiliary air heaters are calling for heat.
2. Current Platen setpoint
temperature setting is displayed.
4. Current Auxiliary Air setpoint
temperature is displayed.
5. LO is displayed until
Platen temperature rises
above 550°F (288°C).
6. USE is displayed when
Platen setpoint temperature*
is reached.
TEMP
UP
TEMP
DOWN
TEMP
SCALE
°F
°C
POWER
LO
USE
* Platen setpoint temperature
must be between 460°F
(238°C) and 600°F (316°C).
OPERATION (continued)

VERTICAL CONTACT TOASTER
10 P/N 1011334 Rev. I 04/20
®
OPERATION (continued)
Hi-Limit Reset Button
A Hi-Limit Control turns off electrical power to the
heater and control circuits if the platen overheats. To
reset the control, allow 10-15 minutes for the unit to
cool, then locate the Reset Button at the rear of the
unit. Remove the black protective cap, press the Reset
Button, and reinstall the protective cap (Figure 2).
NOTE: If the Hi-Limit requires continuous resetting,
contact your Authorized Service Agency.
Fault Codes
FAULT CODE
ON DISPLAY
POSSIBLE CAUSE(S)
Err 1 Failed Control Board (Call for Service)
Err 2 Failed Control Board (Call for Service)
Err 3
The programming dip switches were not
adjusted upon installation of the universal
control board. The dip switches must be
adjusted to match the toaster Mfg #. Refer
to document P/N 1011052 for specific set-
tings.
Err 4 Platen Thermocouple is shorted to chassis
ground (Call for Service)
Err 5 Platen Thermocouple is Loose or Discon-
nected or Open (Call for Service)
Err 6 Failed Control Board (Call for Service)
Err 7 Failed Control Board (Call for Service)
Err 8 Failed Control Board (Call for Service)
Err 9
The programming dip switches were not
adjusted upon installation of the universal
control board. The dip switches must be
adjusted to match the toaster Mfg #. Refer
to document P/N 1011052 for specic set-
tings. NOTE: If the dip switches were ad-
justed correctly, then the AC Isolator Board
or its wiring is faulty. (Call for Service)
Err 10 Failed Control Board (Call for Service)
CHEC
Ambient in electrical compartment has
exceeded 140 F (60 C). Check for proper
airow. (Call for Service)
Table 1

11
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
MAINTENANCE
WARNING
Turn the power off, unplug the power cord, and
allow the unit to cool down 30 minutes before per-
forming any service or maintenance.
CAUTION
To prevent damage to the unit, do NOT use abra-
sive cleaners on the Release Sheet or Belt Wrap.
CAUTION
Failure to use Release Sheets may result in dam-
age to the unit and loss of warranty coverage.
Daily
Tools Required:
• Heat-Resistant Gloves
• Clean Towels
• Multipurpose Detergent Solution
• Sanitizer Solution
1. Turn the power off, unplug the power cord, and
clean the Release Sheet and Belt Wraps while
they are warm.
2. Put on heat-resistant gloves and remove the
Butter Wheel (if equipped), Pan, and Heat Shield
(Figure 1).
3. Wash the Butter Wheel, Pan, and Heat Shield in
a sink and wipe them with a damp sanitized towel
and allow them to air dry.
4. Remove the Release Sheet and place it on a
clean, flat dry surface.
5. Wipe the silver side of the Release Sheet with
a clean towel dampened with Multipurpose
Detergent Solution immediately followed by a
second clean towel dampened with sanitizer and
allow it to air dry before continuing.
6. Once the silver side is dry, repeat Step 5 on the
black side of the Release Sheet.
7. Open the front Conveyor Cover and firmly wipe
the Belt Wrap from left to right and top to bottom
with a clean towel dampened with Multipurpose
Detergent Solution immediately followed by a sec-
ond clean towel dampened with sanitizer.
8. Close the front Conveyor Cover, open the rear
Conveyor Cover, and clean the Belt Wrap as
described in Step 7.
9. Close the rear Conveyor Cover. Plug in the
power cord, turn the unit on, count 15 seconds,
then turn the unit off and unplug the unit.
10. Open the rear Conveyor Cover again and clean
the newly exposed section of the Belt Wrap in
the same manner as before. Close the Conveyor
Cover.
11. Open the front Conveyor Cover again and clean
the newly exposed section of the Belt Wrap in the
same manner as before.
12. Close the front Conveyor Cover and wipe down
the outside of the toaster with a clean, damp,
sanitized towel.
13. Install the Release Sheet by draping it over both
sides of the Platen with the crease centered on
the Platen.
NOTE: To prolong the life of the Release Sheet,
rotate it from the black side to the silver side on a
daily or weekly basis.
14. Install the Bun Chute so the hooks are installed
over the lower rear Support Rod.
15. Install the Heat Shield with the Release Sheet
retainer clips securely over the Release Sheet
and Platen.
16. Reinstall the Butter Wheel and Pan, and plug in
the unit.
NOTE: Check the Release Sheet to make sure it is
not caught in the Conveyor. Additional Release
Sheets can be purchased through your Authorized
Service Agency under P/N 7000249 (3-Pack) or
7000250 (10-Pack).

VERTICAL CONTACT TOASTER
12 P/N 1011334 Rev. I 04/20
®
MAINTENANCE (continued)
Replacing the Belt Wraps
(Every 3–6 Months)
NOTE: Depending on toaster usage and how well
they are cleaned daily, the Belt Wraps should last
between 3–6 months. Additional Belt Wraps may be
purchased from your Authorized Service Agency.
1. Turn the power off, unplug the power cord, and
allow the unit to cool.
2. Remove the Bun Feeder, Butter Wheel, Butter
Pan, and Heat Shield (Figure 1) and set the Bun
Thickness Compression Knobs to 6 & F.
3. Open both Conveyor Covers and pull the Belt
Wrap Pin out of the zipper (Figure 7).
4. Remove and discard the old Belt Wrap(s).
5. Clean both Conveyor Belt Chains just as
you would clean the Belt Wraps during Daily
Cleaning.
6. Install the new Belt Wraps around the Conveyor
Belt Chains inside the Upper and Lower Support
Rods with the zipper flap exposed and hanging
down (Figures 7 & 8). Make sure the Belt Wrap
clips are secured to the Conveyor Belt Chain.
Then, connect the ends of the Belt Wraps with the
connecting pin.
CAUTION
INCORRECT CORRECT
Figure 7. Installing Belt Wrap
Figure 8. Aligning Belt Teeth
Belt Wrap
Pin
Belt Rotation
Upper Support Rod
Lower
Support Rod
CAUTION
Position the Belt Wrap between the Upper and
Lower Support Rods or damage to the unit may
occur.
CAUTION
Align the ends of the Belt Wrap properly
(Figure 11) or the Belt Wrap may be damaged.
Replacing the Black and Silver Release
Sheet (Every 4–6 Weeks)
NOTE: Depending on toaster usage and on how
well it is cleaned daily, the black and silver Release
Sheet should last between 4–6 weeks.
1. Remove and discard the Release Sheet.
2. Lay a new Release Sheet on a clean, dry surface
and fold it in half lengthwise and gently crease it
at the fold using only your fingers (Figure 5).
3. Install the Release Sheet just as you would after
Daily Cleaning.
Fold over so
ends meet. Press Lightly with
finger to form crease.
Figure 5. Folding the Release Sheet
Figure 6. Removing Belt Wrap
THICKNESS
THICKNESS











2= 3/4" (19mm)
3= 13/16" (21mm)
4= 7/8" (22mm)
5= 15/16" (24mm)
6= 1" (25mm)
1= 5/8" (16mm)
B= 7/8" (22mm)
F= 1 1/8" (29mm)
D= 1" (25mm)
E= 1 1/16" (27mm)
C= 15/16" (24mm)
A= 3/4" (19mm)
Conveyor
Cover Assy.
Belt Wrap
Pin
Conveyor Belt
Chains
7. Close the Conveyor Cover(s), set the Bun
Thickness Compression Knobs back to their
normal settings and reinstall the Heat Shield,
Butter Wheel, Butter Pan, and Bun Feeder.

13
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
Figure 10. Removing Conveyor Belt Chain
Rotation
Upper Support Rod
Large Link
P/N 0800121
Small Link
P/N 0800204
Checking the Conveyor Belt Chains
(Every 3–6 Months)
NOTE: The Bun Thickness Compression Knobs
(Figure 3) must be set to “6 & F” prior to measur-
ing or removing or reinstalling the Conveyor Belt
Chains.
MEASURING CONVEYOR BELT CHAINS
1. Turn the unit off, unplug the power cord, and
allow the unit to cool.
2. Remove the Bun Feeder, Butter Wheel, Pan, and
Heat Shield (Figure 1) and set the Bun Thickness
Compression Knobs to 6 & F.
3. Open both Conveyor Covers and pull the Belt
Wrap Pin out of the zipper (Figure 6).
4. Remove the Belt Wrap.
5. Facing the toaster, locate the approximate center-
point of the Conveyor Chain.
6. Pull the Conveyor Chain away from the edge of
the toaster (Figure 9).
7. Stand a U.S. Dime on end between the frame
and the chain (Figure 9).
8. If the gap is significantly wider than the coin,
REMOVE links as described below.
9. Disconnect the Conveyor Belt Chain by squeez-
ing any two links together and unhooking both
ends one link (Figure 10). Needle-nose pliers
may be used.
NOTE: There are two small 1/2” links on each side
of the Conveyor Belt Chain. The rest are large 3/4”
links.
10. Remove one 1/2” link from the belt.
11. Reassemble the Conveyor Belt Chain onto the
sprockets as described in Replacing Conveyor
Belt Chains.
12. Measure the gap again to ensure it is not too
tight.
13. Check the opposite side of the toaster using the
same steps.
NOTE: If the Conveyor Belt Chain is too tight to be
reassembled, remove an additional small 1/2” link
and install a large 3/4” link in its place. This will
increase the length of the Conveyor Belt Chain by
1/4” overall.
REPLACING CONVEYOR BELT CHAINS
1. Turn the power off, unplug the power cord, and
allow the unit to cool.
2. Remove the Butter Wheel, Pan, and Heat Shield
and set the Compression Control Knobs to 6 & F.
3. Open both Conveyor Covers and pull the Belt
Wrap Pin out of the zipper.
4. Remove and discard the old Belt Wrap(s).
5. Disconnect the Conveyor Belt Chain by squeezing
any two links together and unhooking both ends
of one link (Figure 10).
6. Place the replacement Conveyor Belt Chain on
the top sprockets with hook ends down.
NOTE: The ends of the hooks must point down
(Figure 10).
7. Wrap the Conveyor Belt Chain around the top
and lower sprockets and connect by hooking both
ends together.
NOTE: Make sure the Conveyor Belt Chain is
installed between the Upper Support Rod and the
Lower Support Rod.
Figure 9. Measuring Conveyor Belt Chain
MAINTENANCE (continued)

VERTICAL CONTACT TOASTER
14 P/N 1011334 Rev. I 04/20
®
MAINTENANCE (continued)
Figure 11. Measuring Roller Tensioner
Checking the Roller Tensioners
(every 3–6 months)
MEASURING THE ROLLER TENSIONERS
1. Measure the Roller Tensioner on both inner
Conveyor Covers (Figure 11) using a U.S. Nickel.
2. The space between the inner Conveyor Cover
and bottom of the Tensioner wheel should be
13/16” (2.1 cm) or the height of a U.S. Nickel.
3. Adjust or replace any damaged ones as
recommended.
REPLACING ROLLER TENSIONERS
1. Push down on retaining tab of the tensioner.
2. While keeping pressure on the retaining tab, slide
the tensioner out of the retainer plate.
3. Replace the tensioner by sliding the new one into
the retainer plate.
Retainer Plate
Tensioner Assy.
Retainer Tab
Figure 12. Replacing the Roller Tensioner

15
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
Fan Debris
Fan Debris
Cleaning the Top Fan (every 3–6 months)
INSPECT THE TOP FAN FOR SIGNS OF DEBRIS
1. Turn the unit off, unplug the power cord, and
allow the unit to cool for 15 minutes before pro-
ceeding.
2. Refer to Figure 14 below. Remove the heat
shield to access the fan cover.
3. Remove the 4 fan cover screws, remove cover
and set aside.
4. Inspect fan blades and housing for debris (figure
13).
a. If the fan is clean reinstall the cover using the
four screws removed in step 3. Install heat shield,
plug unit into power and return to service.
b. If excessive debris has collect, proceed to
clean the fan following the “Top Fan Cleaning
Procedure”
MAINTENANCE (continued)
TOP FAN CLEANING PROCEDURE
1. Remove the Eight screws on the right side panel.
2. Carefully remove the side Panel and put aside
3. Wipe inner surface of the side Panel with a clean,
dry cloth to remove all debris and residue.
4. Remove the four fan screws located at the top of
the unit that secure the fan. When removing the
last screw, hold the fan in your hand to prevent it
from falling.
5. Use a clean, dry towel or small brush to remove
all debris and residue from the Fan blades and
Housing
NOTE: For a thorough cleaning, disconnect the two
wire terminals from the fan to completely remove
the fan from the unit
6. Reattach the fan with the 4 mounting screws at
the top of the unit. Please note airflow direction,
arrow on fan housing needs to point up
7. Reattach fan using the Four screws removed in
step 3 of the “Inspect The Top Fan For Signs of
Debris” section.
Reattach side panel with the Eight screws
removed in step 4 of the “Top Fan Cleaning
Procedure” section.
8. Install heat shield
9. Plug power cord in, power unit on and return to
service.
Figure 13. Example of Fan Debris
Figure 14. Fan, Fan Cover, and Heat Shield
Heat Shield
Fan Cover
Fan

VERTICAL CONTACT TOASTER
16 P/N 1011334 Rev. I 04/20
®
TROUBLESHOOTING
WARNING
To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip-
ment should be performed by qualified service personnel. The unit should be unplugged when servicing,
except when electrical tests are required. Use extreme care during electrical circuit tests. Live circuits will
be exposed.
Problem Possible Cause Corrective Action
Control Display
flashes “LO” continu-
ously. Buns not toast-
ing properly.
Platen temperature is below 440º F
(226º C).
Allow the unit to warm up for 30 minutes and then
recheck. If the Control Display still reads “LO”, con-
tact your maintenance person or Antunes Technical
Service for service.
Control Display
flashes “LO” continu-
ously. Buns burn.
Failed Platen Thermocouple. Contact your maintenance person or Antunes Tech-
nical Service for service.
Failed Control Board.
Control Display
flashes “PO” continu-
ously.
The power to the unit is below 190
volts.
Turn the power off and then on. If the display still
shows “PO”, check the power cord, plug, and outlet
for damage.
Reset the Circuit Breakers.
Contact your maintenance person, Authorized
Service Agency, or electrician for service.
Failed Control Board.
Failed Transformer.
Control Display
flashes “CHEC”
continuously.
Control Compartment temperature is
above 140º F (60º C).
Verify side vents on toaster are unblocked and not
near other heating appliances. If problem still per-
sists, contact your maintenance person or
Antunes Technical Service for service.
Failed Cooling Fan.
Failed Control Board.
Control Display
flashes “HI” continu-
ously. Buns burn.
Failed Platen Solid State Relay. Contact your maintenance person or Antunes Tech-
nical Service for service.
Failed Control Board.
Failed Platen Thermocouple.
Control Display
flashes “HI” continu-
ously. Buns not toast-
ing properly.
Loose Platen Thermocouple connec-
tion on Control Board or the Platen
Thermocouple is open.
Re-secure the Platen Thermocouple connection to
the Control Board. If the Control Display still reads
“HI”, check the Thermocouple for continuity.
Contact your maintenance person or Antunes Tech-
nical Service for service.
Failed Control Board.
Control Display
flashes “HI” and “LO”
at cold start up, then
“HI” and “USE” after
20–30 minutes.
Loose Auxiliary Thermocouple con-
nection on Control Board or Thermo-
couple is open.
Re-secure the Auxiliary Thermocouple connection to
the Control Board. If the Control Display still reads
“HI” and “LO” or “HI” and “USE”, check Thermocou-
ple for continuity. Contact your maintenance person
or Antunes Technical Service for service.
No Control Display. Unit not plugged in. Plug unit into the proper electrical outlet.
Hi-Limit control has tripped. Allow unit to cool and reset the Hi-Limit control. If
it trips again, contact your maintenance person or
Antunes Technical Service.
Circuit Breakers turned off or tripped.
Damaged electrical outlet, plug, or
cord. Power Switch damaged.
Reset Circuit Breakers. If they trip again, check the
cord, plug, and outlet for damage.
Contact your maintenance person, Authorized
Service Agency, or electrician.

17
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
TROUBLESHOOTING (continued)
Problem Possible Cause Corrective Action
Conveyor does not
turn.
Heat Shield is bent or damaged. Replace Heat Shield (See Replacement Parts)
Damaged or Missing Roller
Tensioner(s).
Adjust or replace Roller Tensioner(s).
Conveyor Belt/Chain has stretched.
Chain skipping on sprockets.
Measure and adjust the Conveyor Belt Chains as
described in the Maintenance section of this manual.
Motor Drive Chain came off
Sprocket(s).
Reinstall Drive Chain.
Drive Chain needs lubrication. Lubricate chain with P/N 2190152.
Drive Motor has overheated. Allow unit to cool and check Conveyor(s) for ob-
structions or binding at sprockets. Measure and
adjust Conveyor Belt(s) as described in the Mainte-
nance section of this manual.
Drive Motor has failed. Contact your maintenance person or Antunes Tech-
nical Service for service.
Buns not toasting
adequately.
Compression Settings are incorrect. Use the recommended settings. Set Heel to 4 and
Crown to F.
Temperature Setting is incorrect. Verify that the Platen (SP-P) is set to 530°F (277°C)
and the Auxiliary (SP-A) is set to 400°F (204°C).
For making changes to the setpoint temperature,
see the Installation section of this manual.
Release Sheet is worn or needs
cleaning (replace every 4–6 weeks).
Inspect Release Sheet for cleanliness, worn sports,
tears, or wrinkles. Clean or replace Release Sheet
as described in the Maintenance section of this
manual.
Belt Wraps are worn or need clean-
ing (replace every 3–6 months).
Replace or clean Belt Wraps as described in the
Maintenance section of this manual.
Belt Wraps are not tacky/sticky. Clean or replace Belt Wraps as described in the
Maintenance section of this manual.
Buns do not meet specifications. Contact your bun supplier.
Non OEM Release Sheets used. Use only OEM Release Sheets (P/N 7000249 &
700250).

VERTICAL CONTACT TOASTER
18 P/N 1011334 Rev. I 04/20
®
TROUBLESHOOTING (continued)
Problem Possible Cause Corrective Action
Crowns and/or Heels
must be forced into
the toaster. Buns
sticking and burning.
Belt Wraps not being cleaned
properly.
Clean Belt Wraps as described in the Maintenance
section of this manual.
Conveyor Belt Wraps are not tacky/
sticky (replace every 3–6 months).
Clean Belt Wraps. If the Belt Wraps are too worn,
replace them as described in the Maintenance
section of this manual.
Belt Wraps are dirty, worn, or dam-
aged (replace every 3–6 months).
Clean or replace Belt Wraps as described in the
Maintenance section of this manual.
Release Sheet is not being cleaned
properly.
Clean both sides of the black and silver Release
Sheet as described in the Maintenance section of
this manual.
Release Sheet is not being reversed
as required.
Reverse the Release Sheet or replace Release
Sheet as described in the Maintenance section of
this manual.
Release Sheet is dirty, worn, or
damaged (replace every 4–6 weeks).
Clean or replace Release Sheet as described in the
Maintenance section of this manual.
Conveyor Belt Chains are skipping
on Sprockets.
Measure and adjust the Conveyor Belt Chains as
described in the Maintenance section of this
manual.
Belt Wraps slipping over Conveyor
Belt Chains.
Remove Belt Wraps and clean the Conveyor Belt
Chain links and Belt Wraps as described in the
Maintenance section of this manual.
Roller Tensioner(s) damaged or
missing.
Reinstall or replace Roller Tensioner(s) as described
in the Maintenance section of this manual.
Drive Motor stalls intermittently. Contact your maintenance person or an Authorized
Service Agency for service.
Compression Settings are incorrect. Use the recommended settings. Set Heel to 4 and
Crown to F.
Buns are not inserted into the
toaster properly.
Buns must be inserted with the cut sides facing
each other on the correct Heel or Crown side.
Non OEM or damaged Belt Wraps
used.
Use only OEM Belt Wraps (P/N 7000416).
New Conveyor Belt
Wraps do not fit.
Compression Settings are incorrect. Set Compression Knobs to 6 and 6 when replac-
ing Belt Wraps or when adjusting Conveyor Belt
Chains.
Belt Wraps not installed correctly. Install Belt Wraps inside the Support Rods with the
zipper flap exposed and hanging down.
Non OEM or damaged Belt Wraps
used.
Use only OEM Belt Wraps (P/N 7000416).

19
VERTICAL CONTACT TOASTER
P/N 1011334 Rev. I 04/20
®
Problem Possible Cause Corrective Action
Toaster makes
unusual sounds.
Compression Settings are too tight. Set Compression Settings to the correct (or larger)
setting.
Conveyor Belt Wrap is installed
incorrectly.
Belt Wraps must be installed as described in the
Maintenance section of this manual.
Belt Wrap Pin rubbing on housing. Center the Pin in the Belt Wrap zipper.
Roller Tensioner(s) bent or missing. Measure, adjust, or replace the Roller Tensioner(s)
as described in the Maintenance section of this
manual.
Conveyor Belt Chains have
stretched.
Measure and adjust the conveyor Belt Chains as
described in the Maintenance section of this
manual.
Conveyor Belt Chains adjusted
incorrectly.
Sugar and/or carbon has accumu-
lated inside the Conveyor Belt Wrap
and between the Conveyor Belt
chain and Tensioner Slide Rails.
Remove Belt Wraps, clean conveyor Belt Chain
links just as you clean the Belt Wraps daily, and
then clean the Slide Rails on the Tensioners. Next,
clean the Belt Wrap on both sides before
reinstalling it.
Motor Drive Chain needs lubrication. Lubricate the Drive Chain carefully with P/N
2140152 at least once a year.
A Conveyor Shaft bearing is binding. Contact your maintenance person or Authorized
Service Agency for service.
TROUBLESHOOTING (continued)

VERTICAL CONTACT TOASTER
20 P/N 1011334 Rev. I 04/20
®
REPLACEMENT PARTS
Parts Identification
Platen
Item 43
Hi-Limit
Control
Item 58
Fan Blade
Item 43
Hi-Limit
Capillary Probe
Item 26
Platen Relay
Item 26
Auxiliary Relay
Item 17
Rear Drive
Sprocket
Item 27
Transformer
Item 18
Drive Chain
Item 54
Rear Auxiliary
Air Heater
Item 54
Front Auxiliary
Air Heater
Item 24
Power Switch
Item 50
Auxiliary Air
Thermocouple
Item 22
Drive Motor
Assembly
Item 36
Platen
Thermocouple
Item 17
Front Drive
Sprocket
Item 19
Idler Sprocket
Item 50
Auxiliary Air
Thermocouple
