Anzzi SD-FRLS05901 Series User manual

Item: SD-FRLS05901**
SD-FRLS05902**
INSTALL & OPERATION MANUAL
V1.0
ANZZI GLASS SHOWER DOOR
DON’T WAIT!
REGISTER NOW!
Register your product within 90 days to ensure your product is
recognized as an official purchase and is eligible for warranty
coverage.
Mail in the completed registry card (Pg. 2) or register online
at www.swcorp.com/register
.

PRODUCT REGISTRATION∗
IMPORTANT: YOUR WARRANTY WILL NOT BE RECOGNIZED UNLESS THIS CARD IS
FULLY COMPLETED AND RETURNED OR ONLINE REGISTRATION IS COMPLETED.
To ensure that your warranty is registered and confirmed please do one of the following:
1. Register online at www.swcorp.com/register. You will be asked to fill out the same
information you would in the registration card. Registering online is fast, secure and
ensures we receive your information.
2. Complete, cut-out and mail the registration card below.By returning this registration
card we confirm the date of purchase for your new product. This confirmation will allow
us to process any warranty claims.
Mail the card to: 5701 NW 35 Avenue, Miami, FL 33142
Product Registration Card
Name ..................................................................................... Address ...........................................................................................................................
City ............................................... State ........................... Zip ..............................
Phone
........................................... Email ........................... .........................................
Date of Purchase ...........................
Installer’s Name
.....................................................................
Phone ................................................................................
I have read the Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be
done strictly in accordance with instructions and guidelines contained in the owner’s manual and installation guide.
Signature____________________________________________________________Date ______________________________________________
CUT ALONG
DOTTED LINE.
Need help? For technical support call or visit us at 305-614-4070 www.ANZZI.com

INSTALLATION GUIDE
BEFORE YOU BEGIN
.
Please check the product for transit damage, missing parts immediately. Damage
reported later cannot be accepted. Please handle the product with care. Avoiding any
impact on all sides and edges of the glass.
Consult your local plumbing codes prior to installation.
To reduce the risk of breakage, keep corner protectors on glass while installing.
If this unit is going to be installed in a new construction, please install all of the
required plumbing and drainage before installing the shower. Use a competent and
licensed (if required by local code) plumber for all plumbing installation.
Please make sure that prior to beginning the installation, the surfaces are leveled
and solid and will be able to support the total weight of the unit. Also make sure the walls
are at right angles. Irregular installation surface level, radius corners or improper angle
of side walls will result in serious problems for your installation. Please note that some
adjustments and drilling might be necessary during the installation process.
Please protect all primary surfaces of the product during installation. Never set your
glass down directly onto a tile floor. Leave corner protectors in place until necessary
to remove them. Always use a piece of wood or cardboard to protect the bottom edge
and corners of the glass prior to and during installation.
This unit must be installed upon a finished threshold and against finished walls.
Special care should be taken to avoid hidden pipes or electrical cables when drilling
holes on walls .
This product is heavy and may require two people to install.
When cutting or drilling metal components or when handling glass, to reduce the risk
of personal injury, protective eye wear, gloves, and closed-toe shoes are required.
Failure to install this product according to installation instructions may result in
personal injury, property damage, or product failure, and may void the warranty.
WARNING
.
.
.
.
.
.
.
.
.
.
1

ATTENTION
.
Threshold must be level for proper installation.
The installation of this unit requires that you drill down into the threshold. Contact
the manufacturer of the base, or threshold material with any questions regarding the
drilling of holes into their product.
This model requires a minimum 2-3/4"(70mm) of flat level threshold space for
installation.4-1/8"(105mm) of flat level threshold space is better.
.
.
Tools Required
Philips
Screwdriver
Level Tape
measure
Drill O1/8''
(3mm)
Drill bit
O1/4''
(6mm)
Drill bit
100%
Silicone
Sealant
Pencil Pubber
mallet
Safety
Glass
Hack
saw
Metal file
Tin snips Stud finder Knife
2
INSTALLATION GUIDE
BEFORE YOU BEGIN
This product is heavy
and may require two
people to install.
.
Use cut-resistant,
non-slip gloves to
reduce the risk of
personal injury and
hold the glass firmly.
.

[01] x2
PARTS
[02] x2[03] x1[04] x2[05] x4[06] x1[07] x1
[08A] x1[08B] x1[09] x2
[10A] x2
[15] x4(ST4x
[11A] x2[11B] x2[12] x2[13A] x1[13B] x1
[14] x12 [16] x2[17] x1[18] x1
[21] x6[22] x1(2.5mm) [23] x1
[10B] x2
[19] x2(ST3.5x
[20] x6(ST4x
3
35mm[1-3/8"]) 25mm[63/64"])
35mm[1-3/8"])

[20]
[14]
[02]
[09]
[06]
[16][03]
[18]
[07]
[05]
[12]

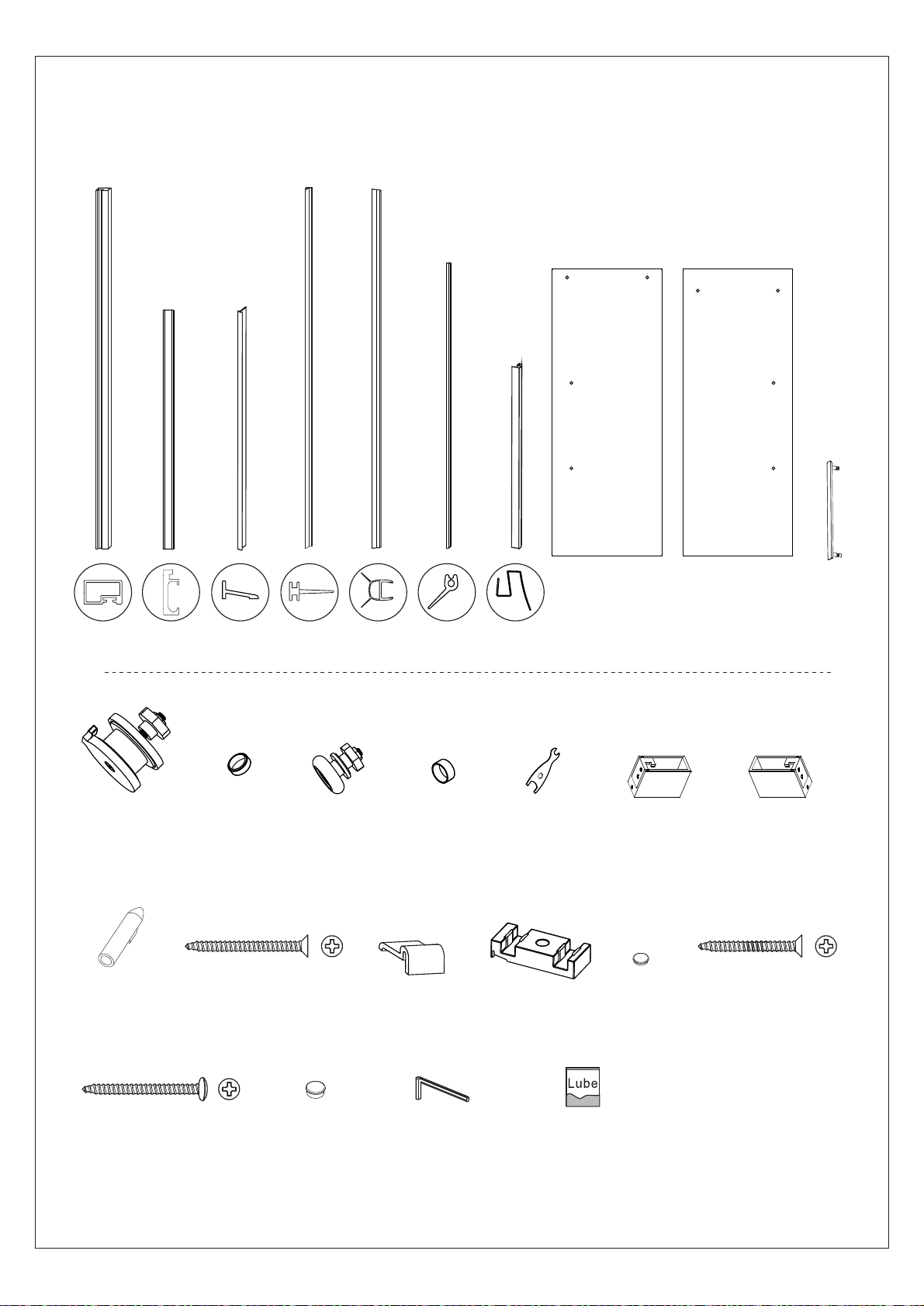

Part Discription Qty.
[01] Wall Jamb 2
[02] Support Bar 2
[03] Bottom Rail 1
[04] Gasket 2
[05] Side Gasket 4
[06] Threshold Gasket 1
[07] Sealing Strip 1
[08] Door panel 2
[09] Handle set 2
[10] Outer Wheels 2
[11] Inner Wheels 2
[22]
[13A]
[15]
[13B]
[01][04]
[19]
[17]
[14]
[21]
[08A]
[10B]
[10A][08B]
[11B]
[11A]
Part Discription Qty.
[12] Wrench 2
[13] Wall Bracket (L&R) 2
[14] Wall Plug 12
[15] FH Screw ST4x35mm[1-3/8"] 4
[16] Seal 2
[17] Bottom Guide 1
[18] Bottom Guide Cap 1
[19] Screw ST3.5x25mm[63/64"] 2
[20] Screw ST4x35mm[1-3/8"] 6
[21] Cap 6
[22] Allen Key 1
ASSEMBLY
4

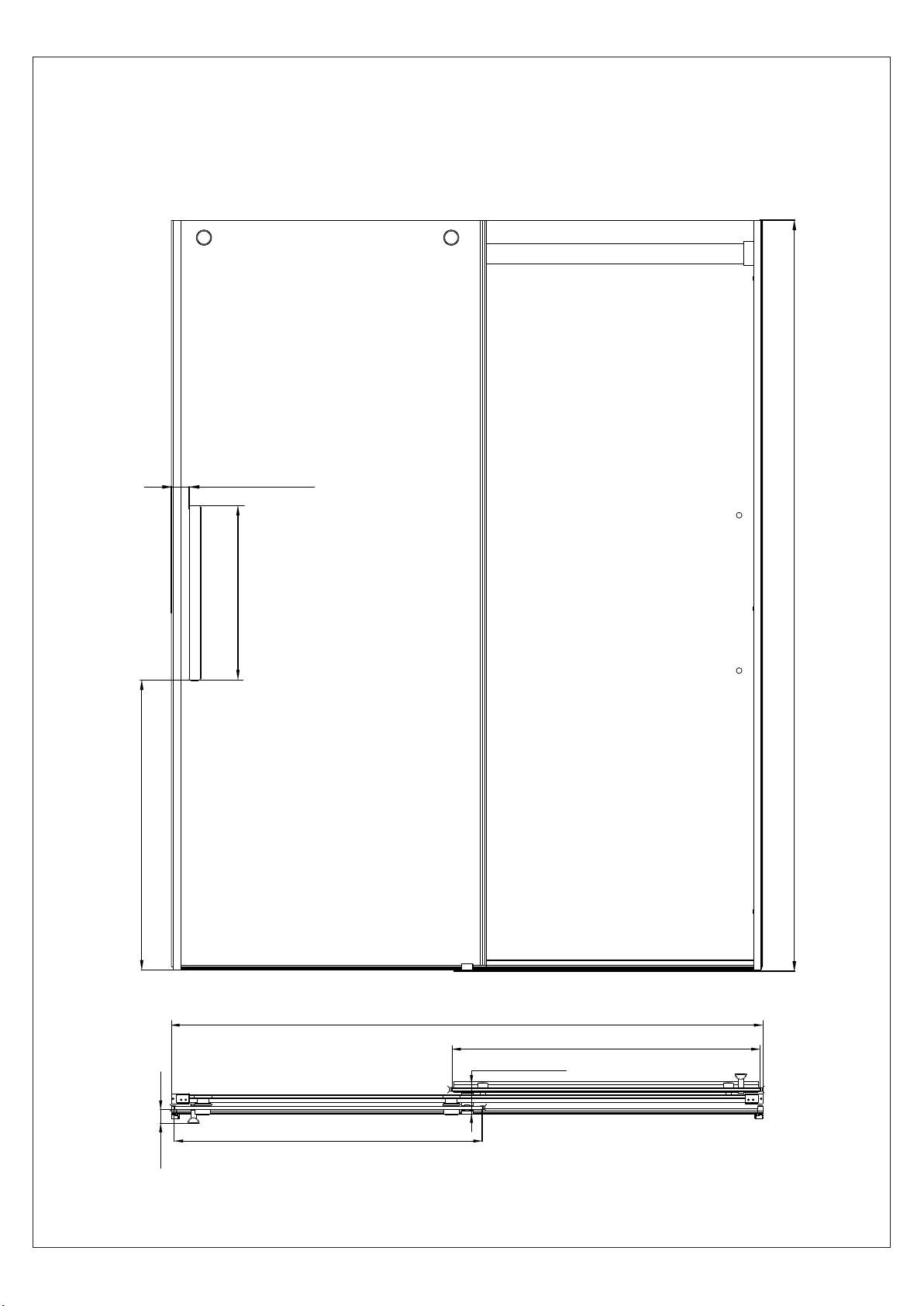

SD-FRLS05901** 48"*76"
47.6"-48"[1209-1219mm]
5
1.4"[36mm]
18.1"[460mm]
1.8"[45mm]
29.2"[741mm]
25.1"[638mm]
25.1"[638mm]
3"[75mm]
76"[1930mm]

SD-FRLS05902** 60"*76"
31.1"[790mm]
59.6"-60"[1514-1524mm]
31.1"[790mm]
76"[1930mm]
6
3"[75mm]
18.1"[460mm]
1.8"[45mm]
29.2"[741mm]
1.4"[36mm]

ATTENTION
.
To avoid personal injury or property damage, identify components and read all
instructions before installing.
This model requires a minimum 2-3/4”(70mm) of flat level threshold space for
installation.4-1/8"(105mm) of flat level threshold space is better. (Dimension "D" of Fig 2.)
Step 1
This shower door must be installed into a stud. Minimum threshold space is required.
IMPORTANT: Using a stud finder,ensure that the wall on both side of the enclosure has
a stud in the location shown. A stud in this location must be identified to support the
support bar in order to proceed with the installation. If you do not have a stud in this area
shown, find a qualified person for advise.(Fig 2)
1. Make sure the screw of the Wall Bracket Assembly[13A] is tightened(Fig 1.1).Take
off the cover(Fig 1.2).
2.Using a pencil and stud finder to mark the outer side and the bottom of Wall Bracket
Assembly[13A] so that it can be fixed on the stud. Choose one side to mark the lines,
takes the left side for example.
3.Measure up in 71-1/2"(1816mm) from the ground to the bottom corner of the Wall
Bracket Assembly[13A] and draw a horizontal line. Measure in 1-1/2"(38mm) min from
the outside of the Wall to the profile of the Wall Bracket Assembly[13A] and draw a
vertical line. Or measure in 1-1/2"+ (A") if you want to install the shower door behind the
outside of the wall (Fig 2,Fig 3).
.
INSTALLATION INSTRUCTIONS
.
7
Fig3
1-1/2"+(A")
71-1/2"
wall
wall
Fig1
Fig2
1 2
wall bracket
1-1/2"+(A")
1-1/2"+(A")
threshold
71-1/2"
OUTSIDE
D

W2
W1
Step 2
1.Measure the finished opening width at the
bottom("W2") and at the model height("W1").
IMPORTANT: No need for cutting if the
Support Bar[02] and the Bottom Rail [03]
match the width. If they don’t, please see
Step 2.2 for cutting instructions.
2.Using a pencil or another marking tool
(such as masking tape), mark distance
"W1, subtract 1-1/8"(28.5mm) "
on the Support Bar[02] ( to leave some space
for the Wall Bracket ),
"W2, subtract 1/16"(2mm) on the
Bottom Rail [03] ( just in case the end of the
rail can't match the corner of the wall so well).
IMPORTANT: Double check the
measurements before cutting. Cut the
Support Bar[02] and the Bottom Rail[03]
with a fine toothed (32 TPI) hack saw.
If needed, use a metal file to smooth rough
edges. Clean up metal shavings.
DO NOT stand on or use a vice to hold the
Support Bar[02] and the Bottom Rail [03]
while cutting.
W1, subtract 1-1/8"
[02]
[03]
[02] x1 [03] x1
W2, subtract 1/16"
Fig4
8

Step 3

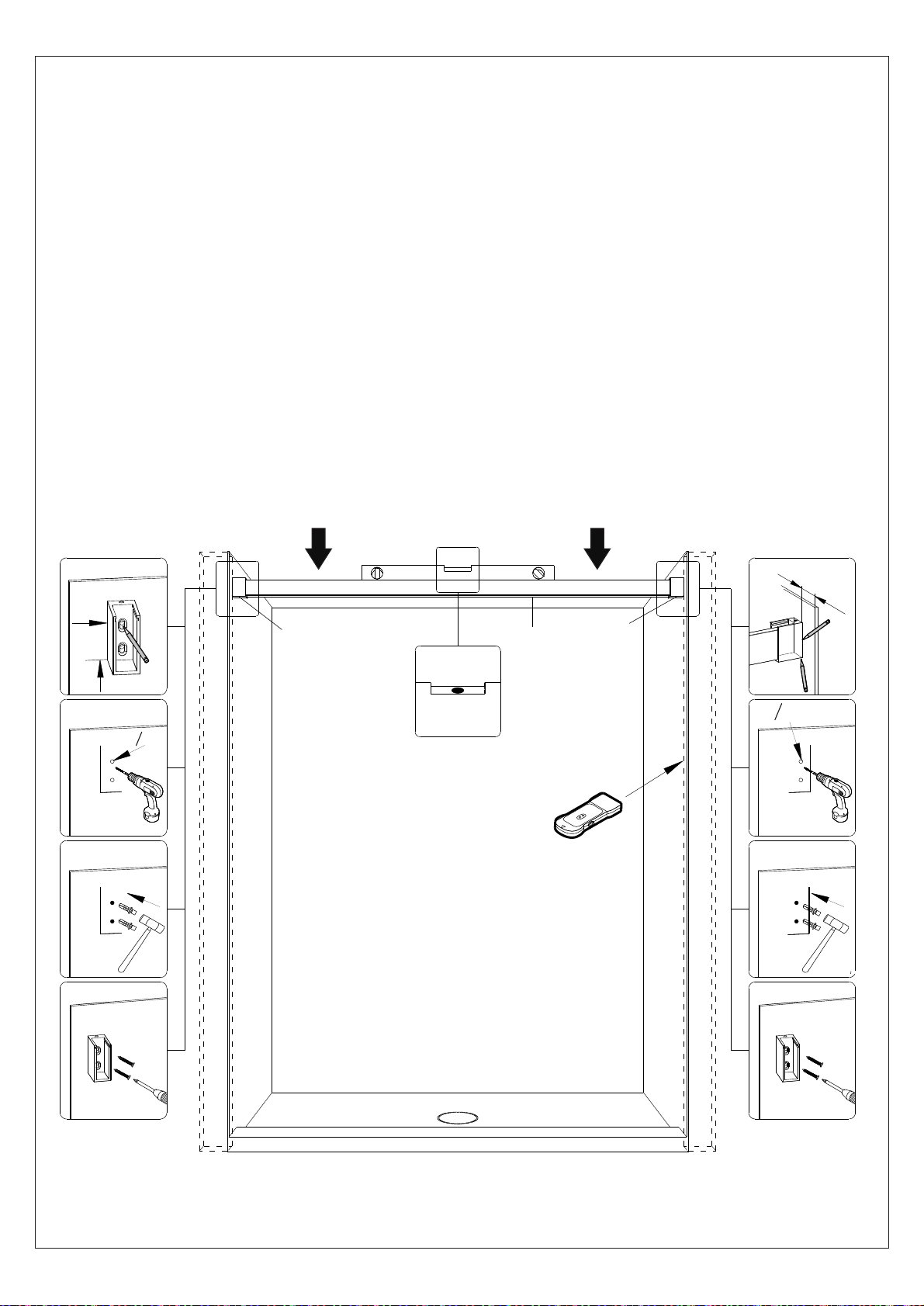

1.Hold the Wall Bracket Assembly[13A] in the designated position(left side) and mark
the holes for drilling(Fig 5.1). Drill a 1/4" hole at each location and insert the
Wall Plugs[14](Fig 5.2,Fig 5.3). Attach the Wall Bracket Assembly[13A] using the
FH Screw ST4x35[15](Fig 5.4).
2.Insert the Support Bar[02] into the installed Wall Bracket Assembly[13A].Temporarily
attach the remaining Wall Bracket Assembly[13B] to the opposite end of the
Support Bar[02]. Place a level on top of the Support Bar[02]. Align the Wall Bracket
Assembly[13B] with the opposite vertical line from Step 1 and mark the bracket’s position
on the wall(Fig 5.5).
3.Remove the Support Bar[02]. and position the Wall Bracket Assembly [13B] onto the
wall and mark the holes for drilling. Drill a 1/4" hole at each location and insert the Wall
Plugs[14](Fig 5.6,Fig 5.7). Attach the Wall Bracket Assembly[13B] using the
FH Screw ST4x35[15](Fig 5.8).
01/4"
01/4"
Fig5
9
1
3
5
7
1-1/2"+(A")
FH Screw
ST4X35
8
6
[02] [13B]
[13A]
FH Screw
ST4X35
4
2

9/16"+(A")
Step 4
1.Set the Bottom Rail [03] onto the threshold parallel with the outside edge.
2. Measure in 9/16"(14mm) min from the outside of the Wall to the Bottom Rail [03] and
mark the position on the threshold(Fig 5). Or measure in 9/16"+ (A") if you want to install
the shower door behind the outside of the wall. The measurement “A” must be the same in
Step 1.
[03] x1
Fig6
Sections of Bottom
Rail and threshold
10
wall
9/16"+(A")
9/16"+(A")
Bottom Rail[03]
threshold

Step 5
1.Tear off the tape form the Bottom Rail [03] (Fig 7).Place the Bottom Rail [03] onto
the marked position on the threshold(Fig 8).
2.Measure across the width of the threshold to locate and mark the center (Fig 9).
center
Fig7
Fig8
Fig9
11

Step 6

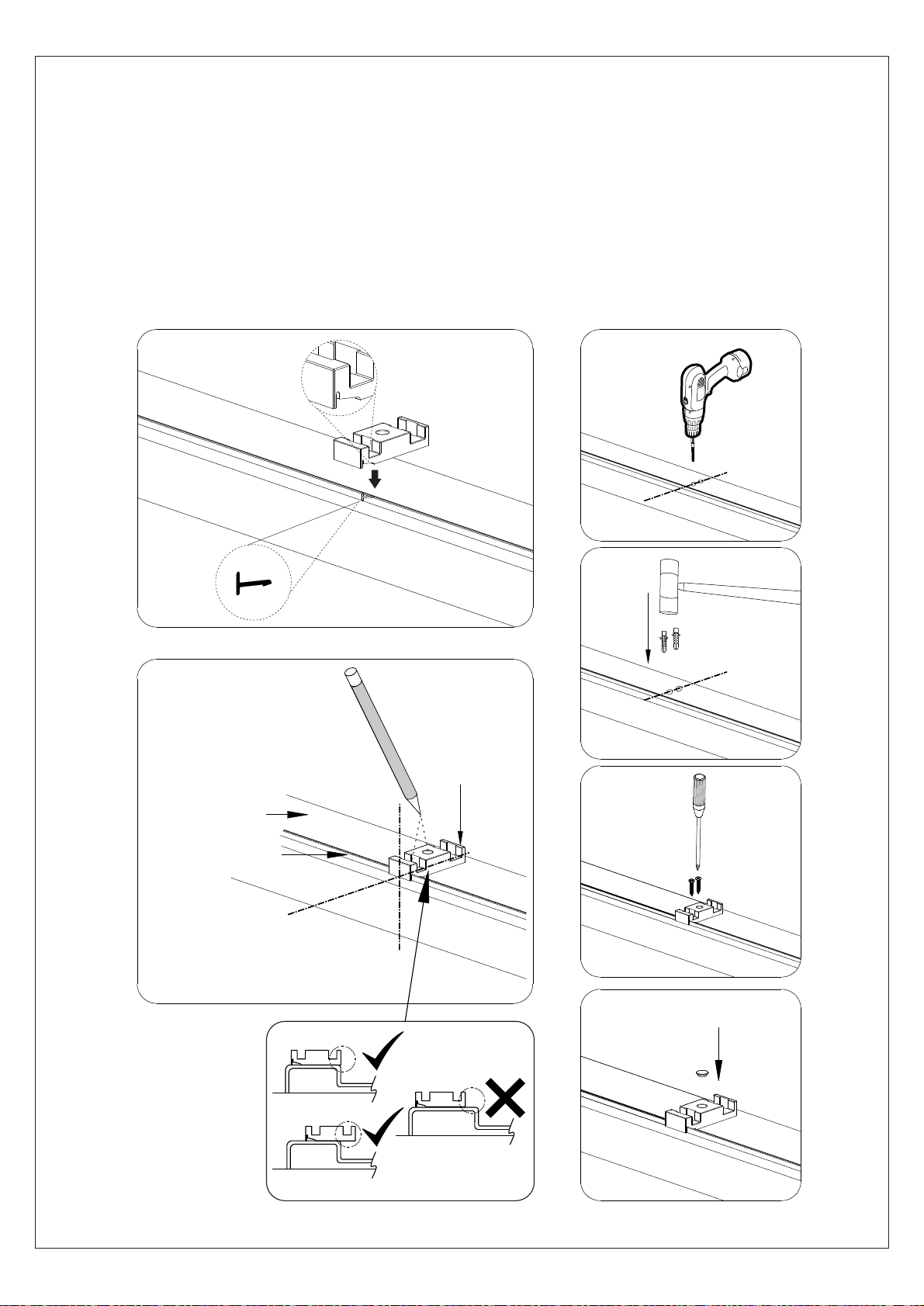

1.Place the Bottom Guide[17] onto the center of the Bottom Rail [03] and mark the hole
for drilling(Fig 10.1 and Fig 10.2). Drill a 1/8" hole at each marked location if drilling into
acrylic or wood material (Fig 10.3). Drill a 1/4" hole at each marked location if drilling into
tile material and insert the Wall Plugs[14] (Fig 10.4).
2.Fix the Bottom Guide[17] with screws ST3.5X25[19](Fig 10.5). Install
Bottom Guide Cap[18] to finish the Bottom Guide‘s installation(Fig 10.6).
12
Fig10
Screw
ST3.5X25[19]
only use wall
plugs with tile
bottom
guide
center
bottom rail
threshold
2
1
6
5
4
3

Step 7

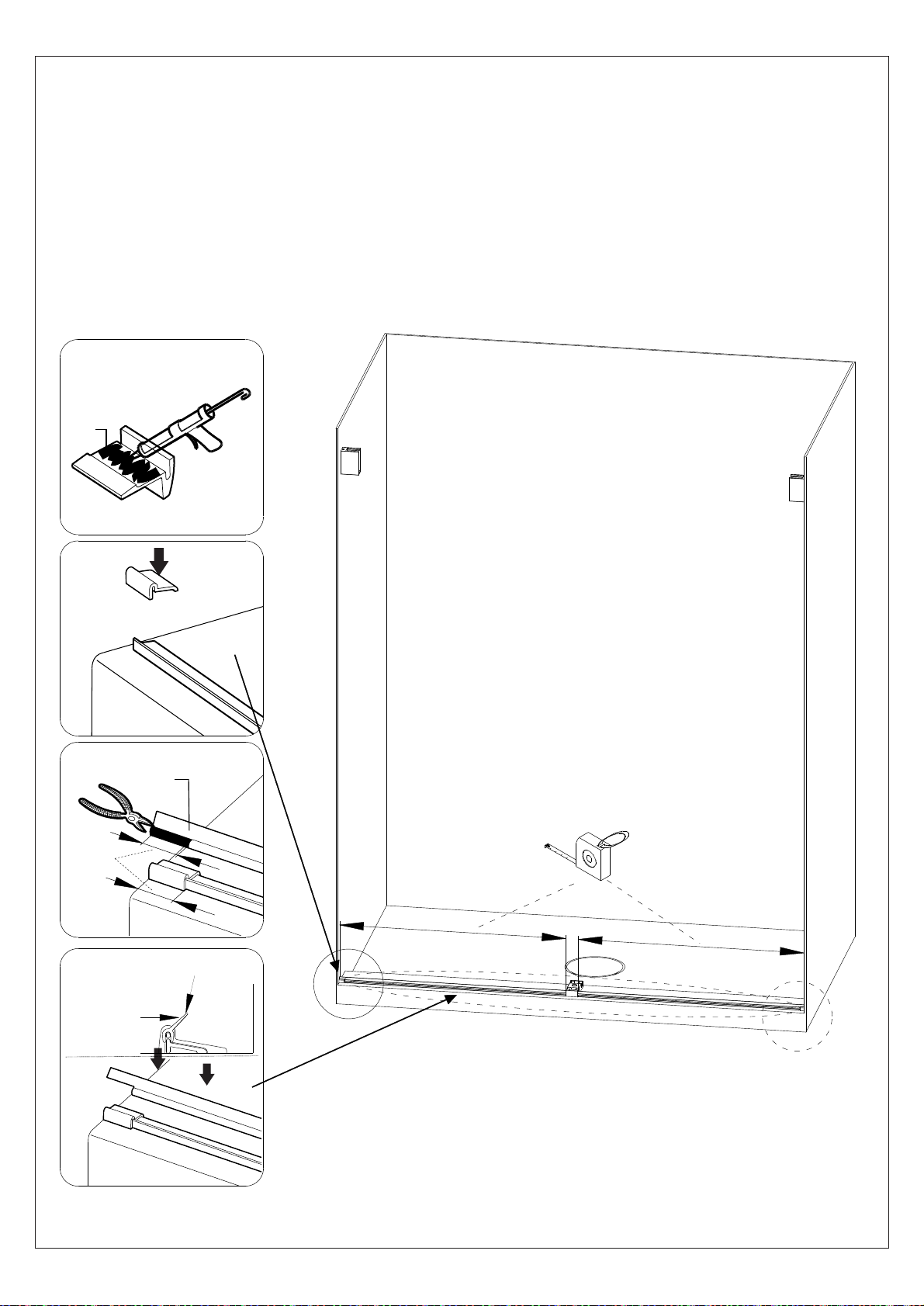

1.Apply silicone to the Seal [16] and attach to the end of Bottom Rail [03]
(Fig 11.1 and Fig 11.2).
2.Measure the length between the left side wall surface and the Bottom Guide[17] and
the right side wall surface.
3.Cut the Threshold Gasket according to the length by a Tin snips. Cut the part of the
Threshold Gasket[06] which interfering with the Seal [16] (Fig 11.3). The cut length
would be the same as Seal [16] (Fig 11.4).
Fig11
13
pointing inside
Threshold
Gasket
same
length
[06]
[16]
4
3
2
1

Step 8

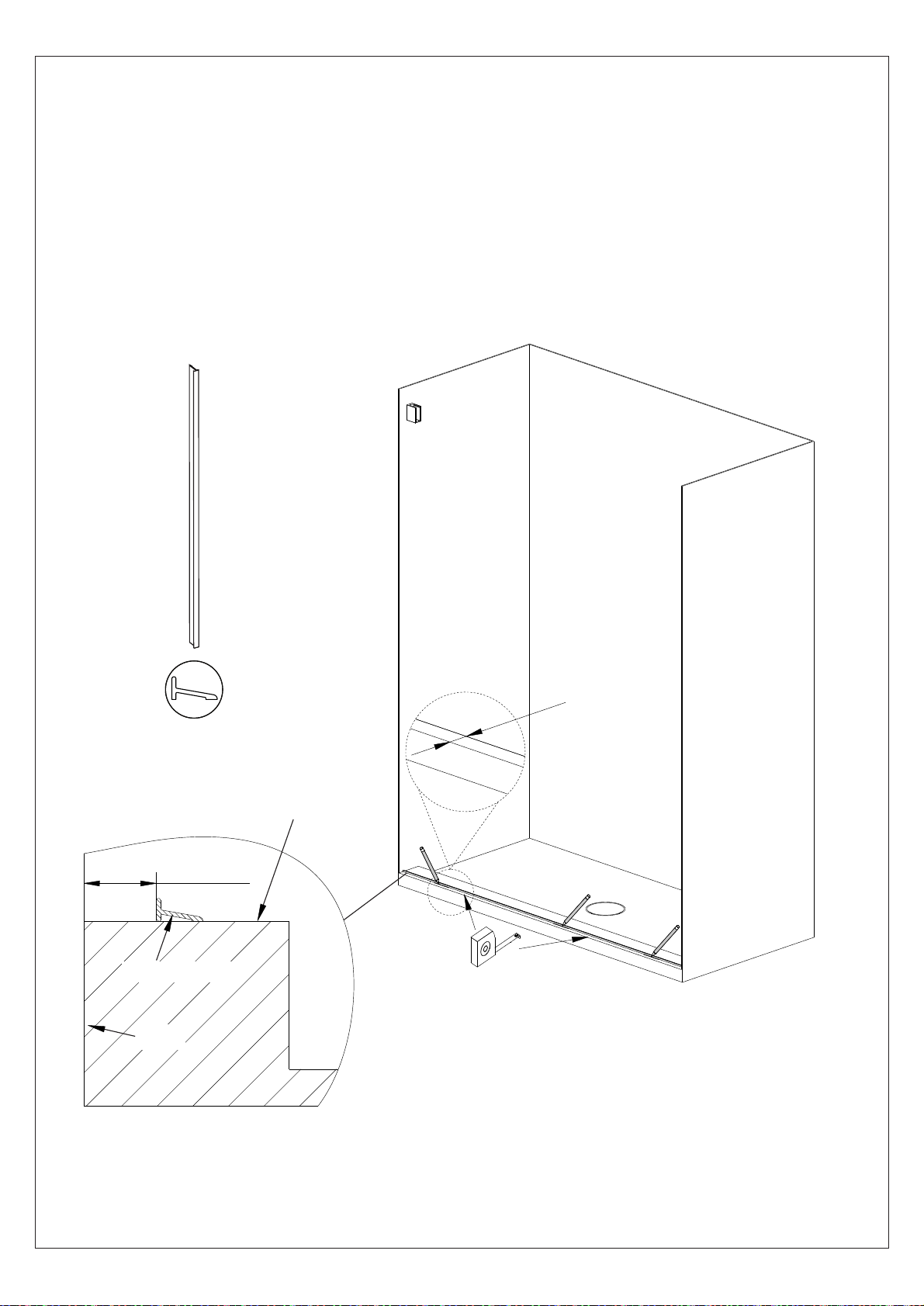

Place Wall Jambs [01] into position by closing
to Seal[16]. Ensure Wall Jambs[01] is vertical
using a level. Temporarily tape fixed Wall Jamb[01]
into position. (Fig 12)
Step 9
Using a pencil, mark location of all three
screw holes for Wall Jambs[01]. (Fig 13)
14
Profile Figure
Wall
Jamb
Seal
Fig12
Fig13

Step 10

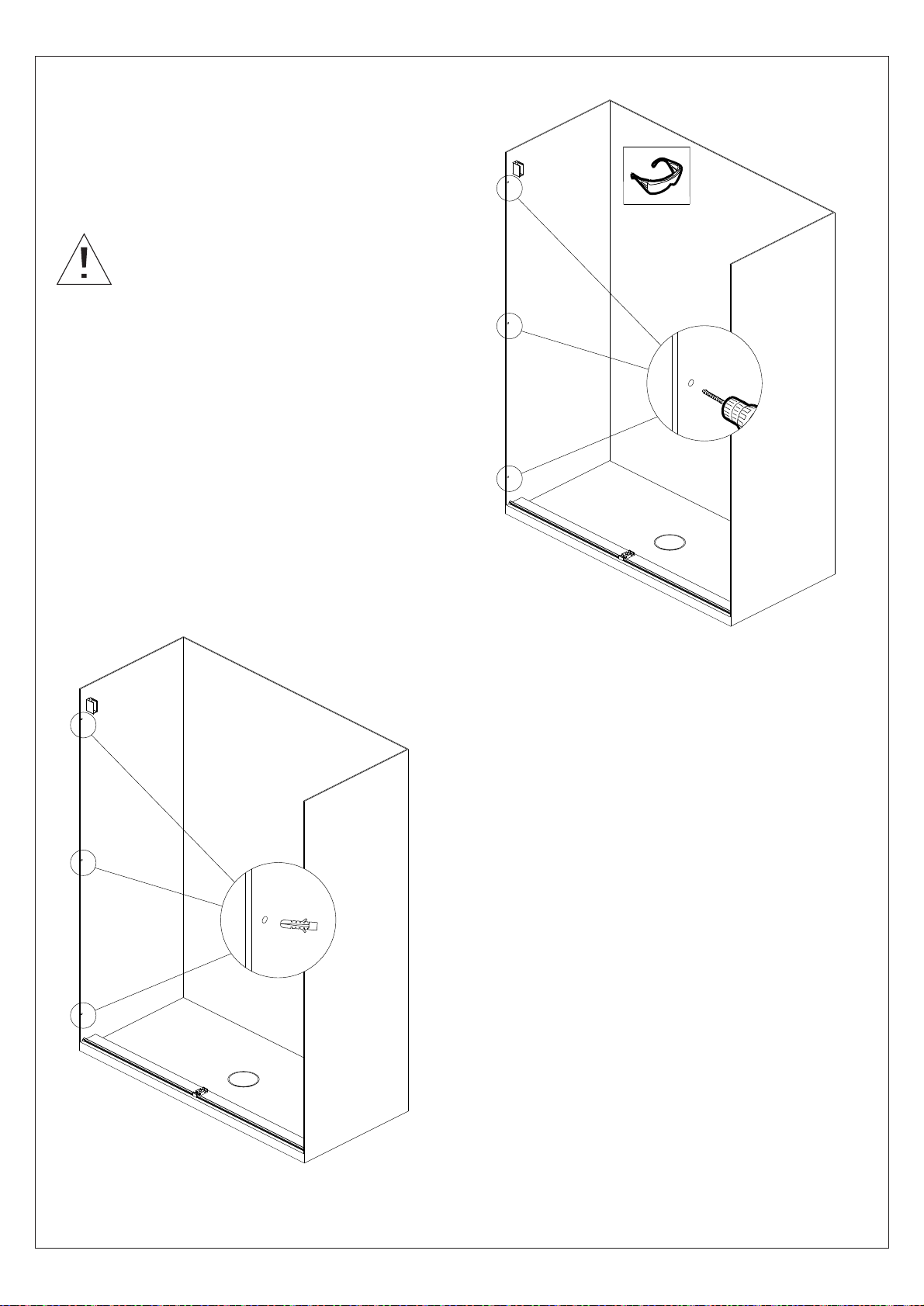

Remove Wall Jambs[01] and drill a 1/4"
hole at each location marked for Wall
Jamb[01] (Fig 14).
Step 11
1.Insert Wall Plugs[14] in each hole location.
2.The Wall Plugs[14] should fit securely into the
holes. If needed, a rubber mallet can be used to
insert Wall Plugs.
3.To reduce risk of property damage, the use of
metal hammers is not recommended. If needed,
use drill to slightly enlarge the opening of the hole.
IMPORTANT: Wall Plugs[14] MUST be used.
Wear safety glasses and cut-resistant,
non-slip gloves when drilling or cutting
to avoid risk of injury.
ATTENTION
15
Fig14
Fig15

Step 12
1.Install Gaskets[04] to Wall Jambs[01] (Fig 16.1). Reposition Wall Jamb[01]. Use drill
to start the ST4X35 screws[20] into the Wall Plugs[14].
2.Next, use a screwdriver to hand tighten until secure(Fig 16.2).Install the Caps[21] to
finished the installation(Fig 16.3).
3.If the Gaskets[04] is longer than the Wall Jambs[01] after installation. Cut the longer
part(Fig 16.4).
4
3
2
1
[04]
[01]
[20]
[21]
[20] [21]
16
Fig16
left right

Step 13
1.Install Support Bar [02] to Wall Bracket Assembly. The groove of the Support Bar [02]
faces inward. Place a level to make sure the horizontal of the Support Bar [02].
2.If the Support Bar [02] isn't horizontal, remove the Support Bar [02] again.
Find the higher Wall Bracket Assembly and loose the fixed screws for one turn.(Fig 17.1)
3.Turn the hex screw counter-clockwise for one turn each time. Replace the
Support Bar [02] and level to check the horizontal.(Fig 17.2)
4. Tighten the screws which were loosen at step 13.2 again if the horizontal is confirmed.
5.Reinstall the cap of Wall Bracket Assembly and fixed with the Allen Key[22]
(Fig 17.1 and Fig 17.2).
4
3
2
1
[22]
[02]
17
Fig17

Step 14
1.Install to the . The washer should be on the metalInner Wheels[11A] Door Panel[08B]
part side(Fig 18.1). Adjust the Eccentric nut like the picture below(Fig 18.1a).
2.Use two in the package to tighten the Inner (Fig 18.2).wrenches[12] Wheels[11A]
3. Install the to the 4. Beware of the direction (Fig 18.3).Sealing Strip [07]
3
2
1
18
pointing
downward
Fig1a
face
inside
holes
Fig18
3-11/16"
(94mm)
