Aosom 370-166V80 User manual

ASSEMBLY INSTRUCTION
INfac015_US
370-166V80
CHILDREN’S ELECTRONIC TOY BEACH CAR
• Suitable for 3+ Years
• Maximum user weight: 30 kg
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important
information. Before first time use, charge the battery for at least 4-6
hours, but no more than 10hours.
WARNING: Must be assembled by an adult.

A
1
On the purchase of your new Ride-On.
This ride-on car will provide your child with many miles of riding of enjoyment. To help
assure you and your rider a safe ride we ask you to please read this manual carefully, and
keep it for future reference.
Follow the recommendations in this manual, they are designed to improve the safety and
operation of your ride-on car and its rider.
Suitable age:
Charge time:
Load capacity:
Size of car:
Speed:
About Your New Vehicle
3+ Years
8~12 hours
Under 30 kg
720 x 400 x 455 mm
2.8-4.6 km/h
Specification
Battery
Charger
input
Motor
6V4.5AH X1
6V500mA
390-9000~12000
6V7AH X1
6V700MA-1000MA
390-9000~12000
Depend on local voltage
2020625

2
B
1
3
4
4
4
4
\
1
4
1
1
1
1
2
1
1
3
4
4
4
\
4
1
4
1
1
1
1
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
NO. PART NAME
Q’TY (PCS)
Configuration 1 Configuration 2 REMARK
Vehicle body
Ø10 washer
Wheel
Ø8 washer
Lock nut
Wheel cover
Hubcap
Front axle lingage
Ø4x16 screw
Steering column
Handle bar
M5x30 machine screw
Ø5 nut
Spanner
Charger
Parts List
Optional
Optional

3
3
1
7
11 10 12
2
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
6
6
8
9
13
14
C
Configuration 2 Configuration 1
Configuration 2
Configuration 1
HINT: Some parts shown are assembled on both sides of vehicle
Parts Diagram

4
D
WARNING:
• CHOKING HAZARD! Not suitable for children under 36 months.
• Must be assembled by an adult.
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep
child in view when child is in vehicle.
Rules for Safe Riding
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt before
using, guarantee the security.
• Keep Children within Safe Riding Areas:
- Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps,
swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident.
Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving .
• This toy should be used with caution since skill is required to avoid falls or collisions causing
injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, or on near steep inclines or steps, swimming pools or
other bodies of water.
• Always wear shoes, always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum user
weight is 30 kg.
• This toy has no brake.
Safety

5
E
4
2
3
1
Fit the Front Axle Linkage
• Gently turn the vehicle body upside down.
1. Fit the front axle linkage to the vehicle
body.
2. Insert four Ø4x16 screws through the front
axle linkage and into the vehicle body,
tighten with a screwdriver.
• Turn the vehicle body on its side.
3. Insert the straight end of the steering
column into the hole on the vehicle
body and out through the hole on the
top of the vehicle body.
4. Insert the bent end of the steering
column into the hole on the front axle
linkage.

6
E
1
5
3
4
2

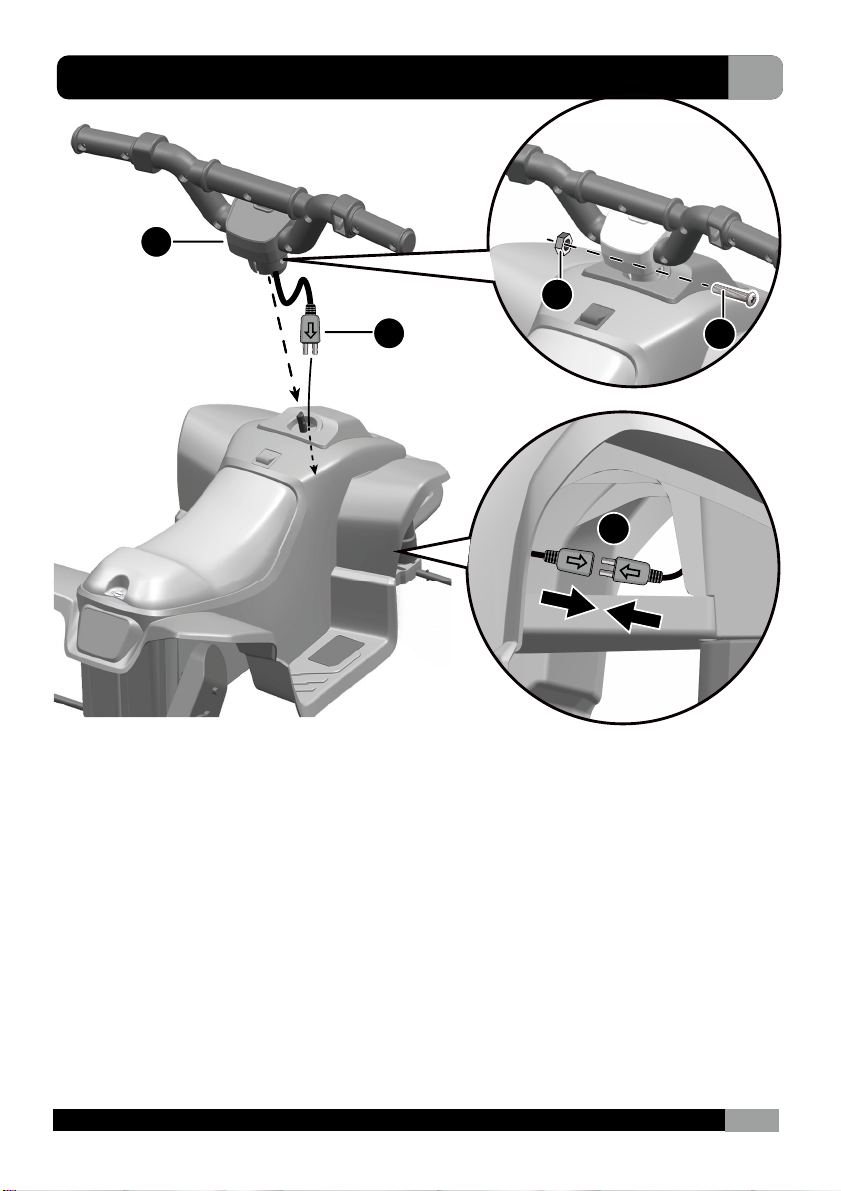

Attach the Handle Bar
• Turn the vehicle body over.
1. Insert the power unit connector into the hole the vehicle body.
2. Fit the handle bar onto the end of the steering column.
3&4. Line up the holes on the steering wheel with the holes on the steering
column, insert the M5x30 machine screw. Fasten a nut on the opposite end of
the screw. Using a long nose pliers to hold the nut while tightening the screw
on the other side with a screwdriver.
5. Plug the power unit connector into the connector on the vehicle body.

7
E
1
5
6
7
8
9
23
4

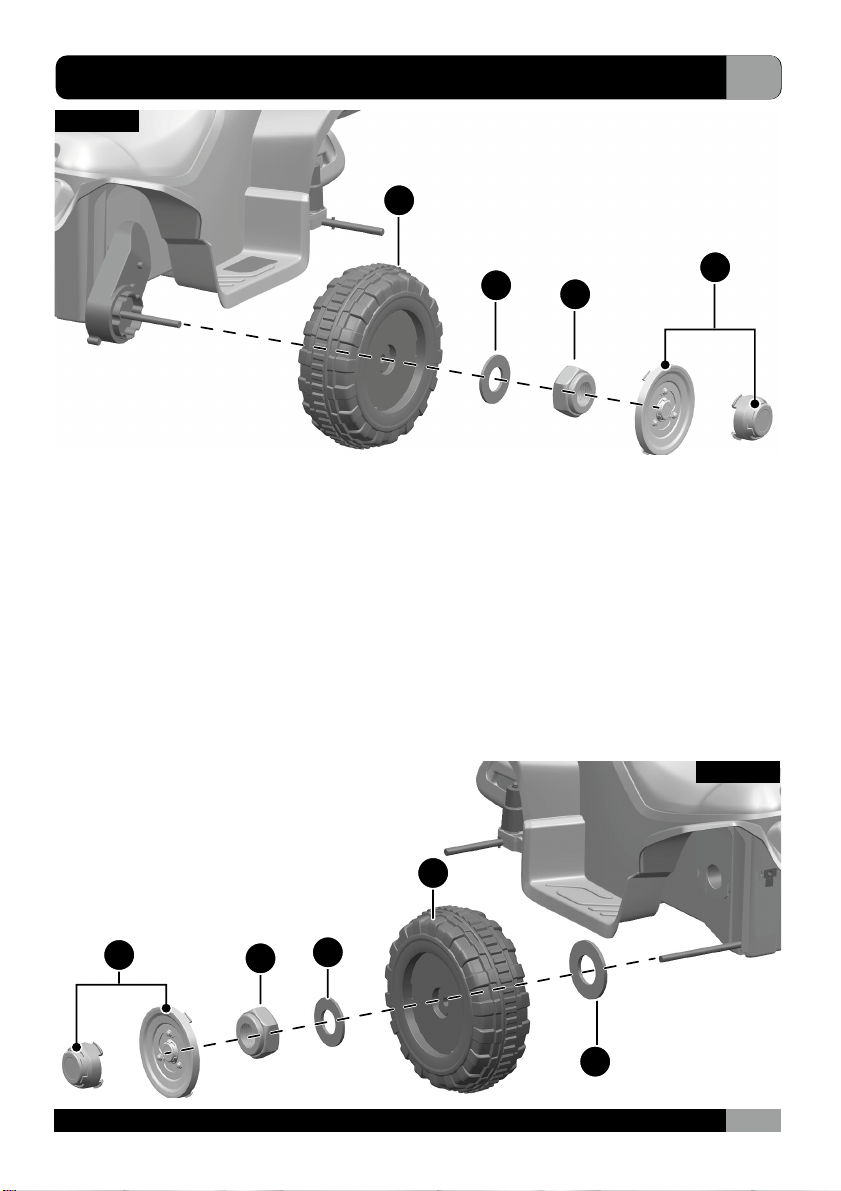

Attach the Rear Wheels
1. Slide a wheel onto the rear axle from the right side. Ensure the wheel match
up with the gear box.
2. Slide a Φ8 washer onto the rear axle.
3. Tighten a lock nut to the end of the rear axle with a spanner.
4. Insert the tabs on the wheel cover (or hubcap) into the grooves on the wheel.
5. Slide a Φ10 washer onto the rear axle from the left side.
6. Slide a wheel onto the rear axle.
7. Slide a Φ8 washer onto the rear axle.
8. Tighten a lock nut to the end of the rear axle with a spanner.
9. Insert the tabs on the wheel cover (or hubcap) into the grooves on the wheel.
Rear view
Rear view

8
E
1
2
34
5
Attach the Front Wheels
1. Slide a Φ10 washer onto the front axle from the left side.
2. Slide a wheel onto the front axle.
3. Slide a Φ8 washer onto the front axle.
4. Tighten a lock nut to the end of the front axle with a spanner.
5. Insert the tabs on the wheel cover (or hubcap) into the grooves on the wheel.
Front view

9
E
1
2
3
External charging type : Connect the Power Supply
If your product was External Charging type, follow the steps on this page.
Top view
1. Using a slotted screwdriver(not included) or coin to turn the seat lock, and
remove the seat.
2. Remove the screw on the top of the battery cover, and remove the battery
cover.
3. Pulg the battery connector into the terminal on battery.
4. Replace the seat.
