Aqara D100 User manual

DIGITAL DOOR LOCK
D100

Brief Introduction
Product Guide
Keyboard
1 2 3
4 5 6
78 9
*0#Card Reader
Cylinder
Battery
Inside Plate Outside Plate
Handle
1 There are 1 master user, 100 password users, and 800 card users available in the lock.
2The default master user is “123-456”. Only password user can be the master user.
3The password length is 6 to 10 digits.
1
4There are 2 unlocking modes in the lock:
a)Single Unlocking Mode: each time the lock only needs 1 registered user for unlocking;
b)Double Unlocking Mode: each time the lock needs 2 registered users for unlocking.
5A low battery alarm will be activated when the battery's voltage is less than 4.8V.
However, the lock still works about 200 times during this state. Please change the
new batteries as soon as possible.

Installation
Nine times out of ten, an error is the result of an improper installation and/or wiring by the user.
If you're not feeling particularly tech savvy, let a professional put it in.
A
Mark the holes on the
door according to the
template, and then
drill the holes.
B
Install the latch and fasten it with
screws. Install the strike box and
strike and fasten them with screws.
C
Install the spindle into the front
panel, and then fasten it with the
rod. Curve the rod on the side to
make sure the installation is good.
Then fasten 3 connection rods on
the lock.
Put the plastic baseboard on
the door, and then install the
front panel. Check the cable
and make it go through
the door.
D
2

Installation
G
Try to unlock the lock to
check the installation.
H
Take out the cylinder cover and try to use
the key to unlock and check the installation.
E
Install the batteries and check the lock.
Put the plastic baseboard on the
other side of the door, and then
connect the cable with the back
panel. Install the back panel on
the door, and then fasten the
lock with the screws.
F
3

Password Unlocking
1
Touch the keypad to activate the lock, and then input the password with press “#” to finish. If
the password is correct, the LED indicator shows green light with sounds, and then you can
press down the handle for unlocking.
If you input a wrong password for 5 times, the lock will be locked for 3 minutes.
During the 3 minutes, the lock cannot be activated and all operations are
not available. After that, the lock returns to normal state.
Operation
*** “Green”
+
+
1 2 3
4 5 6
78 9
*0#
RF Card Unlocking
2
Place the card close to keypad. If the card is correct, the LED indicator shows green light with
sounds, and then you can press down the handle for unlocking.
“Green”+
1 2 3
4 5 6
78 9
*0#
CARD
#
4

*
+
#

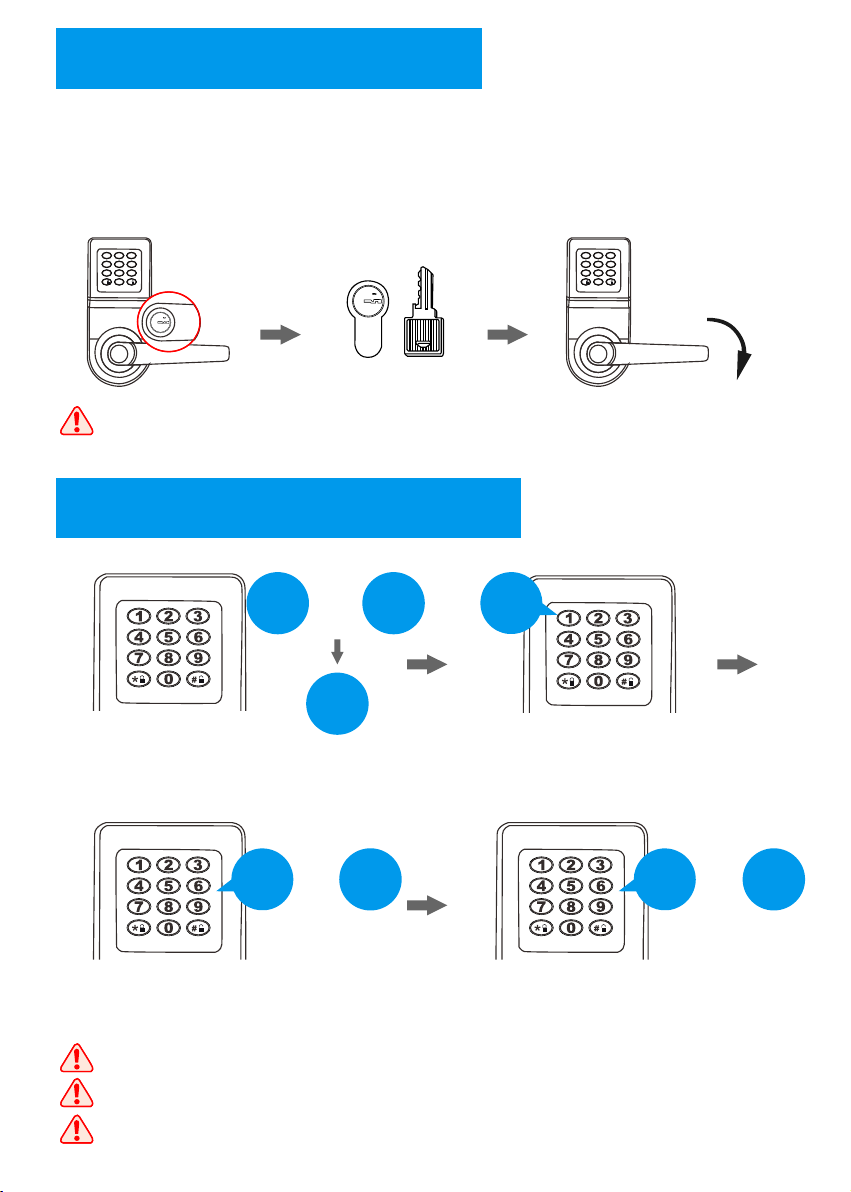

When there are problems with electronic part, and the batteries run out of power using
mechanical key is the way to unlock the lock.
Insert the mechanical key into the cylinder under the bottom of outside panel,
and then turn the key 90 degree. After that, press down the handle for unlocking.
3Mechanical Key Unlocking
The mechanical key cannot unlock the lock directly.
1 2 3
4 5 6
78 9
*0#
1 2 3
4 5 6
78 9
*0#
4Change The Master Password
1.Input * + #, and then input
the master password to log in
the system
1
2. Input 1
NEW
***
3.Input the new master password,
press # to confirm
NEW
***
4.Input the new master password
again, press # to confirm and
finish the operation.
The default master password is “123-456”.
The length of password can be 6 to 10 digits.
Once finish the operations, please try to unlock the lock to confirm the
operation is successful. 5
+
#
+
#
Master
***

5Add Users (Password and Card)
1.Input * + #, and then input
the master password to log in
the system
2
2. Input 2
***
3.For Password User: input the password,
and then press # to confirm and finish
the operation.
4.For Card User: put the card
close to the lock and finish the
operation
+
#CARD
The length of password can be 6 to 10 digits.
Once finish the operations, please try to unlock the lock to confirm the
operation is successful.
6
*
+
#
Master
***

1
6Delete Single User (Password or Card)
1.Input * + #, and then input
the master password to log in
the system
3
2. Input 3
3.Input 1 4.Delete Password: input the
password you want to delete,
and press # to confirm
***
+
#
5.Delete Card: put the card close to the lock to delete.
CARD
Once finish the operations, please try to unlock the lock to confirm the
operation is successful.
7
*
+
#
Master
***

7Delete All Users
1.Input * + #, and then input
the master password to log in
the system
3
2. Input 3
3.Input 2 to delete all normal users.
This operation cannot delete the master user.
Once finish the operations, please try to unlock the lock to confirm the
operation is successful.
8Passage Mode
When the lock is requested for unlocking frequently, you can activate the passage mode
and let the people unlocking without identifications.
Enable:
1.Input * + #, and then input
the master password to log in
the system
0
2. Input 0
8
*
+
#
2
*
+
#
Master
***
Master
***

3.Input 1 4. Input 1 to activate
1 1
5. Unlock the lock and set
the lock in passage mode.
1 2 3
4 5 6
78 9
*0#
Disable:
1. Input * + # to turn off
the passage mode.
2. Input * + #, and then input
the master password to log
in the system
0
3. Input 0 4. Input 1
1
2
5. Input 2 to cancel.
9
*
+
#*
+
#
Master
***

9Unlocking Mode
1.Input * + #, and then input
the master password to log in
the system
0
2. Input 0
3.Input 2
Sometime if you need a higher security level, you can set up the lock in double unlocking mode,
which the unlock needs 2 registered users for unlocking each time.
Single Unlocking Mode:
2
4.Input 1 for single unlocking mode.
1.Input * + #, and then input
the master password to log in
the system
0
2. Input 0
3.Input 2
Double Unlocking Mode:
2
4.Input 2 for single double unlocking mode.
10
*
+
#
*
+
#
1
2
Master
***
Master
***

When the lock is under double unlocking mode, you have to input 2 registered
users to unlock every time. Those 2 users can be 2 password users, 2 card users,
and 1 password user and 1 card user.
The master password user can unlock directly even the lock is under double
unlocking mode.
Once finish the operations, please try to unlock the lock to confirm the
operation is successful.
10 Restore the Lock
When the lock has problems and you can try to restore the lock to solve the problems.
Press the restore key in the battery case for 6 seconds, then the lock starts to restore
and finish with a buzzer sound. The mater password will be set as “123-456”, please
change the master password as soon as possible.
x6S
