Aqara U100 User manual

Product Introduction
What’s in the Box
U100 is an IoT-enabled smart lock that supports multiple unlocking methods, such as fingerprint, password, NFC card and Apple
Home Key, etc. Through in-depth customization of the fingerprint module and deep optimization algorithm, it provides a smooth
experience of unlocking the door through fingerprints. The door lock can be configured through the Aqara Home app. Along with
other Aqara smart devices, it can realize various smart automation for your connected home, and provide you with a convenient
and safe experience.
* An Aqara Hub is required. Some functions require specific models of the Aqara Hub. Please visit www.aqara.com/en/support.html for more details.
TOP
Knob Removal
Tool × 1
Installation
Diagram × 1
Outer Panel × 1
Mounting Plate × 1
Deadbolt × 1 Strike Plate Kit × 1AA Battery × 4
Mechanical
Key × 2
Inner Panel × 1
Opposite-Pull
Screw Kit × 1
Bolt & Strike Plate
Screw Kit × 1
Mounting Plate
Screw Kit × 1
User Manual × 1

Keypad
NFC Area
Enter Button/Locking Button
Fingerprint Area
Keyhole Sliding Cover
Emergency Power Supply (USB-C) Speaker
Note: Click the button to lock the door aer
the plate is awakened.
Tips: Use the key to unlock it
aer gliding the cover plate
Battery Compartment
Set Button
Reset Button HomeKit Button
Long press for 3 seconds to reset.
Note: It will clear previous users setting.
Press to connect with iOS devices
Open the battery cover

Instructions before Installation
Before using this product, you need to download the Aqara Home app and register an account. No such operations are required
if you directly connect this product with the Apple Home app, however, unique features such as fingerprint recognition,
auto-lock, and others will not be able to be experienced.
Sign up for Aqara Home account, then add Smart Lock
U100 and follow the app installation tutorial to install.
Or scan the following QR code to check the installation
video.
Aqara Home Installation Videos

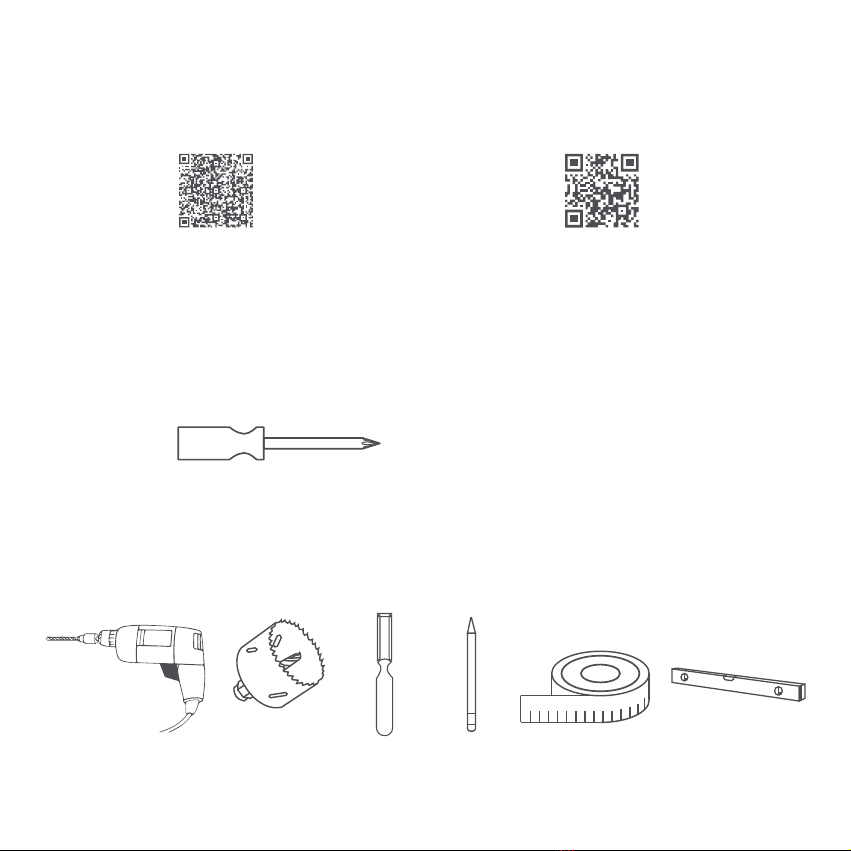

A PH1 standard Phillips head screwdriver is required for installation.
Tools necessary only for new doors or adjusting existing door holes: Drill, Hole Saws, Wood Mortise Chisel, Pencil, Tape
Measure, Level
Drill Hole Saws Wood Mortise
Chisel
Pencil Tape Measure Level

Device Installation

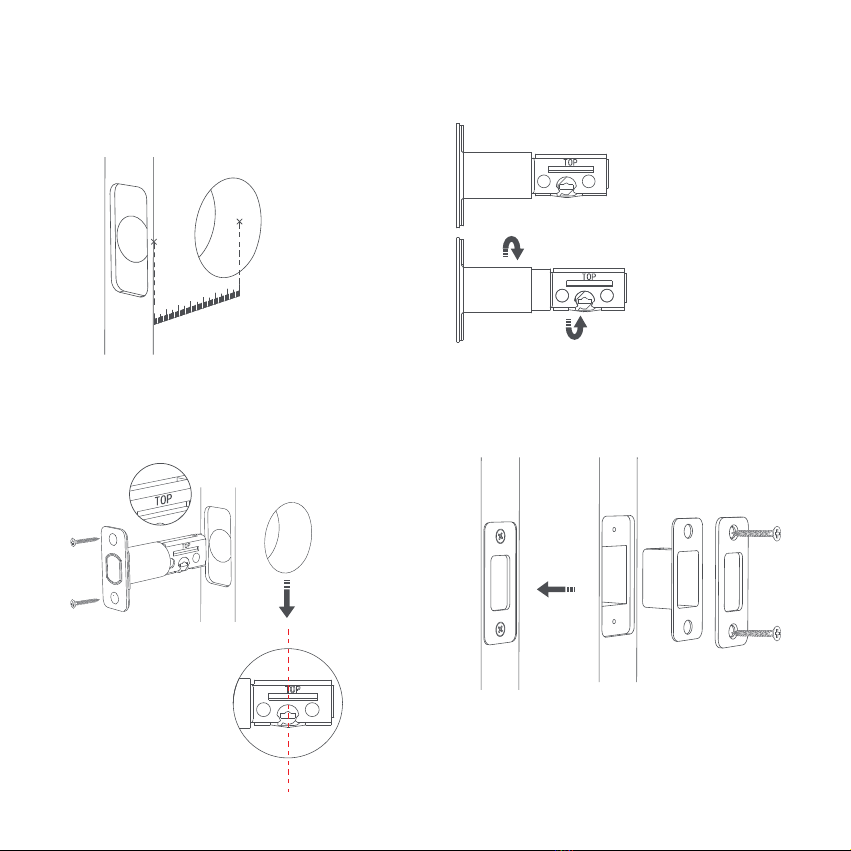

1. Measure the backset: the distance from the edge of the
door to the center of the deadbolt hole. It should be 2 ⅜
in (60 mm) or 2 ¾ in (70 mm).
2. Adjust the latch according to the measurements.
4. Install the strike plate to the door frame.
3. Fix the latch. Make sure that the "TOP" is facing up.
2 ⅜ in (60 mm)
2 ¾ in (70 mm)
2 ⅜ in (60 mm) or 2 ¾ in (70 mm)
010 20 30 40 50 60 70
Install directly if it's 2
3/8 in (60mm)
If it's 2 3/4 in (70mm),
rotate the latch 180 degree
to extend the length.

5. Pass the outer panel connector cable through the deadbolt inside the door and strengthen the outer panel with the mounting
plate and opposite-pull screw.
6. Remove the battery cover, then take off the knob cover
with the removal tool.
7. Fix the connector cable of the outer panel to the inner
panel.
Aer installation, please rotate the tailpiece to check if it is
smooth when locking or unlocking. If there is a jam, please
check if the tailpiece is placed in the center of the mounting
plate opening and if there is no interference with other parts.

Preparation before Use
1. A smartphone or tablet that supports Wi-Fi or a cellular network (with iOS or Android system) is required.
2. Please make sure that there is a 2.4G Wi-Fi connection and your internet connection is stable.
3. Please open the battery cover and put in 4 AA batteries

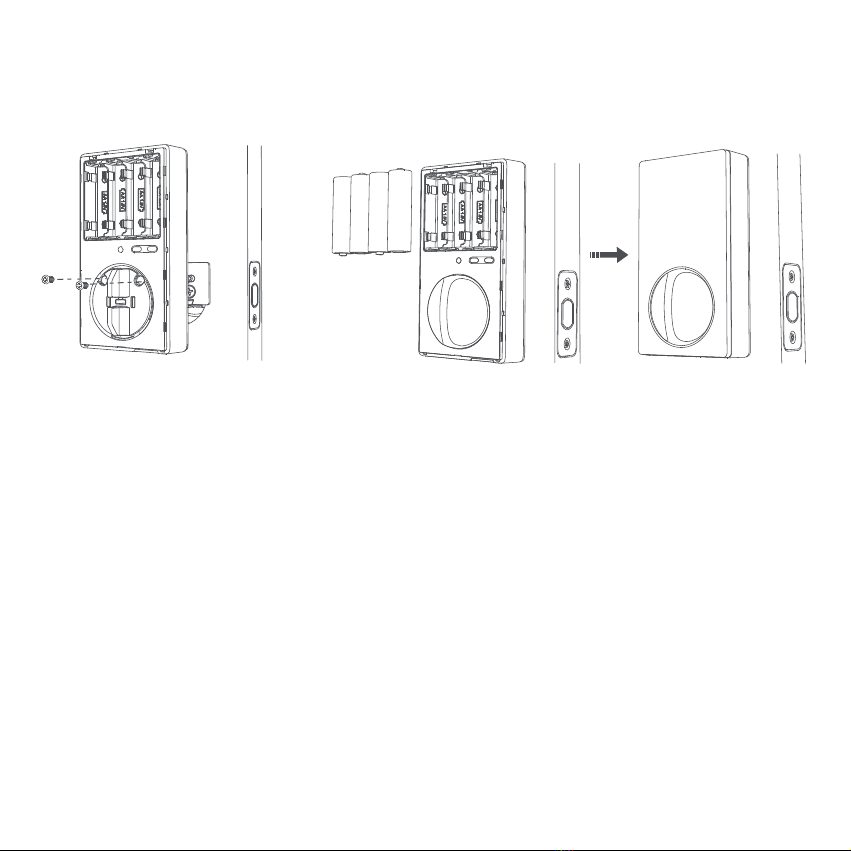

8. Fix the inner panel to the mounting plate
indoors and cover the knob.
9. Once the battery installed successfully, a voice prompt will be played to
indicate the installation is completed.
Note: It is recommended to use original batteries or alkaline batteries, as others may leak and thus cause damage to the product when used for a
long time. [Warning] Please replace the battery when it is low. Otherwise, verification and door opening will fail when the battery runs out. In this
case, you can charge the lock with USB-C emergency power supply or unlock with the key.
Notes: The door lock cannot be locked normally as the user information will be cleared aer reset. Please set the door lock by following instructions as
soon as possible.
4. Long press the "Reset" button for 3 seconds, and release the button aer you hear the voice prompt. Then the reset completes.

Device Binding & Initialization
Add the User
Add the Device to HomeKit (for iOS users)
Download the Aqara Home app: Search for "Aqara Home" in the Apple App Store or Google Play. Or scan the following QR code to
download the Aqara Home app.
Open the app, tap "+" in the upper right corner of the homepage to enter the page of "Add the device". Choose "Smart Lock U100" and
then install the door lock device according to the instructions.
The actual operations are subject to change due to the updates of the Aqara Home app. Please following the instructions of the app.
Enter the page of the door lock device and add the door lock owner according to the instructions on the app.
Aer the door lock is powered on for the first time, click "+" at the upper right corner of the Apple Home app in the iOS, select "Add
Accessory" or open Aqara Home app. Tap "Bind HomeKit" in the "General Settings" column of the setting on the detail page of the
door lock. Scan or manually input the HomeKit code as prompted (HomeKit code can be found when you open the battery cover of
the indoor door lock). Then add users according to the instructions. HomeKit only supports the lock and unlock, smart automation
setting and Apple Home Key.
Notes: The door lock cannot be locked normally without adding users.
Add to Apple Home Key (for iOS users)
Product Instructions
Aer it is connected with HomeKit, one virtual door card will be automatically generated in the Apple "Wallet" app. You can use an
iPhone or Apple Watch, which supports the Apple Home Key function to unlock by holding it close to the door lock.
1. To control this HomeKit-enabled accessory, the latest version of iOS or iPadOS is recommended. Controlling this HomeKit-en-
abled accessory automatically and away from home requires a HomePod, HomePod mini, or Apple TV set up as a home hub. It is
recommended that you update to the latest soware and operating system.
2. To use home keys, iPhone XS or later with iOS 15 or later and Apple Watch Series 4 or later with watchOS 8 or later are required.
3. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology
identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible
for the operation of this device or its compliance with safety and regulatory standards.

Product Specifications
Connect Google or Alexa app
To unlock via Google or Alexa, please first, buy and bind the Aqara hub. For details, please scan the code and learn how to bind.
Smart Lock U100
Model: SDL-D01 / DL-D01D
WirelessProtocols:Zigbee, Bluetooth 5.0, NFC
Powering Modes: 4 AA Batteries (6V ); USB-C Emergency Port (5V )
Dimensions:5.3 × 2.9 × 3.5 in. (135.8 × 74.8 × 88.4 mm)
Operating Temperature:-35°C~ 66°C(-31°F ~ 150.8°F)
Operating Humidity:0~ 93%RH, no condensation
FCC ID: 2AKIT-SDLD01
Federal Communications Commission (FCC) compliance statement:
1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF Exposure statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.

Online Customer Service: www.aqara.com/en/support.html
Manufacturer: Lumi United Technology Co., Ltd.
Address: Room 801-804, Building 1, Chongwen Park, Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang Community, Taoyuan
Residential District, Nanshan District, Shenzhen, China
Email: [email protected]om
IC:22635-SDLD01
IC:22635-DLD01D
IC NOTICE TO CANADIAN USERS
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES‐003.
This device complies with RSS‐247 of Industry Canada. Operation is subject to the condition that this device does not cause
harmful interference.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) L'appareil ne doit pas produire de brouillage;
(2) L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Cet appareil numérique de la Classe B conforme à la norme NMB‐003 du Canada.
Cet appareil est conforme à la norme RSS ‐247 d'Industrie Canada. Le fonctionnement est soumis à la condition que cet appareil
ne provoque pas d'interférences nuisibles.
Cet équipement est conforme aux limites d’exposition aux rayonnements de la IC établies pour unenvironnement non contrôé. Cet
équipement doit être installé et fonctionner à au moins 20cm de distance d’un radiateur ou de votre corps.Cet émetteur ne doit
pas être co-localisé ou fonctionner en conjonction avec une autre antenne ou un autre émetteur.
