OPERATING AND
MAINTENANCE INSTRUCTIONS
HC 100

1
HC100/N/240717/NW
INDEX
Parts List 14
THIS SYMBOL INDICATES SECTIONS
TO READ CAREFULLY!
ENGLISH
1.0 GENERAL COMMENTS
2
1.1 Warnings
2
1.2 Design Standard
2
2.0 TECHNICAL CHARACTERISTICS
3
2.1 General Rules
3
2.2 Standard accessories supplied
3
2.3 Electr
ical characteristics
3
2.4 Electric connection 3
2.5 Hydraulic Connection 4
2.6 Operation 4
Programming 5
3.0 MAINTENANCE
3.1 General maintenance comments 6
3.2 Periodic maintenance 6
3.4 Replacing worn parts 7
3.5 Commonly reported problems 8
Chemical Compatibility Table
9
WARRANTY CERTIFICATE
1
0
2.8 Dimensions
7
Connection
s
13

2
HC100/N/240717/NW
1.0 GENERAL COMMENTS
1.1 Warnings
The aim of HC100 pump manual is to provide you with all the necessary information for the correct
installation and maintenance in order to give you optimum results whilst in operation.
For this reason it is really important you read giving attention to the instructions given below since they
furnish all the indications necessary for the correct installation, use and maintenance
 This manual has to be preserved with care to be consulted in whatever occasion.
 At the moment of the receipt you have to check the integrity of the panel and of all its
components, in case of anomalies consult skilled staff before making interventions.
 Before the installation of the pump check that all the data on the pump’s label correspond
to those of the electrical plant.
 Do not operate with bare/naked hands or feet
 Do not leave the equipment exposed to the action of the atmospheric agents.
 Avoid splashing water
 The equipment has to be operated by a skilled person.
 In case of improper functioning of the panel switch off and contact our technical
department for any necessary repairs.
 For the correct functioning it is necessary to use original spare parts and original
accessories. The producer refuses any responsibility in reference to break down due to
tampering or the use of none original spare parts and accessories.
 The electrical plant has to be in conformity with the rules of the country where it is
operating.
 The room temperature of utilisation can not exceed 45° C
1.2 Design standard
Our pumps are manufactured according to General Standards in force and in compliance with the
following European Directives:
n° 2014/30/CE “ E.M.C.
n° 2014/35/CE “DBT Low Voltage Directive”
n° 2011/65/UE , 2012/19/UE “direttive RoHs e WEEE”
However, we think that in order to obtain a high trustworthiness and a lasting functioning pump it is
necessary to follow our manual particularly in reference to the maintenance!
The Producer declines all responsibility in reference with whatever works carried out on the equipment
from none skilled personnel!
ENGLISH

3
HC100/N/240717/NW
2.0 TECHNICAL CHARACTERISTICS
2.1 General rules
Install the pump:
 In a Vertical reinforcement (ex: Wall) or on the pump stand (optional) so that
the pump head stays always in vertical position +/-15°.
 Far from a hot source in dry places at maximum temperature of 45°C and
minimum 0°C.
 In a ventilated place and easily accessible by an operator for periodical
maintenance.
 At a suitable height above the chemical up to a maximum height of 1.5 meters.
If for xigency of the plant it’s necessary to install the pump under the level of
the chemical, you need to use an injection valve or an anti siphon valve.
 Do not install the pump over the tank in presence of liquids that emanate fumes
unless it is hermetically closed.
2.2 Standard accessories supplied
 1 Foot valve / Strainer.
 1 Injection fitting
 2 meters opaque PE delivery tubing.
 2 meters PVC clear suction tubing.
 2 meters PVC clear priming tubing
2.3 Electrical characteristics
Power supply: 230 VAC 50/60 HZ
Upon request (all series)
115 Volt AC 50-60 Hz
Only for series HC1
24/12 Volt DC – 24 Volt AC
2.4 Electric connection CAUTION !!!!!
Verify that the earth system is perfectly functional and complies with the applicable
regulations. Ensure the unit is connected to a circuit protected by a highly sensitive (0.03A)
RCCB circuit breaker. If unsure please consult a competent electrician. Verify that the rated
values of the pump are compatible with those of the mains. Never install the pump directly in
parallel with inductive loads (e.g. motors/solenoid valves) if necessary, use an isolating relay.
There are 2 protection devices inside the pump: a varistor and a fuse.

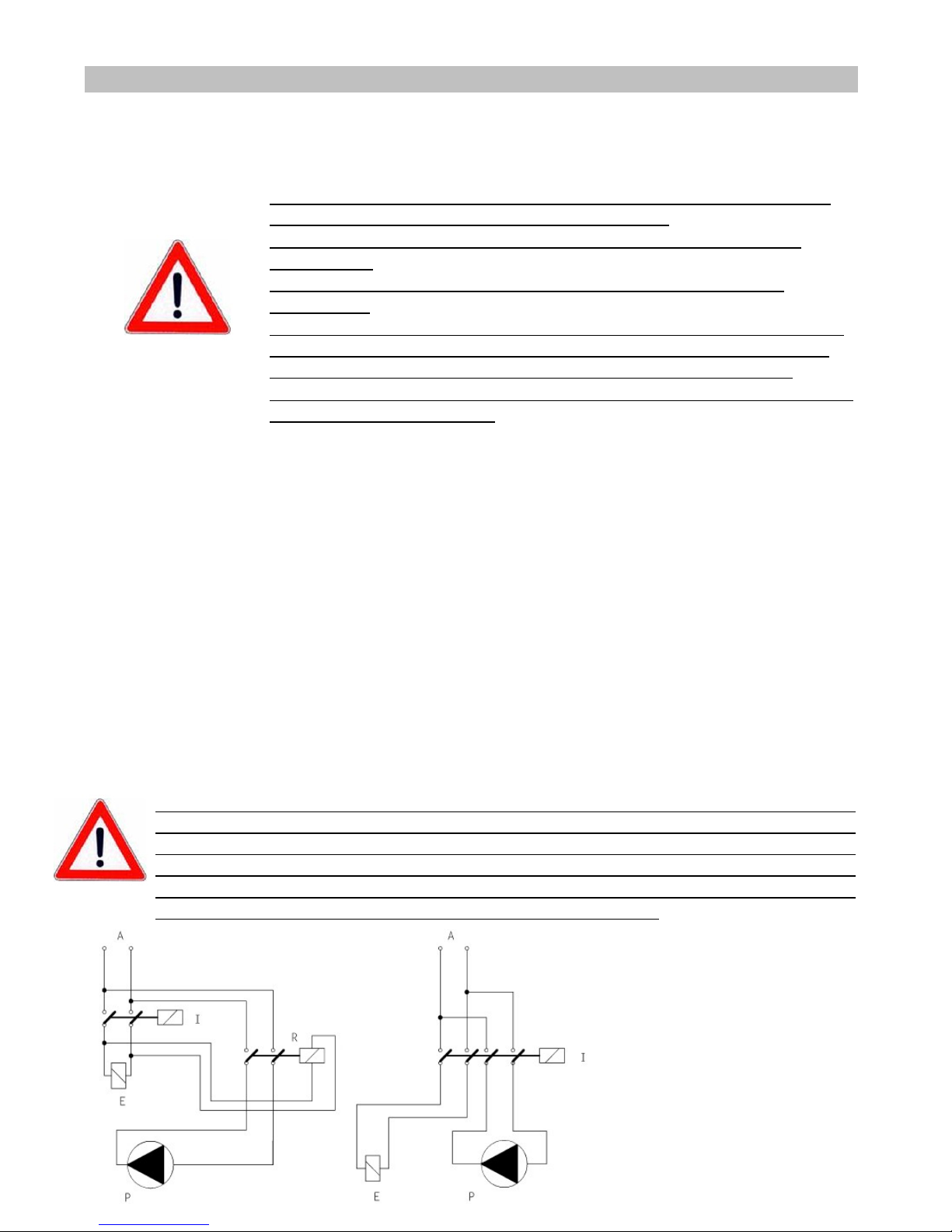

P- Metering Pump
R- Relay
I- Switcher or multi-pole security device
E- Motor or generally inductive charge
A- Supply voltage
ENGLISH

4
HC100/N/240717/NW
2.5 Hydraulic connection
After the mounting of the pump, proceed with the hose connections.
Suction: connect the suction tube (PVC soft clear) to the foot filter that is supplied and put it in the hose
clamp, lock the tube closing the nut. If it utilises a level probe, this one has to be connected to the filter
through the support that is supplied. Put the foot filter into the liquid suction lift tank. Connect the other
extremity to the suction of the pump (lower part of the pump head), unscrew the nut from the nipple, take
off the plastic white disk situated on the tube connection. Pass the tube through the nut and the adaptor
for the 4x6 tube with a simultaneous action of pressing and rotating, put the tube on the nipple conical
connection (hose clamp); lock up everything by closing the nuts well.
Delivery: connect the pump to the plant always through the injection valve (1/2”Gm) that is supplied with
the installation Kit. Fit a Gf 1/2” threaded connection on your water supply line at the point where you
require chemical injection, Use Teflon/PTFE tape on the injection valve and screw into the pipe. Unscrew
the nut, put the discharge tube (stiff MDPE) on the hose clamp of the nipple’s valve, lock everything by
closing the nut fully.
Connect the other end of the tube to the delivery valve of the pump (upper part of the pump head), by
repeating the instructions above.
Purge: connect the other hose (2 mt PVC clear) to the hose nipple situated on the pump head bottom
right, while the other end is fitted into your chemical drum/ tank.
INSTRUCTION FOR PRIMING
To prime the pump in case of high injection point pressure, turn the purge knob towards you until the
pump head is completely full. Screw down again the knob.
ATTENTION!!
If it is necessary to take the pump off the plant, it is important to put the white disk in
again, so as to avoid any exit of the liquid contained in the pump head from dripping
out. - During the installation ensure that the discharge tubing is fixed correctly so as to
avoid any rubbing against hard bodies. Avoid to many bends both on discharge and
suction tubing.
- Connect the pump to the plant always through the injection valve (1/2”Gm) supplied
with the installation kit.
- Connect the soft PVC tubing only in suction (on the foot filter side), and connect the
PE tubing in the delivery side by verifying that the cut of the tubing is clean and that
lateral crushing is not caused; it is advisable to utilise a cutter instead of scissors.
2.6 Operation
The metering pump is activated by a Teflon diaphragm mounted on a piston enclosed in an electromagnet,
which is fed by continuous current producing a square wave moving the piston thus, a pressure is
produced in the pump head with an expulsion of liquid from the discharge valve. Once the electric impulse
is off, the return of the piston is spring assisted thus producing the suction action to the initial position,
with a recall of liquid through the suction valve. The material used for the construction of the pump makes
it particularly suitable for aggressive liquids.
We suggest you always check chemical compatibility tables or our technical department, before use.
ENGLISH
ENGLISH

5
HC100/N/240717/NW
Programming instruction for
Dosing Pump
HC100
MODEL HC 100
The HC 100 pump is a simple on/off dosing pump. The output volume is controlled by adjusting the
number of pulses per minute which is done by using the controls on the front panel. You can adjust the
pump between 0 -100% (0-105 imp/min) of its maximum output by the potentiometer on the front panel.
There is an ON/OFF switch that allows you to turn the pump on and off & also 2 LEDS, one green. (pump
on) and one intermittent RED (emits every time the pump pulses).
The HC 100 series allows you to regulate the flow in a more precise way, The output volume is controlled
by adjusting the number of pulses per minute which is done using the controls on the front panel, You can
adjust the pump between 0 - 100% or 0- 20% of it's maximum output. The operator in this way can choose
a much lower number of pulses per minute.
PROGRAMMING
The pump can be turned on with an on/off switch on the front panel. The pumps output can be adjusted
between 0 - 100% or 0-20% of it's maximum output via the selector switch, Adjustment in each range is
controlled by the potentiometer on the front panel. Each time the pump doses a LED flashes.

6
HC100/N/240717/NW
Dimensions
Series HC 100 pump - wall mounting (Fig. 1)
Series HC 100 pump - base mounting (Fig. 2)
Connection and exploded views
Tubing connections on pump head (Fig. 3)
Manual purge (Fig. 4)
HC 100 series description (Fig. 5)
Pump head ball and lip valves (Fig. 6)
3.0 MAINTENANCE
3.1 General maintenance comments
Regular maintenance is essential if the pump has to give good service over a long period.
The following advice should be strictly followed:
It is difficult to estimate the periods between maintenance operations, because of the pumps operating
conditions and the chemicals employed. It is therefore the basic responsibility of the operator to check
regularly the appearance and condition of the pump and to clean and service it according to his findings
3.2 Periodic maintenance
Liquid’s level in the tank should be monitored regularly and the tank refilled a
necessary to avoid the running dry of the pump. Wet parts of the pump, foot valve,
suction/delivery valves and the head and diaphragm should be inspected and cleaned
at least every 3 months. Where very aggressive chemicals are being dosed, (Sodium
Hypo chlorite is particularly difficult) this period may need to be reduced and cleaning
be carried out more frequently. If pumps are not used for long periods, scale, sediment
and encrustation deposits can build up causing the pump to malfunction. We highly
recommend careful maintenance of the valves by running them under clean water
after long periods of non use. Alternatively, if the pump has not been used for long
periods, before re-setting up the operations, we strongly recommend operating it for at
least 30 minutes with the foot filter immersed in clean water to flush the pump.
3.3 Basic maintenance procedures
Before doing any maintenance read with attention the technical and safety characteristic of the dosing
chemicals and follow the next procedures:
1 Turn off the pump and immerse the foot filter and the injection tube in clean water. Turn on the pump to
let the water go through the pump head. If there are some crystals to be cleaned follow the next
procedures:
2 Immerse the foot filter and the injection tube into an adequate solution to remove the crystals (ex.
Chloridric Acid for Sodium Hipochlorite crystals); let the pump work for some minute. Then repeat the
action with water and connect the pump to the plant.

7
HC100/N/240717/NW
ATTENTION!!!!!
It’s necessary to effectuate all the operations with gloves and glasses suitable for the
product used then consult the supplier of the chemical product.
3.4 Replacing worn parts
Fuse replacement.
Proceed as follows:
1. Put at minimum the knob of the piston regulation of the run (in the pump where it is present)
2. Unscrew the fixing screws of the box
3. Open the front and the back part of the box minding the spring of the knob where it is present.
4. Replace the fuse that is well visible.
5. Assemble all the parts paying attention that the piston regulation knob (where it is present) is at the
minimum position and that the spring is in .
Valves replacement
NB: Where ball valves are to be replaced, it is recommended that the complete cartridge assembly is
replaced, due to the many small parts within.
The procedure is as follows;
1. Using a 19 mm spanner gently remove the cartridge.
2. If a ball valve cartridge is fitted remove the whole assembly and replace with a new one taking care to
ensure that the arrow is pointing in the direction of flow, (vertically upwards).
3. If lip valves are fitted, these can be replaced, once again ensuring that they are refitted the correct way
up, with their open end downwards, and the lip part in the direction of flow.
4. Refit the nipples and hose clamps to complete.
Diaphragm and O-rings replacement
Proceed as follows:
1. Undo the 4 bolts with an hexagonal key.
2. Remove the pump head.
3. Remove the old O-ring from the head carefully using a small screw driver.
4. By hand, or with pliers if necessary unscrew the diaphragm, and replace with the new one. Hand tight
only. Before screwing the diaphragm into place, add a small quantity of Loctite® 222 onto the thread.
5. Refit the dosing head, tightening the head bolts sequentially and carefully to ensure an even airtight
seal. Caution do not over tighten. We also recommend adding a few drops of Loctite® 222 on to the thread
of the screws that hold the head.
ENGLISH

8
HC100/N/240717/NW
3.5 Commonly reported problems
THE PUMP DOES NOT FUNCTION AND THE GREEN LED IS NOT LIT.
Solutions
1. Check that the electrical connection is correctly made.
2. Check that the fuse has not blown
3. Replace the electronic circuit with a new one.
THE PUMP FUNCTION CORRECTLY BUT NO LIQUID IS INJECTED IN THE PLANT
Solutions
1. Check the product level in the tank.
2. Check the foot filter which could be closed.
3. Check the injection valve is not closed.
4. Effectuate a maintenance of the suction and delivery valves. Parts showing any chemical attack, should
be replaced, with alternative materials if necessary.
CHEMICAL LEAKS FROM THE DOSING HEAD.
Solutions
1. Check that the hose clamps are correctly fitted and tightened. Caution do not overtighten these
components as they can easily be broken or threads stripped.
2. Check that the head bolts are tight and that the O-ring is in it’s correct position. Replace any damaged or
worn parts as necessary.
3. Parts showing any chemical attack, should be replaced, with alternative materials if necessary.
ENGLISH

9
HC100/N/240717/NW
Chemical Compatibility Table
Dosing pumps are widely used for dosing chemical products. It is important to select
the most suitable material for the liquid to be dosed. The CHEMICAL COMPATIBILITY
TABLE is a precious aid to that end.
The following Table must be used as an indicative instrument. Modifications in the
transported fluid composition or particular service conditions can reduce the resistance
of the materials.
Product Formula Ceram. PVDF PP PVC Hastel. PTFE FPM
(Viton)
EPDM
(Dutral)
NBR PE
Acetic Acid, Max 75% CH3COOH 2 1 1 1 1 1 3 1 3 1
Concentrated
hydrochloric acid
HCl 1 1 1 1 1 1 1 3 3 1
Hydrofluoric acid 40% H2F2 3 1 1 2 2 1 1 3 3 1
Phosphoric acid, 50% H3PO4 1 1 1 1 1 1 1 1 3 1
Nitric acid, 65% HNO3 1 1 2 3 1 1 1 3 3 2
Sulphuric acid 85% H2SO4 1 1 1 1 1 1 1 3 3 1
Sulphuric acid 98.5% H2SO4 1 1 3 3 1 1 1 3 3 3
Amines R-NH2 1 2 1 3 1 1 3 2 3 1
Sodium bisulphite NaHSO3 1 1 1 1 1 1 1 1 1 1
Sodium carbonate (Soda) Na2CO3 2 1 1 1 1 1 2 1 1 1
Iron chloride FeCl3 1 1 1 1 1 1 1 1 1 1
Calcium hydroxide Ca(OH)2 1 1 1 1 1 1 1 1 1 1
Sodium hydroxide
(Caustic soda)
NaOH 2 1 1 1 1 1 2 1 2 1
Calcium hypochlorite Ca(OH)2 1 1 1 1 1 1 1 1 3 1
Sodium hypochlorite,
12.5%
NaOCl +
NaCl
1 1 2 1 1 1 1 1 2 2
Potassium permanganate
10%
KMnO4 1 1 1 1 1 1 1 1 3 1
Hydrogen peroxide, 30% H2O2 1 1 1 1 1 1 1 2 3 1
Aluminium sulphate Al2(SO4)3 1 1 1 1 1 1 1 1 1 1
Copper sulphate CuSO4 1 1 1 1 1 1 1 1 1 1
Component with excellent resistance -1-
Component with fair resistance -2-
Non-resistant component -3-
Construction materials of pump and accessories
Polyvinyldene fluoride (PVDF) Pump body, valves, fittings, tubes
Polypropylene (PP) Pump body, valves, fittings
PVC Pump body
Hastelloy C-276 (Hastelloy) Injection valve spring
Polytetrafluoroethylene (PTFE) Diaphragm
Polyethylene (PE) Tubes
ENGLISH

10
HC100/N/240717/NW
Disclaimer
The information included in these tables has been obtained from highly qualified
sources which we deem reliable and they are provided without any guarantee, explicit
or implicit, concerning their exactness.
Conditions or methods for handling, storage and use of the material are beyond our
control and/or knowledge.
For this reason and for other reasons we will not be held liable thereof and we
expressly waive obligations of claim for damages or relating to the information
contained herein.
WARRANTY CERTIFICATE
The pumps are warranted to be free from defects in work manship and material for 12 months of
operation starting from the delivery date to the first purchaser.
Within the above stated period the producer will supply free of charge any part that upon examination by
the producer or by an authorised dealer, is disclosed to have been defective in work manship or material,
or at its option, it will repair the parts directly or through authorised workshops It remains anyway
excluded from whatever responsibility and obligation for others costs, damages and direct or indirect
losses that come from the use or the not use availability, either total or partial.
The reparation or the supply in substitution will neither extend nor renew the period of guarantee. They
remain anyway at charge of the purchaser the costs of plant pumps mounting and disassembling,
transport cost and using materials (filters, valves, and so on).
Producer’s duties, as above, are not valid when:
 The pumps are not used according to the producer instructions as in the operating manual
and maintenance instructions;
 The pumps are repaired, disassembled, modified by workshop not authorised;
 They have used not original spare parts
 The injection plans are damaged buy products that are not suitable;
 The electric plants have been damaged because of external causes such as whatever type
of over tensions.
AT THE END OF THE TWELFTH MONTH FROM THE DELIVERY DATE, THE PRODUCER WILL BE FREE FROM
ANY LIABILITY AND FROM ALL THE DUTIES AS ABOVE!
ENGLI
SH
ENGLISH

11
HC100/N/240717/NW
Fig. 1 “HC 1” WALL MOUNTING
Fig. 2 “HC 1” BASE MOUNTING

12
HC100/N/240717/NW
Ball valves
Lip valves
Fig. 3 & 4 PUMP HEAD TUBING CONNECTIONS
Purge Valve
&
Hose clamp

13
HC100/N/240717/NW
Fig. 5 Pump parts drawing

14
HC100/N/240717/NW
POS
COD
E
DESCRI
PTION
1a
ADSP6100081
COMPLETE HEAD 1L PP
-
GL
-
DT
ADSP6000081
COMPLETE HEAD 1L P
P
-
GL
-
VT
ADSP6100007
COMPLETE HEAD 1L PP
-
VL
-
DT
ADSP6000007
COMPLETE HEAD 1L PP
-
VL
-
VT
ADSP6100086
COMPLETE HEAD 1L PP
-
SS
-
DT
ADSP6000086
COMPLETE HEAD 1L PP
-
SS
-
VT
ADSP61000S8A
COMPLETE HEAD 2
-
15 PP
-
GL
-
DT
1
ADSP60000S8A
COMPLETE HEAD 2
-
15 PP
-
G
L
-
VT
ADSP6100004
COMPLETE HEAD 2
-
15 PP
-
PTFE
-
DT
ADSP6000169
COMPLETE HEAD 2
-
15 PP
-
PTFE
-
VT
ADSP6100008A
COMPLETE HEAD 2
-
15 PP
-
VL
-
DT
ADSP6000008A
COMPLETE HEAD 2
-
15 PP
-
VL
-
VT
ADSP6010003
COMPLETE HEAD 2
-
15 PVC
-
GL
-
VT
ADSP6010005
COMPLETE HEAD
2
-
15 PVC
-
VL
-
VT
ADSP6100I30
COMPLETE HEAD 2
-
15 PP
-
SS
-
DT IN
ADSP6000092
COMPLETE HEAD 2
-
15 PVDF
-
PTFE
-
DT
ADSP60000S8P
COMPLETE HEAD 2
-
15 PVDF
-
PTFE
-
VT
ADSP6100042
COMPLETE HEAD 2
-
15 PVDF
-
CE
-
DT
ADSP6100041
COMPLETE HEAD 2
-
15 PVDF
-
CE
-
VT
ADSP6000
136
COMPLETE HEAD 2
-
15 PVC
-
CE
-
VT AUT
.
DISCHARGE
ADSP6000136P
COMPLETE HEAD 2
-
15 PVC
-
PVDF
-
CE
-
VT AUT
.
DISCHARGE
2
ADSP6000543
BLACK COVER
3
ADSP6000748
SCREW M 2,9 X 13 UNI 6955
4
ADSP6000556
YELLOW LABEL WITH AQUA LOGO
5
ADSP6000415
PTFE DIAPHRAGM 1
L
ADSP6000416
PTFE DIAPHRAGM 2
-
15L
6
ADSP6000421
PISTON FLANGE 2
-
6L
ADSP6000420
PISTON FLANGE 5
-
15L
7
ADSP6000708
SCREW M 4 X 8 UNI 7688
10
ADSP6000441
TRIMMER KNOB
11
ADSP6020144
TRASPARENT COVER
12
ADSP6000121
CAP FOR LED GUIDE
13
ADSP6000120
LED GUIDE
14
ADSP6000310
HC100 CIRCUIT 230V
ADSP6000329
HC100 CIRCUIT LEVEL 230V
ADSP6000616
ADSP6000618
ADSP6000617
ADSP6000377
HC100 CIRCUIT 110V
ADSP6000342
HC100 CIRCUIT
24V
ADSP6000580
SKD HC100/IDB 12VDC
15
ADSP6000714
VITE M
2,9 X 13 UNI 6954 (TCTC) INOX A2
19
ADSP6000206
COMPLETE MAGNET HC1 01
-
08 230V
ADSP6000214
COMPLETE MAGNET HC1 02
-
07 230V
ADSP6000220
COMPLETE MAGNET HC1 02
-
12 230V
ADSP6000203
COMPLETE MAGNET HC1 04
-
05 230V
ADSP6000280
COMPLETE MAGNET HC1 0
5
-
08 230V
ADSP6000207
COMPLETE MAGNET HC1 01
-
08 110V
ADSP6000228
COMPLETE MAGNET HC1 02
-
07 110V
ADSP6000235
COMPLETE MAGNET HC1 04
-
05 110V
ADSP6000208
COMPLETE MAGNET HC1 01
-
08 24V
ADSP6000200
COMPLETE MAGNET HC1 02
-
07 24V
ADSP6000205
COMP
LETE MAGNET HC1 04
-
05 24V
ADSP6000212
COMPLETE MAGNET HC1 02
-
07 12V
ADSP6000210
COMPLETE MAGNET HC1 04
-
05 12V
20
ADSP6020061
REAR COVER GASKET
21
ADSP6020143
REAR COVER
22
ADSP6020221
WALL MOUNTING BRACKET

15
HC100/N/240717/NW

16
HC100/N/240717/NW
POS COD DESCRIZIONE
28
ADSP6000137N PUMP HEAD 2-15L PP
ADSP6000137P PUMP HEAD 2-15L PVDF
ADSP6000018 PUMP HEAD 1L PP
ADSP6000022 PUMP HEAD 2-15L 4-20BAR PVC
ADSP6000021 PUMP HEAD 20L PP
ADSP6000021P PUMP HEAD 20L PVDF
ADSP6000024 PUMP HEAD 30-50L PVC
55 ADSP6000129 PUMP HEAD 2-15L PVC SELF DISCHARGE
2
ADSP5007003 OR 3200 VITON 50,47X2,62 / (FOR 2-15L PUMP HEAD)
ADSP5007004 OR 3200 DUTRAL 50,47X2,62 / (FOR 2-15L PUMP HEAD)
ADSP5007099 OR 3200 SILICONE 50,47X2,62 / (FOR 2-15L PUMP HEAD)
ADSP5009005 OR 3200 PTFE 50,47X2,62 / (FOR 2-15L PUMP HEAD)
ADSP5007017 OR 3218 VITON 55,25X2,62 / (FOR 20L PUMP HEAD)
ADSP5007018 OR 3218 DUTRAL 55,25X2,62 / (FOR 20L PUMP HEAD)
ADSP5007067 OR 3218 PTFE 55,25X2,62 / (FOR 20L PUMP HEAD)
ADSP5007015 OR 2125 VITON 31,47x1,78 / (FOR 1L PUMP HEAD)
ADSP5007016 OR 2125 DUTRAL 31,47x1,78 / (FOR 1L PUMP HEAD)
ADSP5007069 OR 2125 PTFE 31,47X1,78 / (FOR 1L PUMP HEAD)
ADSP5007019 OR 4312 VITON 78,97X3,53 / (FOR 30-50L PUMP HEAD)
ADSP5007020 OR 4312 DUTRAL 78,97X3,53 / (FOR 30-50L PUMP HEAD)
29 ADSP6000723 M4 X 35 SCREW A2 TCEI
30 ADSP6000805 D04 X 10 X 1 A2 WASHER
31 ADSP5007011 SPACER D.3,2X6,45X5,5 SANT64A
32 ADSP5007113 ORM VITON D3,00 t2,00 /
ADSP5007114 ORM DUTRAL D3,00 t2,00 /
33
ADSP5007050 PYREX BALL D.4,76 (3/16")
ADSP5007051 PTFE BALL D.4,76 (3/16")
ADSP5007052 AISI 316 BALL D.4,76 (3/16")
ADSP5107007 CERAMIC BALL D.4,76 (3/16")
34 ADSP6000404 PP BALL CONTAINER FOR AIR DISCHARGE
ADSP6000403 PVDF BALL CONTAINER FOR AIR DISCHARGE
35
ADSP5007021 OR 106 DUTRAL 6,75 X 1,78 /
ADSP5007035 OR 106 VITON 6,75 X 1,78 /
ADSP5007066 OR 106 PTFE /
ADSP5007102 OR 106 SILICONE /
41
ADSP5007049V OR 2010 VITON 2,57 X 1,78 /
ADSP5007055D OR 2010 DUTRAL 2,57 X 1,78 /
ADSP5007068 OR 2010 PTFE /
ADSP5007100 OR 2010 SILICONE 2,57 X 1,78 /
42 ADSP6000786 AIR DISCHARGE SCREW PP
ADSP6000786P AIR DISCHARGE SCREW PVDF
43 ADSP6000479 AIR DISCHARGE NUT PP
ADSP6000479P AIR DISCHARGE NUT PVDF
44 ADSP6000785 PURGE HOSE PP
ADSP6000785P PURGE HOSE PVDF
36
ADSP5007057 OR 2037 VITON 9,25X1,78 /
ADSP5007056 OR 2037 DUTRAL /
ADSP5007070 OR 2037 PTFE /
47 ADSP5007001 OR 2062 VITON NERO 15,60X1,78 /
ADSP5007002 OR 2062 DUTRAL 15,60X1,78 /

17
HC100/N/240717/NW
ADSP5008003 OR 2062 SILICONE 15,60X1,78 /
ADSP5009004 OR 2062 PTFE 15,60X1,78 /
ADSP5007006 OR 2081 VITON NERO 20,35X1,78 / (FOR 30-50L PUMP HEAD)
ADSP5007007 OR 2081 DUTRAL 20,35X1,78 / (FOR 30-50L PUMP HEAD)
50
ADSP5005I06 BALL VALVE 3/8" PP-GL-VT
ADSP5005014 BALL VALVE 3/8" PP-GL-DT
ADSP5005025 BALL VALVE 3/8" PP-PTFE-VT
ADSP5005024 BALL VALVE 3/8" PP-PTFE-DT
ADSP5005031 BALL VALVE 3/8" PP-CE-VT
ADSP5005027 BALL VALVE 3/8" PP-SS-VT
ADSP5005I07 BALL VALVE 3/8" PP-SS-DT
ADSP5005029 BALL VALVE 3/8" PVDF-PTFE-VT
ADSP5005028 BALL VALVE 3/8" PVDF-PTFE-DT
ADSP5005034 BALL VALVE 3/8" PVDF-CE-VT
ADSP5005037 BALL VALVE 3/8" PVDF-CE-DT
53 ADSP5005032 BALL VALVE 3/8" PP-CE-HAST-VT
ADSP5005035 BALL VALVE 3/8" PVDF-CE-HAST-VT
51 ADSP5005033 BALL VALVE 3/8" FOR AIR DISCHARGE PP-CE-VT
ADSP5005036 BALL VALVE 3/8" AIR DISCHARGE PVDF-CE-VT
38 ADSP6000133 PP BALL VALVE FITTING 4X6 – 3/8’
ADSP6000133P PVDF BALL VALVE FITTING 4X6 – 3/8’
39 ADSP6000132 PP BALL VALVE ADAPTATOR 4X6 – 3/8’
ADSP6000132P PVDF BALL VALVE ADAPTATOR 4X6 – 3/8’
40 ADSP5004005 BALL VALVE 3/8’ RING NUT PP
ADSP5004005P BALL VALVE 3/8’ RING NUT PVDF
48
ADSP5005001E LIP VALVE NIPPLE PP NERO 3/8" 4X6
ADSP5005004 LIP VALVE NIPPLE PVDF 3/8" 4X6
ADSP5005002 LIP VALVE NIPPLE PP 1/2" 10X14
46
ADSP5001001 LIP VALVE VITON STANDARD
ADSP5002001 LIP VALVE DUTRAL STANDARD
ADSP5008001 LIP VALVE SILICONE STANDARD
ADSP5001002 LIP VALVE VITON GP
ADSP5002002 LIP VALVE DUTRAL GP
ADSP5008002 LIP VALVE SILICONE GP
45 ADSP5007005 LIP VALVE GUIDE STD
ADSP5007009 LIP VALVE GUIDE 20BAR
49 ADSP5004001E
LIP VALVE RING NUT 1/8’ -4x6 PP
ADSP5004002 LIP VALVE RING NUT 1/2’ -10X14 PP
Note on environmental protection
After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies:
Electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by lak to return electrical and
electronic devices at the end of their service lives to the public collecting points set up for this purpose. Detalis to this are defined by
the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that the
product is subject to these regulations. By recycling, reusing the material or other forms of utilising old devices, you are making an
important contribution to protecting our environment.

18
HC100/N/240717/NW
NOTES:

19
HC100/N/240717/NW
AQUA WATER SYSTEMS LTD
Unit 135 Oak Drive Hartlebury Trading Estate, Hartlebury
Worcestershire. DY10 4JB
Tel: [phone]
www.aquaindustrialgroup.co.uk
e-mail: [email protected]
