Aqua HC999 PI-MA-CLK Operation instructions

1
12/02/2021 Rev.1
USE AND
MAINTENANCE INSTRUCTIONS
HC999 MOD. A
PI-MA-CLK
HC999

2
12/02/2021 Rev.1

3
12/02/2021 Rev.1
1.0 GENERAL COMMENTS 4
1.1 Warnings 4
1.2 Shipping and transporting the pump 4
1.3 Use of the pump 4
1.4 Design standard 5
2.0 INTRODUCTION 6
3.0 TECHNICAL CHARACTERISTICS 6
3.1 General rules 6
3.2 Standard accessories supplied 6
3.3 Electrical Characteristics 6
3.4 Electrical connection 7
3.5 Hydraulic connection 7
3.6 Operation 8
4.0 FUNCTIONING FEATURES 9
4.1 Other functioning features 9

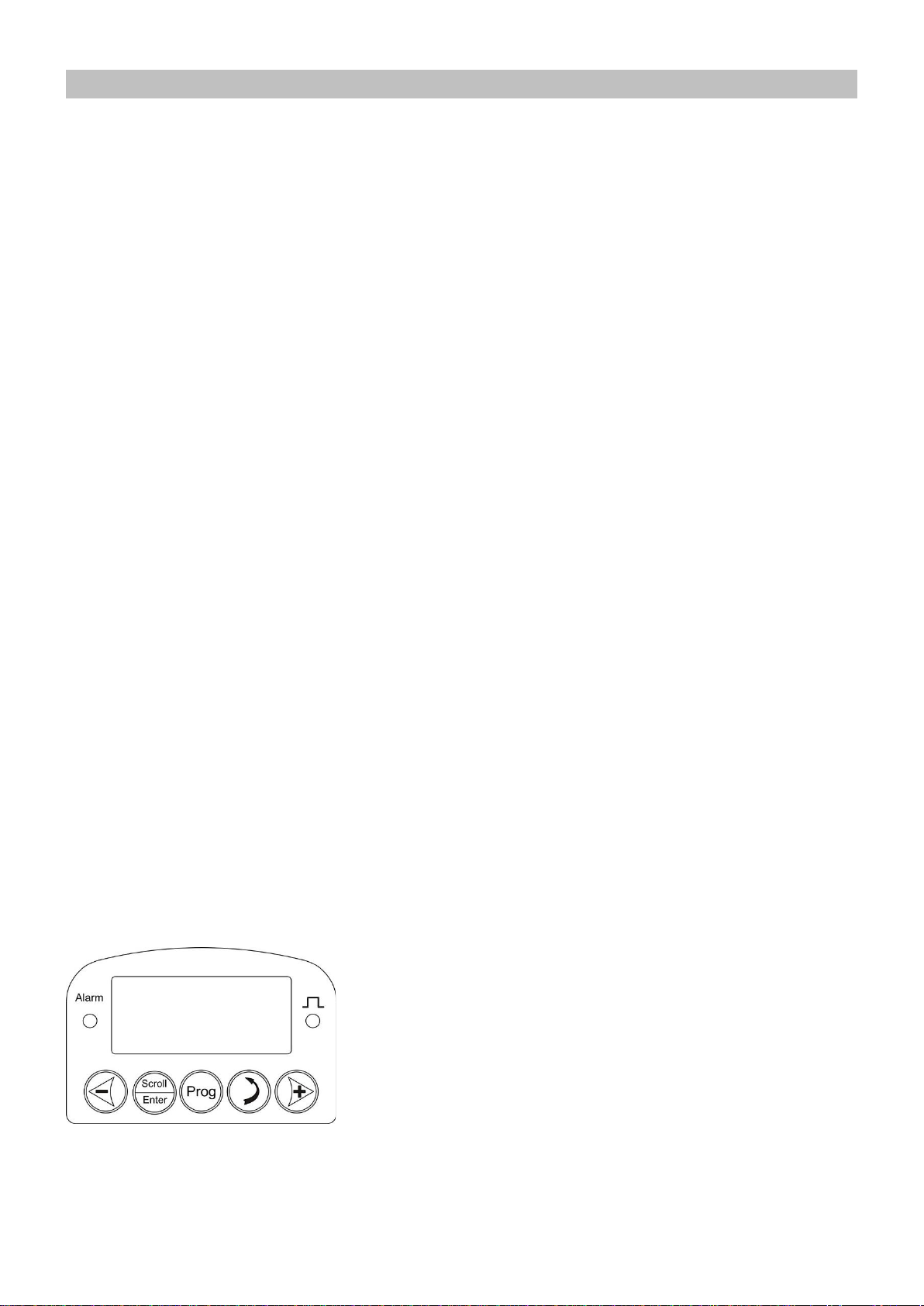

4.2 User interface 10
4.3 Power supply 11
5.0 USER MENU 12
5.1 Pause the pump 12
5.2 Priming the pump 12
6.0 PROGRAMMING 12
6.1 Enter in programming mode 12
6.2 Programming menu 12
6.3 Programming menu –Constant functioning 13
6.4 Programming menu –Proportional functioning 15

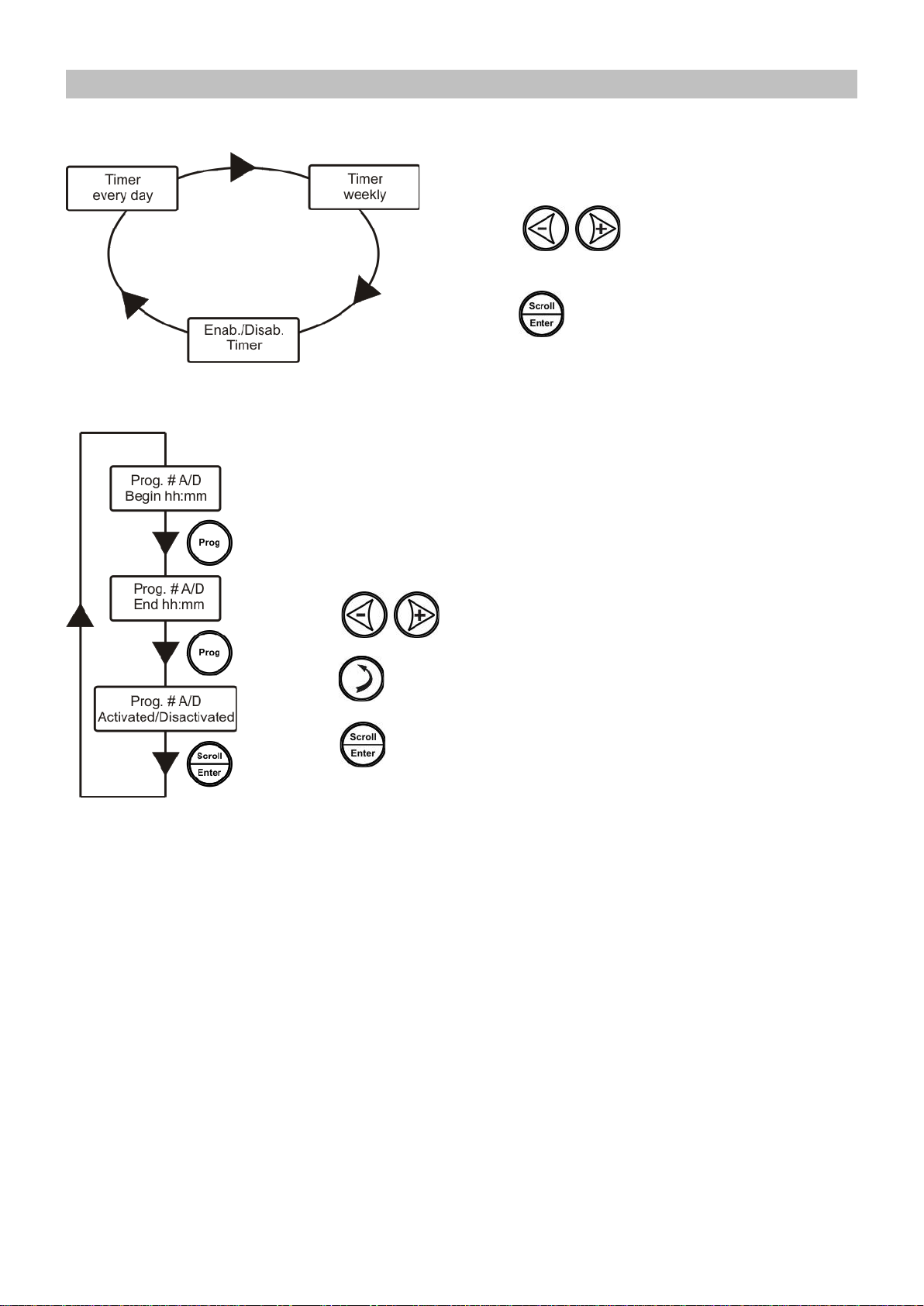

6.5 Programming menu –Timer 19
6.6 Programming menu –Settings and Calibration 21
7.0 DEFAULT PARAMETERS 27
8.0 SIGNALS INPUT 27
9.0 MAINTENANCE 29
9.1 General maintenance comments 29
9.2 Periodic maintenance 29
9.3 Basic maintenance procedures 29
9.4 Replacing worn parts 30
9.5 Commonly reported problems 30
Chemical Compatibility Table 31
WARRANTY CONDITIONS 32
Dimensions 33
Connection and exploded views 34
ENGLISH

4
12/02/2021 Rev.1
1.0 GENERAL COMMENTS
1.1 Warnings
The aim of HCX97-9 pump manual is to provide you with all the necessary information for a proper
installation and maintenance in order to give you optimum results whilst in operation.
For this reason it is really important reading with attention the instructions given below since they
furnish all the indications necessary for the sureness of the installation, use and maintenance
This manual has to be preserved with care to be consulted in whatever
occasion.
At the moment of the receipt you have to check the integrity of the panel
and of all its components, in case of anomalies consult skilled staff before
making interventions.
Before the installation of the pump check that all the data on the pump’s
label correspond to those of the electrical plant.
Do not operate with bare/naked hands or feet
Do not leave the equipment exposed to the action of the atmospheric
agents.
Avoid splashing water
The equipment has to be operated from skilled person.
In case of improper functioning of the panel switch off and contact our
technical assistance for any necessary repairs.
For a correct functioning it is necessary to use original spare parts and
original accessories. The producer declines whatever responsibility in
reference with break down due to tampering or the use of not original spare
parts and accessories.
The electrical plant has to be in conformity with the rules of the country
where it is realised.
The room temperature of utilisation can’t over take 45° C
1.2 Shipping and transporting the pump
The equipment must be transported in its original packaging, organized and built in such a way
as to minimize shocks and to protect the protruding parts that can be damaged. If there is a need
for transport after the equipment has already been installed (e.g. for a return for repair or
replacement), reuse the original packaging or a sufficiently sturdy packaging with the equipment
protected with absorbent material ( eg bubble wrap). The external packaging must be such as to
ensure the safety of the equipment in the event of a fall from 1 meter in height.
1.3 Use of the pump
The use of this pump must comply with the methods and instructions set out in this manual.
The pump can dose chemicals that can be harmful to human health and for this reason it is
essential that must be used by qualified personnel who adopt the appropriate safety methods and
personal protective equipment.
AVOID IMPROPER USE of the equipment in order to avoid damage to things and people, due to
uncontrolled splashes, drips, electrical contacts, etc.
The following uses can be considered improper uses, in indicative and non-exhaustive form:
- Dosing of products not consistent with the materials with which the pump is made;
- Dosing of explosive and / or flammable products;
- Dosing of fluids with excessive viscosity (1000 cps), such as to prevent the priming of the
pump itself;
- Dosage of food liquids, if intended to maintain such use;

5
12/02/2021 Rev.1
- Avoid inverting the pump delivery and suction;
- Avoid powering the pump with voltages other than those indicated in the technical
specifications;
- Avoid connecting any equipment other than specific equipment to the signal outputs (level,
pulse counter, current signal, etc.);

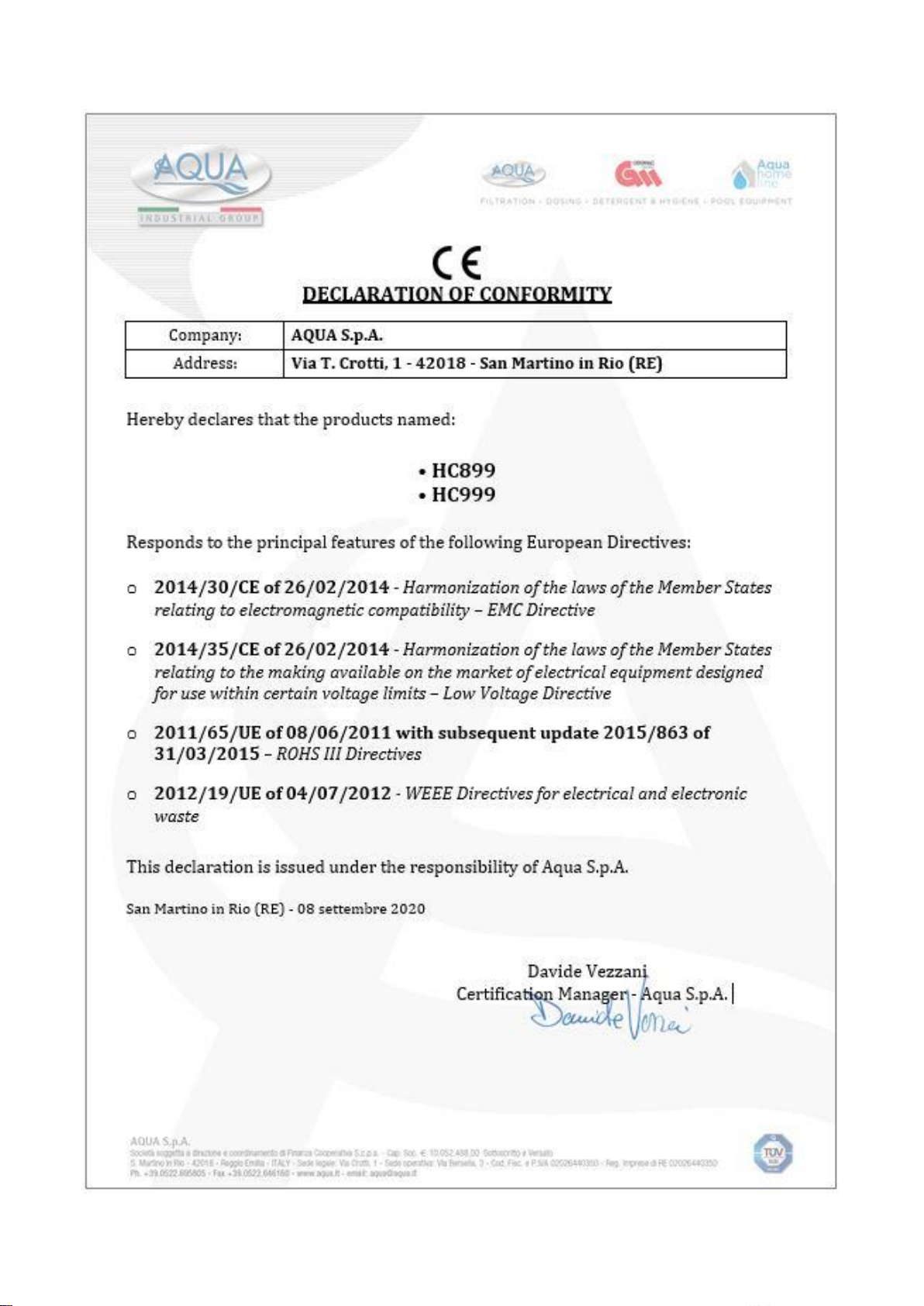

1.4 Design standard
Our pumps are built according to the actual general directives endowed with CE mark in
conformity with the following European directives:
▪n° 2014/30/CE “Electromagnetic compatibility –ECM”
▪n° 2014/35/CE “DBT Low Voltage Directive” e s.m.i.
▪n° 2011/65/UE , 2012/19/UE “direttive RoHs e WEEE” e s.m.i.
Granted this we think that in order to obtain an high trustworthiness and a lasting
functioning of the pump it is necessary to follow with attention our manual particularly in
reference with the maintenance!
The Producer declines all responsibility in reference with whatever intervention on the
equipment from not skilled personnel!
ENGLISH

6
12/02/2021 Rev.1
2.0 INTRODUCTION
The HC999 pump is a metering solenoid pump that can work in constant or proportional by an
external signal. In the bottom of the enclosure there are located an ON/OFF switch and an internal
terminal block to connect the different signals (level probe input, water meter input, flow sensor
input, 4÷20mA input and relay output)
Once the pumps is switched on the display show an user menu and is possible to read some
information regarding the functioning mode and the possibility to pause and prime the pump.
Thanks to the digital technology with the microcontroller and an LCD display the HC999 pump is
easy to program and to save all the statistics.
3.0 TECHNICAL CHARACTERISTICS
3.1 General rules
Install the pump:
On an horizontal reinforcement (ex: stoking tank) or on the pump shelf
(optional) so that the pump head stays always in vertical position +/-15°.
Far from an hot source in dry places at maximum temperature of 45°C and
minimum 0°C.
In a ventilated place and easily accessible by an operator for periodical
maintenance.
At a suitable height above the chemical up to a maximum height of 1.5
meters. If for exigency of the plant it’s necessary to install the pump under
the level of the chemical, you need to use an injection valve or an anti
siphon valve.
Do not install the pump over the tank in presence of liquids that emanate
fumes unless it is hermetically closed.
3.2 Standard accessories supplied
1 Foot valve / Strainer.
1 Injection fitting / pressure loading valve.
2 meters opaque PE delivery tubing.
2 meters PVC clear suction tubing.
2 meters PVC clear priming tubing
3.3 Electrical Characteristics
Power supply: 230 VAC 50/60 HZ
ENGLISH

7
12/02/2021 Rev.1
3.4 Electrical connection
CAUTION !!!!!
Verify that the earth system is perfectly functional and complies with the applicable
regulations. Ensure the unit is connected to a circuit protected by a highly sensitive
(0.03A) RCCB circuit breaker. If unsure please consult a competent electrician.
Verify that the rated values of the pump are compatible with those of the mains.
Never install the pump directly in parallel with inductive loads (e.g. motors/solenoid
valves) if necessary, use an isolating relay.
There are 2 protection devices inside the pump: a varistor and a fuse.
P- Metering Pump
R- Relay
I-Switcher or multi-pole security
device
E- Motor or generally inductive
charge
A- Supply voltage
3.5 Hydraulic connection
After the exact installation of the pump (see generalities), proceed with the connection.
Suction: connect the suction tube (PVC soft cristal) to the foot filter that is supplied and put it in
the hose clamp, lock the tube closing the nut. If it utilises a level probe, this one has to be
connected to the filter through the support that is supplied. Put the foot filter into the liquid suction
lift tank. Connect the other extremity to the suction of the pump (lower part of the pump head),
unscrew the nut from the nipple, take off the rubber white disk situated on the tube connection.
Let pass the tube through the nut and the adaptor for the 4x6 tube with a simultaneous action of
pressing and rotating, put the tube on the nipple conical connection (hose clamp) till the end; lock
up everything by closing the nuts well. See fig. 9
Delivery: connect the pump to the plant always through the injection valve (1/2”Gm) that is
supplied with the installation Kit. Fit a Gf 1/2” nipple on your water supply line and after that fitting,
to the point where you require chemical injection, the injection valve out with teflon and put in into
the pipe. Unscrew the nut, put well the discharge tube (stiff Polyetilene) on the hose clamp of the
nipple’s valve, lock everything by closing the nut well.
Connect the other extremity to the delivery of the pump (upper part of the pump head), by
repeating the instructions above. See fig. 9
Purge: connect another tube’s extremity for the manual purge (2 mt PVC crystal) in the hose
clamp situated on the pump head lower to the right, while the other extremity is to be put into the
suction lift tank. See fig. 10
ENGLISH

8
12/02/2021 Rev.1
INSTRUCTION FOR PRIMING
For the priming of the pump in case of high against pressure in the injection, turn the purge knob
for a quarter or a half of round (see fig. 10) until the head pump is completely full. Screw down
again the knob.
ATTENTION!!
If it is necessary to take the pump off the plant, it is important to put the
white disk in again, so as to avoid any exit of the liquid contained in the
pump head from dripping out. - During the installation ensure that the
discharge tubing is fixed correctly to avoid that it does not rub against hard
bodies. Avoid also use less bends both on discharge and suction tubing.
- Connect the pump to the plant always through the injection valve (1/2”Gm)
supplied with the installation kit.
- Connect the soft PVC tubing only in suction (on the foot filter side), instead
connect the PE tubing in delivery by verifying that the cut of the tubing is
clean and that lateral crushing is not caused; it is advisable to utilise a
cutter instead of scissors.
3.6 Operation
The metering pump is activated by a Teflon diaphragm mounted on a piston enclosed into a
electromagnet, which is fed by continuous current producing a square wave moving the piston
thus, a pressure is produced in the pump body with an expulsion of liquid from the discharge
valve. Once the electric impulse is over, the return of the piston is spring assisted thus producing
the suction action to the initial position, with a recall of liquid through the suction valve. The
material used for the construction of the pump makes it particularly suitable for aggressive liquids.
We suggest you in any case to use the compatibility tables or our technical department.
Dimensions
Series HC999 pump - wall mounting (Fig. 1)
Series HC999 pump - base mounting (Fig.2)
Connection and exploded views
Tubing connections on pump head (Fig. 3)
Manual purge (Fig. 4)
Low level switch connection (HC999) (Fig. 6)
HC999 series description (Fig. 7)
HC999 Pump head ball (Fig. 8 - Fig. 9)
ENGLISH ENGLISH

9
12/02/2021 Rev.1
4.0 FUNCTIONING FEATURES
Constant
The pumps can work in four constant modes:
1.Capacity
When powered, the pump doses in constant mode at the selected frequency.

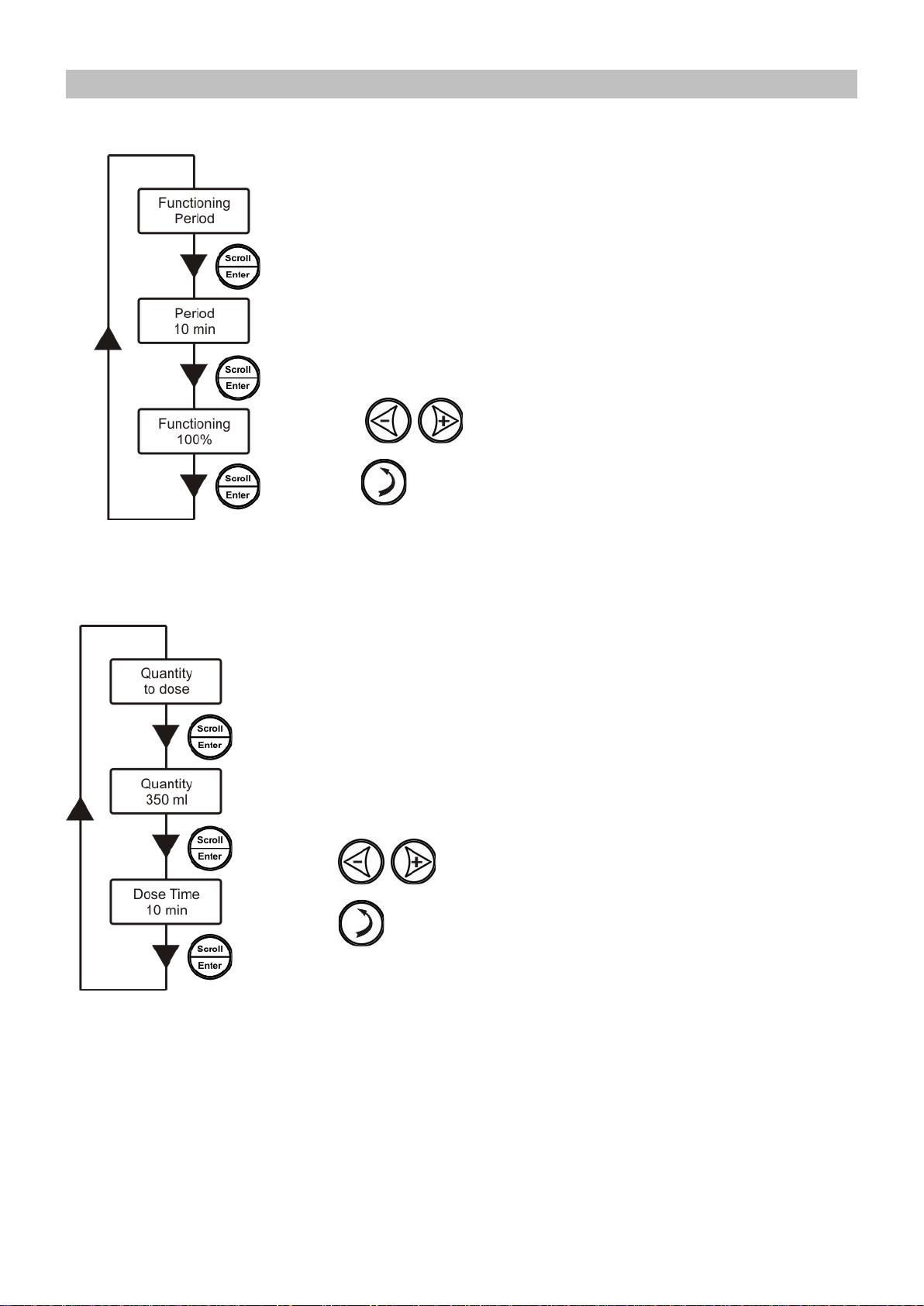

2.Period
When powered, the pump doses in constant mode at the selected frequency and for “X” amount
of time (sec. or min.) set. (ex: 10 sec at 90% frequency rate)
Quantity to dose
When powered the pump doses a fixed amount of product at the set time (ex. 20 ml. in 10 min.),
then pump stops. This cycle is repeated every time the pump is powered.
3.Cyclical
When powered the pump works in a time/cycle mode;
Proportional 1xN
The pump for each pulse received on the “INPUT PULSE” will perform “N” strokes at the set
frequency.
Proportional 1xN (M)
The pump for each pulse received on the “INPUT PULSE” will perform “N” strokes and can save
the extra strokes.
This mode can be programmed as follows:
1. Proportional: 1xN (M) Prop.
the pump save the extra strokes and perform them at the end of the current dosing at a
proportional frequency span on the time of the last two pulses received from the water meter.
2. Instantaneous: 1xN (M) Ist.
The pump gives instantly the remaining strokes at the set frequency and the extra strokes at the
proportional frequency span on the time of the last two pulses received from the water meter.
Proportional 1:N
The pump performs 1 stroke every “N” pulses received by the water meter on the “INPUT PULSE”
PPM
The pump calculates automatically the strokes to inject for each pulse received from the water
meter.
Proportional in current –mA
The pump doses proportionally to a 4-20 mA signal received on the “INPUT mA”.
Timer
The pump can be controlled by a daily or weekly timer and it’s possible to program up to 7 ON/OFF
operations per day.
4.1 OTHER FUNCTIONING FEATURES
Level alarm
The pump goes in low level alarm when on the “INPUT LEVEL” there is a dry contact (ON/OFF).
This alarm has a filter of 5 seconds.
ENGLISHENGLISH

10
12/02/2021 Rev.1
Flow alarm
The pump goes on flow alarm when there is a OFF contact (flow mode) or when it doesn’t receive
a certain number pulses (impulses mode) on the flow input sensor.
If the alarm is programmed in flow mode, it will have a filter of 5 seconds.
Buzzer
It’s possible to enable or disable the internal buzzer.
Relay setting
It’s possible set the output relay alarm “OUT RELAY” as Open with the alarm or Close with the
alarm.
Language
It’s possible to choice the pump’s language among Italian –English –French –Spanish –
German.
Clock and data
It’s possible to set the clock and the data.
Statistics
It’s possible to read the statistics of the pump as the number of strokes total and partial and the
quantity of dosed chemical total and partial.
Restore default parameters
This function allows to restore the default parameters.
Units of measurement
This function allows to set the units of measurement of the pump’s flow rate.
%: in percentage of maximum flow rate
SPM: strokes per minute
L/H: litres per hour –only after the calibration
ml/min: ml per minute –only after the calibration
Adjust the display contrast
This functions allows to adjust the contrast of the LCD display.
4.2 USER INTERFACE
▪Back light 2x12 LCD
▪Red L.E.D. for alarm
▪Green L.E.D. for stroke’s pump
▪5 keys
ENGLISH

11
12/02/2021 Rev.1
4.3 POWER SUPPLY
CAUTION: Always disconnect power when servicing the unit.
The pump is supplied, as standard, with a three-pole power cable, but without a plug. Connect
the cable to a suitable 230 Vac 50/60 Hz power supply, which can be with plug or with direct
connection to the electrical panel.
If it is necessary to replace the power cable, this must be done by specialized personnel. Open
the pump by removing the 4 screws located on the down of the case and connect the cable,
through the cable gland, exactly like the existing cable, using cable H05VV-F 3x0.75 mm2. Close
the pump after connection.
Inside the pump there is a terminal block for connecting the accessories not supplied, which must
be connected, by specialized personnel, according to the indications of the following diagram:
INPUT
PINS
DESCRIPTION
WHAT CONNECT
INPUT mA
1-2
Input to connect a 0÷20mA
current signal that comes from
a controller.
INPUT
FLOW
3-4-5
Input to connect a flow sensor
type PNP.
INPUT
PULSE
6-7
Input to connect a water meter.
INPUT
LEVEL
8-9
Input to connect a level probe.
ENGLISH

12
12/02/2021 Rev.1
5.0 USER MENU
Once the pumps is switched on the display show an user menu and is possible to read some
information regarding the functioning mode and the possibility to pause and prime the pump.
Moreover from the standby menu is possible to enter in the user menu to perform some functions.
5.1 PAUSE THE PUMP
From the standby menu press the key, the display will show:
Press twice the key to go back at the standby menu.
5.2 PRIMING THE PUMP
From the standby menu press twice the key, the display will show:
Keep pressed the key to activate the pump.
Press the key to go back at the standby menu
After 10 seconds the pump automatically goes back to the standby menu if no key is
pressed.
6.0 PROGRAMMING
6.1 ENTER IN PROGRAMMING MODE
From the user menu, keep pressed the key for three seconds, the
display will show:
To enter press the following key’s combination:
6.2 PROGRAMMING MENU
With the keys is possible scroll the
menu’s choices.
To select the desired choice press key
*ATTENTION: TO CONFIRM AND SAVE THE PROGRAMMING PRESS THE BUTTON
FOR 5 SECONDS.
ENGLISH


13
12/02/2021 Rev.1
6.2.1 PROGRAMMING MENU DESCRIPTION
Constant functioning menu
It allows to select among the following functioning modes:
Capacity –Period –Quantity to dose –Cyclical
Proportional functioning menu
It allows to select the following functioning modes:
▪proportional by external pulses from a water meter 1:N mode
▪proportional by external pulses from a water meter 1xN mode
▪proportional by external pulses from a water meter 1xN mode with memory
▪proportional by external 4÷20 mA current signal
▪PPM
Timer functioning menu
It allows to programming the pump in daily or weekly timer mode.
Setting menu –Calibration
This menu allows to set all the functioning parameters of the pump and moreover to calibrate
the pump.
6.3 PROGRAMMING MENU –CONSTANT FUNCTIONING
Press the keys to scroll the entries of
the menu.
Press the key to choice the entry desired.
6.3.1 Functioning Capacity
The pump doses at a constant flow rate set in different unit of
measurements (%, SPM, ml/min, L/h) –see the setting menu.
When the pump is powered, it performs a continuous dosing at the
programmed flow rate.
Press the keys to set the desired values.
Press the key to go at the previous menu.
ENGLISH

14
12/02/2021 Rev.1
6.3.2 Functioning Period
The pump doses for programmed time and flow rate.
In this functioning mode there are two parameter to set:
▪Period (working time)
Setting from 1 to 240 minutes at steps of 1 minute.
▪Functioning that can be in different units of measurement (%, SPM,
ml/min, L/h) –see the settings menu.
Example: Period = 10 minutes Functioning = 100%
The pump doses per 10 minutes at the 100% of the maximum flow rate.
Press the keys to set the desired values.
Press the key to go at the previous menu.
6.3.3 Quantity to dose
The pump doses a desired quantity in the programmed time.
In this functioning mode there are two parameter to set:
▪The quantity of the chemical to dose.
Setting from 1 to 2000 ml at steps of 1 ml.
▪Dose time.
Setting from 1 to 240 minutes at steps of 1 minute.
Example: Quantity = 350 ml Dose Time = 10 minutes.
The pump doses 350ml in 10 minutes.
Press the keys to set the desired values.
Press the key to go at the previous menu.
Perform the calibration of the pump before to use this functioning
mode.
The pump automatically calculate the minimum dosing time after set the quantity.
ENGLISH


15
12/02/2021 Rev.1
6.3.4 Functioning Cyclical
When the pump is powered, it perform a dosing at the set flow rate for a
programmed time (TON) every cycle time (TCycle).
In this functioning mode there are three parameters to set:
▪TON (working time).
Setting from 0 to 90 minutes at steps of 1 second.
▪TCycle (cycle time)
Setting from 0 to 24 hours at steps of 1 hour.
▪Functioning that can be in different units of measurement (%, SPM,
ml/min, L/h) –see the settings menu.
Example TON = 10 seconds TCycle = 10 minutes Functioning = 50%
The pump doses 10 seconds every 10 minutes at the 50% of the
maximum flow rate.
Press the keys to set the desired values.
Press the key to go at the previous menu.
6.4 PROGRAMMING MENU –PROPORTIONAL FUNCTIONING
Press the keys to scroll the menu
entries.
Press the key to select the desired entry.
6.4.1 Proportional functioning by external pulses
Press the keys to scroll the menu
entries.
Press the key to select the desired entry.
ENGLISH

16
12/02/2021 Rev.1
6.4.2 Proportional functioning by external pulses 1xN
In this functioning mode there are two parameters to set:
▪Number of strokes to perform.
Setting from 0 to 250.
▪Frequency of the strokes per minute (Str/m).
Setting from 1 to 150 or 180 (depends on the model).
Every time the pump receives a pulse from the water meter it perform the
desired strokes at the programmed frequency.
Example 1xN = 1x15 Str/m = 60
The pumps gives 15 strokes at 60SPM frequency every time it receives a
pulse from the water meter.
Press the keys to set the desired values.
Press the key to go at the previous menu.
6.4.3 Proportional functioning by external pulses 1xN (M)
Every time the pump receives a pulse from the water meter it perform the
desired strokes at the programmed frequency.
If the pump receives pulses from the water meter when it’s performing a
dosing the pump manages this situation in two modes: proportional or
instantaneous.
Instantaneous, the pump gives instantly the remaining strokes at the set
frequency and the extra strokes at the proportional frequency spans on the
time of the last two pulses received from the water meter.
Proportional,the pump save the extra strokes and perform them at the
end of the current dosing at proportional frequency spans on the time of
the last two pulses received from the water meter.
In this functioning mode there are three parameters to set:
▪Number of strokes to perform.
Setting from 0 to250.
▪Frequency of the strokes per minute (SPM).
Setting from 1 to 150 or 180 (depends on the model).
▪Type of memory proportional or instantaneous.
Example: 1xN (M) = 1x15 Bat/m = 60
The pumps gives 15 strokes at 60SPM frequency every time it receives a pulse from the water
meter.
Press the keys to set the desired values.
Press the key to go back at the previous menu.
ENGLISH

17
12/02/2021 Rev.1
6.4.4 Proportional functioning by external pulses 1:N
Every time that the pump receive “N” pulses from the water meter, the
pump performs a stroke.
In this functioning mode there is only one parameter to set:
▪Number of strokes to divide (N).
Setting from 0 to 250.
Example: 1:N = 1:15
The pump performs a stroke every 15 pulses received from the water
meter.
Press the keys to set the desired values.
Press the key to go back at the previous menu.
6.4.5 Proportional functioning in 4-20mAcurrent signal
The pump performs a dosing proportional at the current value on its input.
In this functioning mode there are seven parameters to set:
▪Lower limit L1
Setting from 0 to 20mA at steps of 0,1mA.
▪Upper limit L2
Setting from 0 to 20mA at steps of 0,1mA.
▪Capacity L1
Setting from 0 to 100%.
▪Capacity L2
Setting from 0 to 100%.
▪Below L1
Setting OFF or ON.
▪Over L2
Setting OFF or ON.
Example: L1=4mA L2 = 12mA Capacity L1 = 10% Capacity L2 = 50%
Below L1= OFF Over L2 = ON
If in input there is a current of
8mAthe pump performs a dosing at
30%.
Press the keys to set
the desired values.
Press the key to go back at
the previous menu.
ENGLISH

18
12/02/2021 Rev.1

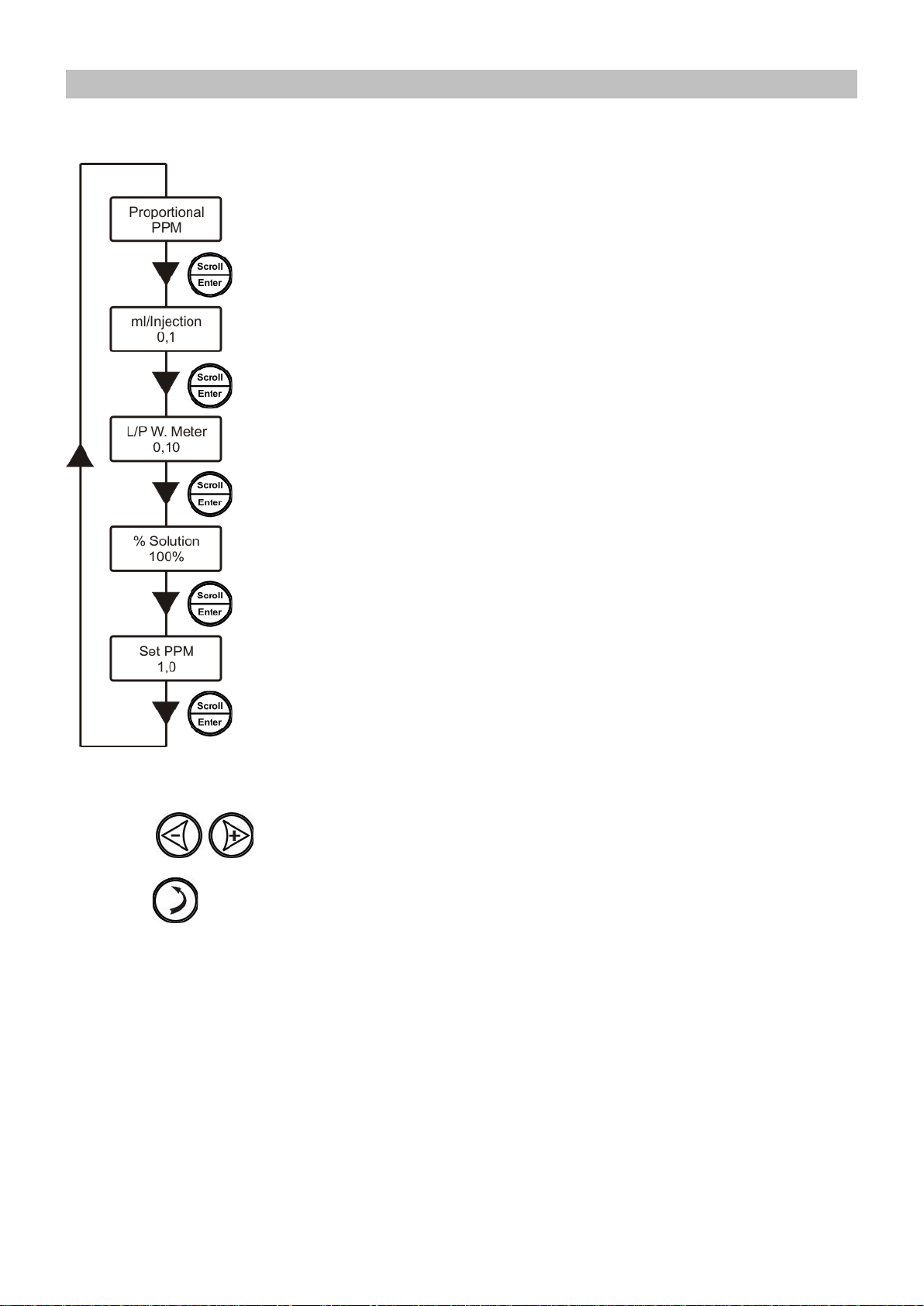

6.4.6 Proportional functioning in PPM
This functioning mode allows to perform a dosing in PPM (parts per million)
after setting the following parameters:
▪mL/Injection
Indicates the mL per stroke, this values is calculated automatically after the
calibration
▪L/P W. Meter
Indicates the litres per pulses of the water meter, the acceptable values
are:
0,10 –0,25 –0,50 –1 –1,50 –5 –10 –25 –50 –100 –250 –500 –1000
For a water meter at 4 pulses per litre set 0.25.
▪% Solution
Indicates the concentration of the chemical to dose.
Setting from 0 to 100%.
▪Set PPM
Indicate the desired PPM value to keep in the installation.
Setting from 0 to 99,9 at step of 0,1.
Example:PPM = 1 L/P W. Meter = 100
mL/Injection = 1 ml % Solution = 50%
In this case N=0,2 that means that every 5 pulses from the water meter the pump performs a
stroke..
Press the keys to set the desired values.
Press the key to go back at the previous menu.
ENGLISH

19
12/02/2021 Rev.1
6.5 PROGRAMMING MENU -TIMER
This mode allows to program the pump as a daily
or weekly timer up to 7 ON/OFF operations
Press the keys to scroll the menu
entries.
Press the key to select the desired entry.
6.5.1 Timer every day programming
The pump can be activated every day and it is possible to set up to 7
ON/OFF operations with the start and end time.
Moreover the timer can be disabled.
The minimum dosing time is 1 minute.
Press the keys to set the desired values.
Press the key to go back at the previous menu.
Press the key to go at the next program.
ENGLISH

20
12/02/2021 Rev.1
6.5.2 Timer weekly programming
The pump can be activated weekly and it is possible to set up to 7
ON/OFF operations with the start and end time.
Moreover the timer can be disabled.
The minimum dosing time is 1 minute.
Press the keys to set the desired values.
Press the key to go back at the previous menu
Press the key to go at the next program.
ENGLISH
