Aquadart Rolla 8 User manual

INSTALLATION INSTRUCTIONS www.aquadart.co.uk

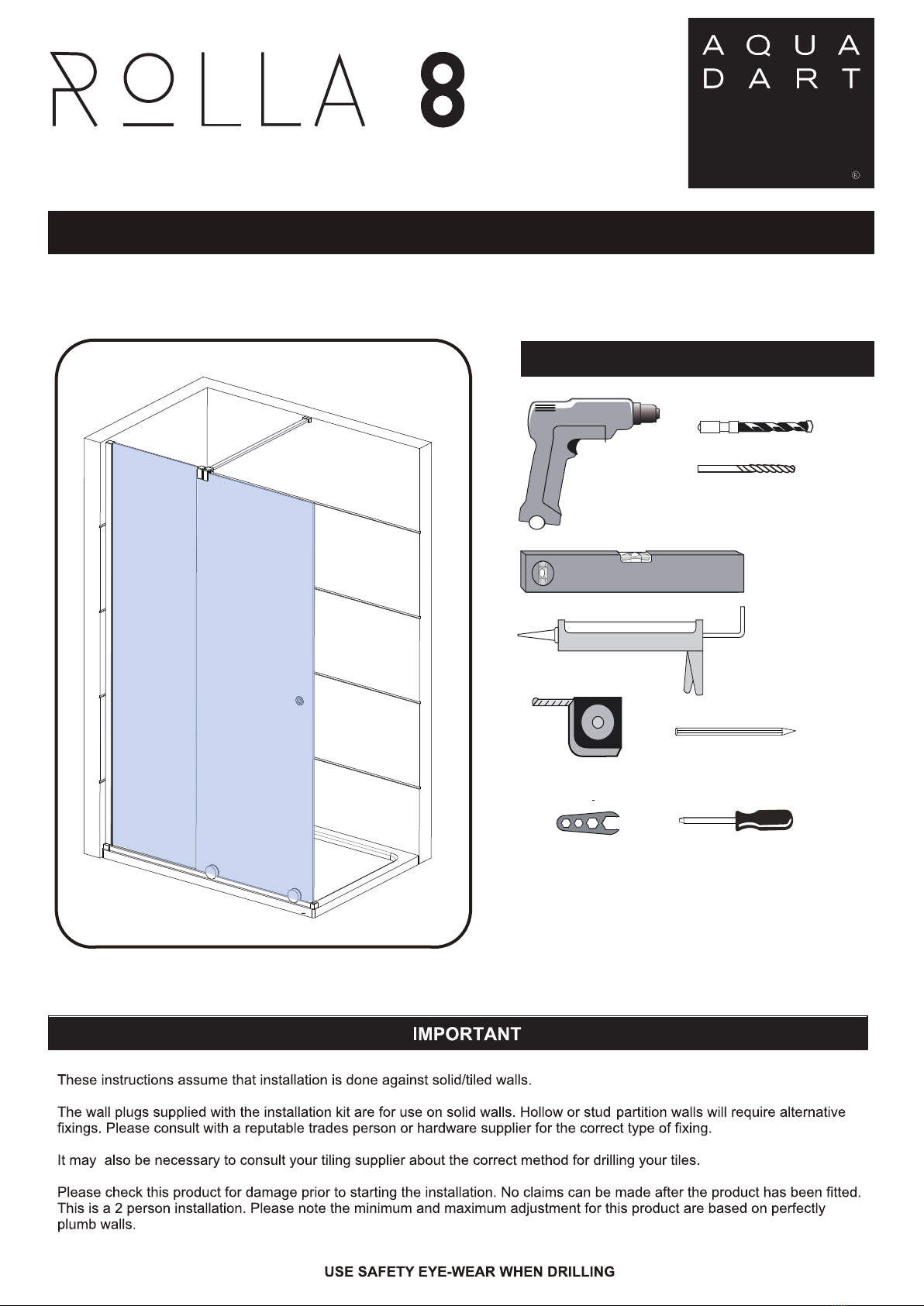

SLIDING WETROOM
N.B ：N.B. This instruction applies to the Wetroom, Sliding Door Recess and Sliding Door Enclosure. Please read the
whole instruction before starting installation
Drill 8mm Masonry Drill
2.75mm HSS Drill
Spirit Level
Sealant Gun
Tape Measure
PH2 TYPE
Screwdriver
Pencil
Hex Wrench
Tools Required
Please note hand tools NOT supplied

Box Contents

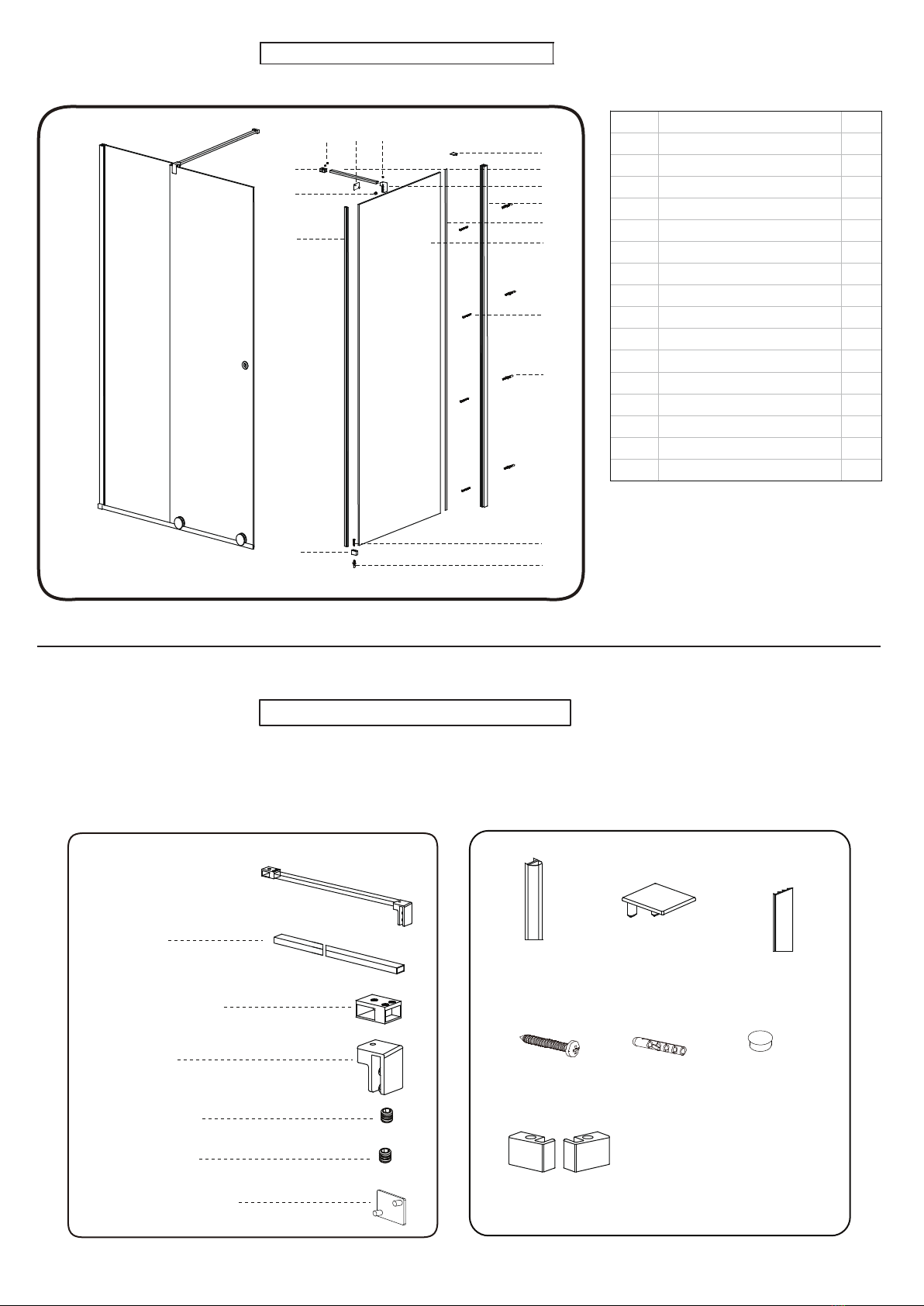

COMPONENTS AND BOX CONTENTS
1
2
3
4
56
7
9
8
10
11
13
12
14
15
16
17
22
21
20
19
18
27
26
25
242331 30 29 28
33
32
No. Description Qty No. Description Qty
1 Wall Profile Top Cap 2 18 Bottom Rail End Fixing Screw Cap 1
2 Wall Profile 1 19 Roller Set 2
3 Fixed Panel 1 20 Handle 1
4 Door Panel 1 21 Support Arm Wall Fixing 1
5 Closing Bubble Seal 1 22 ST Screw 4x30 1
6 Fixed Panel Fixing Seal 1 23 Allen Grub Screw M5x6 1
7 Vertical Seal(Optional) 1 24 Wall Plug 1
8 Wall Plug 4 25 Glass Clamp 1
9 ST Screw 4x30 4 26 Grub Screw M5x6 1
10 Bottom Rail End Cap (L/R) 2 27 Grub Screw M8x6 1
11 Bottom Strip 1 28 Soft Head 1
12 Bottom Rail 1 29 Grub Screw M8x6 1
13 Bottom Strip End Cap 1 30 Stopper Screw Cover 1
14 Bottom Rail End Fixing Soft Head 1 31 Roller Stopper(L/R) 2
15 Wall Plug 1 32 Support Arm Tube 1
16 Bottom Rail End Fixing(L/R) 2 33 Glass Clamp Screw Cap 1
17 ST Screw 4x30 1

IMPORTANT - Missing Components
Please check this product for missing components prior to installation.
For spare parts visit www.aquadart.co.uk
IMPORTANT - Installation site
1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
2. The tiles or other wall finishing should be effectively sealed at tray edges.
3. Tiles should extend at least to the corner of the tray and a minimum of 2.0 meters from the top of the tray.
FIXING KIT COMPONENTS, SITE CONDITIONS
FIXING KIT
Wall Profile Top Cap
x1
Bottom Strip End Cap
L/R x1
Handle
x1
Wall Plug
x6
Screw ST 4X30
x6
Cover Cap
x1
Support Arm x1
Roller
x2
Bottom Strip End
Fixing x1
Bar x1
Support arm glass clamp x1
Wall Fixing x1
Allen Screw M5 x1
Allen Screw M8 x1
Fixed panel Fixing Seal
x1
Roller Stopper
Cover Cap
x1
Glass Clamp Cover Cap x1
Roller Stopper L/R
x1
Soft head
x1
Closing Bubble Seal
x1

1.1

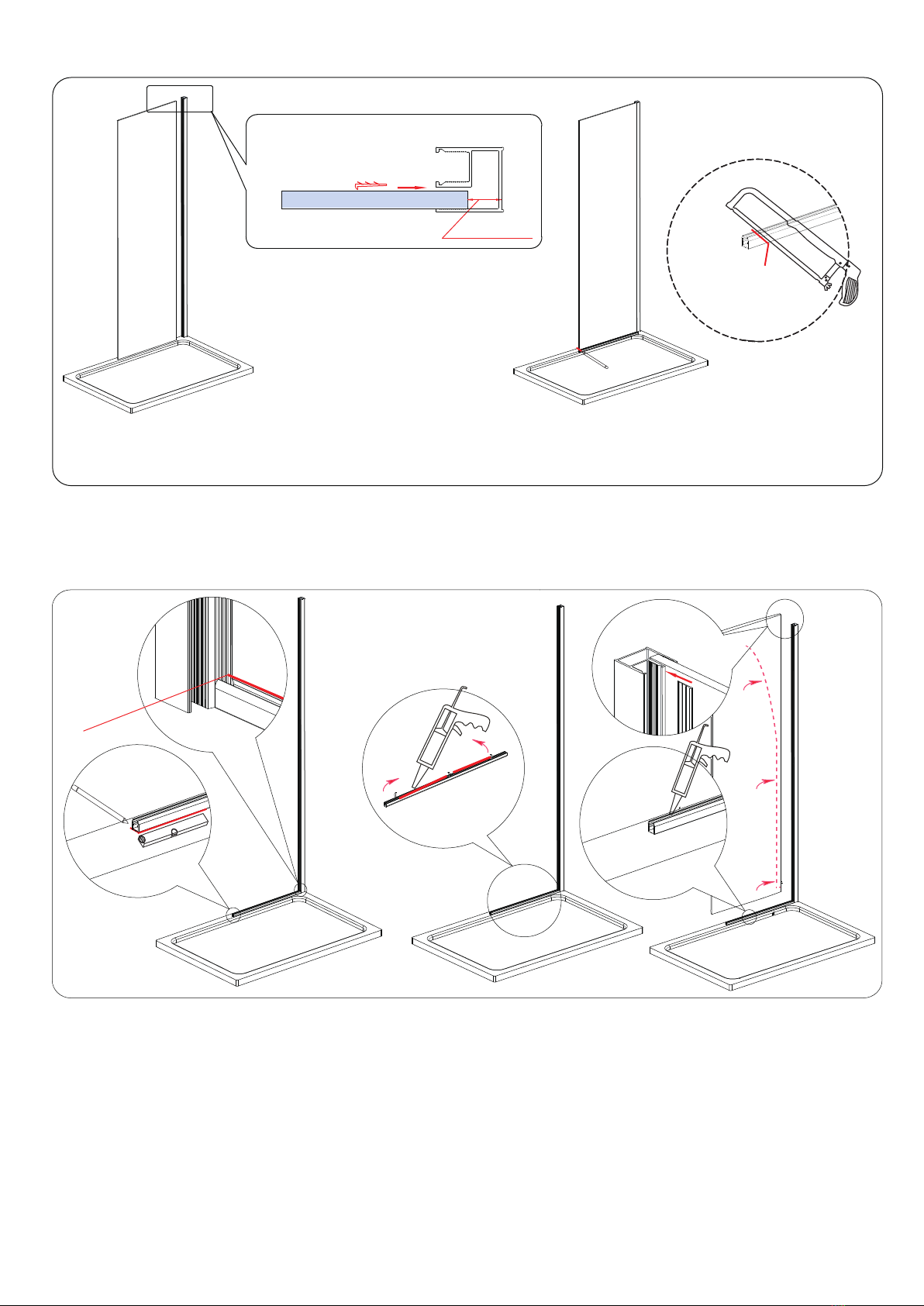

Step 1.1 Fit the Bottom Rail End Cap L/R (Part 10) on the wall profile (Part 2) from the bottom. Place the Wall Profile onto
the tray, roughly 10mm away from the front edge of the end cap. Level the Wall Profile using a spirit level then
mark the profile through the pre-drill holes on the Wall Profile. (Diagram 1.1).
Note: Ensure the channel with the pre-drill holes is facing outwards when placing the Wall Profile onto the tray.
Step 1.2 Remove the wall profile and drill the marked points using a 8mm masonry drill bit.(Diagram 1.2)
Step 1.3 Insert wall plugs(Part 8) then secure the wall profile onto the wall using ST4X30 screws x4 (Part 9)(Diagram 1.3)
10mm
1.2 1.3
Note: The product can be constructed either way up, for left or right hand opening.This instruction is showing a Left
hand opening
dnaHtfeL
dnaHthgiR

Step 2.1 Carefully lift the fixed panel (Part 3) and insert into the wall Profile groove,it allows 0-20mm for the adjustment.
Once the fixed panel is in required adjustment, place the bottom strip(Part 11) onto the tray and mark a line
onto the profile. Cut the profile through the marked line to get required length.(Diagram 2.1)
Fixed Panel/Face Inside
0-20mm adjustment
2.1
Step 2.2 Remove the fixed panel then replace the bottom strip (Part 11) onto the tray, ensure the bottom strip groove is
level to the wall profile groove on the inside face (Diagram 2.2A). Mark the line on the tray for the bottom strip
position once you have ensured it is straight. (Diagram 2.2B)
Level
Straight
2.2B
Step 2.3 Drop the silicone sealant onto the bottom side of the bottom strip,take the 3M adhesive tape back away then
carefully place it onto the tray against the marked line.(Diagram 2.3)
2.3
Step 2.4 Drop the silicone sealant into the groove of the bottom strip(Diagram 2.4) then carefully lift the fixed panel
and insert it into the bottom strip then push it onto the wall profile.After the fixed panel has been placed at the
required position insert the fixing seal from top to bottom to secure the fixed panel onto the wall profile.
(Diagram 2.5)
INSIDE
Outside
Inside
2.4
2.5
2.2A

Step 3.2 Ensure the bottom rail is level and straight then secure it onto the tray using the bottom rail end fixing(Part 16)
and screw ST4x30(part 17).Then insert the black soft head into the hole on the bottom rail end fixing(Diagram 3.2)
Step 3.3 Assemble the bottom rollers onto the door panel.Ensure the gasket has been used on both faces of the glass.
3.1
3.2
Step 3.4 Carefully lift the door panel and assemble onto the bottom rail, fit the glass clamp(Part 25) to hold the fixed
panel and door panel in place.
IMPORTANT:TURN THE ROLLER BODY TO ENSURE THE EDGE OF THE CUT ON THE ROLLER BOTTOM DOES
NOT TOUCH BOTTOM RAIL TOP SURFACE BEFORE SLIDING THE DOOR PANEL
3.3
3.4
Step 3.5 Adjust the roller to raise or lower the door panel to ensure it does not touch the ground or tray(Diagram 3.5),
also ensure that the overlap of the fixed panel and door panel is equal at the top and the bottom.Slide the door
panel to ensure it’s running smoothly.
Tips:If the door panel does not run smoothly please check that the bottom rail is 100% straight,and check that the
wall profile is 100% level.
3.5
IMPORTANT
Step 3.1 Insert the bottom rail (Part 12) into the end cap (Part 10) Diagram 3.1. Note: If fitting the Sliding Door with a Side
Panel you will need to cut 25mm away from the bottom rail.

10mm
Door panel
Fixed panel
3.6
Step 3.6 Ensure the glass clamp is in about 10mm away from the fixed panel edge(Diagram 3.6) then attach it onto the
fixed panel using M8 x6 grub screw(Part 27)
Step 3.7 Fit the support arm wall fixing onto the support arm bar and place it onto the wall in required position.Measure
the dimension from the glass clamp to the wall fixing to get dimension Y.Cut the support arm to the required length
X according to the formula X=(L-Y)+25mm(L is the original length of the support arm bar,1057mm)
3.7
Step 3.8 Fit the support arm wall fixing onto the support arm bar before inserting the support arm bar onto the glass clamp,
move the wall fixing to the wall and level the support arm bar, mark the postion of the wall fixing onto the wall.Drill
through the marked position on the wall using a 8mm masonry drill bit and insert the wall plug(part 24).Fix the
wall fixing onto the wall using screw ST 4X30(Diagram 3.8).
Insert the support arm bar to the wall fixing,pull the bar out from the wall fixing to insert into the glass clamp, then
secure the support arm bar together with the glass clamp and wall fixing using M5 x6 grub screws.
3.8
Step 3.9
3.9
3.9
3.9
Step 3.10 Press the closing bubble seal (Part 5) into the wall profile channel, then fit the wall profile top cap(part 1) onto the
wall profile(part 2)
Fit a soft head (part 28) onto the roller stopper (part 31),then slide the door panel to ensure it touches the soft
head on the bottom rail end fixing (Diagram 3.9), fit the roller stopper onto the door panel, ensure the soft head
on the roller stopper touches the glass clamp then secure the roller stopper onto the door panel using M8x6
grub screw (Diagram 3.9).
Door panel
3.10
3.11
3.12
3.13
Step 3.11 Fit the bottom strip end cap(part 13) onto the bottom strip.(Diagram 3.11)
Step 3.12 Press the roller screw cap to cover the screws (Diagram 3.12).
Step 3.13 Fit the ring handle(part 20) onto the door panel. (Diagram 3.13).
Step 3.14 Fit the cover cap onto the roller stopper and glass clamp.
IMPORTANT: IF THE SLIDING DOOR IS BEING FIT WITH A SIDE PANEL YOU MUST INSERT THE T-PIECE ONTO
THE SUPPORT ARM BAR BEFORE ATTACHING IT ONTO THE WALL FIXING.
T-piece connector for side panel support bar
Step 3.15 To fit the optional vertical seal please see Step 5.5.

OPTIONAL WALL PROFILE ASSEMBLY GUIDER
FOR SLIDER RECESS
Follow on from Step 3.1 to install the optional wall profile to build the Sliding Door Recess
Step. 3.2
Note: The product can be constructed either way up, for left or right hand opening.This instruction is showing a Left
hand opening
dnaHtfeL
dnaHthgiR
Ensure the bottom rail is level and straight,
then press the bottom strip end cap(R hand)
onto the optional wall profile then sit the wall
profile onto the bottom strip against the wall.
Follow steps 1.2 and 1.3 to fix the optional wall
profile onto the wall.
Follow the step 3.3 to assemble the door
panel and support arm.
FIXING KIT FOR THE OPTIONAL
WALL PROFILE
Wall Profile Top Cap
x1
Wall Plug
x4
Screw ST 4X30
x4
Closing Bubble Seal
x1

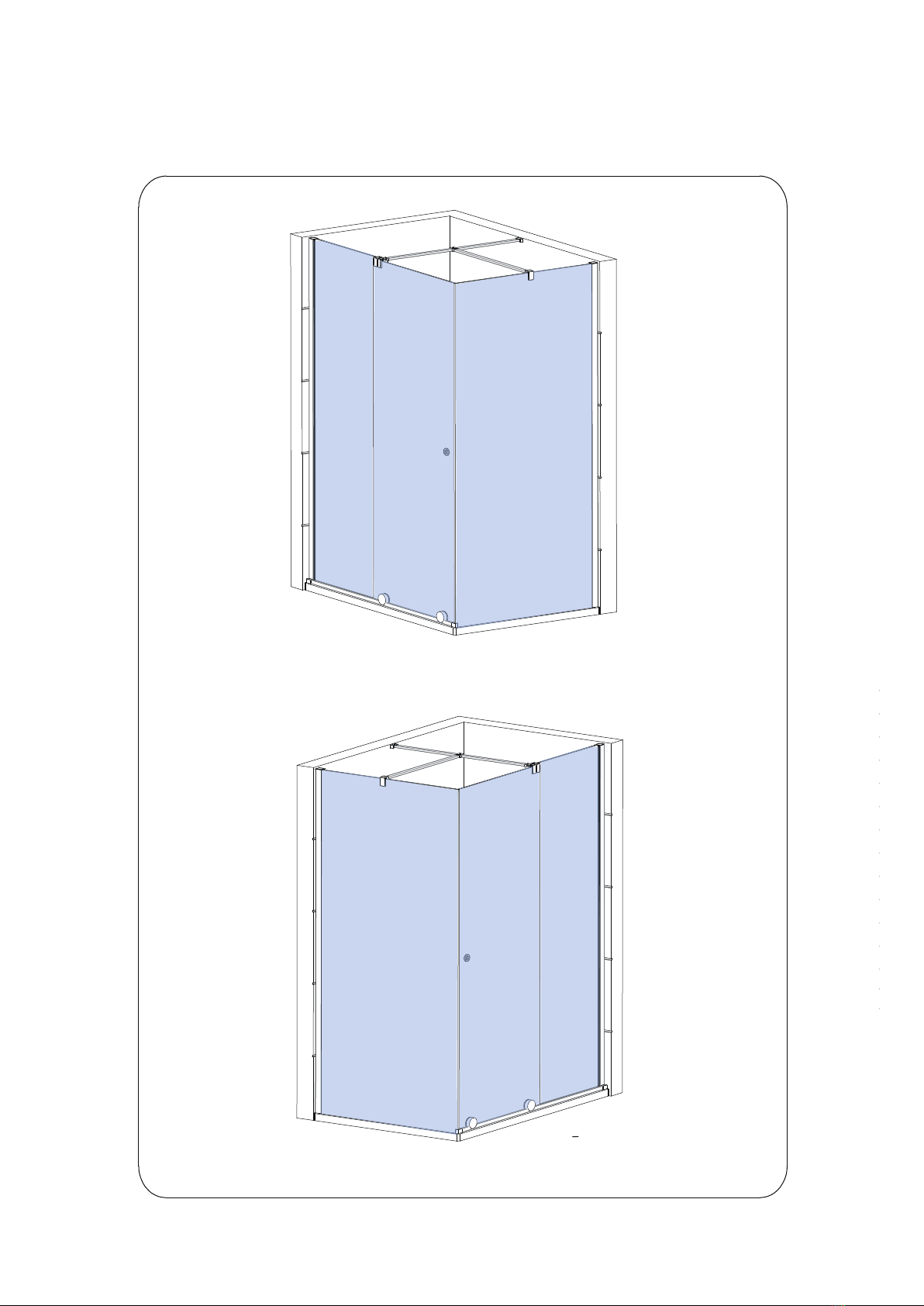

OPTIONAL SIDE PANEL ASSEMBLY GUIDE
FOR SLIDING DOOR SHOWER ENCLOSURE
Note: The product can be constructed either way up, for left or right hand opening.This instruction is showing a Left
hand opening
dnaHtfeL
dnaHthgiR

1
5
6
4
7
3
2
9
8
10
11
12
13
12
FIXING KIT COMPONENTS
FIXING KIT
Wall Profile Top Cap
x1
Bubble Seal
x1
Wall Plug
x5
Screw ST 4X30
x5
Cover Cap
x1
Support Arm x1
Bottom Fixing L/R
x2
Allen Screw M5 x3
Allen Screw M8 x1
Single Seal
x1
COMPONENTS AND BOX CONTENTS
Glass Clamp
Support Bar Connector
Support Bar
16
14
15
No. Description Qty
1 Wall Profile Top Cap 2
2 Support Arm Tube 1
3 Glass Clamp 1
4 Wall Profile 1
5 Glass Fixing Seal 1
6 Glass Panel 1
7 T-Piece 1
8 Bubble Seal 4
9 Bottom Fixing (L/R) 4
10 ST Screw 4x30 1
11 Wall Plug 1
12 Grub Screw M5 3
13 Grub Screw M8 1
14 ST Screw 4x30 4
15 Wall Plug 4
16 Glass Clamp Cover Cap 1
Glass Clamp Cover Cap x1

Follow on from Step 3.15 to install the optional wall profile to build the Sliding Door Shower
Enclosure. Using the part 9 to replace the part 16 on step 3.2
Step 4.1 Place the wall profile (Part 4) onto the tray, roughly 10mm away from the tray front edge. Level the wall profile
Step 4.2 Remove the wall profile and drill the marked points using 8mm masonry drill bit,once this is done insert the wall
plugs(Part 15).
Step 4.3 Secure the wall profile onto the wall using screws ST 4x30(Part 14).
Step 4.4 Carefully lift the Side Panel Glass (Part 6) onto the tray,insert it into the wall profile channel. It allows 15mm for
the adjustment. Once the glass panel is in it’s final position, use the fixing Seal (Part 5) to fix it onto the wall profile.
10MM
0-15mm
4.1 4.2
4.3 4.4
using a spirit level, then mark the profile through the pre-drill holes on the wall profiles (Diagram 4.1)

24 HRS
DO NOT USE THE
ENCLOSURE FOR
24 HOURS AFTER
SEALING

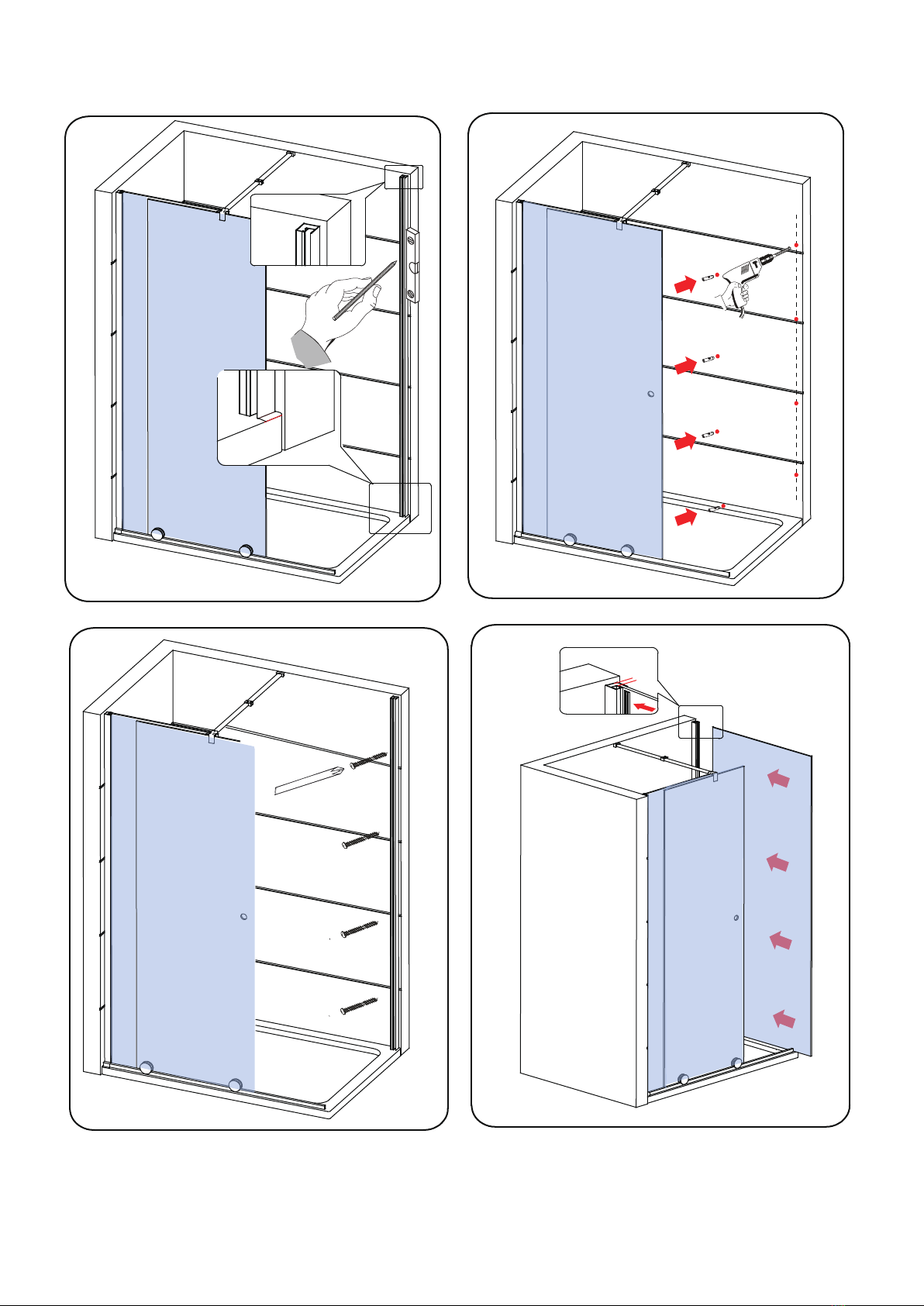

Applying Silicone Sealant
Sealing Inside
Seal from the top of the wall profile to the bottom on the INSIDE
between the wall profile and the wall.
IMPORTANT: Do not apply sealant on inside of the tray.
Sealing Outside
Seal from the top of the wall profile to the bottom between the
wall profile and tiles on both sides. Also seal along the bottom
where the frame meets the tray. Seal the joints between the
bottom profile and any upright profiles.
Step 5.1 Measure the support bar tube length then cut it to the required size,fit the Glass Clamp(Part 3) onto the side
panel then secure it onto the side panel using a M8 screws.(Diagram 5.1)
Step 5.2 Fit the support bar tube onto the Glass Glamp and T piece(part 7) then secure them to each other using M5
grub screws(Diagram 5.2).
Step 5.3 Fit the side panel Bottom Fixing(part 9) onto the glass bottom,secure it onto the tray using screw ST 4x30
(Part 10)(Diagram 5.3).
Step 5.4 Stick the Bubble Seal (Part 8) onto the door panel(Diagram 5.4.)
Step 5.5 We do not recommend fitting the vertical seal (Part 7 in the sliding wetroom carton) onto the fixed panel as the
overlap between the fixed panel and door panel will be sufficient to avoid any leaks. If you do decide to fit the
vertical seal please ensure you cut it as detailed in Diagram 5.5 to avoid any obstruction to the handle or rollers.
Step 5.6 Fit the wall profile top cap( Part 1) onto the wall profile (Diagram 5.6)
5.1
5.3
5.4
5.5
5.6
Door panel
5.2
Step 5.5-Cut the seal
