Aquatic AQ-CD-4 User manual

products with a watertight reputation
Aquatic AV
282 Kinney Dr.
San Jose, CA 95112, USA
E-mail: [e-mail]
US & Canada: 1 877 579 2782
International: [phone]
Fax: [phone]
www.aquaticav.com
products with a watertight reputation

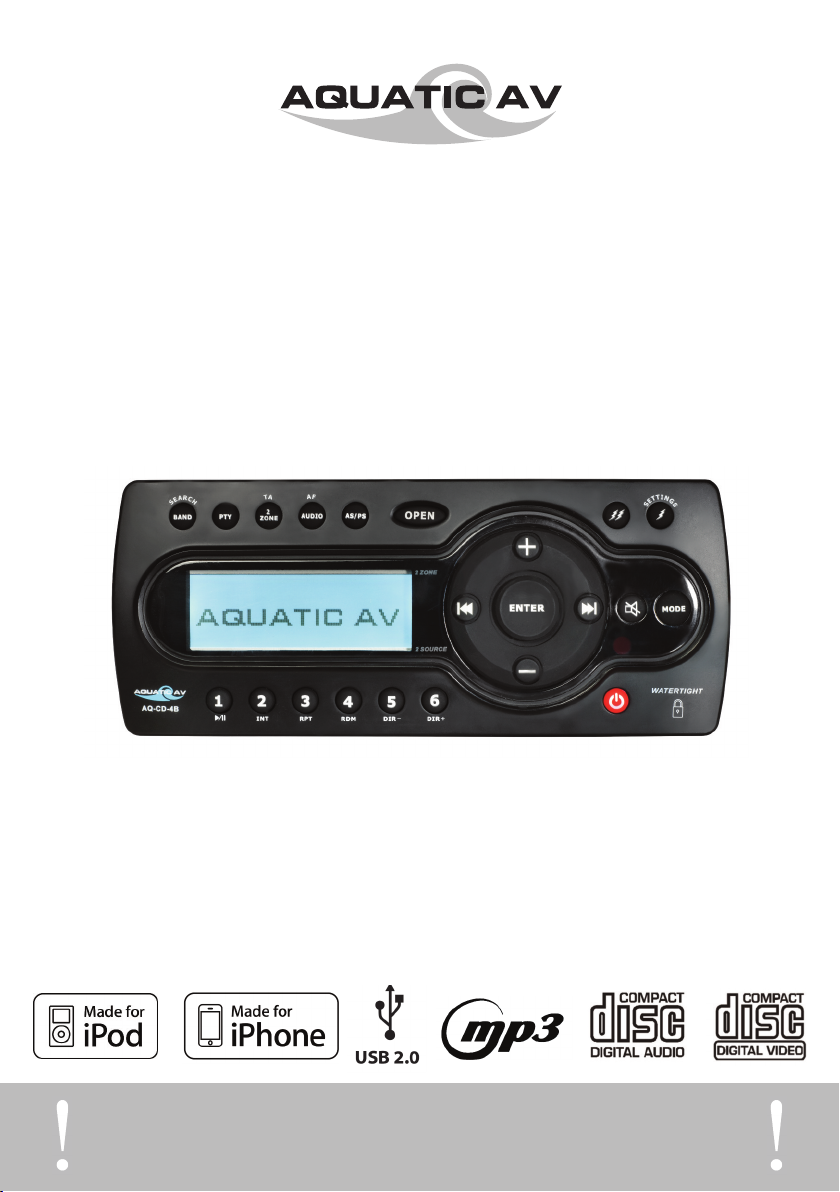

WATER/DUST PROOF CD MEDIA
CONTROL CENTER
AQ-CD-4
WATER/DUST PROOF CD MEDIA CONTROL CENTER
OWNERS MANUAL
PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 1

SAFETY INFORMATION
CAUTION:
MOBILE CD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE CD PLAYER USES
A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE
IF DIRECTED. BE SURE TO OPERATE THE CD PLAYER CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE
ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
2www.aquaticav.com
31
www.aquaticav.com
Product design and specification subject to change without notice. E&OE.
iPod and iPhone are Trademarks of Apple Inc, registered in the US and other countries.
FCC STATEMENT
FCC ID:
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE:
The equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
- Reorientate or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user
authority to operate the equipment.
This product incorporates copyright protection technology that is protected by method claims of
certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by Macrovi-
sion Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
JUL12
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 3

30 www.aquaticav.com
CONTENTS
3
www.aquaticav.com
AQ-CD-4
AQ-CD-4 MANUAL CONTENTS
Main Features..............................................................................
Disc Notes....................................................................................
Disc Handling...............................................................................
Installation....................................................................................

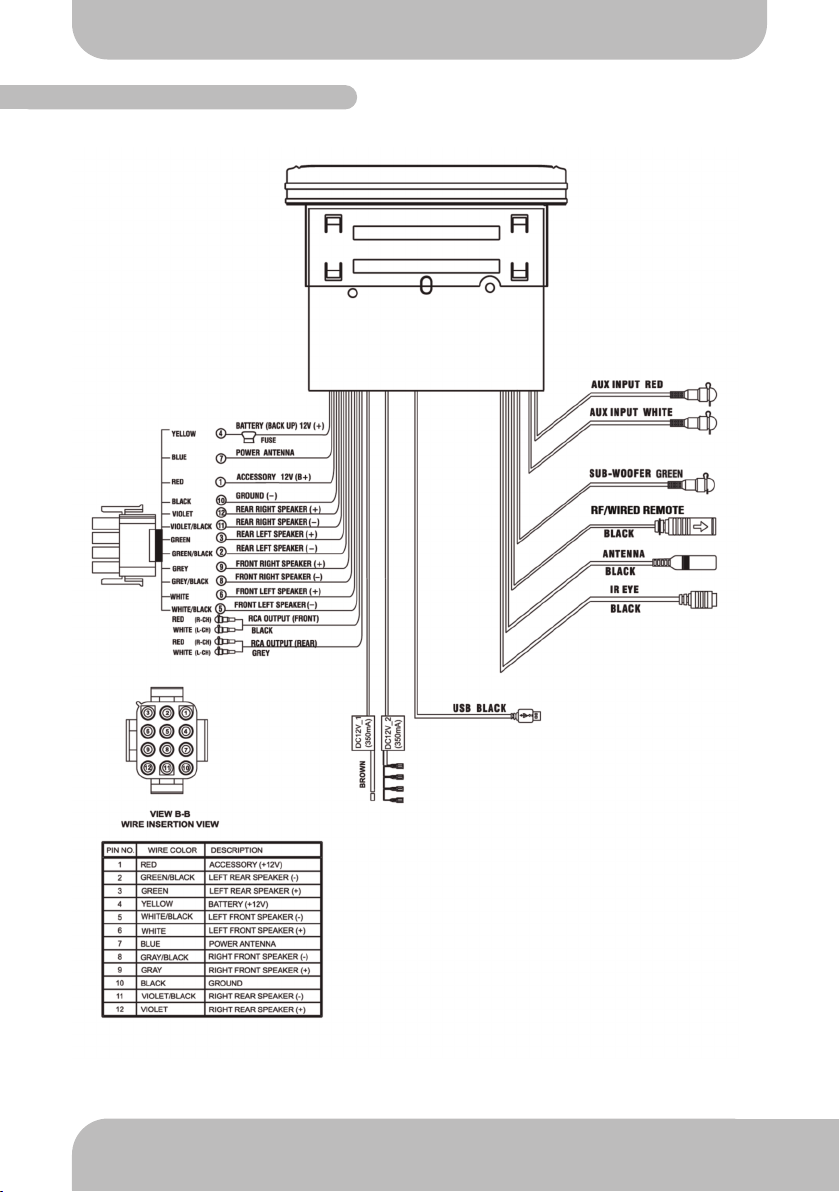

Connections and 12-pin Harness.................................................
Location of Controls......................................................................
Function of Controls.....................................................................
Settings Menu..............................................................................
Audio Menu..................................................................................
Dual Zone Operation....................................................................
Tuner Operation...........................................................................
CD Operation..............................................................................
MP3/WMA Operation...................................................................
USB Operation............................................................................
iPod/iPhone Operation................................................................
Specifications...............................................................................
Trouble Shooting.........................................................................
TROUBLE SHOOTING
If any of the problems persist after checklist has been made consult your
nearest Aquatic AV service dealer.
Trouble Shooting Guide
Problem Test Procedure
Failure to
power on
Check for +12V DC output from
power source.
Using a volt meter turn the setting of the volt meter to VDC.
Check black wire (ground) with one probe from the volt meter/
red wire (positive) with the other probe on the power supply.
Reading should be in range +11.6V DC to +14.7V DC output
from the power supply.
Check red, yellow and black power
wires are fully inserted into male
12-pin harness on source unit.
Push on the red, yellow and black wires to make
sure they are fully seated into the harness and will
make good connection to the female pins of the stereo.
Check for +12V DC across the red
and yellow fuses .
Using a volt meter set to VDC, insert the black (ground) probe
into the black wire on male harness. Using the red (positive)
probe on the volt meter check the fuse on the yellow wire,
located on the back of the stereo, by touching the terminal
on top of the fuse closest to the stereo. Reading should be in
range of +11.6V DC - +14.7V DC. Repeat these steps to test
the fuse on the red wire on the back of the stereo.
Problem with
audio output
Check 12-pin wiring harness
components (male and female) are
connected properly and clicked in.
Check that male and female 12-pin harness have a good
connection and that the tabs on the side of the plastic 12-pin
harness are clicked in to prevent accidental disconnection.
$+#!$!%%%'+!$&!.'%
connection between male and female components.
Check for good connection with all
speakers.
With the stereo unplugged from the 12-pin connector, use a
("& &$%&&"& %&&!,&#$""
the meter into the grey/black striped wire on the female side
of the 12-pin harness. Place the red probe of the meter into
the solid grey wire. Readings below 2 Ohms or above 8 Ohms
indicate a problem or short in the line. Repeat test through all
speaker connections. Reconnect the stereo to the female 12-
#!$!%%!"!-$ &&&$+)&$!!#'$#
wires are fully and securely inserted in the 12-pin harness.
Check Audio options and settings. Press the Audio button and use volume up (+) or volume
down (-) buttons to scroll through the audio options. Make sure
Balance is set to L=R and Fader is set to F=R. If either
option is not set as required, press volme up (+) or volume
down ( - ) to alter the setting.
No FM radio Check for correct antenna
installation.
Make sure there is an antenna is correctly installed into the
the input labelled Antenna. Connect the antenna wires to
a metal structure (vehicle chassis for example) to improve
reception.
Check the Settings menu to make
sure that you are in the correct FM
Tuning Area
Hold down the Settings button for 3-5 seconds until the
Settings menu appears. Use volume down (-) button to scroll
down the menu to the AREA menu item and press ENTER.
Verify the correct FM tuning zone, either USA or Europe. Use
volume up (+) and volume down (-) to switch between USA
or Europe FM Tuning Areas.
No CD functions Check disc for scratches and
imperfections.
Check the back of the disc for any scratches or rough edges
that may cause the disc to be unreadable. If scratches or
blemishes are present refer to Disc Handling section of this
user manual.
Verify the songs are the apprioiate
format
'%!"$($+&-*&!%&"!"&
%"!%-%"!&!"!&% #!
) -*&!%"!%$%'##"$&
Before staring the trouble shooting process:
1) Check all wiring connections are in good order.
2) Confirm the ‘2-zone’ feature is de-activated by pressing the ‘2-zone’ button on the
face of unit. The LCD will indicate 2-zone ON or OFF. If the LCD shows 2-zone is
ON, press the 2-zone button to switch to 2-zone mode OFF.
4
5
6
7
8
9
10
11
16
17
18
21
23
25
26
29
30
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 5

MAIN FEATURES
Features
●PLL Synthesizer Stereo Radio
●Automatic Memory Storing
●CD/MP3/WMA Player
●Fold-down fascia panel
●USB interface
●iPod / iPone interface
●Dual Zone/Dual Source Function
●Wired Remote Ready (sold separately)
●Wireless (RF) Remote Ready (sold separately)
●Left & Right Stereo 4V pre-outputs for connection to external amplifiers
●Subwoofer output
●Auxiliary input
●Optional remote handles multi-function software
FEATURES
4www.aquaticav.com
SPECIFICATIONS
CD Section
Compatible Disc/Format..........
Signal to Noise Ratio................
Frequency Response...............
Channel Separation.................
Audio Section
Max output power.....................
Max load impedance................
Line out level/load....................
Auxiliary Input Section
Frequency response................
Input Maximum Voltage............
Radio Section
FM
Frequency Range.....................
Usable Sensitivity.....................
Stereo Separation....................
S/N Ratio..................................
AM or MW
Frequency Range....................
Usable Sensitivity.....................
S/N Ratio.................................
General
Operating Voltage....................
Grounding System...................
Fuse:........................................
Operating Temperature:...........
Unit Mounting Angle.................
See page 5 for more detailed description
﹥80 dB
20Hz to 20kHz +/-3dB
2 Channel(Stereo)﹥60dB@1kHz
72W x 4 channels (at 2 Ohms)
2 Ohms
4V/10K ohm load
20Hz to 20kHz +/-3dB
1200mV
87.5-107.9MHz(200KHz space) / 87.5-108MHz
≦15dB at S/N 30dB
25dB at 1KHz
50dB
530-1710(10KHz space) / 522-1620kHz
≦40dB at S/N 20dB
40dB
DC 10.7V - 15.6V
Negative Ground
15 Amp Mini ATM Type
-20℃ to 70℃
﹤30°
29
www.aquaticav.com
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 7

DISC NOTES
5
www.aquaticav.com
SUPPORTED DISC TYPES
●Compact Discs (CDs)
●CD Recordable (CD-R)
●CD Rewritable (CD-RW)
SUPPORTED AUDIO FORMATS
● Playback CD-DA
● MP3
● WMA digital music files on CD-ROM.
MP3 and WMA:
Supported Sampling frequencies: 32kHz,44kHz,48kHz
Supported Bit-Rates:64-256kbps variable bit rate.
SUPPORTED DISC TYPES
SUPPORTED AUDIO FORMATS
28 www.aquaticav.com
iPod & iPhone OPERATION
AQ-CD-4
PAUSE/PLAY BUTTON
Press to pause playback. Press again to resume normal playback.
PREVIEW/INTRO BUTTON
Press INT button to play first ten seconds of each file and “INTRO ALL” will appear on
the LCD.
Press INT button again to exit this mode.
REPEAT PLAYBACK BUTTON
Press RPT button to repeat play the current song. The song will repeat until repeat play
is disabled.
Press RPT again to disable the repeat function.
RAMDOM PLAYBACK BUTTON
Press RDM button to enter random play of all songs on the iPod/iPhone.
Press RDM again to disable the random function.
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 9

DISC HANDLING
Preparing New Discs with Rough Spots
A new disc may have rough edges on its inside and outside edges. If a disc with rough
edges is used, the proper setting will not be performed and the player will not play the disc.
Therefore, remove the rough edges in advance by using a ballpoint pen or pencil as shown
on the right. To remove the rough edges, press the side of the pen or pencil against the in-
side and outside edges of the disc.
Disc Cleaning
Use a dry soft cloth to wipe the surface. If the disc is dirty, use a soft cloth slightly damp-
ened with rubbing alcohol. Never use solvents such as benzene, thinner or conventional
record cleaners as they may scratch the surface of the disc.
A disc may become somewhat scratched (although not enough to make it unusable)
depending on the way it is handled and conditions in the usage environment. Note
these scratches are not an indication of any problem with the player.
DISC CLEANING
PREPARING DISCS WITH ROUGH SPOTS
6www.aquaticav.com
27
www.aquaticav.com
iPod & iPhone OPERATION
iPod/iPhone CHARGING
While connected to the unit the iPod/iPhone will automatically start re-charging, so long as
the AQ-CD-4 has power ON. Enough battery power must be available to turn ON on the
iPod/iPhone in order to allow chargeing.
DISPLAY iPod/iPhone INFO ON LCD
The AQ-CD-4 unit can display the Song, Artist, Album name and elapsed time on the LCD
display during iPod/iPhone playback.
SEARCHING IPod/IPhone
In the iPod/iPhone playback mode press BAND to enter into the iPod/iPhone NAVI
searching mode
Use the VOLUME+/- buttons to navigate and press the ENTER button to enter iPod/iPhone
search methods as below:
1) Playlists
2) Artists
3) Albums
4) Genres
5) Songs
6) Composers
7) Audiobooks
8) Podcasts
Once the desired searching method is highlighted, and within 20 seconds, press the
ENTER button to confirm and enter the chosen search mode.
Press the VOLUME+/- buttons to navigate through the Albums, Artists, Songs etc contained
in the iPod/iPhone.
Press the ENTER button to confirm and play the selected song
During the searching mode press BAND to move back to the last upper level of Albums,
Playlists, Genres etc.
SKIP SONGS
Short press the TRACK UP or TRACK DOWN buttons to skip to the next or previ-
ous song on the iPod/iPhone.
FAST FORWARD / FAST REVERSE
Press and hold Press the TRACK UP or TRACK DOWN button for more than 2
seconds to fast forward or fast reverse through the song.
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 11

SYSTEM SET UP MENU
7
www.aquaticav.com
GETTING STARTED
The AQ-CD-4 Media Center is designed for the harsh conditions of the marine environment.
For easy system set-up, mount the Media Center so the front panel controls will be easily
accessible. In addition, observe the following precautions:
1. Check clearances on both sides of a planned installation before drilling any holes or in-
stalling any screws.
2. When routing RCA audio cables keep them away from power cables and output speaker
wires.
3. Due to the harsh conditions of the marine environment, Always support the back of the
unit with the supplied back strap.
INSTALLATION
1.Slide mounting can
into DIN opening.
2.Slide backing brackets
into position and tighten
center bolts. Remove
backing brackets handles
by bending backet handles
by bending them until they
break off.
3.Slide Media Center into
mounting cage. Secure
Media Center using supplied
Stainless Steel hardware
and back strap.
iPod & iPhone OPERATION
PLAYING & CONTROLLING iPod/ iPhone
SWITCH TO iPod/iPhone MODE
When the unit is powered ON and iPod/iPhone is connected to the 30 pin connector, press
the MODE button to change to iPod/iPhone mode and the unit will display “IPOD” then
“IPOD READING” shortly after. The music files contained in the iPod/iPhone will then auto-
matically playback.
TURNING iPod/iPhone POWER ON/OFF
The iPod/iPhone power turns on automatically as soon as it is connected to the 30 Pin
connector and so long as the power is ON.
The iPod/iPhone power can be turned OFF by removing the iPod from the 30 Pin Connector
or if the AQ-CD-4 is turned OFF. Under this condition the iPod/iPhone will initially go into
pause mode and then into sleep mode approximately two minutes later.
While the iPod/iPhone is connected the power can not be turned on/off from the
iPod/iPhone itself.
26 www.aquaticav.com
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 13

GETTING STARTED
CONNECTIONS & 12-PIN HARNESS
8www.aquaticav.com
25
www.aquaticav.com
USB OPERATION
Mode change to USB memory device
Connect the USB memory device to the USB connector of the unit and repeatedly press the
MODE button until “USB” is displayed on LCD. The unit can playback the MP3/WMA format
which are stored into the USB memory device.
USB FILE PLAYBACK & OPERATION
USB device playback and operation functions are the same as the operation of MP3/WMA.
Please refer to page 23.
If important files are stored on the USB device do not connect it to the AQ-CD-4 unit to
play as operation could result in file loss. Aquatic AV assumes no responsibility for any
loss of data.
PLAYING & CONTROLLING USB FILES
Once the unit reads the USB memory device successfully the first file on the USB memory
device will start playback automatically.
NAVI SEARCH BUTTON
1. Press the SEARCH button to display the USB folders on LCD.
2. Press VOLUME+/- buttons to navigate folders.
3. Press the ENTER button to enter the selected folder. A list of all files within the folder will
be displayed on the LCD.
4. Press VOLUME+/- buttons to navigate to the desired file.
USB PLAYBACK AND OPERATION
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 15

9
www.aquaticav.com
LOCATION OF CONTROLS
MP3/WMA OPERATION
24 www.aquaticav.com
AQ-CD-4
RANDOM PLAYBACK BUTTON
Press RDM button to active random playback function and all songs on the USB will be
played in random mode.
Press RDM a second time to active the RANDOM DIR function. All the songs in the cur-
rent folder will be played in random mode.
Press RDM a third time to disable random playback.
SELECTING DIRECT UP/DOWN
Press DIR- or DIR+ button to select previous or next folder.
MP3/WMA OPERATION - MONITOR
When a MP3/WMA disc is inserted into the player and the following picture will appear on
the monitor.
NAVI SEARCH BUTTONS
When playing MP3/WMA discs press SEARCH button to enter NAVI SEARCH.
Press the VOLUME+/- buttons to select MUSIC or PHOTO files and press ENTER to play.
NAVI SEARCH
Press SEARCH button to view MP3/WMA folders on LCD.
Press VOLUME+/- buttons to select a folder and press ENTER button to enter this folder. It
will list all files of the folder on LCD.
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 17

FUNCTION OF CONTROLS
MAIN FUNCTION CONTROLS
RESET FUNCTIONS
10 www.aquaticav.com
23
www.aquaticav.com
MP3/WMA OPERATION
PLAYING & CONTROLLING MP3/WMA FILES
TRACK SELECT or
The player plays the first track automatically. When the track is finished the second track will
begin playing and the displayed track number will be updated.
Press the TRACK UP or TRACK DOWN button for less than one second to skip to
the next or previous track on the CD. The selected track number will appear on the display.
Press and hold Press the TRACK UP or TRACK DOWN button for 2 seconds to
fast forward or fast reverse through the disc.
PAUSE/PLAY BUTTON
Press to pause playback. Press again to resume normal playback.
FAST FORWARD & FAST REVERSE or
Press FAST FORWARD to fast forward through the disc. Each time the button is
pressed a new speed (2X,4X,8X or 20X) is selected.
Press PLAY to resume normal playback.
Press FAST REVERSE to fast reverse through the disc. Each time the button is
pressed a new speed(2X,4X,8X or 20X) is selected.
Press PLAY to resume normal playback.
REPEAT PLAYBACK BUTTON
Press RPT button to active the repeat function. The current song will be repeatly
played.
Press RPT again to active the REPEAT DIR function. All files in the current folder will
be played repeatly.
Press RPT a third time to disable the repeat function.
PREVIEW/INTRO BUTTON
Short press INT button to play first ten seconds of each file in the current folder and
“INTRO DIR” will appear on the LCD.
Press INT button for a second time to play first ten seconds of each file and “INTRO
ALL” will appear on the LCD.
Press INT button for a third time to exit intro mode.
AQ-CD-4
POWER ON/OFF
Press the POWER button to turn the unit ON or OFF
PANEL OPEN
Press OPEN button to open the front panel/fascia and reveal disc slot.
MUTE
Short press the MUTE button to mute the audio output and “MUTE” will appear on the
display. Press the MUTE button again to restore the audio output to the previous level.
MODE
Short press the MODE button to cycle through the available modes of operation as indi-
cated on the display panel. Available modes are RADIO, DISC, AV IN, USB, IPOD.
VOLUME UP/DOWN
Press the volume up or volume down buttons to control volume to the desired level.
When the volume is adjusted the level is shown on the display panel as a number and
guage bar ranging from 00 (lowest) to 50 (highest).
12V DC EXTERNAL TRIGGERS
This unit has two buttons 12V trigger buttons named 12V-1 and 12V-2. These can be used
to transmit switching or ‘trigger’ signals, capable of driving 12VDC/350mA and operating re-
lays for external equipment (not supplied) such as deck lighting etc.
The 2 triggers will be activated ON/OFF via the following.
●Trigger 1 : Short press
●Trigger 2 : Short press
To reset the main unit
Open the front panel/fascia and use a pencil or any non-metallic object to press & hold the
reset button for five seconds to reset the main unit and the unit will return to the factory de-
fault settings.
To reset the CD settings
When the CD is playing press AS/PS button to enter the Menu. Select DEFAULT then select
RESTORE and press ENTER to confirm. The CD Setting will resume to factory default
value.
Ejecting the Disc
Open the front panel and press the EJECT button to eject the disc. Close the front panel
manually.
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 19

11
www.aquaticav.com
SETTINGS MENU
●VOL PGM: Max is 20 volume
●LOC/DIST: Tuner settings for Local and Distance
●STEREO/MONO: Switch from stereo to mono output
●AREA: Tuner freq. Step spacing
●BEEP TONE: ON/OFF
●CONTRAST: Adjust display contrast
●DIMMER: Backlight High/Mid/Low
●LOW BATTERY: 10.5V low battery alert on/off
●RDS MENU: Tuner RDS mode ON/OFF
To access the SETTINGS menu press and hold the SETTINGS button more than 3
seconds.
SETTINGS menu list will be displayed for 5 seconds on the LCD. If no other buttons are
pressed within the 5 second time-out the unit will exit the SETTINGS mode.
To navigate through the menu use VOLUME +/- buttons.
Press the ENTER button to select the item and enter into the sub menu.
To adjust the selected SETTINGS sub-menu item, press the VOLUME +/- buttons.
After the selected SETTINGS item has been changed press button to return to the pre-
vious item. If no other buttons are pressed within the 5 second time-out the unit will exit
SETTINGS mode.
SETTINGS MENU FUNCTIONS
ACCESSING SETTINGS MENU
CD OPERATION
22 www.aquaticav.com
AQ-CD-4
PREVIEW/INTRO BUTTON
Press INT button to play first ten seconds of each track. “INTRO ALL” will appear on the
LCD.
Press INT again to stop intro and listen to the track and “INTRO ALL” will no longer be
displayed.
RANDOM PLAYBACK BUTTON
Short press RDM button to active the random playback function
Press RDM again to disable the random playback function.
SELECTING DIRECT UP / DOWN
Press DIR- or DIR+ button to select up ten songs or down ten songs.
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 21

SETTINGS OPERATION
DESCRIPTION OF SETTING FUNCTIONS
VOL PGM
Allows volume level to be set when the unit is turned on. VOL PGM 20 is the default setting.
Press the VOLUME +/- buttons to set to the desired VOL PGM level.
If in normal operation the volume is set louder than the VOL PGM value, the unit will revert
back to the set VOL PGM level when the unit is next turned on. If in normal operation the
volume is set lower than the VOL PGM value, the unit will maintain this level when next
turned on. Maximum VOL PGM level is 20.
LOC/DIST
Press the VOLUME +/- buttons to select LOCAL or DISTANCE mode. This feature is used
to determine the strength of the signals at which the tuner will lock on to during automatic
tuning. DISTANCE is the default setting, allowing the radio to tune into a broader range of
signals. To set the unit to select only strong local stations press the volume+/- button until
LOCAL appears in the display.
STEREO/MONO
STEREO is the default setting. User now has 5 seconds to adjust it from STEREO to
MONO by using SETTINGS OPERATION VOLUME+/- key.
AREA
“USA” is the default setting. User now has 5 seconds to select “USA” to “EUROPE” by
pressing the VOLUME+/-.
BEEP TONE
ON is the default setting. User now has 5 seconds to adjust from ON to OFF by pressing
the VOLUME+/- buttons.
CONTRAST
CONTRAST 5 is the default setting. The user has 5 seconds to change it from 0-10 by
pressing the VOLUME+/- buttons.
DIMMER
The dimmer feature of the display is set to DIMMER HIGH by default. User can use the
VOLUME+/- buttons to adjust it to High, Middle or Low.
LOW BATTERY ALARM
LOW BATTERY OFF is the default setting. User now has 5 seconds to use the VOLUME+/-
buttons to adjust it from OFF to ON.
If LOW BATTERY ON is selected the alarm unit will sound a beep tone over the speaker
output. The visual warning “LOW BATT” message will be displayed on the LCD. If selected
LOW BATTERY OFF no alert will be sounded and the “LOW BATT” message will not be dis-
played when in low voltage state.
DESCRIPTION OF SETTINGS FUNCTIONS
12 www.aquaticav.com
21
www.aquaticav.com
CD OPERATION
PLAYING & CONTROLLING CDs
PLAY/PAUSE BUTTON
Press to pause playback.
Press again to resume the playback.
FAST FORWARD & FAST REVERSE or
Press and hold FAST FORWARD for 3 seconds to fast forward through the disc.
Press PLAY to resume normal playback.
Press and hold FAST REVERSE for 3 seconds to fast reverse through the disc.
Press PLAY to resume normal playback.
TRACK SELECT or
Short press the TRACK UP or TRACK DOWN button to skip to the next or previous
track on the CD, The selected track number will appear on the display.
Press and hold Press the TRACK UP or TRACK DOWN button for more than 2
second to fast forward or fast reverse through the disc. CD play starts when the button is re-
leased.
REPEAT BUTTON
Short press RPT button to active the repeat function. It will play the current song re-
peatly.
Press RPT again to disable the repeat function.
ENTER BUTTON
Use this button to confirm selections.
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 23

1) Traffic Alert (TA)
TA SEEK is the default setting. User now has 5 seconds to select TA SEEK or TA ALARM by
pressing the VOLUME+/- buttons
TA SEEK
When a newly tuned station does not receive TP information for several seconds, the radio
retunes to next station which has not the same station (PI) as the last station, but has the
TP information. When TP information gets lost at the current station for retune time which is
set by RETUNE SHORT (30 sec.) or RETUNE LONG (90 sec.), the radio start to retune to
next same PI station. When same PI station does not catch in 1 cyclic search, the radio re-
tunes to next station with TP information.
TA ALARM
When this mode is selected any automatic retune mode is not activated. Only double beep
sound (ALARM) is output.
When a newly tuned station does not have TP information for several seconds, beeps come
out. When TP information gets lost at the current station for retune time, the beep sound is
out-putted. When newly tuned station has not RDS signal PI SEEK is suppressed some-
what.
2) Program Identification
PI MUTE is the default setting. User now has 5 seconds to select : PI MUTE to PI SOUND
by pressing the VOLUME+/- buttons.
While AF switching is implemented in C201 station, AF can switch to 100MHz, which is non
genuine AF (where, different PI with same AF) in short “DIP” with same AF) in short “DIP”.
The car radio has special procedure to reduce even this kind of unavoidable situation how-
ever there is a limit to be escaped from this serious case perfectly. In that serious case, 2
mode is selectable as follows:
13
www.aquaticav.com
SETTINGS OPERATION - RDS MENU
RDS - TRAFFIC ALERT (TA)
RDS - PROGRAMME IDENTIFICATION
TUNER OPERATION
Press PTY button then press the VOLUME+/- buttons to navigate to PTY SPEECH and
“PTY SPEECH” will be displayed for 5 seconds
Press ENTER button to access the PTY SPEECH program menu and use VOLUME+/- but-
tons to navigate the desired program types detailed below.
Press ENTER button to select the desired speech type.
●NEWS
●CURRENT AFFAIRS
●INFORMATION
●SPORT
●EDUCATION
●DRAMA
●CULTURES
●SCIENCE
●VARIED
●WEATHER
●FINANCE
●CHILDREN’S PROGS
●SOCIAL AFFAIRS
●RELIGION
●PHONE IN
●TRAVEL & TOURING
●LEISURE & HOBBY
●DOCUMENTARY
AF: Alternative Frequencies
Frequency list of broadcasting stations transmitting the same program
TP: Traffic Program Identification
Identification data for traffic information-broadcasting station
TA: Traffic Announcement Identification
Identification data showing traffic information is being transmitted or not
PTY: Program Type Code
Contents of programs such as news, light music, sports etc
GENERAL TUNER OPERATION
20 www.aquaticav.com
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 25

SETTINGS OPERATION - RDS MENU
PI SOUND
When above different PI sound (DIP) is heard once in a while, the DIP’s sound will be heard
for a short time.
PI MUTE
Under above same situation, a mute sound will be heard for a short time.
3) RETUNE
RETUNE SHORT is the default setting. User now has 5 seconds to select RETUNE SHORT
or RETUNE LONG by pressing the VOLUME+/- buttons.
The initial time of automatic TA search or PI search modes is selected.
When PI information is not caught for retune time, the radio starts to retune to next same PI
station. When same PI station does not catch 1 cyclic search, the radio goes to last station
and waits for several minutes until PI code is received.
RETUNE L mode: Selected as 90 seconds.
RETUNE S mode: Selected as 30 seconds.
4) MASK
MASK DIP is the default setting. User now has 5 seconds to select MASK DIP to MASK ALL
by pressing the VOLUME+/- buttons.
The AF frequency (which has different PI or NO RDS signal with high field strength) is
masked during checking PI when the unit searches AF. The unit doesn’t search this AF
(DIP) for few minutes.
In the case of the AF of NO RDS signal with high field strength, if the real AF is wrongly
masked as DIP by some interference, the unit hesitates to search real Afs. For this reason,
the unit has the user option (MASK DPI) which doesn’t mask the AF of NO RDS signal with
high field strength.
In MASK DPI mode, the wrong sound or long mute (according to PI SOUND or PI MUTE)
can be heard from the AF station which has NO RDS signal and of which the field strength
is higher than that of the currently tuning AF (station). But, these phenomenons are rare and
the user will hardly Europe.
RDS - RETUNE
RDS - MASK
14 www.aquaticav.com
19
www.aquaticav.com
TUNER OPERATION
RDS FUNCTION
SPEECH & MUSIC PROGRAM TYPES
AF BUTTON
ON is the default setting for AF mode. “AF” icon is displayed on the LCD. AF search is acti-
vated when reception is bad.
Press the AF button for more than 3 seconds to turn OFF AF mode and the “AF” icon will
disappear.
TA BUTTON
Press and hold the TA button for more than 3 seconds to turn on TA mode. The “TA” icon
appears on the LCD. Press the TA button again to turn off TA mode. ”TA” icon will disappear
on the LCD.
When traffic announcement is transmitted, regardless of the mode, traffic announcement is
received.
When TA is on SEEK, SCAN, AUTO MEMORY functions can be received or saved only
when traffic program identification code has been received.
When TA is ON traffic program identification code is not received during specified time. TA
ALARM : NO TA / TP is displayed and alarm is set off. TA SEEK : TA SEEK is activated.
PTY BUTTON
PTY is displayed when PTY button is pressed. If there are no keys pressed for 5 seconds,
previously selected PTY is searched. During 1 LOOP, i desired PTY is not found, NO PTY
Press PTY button and “PTY MUSIC” will be displayed for 5 seconds
Press ENTER to access the PTY MUSIC program menu and use VOLUME+/- buttons to
cycle through the different program types as detailed below.
Press ENTER button to select the desired music type.
●POP MUSIC
●ROCK MUSIC EASY LISTENING
●LIGHT CLASSICS M
●SERIOUS CLASSICS
●OTHER MUSIC
●JAZZ MUSIC
●COUNTRY MUSIC
●NATIONAL MUSIC
●OLDIES MUSIC
●FOLK MUSIC
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 27

MASK DPI
Masked only the AF which has different PI.
MASK ALL
Masked the AF which has different PI and NO RDS signal with high field strength. hear the
wrong sound in whole
5) EON TA
EON TA LOCAL is the default setting. User now has 5 seconds to select EON TA LOCAL to
EON TA DISTANCE by pressing the VOLUME+/-.
EON TA LOCAL
When the filed strength level of EON linked is less than threshold level, the radio does not
switch that station, and a customer can hardly listen to any disturbances.
When EON TA LOCAL mode is selected, “EON TA LO” on numeric
display is indicated for a few seconds.
EON TA DISTANCE
EON TA switch is tried to implemented by the information of current station.
When EON TA DISTANCE mode is selected, “EON TA DX” on numeric display is indicated
for a few seconds.
The RDS data used are the PI, PS, AF, TP, TA, EON and PTY data.
6) TA VOL
TA VOL 10 is the default setting. User now has 5 seconds to change it from 0-50 by press-
ing the VOLUME+/- buttons.
7) REGION
REGION OFF is the default setting. User now has 5 seconds to select REGION OFF to
REGION ON by press the VOLUME+/- buttons.
Some broadcasting stations change their program from normal broadcasting to regional
broadcasting for a certain time period. When in REGION ON mode the current listening pro-
gram remains unchanged. When in REGION OFF mode it allows the reception moves to
the regional station.
15
www.aquaticav.com
SETTINGS OPERATION - RDS MENU
RDS - EON TA
RDS - TA VOL
RDS - REGION
TUNER OPERATION
FM BAND OPERATION
TUNING UP / DOWN
USING & STORING PRESET STATIONS
STEREO / MONO TUNER OPERATION
18 www.aquaticav.com
AQ-CD-4
Press BAND to change between FM bands and AM (MW) bands. The reception band
will change in the following order:
FM1--FM2--FM3--AM1(MW1) --AM2(MW2)
MANUAL TUNING
Press and hold the TUNING up or TUNING down button for more than 3 seconds to
active the manual tuning mode. The radio frequency will tune up or down rapidly and will
stop when you released the button. If buttons have not been pressed for 5 seconds, it will
return to Auto Seek tuning mode
AUTO SEEK TUNING
Short press the TUNING up or down buttons to seek the next station automatically.
Six numbered buttons store and recall stations for each band
AUTO STORE (AS)
Select a band (if needed). Press and hold AS/PS button for 3 seconds. It will select 6
strong stations and store them in the current band automatically.
PRESET SCAN (PS)
Scan stations stored in the current band. Select a band (if needed). Short press AS/PS
button. The unit will scan and listen to each preset station for 5 seconds.
Press AS/PS button again to stop scanning when the desired station is found.
STEREO
The unit will automatically pick up a stereo signal when available. When in stereo mode, the
“ST” icon appears on the LCD. When no stereo signal is available the unit will automatically
revert to mono operation and “ST” icon will not be displayed.
MONO
When you select the MONO mode the unit will output MONO a signal.
Select MONO mode to reduce noise if the radio signal is weak.
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 29

AUDIO MENU
SUBWOOFER MENU
EQUALIZER MENU
Short press AUDIO button to access the audio menu. User can navigate through the audio
menu items by pressing the VOLUME+/- button repeatedly. Once the desired menu item ap-
pears on the display, press the ENTER button to select the menu item to be adjusted and
adjust using the VOLUME+/- buttons within 5 seconds. Press button to return to the
upper menu item.
BASS
User has 5 seconds to use the VOLUME+/- buttons to adjust the desired bass level range
from -10 to +10.
TREBLE
User has 5 seconds to use the VOLUME+/- buttons to adjust the desired treble level range
from -10 to +10.
BALANCE
User has 5 seconds to use the VOLUME+/- buttons to adjust the Balance between the right
and left speakers from 10R (full right) to 10L (full left). L=R represents equal balance be-
tween the right and left speakers.
FADER
User has 5 seconds to use the VOLUME+/- button to adjust the Fader between the front
and rear speakers from 10R (full rear) to 10F (full front). ”F=R” represents equal balance be-
tween the front and rear speakers.
SUB-W ON/OFF
Subwoofer off is the default setting. User now has 5 seconds to select OFF to ON by press-
ing the VOLUME+/- buttons.
SUBWOOFER FREQUENCY
User has 5 seconds to use the VOLUME+/- buttons to select the three different Low pass fil-
ters (80Hz,120Hz or 160Hz).
The Sub-woofer LPF control is only applicable if the unit is equipped with the optional
sub-woofer line out, and only if the unit is connected to an optional sub-woofer amp
and speaker.
SUBWOOFER VOLUME LEVEL
User has 5 seconds to use the volume up or down button to adjust the Sub-woofer volume
level from “00” to “50”
User has 5 seconds to use VOLUME+/- to select desired audio mode. There are five
modes: OFF→FLAT→ROCK→POP→CLASSIC
AUDIO MENU
16 www.aquaticav.com
DUAL ZONE OPERATION
17
www.aquaticav.com
DUAL ZONE - AV INPUT
DUAL ZONE - ON/OFF
DUAL ZONE - ZONE OPERATION
The unit can be connected to a portable audio player through the audio input cable on the
back of the unit. You can press MODE button to change the mode to audio input mode.
The unit is equipped with Dual Zone operation. This function is used to select a different
audio output source for Front (Zone 1) and Rear (Zone 2) speakers. The details of Dual
Zone operation are as follows:
OFF is the default setting. Press the 2-ZONE button on the control panel and press the
VOLUME+/- button to select between Dual Zone ON or OFF then press ENTER to confirm
the selection. The “2-ZONE” icon will appear on the LCD after Dual Zone is selected ON.
Once Dual Zone ON is selected short press the 2 ZONE button repeatedly to change
between the Zone 1(Front) and Zone 2(Rear) sources.
If Front Zone (Zone 1) is selected the user has 10 seconds to navigate through the different
modes (Radio﹥Disc﹥USB﹥AUX IN) by using the VOLUME+/- buttons.
Press ENTER button to confirm selection for Front speaker audio output.
If Rear Zone (Zone 2) is selected, user has 10 seconds to navigate through different modes
(Radio﹥Disc﹥USB﹥AUX IN) by using the VOLUME+/- buttons.
Press ENTER button to confirm selection for Rear speaker audio output.
If no selection is made within 5 seconds the unit will resume to the previous mode.
OPERATE FUNCTION OF ZONE 1 / ZONE 2
When 2-ZONE is turned ON the MODE button is used to change between Zone 1 &
Zone 2 sources.
Press MODE button repeatedly to change between Zone 1 and Zone 2 modes.
DEFAULT SETTING WHEN ZONE 2 IS ON
The default source mode for Zone 1 is Radio & Zone 2 is Radio
The default volume level is 20 for both Zone 1 & Zone 2 audio outputs (or the volume level
set as VOL PGM level set in the Settings Menu detailed on page 11).
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 31

AUDIO MENU
SUBWOOFER MENU
EQUALIZER MENU
Short press AUDIO button to access the audio menu. User can navigate through the audio
menu items by pressing the VOLUME+/- button repeatedly. Once the desired menu item ap-
pears on the display, press the ENTER button to select the menu item to be adjusted and
adjust using the VOLUME+/- buttons within 5 seconds. Press button to return to the
upper menu item.
BASS
User has 5 seconds to use the VOLUME+/- buttons to adjust the desired bass level range
from -10 to +10.
TREBLE
User has 5 seconds to use the VOLUME+/- buttons to adjust the desired treble level range
from -10 to +10.
BALANCE
User has 5 seconds to use the VOLUME+/- buttons to adjust the Balance between the right
and left speakers from 10R (full right) to 10L (full left). L=R represents equal balance be-
tween the right and left speakers.
FADER
User has 5 seconds to use the VOLUME+/- button to adjust the Fader between the front
and rear speakers from 10R (full rear) to 10F (full front). ”F=R” represents equal balance be-
tween the front and rear speakers.
SUB-W ON/OFF
Subwoofer off is the default setting. User now has 5 seconds to select OFF to ON by press-
ing the VOLUME+/- buttons.
SUBWOOFER FREQUENCY
User has 5 seconds to use the VOLUME+/- buttons to select the three different Low pass fil-
ters (80Hz,120Hz or 160Hz).
The Sub-woofer LPF control is only applicable if the unit is equipped with the optional
sub-woofer line out, and only if the unit is connected to an optional sub-woofer amp
and speaker.
SUBWOOFER VOLUME LEVEL
User has 5 seconds to use the volume up or down button to adjust the Sub-woofer volume
level from “00” to “50”
User has 5 seconds to use VOLUME+/- to select desired audio mode. There are five
modes: OFF→FLAT→ROCK→POP→CLASSIC
AUDIO MENU
16 www.aquaticav.com
DUAL ZONE OPERATION
17
www.aquaticav.com
DUAL ZONE - AV INPUT
DUAL ZONE - ON/OFF
DUAL ZONE - ZONE OPERATION
The unit can be connected to a portable audio player through the audio input cable on the
back of the unit. You can press MODE button to change the mode to audio input mode.
The unit is equipped with Dual Zone operation. This function is used to select a different
audio output source for Front (Zone 1) and Rear (Zone 2) speakers. The details of Dual
Zone operation are as follows:
OFF is the default setting. Press the 2-ZONE button on the control panel and press the
VOLUME+/- button to select between Dual Zone ON or OFF then press ENTER to confirm
the selection. The “2-ZONE” icon will appear on the LCD after Dual Zone is selected ON.
Once Dual Zone ON is selected short press the 2 ZONE button repeatedly to change
between the Zone 1(Front) and Zone 2(Rear) sources.
If Front Zone (Zone 1) is selected the user has 10 seconds to navigate through the different
modes (Radio﹥Disc﹥USB﹥AUX IN) by using the VOLUME+/- buttons.
Press ENTER button to confirm selection for Front speaker audio output.
If Rear Zone (Zone 2) is selected, user has 10 seconds to navigate through different modes
(Radio﹥Disc﹥USB﹥AUX IN) by using the VOLUME+/- buttons.
Press ENTER button to confirm selection for Rear speaker audio output.
If no selection is made within 5 seconds the unit will resume to the previous mode.
OPERATE FUNCTION OF ZONE 1 / ZONE 2
When 2-ZONE is turned ON the MODE button is used to change between Zone 1 &
Zone 2 sources.
Press MODE button repeatedly to change between Zone 1 and Zone 2 modes.
DEFAULT SETTING WHEN ZONE 2 IS ON
The default source mode for Zone 1 is Radio & Zone 2 is Radio
The default volume level is 20 for both Zone 1 & Zone 2 audio outputs (or the volume level
set as VOL PGM level set in the Settings Menu detailed on page 11).
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 31

MASK DPI
Masked only the AF which has different PI.
MASK ALL
Masked the AF which has different PI and NO RDS signal with high field strength. hear the
wrong sound in whole
5) EON TA
EON TA LOCAL is the default setting. User now has 5 seconds to select EON TA LOCAL to
EON TA DISTANCE by pressing the VOLUME+/-.
EON TA LOCAL
When the filed strength level of EON linked is less than threshold level, the radio does not
switch that station, and a customer can hardly listen to any disturbances.
When EON TA LOCAL mode is selected, “EON TA LO” on numeric
display is indicated for a few seconds.
EON TA DISTANCE
EON TA switch is tried to implemented by the information of current station.
When EON TA DISTANCE mode is selected, “EON TA DX” on numeric display is indicated
for a few seconds.
The RDS data used are the PI, PS, AF, TP, TA, EON and PTY data.
6) TA VOL
TA VOL 10 is the default setting. User now has 5 seconds to change it from 0-50 by press-
ing the VOLUME+/- buttons.
7) REGION
REGION OFF is the default setting. User now has 5 seconds to select REGION OFF to
REGION ON by press the VOLUME+/- buttons.
Some broadcasting stations change their program from normal broadcasting to regional
broadcasting for a certain time period. When in REGION ON mode the current listening pro-
gram remains unchanged. When in REGION OFF mode it allows the reception moves to
the regional station.
15
www.aquaticav.com
SETTINGS OPERATION - RDS MENU
RDS - EON TA
RDS - TA VOL
RDS - REGION
TUNER OPERATION
FM BAND OPERATION
TUNING UP / DOWN
USING & STORING PRESET STATIONS
STEREO / MONO TUNER OPERATION
18 www.aquaticav.com
AQ-CD-4
Press BAND to change between FM bands and AM (MW) bands. The reception band
will change in the following order:
FM1--FM2--FM3--AM1(MW1) --AM2(MW2)
MANUAL TUNING
Press and hold the TUNING up or TUNING down button for more than 3 seconds to
active the manual tuning mode. The radio frequency will tune up or down rapidly and will
stop when you released the button. If buttons have not been pressed for 5 seconds, it will
return to Auto Seek tuning mode
AUTO SEEK TUNING
Short press the TUNING up or down buttons to seek the next station automatically.
Six numbered buttons store and recall stations for each band
AUTO STORE (AS)
Select a band (if needed). Press and hold AS/PS button for 3 seconds. It will select 6
strong stations and store them in the current band automatically.
PRESET SCAN (PS)
Scan stations stored in the current band. Select a band (if needed). Short press AS/PS
button. The unit will scan and listen to each preset station for 5 seconds.
Press AS/PS button again to stop scanning when the desired station is found.
STEREO
The unit will automatically pick up a stereo signal when available. When in stereo mode, the
“ST” icon appears on the LCD. When no stereo signal is available the unit will automatically
revert to mono operation and “ST” icon will not be displayed.
MONO
When you select the MONO mode the unit will output MONO a signal.
Select MONO mode to reduce noise if the radio signal is weak.
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 29

SETTINGS OPERATION - RDS MENU
PI SOUND
When above different PI sound (DIP) is heard once in a while, the DIP’s sound will be heard
for a short time.
PI MUTE
Under above same situation, a mute sound will be heard for a short time.
3) RETUNE
RETUNE SHORT is the default setting. User now has 5 seconds to select RETUNE SHORT
or RETUNE LONG by pressing the VOLUME+/- buttons.
The initial time of automatic TA search or PI search modes is selected.
When PI information is not caught for retune time, the radio starts to retune to next same PI
station. When same PI station does not catch 1 cyclic search, the radio goes to last station
and waits for several minutes until PI code is received.
RETUNE L mode: Selected as 90 seconds.
RETUNE S mode: Selected as 30 seconds.
4) MASK
MASK DIP is the default setting. User now has 5 seconds to select MASK DIP to MASK ALL
by pressing the VOLUME+/- buttons.
The AF frequency (which has different PI or NO RDS signal with high field strength) is
masked during checking PI when the unit searches AF. The unit doesn’t search this AF
(DIP) for few minutes.
In the case of the AF of NO RDS signal with high field strength, if the real AF is wrongly
masked as DIP by some interference, the unit hesitates to search real Afs. For this reason,
the unit has the user option (MASK DPI) which doesn’t mask the AF of NO RDS signal with
high field strength.
In MASK DPI mode, the wrong sound or long mute (according to PI SOUND or PI MUTE)
can be heard from the AF station which has NO RDS signal and of which the field strength
is higher than that of the currently tuning AF (station). But, these phenomenons are rare and
the user will hardly Europe.
RDS - RETUNE
RDS - MASK
14 www.aquaticav.com
19
www.aquaticav.com
TUNER OPERATION
RDS FUNCTION
SPEECH & MUSIC PROGRAM TYPES
AF BUTTON
ON is the default setting for AF mode. “AF” icon is displayed on the LCD. AF search is acti-
vated when reception is bad.
Press the AF button for more than 3 seconds to turn OFF AF mode and the “AF” icon will
disappear.
TA BUTTON
Press and hold the TA button for more than 3 seconds to turn on TA mode. The “TA” icon
appears on the LCD. Press the TA button again to turn off TA mode. ”TA” icon will disappear
on the LCD.
When traffic announcement is transmitted, regardless of the mode, traffic announcement is
received.
When TA is on SEEK, SCAN, AUTO MEMORY functions can be received or saved only
when traffic program identification code has been received.
When TA is ON traffic program identification code is not received during specified time. TA
ALARM : NO TA / TP is displayed and alarm is set off. TA SEEK : TA SEEK is activated.
PTY BUTTON
PTY is displayed when PTY button is pressed. If there are no keys pressed for 5 seconds,
previously selected PTY is searched. During 1 LOOP, i desired PTY is not found, NO PTY
Press PTY button and “PTY MUSIC” will be displayed for 5 seconds
Press ENTER to access the PTY MUSIC program menu and use VOLUME+/- buttons to
cycle through the different program types as detailed below.
Press ENTER button to select the desired music type.
●POP MUSIC
●ROCK MUSIC EASY LISTENING
●LIGHT CLASSICS M
●SERIOUS CLASSICS
●OTHER MUSIC
●JAZZ MUSIC
●COUNTRY MUSIC
●NATIONAL MUSIC
●OLDIES MUSIC
●FOLK MUSIC
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 27

1) Traffic Alert (TA)
TA SEEK is the default setting. User now has 5 seconds to select TA SEEK or TA ALARM by
pressing the VOLUME+/- buttons
TA SEEK
When a newly tuned station does not receive TP information for several seconds, the radio
retunes to next station which has not the same station (PI) as the last station, but has the
TP information. When TP information gets lost at the current station for retune time which is
set by RETUNE SHORT (30 sec.) or RETUNE LONG (90 sec.), the radio start to retune to
next same PI station. When same PI station does not catch in 1 cyclic search, the radio re-
tunes to next station with TP information.
TA ALARM
When this mode is selected any automatic retune mode is not activated. Only double beep
sound (ALARM) is output.
When a newly tuned station does not have TP information for several seconds, beeps come
out. When TP information gets lost at the current station for retune time, the beep sound is
out-putted. When newly tuned station has not RDS signal PI SEEK is suppressed some-
what.
2) Program Identification
PI MUTE is the default setting. User now has 5 seconds to select : PI MUTE to PI SOUND
by pressing the VOLUME+/- buttons.
While AF switching is implemented in C201 station, AF can switch to 100MHz, which is non
genuine AF (where, different PI with same AF) in short “DIP” with same AF) in short “DIP”.
The car radio has special procedure to reduce even this kind of unavoidable situation how-
ever there is a limit to be escaped from this serious case perfectly. In that serious case, 2
mode is selectable as follows:
13
www.aquaticav.com
SETTINGS OPERATION - RDS MENU
RDS - TRAFFIC ALERT (TA)
RDS - PROGRAMME IDENTIFICATION
TUNER OPERATION
Press PTY button then press the VOLUME+/- buttons to navigate to PTY SPEECH and
“PTY SPEECH” will be displayed for 5 seconds
Press ENTER button to access the PTY SPEECH program menu and use VOLUME+/- but-
tons to navigate the desired program types detailed below.
Press ENTER button to select the desired speech type.
●NEWS
●CURRENT AFFAIRS
●INFORMATION
●SPORT
●EDUCATION
●DRAMA
●CULTURES
●SCIENCE
●VARIED
●WEATHER
●FINANCE
●CHILDREN’S PROGS
●SOCIAL AFFAIRS
●RELIGION
●PHONE IN
●TRAVEL & TOURING
●LEISURE & HOBBY
●DOCUMENTARY
AF: Alternative Frequencies
Frequency list of broadcasting stations transmitting the same program
TP: Traffic Program Identification
Identification data for traffic information-broadcasting station
TA: Traffic Announcement Identification
Identification data showing traffic information is being transmitted or not
PTY: Program Type Code
Contents of programs such as news, light music, sports etc
GENERAL TUNER OPERATION
20 www.aquaticav.com
AQ-CD-4
AQCD4 Manual_V5:Layout 1 12/07/2012 13:05 Page 25
