ARC MYCR-250 User manual

1
Issue Date: 05/02/2020
WIRELESS MINI DIMMER
SOCKET SWITCH PLUG
MYCR-250
CONTENTS
1. Overview and features Page 2.
2. Diagrams Page 3.
3. Pairing / Un-pairing device Page 4.
4. Trailing & Leading Edge setup Page 8.
5. Minimum Brightness setup Page 9.
6. Operation Page 10.
7. Specifications Page 11.

2
Issue Date: 05/02/2020
1.Overview and features
Transform your electronic devices to wireless control with the mini dimmer
socket switch plug. All you need to do is plug the socket switch into an electrical
outlet, plug a device into the socket switch, and control your device using a
remote control.
Main features;
•Compatible to L and M series’.
•250W dimmer universal load control.
•Plugs into any regular electrical wall outlet.
•Intuitive, easy set up. Easy to use.
•Operating mode of Trailing Edge or Leading Edge.
•Minimum brightness setup for different kinds of dimmer loads.
•32 memories, first in first out storage maintain.
•Memory of last brightness level.
•Scene status memory, create your desired atmosphere.
•Built-in manual On & Off button with LED indication.
Not compatible to:
ARC Code switch system product range
OVERVIEW AND FEATURES

3
Issue Date: 05/02/2020

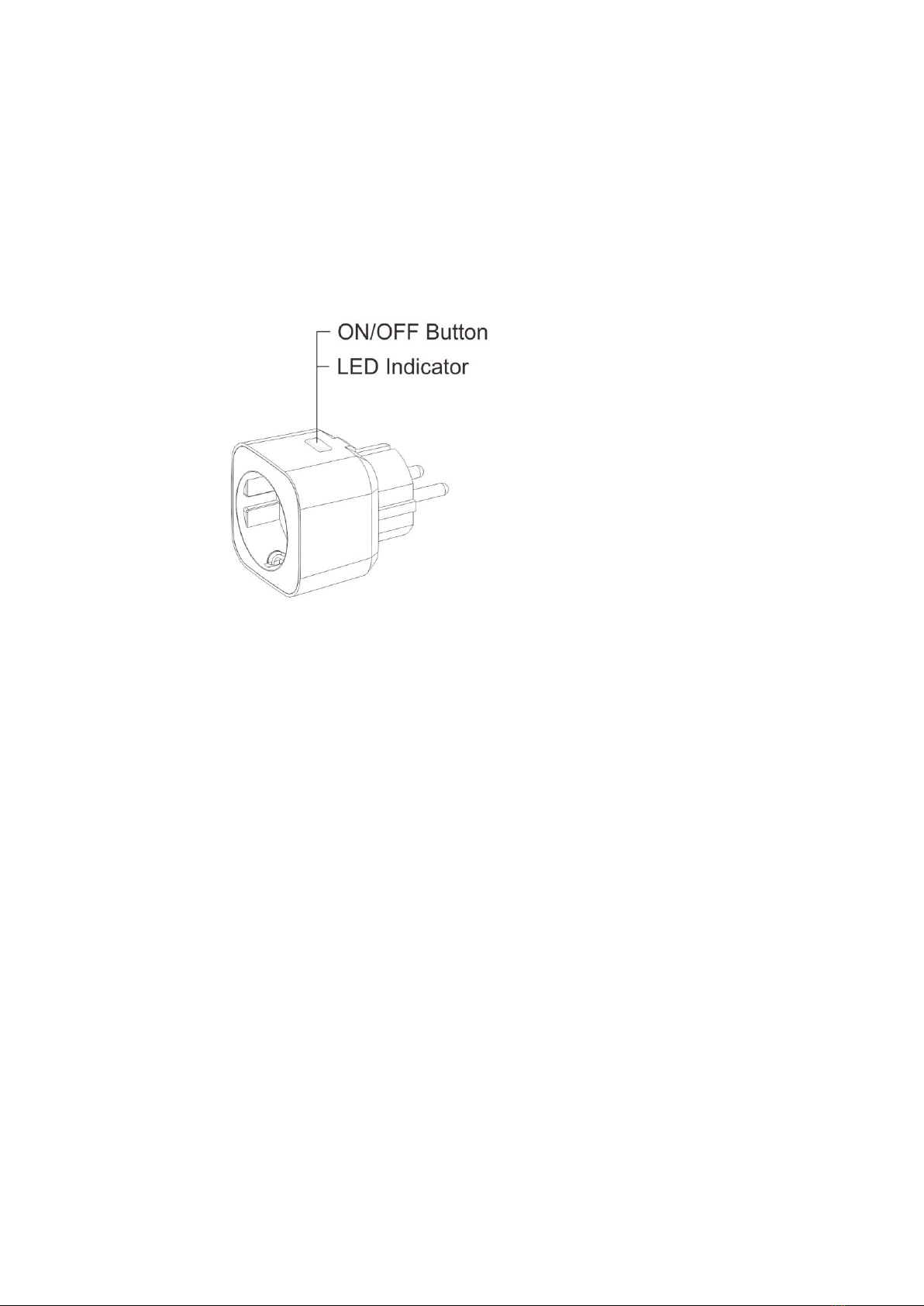

2.Diagrams
Notes for the diagrams:
DIAGRAMS

4
Issue Date: 05/02/2020
3.Pairing / Un-pairing Device
PAIRING
Pairing using LEARNING MODE:

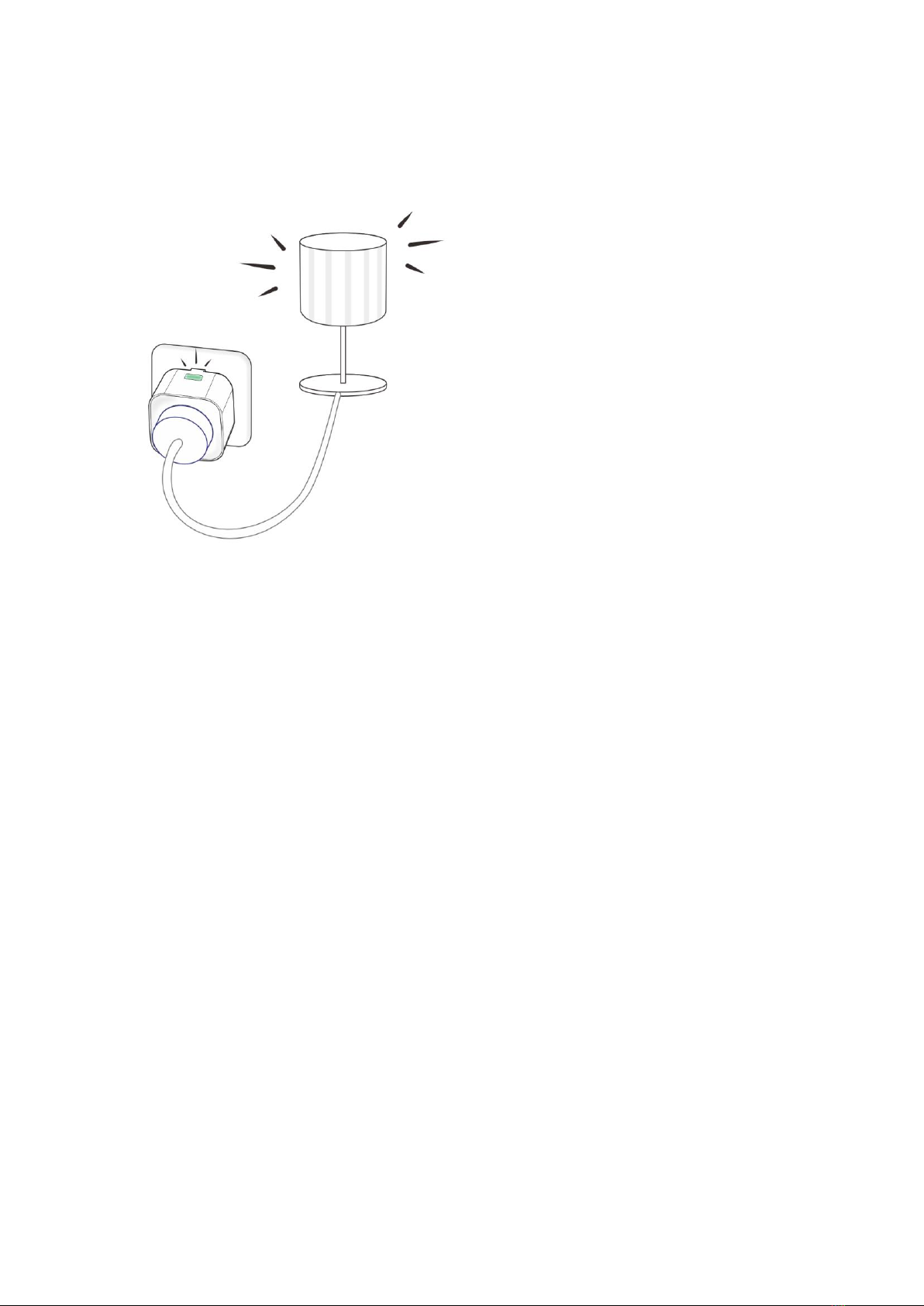

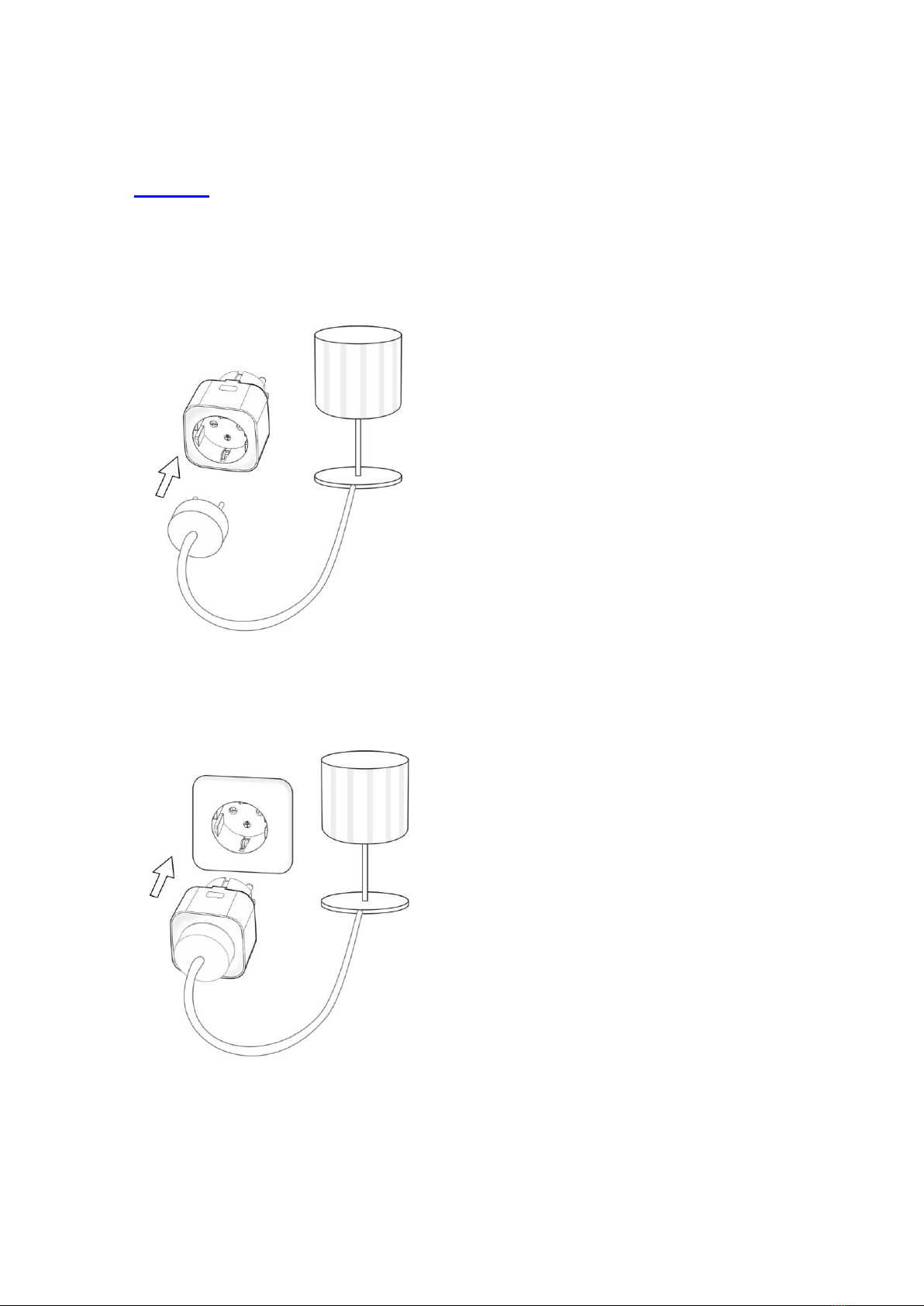

1. Plug in lamp / electronic device into socket switch.
2. Plug the socket switch into an electrical outlet.
PAIRING / UN-PARING DEVICE

5
Issue Date: 05/02/2020
3. Within 6 seconds, on the remote control press the ‘ON’ button intend to be
paired; LED on socket switch will quick flash and load will flash twice to
confirm that the remote control is now paired.
NOTE: If no signal is received from a remote control within 6 seconds then the
socket switch will automatically exit learning mode without pairing the device.
PAIRING / UN-PARING DEVICE

6
Issue Date: 05/02/2020
UN-PAIRING
Removing single Device:
1. Unplug socket switch from the electrical outlet for at least 6 seconds.
2. Plug socket switch back into electrical outlet.
3. Within 6 seconds, on the remote control press the ‘OFF’ button intend to be
un-paired; LED on socket switch will quick flash and load will flash twice to
confirm that the remote control is un-paired.
PAIRING / UN-PARING DEVICE

7
Issue Date: 05/02/2020
CLEARING ALL MEMORY
Removing all memory stored in the socket switch.
1. Unplug socket switch from the electrical outlet for at least 6 seconds.
2. Plug socket switch back into electrical outlet.
3. Within 6 seconds, on the remote control press the ‘ALL OFF / GROUP ALL’
button; LED on socket switch will quick flash and load will flash twice to
confirm all memory stored inside the socket switch has been deleted.
PAIRING / UN-PARING DEVICE

8
Issue Date: 05/02/2020
4.Trailing & Leading Edge Setup
Initial factory pre-set is at ‘Leading Edge’.
Depending on the load you are using, please use the appropriate setting.
To change between Leading edge and Trailing edge, please follow below setup.
Leading Edge to Trailing Edge
1. Load must be at ‘ON’ status.
2. Press and hold down ‘ON/OFF’ button for 10 seconds.
3. LED on socket switch will flash 4 times each interval.
4. Press ‘ON/OFF’ button again to switch from Leading edge to Trailing edge.
5. LED on socket switch will quick flash and load will flash twice and resume to
the lowest dim level to confirm Trailing Edge setup is complete.
6. After the setup is completed, each time you operate ON/OFF under Trailing
Edge the LED on socket switch will flash twice.
Trailing Edge to Leading Edge
1. Load must be at ‘ON’ status.
2. Press and hold down ‘ON/OFF’ button for 10 seconds.
3. LED on socket switch will flash 4 times each interval.
4. Press ‘ON/OFF’ button again to switch from Trailing edge to Leading edge.
5. LED on socket switch will quick flash and load will flash twice and resume to
the lowest dim level to confirm Leading Edge setup is complete.
6. After the setup is completed, each time you operate ON/OFF under Leading
Edge the LED on socket switch will flash once.
TRAILING & LEADING EDEGE SETUP

9
Issue Date: 05/02/2020
5.Minimum Brightness Level Setup
Socket switch has the ability to setup minimum brightness level for both Leading
or Trailing Edge.
There are total 4 level brightness to choose from.
To adjust the brightness level, please follow below setup.
With a remote control (LYCT-505)
1. Load must be at ‘ON’ status.
2. Press and hold down Manual ‘ON/OFF’ button on socket switch for 3
seconds.
3. LED on socket switch will flash twice each interval.
4. Use a remote control and press ‘ON’ to dim up on level or press ‘OFF’ button
to dim down one level. There are only 4 levels to adjust.
5. Once you have decided the brightness level, press the Manual ‘ON/OFF’
button on socket switch once.
6. LED on socket switch will quick flash and load will flash twice and resume to
the lowest dim level. This completes the brightness level setup.
With a one button remote control (MKFT-1704 / MEBT-1706)
1. Load must be at ‘ON’ status.
2. Press and hold down Manual ‘ON/OFF’ button on socket switch for 3
seconds.
3. LED on socket switch will flash twice each interval.
4. Use a remote control and press ‘ON/OFF once’ to dim up on level or press
‘ON/OFF’ button twice to dim down one level. There are only 4 levels to
adjust.
5. Once you have decided the brightness level, press the Manual ‘ON/OFF’
button on socket switch once.
6. LED on socket switch will quick flash and load will flash twice and resume to
the lowest dim level. This completes the brightness level setup.
MINIMUM BRIGHTNESS LEVEL SETUP

10
Issue Date: 05/02/2020
6.Operation
Socket switch is compatible to “Self Learning” system and M series remote
control. Please refer to the relevant user guide for detailed operation.
Manual ON & Manual OFF
Operation under Leading Edge
Turn the load ON:
Press the ‘ON/OFF’ button once, LED on socket switch will flash once.
Turn the load OFF:
Press the ‘ON/OFF’ button once, LED on socket switch will flash once.
Operation under Trailing Edge
Turn the load ON:
Press the ‘ON/OFF’ button once, LED on socket switch will flash twice.
Turn the load OFF:
Press the ‘ON/OFF’ button once, LED on socket switch will flash twice.
OPERATION

11
Issue Date: 05/02/2020
7.Specifications
Input Rating: 230V~50Hz
Output Rating:
Supported Load
Wattage
“Trailing edge” for resistive loads (R)
•Conventional incandescent and halogen light
source
20-250W / 230V~
“Trailing edge”for resistive-capacitive loads (RC)
•Electronic transformers
•Dimmable LED and energy saving lamps.
20-250W / 230V~
3-120W / 230V~
“Leading edge” for resistive-inductive loads (RL)
•Inductive transformers
40-250W / 230V~
Radio Frequency: 433.92MHz
Power consumption: 1W
Environment Temperature: 0-40 ºC
Range: up to 50 m indoors (Depends on building
materials)
In accordance with: Low Voltage Directive 2014/35/EU
RED Directive 2014/53/EU
CE Certification: The CE marked affixed to this product confirms
Its complaisance with the European Directives
Which apply to the product and in particular its
compliance with the harmonizes standards and
specifications.

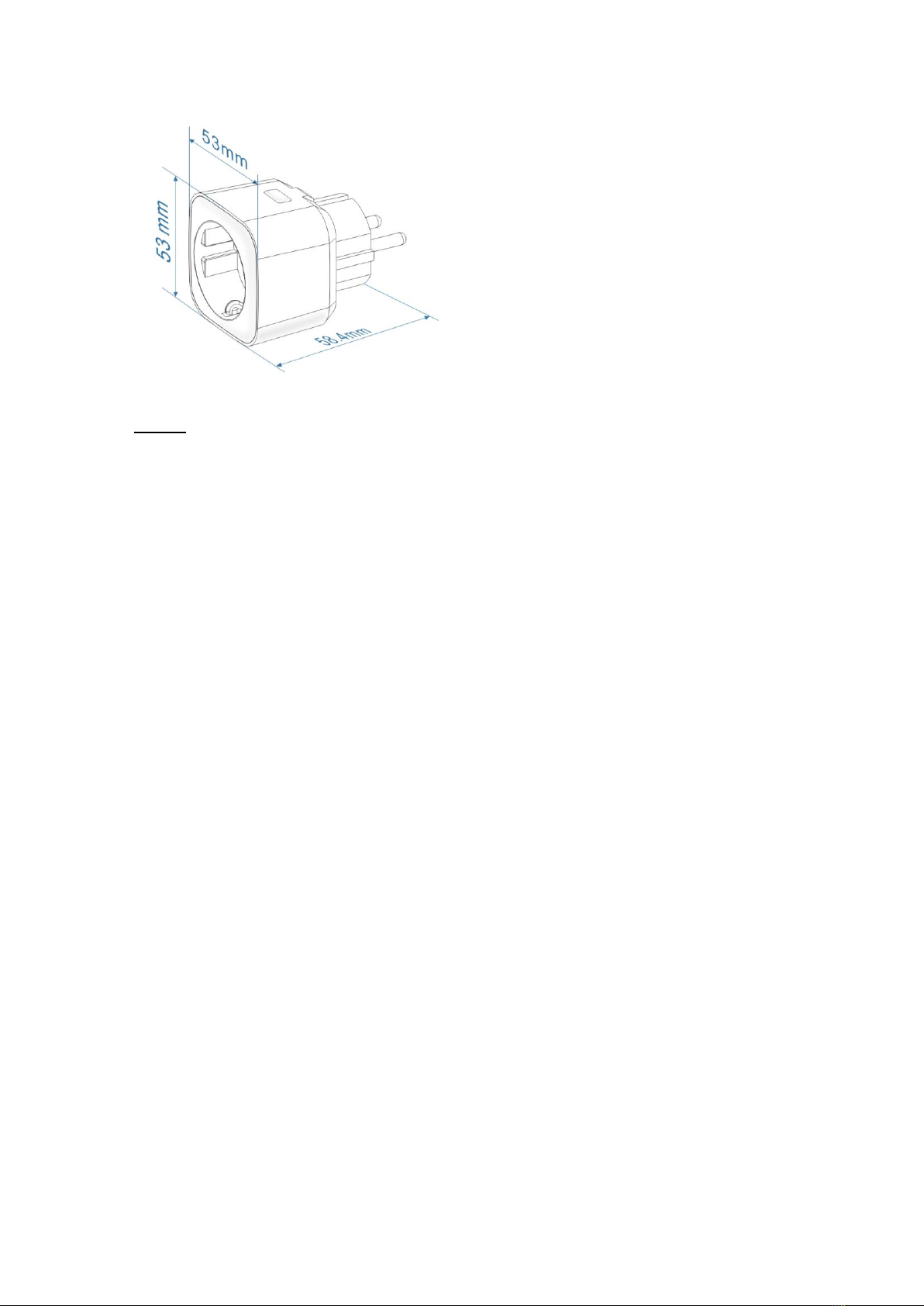

Dimension (L x W x H) 53 x 53 x 58.4mm
Weight: 60 g
SPECIFICATION

12
Issue Date: 05/02/2020
NOTE
⚫Please leave minimum of 1.5 meters in-between 2 or more socket switch.
⚫During standby mode, LED on module will not illuminate.
SPECIFICATION
