Argo IP24 User manual

V 09/16
12
OPERATING INSTRUCTIONS
Read the instructions carefully before installing and operating the appliance or performing
maintenance operations. Observe all the safety instructions; failure to observe the instructions may
cause accidents and/or damages. Store these instructions for future reference.
ELECTRIC CONVECTOR HEATER
WITH GLASS PANEL
EN
IP24

V 09/16
13
GENERAL SAFETY INFORMATION
Use this convector only as outlined in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock or
injury to persons.
This convector is designed for domestic use. It must not be used for
commercial or industrial purposes.
Ensure that the mains voltage complies with that indicated on the
convector data plate (220-240VAC/50Hz).
This appliance can be used by children aged from 8 years and
above and people with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Remove the convector from its packaging and check that it is in good
condition before use. Keep any plastic bags away from children.
Check the cord and plug before using the convector to ensure that
they have not been damaged during transport.
This product is not a toy. Children of less than 3 years should be
kept away unless continuously supervised.
Children aged from 3 and less than 8 years shall only switch on/off
the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given
instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children aged from 3 years and les than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
CAUTION - Some parts of this product can become very hot and
cause burns. Particular attention has to be given where children
and vulnerable people are present.
WARNING: In order to avoid hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through and
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
WARNING: do not use the fan heater with a controller or any
other external device that activates the appliance
automatically, as there may be a risk of fire if the fan heater is

V 09/16
14
covered or incorrectly positioned.
The appliance is equipped with an IP24 degree of protection
and can be used in private bathrooms in zone 2.
The convector must not be touched by people that use bath tubs
and showers.
Disconnect the mains power when the appliance is not used or for
cleaning operations.
To disconnect the convector, set the selector to 0 and remove the
plug from the socket. Pull on the plug only. Do not pull the cord.
Avoid placing fingers or foreign objects in the air inlet/outlet
grilles, as this may lead to electric shock or fire and may damage the
convector. To avoid the risk of fire, do not block the grilles or tamper
with them in any way while the convector operates.
Do not use the convector if the cord or plug is damaged. If the
power supply cord is damaged, it must be replaced by the
manufacturer, dealer or a similarly qualified person so as to avoid any
safety risks.
Do not place any objects on the cord and do not bend it. During
operation, the cord must be entirely unwound.
It is not advisable to use extension cords, as these may overheat
and cause the risk of fire. Do not use a single extension cord to
operate more than one convector.
The convector heats up significantly during operation. Risk of
burn. To avoid injury, do not allow skin to come into contact with a hot
surface. Use the handle to move the convector. Keep flammable
materials, such as furniture, cushions, blankets, paper, cloths,
curtains and suchlike at least 1 m from the front and back
Do not immerse the cord, plug or any other element of the panel

V 09/16
15
in water or other liquids.
Do not touch the plug or convector with wet hands.
Avoid using the convector in dusty environments or in the
presence of flammable vapours (e.g. in workshops or garages).
Do not place the convector above or near another heat source.
WARNING: AVOID COVERING THE CONVECTOR TO PREVENT IT
FROM OVERHEATING.
The symbol below signals the above warning:
The convector may cause risk of fire if, while in operation, is
covered by or comes into contact with flammable material including
curtains, drapery, blankets, etc. KEEP THE CONVECTOR AWAY
FROM THESE MATERIALS.
Do not insert and avoid accidental insertion of any external
objects into the ventilation or discharge outlets as this may lead to
electric shock, fire or damage the convector.
A convector contains parts that generate arcs or sparks. It must
not be used in potentially dangerous areas such as areas at risk of
fire or explosion, or areas loaded with chemical substances or
humidity.
Do not use the convector on soft surfaces such as beds, where
the grilles may be covered. Always stand the convector on a flat,
stable surface when in operation, in order to prevent it from
overturning. Arrange the cord in such a way that the convector and
other objects do not rest on it. Do not run the cord under carpets. Do
not cover the cord with blankets, carpets or similar materials. Place
the cord far away from busy areas, or in a place where it cannot be
accidentally pulled-out.
This convector cannot be used in bathrooms, laundry rooms, next
to a shower or swimming pool or in similar indoor environments.
Never position the convector where it may fall into a bath or other
containers of water.
Never position the convector on a wet floor.
In any case, the adjustment knobs must never be accessible by
anyone in a bath or shower.
Do not position the convector below an electric socket.
The socket must be earthed.
Do not allow the electric cord to touch the metal structure of the

V 09/16
16
convector when it is hot or in operation, in order to avoid the high
temperatures ruining the cord.
Do not operate the convector outdoors. Do not use the convector
in front of or near an open window.
WARNING: do not use the convector with an external controller
or any other external device that activates the convector
automatically, as there may be a risk of fire if the convector is
covered or incorrectly positioned.
Upon initial start-up, the convector may emit a slight, harmless
smell. This smell is a normal effect of the initial heating up of the
internal heating elements, and should not recur later on.
Do not attempt to repair, disassemble or modify the convector.
The convector does not contain parts that can be repaired by the
user.
Turn the switch off and unplug before carrying out any
maintenance work or moving the convector. Always unplug from the
socket when the convector is not in use.
WARNING: ALWAYS UNPLUG WHEN CARRYING OUT
MAINTENANCE WORK OR MOVING THE CONVECTOR.
Do not place anything on the convector; avoid placing wet
garments on the convector.
Turn the appliance off if unattended in order to avoid accidents.
If the convector is not used for prolonged periods, disconnect the
plug, replace the convector in its box and store it in a dry, ventilated
place.
Ensure that the air inlet /outlet are not close to walls or curtains
when the convector is in use, so as to avoid obstructing the convector
and hampering its efficiency.
Should you hear an abnormal noise or detect an unusual smell
when using the convector, cease use and unplug immediately.
Do not expose the elderly or children to a continuous flow of air.
Do not use the convector if it has been damaged or dropped.
WARNING:
THE ON/OFF SWITCH IS NOT THE ONLY MEANS TO
DISCONNECT THE POWER SUPPLY. ALWAYS PULL OUT THE
PLUG FROM THE SOCKET IN THE EVENT OF MAINTENANCE
OPERATIONS, WHEN MOVING THE PANEL OR WHEN NOT IN
USE.

V 09/16
17
DESCRIPTION OF PARTS
FRONT VIEW SIDE VIEW REAR VIEW
A. Delivery/intake grille
B. Feet with wheels
C. ON/OFF switch
D. Side Control panel
E. Rear holes for wall mounting
F. Rear brackets for wall mounting
HOW TO INSTALL THE APPLIANCE
The convector can be used on the floor, after assembling the feet, or alternatively it can be wall-mounted using the
specific accessories supplied.
MONTARE I PIEDINI IN DOTAZIONE
A. Floor portable using: how to assemble the feet with wheels supplied
The convector is packed without feet. These must therefore be assembled before using the appliance.
Assemble the feet as shown in the figure and put the convector in an upright position. Position the unit on a flat,
stable surface and stop the wheels with the proper wheels locks before turning it on.
1. Turn the convector upside down and
loosen the wing nuts.
2. Insert the feet. The longest part
must be positioned behind on
the rear the convector.
3. Tighten the wing nuts on the feet.
B. Wall-mounting: how to assemble the rear bracket and mount the convector onto the wall
The convector packaging contains all the accessories necessary for wall-mounting.
To wall-mount, proceed as follows:
Remove the rear bracket from the back of the unit as described in the pictures below.
A
B
C
D
E
F

V 09/16
18
1. Unscrew the two screws on top of the 2
vertical bars of the wall bracket.
2. Pull down the wall bracket by pressing downward on the
top of the two vertical bars of the wall bracket.
3. Remove the bracket for wall mounting from the convector completely.
4. By supporting the bracket onto the wall, mark on the
wall with a pencil the points where it is necessary to
make the holes in order to insert the Fishers. Observe
the minimum distances from the walls as pointed out
in the picture below.
5. Drill holes in the wall and insert the 4 Fishers.
Secure the bracket to the wall and insert the 4
screws supplied.
6. Place the unit upright. Insert the two lower parts of the
bracket into the holes on the rear of the convector in the
lower part.
7. Insert the two upper parts of the bracket into the
holes on the rear of the convector in the upper
part.

V 09/16
19

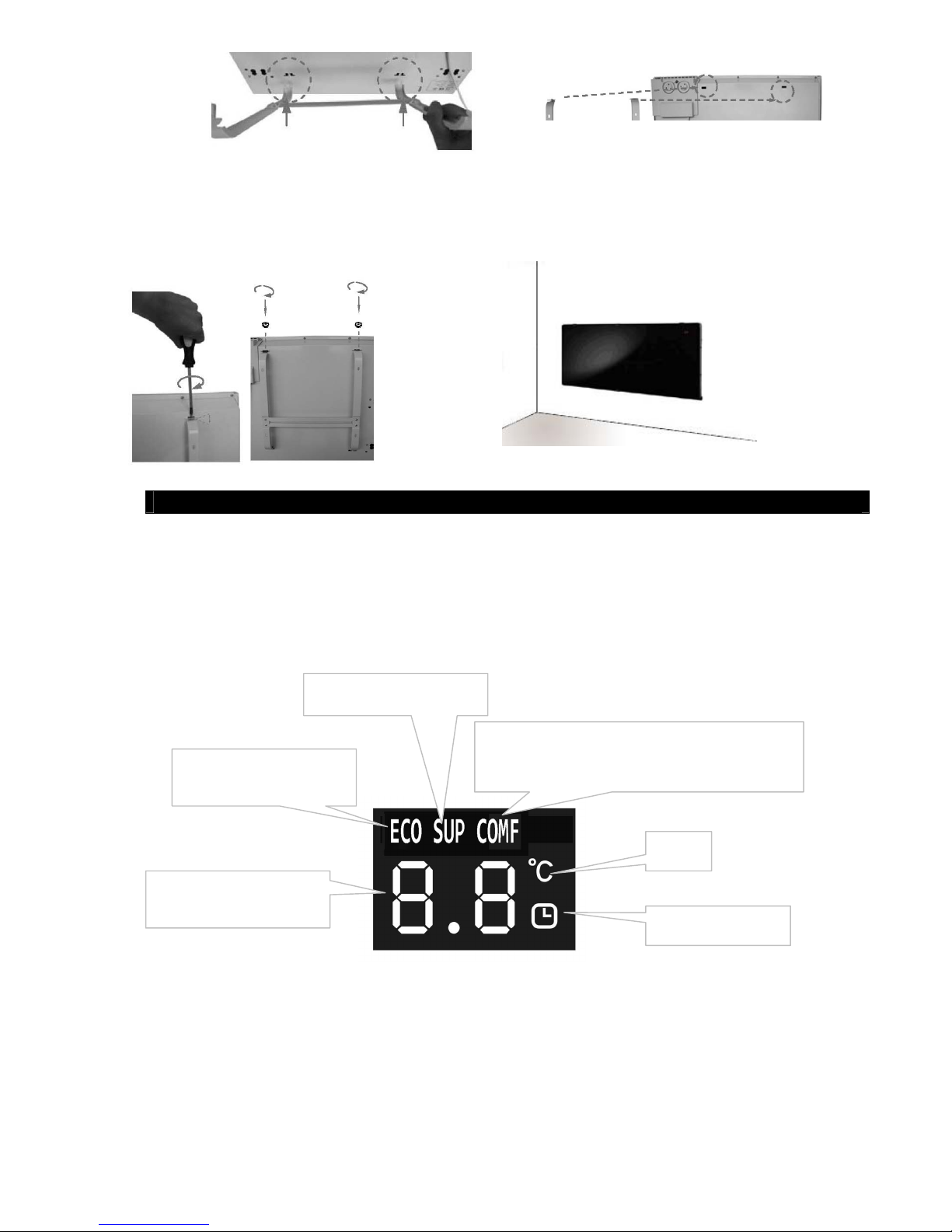

8. Tighten the screws at the top of the convector firmly.
9. Installation complete.
HOW TO USE THE CONVECTOR
Connect the power cord to a suitable electric socket (220-240V~/50Hz).
ON/OFF switch (on the right side)
Bring the on/off switch to the “ON” position.
When the appliance emits a beep this means that the convector is ready for use.
Bring the switch to the “0FF” position to switch off the convector.
LED DISPLAY
ECO mode:
750 W, reduced power to
save energy
SUPER mode: maximum
power (1500W)
COMFORT mode:
it adjusts automatically heat output and
therefore energy consumption, according to set
tem
p
erature.
Timer on setting/
timer set
°C
Temperature and timer
display

V 09/16
20
CONTROL PANEL
WARNING: THE TEMPERATURE SELECTION BUTTON IS ACTIVE ONLY IN COMFORT MODE.
The appliance is fitted with an anti tip-up device that prevents it from operating when it detects that the product is inclined.
Do not position the appliance on its side or upside down.
The remote control uses Lithium/Manganese button cells, model no. CR2032-3 V, compliant with Battery Directive no.
2006/66/CE (supplied with the remote control).
HOW TO INSERT / REMOVE THE REMOTE CONTROL BATTERIES (refer to the diagram below)
Open the battery cover at the rear of the remote control (press and pull the cover).
Place the battery into the cover, observing the correct polarity. Insert the cover onto the remote control.
REMOTE CONTROL
ON/OFF button
TEMPERATURE
button
Mode selection
button ECO, SUPER
or COMFORT
TIMER button
TIMER button
When the appliance is operating, the operating
time can be set by touching this button: the
timer display shows a flashing 0 and pressing
TIMER you can set the desired time, between
0,5 and 8 hours, with each touch
corresponding to half and hour.
The display shows the set time: wait 5” for the
setting to be confirmed. The unit will switch off
automatically at the end of the programmed time
(stand by).
In order to switch it on again press the button
ON/OFF.
If a TIMER is set the LED remains on.
ON/OFF buttons
Touching the ON/OFF button will cause the ECO
LED to light and the appliance will begin to
operate in ECO mode.
The display will show ambient temperature.
Touching the button ON/OFF once again the
LED will show room temperature.
To switch off the convector completely, place
the on/off switch in the “0FF” position.
TEMPERATURE button
When COMFORT mode has been set, touching
this button will allow you to set the
temperature: the display will show ambient
temperature and, by pressing this button, the
desired temperature can be set between 5 and
35°C. Once the desired temperature has been
set, wait 5” for the setting to be confirmed. After
5” the display will show the ambient temperature
once again.
This function is active only in COMFORT
mode.
ECO/SUPER/COMFORT selection
button
- ECO mode: 750 W, reduced power to save
energy
- SUPER mode: maximum heating power
(1500W)
- COMFORT mode: automatic adjustment of
heat emission according to set temperature
ECO is the default mode.
ON/OFF switch

V 09/16
21
MAINTENANCE AND STORAGE
ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING OR MAINTENANCE.
IMPORTANT: DO NOT SUBMERGE THE CONVECTOR IN WATER.
Cleaning the outside surface of the appliance
Turn the switch off and unplug before carrying out any maintenance work or moving the appliance.
Use a soft cloth to remove any dust from the convector.
If the convector is excessively dirty, use a soft cloth moistened with water and a mild detergent at a temperature lower than
50°C. Let the convector dry completely before use.
Do not use corrosive detergents or solvents such as petrol. Do not wash the appliance with water. Do not use oils, chemical
substances or other items to clean that may damage the surface.
Use a vacuum cleaner to remove dust from the air inlet/outlet grilles.
STORAGE
If the appliance is not used for prolonged periods, it must be stored together with this manual in its original packaging, in a
cool and dry place.
Information for correct disposal of the product in accordance with the European Directive 2012/19/EU
At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local
community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment
separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and
enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to
underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.
Information for correct disposal of the battery in accordance with the European Directive 2006/66/EC
Please replace battery when its electricity charge is used up: please do not eliminate this battery together with normal
household waste. It must be taken to special local community waste collection centres or to a dealer providing this service.
Disposing of a battery separately avoids possible negative effects on the environment and human health deriving from an
inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and
resources. In order to underline the duty to dispose of this equipment separately, the battery is marked with a crossed-out
dustbin.
www.argoclima.com
This manual suits for next models
1
Table of contents
Other Argo Heater manuals
Popular Heater manuals by other brands

STIEBEL ELTRON
STIEBEL ELTRON ETT 500 electronic Operating and installtion instructions

cecotec
cecotec Ready Warm 9790 Force instruction manual

PTB
PTB 57DFC0 quick start guide

Kermi
Kermi Credo-Duo II Assembly and operating instructions

Saunum
Saunum Spa Session Instructions for use and installation

Glen
Glen GL 7012 user guide

Clarke
Clarke XR60DV Operation & maintenance instructions

Sealey
Sealey CD2005.V2 instructions

Clarke
Clarke Devil 6003 Operating and maintenance instructions

Dimplex
Dimplex PLX050ENC Installation and operating instructions

GHP Group
GHP Group Dyna-Glo RMC-FA40 user manual

Tansun Quartzheat
Tansun Quartzheat SOR 210IP Reference manual
