ARGON18 SUBITO User manual

VALID FOR MY2023 VERSION 2.1 / 2023-03-20- ARTWORK 360A/360B

VALID FOR MY2023 VERSION 2.1 / 2023-03-20- ARTWORK 360A/360B

3
Table of contents
1. Tools Needed & First Aid Kit 4
2. Frameset Inspection 5
3. Troubleshooting / Tips / Specifications 6
4. Frameset SKUs and Descriptions 7-9
5. MAHLE X35+ SKUs and Descriptions — North America 10-11
6. MAHLE X35+ SKUs and Descriptions —EU 12-13
7. Seat Post Collar Assembly 14
8. Seat Post Assembly 15

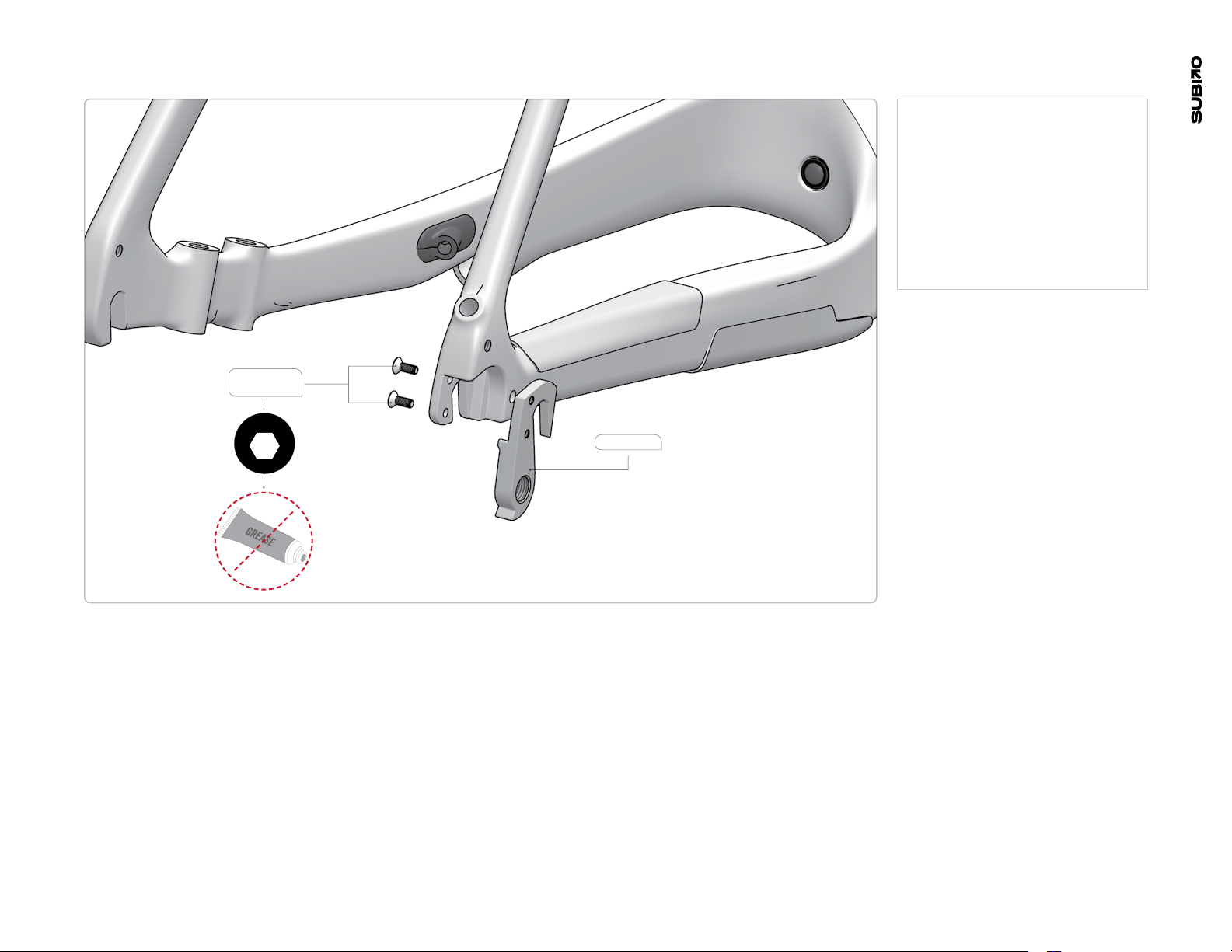

9. Rear Derailleur Hanger Adjustment 16

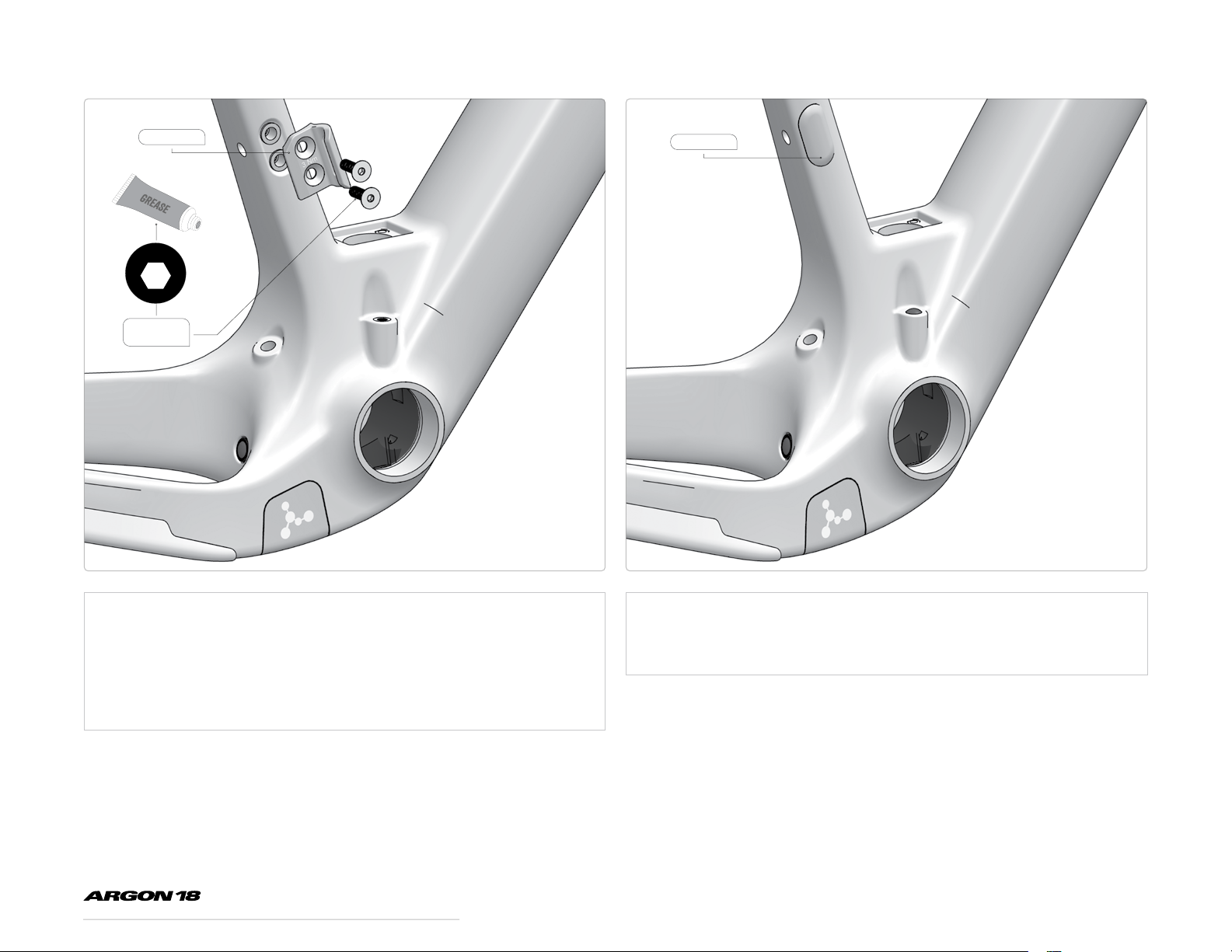

10. Front Derailleur Hanger Assembly 17
11. MAHLE X35+ Components Assembly 18-22
12. Cable and Housing Routing – Light 23
13. Rear Light Installation 24
14. 3D Headset Installation 25
15. Cable and Housing Routing —Mechanical Shifting 26-29
16. Cable and Housing Routing —Mech. 1X Shifting 30-32
17. Cable and Housing Routing —Elec. Wire Routing 33-36
18. Cable and Housing Routing —Elec. Wireless Routing 37-39
19. Cable and Housing Routing – Dropper Seatpost 40
20. Front Light Installation 41
21. Cable and Housing Routing – Front Grommet Selection 42
22. Headset Installation 43
23. Rear Wheel Installation 44-46
24. BB Cover installation 47
25. Chain Catcher 48
26. Rear Rack and Fender Installation 49
27. Front Fender Installation 50
28. Range Extender and Water Bottle Position 51
29. Seat Post Minimum and Maximum Insertion 52
30. Additionnal Documentation 53
To maintain the validity of the warranty, the bicycle must be fully assembled by an
authorized Argon 18 dealer. High-end components, particularly carbon parts, require
extra care during assembly.
These components must be installed using a torque wrench to ensure each bolt is at
the specified torque setting to prevent damage.
Amp up your next adventure
My Subito
Date of Purchase:
Retailer:
Size:
Serial Number:
Hub Serial Number:

4SUBITO 360A / 360B: ASSEMBLY GUIDE
1. Tools Needed & First Aid Kit
1. Bearing Cup Press
1. Seat Post Clamp 2. Spare Rear Derailleur Hanger
2. Allen Key Set 3. Torx T25 Key 4. Carbon Paste
& Grease
5. Utility Picks 6. Clean Rag
IMPORTANT:
First Aid Kit: Essential parts to always have on hand
IN CASE OF EMERGENCY…THIS MIGHT SAVE YOUR RIDE!
7. Derailler Hanger
Alignement Gauge
8. Cables and
Housing Cutter
9. Thread Locker
Medium strength
10. Isopropyl Alcohol 11. Torque Wrench 12. Cassette Lockring
80801
81253
81235

5
2. Frameset Inspection
Before assembling your new Subito, please verify that you have all the following:
1. Frameset parts checklist (see p.7-9)
2. MAHLE X35+ parts checklist (see p.10-13)
3. Inspect the frame for cosmetic defects (scratches, bumps, cracks,
paint defects, etc.)
4. For reference, record serial number on p.3
5. All the necessary bolts (refer to frameset parts, p.7-9)
6. For optimal shifting performance, use a derailleur alignment gauge to make sure
that the derailleur hanger is straight
No. A18 SKU# Function Description Screw Type Torque THREAD CONDITION Qty
1 80806* Chain Catcher Screw M5 x 25mm Screw Socket Head 3Nm Nylock 1
2 81248 FD Hanger Screw M5 x 16mm Screw Flat Head 3Nm Grease 2
3 81249 Water Bottle Screw M5 x 14mm Screw Button Head 3Nm Grease 4
4 200898 Battery Screw M5 x 8mm Screw Button Head 5Nm Dry 3
5 81251 BB Cover Screw M4 x 10mm Screw Button Head Hand Tighten Dry 2
7 81252 Charger Connector Screw M3 x 10mm Screw Flat Head Hand Tighten Dry 2
8 81252 One Remote Holder Screw M3 x 10mm Screw Flat Head Hand Tighten Dry 1
9 81252 Cable Clip Screw M3 x 10mm Screw Flat Head Hand Tighten Dry 1
10 81253 RD Hanger Screw M3 x 8mm Screw Flat Head 2Nm Dry 2
11 81254 PAS Sensor Screw M4 x 5mm Screw Set Screw Hand Tighten Dry 1
12 81255 Rear Disc Screw M5 x 8mm Torx Screw Button Head 4Nm Thread-Locker 6
13 80801* Seat Post Collar Screw M5 x 22mm Screw Socket Head 4Nm Grease 1
14 SP.KRYCS.273B* Seat Post Rear Screw M6 x 28mm Screw - 9.5Nm Grease 1
15 81052 Front Thru Axle M12 x 1.5 Axle - 12Nm Grease 1
16 81228 Motor Lock Nut M12 x 1.5 Nut Rear Wheel Nut 35Nm Grease 2
17 81227 Magnet Lock Nut - Casette Lockring 40Nm Grease 1
*Included with SKU
IMPORTANT:
Some of the following parts are already assembled on the frame.
When assembling the bike, you will need to adjust these parts according
to their torque specifications and fastener conditions when necessary.

6SUBITO 360A / 360B: ASSEMBLY GUIDE
IMPORTANT:
No more than 30mm of spacers can be placed between the stem and the top
cap of the 3D system. The use of more than 5mm of spacers on top of the stem
could affect the eciency of the compressor. These practices will automatically
void any warranty claim against the manufacturer.
IMPORTANT:
The MAHLE X35+ system is shipped to retailers in Demo mode. When the bike
is sold, it must be taken out of Demo mode. Please see related documentation
on our B2B portal. Demo mode will allow for a maximum of 50km of riding, after
which the motor will stop working.
3. Troubleshooting / Tips / Specifications
Brakes
Use only flat mount disc brakes. The frame is compatible with
160/180mm disc rotors. The rear caliper installation does not require an adapter
for 160mm discs. Refer to 140mm disc rotor brake manufacturer's instructions.
Rear mount thickness: 30mm.
The fork is compatible with 140/160mm disc rotors. An adapter might be required
for front caliper installation. Consult brake manufacturer's instructions.
Tire Clearance
700c The largest tires that can be installed must be no wider than 40mm
for the front and rear wheels. If fenders are installed, the tires must
be no wider than 35mm.
650c The largest tires that can be installed must be no wider than 45mm
for the front and rear wheels. If fenders are installed, the tires must
be no wider than 40mm.
Seat Post
Ø 27.2mm
The saddle clamp is compatible with saddle rail up to 9 x 7mm.
Seat Post Collar
Ø 31.8mm
Bottom Bracket
BB86 (Press-fit)
Headset
Argon18 exclusive, FSA No 69 SRS + IST2 3D Press-fit
(Bearing 1 1/2”, 36° x 45° Top and Bottom
+ FSA TH-881-1 Compressor included)

7
4.1 Frameset SKUs and Descriptions
100165
100569 (360A)
100570 (360B)
100166
80801
81254
8080581239 &
81252 (screw)
80804
81242
80551
81249
80988
80808
100312
38446
80806 81240
200898
81255
80985
80826
8055080549
80264
100314
81241 &
81251 (screws)
80811
100163 &
100164 (Bracket)
100313
81234
81045 SP.SUBI.273A.LIGHT
81052
FK.SUBR.M-XL.360A
FK.SUBR.XXS-S.360A
FK.SUBG.M-XL.360B
FK.SUBG.XXS-S.360B
81054
81235 &
81253 (screws)
81238 &
81248 (screws)
81252
100571 (360A)
100572 (360B)
100315
200845
200829
100316

8SUBITO 360A / 360B: ASSEMBLY GUIDE
4.2 Frameset SKUs and Descriptions
No. Name A18 SKU# Qty
1 Subito Frame Not available as spare part. 1
2 Subito Fork (XSS/XS/S)
-OR-
Subito Fork (M/L/Xl)
FK.SUBR.XXS-S.360A
FK.SUBG.XXS-S.360B
FK.SUBR.M-XL.360A
FK.SUBG.M-XL.360B
1
3 Subito Seatpost With Hole SP.SUBI.273A.LIGHT 1
4 Seatpost Collar 31.8mm 80801 1
5 Rear Derailleur Hanger 81235 1
6 FD Hanger Removable 81238 1
7CS Wire Clip 81239 1
8 FD Plug 81240 1
9 BB Opening Cover 81241 1
10 FD Cable Stopper 81242 1
11 Oblong Plug 80549 1
12 Cable Guide Oblong 80550 1
13 Chain Catcher (Incl. Small/Large, Washer and Screw) 80806 1
14 Plastic Plug M5 80264 9
15 Long Grommet Mechanical 80985 2
16 Long Plug Grommet 80804 4
17 Long Grommet Di2 80805 3
18 Rear Brake Oblong Cable Guide 80551 2
19 Oblong Plug 80826 1
20 Foam Liner 80811 3
21 FSA Headset NO.69/SRS System 100312 1
22 A18 Front Thru Axle M12 x 1.5 x 119 81052 1
23 A18 Thru Axle Lever 81054 1
24 Fender Bracket 80808 1
25 Battery Holder 38446 1
26 FD Hanger Screw 81248 2
27 Water Bottle Screw 81249 4
28 Battery Screw 200898 3
29 BB Cover Screw 81251 2

9
4.3 Frameset SKUs and Descriptions
No. Name A18 SKU# Qty
30 Charger Connector, One Remote Holder and Cable Clip Screw 81252 4
31 RD Hanger Screw 81253 2
32 PAS Sensor Screw 81254 1
33 Rear Disc Screw 81255 6
34 IST2 SRS Custom Cap
100569 (360A)
-OR-
100570 (360B)
1
35 IST2 25mm Cap
100571 (360A)
-OR-
100572 (360B)
1
36 IST2 25mm Column 200845 1
37 IST2 Sleeve 200829 1
38 Dirt Guard Kit, Two Parts 80988 1
39 CS Protector (Same as Dark Matter, Refer to Subito Installation Instructions) 81045 1
40 Chainsuck Guard 81234 1
41 LiteMove Front Light + Cable 450mm 100163 1
42 LiteMove Front Light Bracket 100164 1
43 LiteMove Rear Light 100165 1
44 LiteMove Cable Connector 100166 1
45 Connector Housing FEMALE Socket, 2 pin, Rectangular, Waterproof 100313 1
46 Connector Housing MALE Socket, 2 pin, Rectangular, Waterproof 100314 1
47 Connector Crimp PIN JWPF, 22-26 AWG 100315 2
48 Connector Crimp SOCKET JWPF, 22-26 AWG 100316 2

10 SUBITO 360A / 360B: ASSEMBLY GUIDE
81226 81232

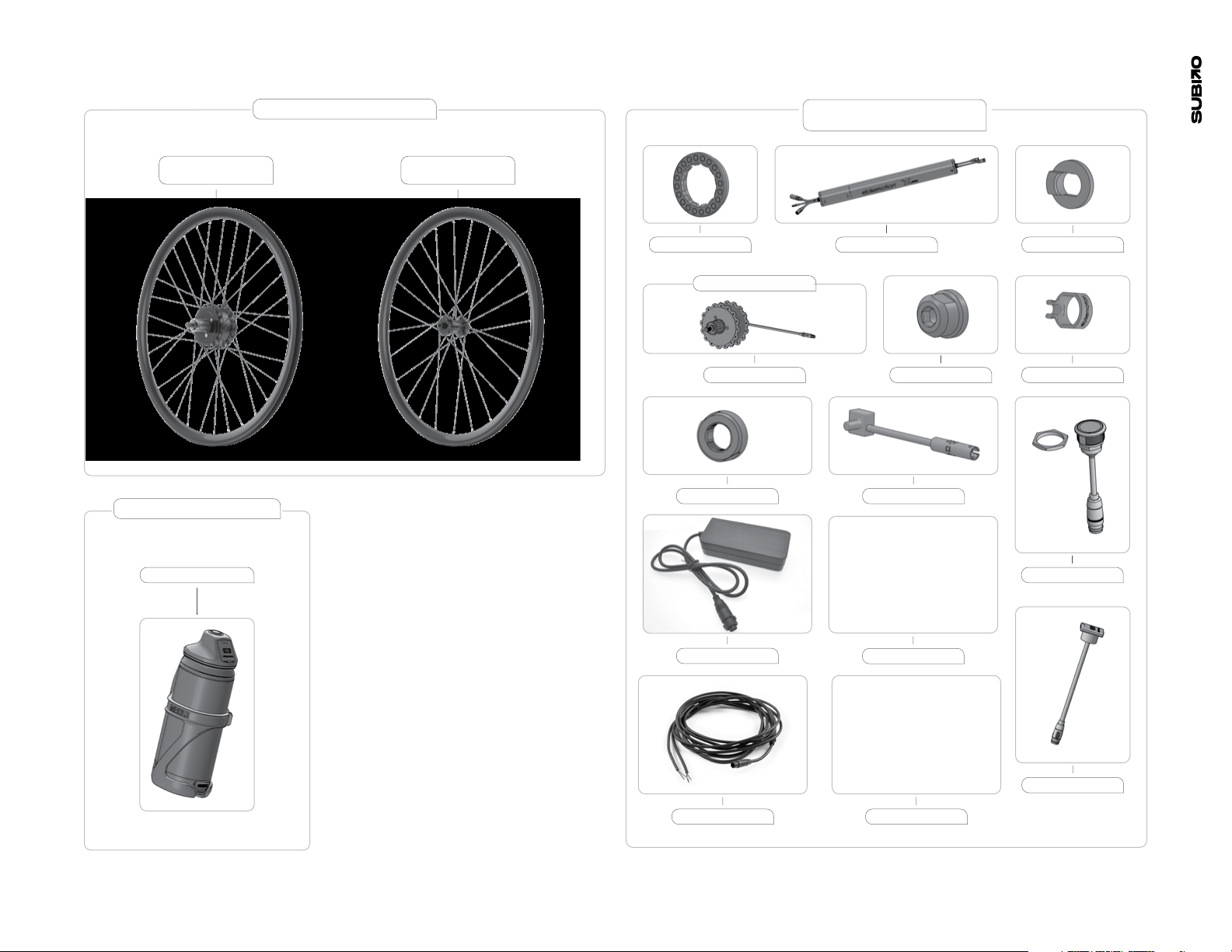

5.1. MAHLE X35+ SKUs and Descriptions – North America
North American Version North American Version
81217
Available Separately
81184 (314A) 700C
81192 (314B) 650B
*81233*
81183 (314A) 700C
81185 (314B) 650B
81227
81228
81219 81223
81230
8122981218
81225
81231
81220
North American Version
81563 200753

11
5.2.MAHLE X35+ SKUsand Descriptions – North America
No. Name A18 SKU# Qty
Parts included in the frameset
1 Rear Wheel Road – North America (for 360A)
-OR-
Rear Wheel Gravel – North America (for 360B)
81184
-OR-
81192
1
2 Front Wheel Road – North America (for 360A)
-OR-
Front Wheel Gravel – North America (for 360B)
81183
-OR-
81185
1
3 KIT X35 – C – One Flat – North America 81217 1
3.1 X35 B1-C Battery – 6.9A 81218 1
3.2 Drive Unit-M1-C – North America (*Already Included in the Rear Wheel) 81225 1
3.3 Torque Washer Nut 81229 2
3.4 Motor Lock Nut 81228 2
3.5 Shield M1 81230 1
3.6 Freewheel Nut 81226 1
3.7 One Remote 81231 1
3.8 Charging Point – ROUND CONN. 81220 1
3.9 PAS Sensor B – ROUND CONN. 81232 1
3.10 Magnet Lock Nut 81227 1
3.11 Charger-C (Without Wire) 81219 1
3.12 Charger Wire for North America 81223 1
4 One Remote Curved Holder 200753 1
5 Light Wire – eBikeMotion X35 81563 1
Optional parts that can be ordered separately
- External Battery SP1 + Holder 81233 1
-PCAN USB Adaptor 81282 1
-Diagnosis Wire 81283 1

12 SUBITO 360A / 360B: ASSEMBLY GUIDE
6.1. MAHLE X35+ SKUs and Descriptions – EU
European Version
Available Separately
81187 (314A) 700C
81189 (314B) 650B
*81233*
81186(314A) 700C
81188 (314B) 650B
81227
81228
81226
81219 200753
81232
81230
8122981218
81224
81231
81220
European Version
European Version
81216
812228122181563

13
6.2.MAHLE X35+ Parts and Descriptions — Eu
No. Name A18 SKU# Qty
Parts included in the frameset
1 Rear Wheel Road – EU (for 314A)
-OR-
Rear Wheel Gravel – EU (for 314B)
81187
-OR-
81189
1
2 Front Wheel Road – EU (for 314A)
-OR-
Front Wheel Gravel – EU (for 314B)
81186
-OR-
81188
1
3 KIT X35 – C – One Flat – EU 81216 1
3.1 X35 B1-C Battery - 6.9A 81218 1
3.2 Drive unit-M1-C – EU (*Already Included in the Rear Wheel) 81224 1
3.3 Torque Washer Nut 81229 2
3.4 Motor Lock Nut 81228 2
3.5 Shield M1 81230 1
3.6 Freewheel Nut 81226 1
3.7 One Remote 81231 1
3.8 Charging Point – ROUND CONN. 81220 1
3.9 PAS Sensor B – ROUND CONN. 81232 1
3.10 Magnet Lock Nut 81227 1
3.11 Charger-C (Without Wire) 81219 1
3.12 Charger Wire for Europe 81221 1
3.13 Charger Wire for United Kingdom 81222 1
4 One Remote Curved Holder 200753 1
5 Light Wire – eBikeMotion X35 81563 1
Optional parts that can be ordered separately
- External Battery SP1 + Holder 81233 1
-PCAN USB Adaptor 81282 1
-Diagnosis Wire 81283 1

14 SUBITO 360A / 360B: ASSEMBLY GUIDE
7. Seat Post Collar Assembly
1. Assemble the seat post collar(SKU:
80801) on the frame.
2. Apply grease on the threads
of the M5 x 22mm bolt.
3. Applycarbonpasteontheinsideofthe
frame (seat tube).
4. Insert the seat post
(SKU: SP.KRYCS.273B)
to the desired height.
5. Tighten the M5 x 22mm
bolt to 4Nm.
80801
M5 x 22mm
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25 2.5
HT
4
5Nm 4Nm
T25
2.5
2.5
2Nm4Nm
IMPORTANT:
Refer to p.52 for seat post MIN and MAX insertion limits.
SP.SUBI.273A.LIGHT

15
8. Seat Post Assembly
b
a
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25 2.5
HT
4
5Nm 4Nm
T25
2.5
2.5
2Nm4Nm
The seat post is supplied
fully assembled.
1. Unscrewbothboltsslightlyuntilthe
top clamp (a) and the cradle (b) are
separated enough to insert the
saddle rail. Do not unscrew the
bolts completely.
2. Apply grease on the threads
of each bolt.
3. Tightenbothbolts in orderto adjust
the angle of the saddle
and clamp the rail.
4. Tighten the rear bolt to 9.5Nm.

16 SUBITO 360A / 360B: ASSEMBLY GUIDE
9. Rear Derailleur Hanger Adjustment
1. Assembletherearderailleurhanger
(SKU: 81235) on the frame with
the two bolts (Flat head cap screw
M3 x 8mm SKU: 81253).
2. Tighten bolts to 2Nm. Do not apply
grease on the threads.
3. Usearearderailleurhangeralignment
gauge to align the
rear derailleur hanger.
For assistance, visit Park Tool’s
website at:
https://www.parktool.com/blog/repair-help/
rear-derailleur-hanger-alignment
81253
M3 x 8mm
81235
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25 2.5
HT
4
5Nm 4Nm
T25
2.5
2.5
2Nm4Nm

17
1. Apply grease on the thread
of both M5 x 16mm bolts (SKU: 81248).
2. Assemble the front derailleur hanger (SKU: 81238) on the frame with
the two bolts.
3. Tighten screws to 3Nm.
Using a Single Chainring Set-Up:
1. Install the FD plug (SKU: 81240) to cover the hole.
81248
M5 x 16mm
81238 81240
10. Front Derailleur Hanger Assembly
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25 2.5
HT
4
5Nm 4Nm
T25
2.5
2.5
2Nm4Nm

18 SUBITO 360A / 360B: ASSEMBLY GUIDE
11.1 Mahle Connector Identification
Down Up
Down
Up
Motor Side
Light
Wire Side
PAS Sensor Side Charging Port Side
iWok Side
Battery Side
Battery Side
Battery Side Battery Side
Battery Side
Motor
Connector
Light
Connector
PAS Sensor
Connector
Charging Port
Connector
iWok Button
Connector

19
11.2 Battery Installation
1. Always remove all Water Bottle
Screws (81249) and Plastic Plug
M5 (80264) from the frame's
downtube before insertion or
removal of the battery.
2. Insert the battery (SKU: 81218)
through the hole under the
bottom bracket.
The three threaded mounting holes
on the battery must face down.
The side with the two connectors
(iWok button connector and light
connector) must be inserted first.
3. Guide the two connectors
(iWok button connector and light
connector) through the top of
the head tube.
4. Install the three M5 x 8mm battery
screws (SKU: 200898). Once the
three screws are installed, tighten
to 5Nm. Do not apply grease to the
threads.
5. Guide the motor connector into the
NDS chainstay and through
the exit hole.
200898
M5 x 8mm
81218
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25 2.5
HT
4
5Nm 4Nm
T25
2.5
2.5
2Nm4Nm
IMPORTANT:
Use only M5 x 8mm screws. Using longer
screws will damage the battery and void the
warranty.

20 SUBITO 360A / 360B: ASSEMBLY GUIDE
11.3 Charging Port Installation
1. Install the charging port with the arrow pointing to the rear of the bike,
that way the cover will open facing the down tube.
2. Allow the charging port connector to exit through the BB hole.
3. Install and tighten both M3 x 10mm screw (SKU: 81252) only by hand,
do not apply grease on the threads.
4. Connect the charging port connector to the matching connector on the battery.
Align both arrows on each connector.
81252
M3 x 10mm
81220
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25 2.5
HT
4
5Nm 4Nm
T25
2.5
2.5
2Nm4Nm
