Argos Home Venetia 906/5716 User manual

If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0330 016 1114
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
More help is available throughout this
booklet by scanning in the QR codes
or typing in the links
WARNING!
In order to prevent overturning, this product must be
used with the wall attachment device provided
Assembly Instructions - Important: Retain these instructions
for future reference
Dimensions
Width - 80cm
Depth - 33cm
Height - 86cm
Venetia - Shoe Storage
Issue 25 - 17/12/19
906/5716
MADE IN
BRITAIN
Woodgrain
and Black
323/9603
541/8745
709/8675
792/4543
White
and Grey

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Regularly check all fastenings
to ensure that they are properly
tightened.
• Warning: This unit weighs
approximately 28kgs.
Please lift with care.
• Assembly to be carried out by
a competent adult only.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• During assembly children
should be kept away from the
product due to possible risk of
injury.
• Installation shall only be
carried out exactly according to
the manufacturer’s instructions
- otherwise a safety risk can
occur if incorrectly installed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• WARNING: To prevent
possible overbalancing this unit
must be secured to a wall
using the overbalance
protector kit supplied.
• Dispose of all packaging
carefully and responsibly.
• Do not use this item if any
components are missing or
damaged.
Note: If required the next page can be cut out and used as reference throughout
the assembly. Keep this page with these instructions for future reference.
Tools required
Rule Scissors
Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)
Bradawl Flat-head
screwdriver
Spirit
level
Square
mm 10 20 30 40 50 60 70 80 90 100mm 10 20 30 40 50 60 70 80 90 100

Components - Panels
Please check you have all the panels listed below
2
1
5
2
7 8
7 8
6
9Drawer Wrap (WRP-00000036)
(135.45 x 9.5cm)
3
4
Left Side (D0844B)
(83 x 31.2cm)
Right Side (D0845B)
(83 x 31.2cm) Base (D0847B)
(79.7 x 32.9cm)
Top (D0846B)
(79.7 x 32.9cm)
Loose Shelf (D0850B)
(76 x 31.2cm) x 3
Woodgrain or Black
Drawer Front (DF-00010116)
(78.6 x 13.8cm)
White or Grey
Drawer Front (D3060B)
(78.6 x 13.8cm)
6
Woodgrain or Black
Left Door (DF-00010117)
(68.3 x 39.2cm)
Woodgrain or Black
Right Door (DF-00010118)
(68.3 x 39.2cm)
White or Grey
Left Door (D3061A)
(68.3 x 39.2cm)
White or Grey
Right Door (D3062A)
(68.3 x 39.2cm)
OR
OR
10 Drawer Base (TDF-00020844)
(74.05 x 29.3cm)
11 Back (X852-788)
(85.2 x 78.8cm)

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
3
A B
D
C
Large locking cam
nut (F900) x 4
F
G H
Small locking cam
nut (F3) x 2
O
J
I
P
9mm Screw (F74) x 2
K
9mm Screw (F73) x 4
Drawer runner (F1004) x 2
Q
Metal dowel (F901) x 6
Nail (F51) x 22
E
40mm Screw (F910) x 4 25mm Screw (F615) x 6
13mm Screw (F63) x 8
Plastic Nail (F91) x 4
M N
Handle (F236) x 3
Hinge plate (F523) x 4 Hinge (F518) x 4
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Handle (F315) x 3
WOODGRAIN
and BLACK
WHITE
and GREY
OR
Overbalance protector kit (F474) x 1
Door Stop (F464) x 5
L
Shelf stud (F110) x 12
R
Wedgefix (F639) x 4

Assembly Instructions
4
Step 1a:
A
b:
C
9
a:
A
A
F
C
C
Prepare the drawer
front
a: Screw 2 metal dowels
. into the holes shown
on the back of the
drawer front .
Note: Tighten the metal
dowels up fully against
the panel.
b: Screw 5 shelf studs
into the drawer front .
Note: Tighten the metal
dowels and shelf studs
up fully against the
panels.
A
6
A
6
C
9
Prepare the drawer
wrap
Insert 2 small locking
cam nuts into the
holes shown on the
drawer wrap .
Note: The arrow on the
locking cam nut must
point towards the hole in
the edge of the panel.
Step 2
9
6
6
P
P
P
P
P
P

5
Assembly Instructions
Step 3
6
9
A
C
a:
b:
Assemble the drawer
a: Place the drawer
base into the narrow
slot on the drawer wrap
. . Fold the wrap
around the base.
b: Turn the drawer wrap
assembly over and push
it onto the back of the
drawer front .
Turn the locking cam
nuts clockwise to
secure panels - more
than 1/2 a turn.
10
9
6
C
9
10
plain surface
9
6
Step 4
Adjust the drawer
base
Ensure the drawer base
sits flush by turning the
shelf studs clockwise or
anti-clockwise.
R
Step 5
Fit the wedgefixes
Turn the drawer
assembly over and slide
4 wedgefixes into the
back and side grooves,
as shown, and tighten up
the screws.
R
Important: Make
sure that the drawer
assembly is square
before fitting the
wedgefixes.
R
R
R
R

Assembly Instructions
6
Step 6
Finished
front edge
Finished
front edge
Finished
front edge
Step 7
F
F
Q
Attach the handle
Attach a handle to the
drawer front using 2
screws .
Q
F
6
6
J
O
B
B
J
Fit runners to left side
a: Place a runner on
the left side . Slide
back the top of runner
and use the 2nd hole
from the front to fit the
1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
c: Insert 2 large locking
cam nuts into the left
side .
Note: The arrow on the
locking cam nut must
point towards the hole in
the edge of the panel.
Fit 2 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
1
O
J
J
B
M
M
M
1
1
1
M
1
1
Finished
front edge
J
O
b:
c:
a:
B
1
This shows the handle
for a Woodgrain or
Black unit.
You may have the
White or Grey unit.
www.youtube.com/watch?v=yG4xJJeSg
Fitting Ball Bearing Runners
www.youtube.com/watch?v=wIMhUHeLBtg
Hinge Fixing and Door Adjustment

Assembly Instructions
7
Step 8
Finished
front edge
J
O
J
O
J
Finished
front edge
b:
c:
a:
B
B
Fit runners to right
side
a: Place a runner on
the right side . Slide
back the top of runner
and use the 2nd hole
from the front to fit the
1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
c: Insert 2 large locking
cam nuts into the
right side .
Note: The arrow on the
locking cam nut must
point towards the hole in
the edge of the panel.
Fit 2 hinge plates onto
the right side , making
sure that the slot is
facing towards the
2
O
J
J
B
M
2
2
M
M
M
2
2
2
Finished
front edge
Finished
front edge
2

Assembly Instructions
8
Step 9
Finished
front edge
Finished
front edge
Prepare the top
Note: The top and base
panels are very similar but,
the holes in the top panel
are not drilled all the way
through.
Screw 4 metal dowels
into the holes shown on
the top .
A
A
A
A
Finished
front edge
M
3
3
A
Join the top and right
side
Push the top onto
the right side .
Use a screwdriver to
tighten the 2 large
locking cam nuts
fitted to the right side .
Note: Turn the large
locking cam nuts as
far as they will go - more
than 1/2 a turn.
B
A
2
3
Step 10
3
2
3
2
B
B
2

Assembly Instructions
9
Step 11
Finished
front edge
Finished
front edge
3
Fit the left side
Push the left side
onto the top .
Use a screwdriver to
tighten the 2 large
locking cam nuts
fitted to the left side .
Note: Turn the large
locking cam nuts as
far as they will go - more
than 1/2 a turn.
1
3
B
1
B1
Fit the base
Attach the base to
the left side and right
side using 4 screws
. .
E
E
E
E
Step 12
4
1
2
E
41
2

Assembly Instructions
10
Step 13
y
Fit the plastic nails
Tap the plastic nails
into the base as
shown.
The plastic nails
must go up into
the bottom
edge of the left
side and
right side .
K
K
4
1
2
2
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Carefully stand the
unit up for the next
step.
Step 14
yy
x
x
D
11
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
b:
11
D
11
K
K
K
K
41
www.youtube.com/watch?v=FeaI6541z7o
Squaring up a Chest and fitting the Back Panel
Cut-out
Warning: The
unit is heavy.
Lift with care.

Assembly Instructions
11
Step 15
G
b:
L
Cut-out
in back panel
Back
Top
Note: The 1st screw
uses the shallow
mark-hole drilled
into the underside
of the top panel
L
Back
Top
L
Top
a:
Fit the overbalance
protector kits
a: Before fitting the
overbalance protector
kit, use a spirit level to
check the top of the unit
is level, front-to-back
and side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level.
To prevent possible
overbalancing this unit
must be secured to a
suitable wall by fitting of
the overbalance
protector kit to the
unit.
b: Push the unit up
against the wall and fit
the 1st screw through
the bracket and up into
the shallow mark-hole
drilled into the underside
of the top panel.
Slide the bracket against
the wall and fit the 2nd
screw into the underside
of the top panel.
Mark the slot at the back
of the bracket for drilling
into the wall.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
WARNING!
In order to prevent overturning
this product must be used with the
wall attachment device provided
L
See the next page for a guide
to wall mounting and fixings
L

Important note:
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
For use with plasterboard partitions or
hollow wooden doors.
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
No.1 “General Purpose” wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
A Guide to Wall Mounting & Fixings
Care &
Maintenance
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
12

Assembly Instructions
13

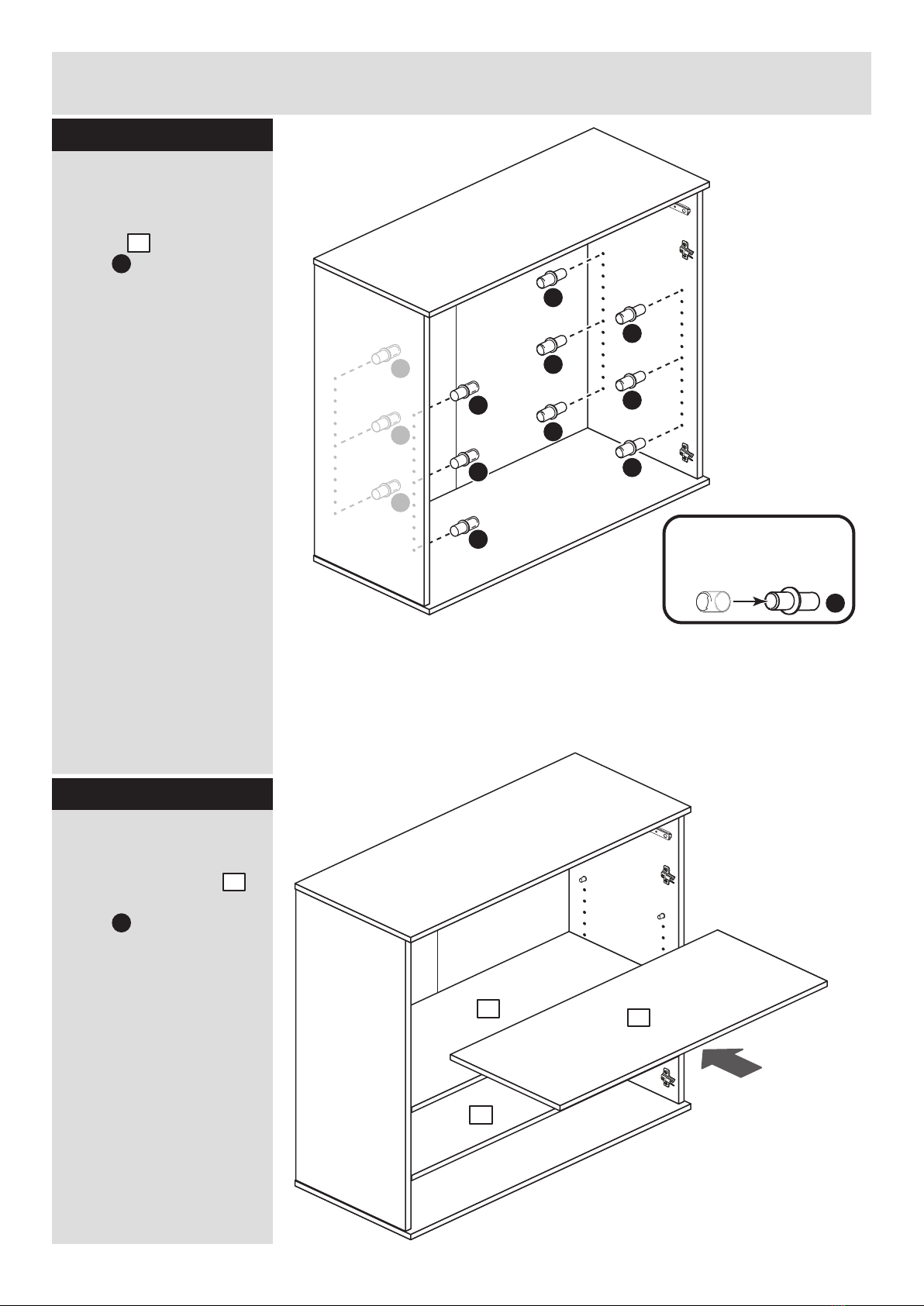

Step 16
Step 17
Make sure that the plastic
sleeve is fully pushed
onto the shelf stud.
Fit the shelf studs
For each of the 3
shelves , insert 4 shelf
studs at the required
height. G
G
G
G
G
G
G
G
G
G
G
G
5
G
G
Fit the shelves
Lower the 3 shelves
down onto the shelf
studs .
5
G
5
5
5

Assembly Instructions
Step 18
14
Fit the drawer
Slide both the runners
forward and locate the
sides of the drawer wrap
. between them, lining
up the holes in the
drawer sides with the
2nd 'threaded' holes in
the runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner .
Note: Do not overtighten
the screws .
If they catch on the
runner you may need
to loosen them slightly.
O
9
2nd threaded
hole
O
I
9
9
9
I
I
I
I
O
O
O
This shows the Woodgrain and Black unit.
You may have the White or Grey unit.
www.youtube.com/watch?v=yG4xJJeSg
Fitting Ball Bearing Runners
Warning: Use a screwdriver
to position the runners as
they could have sharp edges

Assembly Instructions
15
Step 19
Prepare the doors
Push fit 2 hinges into
each door and .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
H
N
7 8
7
90
N
N
H
H
N
H
H
8
N
H
H
N
H
H
Note: The right door has
a shallow identification hole
between the 2 handle holes.
8
www.youtube.com/watch?v=wIMhUHeLBtg
Hinge Fixing and Door Adjustment

Assembly Instructions
Step 20
16
F
F
Q
8
Fit doors and handles
Note: The easiest way to
attach each door and
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door and
using 2 screws .
N
N
N
M
M
M
N
M
Q
F
7
8
7 8
e:
a: b:
c: d:
M
N
M
M
B
M
N
N
N
A
N
M
B
7
Q
This shows the handles for the
Woodgrain or Black unit.
You may have the White or Grey unit.
Note: The right door has
a shallow identification hole
between the 2 handle holes.
8
www.youtube.com/watch?v=wIMhUHeLBtg
Hinge Fixing and Door Adjustment

Assembly Instructions
17
Step 21
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
www.youtube.com/watch?v=wIMhUHeLBtg
Hinge Fixing and Door Adjustment

Assembly Instructions
Step 22
18
White
and Grey
Woodgrain
and Black
Assembly is complete
Please remove any blue protective film from panel
edges and clear protective film from panel surfaces

ALR2595
