Argos Capella User manual

MADE IN
BRITAIN
Dimensions
Width -123.5cm
Depth - 39cm
Height - 74.4cm
Capella - 4 + 4 Drawer Chest
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 28/6/11
Important - Please read these instructions fully before starting assembly
615/8602
615/8585
615/8592
ALR2608

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 38kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

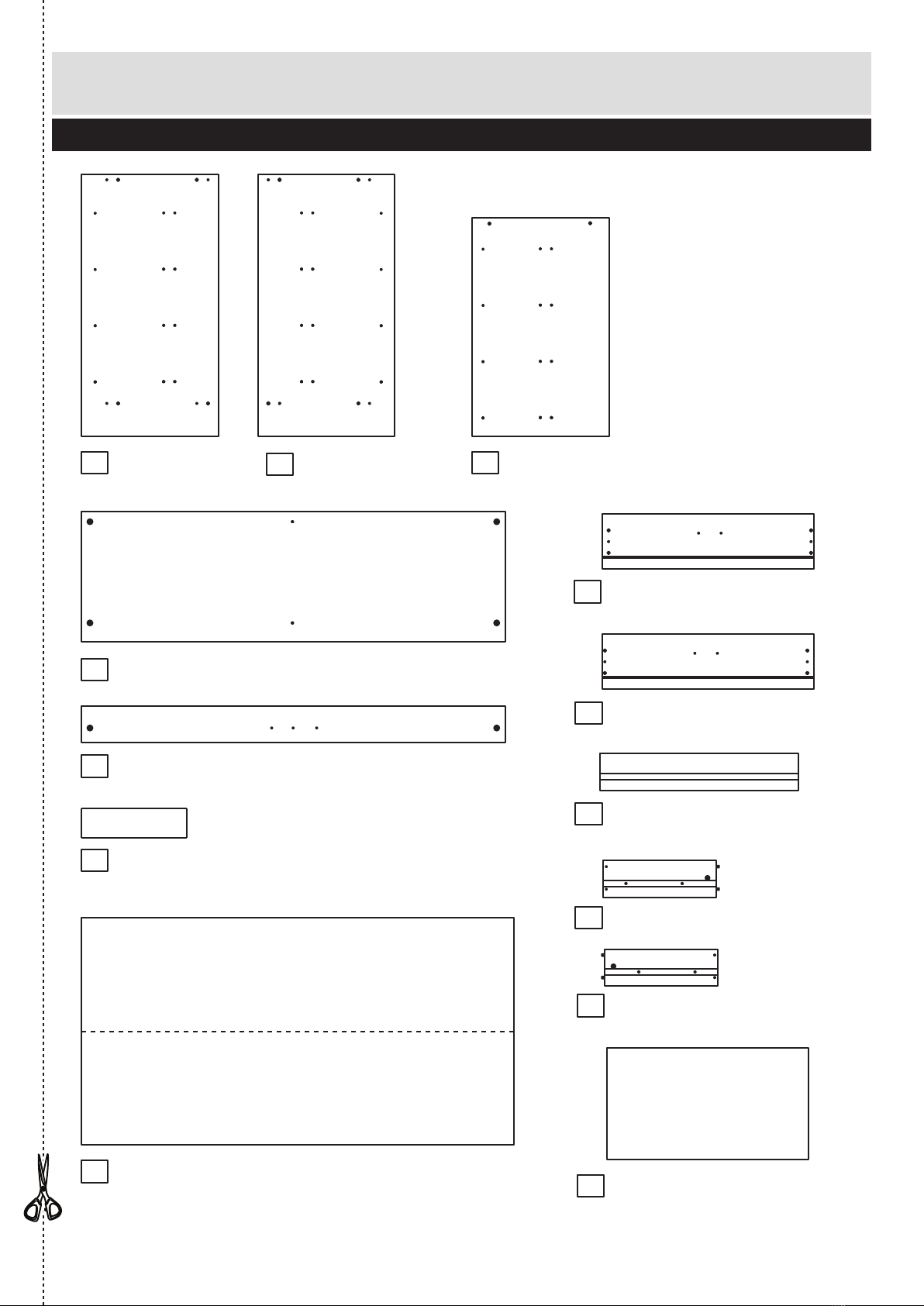

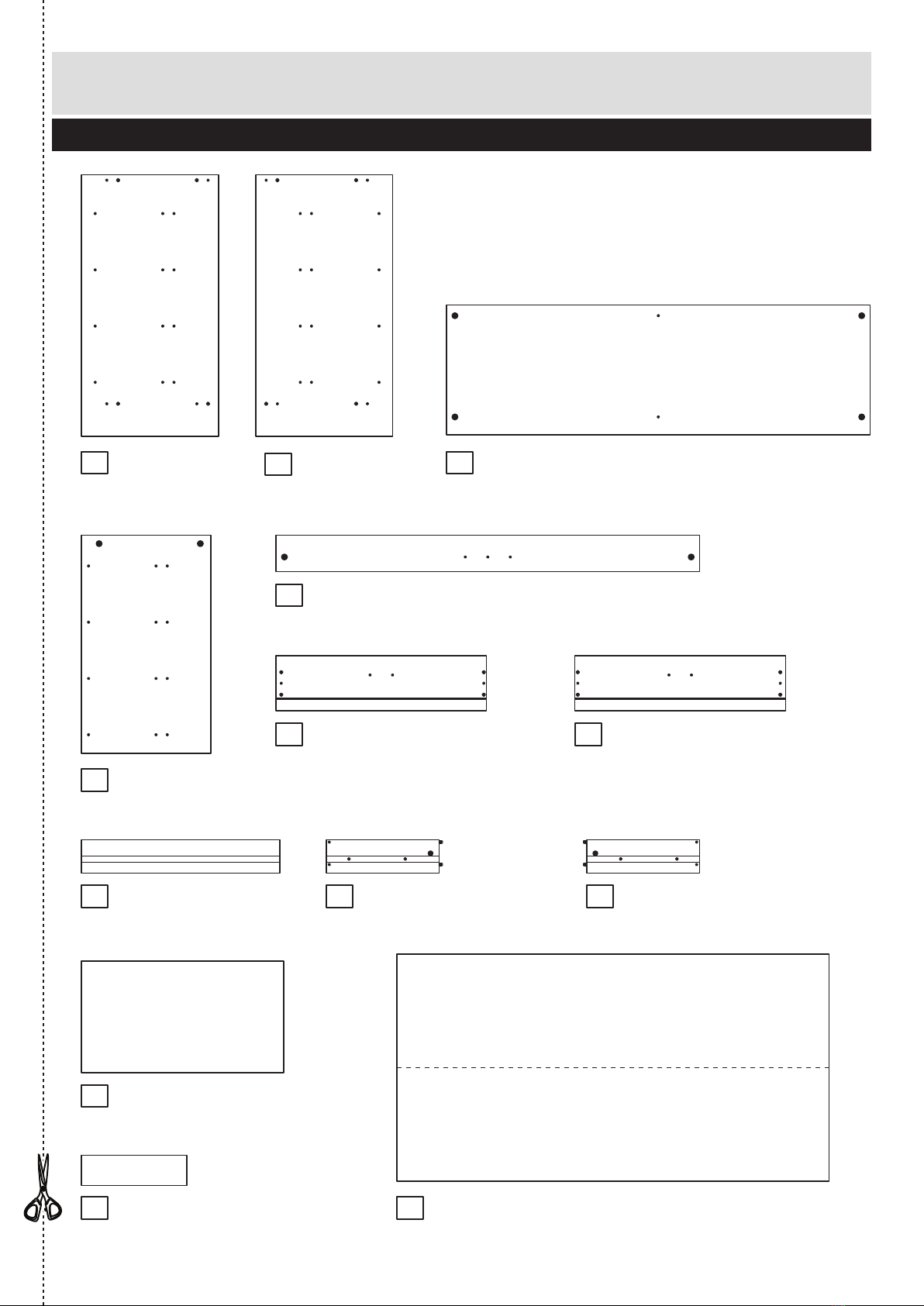

Components - Panels
Please check you have all the panels listed below
2
1
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
5
2
3
9
8
6
10
12
Left Side (D1039A)
(744 x 390mm)
Top (D1042A)
(1205 x 369mm)
Left Hand Drawer Front (D1044A)
(599 x 157mm) x 4
Back (X832A)
(1229 x 646mm)
Rail (D1043A)
(1205 x 103mm) x 2
Right Side (D1040A)
(744 x 390mm)
Left Drawer Side (W409BLH)
(320 x 105mm) x 8
Right Drawer Side (W409BRH)
(320 x 105mm) x 8
Drawer Back (W433BBCK)
(564 x 105mm) x 8
Drawer Base (T433)
(317 x 575mm) x 8
Right Hand Drawer Front (D1045A)
(599 x 157mm) x 4
Upright (D1014A)
(621 x 368mm)
Support (D1046A)
(300 x 85mm)
7
13
4
11

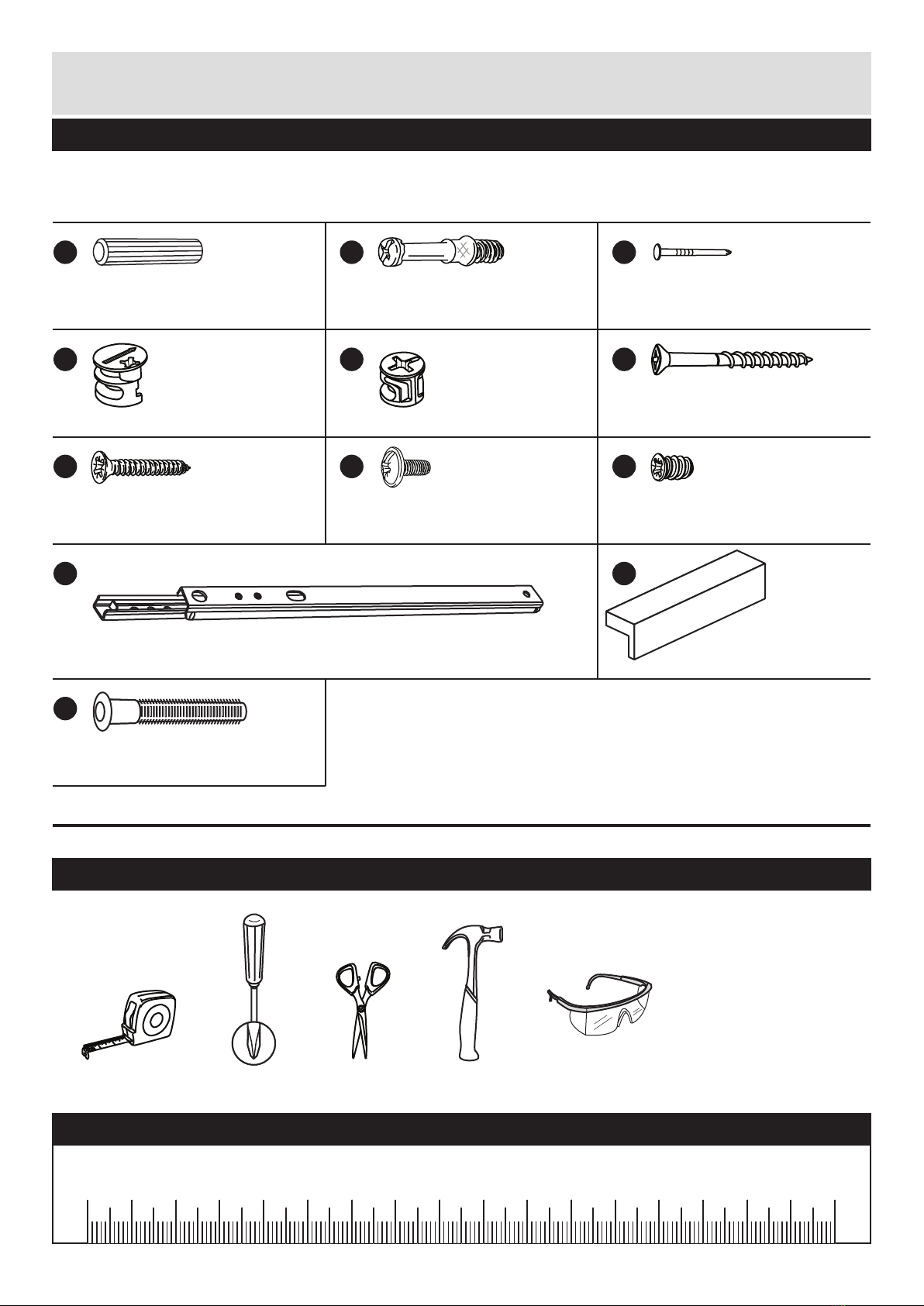

Please check you have all the fittings listed below
Tools required
3

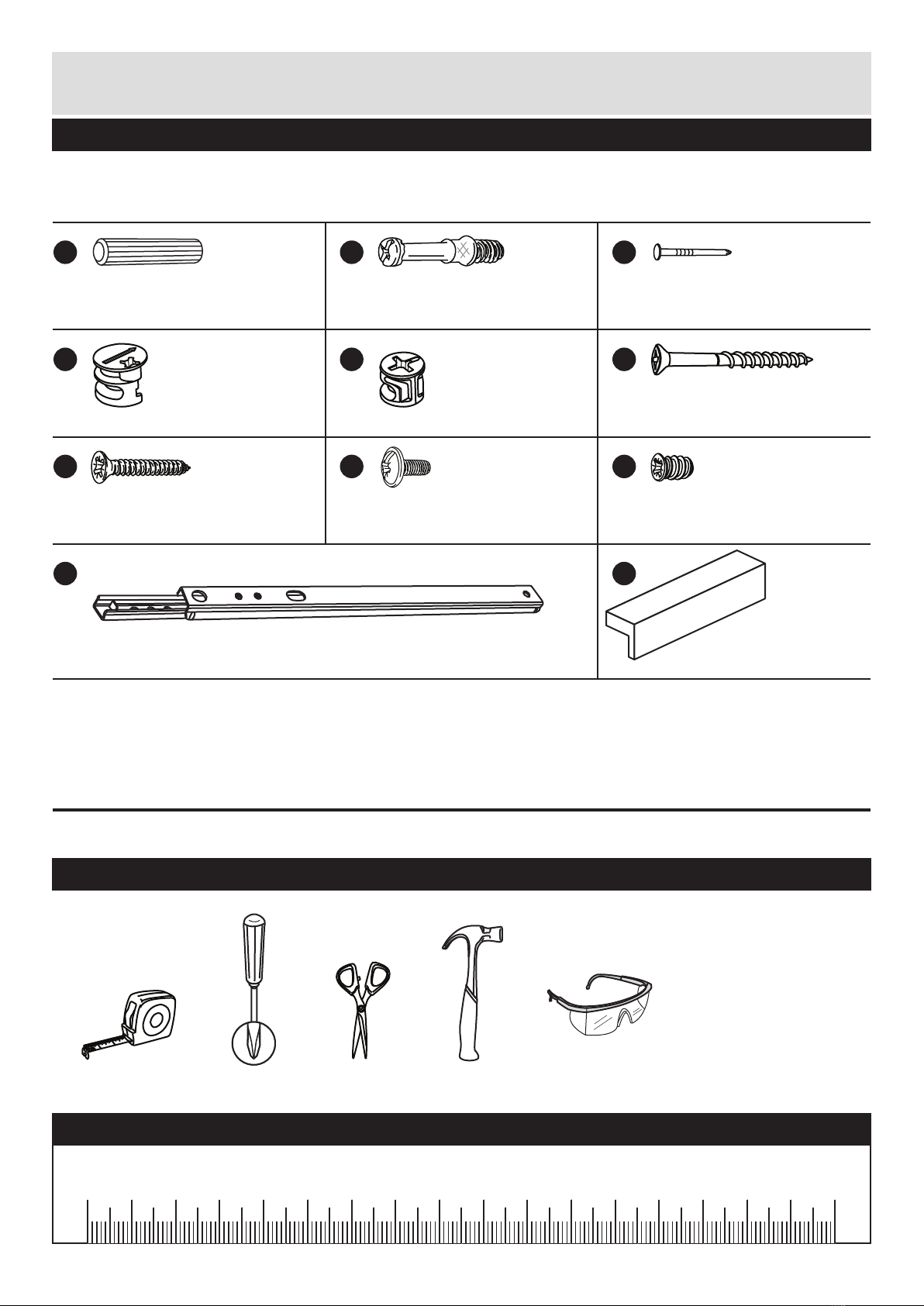

Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 8
B
Metal dowel (F901) x 26
D E
Large locking
nut (F900) x 10
F
G H I
K
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Small locking
nut (F3) x 16
C
Nail (F51) x 22
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
Drawer runner (F1004) x 16
Handle (F930) x 8
25mm Screw (F50) x 16 9mm Screw (F74) x 16 9mm Screw (F73) x 32
45mm Screw (F65) x 35

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

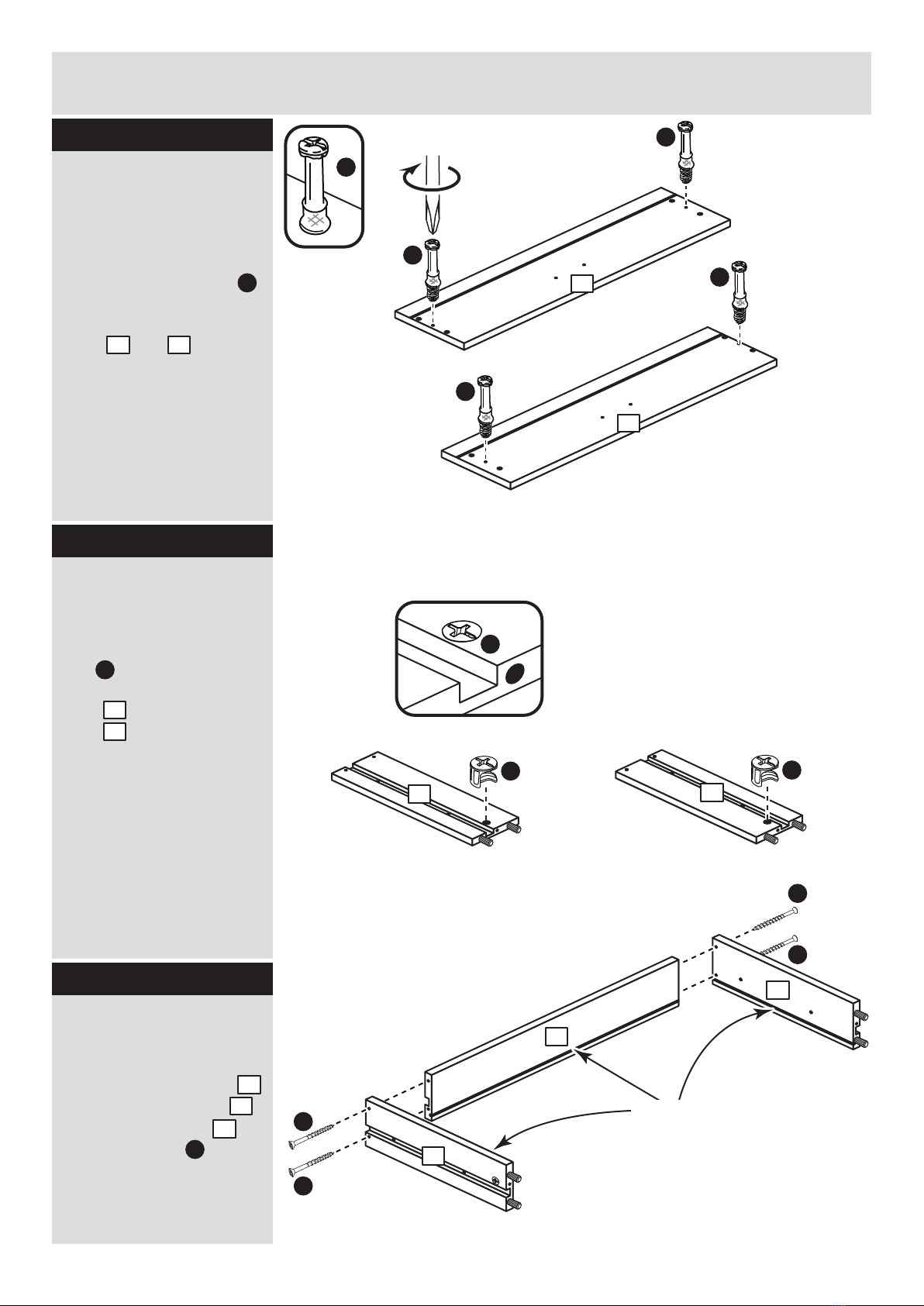

Step 1
x 4
x 8 x 8
x 8
Prepare the left hand-
drawer fronts and
right hand drawer
fronts
Screw 2 metal dowels
into the holes shown on
the back of each drawer
front and .
Note: Tighten the metal
dowels up fully against
the panels.
B
6
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
B
E
F
F
8
10
E
9
10
Assemble the drawer
sides and back
Fit the left drawer side
and right drawer side
to the drawer back
using 4 screws .
F
9
10
8
E
10
E
Step 2
Step 3
9
9
F
F
B
B
B
B
6
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
Small groove
x 4
B
B
7
B
B
7

Assembly Instructions
5

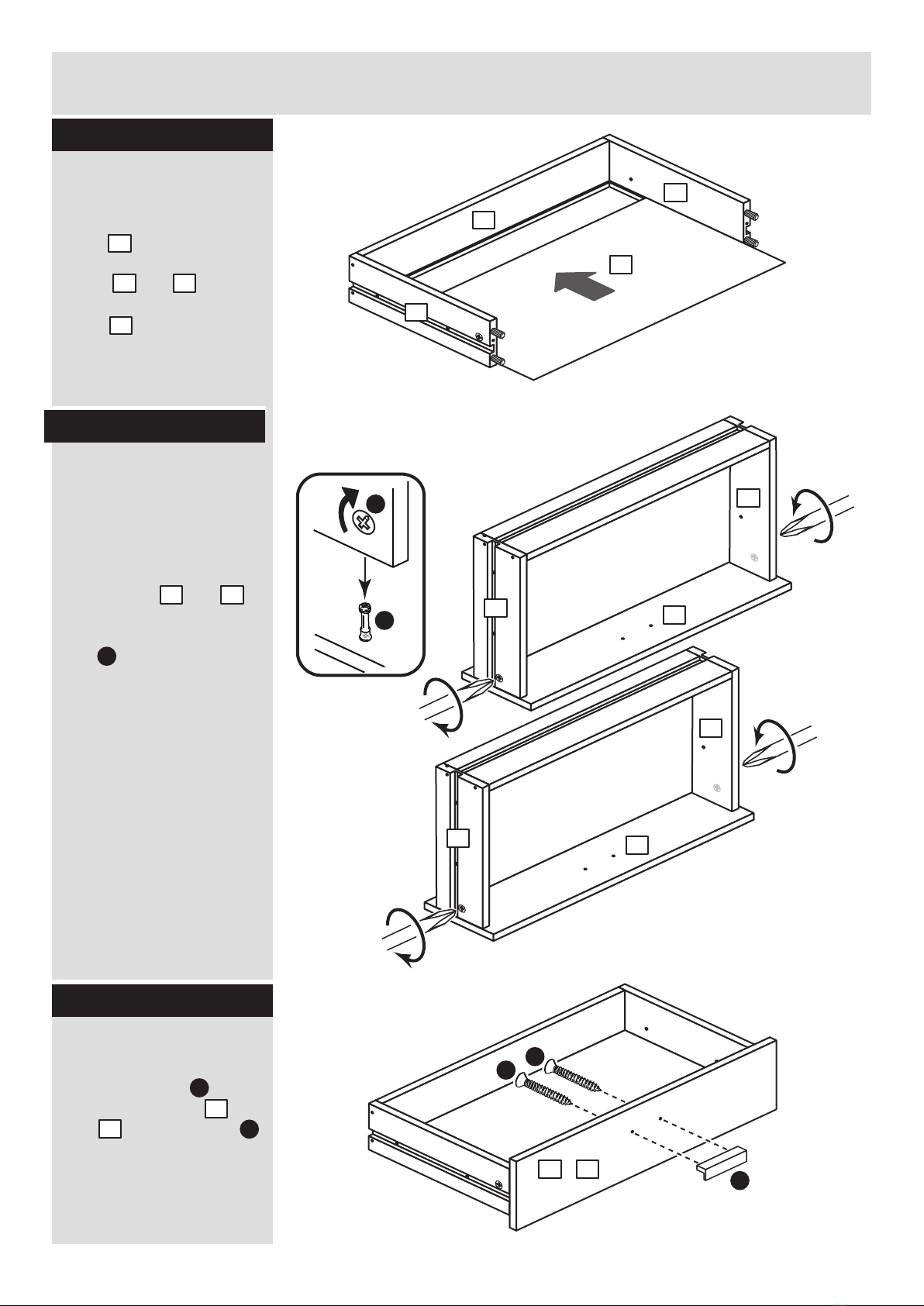

Step 4
Attach the handle
Attach a handle to
each drawer front
and using 2 screws
.
K
G
Step 6
6
x 8
G
G
K
Step 5
x 8
Fit the drawer base
Slide the drawer
base along the
grooves of the drawer
sides and into the
groove of the drawer
back .
11
9 10
8
Attach the drawer
front
Turn the drawer
assembly over and push
onto the back of the
drawer front and .
Note: Turn locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
6
E
B
B
E
6x 4
Note: The locking nuts can be on
either surface of the drawer sides.
11
9
10
8
9
10
6
7x 4
9
10
7
7
7

Profiled
front edge
Assembly Instructions
6

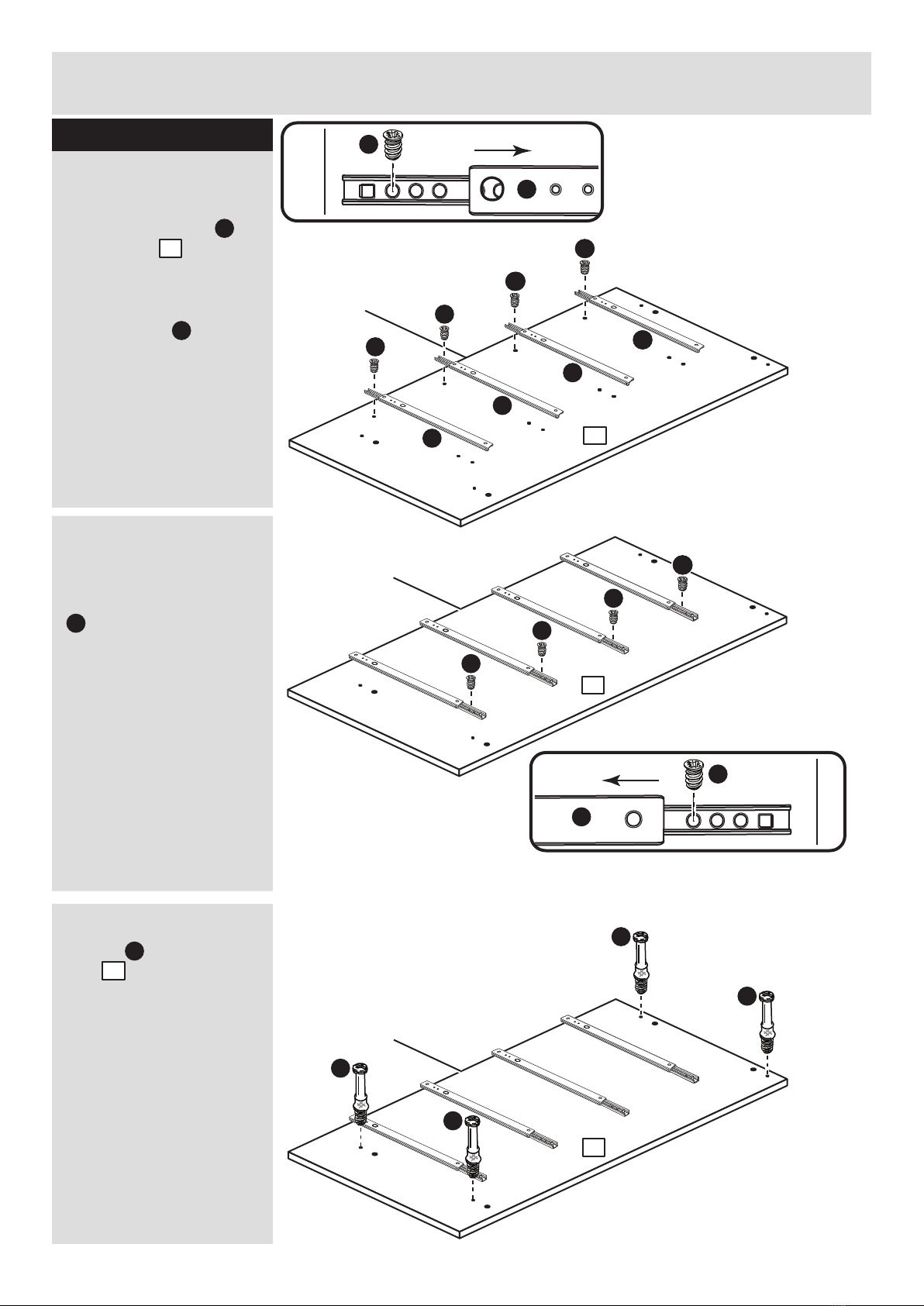

Step 7
Profiled
front edge
I
J
I
J
I
J
I
J
I
J
Profiled
front edge
Back edge
I
J
I
I
I

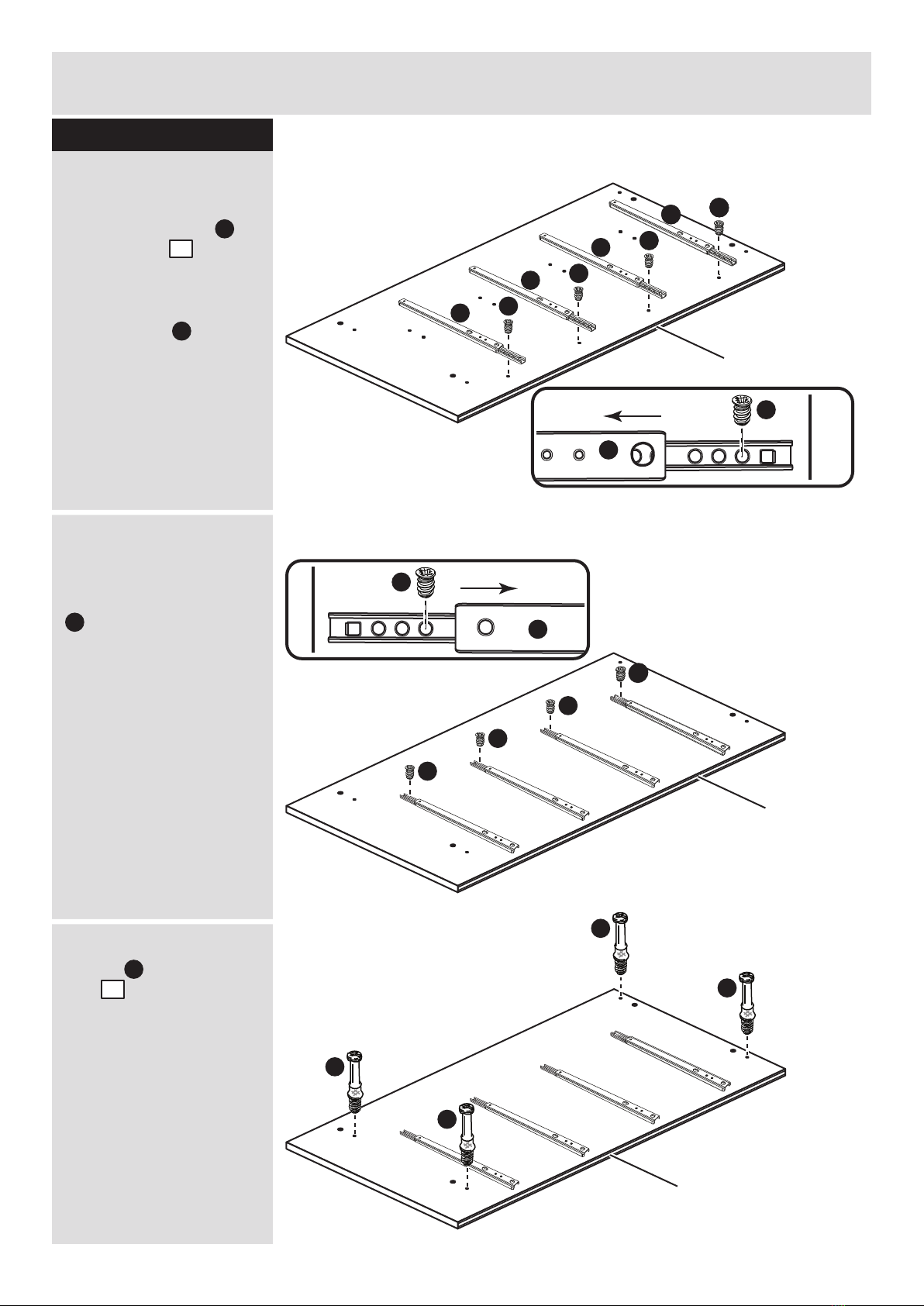

Prepare the left side
a: Place 4 runners on
the left side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the 3rd hole from the
back to fit the 2nd screw
.
c: Screw 4 metal
dowels into the left
side .
a:
b:
c:
1
I
B
1
1
1
I
J
I
J
I
J
I
I
II
I
Profiled
front edge
1
B
B
B
B

Assembly Instructions
7
Step 8
Prepare the right side
a: Place 4 runners on
the right side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the 3rd hole from the
back to fit the 2nd screw
. .
c: Screw 4 metal
dowels into the right
side .
I
J
I
J
I
J
Profiled
front edge
I
J
Back edge
I
J
I
I
I
Profiled
front edge
Profiled
front edge
I
J
2
I
B
2
I
JI J
I
J
I
J
I
I
I
I
I
Profiled
front edge
B
B
B
B

Assembly Instructions
8

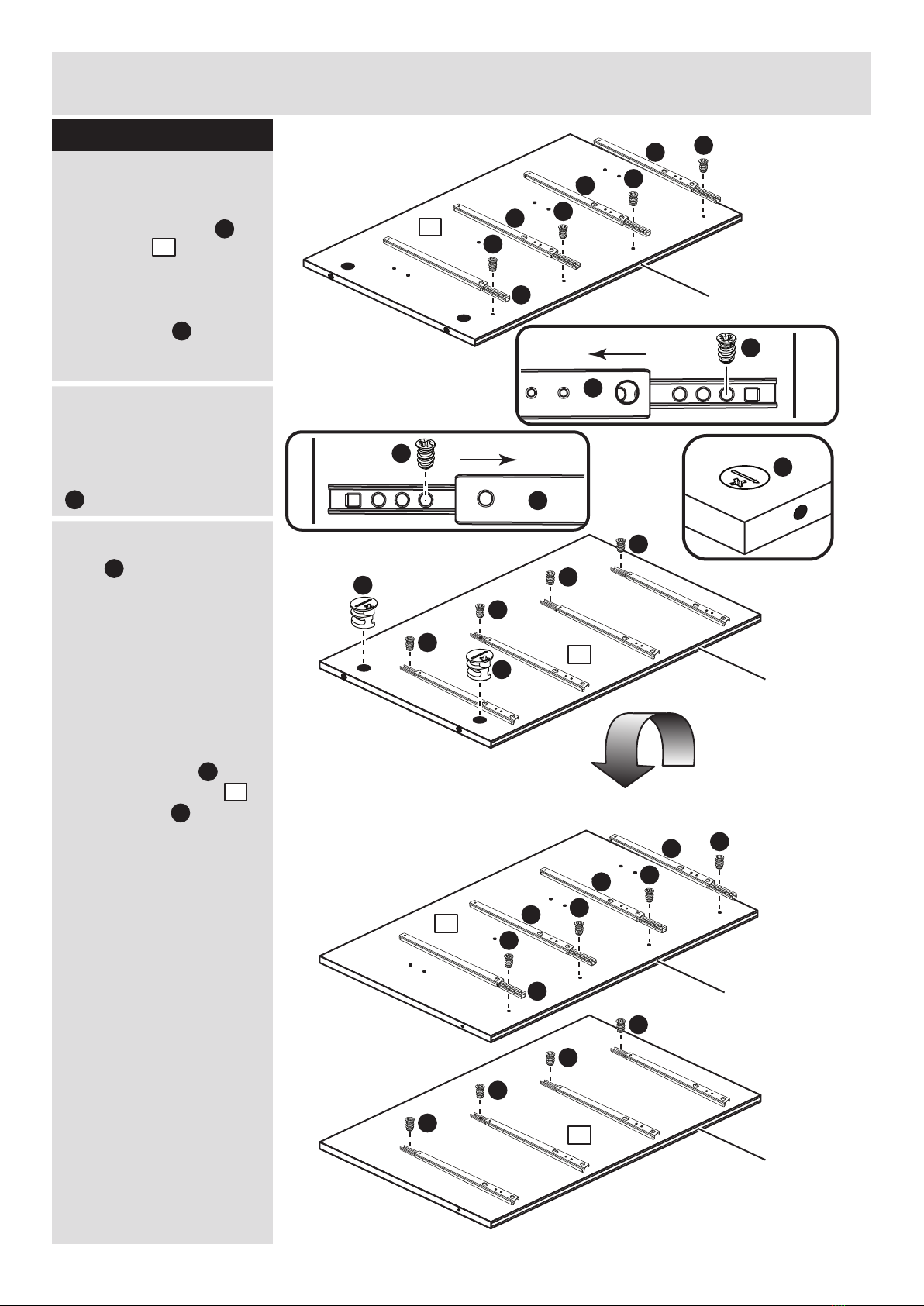

Step 9
Prepare the upright
a: Place 4 runners on
the upright . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the 3rd hole from the
back to fit the 2nd screw
.
c: Insert large locking
nuts as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Turn panel over.
Repeat above instruc-
tions for runners on
other side of upright
using screws .
I
J
I
J
Finished
front edge
I
J
Back edge
I
J
I
I
Finished
front edge
Finished
front edge
I
J
4
I
I
J
I
J
I
I
I
E
Step 9
D
D
4
4
D
Step 8
Prepare the right side
a: Place 4 runners on
the right side . Slide
back the top of the
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the 2nd hole from the
back to fit the 2nd screw
. .
c: Screw 4 metal
dowels into the right
side .
I
J
2
I
I
J
I
J
I
I
Finished
front edge
Finished
front edge
I
J
I
J
I
I
I
4
4
I
J
4Turn the upright over

Finished
front edge
A
A
Assembly Instructions
9
Step 10
Prepare the top
Tap 4 wooden dowels
into the top as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the top
as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Screw 2 metal dowels
into the top .
D
D
D
D
D
A
A
10mm
A
A
3
3
D
D
B
Join the Upright and
top
Push the top onto
the upright as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the upright .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 11
3
3
4
D
D
4
Finished
front edge
3
4
B
3
B
B
Finished
front edge

Assembly Instructions
10
Step 12
D
D
A
5
x 2
Prepare the rails
Tap 2 wooden dowels
into each rail as
shown.
Insert 2 large locking
nuts into each rail
as shown.
Step 13
D5
Note: To make it easier
to fit the side panels,
place polystyrene blocks
from the packaging
underneath the upright
and top panels to raise
the assembly.
Polystyrene
block
2
D
B
3
Profiled
front edge
Join the right side and
top
Push the top onto
the right side as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
3
2
D
D
3
A
A
5

Assembly Instructions
11
Step 14
Step 15
Note: Support this
rail until the left
side has been fitted
in the next step.
4
Finished
front edge
2
5
2
F
4
4
F
5
5
F
F
12
5F
4
2
1
5
5
3
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the top and the rails
. .
Fit support to back
rail using 2 screws
as shown
D
1
D
3
5
Fit the rails
Push the rails onto
the right side as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
Fix through the front rail
using the middle hole
into the upright using
screw .
1
D
5
5
5
4
F
12

Assembly Instructions
12
Step 16
y
y
x
b:
C
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should
be spaced about 150mm
apart.
Stand the unit up for
the next step.
13
C
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
13
Warning: The
unit is heavy.
Lift with care.
4
2
x
13

Assembly Instructions
13
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
ALR2608
Step 17
Fit the drawers
Fit the drawers with the
left drawer boxes and
right drawer boxes as
shown.
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
Assembly is complete
H
J
J
H
2nd threaded
hole
J
H
9 10
Warning: The
unit is heavy.
Lift with care.
H
9
H10
6
6
6
7
7
7
7
6
7

ALR2608

ALR2608

MADE IN
BRITAIN
Dimensions
Width -123.5cm
Depth - 39cm
Height - 74.4cm
Capella - 4 + 4 Drawer Chest
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 5 - 16/05/12
Important - Please read these instructions fully before starting assembly
615/8602
615/8585
615/8592
ALR2608
03/08/11 - Drawer assembly changed to Knock-in Pegs.
Drawer Sides and Drawer Back changed to take Knock-in Pegs.
Upright corrected to D1041A.
25/10/11 - Changed Step 7 to say to use the 1st hole and the 3rd hole of the runner.
25/10/11 - Recreated the AI to meet the set standards and corrected the mistakes.
Changed Step 9 to say to use the 1st hole from the front of the runner, as requested.
615/5571
Issue 5 - 16/05/12 - New Argos code added

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 38kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Components - Panels
Please check you have all the panels listed below
2
1
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
5
2
98
6
10
12
Left Side (D1039A)
(744 x 390mm)
Left Hand Drawer Front (D1044A)
(599 x 157mm) x 4
Back (X832A)
(1229 x 646mm)
Rail (D1043A)
(1205 x 103mm) x 2
Right Side (D1040A)
(744 x 390mm)
Drawer Base (T440)
(317 x 575mm) x 8
Right Hand Drawer Front (D1045A)
(599 x 157mm) x 4
Upright (D1041A)
(621 x 368mm)
Support (D1046A)
(300 x 85mm)
7
13
4
11
Left Drawer Side (W516BLH)
(320 x 95mm) x 8
Right Drawer Side (W516BRH)
(320 x 95mm) x 8
Drawer Back (W440BBK)
(564 x 95mm) x 8
3Top (D1042A)
(1205 x 369mm)

Please check you have all the fittings listed below
Tools required
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 8
B
Metal dowel (F901) x 26
D E
Large locking
nut (F900) x 10
F
G H I
K
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Small locking
nut (F3) x 16
C
Nail (F51) x 22
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
Drawer runner (F1004) x 16
Handle (F930) x 8
25mm Screw (F50) x 16 9mm Screw (F74) x 16 9mm Screw (F73) x 32
45mm Screw (F65) x 3
L
Knock-in Peg (F171) x 32
