Argos Malibu 3 Drawer 2 Door Robe User manual

MADE IN
BRITAIN
Dimensions
Width - 74.5cm
Depth - 50cm
Height - 181cm
Malibu - 3 Drawer 2 Door Robe
Assembly Instructions - Please keep for future reference 227/8232
258/7679
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 9 - 12/01/15
Important - Please read these instructions fully before starting assembly
Ruler - Use this ruler to help correctly identify the screws
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
ALR3033
238/3574
237/1287
258/2904
Issue 2 - 17/09/12 - Added notes to drawer wrap preparation stages telling customer the cams can be either surface of the wrap
279/1496
258/8032
279/1960
257/2512
262/6217
Issue 3 - 11/10/13 - 6 new codes added to front page.
Issue 4 - 18/02/14 - 5 new HD codes added to front page.
Issue 5 - 25/03/14 - New version with metal runners, 3 piece drawer wraps etc...
Issue 6 - 02/06/14 - Code and size of the Back updated to X1710-740
Issue 7 - 30/06/14 - Corrected size of Drawer Front to 710 x 156mm on panels page.
255/7788
247/7662
249/6612
278/0830
278/5189
266/7355
Issue 8 - 04/09/14 - Changed Drawer Back description to W682-124BCK.
Issue 9 - 12/01/15 - Remove Overbalance bracket and scew.
Add overbalance strap kit.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 49.5kgs. Please
lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

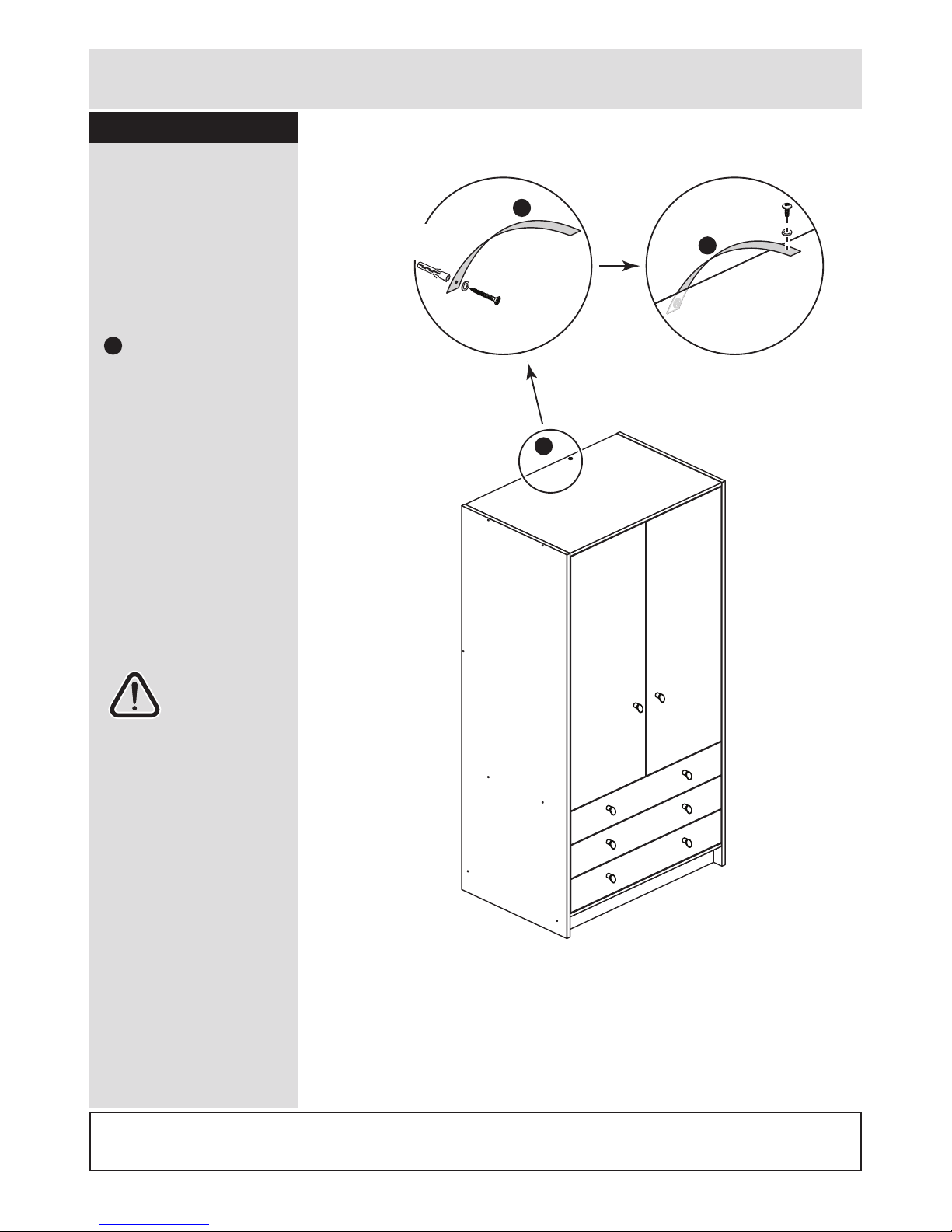

• Safety note: It is
recommended that this unit is
secured to a wall using the
strap supplied.
• Dispose of all packaging
carefully and responsibly.
Glue Safety - Take care when using glue, please follow the advice below
Skin contact: Remove contami-
nation by washing with soap and
water. This procedure should be
followed prior to aeting and
drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
1
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• From time to time check that
there are no loose screws on
this unit.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Components - Panels
Please check you have all the panels listed below
Glue Safety - Take care when using glue, please follow the advice below
Skin contact: Remove contami-
nation by washing with soap and
water. This procedure should be
followed prior to aeting and
drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
2
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• From time to time check that
there are no loose screws on
this unit.
Drawer Divider - D0034A
145 x 249mm
waterfall
1
10
80%
x 2
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
2 5
4
3
11
Left Side (D2871A)
(1808 x 496mm)
Base (D2841A)
(716 x 476mm)
Top (D2870A)
(716 x 494mm)
Right Side (D2872A)
(1808 x 496mm)
12
Plinth (D2873A)
(716 x 92mm) x 2
9
6
Back Rail (D2847A)
(716 x 92mm)
Rail (D2874A)
(716 x 92mm)
Drawer Base (T693-367)
(693 x 367mm) x 3
Left Drawer Side (W370-124LH)
(370 x 124mm) x 3
Right Drawer Side (W370-124RH)
(370 x 124mm) x 3
Door (D2857A)
(1198 x 353mm) x 2
Drawer Back (W682-124BCK)
(682 x 124mm) x 3
14
Drawer Front (D2783A)
(710 x 156mm) x 3
Back (X1710-740)
(1710 x 740mm)
7 8
Hanging Rail (FHR704)
(704mm long)
13
15

Please check you have all the fittings listed below
Glue Safety - Take care when using glue, please follow the advice below
Skin contact: Remove contami-
nation by washing with soap and
water. This procedure should be
followed prior to aeting and
drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
3
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• From time to time check that
there are no loose screws on
this unit.
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 14
B
Metal dowel (F901) x 6
D F
G
40mm Screw (F910) x 14
H
25mm Screw (F50) x 8 Handle (F631) x 8
I
Nail (F51) x 33
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
K
M ON
P Q
Small locking
nut (F3) x 6
Rail holder
(F1014) x 2
E
13mm Screw (F63) x 10
19mm Connecting bolt
(F461) x 2

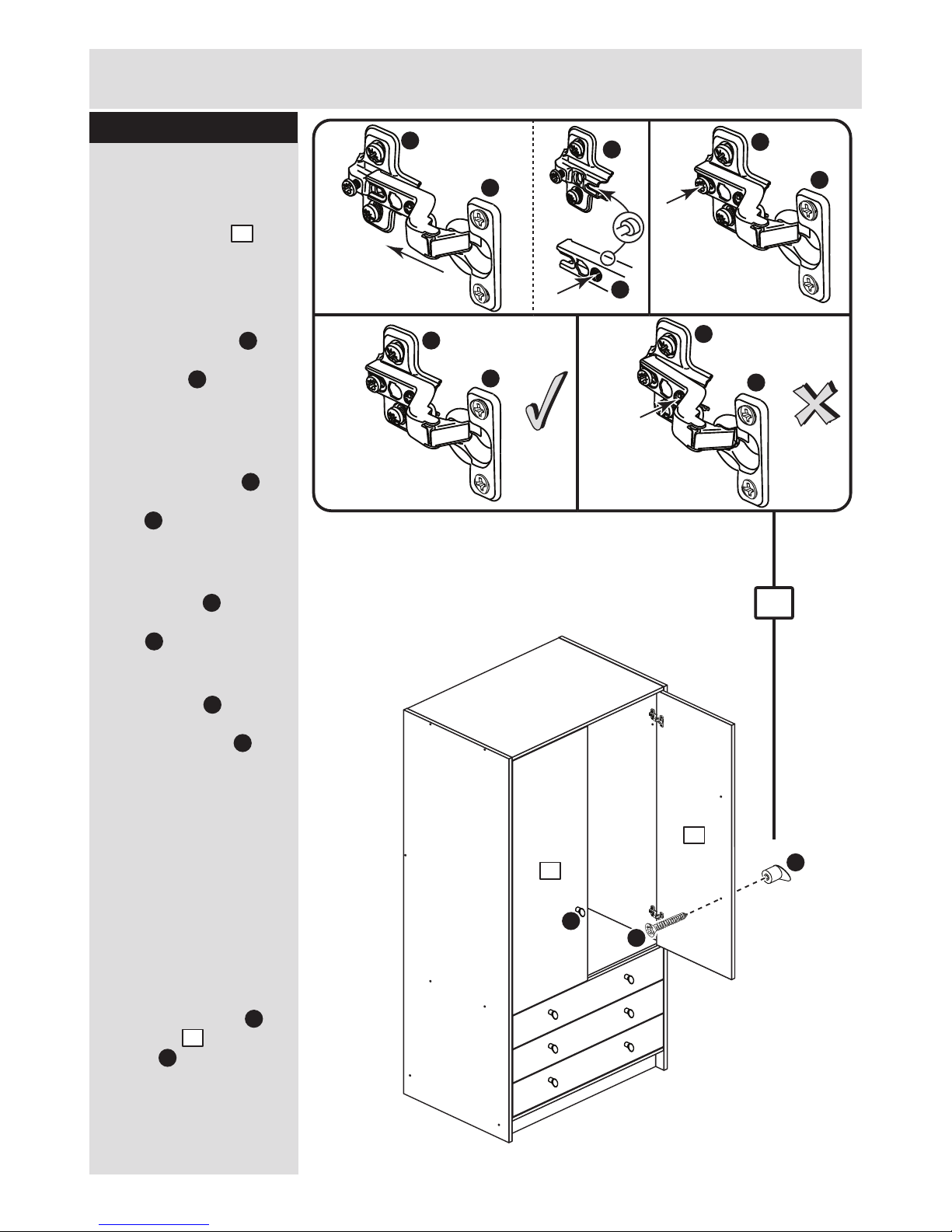

Hinge plate
(F523) x 4
Hinge (F522) x 4
25mm Connecting sleeve
(F432) x 2
Ruler - Use this ruler to help correctly identify the screws
Tools required
R S
J
Drawer runner (F1004) x 6
Knock-in Peg (F171GY) x 12
C
Plastic Nail (F91) x 5
9mm Screw (F74) x 6
L
9mm Screw (F73) x 12
Wedgefix (F639) 12
Rule
Square
Scissors
Spirit level
Hammer
Bradawl
Electric drill
Step ladder
Cross-head screwdriver
Eye protection (when
using a hammer or drill)
TStrap
Screw Washer x 2
Overbalance protector kit (F269) x 1

Assembly Instructions
4
F
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
80%
Step 1
x 3
x 3
x 3x 3
B
B
B
E
Step 2
Prepare the 3 drawer
fronts
Screw 2 metal dowels
into each of the drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panels.
B
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
E
6
7
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
6
7
5
E
E
6
E
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the small groove is on the inside, as shown.
EE
67
5
B
B
5
6
7
75

Assembly Instructions
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
5

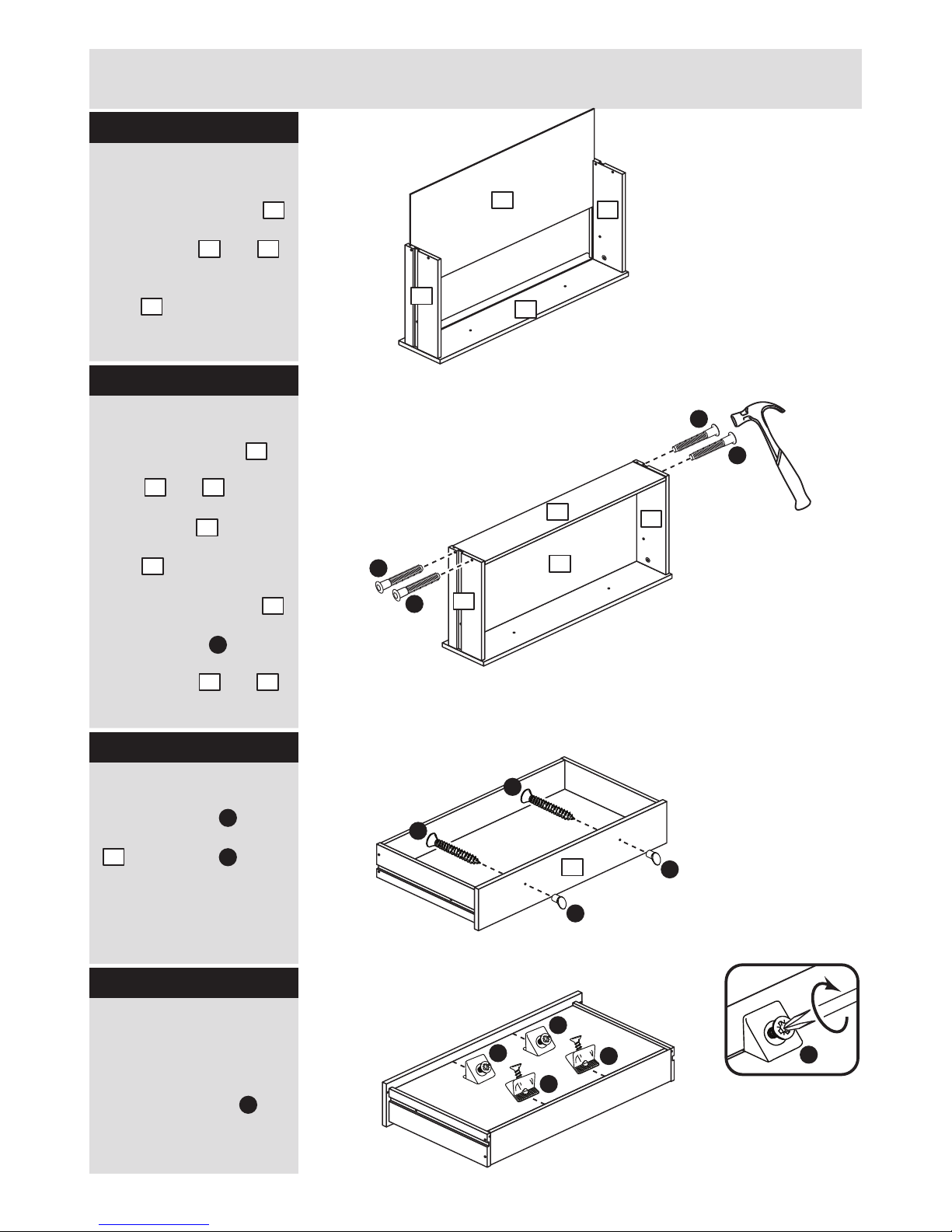

Step 4
R
R
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
9
6 7
5
8
6 7
9
8
8
R
Attach the handles
Attach a handle to
each of the drawer fronts
. using screw .
Note: Do not
overtighten the screw.
I
H
5
x 3
x 3
x 3
R
R
6 7
x 3
Step 7
J
J
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 4 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
J
9
6
7
5
8
6
7
9
H
H
5I
I
J
J
J

Finished
front edge
Assembly Instructions
Step 8
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
6
Step 1
80% x 3
L
P
L
P
L
P
Finished
front edge
L
P
a:
Finished
front edge
b:
Finished
front edge
c:
L
L
L
F
K
O
O
O
Prepare the left side
a: Place 3 runners on
the left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
c: Fit 2 hinge plates
onto the left side
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
1
L
L
1
1
P
P
O
F
K
1
1
1
1

Assembly Instructions
Step 9
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
7
a:
b:
c:
Prepare the right side
a: Place 3 runners on
the right side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
c: Fit 2 hinge plates
onto the right side
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the right side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
2
L
L
2
2
P
P
O
F
K
2
Finished
front edge
L
P
L
P
L
P
L
P
L
L
L
O
O
F
K
O
2
2
2
Finished
front edge
Finished
front edge
Finished
front edge

Finished
front edge
G
G
G
G
A
A
Assembly Instructions
Step 10
8

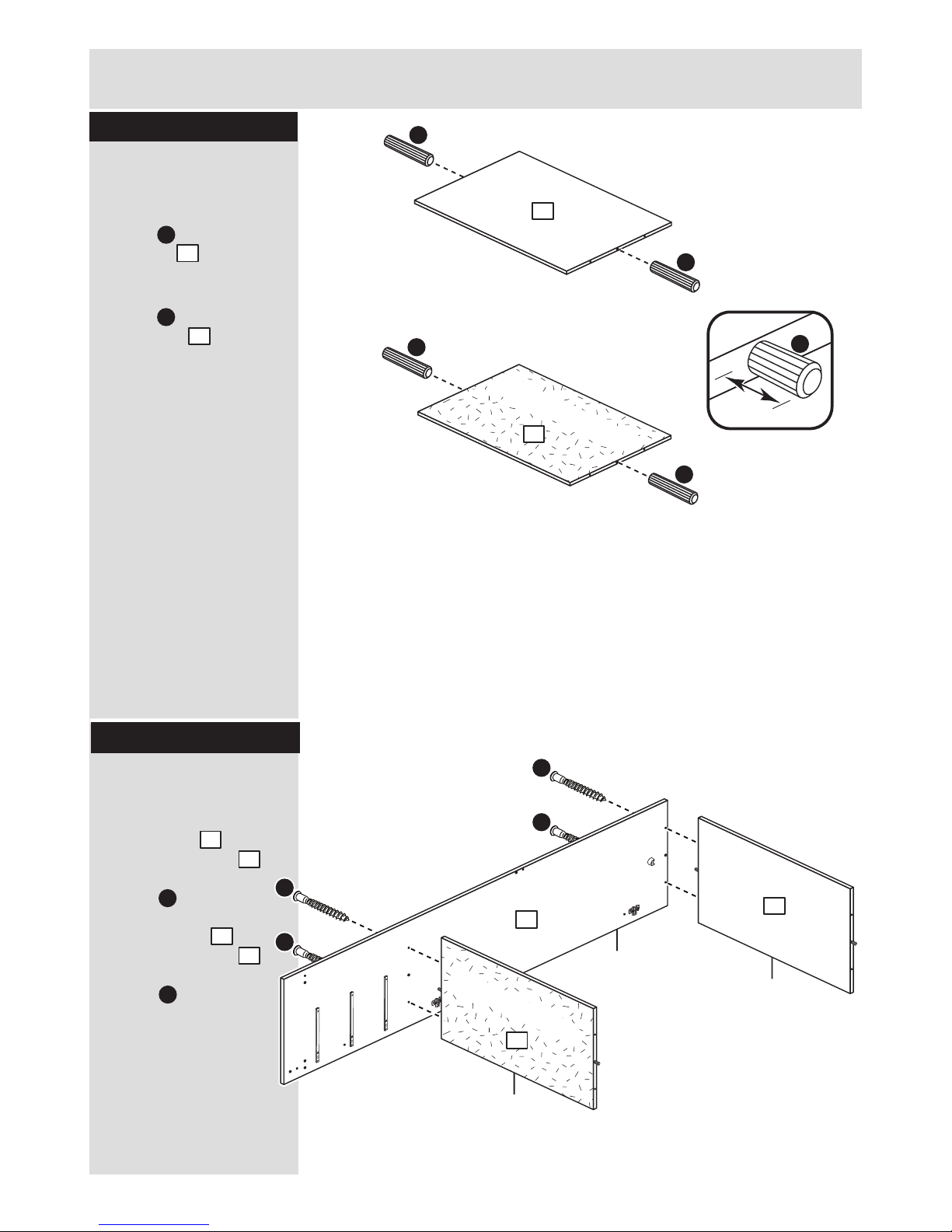

Prepare top and base
a: Tap 2 wooden
dowels into the ends
of the top .
b: Tap 2 wooden
dowels into the ends
of the base .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
A
A
3
4
a:
b:
Fit the top and base
to the right side
Push the top
onto the right side
and secure with 2
screws .
Push the base
onto the right side
and secure with 2
screws .
3
4
2
2
G
G
Step 11
A
A
4
plain chipboard surface
3
10mm
A
Finished
front edge
Finished
front edge
plain chipboard surface
4
3
2

Assembly Instructions
Fit the rail
Push the rail onto the
right side .
Finished
front edge
Finished
front edge
A
A
Assembly Instructions
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
9
Step 12
Step 13

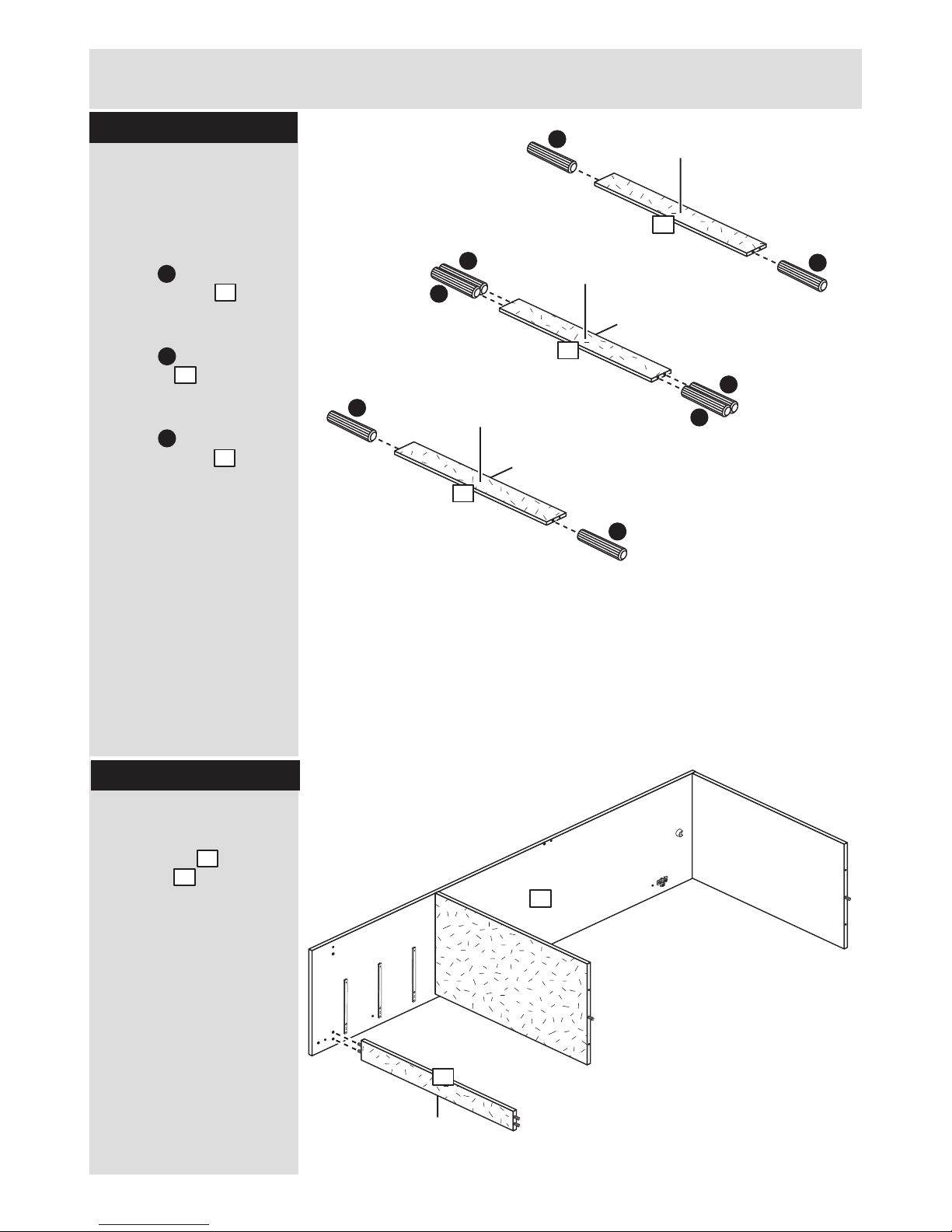

Prepare the 2 plinths,
the rail and the back
rail
a: Tap 2 wooden
dowels into the ends
of the 2 plinths .
b: Tap 4 wooden
dowels into the ends
of the rail .
c: Tap 2 wooden
dowels into the ends
of the back rail .
A
10
A
12
A
11
11
2
A
A
A
A
A
A
x 2
Plain chipboard
surface
Plain chipboard
surface
Finished
front edge
Plain chipboard
surface
10
12
11
11
2

Assembly Instructions
This outer face should
be the same colour as
the main unit panels
10
Step 12
Step 14
G
Fit the 2 plinths
2 people are needed
here
a: Push the
plinth at the
front of the unit
onto the right
side and
secure with
screw .
b: Push the plinth at
the back of the unit onto
the right side and
secure with screw .
Note: Support the plinth
at the back of the unit
until the left side has
been fitted.
10
2
G
Fit the back rail
Push the back rail
onto the right side
and secure with screw .
Note: Support the back
rail until the left side has
been fitted.
G
12
2
Step 15
G
10
2
Ga:
b:
G
Finished
front edge
10
10
12
2
2

Assembly Instructions
11
Step 16
Step 17
Fit the left side and
the 4 plastic nails
Push the left side
onto the unit and secure
with 7 screws .
Tap 2 plastic nails
into the bottom edge of
each end and
and 1 into the plinth
as shown.
G
1
G
G
G
G
G
G
G
Warning: The
robe is heavy.
Lift with care.
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
D
15
yy
yy
x
x
1
C
C
C
C
C
1 2
2
10
10
C
b:
D
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Stand the unit up for
the next step.
15
D
15

Assembly Instructions
12
Step 18
Fit the hanging rails
and drawers
a: Push the hanging rail
. into the rail holders .
b: Starting with the
bottom drawer, slide
both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws.
If they catch on the
runner you may need to
loosen them slightly.
13 F
13
F
b:
a:
2nd threaded
hole
P
S
P
6 7
P
S
S
S
13
Step 19
Prepare the 2 doors
Push fit 2 hinges into
each door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
K
Q
14 Q
K
K
90
Q
Q
K
K
14
x 2

Assembly Instructions
Small piece of
waste wood
14
Small piece of
waste wood
14
13

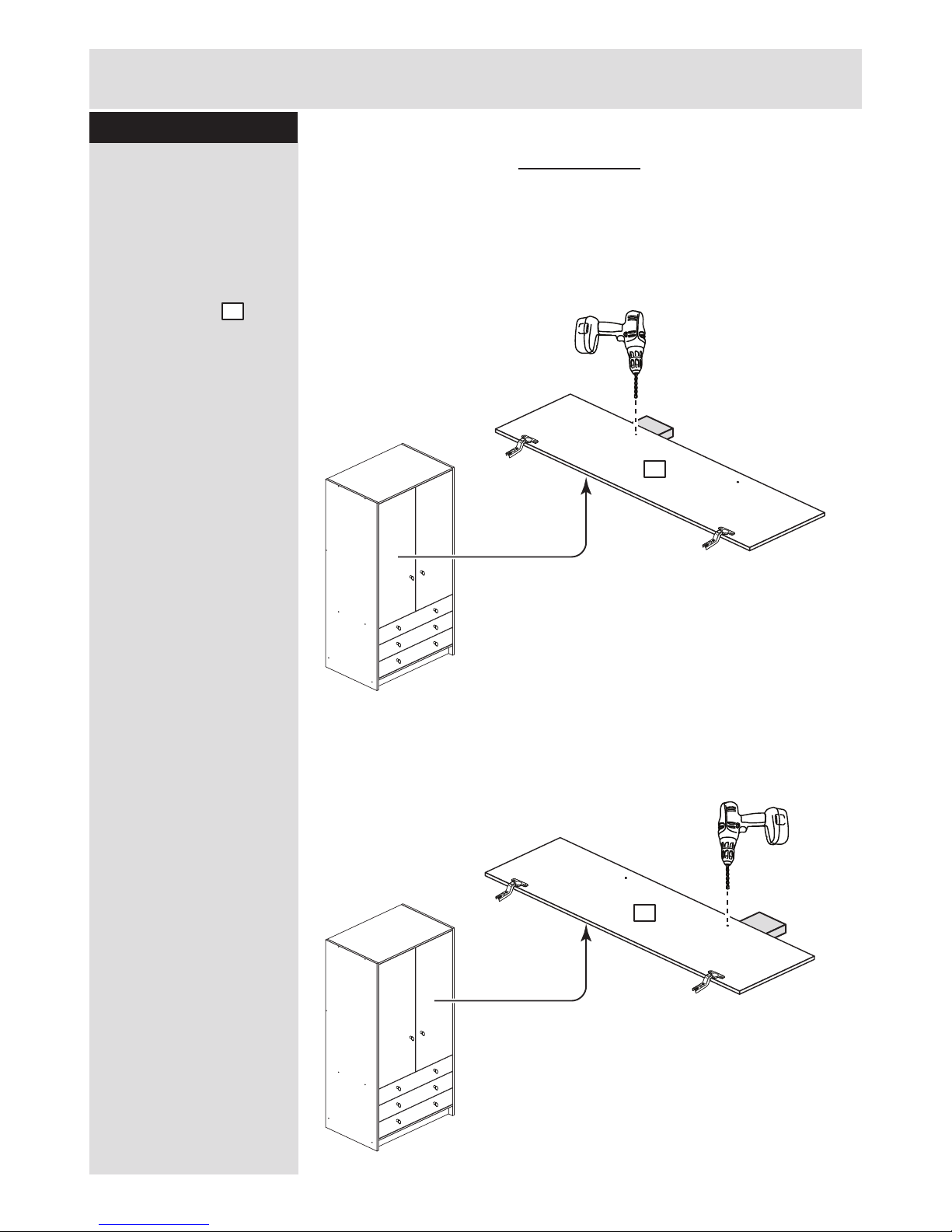

Step 20
Drill a handle hole in
each door
Important: Please follow
these instructions
carefully.
Lay the 2 doors
down onto a smooth
surface.
Check that the hinges
and holes are in the
same place as the
diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.
Using the pilot hole in
the rear face of the door,
drill through the hole
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over and
open out the 2.5mm hole
that you have just drilled
by drilling back through it
with a 5mm drill.
IMPORTANT
Carefully choose which hole
you need to drill in each door
14
ONLY drill this
hole in 1 door
This will be
the left door
ONLY drill this
hole in 1 door
This will be
the right door
x 1
x 1

Assembly Instructions
14
Step 21
Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door using
screws .
Q
Q
Q
O
O
O
Q
O
I
H
14
14
a: b:
c: d:
O
Q
O
O
B
O
Q
Q
Q
A
Q
O
B
e:
Note: When fitting the doors, make sure
that the handle hole you had to drill is
nearest to the bottom of each door.
I
H
I
14
14

Assembly Instructions
15
Step 22
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C

Assembly Instructions
16
Step 23
Joining units together
Fittings have been
supplied so you are able
to join units together.
Make sure that your first
unit is level.
Push the other unit up
against the first unit and
ensure both units are
level.
Check that the ends are
flush and in line, then
clamp them together.
Using a 5mm drill bit,
drill through the 2 holes
(shown circled) in the
side panel into the
adjoining side panel of
the other unit.
Push the connecting
sleeves into the holes
and then screw the
connecting bolts in
from the other side.
5mm
N
M
N
M
N
M

Assembly Instructions
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
17
Step 24
L
Fit the overbalance
protector kit
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
WARNING.
This unit is heavy.
Lift and handle with care.
T
T
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
T
Strap
Washer
Screw
TOP OF UNIT
T

ALR3033
