ARJO HUNTLEIGH KWIKtrak Installation guide

KWIKtrak 4-Post 
Semi-Permanent Rack Assembly
Assembling Instructions
001.11950.EN rev. 2 • December 2011

Design Policy and Copyright
® and ™ are trademarks belonging to the ArjoHuntleigh group
of companies.
© ArjoHuntleigh 2011.
As our policy is one of continuous improvement, we reserve the
right to modify designs without
prior notice.The content of this publication may not be copied
either whole or in part without
the consent of ArjoHuntleigh.

3
General Information....................................................................4
Forward ....................................................................................4
Service and Support .................................................................4
Supplier Information................................................................5
Definitions Used in this Manual ..............................................5
Intended Use ............................................................................5
Verifying the Package Contents upon Receipt.........................5
How to Use this Manual ..........................................................5
Safety Instructions .......................................................................6
Safety Instructions and Warnings ............................................6
Part Designation...........................................................................7
Semi-Permanent Rack System.................................................7
Required Tools .........................................................................8
Assembling Instructions..............................................................9
Assembling the 4-Post Rack ....................................................9
Specifications................................................................................20
Table of Contents

4
Forward
Please read this manual in its entirety before using
your ArjoHuntleigh Semi-Permanent Rack
system. The information in this manual is crucial
to the proper operation and maintenance of the
equipment, and will help protect your product as
well as ensure that the equipment performs to
your satisfaction. Lifting a person always presents
a potential risk. Some of the information in this
manual is important for your safety and must be
read and understood to help prevent injuries.
ArjoHuntleigh strongly advises and warns that to
avoid injuries that can be attributed to the use of
inadequate parts, only parts designated by
ArjoHuntleigh should be used on equipment and
other appliances supplied by ArjoHuntleigh.
Furthermore, unauthorized modifications on any
ArjoHuntleigh equipment may affect its safety.
ArjoHuntleigh will not be held responsible for any
accidents, incidents or deficiencies of
performance that occur as a result of any
unauthorized modification to its products.
Service and Support
If you require further information, please contact
your local ArjoHuntleigh representative who can
offer comprehensive support and service
programs to maximize the long-term reliability,
safety and value of the product. You could also
contact your local ArjoHuntleigh representative
for replacement parts. Your service representative
stocks the parts you will need.
Additional copies of this manual can be purchased
from your local ArjoHuntleigh representative.
When ordering, include the user manual product
number (see front page) and equipment
identification number.
General Information
Thank you for purchasing the
ArjoHuntleigh Semi-
Permanent Rack system.
Your Semi-Permanent Rack
system is part of a series of
quality products designed
specially for home care,
nursing homes and other
health care uses.
We are dedicated to serving
your needs and providing the
best products available along
with training that will bring
your staff the maximum
benefit from every
ArjoHuntleigh product.
Please read this manual
thoroughly, and contact us if
you have any questions about
the operation or maintenance
of your ArjoHuntleigh
equipment.

5
General Information
Supplier Information
This product has been manufactured by: 
ArjoHuntleigh AB
Verkstadsvägen5
24138Eslöv
SWEDEN
Definitions Used in this Manual
Means: Failure to understand and follow
these instructions may result in injury to
yourself and others.
Means: Failure to follow these instructions
may cause damage to the product(s).
Means: This is important information
regarding the correct use of the equipment.
Intended Use
The ArjoHuntleigh Semi-Permanent Rack
system is designed to be used as a
temporary or permanent free standing
system from which to transfer patients using
one of ArjoHuntleigh’s ceiling lifts.
Verifying the Package Contents
upon Receipt
Upon receipt of the equipment, verify it
against the packing list to ensure it is
complete and inspect the equipment for
possible damage due to shipping. If there is
any damage, DO NOT USE the equipment
WARNING:
CAUTION:
NOTE:
and notify the carrier immediately to file a
claim. Provide complete information
concerning damage claims or shipping
errors to your local ArjoHuntleigh
representative. Include all equipment
identification numbers and group part
numbers (if any) as described above along
with a full description of damaged parts.
How to Use this Manual
To ensure the safe operation of the
ArjoHuntleigh Semi-Permanent Rack
system, read the entire manual carefully
before installing or servicing this
equipment.
If anything is not completely understood,
please contact your local ArjoHuntleigh
representative for more details. Failure to
comply with warnings in this manual may
result in injuries.
WARNING: Do not attempt to use this
equipment without fully understanding the
information contained in this manual.

6
The equipment must be used in accordance
with these safety instructions.
Anyone using the equipment must also have
read and understood the instructions in this
manual. If there is anything you are not sure
about, contact your local ArjoHuntleigh
representative.
Safety Instructions and Warnings
• The Semi-Permanent Rack system
installation must be performed by two
persons.
• All track ends must have a KWIKtrak
autolock stopper in place and secured.
• The Semi-Permanent Rack system is
designed to be used with all KWIKtrak
lifts having a service weight load rated
to a maximum of 600 lb.
• Make sure all components are present
(see table on page 7) .
• Follow the assembly procedure
sequence.
• Use each and every one of the parts –
DO NOT leave any out.
• This equipment must be used by a
caregiver with proper training to work
with the patient to be transferred.
• When performing a transfer, do not
allow the patient to swing on the rack.
WARNING: The maximum track length for
this system is determined by the lift in use,
as well as the track size. See Fig. 1. for
details.
Fig. 1
Maximum Mobile Track Span VS
Lift Capacity & Track Style
Track
Lift
Capacity 90 mm 140 mm 180 mm
200 Kg
(440 lb)
3 m
(9 ft 10 in)
4.5 m
(14 ft 9 in)
6 m
(19 ft 8 in)
270 Kg
(600 lb) 3.5 m
(11 ft 6 in)
4.5 m
(14 ft 9 in)
WARNING: Firmly tighten all fasteners.
Periodically inspect and retighten fasteners
to a torque of 20 N•m (15 lbf•ft) as required.
Safety Instructions

7
Semi-Permanent Rack System
Fig. 2
Item # Description Quantity
1Post 4
2 Corner bracket assembly 1
3 Parallel track (X) 2
4 Parallel track (Y) 2
5 Autolock end stoppers 6
6 XY trolley 1
7 Mobile track (X) 1
8Plastic end cap 6, 10 or 12, according to model
Plastic end cap (halves - for kit including H140 rails 2 or 6, according to model
9 Adjustable levelling feet 4
10 Hex bolt with lockwasher & plastic cap 8
Part Designation

8
Part Designation
Sold Separately
Fig. 3
Required Tools
5 mm Allen key 17 mm hexagonal key
6 mm Allen key Bubble level
8 mm Allen key
TROLLEY FOR PORTABLE LIFT
700.10650
OR
CHARGER INTERFACE
FOR FIXED CEILING LIFT
700.15510
NOTE: Installation instructions for the charger interface for fixed ceiling lifts are included with
the Charger Interface Kit.

9
Assembling Instructions
Assembling the 4-Post Rack

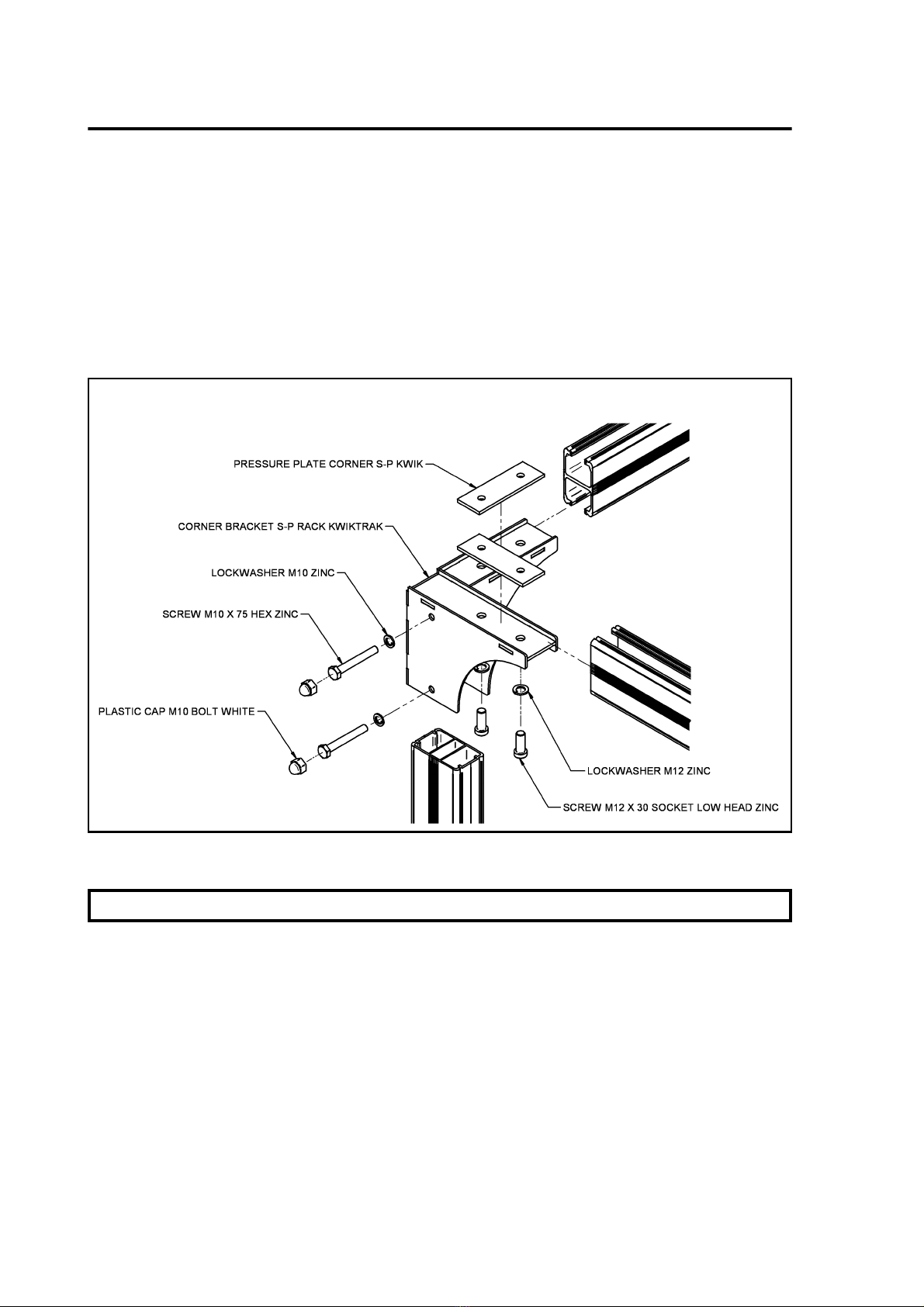

Post Assembly- Corner Brackets
Each set of pressure plates are assembled to the corner brackets prior to delivery.
1. Please verify the following (see Fig. 4):
• Check if pressure plates are attached to the corner bracket with two M12 x 30 socket
low-head bolts.
• Verify that the lockwashers are installed at their proper place as shown.
Fig. 4
2. Fasten the corner bracket assembly to the top of each post. Do so for all four posts.
• Properly insert the two screws (M10 x 75 HEX) through the post and tighten to a torque
of 20 N•m (15 lbf•ft). Secure them with the corresponding locknuts using a 17 mm
socket tool or hexagonal key.
• Verify that the lockwashers are installed at their proper place as shown.
NOTE: At this stage, there is no need to tighten this part of the assembly.

10
Assembling Instructions

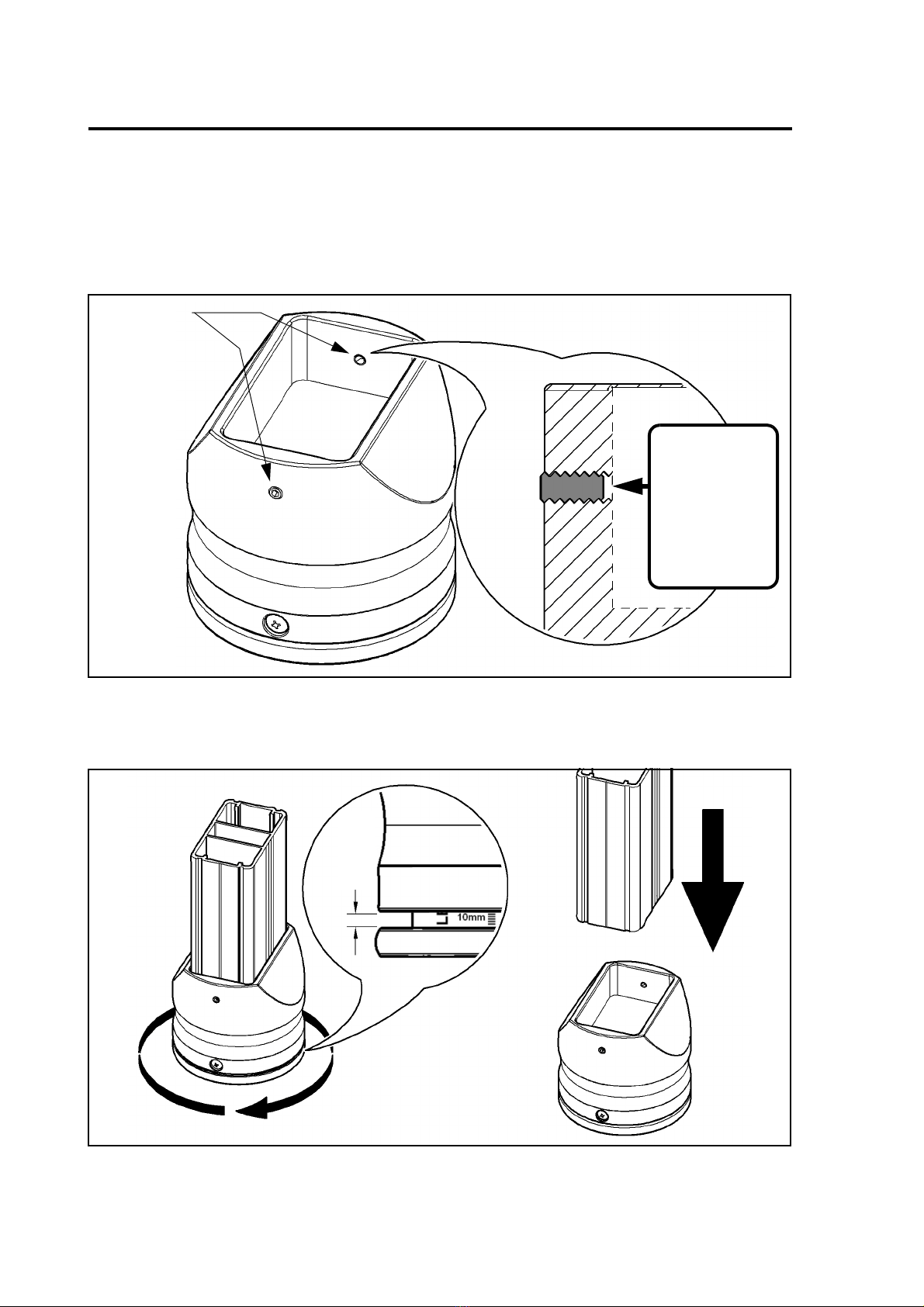

Post Assembly - Levelling Feet
3. Make sure that the levelling feet turn easily and without friction.
• Verify that the M6 x 10 HC screws (part #000.03030) does not protrude into the inner
cavity of the levelling feet before attempting to insert the posts.
Fig. 5
4. Adjust the bottom part of the levelling feet so that there is about 10 mm (3/8 in) play. Insert
each post within its corresponding levelling foot.
Fig. 6
M6 x 10 HC
screws
Screws must
not protrude
into inner
cavity when
post is
inserted.
10 mm
(3/8 in)

11
Assembling Instructions
• Tighten the M6 x 10 HC screws to a torque of 4 N•m (3 lbf•ft).
Fig. 7
End Stoppers
5. End stoppers must be securely positioned in various places within the Semi-Permanent
Rack system. These stoppers:
• prevent collision contacts between the mobile XY track and the corner brackets;
• make the installation safer by greatly reducing the risk of the mobile track shifting from
its position in the event that the end of the track should be subjected to a violent impact;
• prevent the possibility of the installed track lift from falling from either end of the mobile
track.
Look carefully for information concerning the various installation locations for end stoppers in
the following assembly instructions.
Torque both
screws to 4 N•m
(3 lbf•ft).
Turn
clockwise to
raise post.
Maximum
elevation
25,4 mm (1 in).

12
Assembling Instructions

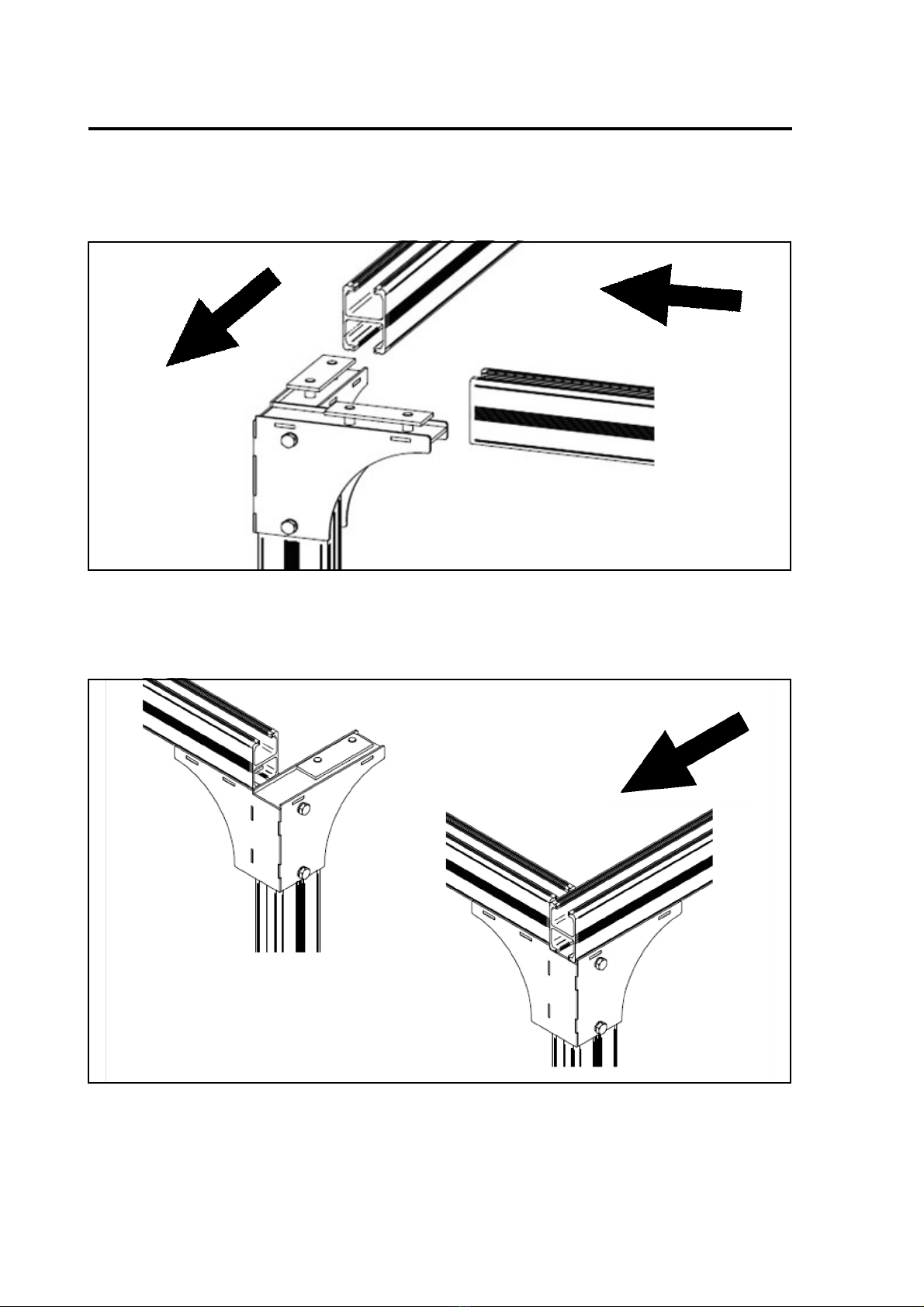

Inserting Fixed Tracks to the Post Assembly
Make sure the fixed tracks are properly inserted on the correct side (see Fig. 8).
Fig. 8
6. Choose two of the four fixed track sections that will hold the trolleys for the mobile track
(see Fig. 2, item #4)
7. Slide the individual XY kit trolleys and end stoppers into both of the selected fixed track
sections (see Fig. 9).
Fig. 9

13
Assembling Instructions

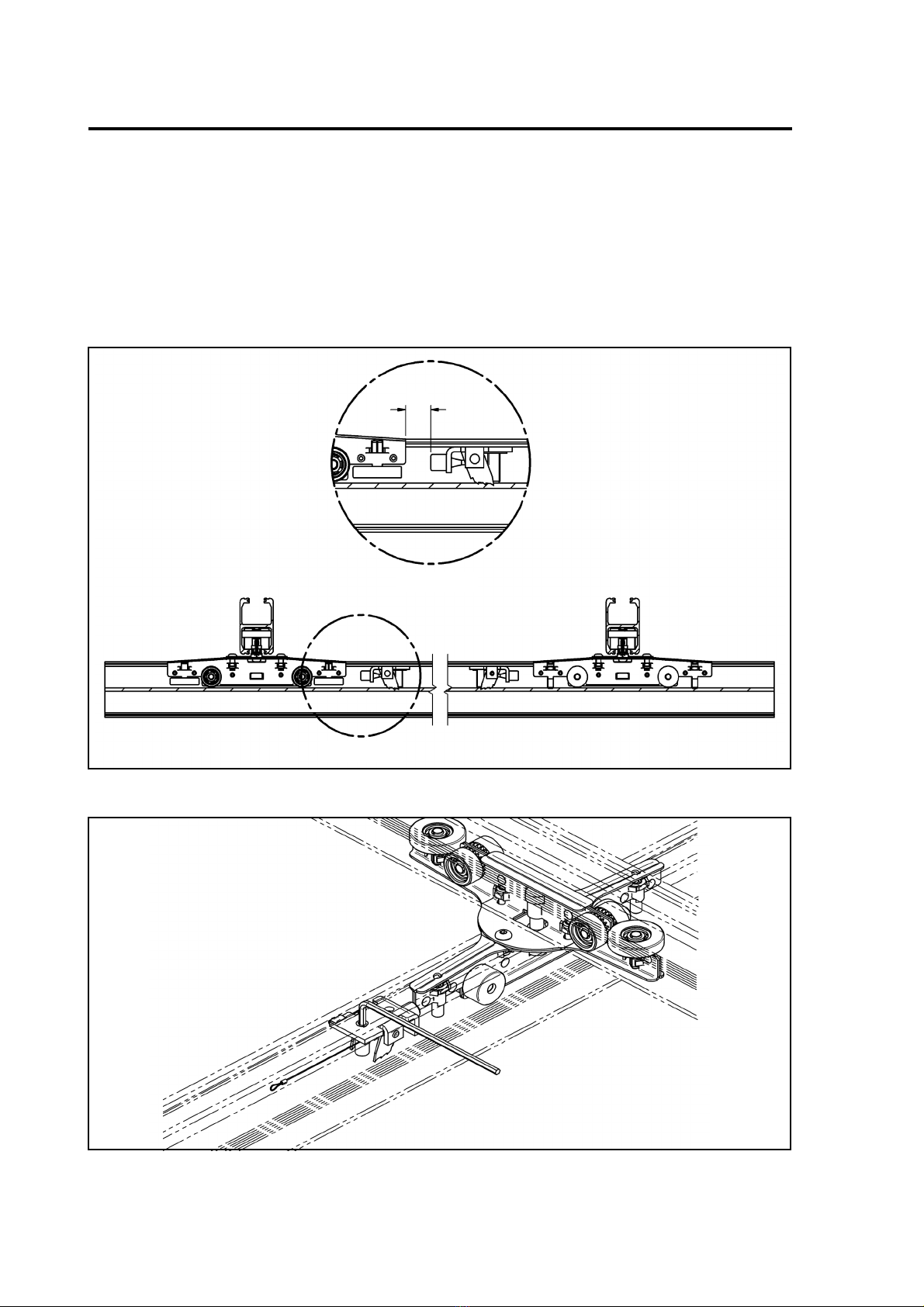

8. Insert the selected fixed track sections into the corner brackets with the pressure plates
positioned in the lower channel of the fixed track (see Fig. 10). Be careful not to allow the
trolleys for the mobile track or the end stoppers to fall out.
Fig. 10
9. Make sure that the fixed track are positioned flush with the outer edges of the corner
bracket of the top post assembly (see Fig. 11).
Fig. 11
10. Secure the assembly by firmly tightening the four screws (M12 x 30 low head socket
screws) located on the bottom of each of the corner brackets (see Fig. 12).

14

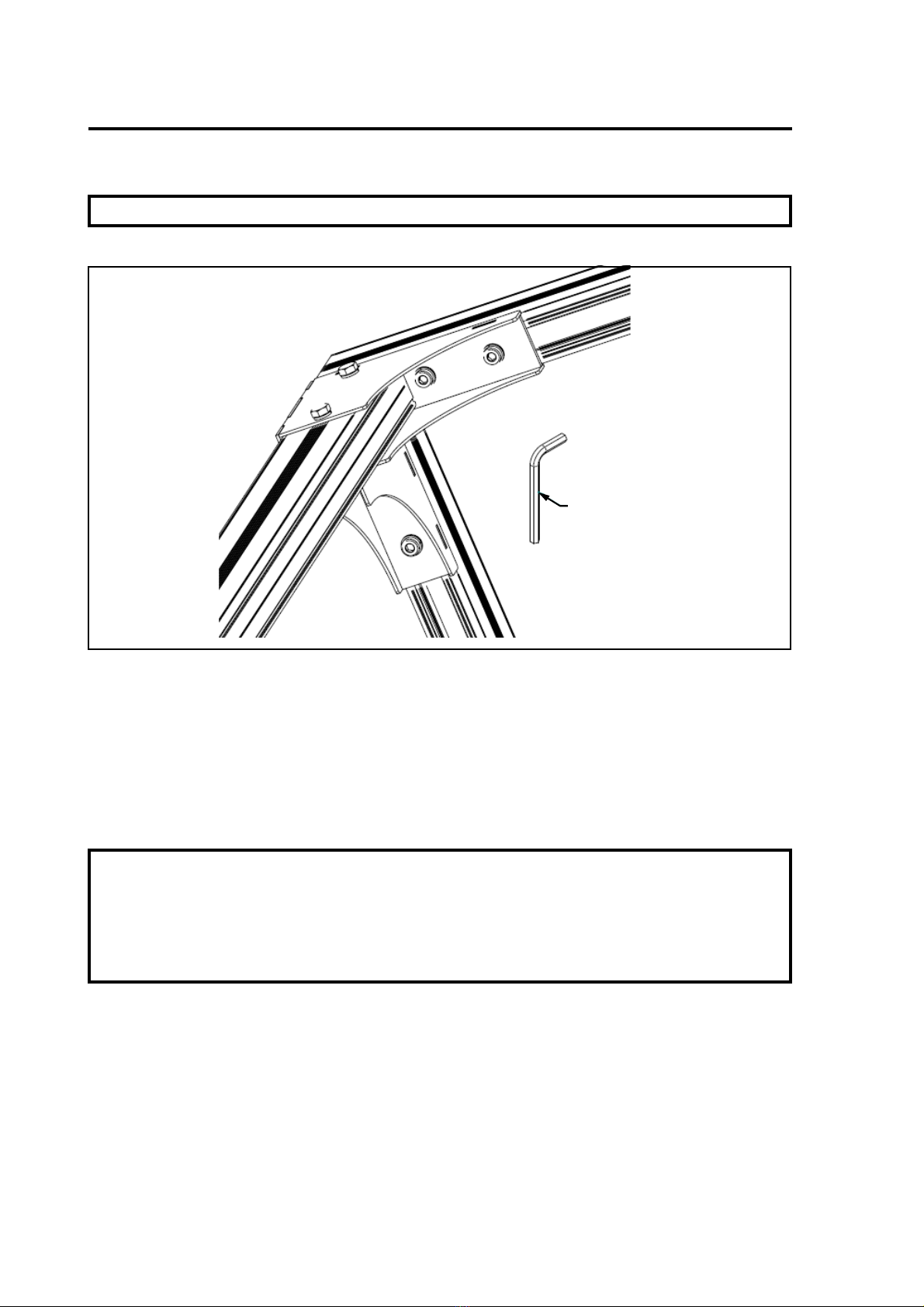

Assembling Instructions
Fig. 12

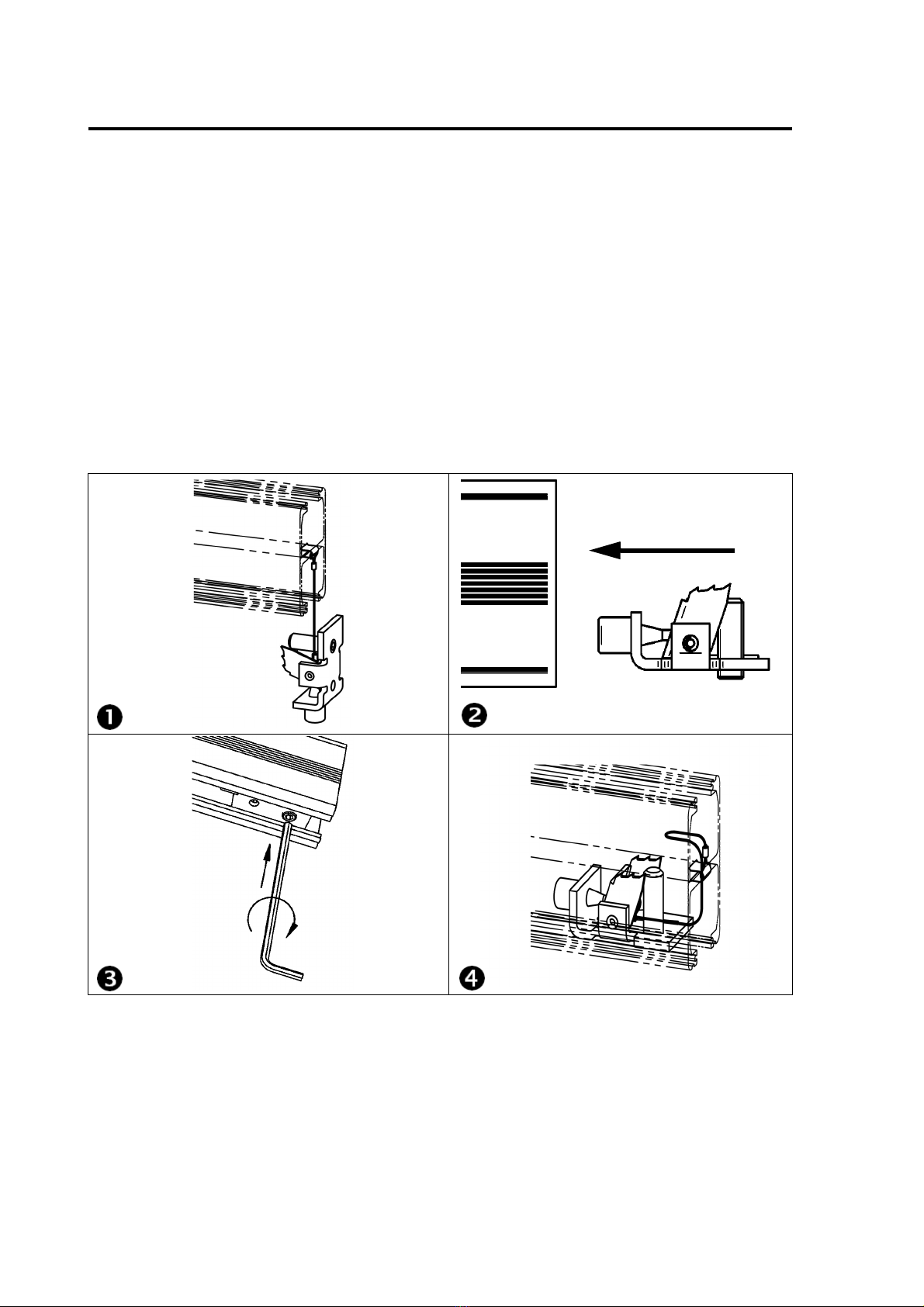

11. Slide the four individual autolock end stoppers towards the four ends of the two parallel
tracks, to prevent the mobile XY track from running into any of the corner brackets.
12. Tighten the setscrews on the end stoppers using a 6 mm Allen key. Make sure that the
lockwashers are installed in their correct positions.
13. Insert the white plastic caps onto the ends of the 4 tracks.
Levelling the assembly
14. Place a bubble level on one of the horizontal tracks.
15. The first person can raise the posts from the ground while the other adjusts the level by
rotating the bottom of the levelling feet until the horizontal track is perfectly horizontal.
16. Move the bubble level to the next horizontal track and repeat previous steps until the entire
rack is perfectly levelled.
CAUTION: Make sure that the lockwashers are installed at the proper locations.
ALLEN KEY 8MM
NOTE: Levelling the assembly must be performed prior to mounting the mobile track to the
system. Two people are needed to level the Semi-Permanent Rack system. 
Do not place hands under the posts, grab the levelling feet by its side to prevent risk of pinching
fingers when adjusting.
Do not force the levelling feet to extend beyond its maximum adjustable height of 25,4 mm (1 in).

15
Assembling Instructions
Mounting the Mobile Track
The 4-Post Semi-Permanent Rack system is designed to receive a track lift for safe patient
transfers. The track lift is installed on a mobile track that allows the lift to move within the area
spanned by the 4-Post system.
Once all four fixed tracks are joined to their corresponding posts:
17. Slide the mobile track onto the wheeled trolleys suspended under the parallel fixed tracks.
Be sure to include the end stoppers that came wrapped with the XY trolley kit in the right
sequence and direction (see Fig. 13 and Fig. 14).
Fig. 13

16
Assembling Instructions
Fig. 14
Once the mobile track is in place:
18. Straighten the track so that it is squared to the fixed tracks.
19. Tighten the setscrews on the trolleys with a 5 mm Allen key (see Fig. 15).
Fig. 15
End stoppers
BOTH PLACES

17
Assembling Instructions
20. Slide the mobile track completely from one end of the 4-post system to the other end to
ensure that the track is perfectly squared. The mobile track should contact the end stoppers
of the fixed track evenly. If not, loosen the setscrews, readjust the mobile track, and
retighten the setscrews (see Fig. 15).
21. Slide the autolock end stoppers on the mobile track to a distance of 25 mm (1 in) from each
of the XY trolleys (see Fig. 16).
22. Tighten the setscrews on the end stoppers using a 6 mm Allen key (see Fig. 17).
Fig. 16
Fig. 17
2.5 mm
1 in
Detail B
B

18
Assembling Instructions
Inserting the Track Lift into the Mobile Track
Once the XY mobile track has been properly mounted and secured:
23. Position the first end stopper at the edge of the mobile track. Secure the end stopper
according to the following procedure (see Fig. 18).
• Attach the U clip connected to the end stopper to the track.
• Insert the end stopper into the track and test the end stopper by trying to push it back out
of the track. The stopper should not be able to move.
• Firmly tighten the setscrews using a 6 mm Allen key. The end stopper is now installed.
• Slide the lift or portable trolley into the mobile track (see Fig. 19).
24. Insert the second stopper into the mobile track. Secure the end stopper according to the
same procedure listed above.
Fig. 18
25. Install plastic end cap at each end of the mobile track (see Fig. 20).

19
Assembling Instructions
Fig. 19
Fig. 20
RAIL STOPPER
(INSERT THE TRACK LIFT BEFORE
INSTALLING THE SECOND RAIL
STOPPER)

20

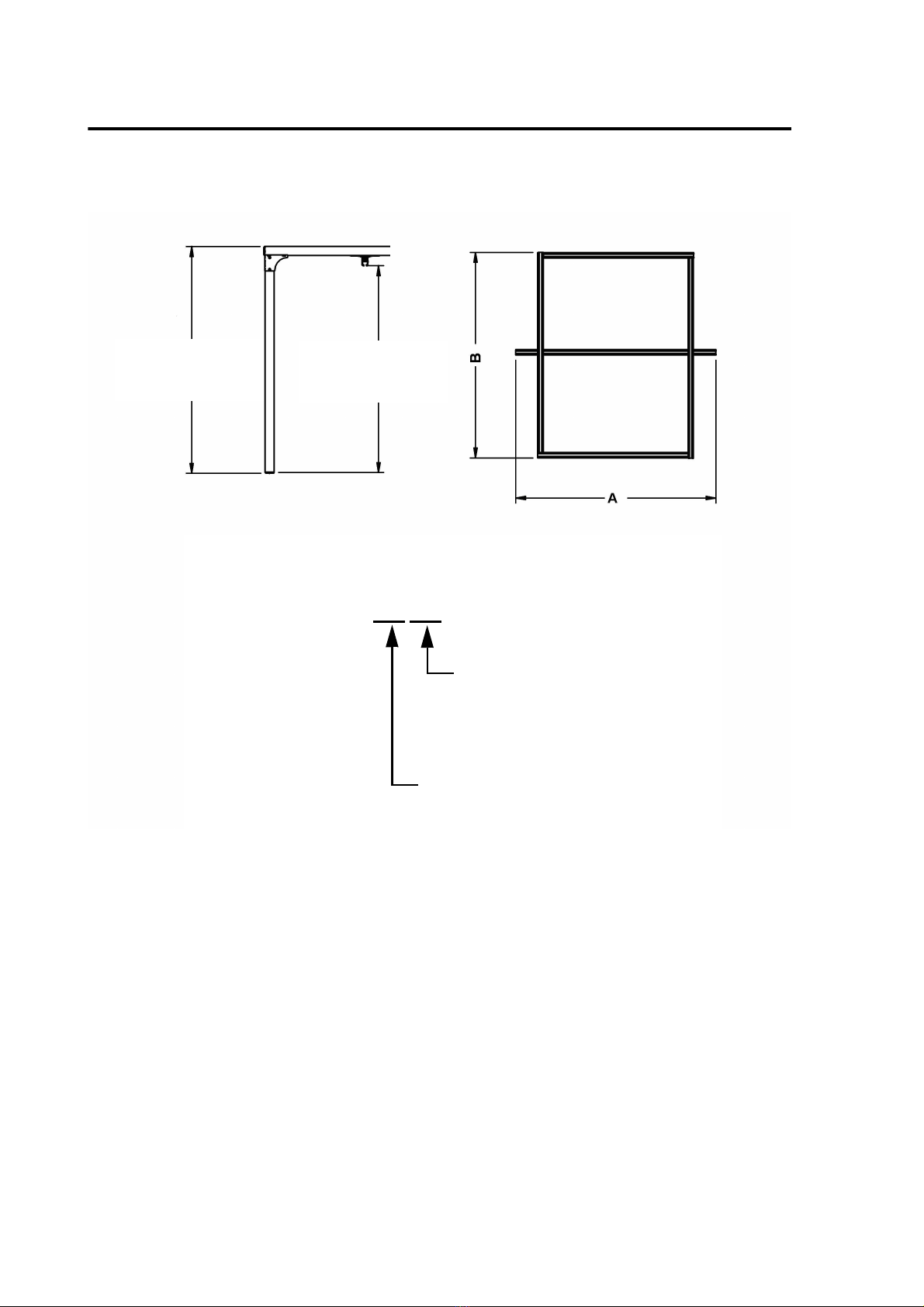

2265 mm max.
89 1/8 in
(KWIKtrak 180 mm)
2067 mm min.
81 3/8 in
(KWIKtrak 180 mm)
PRODUCT CODIFICATION
AB
9 9 0 X X X X
30 = 3.0 m (10 ft)
35 = 3.5 m (11 ft 6 in)
40 = 4.0 m (13 ft)
45 = 4.5 m (14 ft 9 in)
30 = 3.0 m (10 ft)
35 = 3.5 m (11 ft 6 in)
40 = 4.0 m (13 ft)
45 = 4.5 m (14 ft 9 in)
Specifications
