Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and
maintaining your new RC10F6 Kit. Please take a moment to read through this manual to help familiarize yourself with these steps.
We are continually changing and improving our designs; therefore, actual parts may appear slightly different than in the
illustrations. New parts will be noted on supplementary sheets located in the appropriate parts bags.
Check each bag for these sheets before you start to build.
Features in the RC10F6 Kit:
• 2.5mm graphite chassis for superior flex characteristics
• Front and rear wings modeled after 2017 F1 rules included
• Genuine Fox Kashima Coated center shock for minimal friction and extended wear
• Chassis design allows for multiple battery configurations
• New center pivot design for optimized rear pod assembly
• Light weight graphite axle for increased durability and rigidity
• Differential thrust bearing assembly for smooth action and extended life between rebuilds
• Rear axle accepts all standard spur gears without adapter
• Two steering bellcrank options for fine tuning Ackermann and steering rate
• Servo mounts can be switched from “fixed” to “floating” to allow more flex in the front of the chassis
• Integrated droop posts for adjusting droop without disassembly
• Silicone Shock Fluid (Refer to catalog for complete listings) • Body scissors (AE Part #1737)
• Silicone Diff Fluid (Refer to catalog for complete listings) • Reamer/Hole Punch
• FT Hex Wrenches / Nut Drivers (AE Part #1518, 1519) • FT TC Ride Height Gauge (AE Part #1452)
• FT Turnbuckle Wrench (AE Part #1114) • Hobby knife
• Needle nose pliers • Wire cutters
• Soldering iron • Calipers or a precision ruler
Your new RC10F6 comes unassembled and requires the following items for completion. (refer to catalog section for suggestions):
• 1:10 scale electric motor • Electronic speed control
• 3.7V-7.4V LiPo, or 6.0V LiFe with “shorty” battery dimensions • Battery charger
• 2-channel surface transmitter • 2-channel receiver
• 1:10 scale formula wheels and rubber (or foam) formula tires • Steering servo
• Polycarbonate specific spray paint for body • 1:10 scale polycarbonate formula body

3
:: Hardware - 1:1 Scale View
M3 Plain Nut (91477)
M3 Alum. Locknut, Blue (31550)
M3 Locknut, Black (25215
M3 Locknut w/Flange, Black
(25612)
FT 3mm Locknuts, Blue
(25392)
M4 Locknut w/Flange and Knurl
(91148)
FT M4 Locknut, Blue (31551)
M4 Locknut, Serrated (91738)
Nuts (lock/plain)
Notes:
Socket Head (shcs)
2x6mm (7186)
2.5x12mm (8691)
Setscrew
3x3mm (25225)
3x8mm (4670)
3x10mm (4671)
2x4mm (31510)
FT 2x4mm Aluminum (8545)
3x6mm (31531)
FT 3x6mm Aluminum (8550)
FT 3x6mm Titanium (91580)
3x8mm (31532)
FT 3x8mm Aluminum (8552)
FT 3x8mm Titanium (91581)
3x10mm (25211)
FT 3x10mm Aluminum (8554)
FT 3x10mm Titanium (91582)
Button Head (bhcs)
Ballstuds
Black 3.25mm Short (31390)
FT TiN 3.25mm Short (31374)
Silver 3.25mm Long (31391)
FT TiN 3.25mm Long (31375)
Black 5mm Short (31280)
FT TiN 3x5mm Short (31288)
Silver 5mm Long (31283)
FT TiN 3x5mm (31291)
Black 8mm Short (31281)
FT TiN 3x8mm Short (31289)
Silver 8mm Long (31284)
FT TiN 3x8mm Long (31292)
Black 10mm Short (31282)
FT TiN 3x10mm Short (31290)
Silver 10mm Long (31285)
FT TiN 3x10mm Long (31293)
2x6mm (4674)
FT 2x6mm Aluminum (8547)
2.5x6mm (4675)
FT 2.5x6mm Aluminum (8549)
3x6mm (31541)
FT 3x6mm Aluminum (8551)
3x8mm (25201)
FT 3x8mm Aluminum (8553)
FT 3x8mm Titanium (91592)
3x10mm (25202)
FT 3x10mm Aluminum (8555)
FT 3x10mm Titanium (91593)
4x14mm (89217)
FT 4x14mm Aluminum (8571)
Flat Head (fhcs)
Hard Anodized Pivot Ball (4637)
Suspension Arm Pivot Ball Upper
(4755)
Suspension Arm Pivot Ball Lower
(4755)
Pivot Balls
Ball Bearings
FT Bearing (8680)
5x8x2.5mm
Bearing (91560)
5x10x4mm
FT Bearing, Flanged (8681)
.250x.375x.125
FT Bearing (8682)
.250x.375x.125
.030 Washer (9630)
Kingpin Shim (8425)
Blue Aluminum Ballstud
Washer 0.5mm (31381)
Blue Aluminum Ballstud
Washer 1mm (31382)
Blue Aluminum Ballstud
Washer 2mm (31383)
2.6x6mm Steel Washer
(21139)
Aluminum Bulkhead
Washer 0.5mm (31384)
Aluminum Bulkhead
Washer 1mm (31385)
Aluminum Bulkhead
Washer 2mm (31386)
Rear Axle Shim
.005” (4554)
Bellville Washer (4737)
FT Thrust Bearing (8683)
4.15x10mm & 4x9.85mm
Shims and Washers
In Out
10.00
4 .15 4.00
9.85

4
:: Table of Contents
1................... Cover
2................... Introduction
3................... 1:1 Hardware “Fold Out”
4................... Table of Contents
5 - 6..............Shock, Damper Tubes
& Turnbuckles Build
(Bag 1.1, 1.2)
6 - 9..............Front Suspension Build
(Bag 2.1, 2.2)
9 - 11............Rear Suspension Build
(Bag 3.1, 3.2)
11 - 12........Axle Build
(Bag 4.1, 4.2)
13 - 15........Wings, Electronics, Wheel and
Body Build
(Bag 5.1, 5.2)
16 - 17.........Optional Forward Servo Build
17................. Notes
18 - 23........Catalog
24.................Kit Setup Sheet
24.................Blank Setup Sheet
42................Back Cover
Associated Electrics, Inc.
26021 Commercentre Dr.
Lake Forest, CA 92630
Customer Service
Tel: [phone]
Fax: [phone]
:: Notes
There is a 1:1 hardware foldout page in the
front of the manual. To check the size of a part,
line up your hardare with the correct drawing
until you find the exact size. Each part in the
foldout has a number assigned to it for ordering
replacement parts.
This symbol indicates a special
note or instruction in the manual.
Scanning this QR code will take
you to Team Associated’s Tech Tips
videos. These videos will help you
with your build and setup!
This symbol indicates a Racers Tip.
!
http://www.RC10.com · http://twitter.com/Team_Associated · http://www.instagram.com/teamassociatedrc/ · http://www.facebok.com/TeamAssociated/

:: Center Shock Build - Bag 1.1, 1.2 - Step 2
:: Damper Tubes Build - Bag 1.1, 1.2 - Step 3
5
:: Center Shock Build - Bag 1.1, 1.2 - Step 1
2/17
4671
3x10mm
set screw
4787
Damper
tube shaft
4786
Damper
tube
Build two
dampers
!
!
8828
Anti roll
bar cup
set
x2
31700
Shock
Eyelet
4637
FT Pivot
Ball
4637
FT Pivot
Ball 31326
Shock
Collar
O-Ring
31326
Shock
Collar
31698
Shock
Spring
Cup
31713
Shock Spring,
12.5lb/in
Black
31700
Shock
Cap
31687
FT Shock Body
(Fox Kashima
Coat)
31693
Shock Hat
Bushing
31510
2x4mm
BHCS
21139
Steel Washer
(2.6x6x0.5mm)
31327
Shock
Bottom
Cap
31327
Shock
Bottom Cap
O-Ring
5407
Red
O-Ring
31689
Shock
Piston,
3x1.1
31688
Shock
Shaft
31696
Shock Cap
Retainer
31693
Shock
Bladder
Shock fluid
#5422
(30wt)
Shock fluid
#5455
(10k cst)
Bladder Installation
With the shaft extended 25%, place bladder
on the top of the shock body, displacing the
extra oil. While maintaining pressure on the
bladder against the shock body, carefully lift
one side of the bladder to allow any extra oil
to escape. Place stock cap on top of bladder,
and secure it by threading the aluminum cap
retainer onto the shock body.
64.8mm
7.3mm
#1596
thread lock

:: Turnbuckles Build - Bag 1.1, 1.2 - Step 4
:: Front Suspension Build - Bag 2.1, 2.2 - Step 1
:: Front Suspension Build - Bag 2.1, 2.2 - Step 2
6
Build two Steering
turnbuckles
Build left and
right sides
!
!
Steering Turnbuckle Servo Turnbuckle
24.9mm 41.8mm
8651
Suspension
Arm Standoff
31541
3x6mm
FHCS
8670
Steering
Stop
x4
x4
31305
Turnbuckle
Eyelet
6266
Turnbuckle
3x38mm
9175
Turnbuckle
3x58mm
8620
RC10F6
Chassis
31305
Turnbuckle
Eyelet
x2 x2
31531
3x6mm
BHCS
x2
8638
Suspension
Arm, Lower
31531
3x6mm
BHCS
4755
Suspension
Arm Pivot
Ball, Lower
4754
Suspension
Arm Pivot
Ball Bushing
O-Ring
4754
Suspension
Arm Pivot
Ball Bushing
8670
Droop
Button
31383
Aluminum
Ballstud
Washer,
5.5x2mm
4670
3x8mm
Set Screw
Install #4670 Set Screw
just past the top of the
Droop Button as shown.
Use Aluminum Ballstud
Washers to adjust your
droop settings!
For Long Steering
Bellcrank, use #4404
45mm Turnbuckle
(See page 9)
!
!
Racer’s Tip:
Use CA Glue for
permanent mounting!
30.0mm
4404
Turnbuckle
3x45mm
!

7
:: Front Suspension Build - Bag 2.1, 2.2 - Step 3
:: Front Suspension Build - Bag 2.1, 2.2 - Step 4
:: Front Suspension Build - Bag 2.1, 2.2 - Step 5
31541
3x6mm
FHCS
31541
3x6mm
FHCS
x3
x4
Servo not included!
KO, Jr, Sanwa, Airtronics : 23T
Hi Tec: 24T
Reedy, XP, Futaba: 25T !
8655
RC10F6
Front
Top Plate
Bulkhead
8635
RC10F6
Front
Top Plate
31532
3x8mm
BHCS
31531
3x6mm
BHCS
8689
Servo
Saver
8674
RC10F6
Servo
Mount,
Floating
8674
RC10F6
Servo
Mount,
Fixed
31283
Ballstud
5mm, Long
31550
FT Aluminum
M3 Locknut,
Blue x4
31532
3x8mm
BHCS
8658
RC10F6
Caster
Bushing
8658
RC10F6
Camber
Bushing
x3 x3
x4
31541
3x6mm
FHCS
8653
RC10F6 Front
Top Plate
Standoff
8635
RC10F6
Front
Top Plat
Camber
1.0°
1.5° - KIT
2.0°
2.5°
Caster
3°
6°
9° - KIT
12°

8

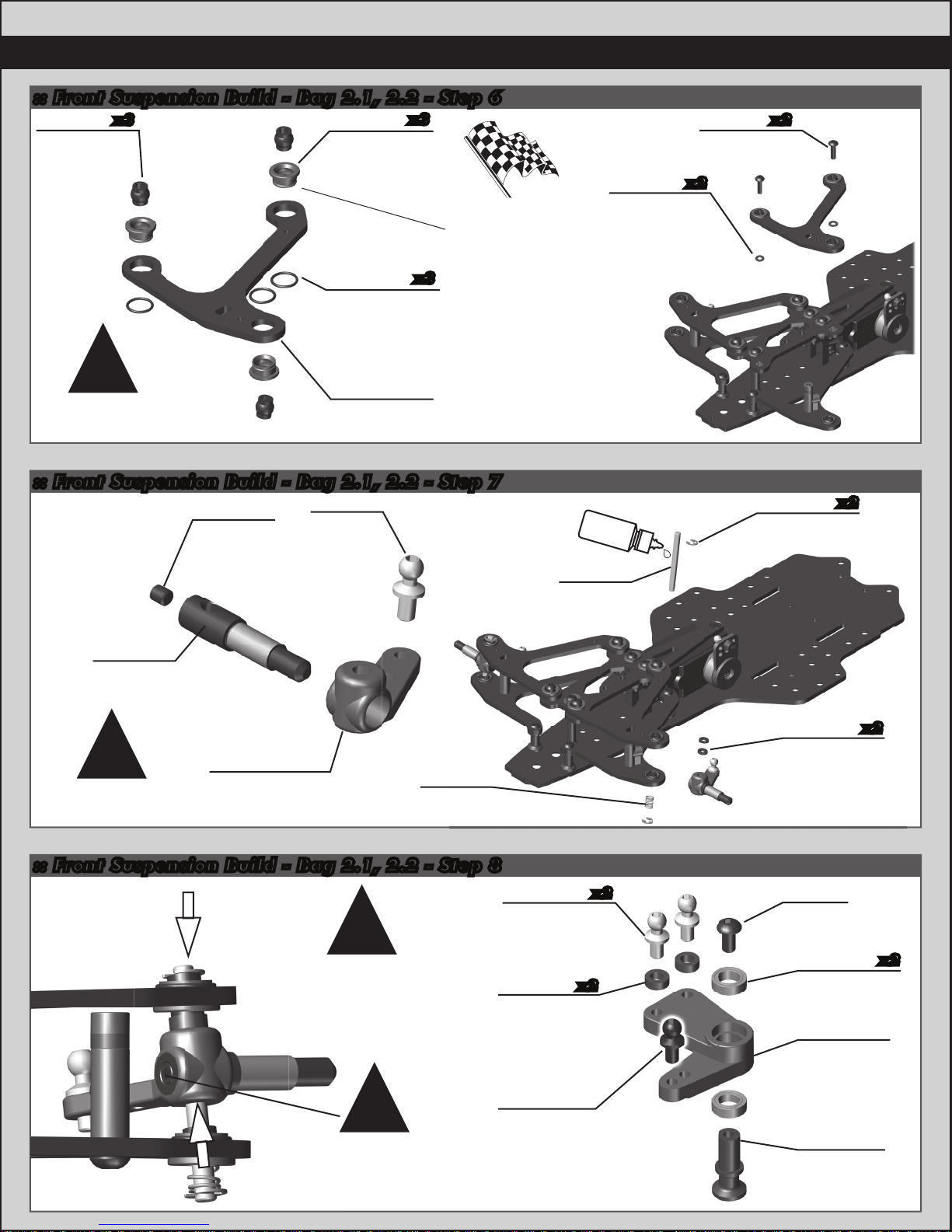

:: Front Suspension Build - Bag 2.1, 2.2 - Step 6
:: Front Suspension Build - Bag 2.1, 2.2 - Step 7
:: Front Suspension Build - Bag 2.1, 2.2 - Step 8
Place your thumb on top of the
kingpin and finger on bottom of
the steering block.
Hold the steering block against
the upper arm.
Then tighten set screw.
!
Racer’s Tip:
Use CA Glue for
permanent mounting!
x2
x2
x3
x3
x3
8638
Suspension
Arm, Upper
4755
Suspension
Arm Pivot
Ball,
Upper
4754
Suspension
Arm Pivot
Ball Bushing
O-Ring
4754
Suspension
Arm Pivot
Ball Bushing
25225
3x3mm
Set Screw
8667
RC10F6
Front Axle
8441
Inline Steering
Blocks
25211
3x10mm
BHCS
6299
E-Clip
x2
x2
31381
Aluminum
Ballstud
Washer,
5.5x0.5mm
31382
Aluminum
Ballstud
Washer,
5.5x1mm
31283
Ballstud
5mm,
Long 8663
3x31mm
Kingpin
4119
Springs,
.016, Short
Build left and
right sides
Build left and
right sides
!
!
Diff Fluid
#5455 10k
Set gap by tightening
#25225 set screw on
#8663 kingpin
!
x2
31531
3x6mm
BHCS
8680
Bearing
5x8x2.5mm
8670
Steering
Bellcrank
Post
x2
x2
31383
Aluminum
Ballstud
Washer,
5.5x2mm
31283
Ballstud
5mm, Long
(Silver)
31280
Ballstud
5mm, Short
(Black)
8670
RC10F6
Steering
Bellcrank,
Short

9
:: Front Suspension Build - Bag 2.1, 2.2 - Step 9
:: Front Suspension Build - Bag 2.1, 2.2 - Step 10
:: Rear Suspension Build - Bag 3.1, 3.2 - Step 1
Use for tuning adjustment
of steering rate.
Requires #4404 - 45mm
Steering Turnbuckle (included)
Kit Setup
Steering
Bellcrank, Short
Steering
Bellcrank, Long
#8670 Steering Bellcranks
Note position
of bellrcrank.
Short - KIT
Long
!
31541
3x6mm
FHCS
Upper arms hidden
for view clarity
!
Steering Turnbuckles
Servo Turnbuckle
31531
3x6mm
BHCS
31531
3x6mm
BHCS
8651
Suspension
Arm Standoff
x4
x2
x2
31541
3x6mm
FHCS
31541
3x6mm
FHCS
8645
Left Rear
Bulkhead
x4
4637
FT Pivot
Ball
4728
Pivot Brace
Slider
8624
Lower Pod
Plate
8644
Motor
Mount
8629
Motor
Mount Brace
Kit Setup:
KIT Setup
1
2
#1 - Install Pivot
ball to rear pod.
#2 - Snap pivot
brace Slider onto
Pivot Ball.
!

10
:: Rear Suspension Build - Bag 3.1, 3.2 - Step 2
:: Rear Suspension Build - Bag 3.1, 3.2 - Step 3
:: Rear Suspension Build - Bag 3.1, 3.2 - Step 4
Use #7186 SHCS
to adjust for free
ball movement.
#1 - Install Pivot
brace to chassis.
#2 - Slide rear pod
into pivot brace.
!
!
x2
31531
3x6mm
BHCS
8642
Chassis
Brace
Standoff
31541
3x6mm
FHCS
31541
3x6mm
FHCS
7186
2x6mm
SHCS
x2
x2
x2
4726
Pivot
Brace
4637
FT Pivot
Ball
4670
3x8mm
Set Screw
2230
Body
Mounts
8631
Chassis
Brace
(left)
4728
Rear
Pod Link
31280
Ballstud
5mm, Short
(Black)
4707
Side
Spring
Retainer
4794
Side Spring,
5.8lb/in - Blue
31550
FT Aluminum
M3 Locknut,
Blue
31532
3x8mm
BHCS
31541
3x6mm
FHCS
31541
3x6mm
FHCS
8627
Upper Pod
Plate
x2 x331550
FT Aluminum
M3 Locknut,
Blue
x2
31284
Ballstud
Long, 8mm
(Silver)
25211
3x10mm
BHCS
x231383
Aluminum
Ballstud
Washer,
5.5x2mm
31382
Aluminum
Ballstud
Washer,
5.5x1mm
Build two!
!
Build left and
right sides
!
12

11

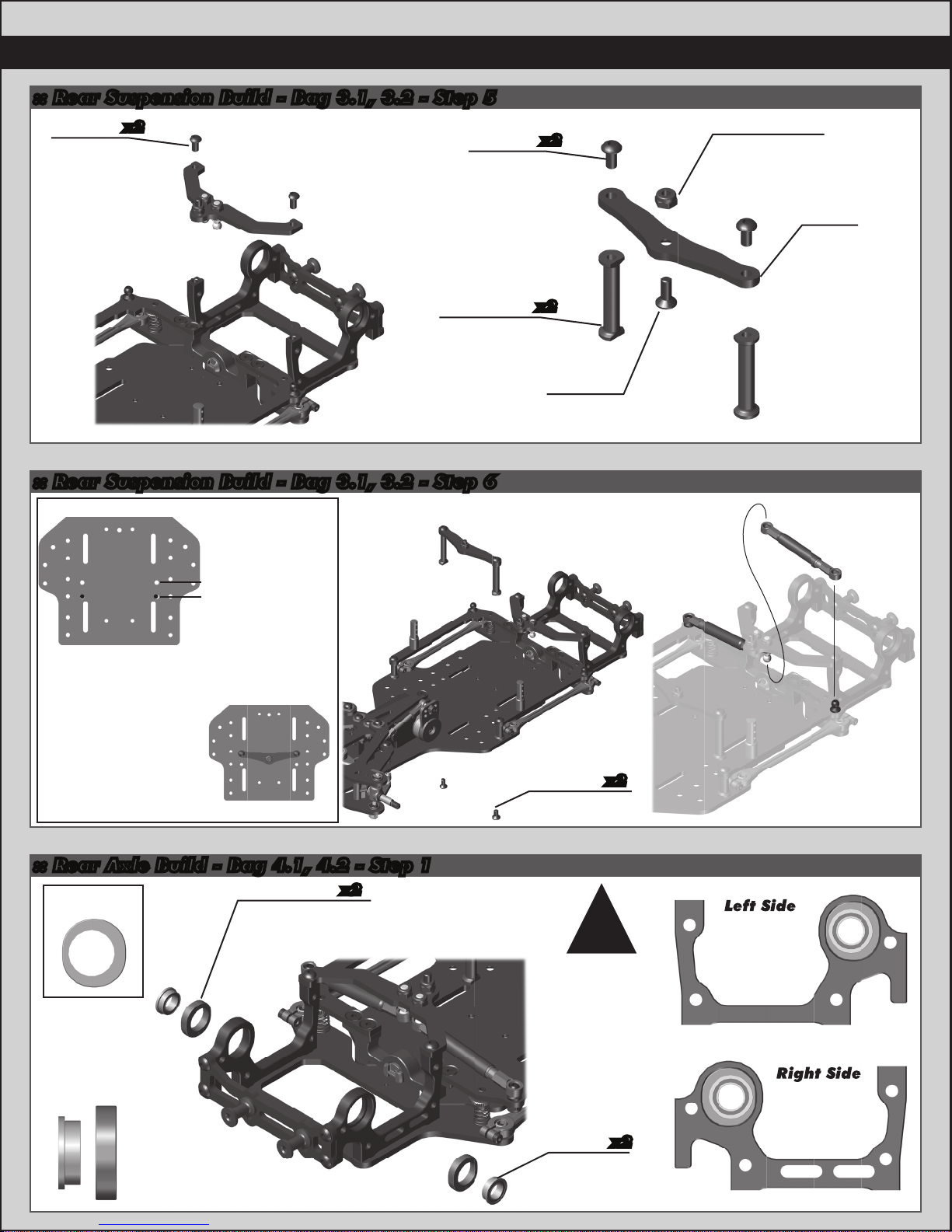

:: Rear Suspension Build - Bag 3.1, 3.2 - Step 5
:: Rear Suspension Build - Bag 3.1, 3.2 - Step 6
:: Rear Axle Build - Bag 4.1, 4.2 - Step 1
Refer to the image
to the right for the
battery forward
configuration of the
Shock Mount
assembly.
Note the orientation
of the Shock Mount
assembly!
31531
3x6mm
BHCS
31531
3x6mm
BHCS
25201
3x8mm
FHCS
8634
Shock Mount
Standoff
31541
3x6mm
FHCS
x2
8633
Shock
Mount
x2 x2
x2
31550
FT Aluminum
M3 Locknut,
Blue
Kit Setup: Left Side
Right Side
8681
Flanged
Bearing,
1/4x3/8
4731
Rear Axle
Height Adjuster
(0)
0
x2
x2
Left Side
Right Side
Note the rear axle
height adjusters
orientation!
!
Kit Setup:
Note position
of shock mount.
Battery Forward
Battery Back - Kit

12
:: Rear Axle Build - Bag 4.1, 4.2 - Step 2
8691
2.5x12mm
SHCS
8504
D-Drive
Rings
4616
Spur Gear,
88T, 64P 8682
FT Bearing
1/4”x1/8”
4736
Diff Thrust
Cone
89216
M4 LockNut
4735
Rear Axle
8648
RC10F6
Wheel
Hub, Left
x2
x2
x3
x2
6619
FT Carbide
Diff Balls,
1/8”
8683
FT Thrust
Bearing
(4x10mm)
4737
Bellville
Washer
8646
RC10F6
Wheel Hub,
Right
Inside
Washer
Outside
Washer
x12
Tighten #89216
M4 Locknut so the spur
gear does not slip!
Note orientation!
Note orientation!
Curves facing outward
10.00
4 .15 4.00
9.85
!
Thrust Bearing Setup:
Bellville Washer Setup:
:: Rear Axle Build - Bag 4.1, 4.2 - Step 3
25225
3x3mm
Set Screw
8646
Wheel
Hub Cap
8646
Wheel
Hub Pin
#6588
black grease
#6636
Silicone grease

13

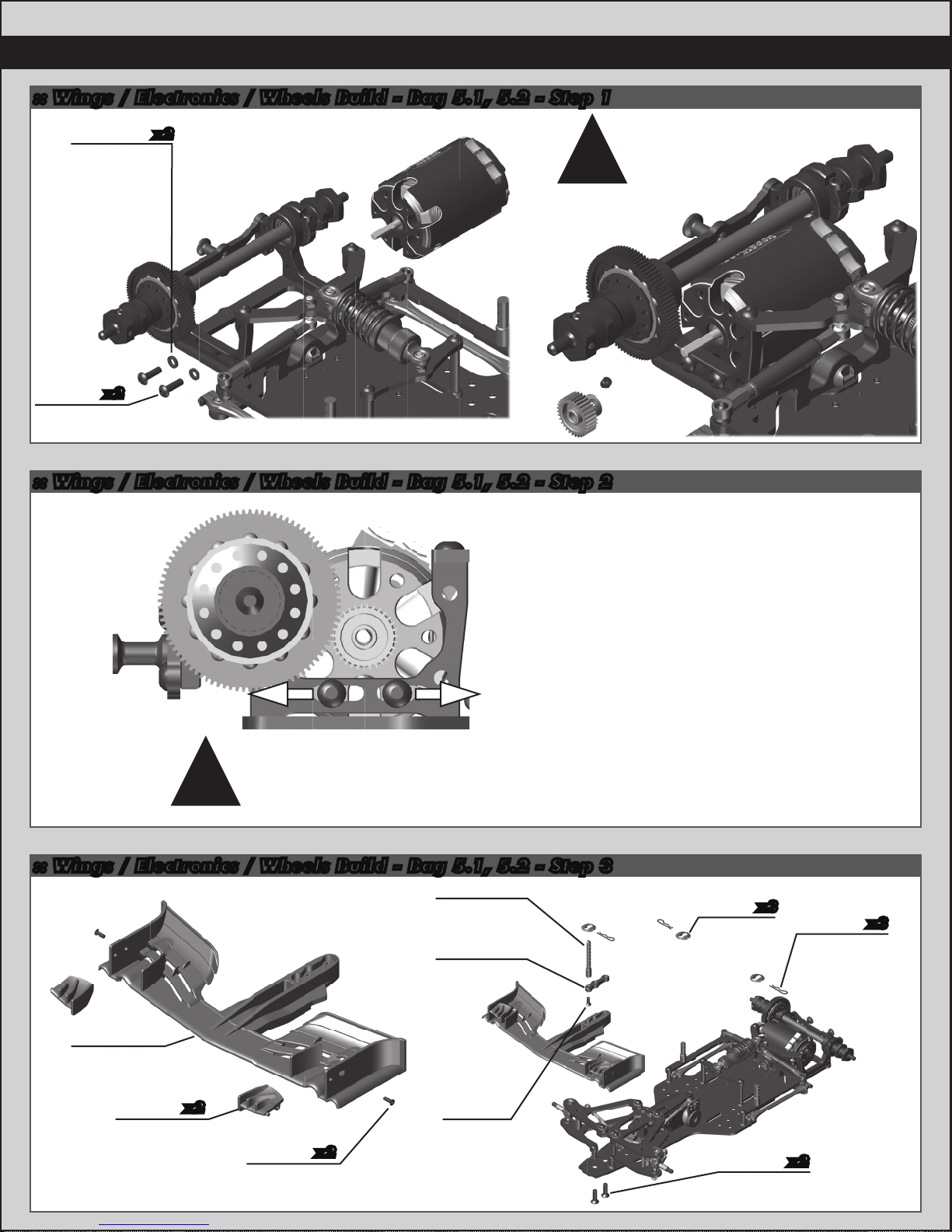

:: Wings / Electronics / Wheels Build - Bag 5.1, 5.2 - Step 1
:: Wings / Electronics / Wheels Build - Bag 5.1, 5.2 - Step 2
:: Wings / Electronics / Wheels Build - Bag 5.1, 5.2 - Step 3
x2
x2
31382
Aluminum
Ballstud
Washer,
5.5x1mm
25211
3x10mm
BHCS
Motor and pinion/
set screw not
included!
!
!
89217
4x14mm
FHCS
4535
Front Body
Mount
25201
3x8mm
FHCS x2
3897
Body
Pivot
8677
Wing Plate,
Front
1736
Small
Body Clip
x3
x3
x2
x2
4674
2x6mm
FHCS
8676
Wing
Diffuser
8676
Wing,
Front
Gearing will depend on the
motor and track size.
Motor, pinion gear, and set screw
are not included!
Set The Gear Mesh:
You should be able to rock the spur gear back
and forth. without making the teeth of the pinion
move. If the spur gear mesh is tight, then loosen
the #25211 screws and move the motor away,
then try again.
A gear mesh that is too tight or too loose will
reduce power and damage the gear teeth.

14

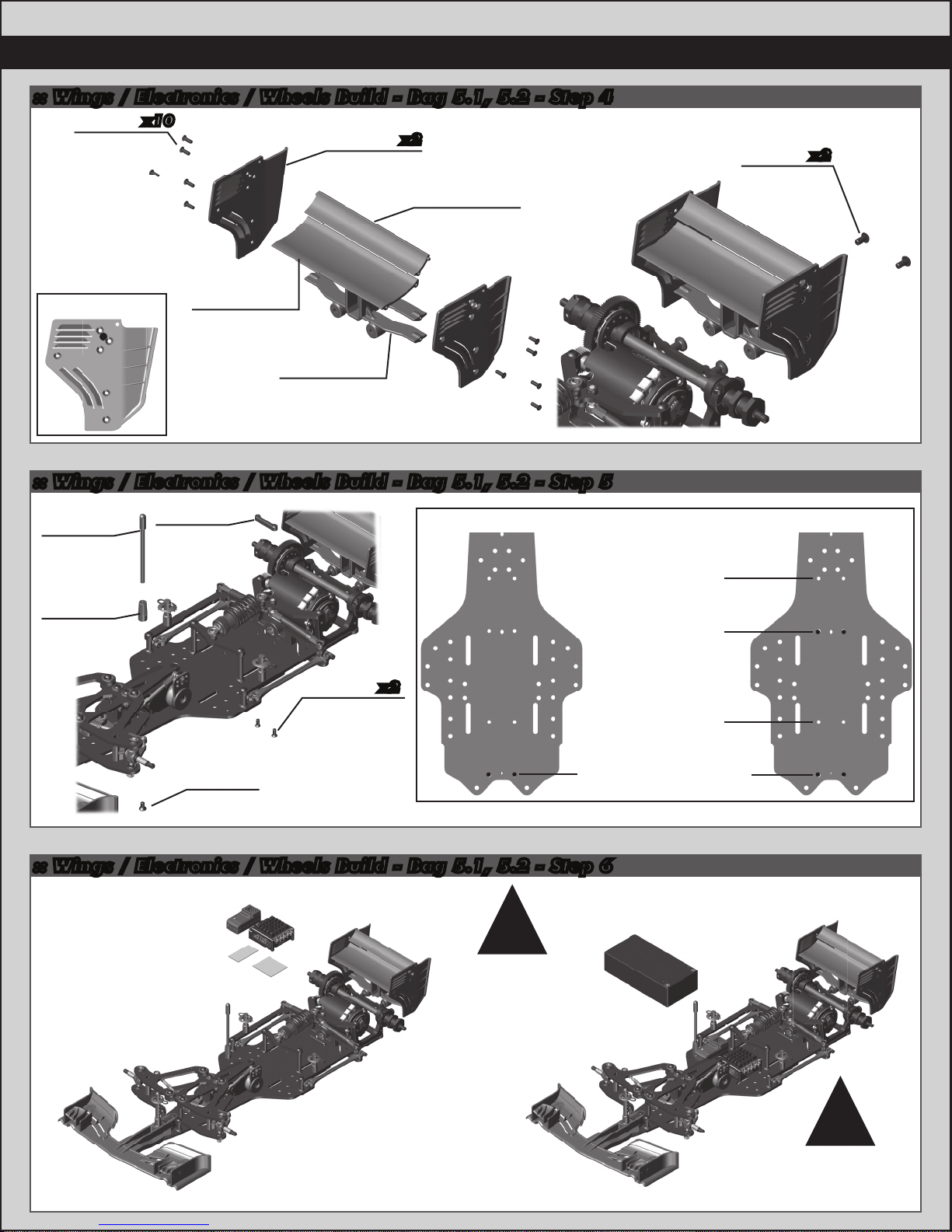

:: Wings / Electronics / Wheels Build - Bag 5.1, 5.2 - Step 5
6
:: Wings / Electronics / Wheels Build - Bag 5.1, 5.2 - Step 6
:: Wings / Electronics / Wheels Build - Bag 5.1, 5.2 - Step 4
31531
3x6mm
BHCS
x2
x10
x2
4674
2x6mm
FHCS
8678
Wing SIde
Panel
8678
Wing Panel,
Rear Upper
8678
Wing Panel,
Rear Lower
8678
Wing Mount,
Rear Lower
4675
2.5x6mm
FHCS
31541
3x6mm
FHCS
8608
Battery
Retainer
6338
Antenna
and Cap
8670
Antenna
Mount
x2
Kit Setup:
Kit Setup:
Inline
Battery Forward
Inline
Battery Back
Inline
Battery Back
Inline
Battery Forward
Kit
Battery Back
Note position of the
battery retainer position!
Electronics not
included!
Use strapping
tape to secure
battery to chassis!
Not included!
!
!

15

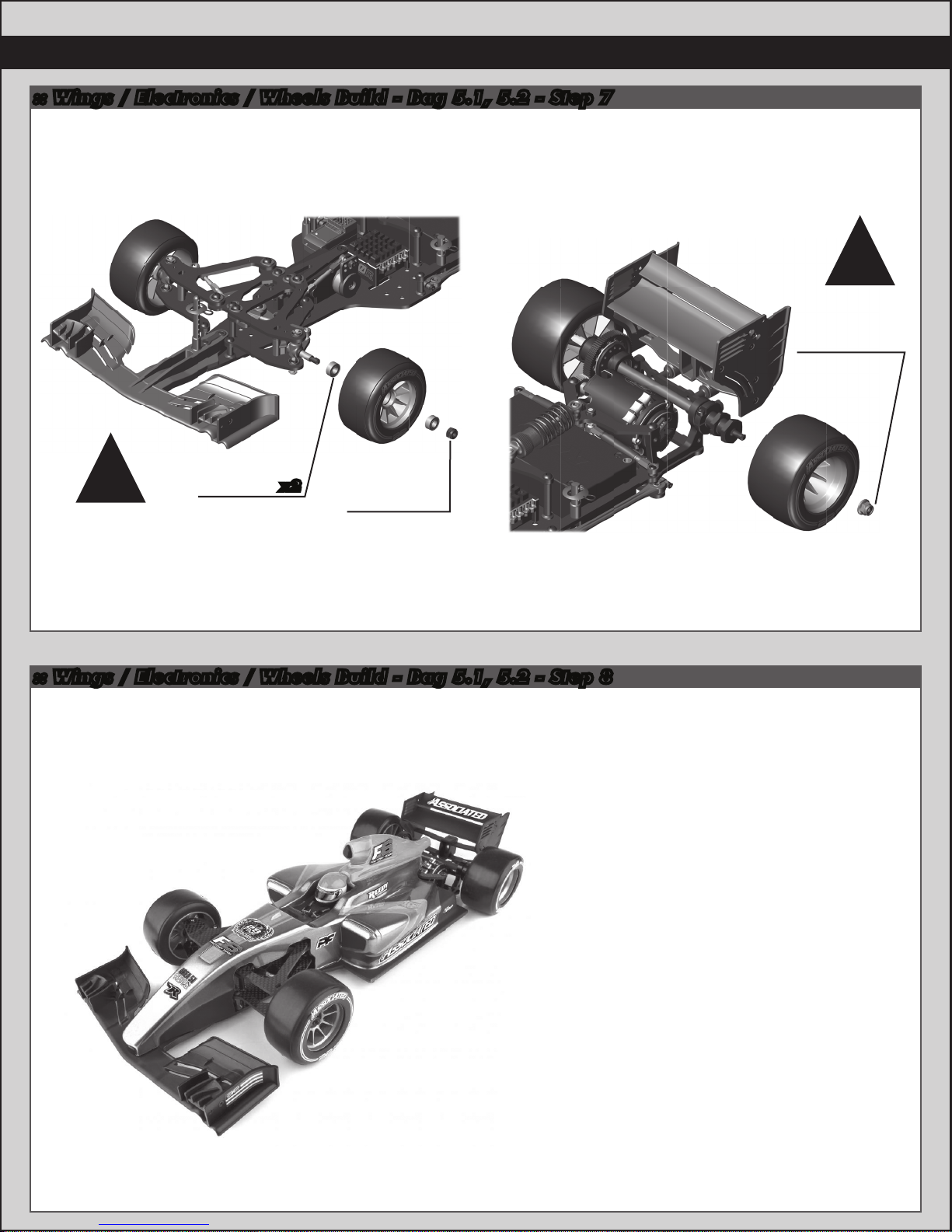

:: Wings / Electronics / Wheels Build - Bag 5.1, 5.2 - Step 7
:: Wings / Electronics / Wheels Build - Bag 5.1, 5.2 - Step 8
91560
FT Bearing
5x10x4mm
89216
M4 Locknut
91738
M4 Serrated
Locknut,
Flanged
x2
Tires/Wheels
not included!
Do not overtighten
front wheel nuts!
!
!
Painting Tips:
Your F6 does not come with a clear
polycarbonate body. You will need to prep the
body before you can paint it. Wash the inside
thoroughly with warm water and liquid
detergent. Dry the body using a clean, soft,
lint-free cloth.
RC cars get painted from the inside.
Using high quality masking tape, apply tape to
the inside of the body to create a design. Spray
(either rattle can or airbrush) the paint to the
inside of the body (prefferably dark colors first,
lighter colors last).
NOTE: use ONLY paint that is recommended
for use with (polycarbonate) plastics. If you
don’t, you can destroy the plastic body!!!!).
After painting, cut the body along the trim lines.
Make sure to drill or use a body reamer to make
the holes for the body mounts and antenna!

16
:: OPTIONAL Forward Servo Build - Step 1
:: OPTIONAL Forward Servo Build - Step 2
:: OPTIONAL Forward Servo Build - Step 3
Camber
1.0°
1.5° - KIT
2.0°
2.5°
Caster
3°
6°
9° - KIT
12°
31531
3x6mm
BHCS
8658
RC10F6
Caster
Bushing
8658
RC10F6
Camber
Bushing
x3
x3
x4
8654
Front Top
Plate Standoff
(FWD Servo)
8652
Suspension
Arm Standoff,
Upper
8656
RC10F6 Forward
Servo Mount,
Front
8656
RC10F6 Forward
Servo Mount,
Rear
8636
RC10F6
Front Top
Plat
(FWD Servo)
Servo not
included!
!
31531
3x6mm
BHCS
31531
3x6mm
BHCS
31285
Ballstud
10mm, Long
81257
3x6mm
Set Screw
31550
FT Aluminum
M3 Locknut,
Blue
x4
x2
x2
Build four!
!
3.8mm
x431383
Aluminum
Ballstud
Washer,
5.5x2mm
25201
3x8mm
FHCS
x5
#1596
thread lock

17
:: OPTIONAL Forward Servo Build - Step 4
:: Notes
Electronics not
included!
!
Use strapping
tape to secure
battery to chassis!
Not included!
!
4675
2.5x6mm
FHCS
8608
Battery
Retainer
x4
x2

18
:: Shock :: Damper Tubes
:: Turnbuckles
:: Servo Saver
4637
5407
21139
31326
31327
31510
31687
31688
31693
31696
31698
31700
91493
8
8
20
2
2
10
2
2
1
2
2
2ea.
8
8689
31283
31550
1
10
6
4671
4786
4787
8828
4404
6266
9175
31305
10
1
2
2
FT Pivot Balls
Red O-Rings
2.6x6mm Washers
FT VCS3 Shock Collars & O-Rings
FT VCS3 Shock Bottom Caps & O-Rings
2x4mm BHCS
FT FOX(R) Shock Bodies
w/Genuine Kashima Coat
Shock Shafts
Shock Rebuild Kit
Shock Cap Retainers
Shock Spring Cups
Shock Eyelet Set
FT Low Friction X-Rings
RC10F6 Servo Saver
Ballstuds, Long - 5mm
FT Aluminum Locknuts, M3
3x10mm Set Screws
Damper Tube
Damper Tube Shaft
Anti-roll Bar Cups
3x45mm Turnbuckle
3x38mm Turnbuckle - Kit
3x58mm Turnbuckle - Kit
Turnbuckle Eyelets
:: Shock Fluid
5420
5427
5421
5424
5428
5426
5422
5432
5429
5433
5423
5434
5430
5438
5435
5431
5436
5437
5425
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
2oz.
10 Weight Silicone Shock Fluid
15 Weight Silicone Shock Fluid
20 Weight Silicone Shock Fluid
22.5 Weight Silicone Shock Fluid
25 Weight Silicone Shock Fluid
27.5 Weight Silicone Shock Fluid
30 Weight Silicone Shock Fluid
32.5 Weight Silicone Shock Fluid
35 Weight Silicone Shock Fluid
37.5 Weight Silicone Shock Fluid
40 Weight Silicone Shock Fluid
42.5 Weight Silicone Shock Fluid
45 Weight Silicone Shock Fluid
47.5 Weight Silicone Shock Fluid
50 Weight Silicone Shock Fluid
55 Weight Silicone Shock Fluid
60 Weight Silicone Shock Fluid
70 Weight Silicone Shock Fluid
80 Weight Silicone Shock Fluid
31326
31510
31689
31688
31698
31700
4637
4637
31700
31696
31693
31687
5407
31693
31327
31327
21139
31326
31713
31305
8689
31550
31283
8828
8828
4786
4671
4787
313056266
9175
:: Springs
Pr.
Pr.
Pr.
Pr.
Pr.
Pr.
Pr.
31712
31713
31714
31715
31716
31717
31718
TC Spring (Brown), 12.0lbs
TC Spring, (Black), 12.5lbs - Kit
TC Spring, (Green), 13.0lbs
TC Spring, (White), 13.8lbs
TC Spring, (Gray), 15.0lbs
TC Spring, (Blue), 15.9lbs
TC Spring, (Yellow), 16.8lbs
:: Pistons
4
4
31689
31690
Shock Pistons, 3x1.1
FT Shock Pistons, 3x1.1, Grooved
2
2
4
4

:: Steering/Front End
:: Chassis
19
8635
8653
8655
8658
8659
8661
8670
8674
8680
31280
31283
31381
31382
31383
31531
31532
31541
1
1
1
1
3ea.
4ea.
1
Pr.
4
10
10
10
10
10
10
10
10
RC10F6 Front Top Plate Set
RC10F6 Top Plate Standoff
RC10F6 Front Top Plate Bulkhead
RC10F6 Camber/Caster Bushings - Kit
RC10F6 Caster Bushings, Aluminum
RC10F6 Camber Bushings, Aluminum
RC10F6 Steering Bellcrank Set
RC10F6 Servo Mounts
FT Ball Bearing, 5x8x2.5mm
Ballstuds, Short - 5mm
Ballstuds, Long - 5mm
Aluminum Ballstud Washer, 5.5x0.5mm
Aluminum Ballstud Washer, 5.5x1.0mm
Aluminum Ballstud Washer, 5.5x2.0mm
3x6mm BHCS
3x8mm BHCS
3x6mm FHCS
10
10
10
10
Aluminum Ballstud Washer, 5.5x2.0mm
6338
8670
31541
31541
8635
8658
8658
8658
8658
8658
31532
31532
31541
31541
31541
8670
8670
31280
31531
31283
31383
8680
8680
31541
8655
8674
8635
8674
31532
31532
8653
1736
2230
3897
4637
4670
4675
4707
4726
4728
4790
4791
4792
4793
4794
6338
7186
8608
8620
8631
8633
8634
8642
8670
25201
31280
31384
31385
31386
31531
31532
31541
31550
FT Body Clips, Metallic Blue, Short
Body Mounts
Pivoting Body Mounts
FT Pivot Balls
3x8mm Set Screws
2.5x6mm FHCS
Side Spring Retainers
Pivot Brace
Rear Pod Link
Side Spring, 3.9lb/in - Black
Side Spring, 4.2lb/in - Green
Side Spring, 4.7lb/in - Gray
Side Spring, 5.2lb/in - White
Side Spring, 5.8lb/in - Blue - Kit
Antenna Tube, 12”
2x6mm SHCS
Battery Retainer
RC10F6 Chassis
RC10F6 Chassis Brace Set
RC10F6 Shock Mount
RC10F6 Shock Mount Standoff
RC10F6 Chassis Brace Standoff
RC10F6 Antenna Mount
3x8mm FHCS
Ballstuds, Short - 5mm
Aluminum Bulkhead Shims, 0.5mm
Aluminum Bulkhead Shims, 1.0mm
Aluminum Bulkhead Shims, 2.5mm
3x6mm BHCS
3x8mm BHCS
3x6mm FHCS
FT Aluminum Locknuts, M3
31541
31531
25201
31531
8633
31550
31541
8634
8634
8608
4675
4637 7186
7186
4728
8620
31541
4726
31541
8642
8631
31531
31532
4794
4707
4670
31550
31280
2230
3897 1736
31541
4726
8631
8631
31531
31532
31532
4794
4707
4670
31550
31280
2230
3897
1736
31541
6
2
4
8
10
10
2
1
2
2
2
2
2
2
1
10
2
1
1
1
2
2
1
20
10
10
10
10
10
10
10
6

20
:: Front Suspension
:: Rear Pod
4113
4114
4116
4117
4118
4119
4670
4754
4755
6299
8441
8638
8651
8663
8667
8670
25211
25225
31283
31381
31382
31383
31384
31385
31386
31531
31541
89216
91560
2
2
2
2
2
2
10
8
1
16
Pr.
Pr.
4
2
2
1
10
10
10
10
10
10
10
10
10
10
10
10
4
897
4637
4728
4731
8624
8627
8629
8644
8645
25211
31284
31381
31382
31383
31531
31541
31550
2
8
1
2ea.
1
1
1
1
1
10
10
10
10
10
10
10
6
King Pin Springs (.020)
King Pin Springs (.018)
King Pin Springs (.024)
King Pin Springs (.022)
King Pin Springs (.014)
King Pin Springs (.016) - Kit
3x8mm Set Screws
Suspension Arm Pivot Ball Bushing
Suspension Arm Pivot Ball Set
E-Clip
Inline Steering Blocks
RC10F6 Suspension Arm, Lower
RC10F6 Suspension Arm Standoff
RC10F6 Kingpin, 3x31mm
RC10F6 Front Axle
RC10F6 Steering Bellcrank Set
3x10mm BHCS
3x3mm Set Screw
Ballstuds, Long - 5mm
Aluminum Ballstud Washer, 5.5x0.5mm
Aluminum Ballstud Washer, 5.5x1.0mm
Aluminum Ballstud Washer, 5.5x2.0mm
Aluminum Bulkhead Shims, 0.5mm
Aluminum Bulkhead Shims, 1.0mm
Aluminum Bulkhead Shims, 2.0mm
3x6mm BHCS
3x6mm FHCS
Locknuts, M4 - Black
FT Bearings. 5x10x4mm
Bearings, 1/4x3/8 in, Flanged
FT Pivot Balls
Pivot Brace Slider
Rear Axle Height Adjusters, Set
RC10F6 Lower Pod Plate
RC10F6 Upper Pod Plate
RC10F6 Motor Mount Brace
RC10F6 Motor Mount
RC10F6 LR Bulkhead
3x10mm BHCS
Ballstuds, Long - 8mm
Aluminum Ballstud Washer, 5.5x0.5mm
Aluminum Ballstud Washer, 5.5x1.0mm
Aluminum Ballstud Washer, 5.5x2.0mm
3x6mm BHCS
3x6mm FHCS
FT Aluminum Locknuts, M3
25211
25211
4755
4755
4754
4754
4754
31381
31381
4754
4754
8638
4755
31382
25225
31283
8441
8667
89216
91560
8663
4119
6299
6299
4754
4754
31383
4670
8670
31531
31531
31531
8638
8651
8651
31541
31541
4754
8670
31541
31541
31541
31541
31541
31541
8624
4637 4637
4728
8644
31382
25211
897
897
4731
4731
8629
31531
8645
31383
31284
25211
31531
31531
8627
31550
31382
