Albixon 18W/12V User manual

POOL LIGHT LED
18W/12V
with remote control
VERZE 13. 11. 2017 / REVIZE: 13. 11. 2017
EN
INSTALLATION
AND USER GUIDE

1. Package content 3
2. Basic information 3
3. Positioning the light and fitting the mounting box 3
4. Installation 5
5. Putting into operation 5
6. Instructions for the remote control 5
7. Warranty conditions 6
Contents
Thank you for choosing our product and trusting our company. To help you to get maximum pleasure
from using this product, please read these instructions carefully before use and strictly follow the user
manual to prevent damage to the device or unnecessary injuries.
2/ Pool light LED 8W/12V with remote control

Package contents
Light for vinyl lined or prefabricated swimming pools
•mounting box: 1 x
•samolepící těsnění krabice: 2 x
•the light: 1 x
•bag with connecting material
Basic information
This light is designed for the illumination of swimming pools. It must be fitted vertically on the wall of
the swimming pool and completely immersed in the water. This is a class III electrical product for low
voltage AC 12V.
The light complies with international safety standards and lighting standards.
The supplier shall not bear any liability in the event of incorrect use, modification and other application
of this product other than that for which it is intended
Positioning the light and fitting
the mounting box
•Never fit the light horizontally.
•For clear illumination of the inside of the swimming pool, we recommend using one light for
every 25 m2of pool area. For very deep swimming pools (more than 2 m), we recommend
using one light for every 30-40 m3of water.
•In order to avoid glare from the lights, we recommend fitting them on the side of the swimming
pool which you usually approach it from.
•If the lights are used in competition or training swimming pools, position the lights on the
longer sides to avoid dazzling the swimmers.
•In order to avoid the need to drain the swimming pool when replacing bulbs in the light, we
recommend you position the light in a place which is easily accessible from the edge of the
swimming pool
Before fitting the light, check that the cable duct is appropriately tightened. If it is not tightened
sufficiently, water could leak in; if it is too tight, it may burst.

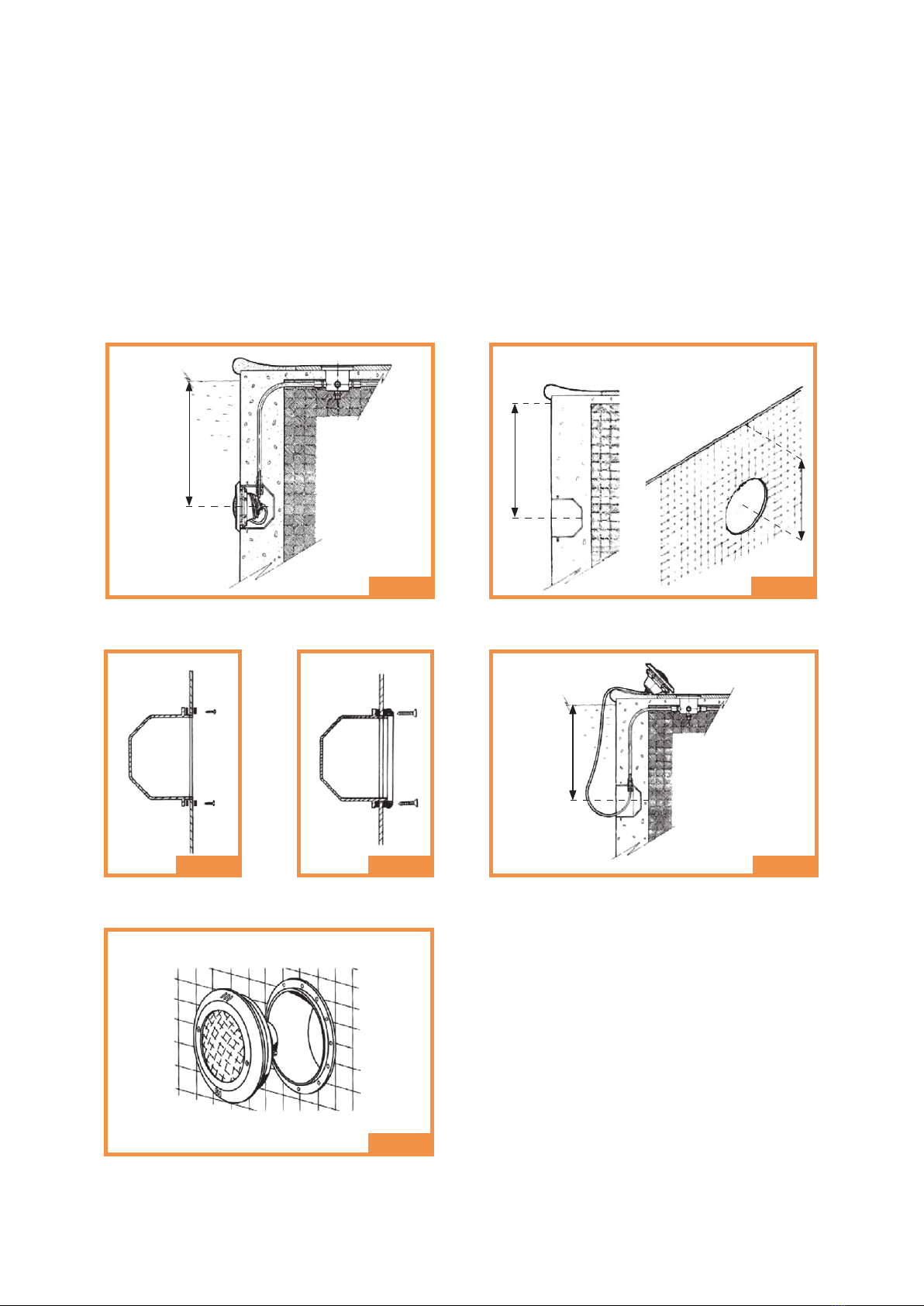

The light should be positioned vertically on the wall of the swimming pool at a depth of 400 - 700 mm
under the surface of the water (Fig. 1).
1.
2.
3.
Pool light LED 8W/12V with remote control / 3

700 mm
700 mm
FIG. 6
FIG. 3 FIG. 4
700 mm
FIG. 5
700 mm
FIG. 1 FIG. 2
Prefabricated swimming pools (vinyl-lined, plastic or fibreglass):
A hole must be cut into the wall of the swimming pool (Fig. 2). Fix one self-adhesive sealing strip and
the mounting box from the outer side of the swimming pool. Fix the other self-adhesive sealing strip
from the inside of the swimming pool and join all 3 components with the aid of the 2 screws (Fig. 3).
Ensure that the cable outlet in the mounting box is at the top.
Before fitting the flange for the mounting box, ensure that the screw heads fit into the holes on the
back side of the flange. Fasten the flange to the wall of the swimming pool with the aid of the screws
(Fig. 4).
Prefabricated
swimming pool
Concrete
swimming pool
4/ Pool light LED 8W/12V with remote control

Installation
After having fitted the mounting box and flange with sealing for prefabricated swimming pools,
move on to fitting the light itself. To connect the light to the electricity, the power supply cable must
be pulled through the duct nut.
Tighten the nut carefully in such a way that the cable is secured in the duct. You must leave 1.5 m
of cable coiled around the back of the body of the light to ensure that if necessary, it is possible to
pull the light above the edge of the swimming pool to replace the bulb (Fig. 5). Also tighten all nuts
around the circumference of the light.
Insert the whole light into the mounting box.
Putting into operation
Check that the supply voltage to the light is not greater than AC 12V.
The light must be positioned vertically on the wall of the swimming pool and must be completely
immersed in the water.
Instructions for the remote control
Button functions:
•Buttons 1 and 2 have no function for this type of light.
•Buttons 3 and 4 are used to switch the light on and off.
•The button is used to switch between colours (red, green, blue, multicolour).
•The button is intended for automatic colour change according to a set time interval
Automatic colour change according to a set time interval.
Switch on the light using button 3 or 4 and button and select colour. Then press the button
and the quick colour change will be activated.
If two or more lights are installed in the swimming pool they can be controlled by a single remote
control but you cannot synchronize the colour of the lights.
4.
5.
6.
light depth
including casing
number of LED
diodes light angle luminosity voltage power consumption
178 mm
red 78 pc
30° 150 cd 12V 18Wgreen 78 pc
blue 96 pc
Pool light LED 8W/12V with remote control / 5

Warranty conditions
Warranty conditions
The warranty conditions are governed by the commercial and warranty conditions of your supplier.
Safe liquidation of the product at the end of its useful life
Once the product’s useful life has ended, please ensure its ecological liquidation by a specialised company.
Complaints and service
Claims are governed by the relevant acts on consumer protection.
In the event of any irreparable defects, please contact your supplier in writing.
Date ................................................................
Supplier
8.
WARNING
•Persons installing the light must be authorised to do (in compliance with Regulation
no. 50/1978 Coll.).
•All safety regulations and the relevant standards must be adhered to and contact by
persons with electric voltage must be avoided.
•Any maintenance, replacement of components or handling of the light, is only
permissible after it has been safely disconnected from the mains.
•Do not touch the light in the water or even on the side of the pool if you have wet
hands or feet.
•The supplier waives any liability for the product if it is not used as set out in these
instructions or if non-original spare parts are used.
6/ Pool light LED 8W/12V with remote control

Notes
Pool light LED 8W/12V with remote control / 7
