Asus AAEON UP Squared Pro 7000 User manual

Last Updated: February 14, 2023
UP Squared Pro 7000
Maker Board
UPN-ADLN01
User’s Manual 1st Ed

Preface II
Maker Board UP Squared Pro 7000 UPN-ADLN01
Copyright Notice
This document is copyrighted, 2023. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design without notice to its
users.

Preface III
Maker Board UP Squared Pro 7000 UPN-ADLN01
Acknowledgement
All other products’ name or trademarks are properties of their respective owners.
⚫Microsoft®, Windows®, Windows® 10 IoT Enterprise, and Windows® IoT Core
are registered trademarks of Microsoft Corp.
⚫Intel® and Atom® are registered trademarks of Intel Corporation
⚫Core™ is a trademark of Intel Corporation
⚫Yocto Project® is a trademark of The Linux Foundation.
⚫Linux® is a registered trademark of Linus Torvalds in the U.S. and other
countries.
⚫Ubuntu and Canonical are registered trademarks of Canonical Ltd.
All other product names or trademarks are properties of their respective owners.

Preface IV
Maker Board UP Squared Pro 7000 UPN-ADLN01
Packing List
Before setting up your product, please make sure the following items have been
shipped:
Item
Quantity
⚫UPN-ADLN01 (UP Squared Pro 7000) with heatsink
1
If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.

Preface V
Maker Board UP Squared Pro 7000 UPN-ADLN01
About this Document
This User’s Manual contains all the essential information, such as detailed descriptions
and explanations on the product’s hardware and software features (if any), its
specifications, dimensions, jumper/connector settings/definitions, and driver installation
instructions (if any), to facilitate users in setting up their product.
Users may refer to the product page at AAEON.com for the latest version of this
document.

Preface VI
Maker Board UP Squared Pro 7000 UPN-ADLN01
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this
manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the device.
3. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
4. Always completely disconnect the power before working on the system’s
hardware.
5. No connections should be made when the system is powered as a sudden rush
of power may damage sensitive electronic components.
6. If the device is not to be used for a long time, disconnect it from the power
supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray detergents.
9. Make sure the device is installed near a power outlet and is easily accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent falls
12. Do not cover the openings on the device to ensure optimal heat dissipation.
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is running
15. Never pour any liquid into the openings. This could cause fire or electric shock.
16. As most electronic components are sensitive to static electrical charge, be sure to
ground yourself to prevent static charge when installing the internal components.
Use a grounding wrist strap and contain all electronic components in any
static-shielded containers.

Preface VII
Maker Board UP Squared Pro 7000 UPN-ADLN01
17. If any of the following situations arises, please the contact our service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described in
this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH
TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES
(SEE CHAPTER 1) TO PREVENT DAMAGE.

Preface VIII
Maker Board UP Squared Pro 7000 UPN-ADLN01
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received including interference that may cause
undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions and your local government’s recycling or
disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur.
Recycler les batteries usées en accord avec les instructions du fabricant et les directives
gouvernementales de recyclage.

Preface IX
Maker Board UP Squared Pro 7000 UPN-ADLN01
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
AAEON Main Board/ Daughter Board/ Backplane
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件
X
X
○
○
○
○
外部信号
连接器及线材
X
X
○
○
○
○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：此产品所标示之环保使用期限，系指在一般正常使用状况下。

Preface X
Maker Board UP Squared Pro 7000 UPN-ADLN01
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
AAEON Main Board/ Daughter Board/ Backplane
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
PCB & Other
Components
X
X
O
O
O
○
Wires &
Connectors
for External
Connections
X
X
O
O
O
O
O：The quantity of poisonous or hazardous substances or elements found in each of the
component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least one of the
component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this product is applicable under normal
usage only

Maker Board UP Squared Pro 7000 UPN-ADLN01
Table of Contents
Chapter 1 - Product Specifications.......................................................................................... 1
1.1 Specifications............................................................................................................ 2
Chapter 2 –Hardware Information ....................................................................................... 4
2.1 Dimensions ............................................................................................................... 5

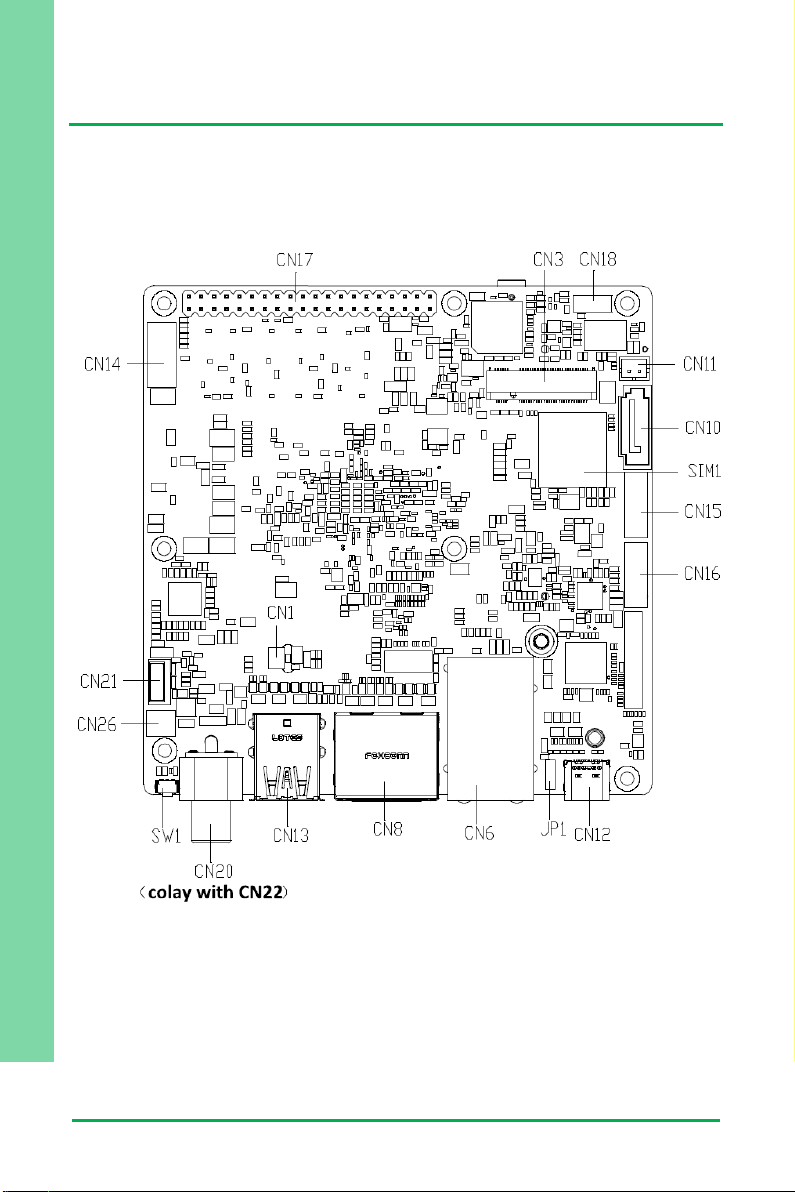

2.2 Jumpers and Connectors....................................................................................... 6
2.3 List of Jumpers and Connectors........................................................................... 8
2.3.1 Power Button (SW1).....................................................................................9
2.3.2 RTC (CN1)....................................................................................................... 9
2.3.3 M.2 2280 M-Key Slot (CN2)......................................................................10
2.3.4 M.2 3052 B-Key Slot (CN3)....................................................................... 11
2.3.5 M.2 2230 E-Key Slot (CN4).......................................................................13
2.3.6 Dual LAN Port (RJ-45) (CN6)....................................................................14
2.3.7 HDMI/DP Port (CN8)..................................................................................15
2.3.8 SATA Connector (CN10).............................................................................16
2.3.9 SATA Power Connector (CN11).................................................................16
2.3.10 USB Type-C Port (CN12)............................................................................17
2.3.11 Dual USB Type-A Port (CN13) ..................................................................18
2.3.12 USB 2.0/UART 1x10P Wafer (CN14)..........................................................18
2.3.13 RS-232/422/485 1x10P Wafer (COM 1) (CN15) .....................................19
2.3.14 RS-232/422/485 1x10P Wafer (COM 2) (CN16).....................................19
2.3.15 40-Pin HAT (CN17).....................................................................................20
2.3.16 CPLD and BIOS Update (CN18) ...............................................................21
2.3.17 DC Power Jack (CN20)...............................................................................21
2.3.18 Front Panel 1x6P Wafer (CN21)................................................................22
2.3.19 DC Terminal Block (Optional with Colay) (CN22)................................22
2.3.20 Audio Wafer (CN23)..................................................................................23

Maker Board UP Squared Pro 7000 UPN-ADLN01
2.3.21 12V DC-In Connector (CN26)..................................................................23
2.3.22 Fan Connector (J1) .....................................................................................24
2.3.23 AT/ATX Mode (JP1).....................................................................................24
Chapter 3 –Software Installation......................................................................................... 25
3.1 Linux Setup .............................................................................................................26
3.2 Windows Drivers Installation...............................................................................26
3.3 Dummy Driver Information .................................................................................27
3.3.1 Dummy Driver Installation.....................................................................27
3.3.2 Uninstalling the Dummy Driver .............................................................31
Appendix A –UP Framework SDK Installation ................................................................... 32
A.1 Introduction ............................................................................................................33
A.2 Installation for Windows 10..................................................................................33
A.3 Installation for Windows IoT Core......................................................................36
Appendix B –Cables and Connectors ................................................................................ 38
B.1 Cables and Connectors........................................................................................39

Maker Board UP Squared Pro 7000 UPN-ADLN01
Chapter 1
Chapter 1 - Product Specifications

Chapter 1 –Product Specifications 2
Maker Board UP Squared Pro 7000 UPN-ADLN01
1.1 Specifications
System
Processor
Intel® Core™ i3-N305
Intel Atom® x7425E
Intel® Processor N97
Intel® Processor N50
(formerly Alder Lake N)
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors
Memory
Up to 16GB LPDDR5
Storage
Up to 64GB eMMC
I/O
HDMI 2.0b x 1
DP 1.2 x 1
DP 1.2 x 1 (via USB Type-C)
Audio Jack x 1 (Mic-In + Line-Out)
RS-232/422/485 x 2 (from 10-pin header)
Camera
—
USB
USB 2.0 x 2 (from 10-pin header x 1)
USB 3.2 Gen 2 x 2 (Type-A)
USB 3.2 Gen 2 x 1 (Type-C)
Expansion
40 pin GPIO x 1
M.2 2230 E-Key x 1 (CNVI, PCIe Gen 3 [x1], USB 2.0)
M.2 2280 M-Key x 1 (PCIe Gen 3 [x2])
M.2 3052 B-Key x 1 (USB 3.2 Gen 2 only)
SATA III x 1
Display Interface
HDMI 2.0b x 1
DP 1.2 x 1
DP 1.2 x 1 (via USB Type-C)

Chapter 1 –Product Specifications 3
Maker Board UP Squared Pro 7000 UPN-ADLN01
System
Ethernet
2.5GbE x 2 (Intel® i226-IT)
Security
Onboard TPM 2.0
RTC
Yes
OS Support
Windows® 10 IoT Enterprise
Windows® IoT Core
Ubuntu 22.04 LTS
Yocto 4
Power Requirement
Power
12V DC-in, 6A
Power Supply Type
AT/ATX
Power Consumption
TBD
Mechanical
Dimension
4" x 4" (101.6mm × 101.6mm)
Net Weight
0.44 lb. (0.2 Kg)
Gross Weight
0.77 lb. (0.35 Kg)
Environment
Operating Temperature
32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow
Operation Humidity
0% ~ 90% relative humidity, non-condensing
MTBF
465,586
Certification
CE/FCC Class A, RoHS Compliant, REACH

Maker Board UP Squared Pro 7000 UPN-ADLN01
Chapter 2
Chapter 2 –Hardware Information

Chapter 2 –Hardware Information 5
Maker Board UP Squared Pro 7000 UPN-ADLN01
2.1 Dimensions

Chapter 2 –Hardware Information 6
Maker Board UP Squared Pro 7000 UPN-ADLN01
2.2 Jumpers and Connectors
Top:

Chapter 2 –Hardware Information 7
Maker Board UP Squared Pro 7000 UPN-ADLN01
Bottom:

Chapter 2 –Hardware Information 8
Maker Board UP Squared Pro 7000 UPN-ADLN01
2.3 List of Jumpers and Connectors
Please refer to the table below for all of the board’s jumpers and connectors that you
can configure for your application
Label
Function
SW1
PWR Button
CN1
RTC
CN2
M.2 2280 M-Key Slot
CN3
M.2 3052 B-Key Slot
CN4
M.2 2230 E-Key Slot
CN6
Dual LAN Port (RJ-45)
CN8
HDMI/DP Port
CN10
SATA Connector
CN11
SATA Power Connector
CN12
USB Type-C Port
CN13
Dual USB Type-A Port
CN14
USB 2.0/UART 1x10P Wafer
CN15
RS-232/422/485 1x10P Wafer (COM 1)
CN16
RS-232/422/485 1x10P Wafer (COM 2)
CN17
40-Pin HAT
CN18
CPLD and BIOS Update
CN20
DC Power Jack
CN21
Front Panel 1x6P Wafer
CN22
DC Terminal Block (Optional with Colay)
CN23
Audio Wafer
CN26
12V DC-In Connector
