Asus HS-1000W - Headset - Semi-open User manual

Content
Certifi cation and safety
approvals ––––– 1
Unique Features ––––– 2
Product Accessories ––––– 3
Specifi cation ––––– 4
Parts Introduction ––––– 5
User Guide Symbols ––––– 7
Getting Started ––––– 8
Important User Information ––––– 10
Trouble shooting ––––– 12
English
ASUS-1000W-01EN.indd 1 10/28/2008 1:44:01 PM
All manuals and user guides at all-guides.com
all-guides.com

1
Certifi cation and safety approvals
HS-1000W is the wireless headset that delivers high quality
2.0-channel stereo audio with extra sound clarity and soft, deep
bass effects. It provides a voice back channel that allows you
to talk in conjunction with any kinds of PC voice applications.
Examples of such applications include Skype, MSN, on-line
gaming, and more. With the high performance audio and the
unique feature set, HS-1000W brings you a great value. With
carrying case, you can take the headset anywhere you want
more easily.
ASUS-1000W-01EN.indd 1 10/28/2008 1:44:04 PM
All manuals and user guides at all-guides.com

2
English
ItalianSpanish
Portuguese
FrenchDutch
Unique Features
• Unique 2.0-Channel design - Each ear cup contains specially
designed speaker driver to deliver extra audio clarity.
• USB Plug-and-Play wireless headset that supports PC music /
game sounds and back-channel voice simultaneously, no need
to switch back and forth.
• USB Dongle (Transmitter) direct plug-in to the PC for
instant use of VoIP, on-line game, DVD, and all kinds of
entertainment running Windows XP,Vista.
• Ease of use, no software installation needed.
• The headband is collapsible and can be put in the carrying
case.
• Long standing use, up to 8 hours of continuous listening time
per charge.
• Easy charging through mini USB cable.
• Microphone switch on / off control. Up to 100 feet distance
for effective use.
ASUS-1000W-01EN.indd 2 10/28/2008 1:44:07 PM
All manuals and user guides at all-guides.com

3
Product Accessories
PC USB Wireless Headset * 1pc
PC USB Dongle * 1pc
USB Charging Cable * 1pc User Guide * 1pc
ASUS-1000W-01EN.indd 3 10/28/2008 1:44:10 PM
All manuals and user guides at all-guides.com

4
English
ItalianSpanish
Portuguese
FrenchDutch

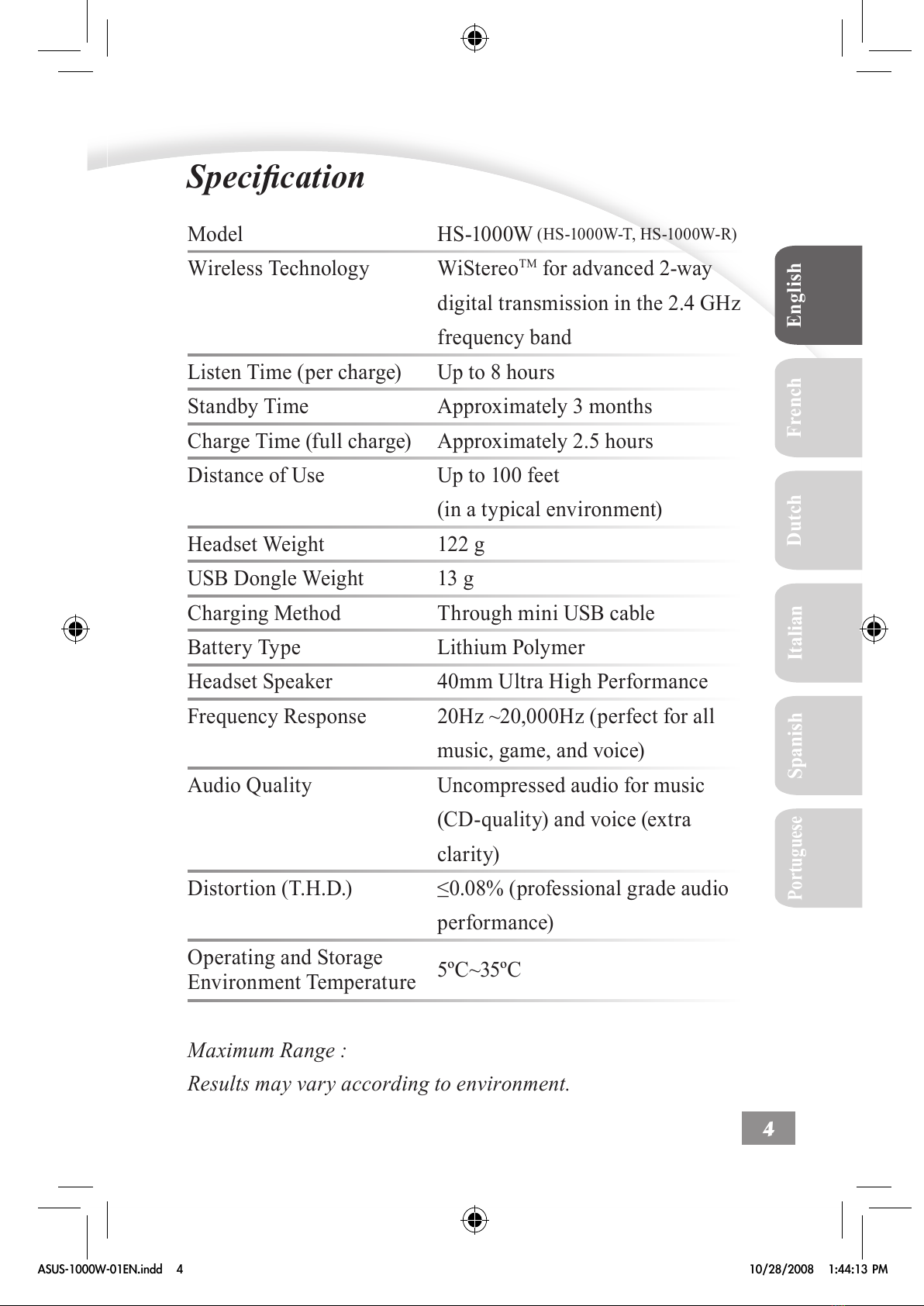

Specifi cation
Model HS-1000W (HS-1000W-T, HS-1000W-R)
Wireless Technology WiStereoTM for advanced 2-way
digital transmission in the 2.4 GHz
frequency band
Listen Time (per charge) Up to 8 hours
Standby Time Approximately 3 months
Charge Time (full charge) Approximately 2.5 hours
Distance of Use Up to 100 feet
(in a typical environment)
Headset Weight 122 g
USB Dongle Weight 13 g
Charging Method Through mini USB cable
Battery Type Lithium Polymer
Headset Speaker 40mm Ultra High Performance
Frequency Response 20Hz ~20,000Hz (perfect for all
music, game, and voice)
Audio Quality Uncompressed audio for music
(CD-quality) and voice (extra
clarity)
Distortion (T.H.D.) ≤0.08% (professional grade audio
performance)
Operating and Storage
Environment Temperature 5ºC~35ºC
Maximum Range :
Results may vary according to environment.
ASUS-1000W-01EN.indd 4 10/28/2008 1:44:13 PM
All manuals and user guides at all-guides.com

5

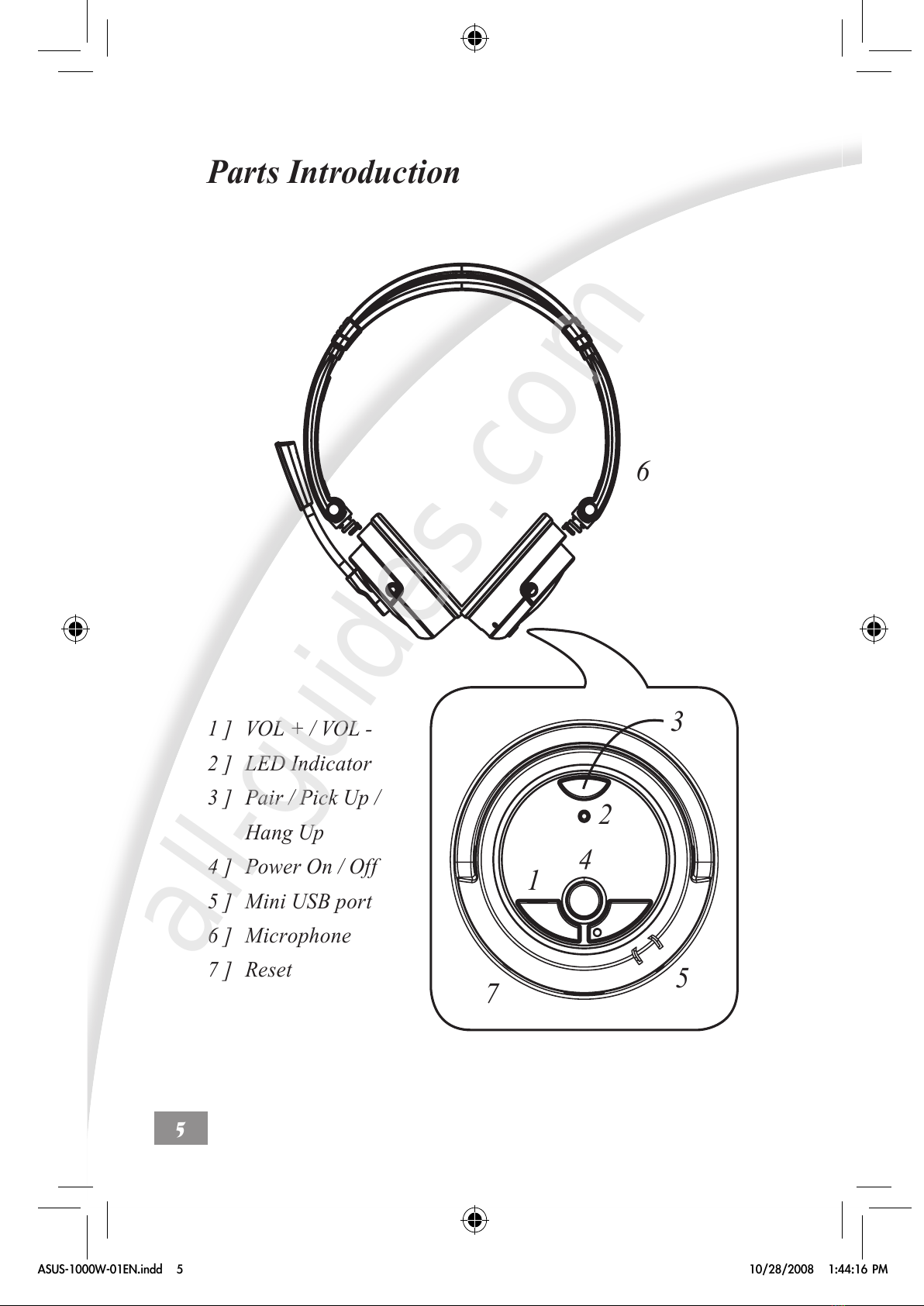

Parts Introduction
6
3
2
4
1
75
1 ] VOL + / VOL -
2 ] LED Indicator
3 ] Pair / Pick Up /
Hang Up
4 ] Power On / Off
5 ] Mini USB port
6 ] Microphone
7 ] Reset
ASUS-1000W-01EN.indd 5 10/28/2008 1:44:16 PM
All manuals and user guides at all-guides.com
all-guides.com

6
English
ItalianSpanish
Portuguese
FrenchDutch

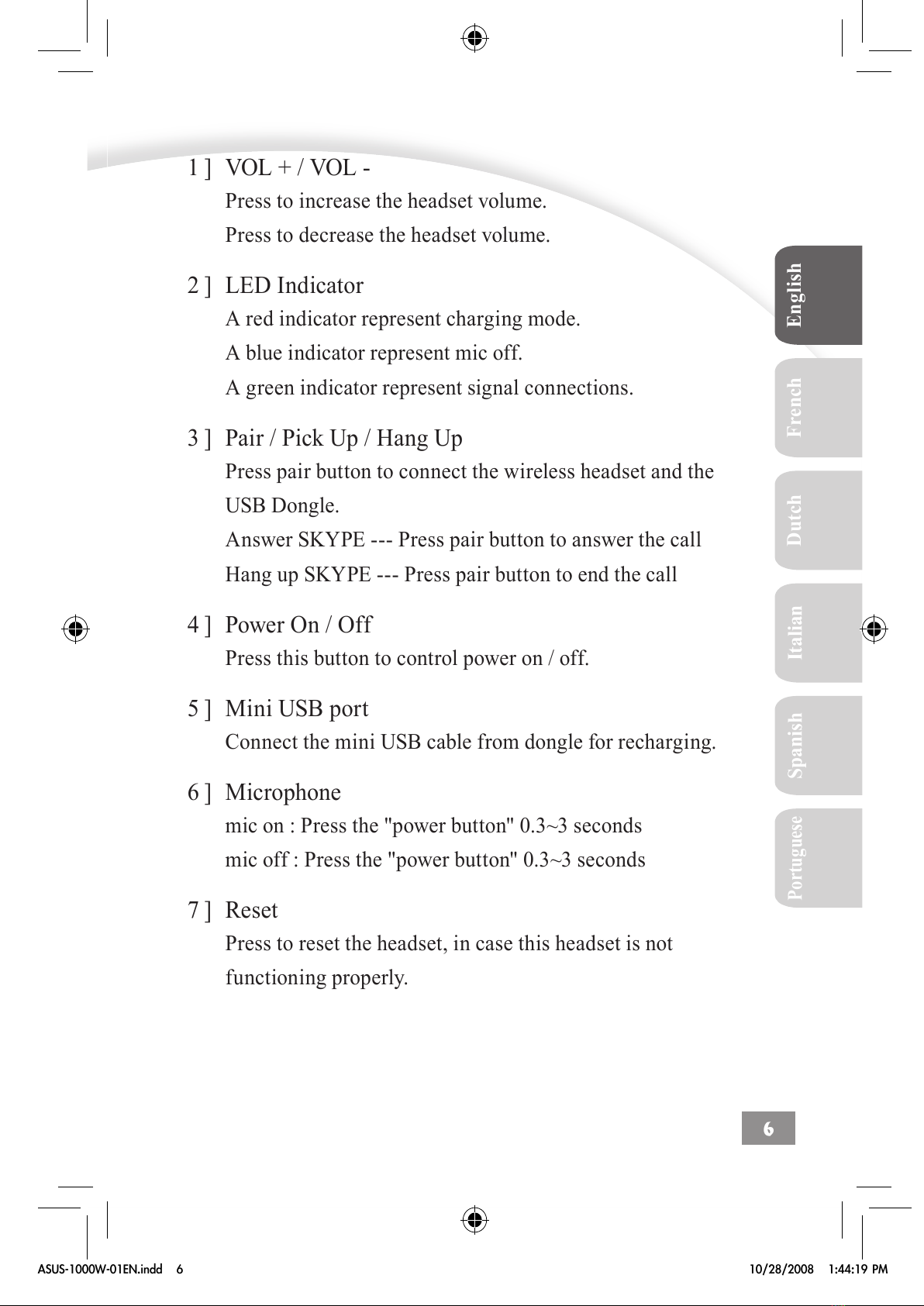

1 ] VOL + / VOL -
Press to increase the headset volume.
Press to decrease the headset volume.
2 ] LED Indicator
A red indicator represent charging mode.
A blue indicator represent mic off.
A green indicator represent signal connections.
3 ] Pair / Pick Up / Hang Up
Press pair button to connect the wireless headset and the
USB Dongle.
Answer SKYPE --- Press pair button to answer the call
Hang up SKYPE --- Press pair button to end the call
4 ] Power On / Off
Press this button to control power on / off.
5 ] Mini USB port
Connect the mini USB cable from dongle for recharging.
6 ] Microphone
mic on : Press the "power button" 0.3~3 seconds
mic off : Press the "power button" 0.3~3 seconds
7 ] Reset
Press to reset the headset, in case this headset is not
functioning properly.
ASUS-1000W-01EN.indd 6 10/28/2008 1:44:19 PM
All manuals and user guides at all-guides.com

7

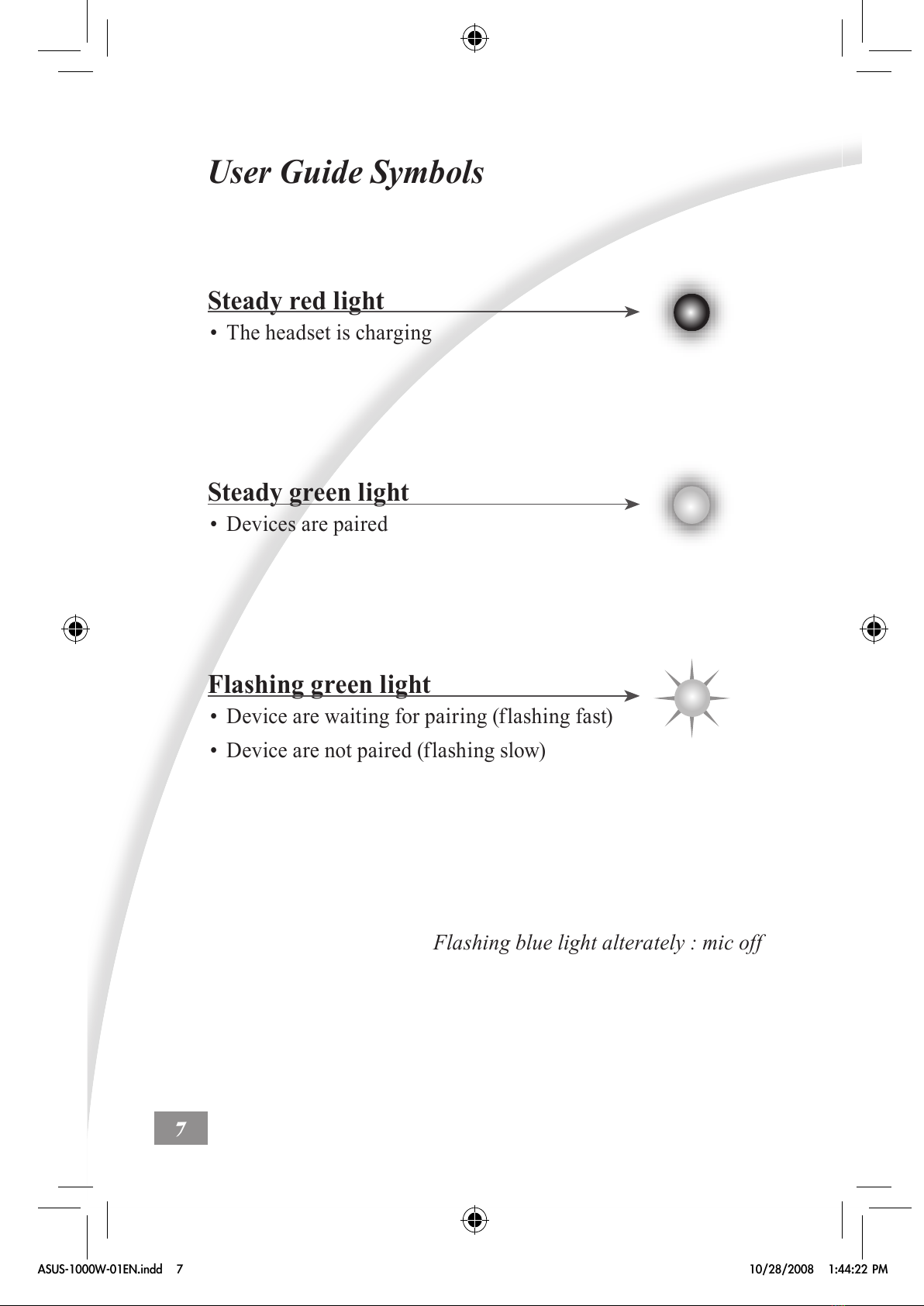

User Guide Symbols
Steady red light
• The headset is charging
Steady green light
• Devices are paired
Flashing green light
• Device are waiting for pairing (flashing fast)
• Device are not paired (flashing slow)
Flashing blue light alterately : mic off
ASUS-1000W-01EN.indd 7 10/28/2008 1:44:22 PM
All manuals and user guides at all-guides.com

8
English
ItalianSpanish
Portuguese
FrenchDutch

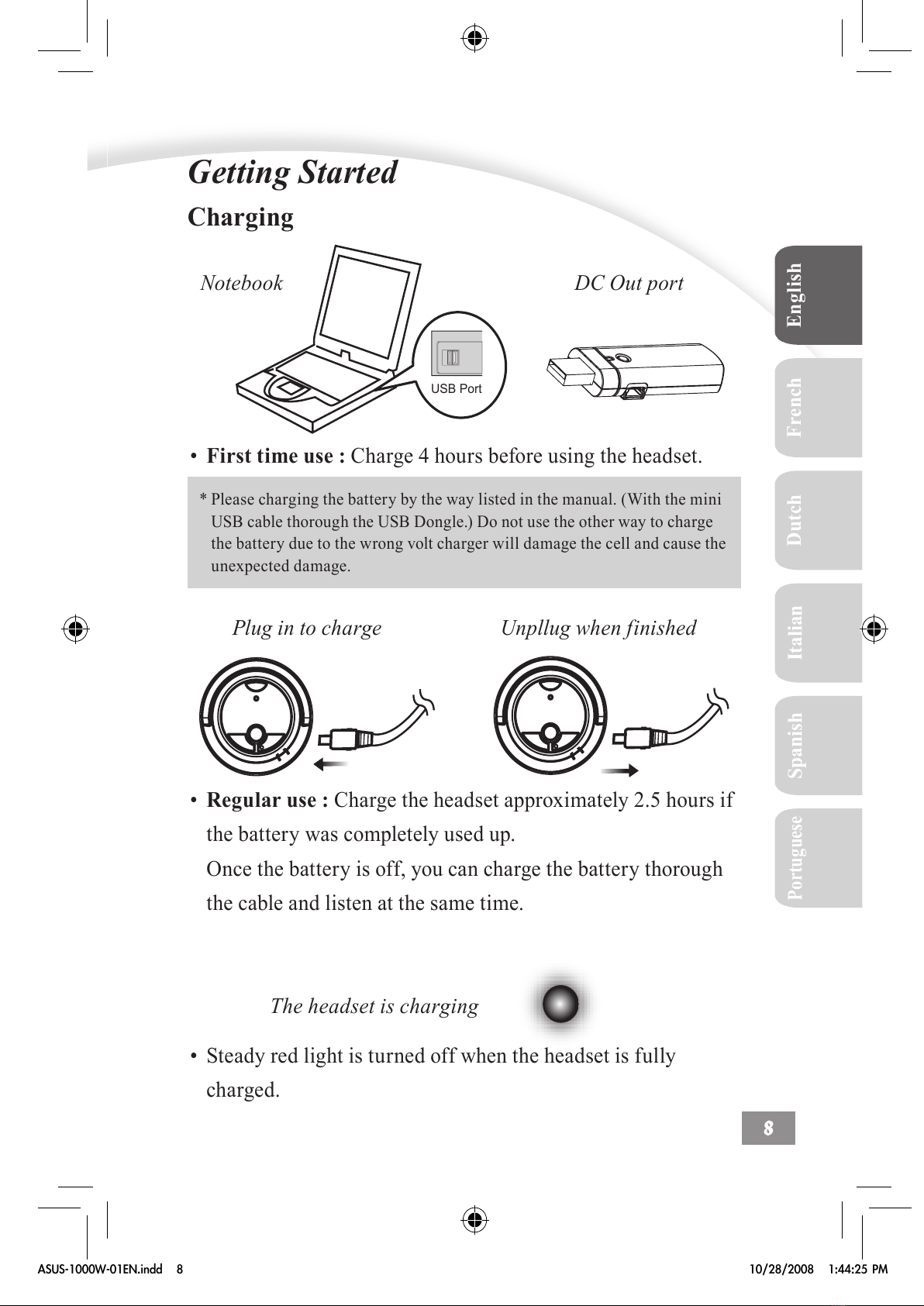

Getting Started
Charging
Notebook DC Out port
• First time use : Charge 4 hours before using the headset.
Plug in to charge Unpllug when finished
• Regular use : Charge the headset approximately 2.5 hours if
the battery was completely used up.
Once the battery is off, you can charge the battery thorough
the cable and listen at the same time.
The headset is charging
• Steady red light is turned off when the headset is fully
charged.
USB Port
* Please charging the battery by the way listed in the manual. (With the mini
USB cable thorough the USB Dongle.) Do not use the other way to charge
the battery due to the wrong volt charger will damage the cell and cause the
unexpected damage.
ASUS-1000W-01EN.indd 8 10/28/2008 1:44:25 PM
All manuals and user guides at all-guides.com

9
Connect the USB Dongle
• Connect the USB Dongle with
PC for signal transmission.
Turn on / off the headset
• Turn on : press the
power button
• Turn off : press the
power button for at least
3 seconds
• Steady red light is
turned off when the headset is fully charged.
• Mic on : Press the" power button" 0.3~3 seconds.
• Mic off : Press the "power button" 0.3~3 seconds.
• Press LINK button for 5 seconds for pairing ( press LINK
button for 5 seconds at dongle side at the same time )
• LINK button combined with SKYPE Answer and End
• Press and release momentarily for answer SKYPE
• Press LINK button for 2 seconds for end SKYPE
USB Port
PC
ASUS-1000W-01EN.indd 9 10/28/2008 1:44:28 PM
All manuals and user guides at all-guides.com

10
English
ItalianSpanish
Portuguese
FrenchDutch
Important User Information
Handling the headset
Do not bend, drop, crush, puncture, incinerate, or open the
headset.
Repairing the headset
Never attempt to repair the headset yourself. The headset
contains no serviceable parts. The rechargeable battery in the
headset should be replaced only by authorized service providers.
Please contact your service center for service information.
Unplug the USB charging cable if any of the
following conditions exist
• The USB cable or plug has become frayed or damaged.
• The USB cable has been exposed to rain, liquids, or excessive
moisture.
• You suspect the headset needs service or repair.
• You want to clean the headset.
Battery notice
• If you will not use HS-1000W for a long time, please
remember to charge the battery about 4 hours in advance.
• Please remember to charge the battery every month at least.
And notice that the battery power will lose gradually even
you do not use HS-1000W.
ASUS-1000W-01EN.indd 10 10/28/2008 1:44:30 PM
All manuals and user guides at all-guides.com
all-guides.com

11

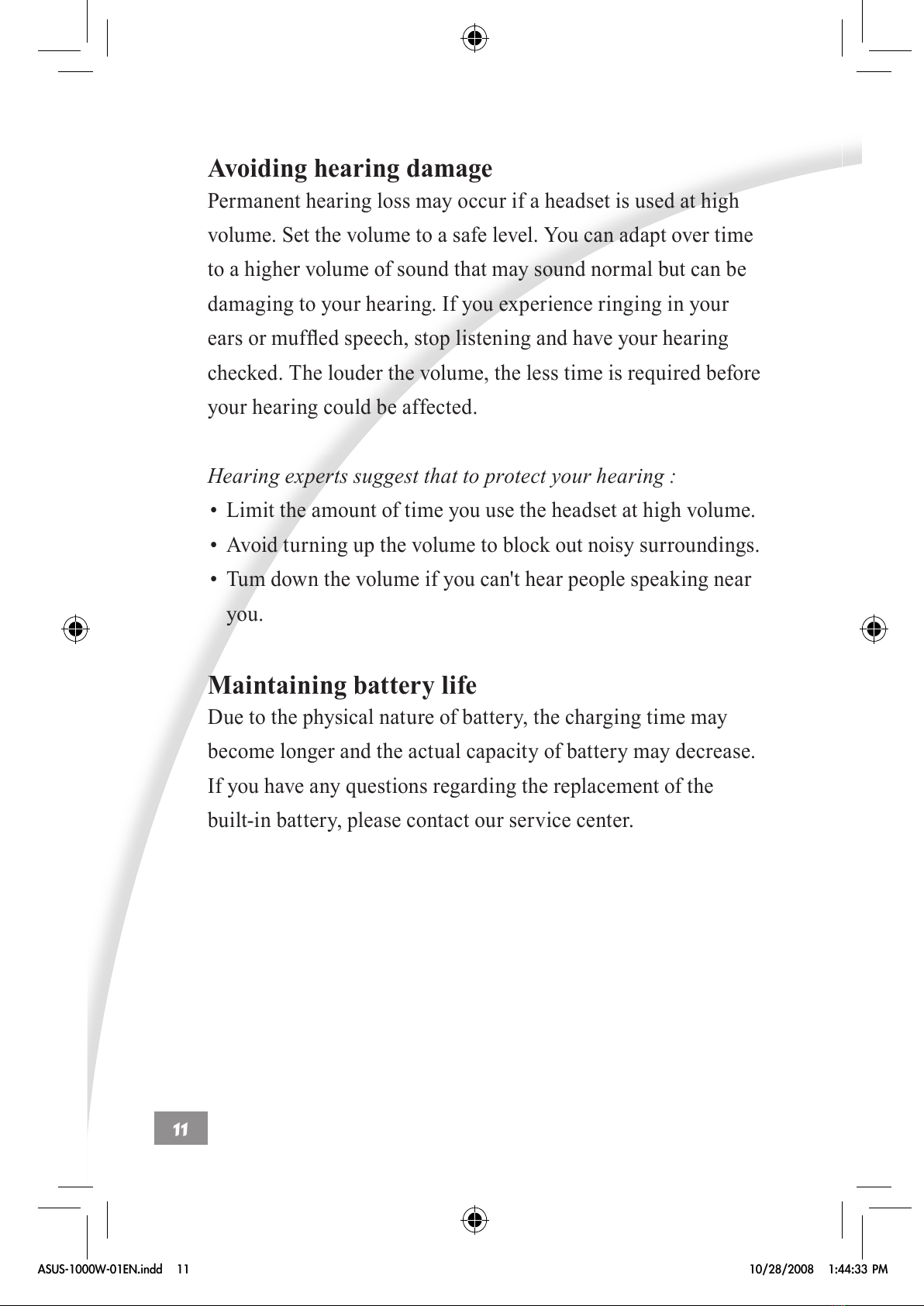

Avoiding hearing damage
Permanent hearing loss may occur if a headset is used at high
volume. Set the volume to a safe level. You can adapt over time
to a higher volume of sound that may sound normal but can be
damaging to your hearing. If you experience ringing in your
ears or muffl ed speech, stop listening and have your hearing
checked. The louder the volume, the less time is required before
your hearing could be affected.
Hearing experts suggest that to protect your hearing :
• Limit the amount of time you use the headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Tum down the volume if you can't hear people speaking near
you.
Maintaining battery life
Due to the physical nature of battery, the charging time may
become longer and the actual capacity of battery may decrease.
If you have any questions regarding the replacement of the
built-in battery, please contact our service center.
ASUS-1000W-01EN.indd 11 10/28/2008 1:44:33 PM
All manuals and user guides at all-guides.com

12
English
ItalianSpanish
Portuguese
FrenchDutch
Trouble shooting
No signal connection to the headset
Make sure the headset is charged and the USB Dongle is
properly connected to the PC. Within the range of signal
coverage, power on the headset again.
The headset is automatically switched off
The battery is too low. The indicator light on the headset is off.
Unexpected behavior
Reset the headset. (see p.5 )
No audio at the headset
• Check the headset and the computer volume control. Make
sure they are not in the lowest volume level or muted.
• Check the pair status of the USB Dongle and the headset.
Make sure two devices are paired properly.
• Check if the PC Media Player is properly installed, and audio
file is playable.
• The listening party can not hear you over the internet. Check
if the microphone switch is on.
Safety Approvals and Certifi cations
• FCC Statement : Both the headphone and the trarnsmitter are
compliant with part 15 of the FCC rules. Operation is subject
to the following two conditions : (1)These devices may not
cause harmful interference, and (2)These devices must accept
any interference received, including interference that may
cause undesired operation.
• CE : This Product is CE marked according to the provisions
of the R& TTE Directive. (99/5/EC)
ASUS-1000W-01EN.indd 12 10/28/2008 1:44:36 PM
All manuals and user guides at all-guides.com

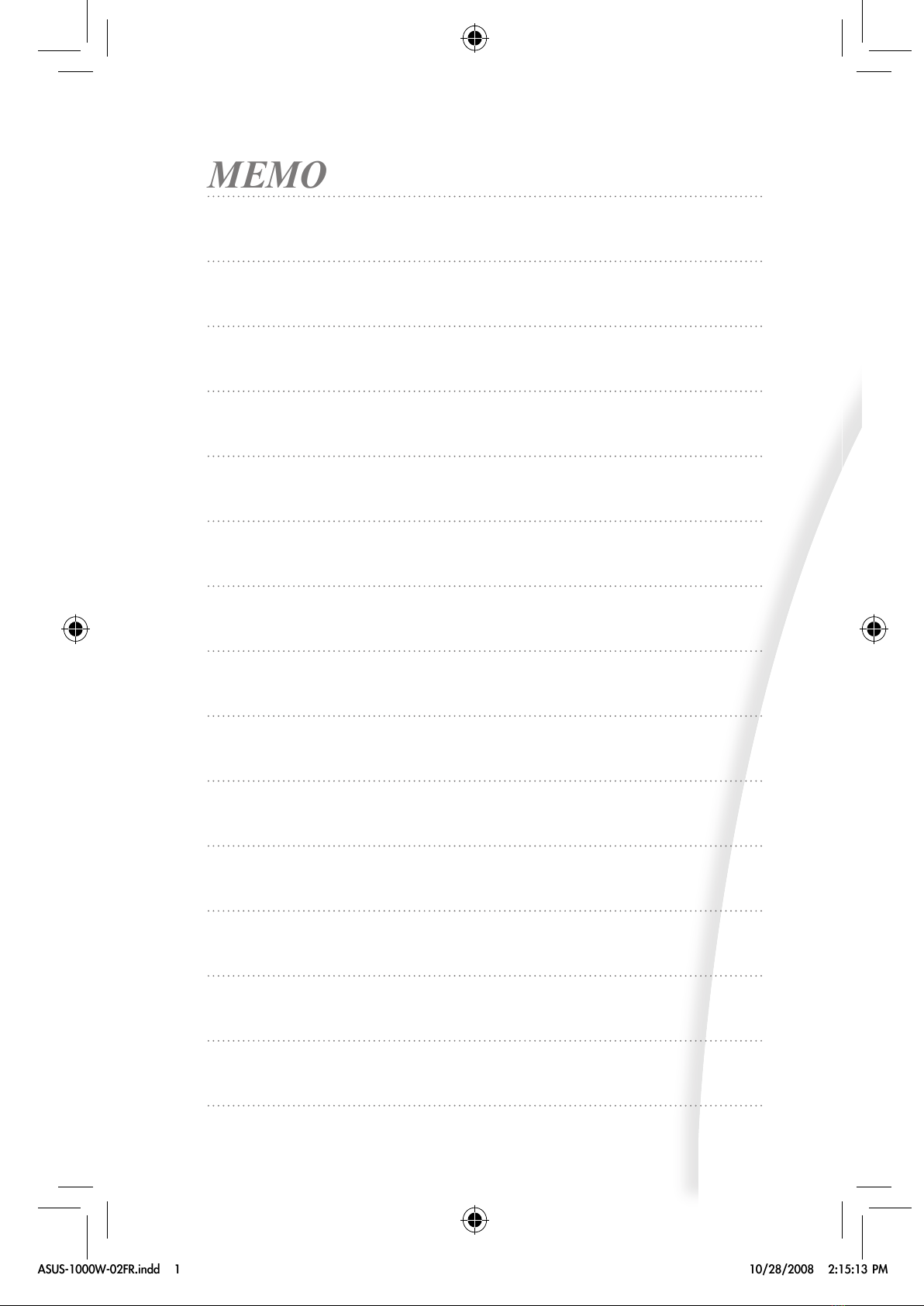

MEMO
ASUS-1000W-02FR.indd 1 10/28/2008 2:15:13 PM
All manuals and user guides at all-guides.com

French
Content
Introduction–––––– 1
Caractéristiques uniques–––––– 2
Accessoires–––––– 3
Spécifi cations–––––– 4
Introduction aux composants–––––– 5
Voyants lumineux–––––– 7
Pour bien démarrer–––––– 8
Informations d’utilisation importantes–––––– 10
Dépannage–––––– 12
ASUS-1000W-02FR.indd 2 10/28/2008 2:15:15 PM
All manuals and user guides at all-guides.com

1
Introduction
Le HS-1000W est un casque sans fi l offrant un son stéréo
2 canaux de haute qualité avec des effets de basses à la fois
souples et graves. Il peut être utilisé avec des applications voix
comme Skype, MSN, le jeu en ligne et bien plus. Grace à des
performances audio de qualité et une panoplie de fonctions
uniques, le HS-1000W est le choix d’écoute idéal. Accompagné
d’une sacoche de transport, le casque peut vous accompagner
plus facilement lors de vos déplacements.
ASUS-1000W-02FR.indd 1 10/28/2008 2:15:19 PM
All manuals and user guides at all-guides.com
all-guides.com

2
English
ItalianSpanish
Portuguese
FrenchDutch
Caractéristiques uniques
• Design à 2 canaux unique – Chaque oreillette intègre un
circuit d'attaque de haut-parleur spécialement conçu pour
offrir une meilleure clarté audio.
• Casque sans fil USB Plug-and-Play supportant les flux audio
de jeux PC, d’applications VoIP et de fichiers multimédia.
• Récepteur USB se connectant directement au PC pour un
accès instantané aux applications VoiP, au jeu en ligne, à
la lecture de DVD, et tous types de contenu multimédia
fonctionnant sous Windows XP, Vista.
• Utilisation simplifiée. Aucune installation logicielle n’est
requise. Le serre-tête est rétractable et possède son propre
étui de protection.
• Longue autonomie avec jusqu’à 8 heures d’écoute continue
par chargement.
• Chargement aisé via câble mini USB.
• Interrupteur d’activation / désactivation du microphone.
• Portée d’utilisation allant jusqu’à 30.5 mètres. (Dans un
environnement typique)
ASUS-1000W-02FR.indd 2 10/28/2008 2:15:22 PM
All manuals and user guides at all-guides.com

3
Accessoires
Casque USB sans fi l * 1
Récepteur USB *1
Câble de chargement USB *1 Guide d’utilisation *1
ASUS-1000W-02FR.indd 3 10/28/2008 2:15:25 PM
All manuals and user guides at all-guides.com

4
English
ItalianSpanish
Portuguese
FrenchDutch
Spécifi cations
Modèle HS-1000W
Technologie sans fil WiStereo pour une transmission
numérique bidirectionnelle
avancée dans la bande de
fréquence des 2.4GHz
Temps d’écoute Jusqu’à 8 heures
(par chargement)
Temps de veille Environ 3 mois
Temps de chargement Environ 2.5 heures
(pour un chargement complet)
Distance d’utilisation Jusqu’à 30.5 mètres (Dans un
environnement typique)
Poids du casque 122g
Poids du récepteur USB 13g
Méthode de chargement Via un câble mini-USB
Type de batterie Lithium Polymère
Haut-parleur du casque Haut-parleurs de 40mm de haute
qualité
Distorsion de fréquence 20Hz~20,000Hz (solution idéale
pour la musique, le jeu, et les
applications Voix sur IP)
Qualité audio Flux audio non compressé pour la
musique (qualité CD) et la voix
Distorsion (T.H.D) ≤0.08% (performances audio de
qualité professionnelles)
Portée maximum :
Varie selon l’environnement d’utilisation
ASUS-1000W-02FR.indd 4 10/28/2008 2:15:28 PM
All manuals and user guides at all-guides.com

5
Introduction aux composants
6
3
2
4
1
75
1 ] VOL + / VOL -
2 ] Indicateur LED
3 ] Se connecter
/ Répondre /
Raccrocher
4 ] Mise sous / hors
tension
5 ] Port mini-USB
6 ] Microphone
7 ] Réinitialisation
ASUS-1000W-02FR.indd 5 10/28/2008 2:15:31 PM
All manuals and user guides at all-guides.com
