Asus AAM6000UG-ALC User manual

Belgacom AAM6000UG – ALC
USB ADSL Modem
E1228
User s Manual

2USB ADSL Modem User’s Manual
Copyright Information
Product Name: AAM6000UG – ALC USB ADSL Modem
Manual Revision: 3 E1228
Release Date: March 2003
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any means, except
documentationkeptbythepurchaserforbackuppurposes,withouttheexpress
written permission of the manufacturer.
THEMANUFACTURERPROVIDESTHISMANUAL“ASIS”WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL THE
MANUFACTURER, ITS DIRECTORS, OFFICERS, EMPLOYEES OR
AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF THE
MANUFACTURER HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGESARISING FROMANYDEFECTOR ERROR INTHIS
MANUAL OR PRODUCT.
Productwarrantyorservice will not be extended if: (1)the product isrepaired,
modifiedoraltered,unlesssuchrepair,modificationofalterationisauthorized
in writing by the manufacturer; or (2) the serial number of the product is
defaced or missing.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are
usedonly for identification or explanation and tothe owners’ benefit, without
intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS
MANUALAREFURNISHED FOR INFORMATIONALUSE ONLY,AND
ARE SUBJECT TO CHANGEATANY TIME WITHOUT NOTICE,AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY THE
MANUFACTURER. THE MANUFACTURER ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIESTHATMAYAPPEARINTHIS MANUAL,INCLUDING
THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2003 THE MANUFACTURER. All Rights Reserved.

USB ADSL Modem User’s Manual 3
Safety Statements
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including inter-
ference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
manufacturer's instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not oc-
cur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not ex-
pressly approved by the manufacturer could void any assurances
of safety or performance and could result in violation of Part 15 of
the FCC Rules.
UL
This product meets all safety requirements per UL-1950 standard.
FCC
This product meets all safety requirements per Part 15, Class B, Part 68
CE
This certificate of conformity is based on an evaluation of theADSLModem
that is in compliance with the Low Voltage Directive 73/23/EEC and the
Amendment Directive 93/68/EEC.

4USB ADSL Modem User’s Manual
Contents
1 Introduction .............................................................................. 5
1.1 Getting Started: System Requirements ............................. 5
1.2 Overview ............................................................................ 6
1.3 Features............................................................................. 6
1.4 Package Contents.............................................................. 6
2. Installation ............................................................................... 7
2.1 Connecting the USB ADSL Modem ................................... 7
2.2 Windows 98SE................................................................... 8
2.3 Windows Me .................................................................... 10
2.4 Windows 2000 ................................................................. 12
2.5 Windows XP..................................................................... 14
3. Uninstalling Drivers .............................................................. 16
3.1 Windows 98SE................................................................. 16
3.2 Windows Me .................................................................... 17
3.3 Windows 2000 ................................................................. 18
3.4 Windows XP..................................................................... 19
4. Using the Modem .................................................................. 20
4.1 Front Panel System Messages ........................................ 20
4.2 ADSL Control and Status ................................................. 21
Troubleshooting ......................................................................... 22

USB ADSL Modem User’s Manual 5
Chapter 1 - Introduction
Chapter 1
Introduction
1 Introduction
Study the manual carefully to familiarize yourself with the product,
installation and support materials.
1.1 Getting Started: System Requirements
Before setting up and running the USB ADSL Modem, ensure that the
following conditions are fulfilled:
1. ADSL and telephone service: Enable an ADSL line through a local
service provider. Unless a new, separate line is opened for the ADSL
modem, a central line splitter box, or distributed filters, must be in place
to decouple the ADSL and telephone signals.
2. The PC system must be supplied with a USB port capable of powering
add-on devices. Low-powered ports will not be adequate. Check the
PC documentation. AUSB hub may also be used to connect and power
the modem.
WARNING! Provide adequate ventilation for the modem and keep
it away from heat sources. Do not use the modem near water
like bathtubs or sinks. To prevent shock or short circuits, never
push any objects though openings in the modem housing.

6USB ADSL Modem User’s Manual
Chapter 1 - Introduction
Chapter 1
Introduction
1.2 Overview
The USB ADSLModem is a universal serial busADSLmodem.The modem
is designed to function with full compatibility with the latest ADSL
standards. Ideal for home and small business users, the easy-to-use USB
ADSL Modem offers: automatic installation, reliable connectivity and
remarkable data transfer rates up to 8Mbps. Make the most of your PC:
cruise the Internet freeway as fast as you want to go! Listen to music,
downloadlargesoftwareapplications and performa myriad of data-intensive
operations.
1.3 Features
• USB port interface: no extra power required
• ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt), G.992.2 (G.lite)
• Automatic PPP support: PPPoA compatible
• Firmware upgradable
• Supports Windows®98SE, Me, 2000, XP
• Plug and Play installation for easy setup
• Operator defined service profiles for simplified installation
• Driver uninstall capability
• Diagnosis through front panel LEDs
• Stylish, compact design: 26 x 111 x 130 (mm)
1.4 Package Contents
TheADSL Modem is supplied with the following materials. Please check
the contents carefully. If anything is missing, please contact your dealer
immediately.
(1) USB ADSL Modem
(1) RJ-11 telephone cable
(1) Universal Serial Bus (USB) cable
(1) Quick Installation Guide
(1) CD ROM Support disk

USB ADSL Modem User’s Manual 7
Chapter 2 - Installation
Chapter 2
Installation
Cable Connection Diagram
Connect the RJ-11 telephone cable as shown below.
Front View Rear View
POWER
WAN
DATA
®
LINEUSB
USB cable to PC (connect
after driver installation)
RJ-11 cable to
Telephone Line
Microfilter Outlet
Telephone
USB LINE
2. Installation
2.1 Connecting the USB ADSL Modem
DO NOT CONNECT THE USB CABLE UNTIL THE DRIVER INSTAL-
LATION IS COMPLETE.

8 USB ADSL Modem User’s Manual
Chapter 2 - Installation
Chapter 2
Installation

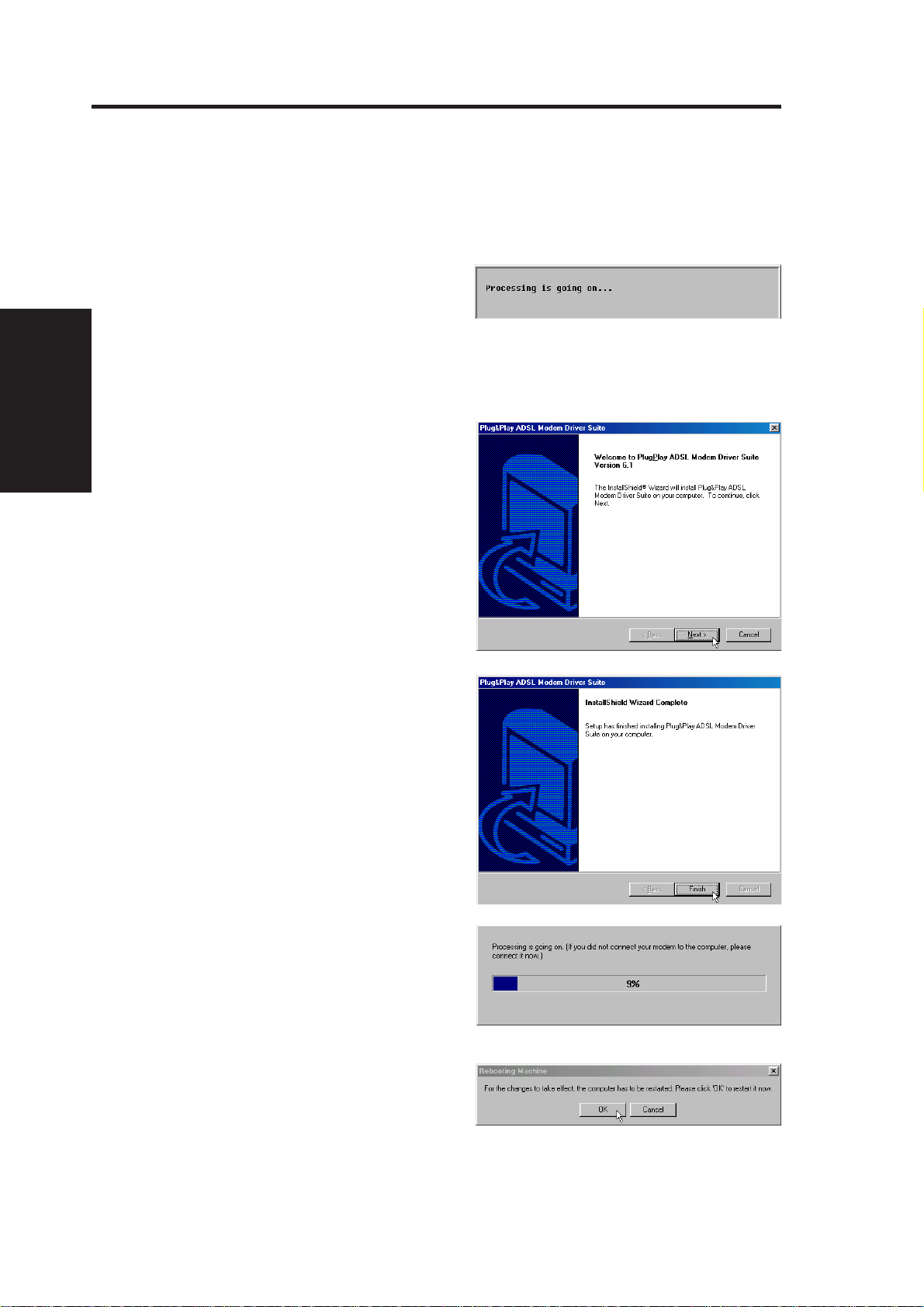

2.2 Windows 98SE
Installing USB ADSL Modem Drivers
2. Click Next after reading the
Welcome screen.
1. Insert the provided CD. The CD
should automatically start the
driver installation. If your autorun
is disabled, double-click
“Setup.exe” in the root of the CD.
3. Click Finishwhen installation is
complete.
4. Connect the modem to your
computer’s USB port using the
provided USB cable and wait
while the modem is configured.

USB ADSL Modem User’s Manual 9
Chapter 2 - Installation
Chapter 2
Installation
6. Restart your computer to
complete your ADSL modem
installation.
8. “Shortcut to ADSL USB
Modem Connection” icon will
appearon your desktop. Double-
click the icon to open the
connection interface.
9. Enter a username and password
and click the Connect button to
connect to your Internet Service
Provider (ISP).
7. If you see the “Location
Information” window, you must
select your country or region
and enter your telephone area
code. Click Close when done.
5. You will be asked for your
Windows 98 SEsetup CD. Insert
the CD and enter the letter of
your CD-ROM drive and the
path (if necessary).

10 USB ADSL Modem User’s Manual
Chapter 2 - Installation
Chapter 2
Installation
2.3 Windows Me
Installing USB ADSL Modem Drivers
2. Click Next after reading the
Welcome screen.
1. Insert the provided CD. The CD
should automatically start the
driver installation. If your autorun
is disabled, double-click
“Setup.exe” in the root of the CD.
3. Click Finish when installation is
complete.
4. Connect the modem to your
computer’s USB port using the
provided USB cable and wait
while the modem is configured.
5. Restart your computer to
complete your ADSL modem
installation.

USB ADSL Modem User’s Manual 11
Chapter 2 - Installation
Chapter 2
Installation
2.3 Windows Me
Installing USB ADSL Modem Drivers
6. If you see the “Location
Information” window, you must
select your country or region
and enter your telephone area
code. Click Close when done.

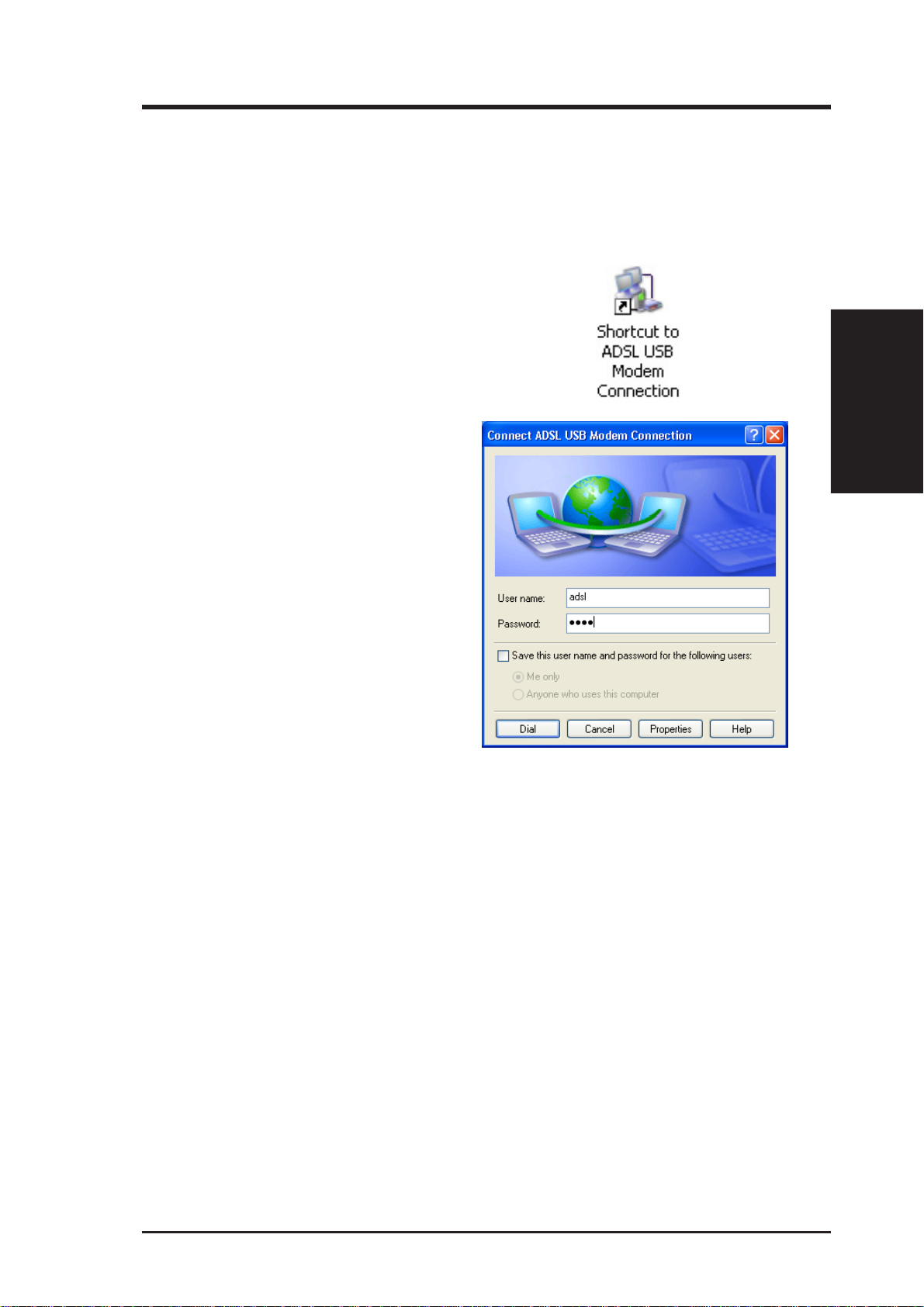

7. “Shortcut to ADSL USB
Modem Connection” icon will
appearon your desktop. Double-
click the icon to open the
connection interface.
8. Enter a username and password
and click the Connect button to
connect to your Internet Service
Provider (ISP).

12 USB ADSL Modem User’s Manual
Chapter 2 - Installation
Chapter 2
Installation

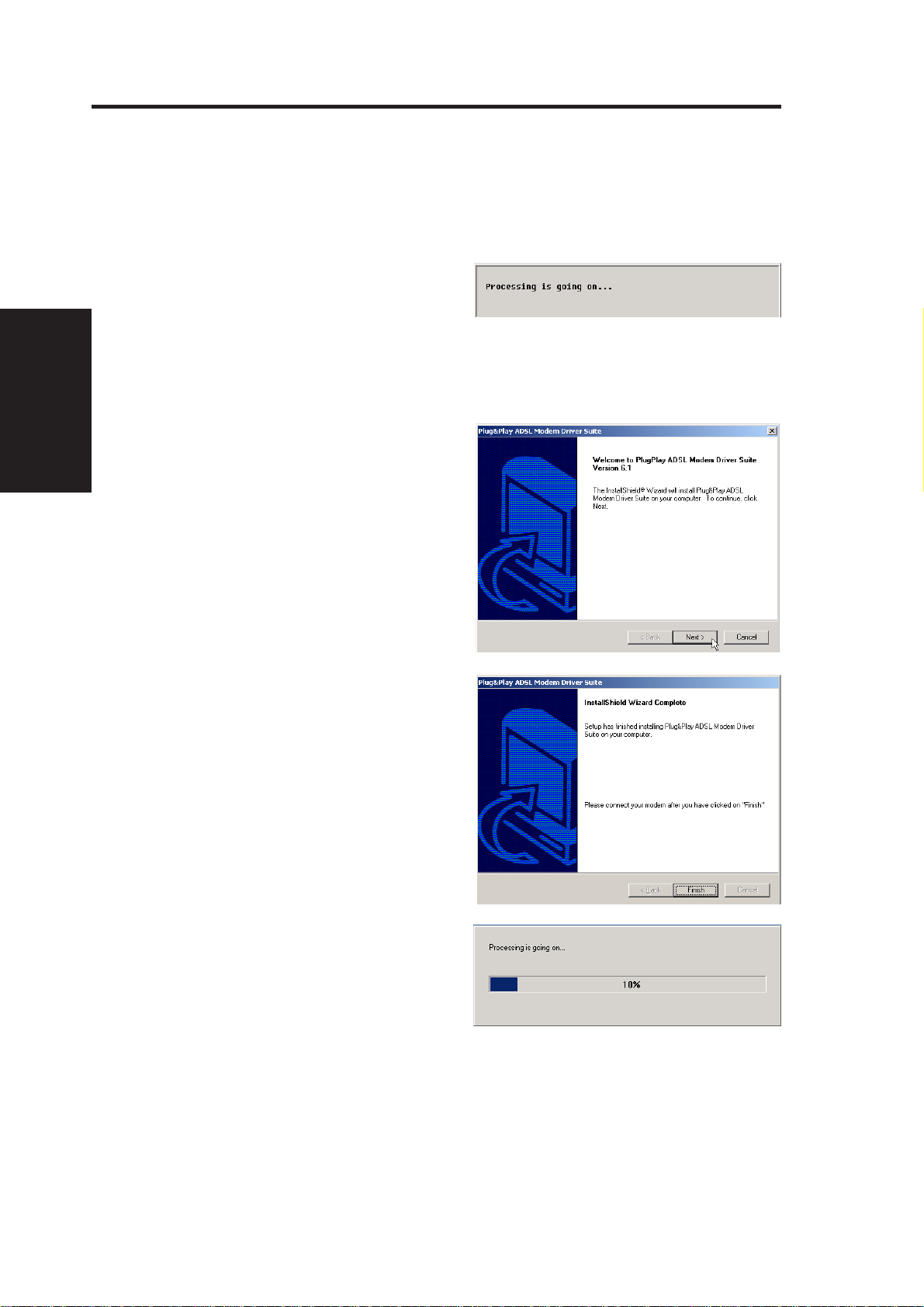

2.4 Windows 2000
Installing USB ADSL Modem Drivers
2. Click Next after reading the
Welcome screen.
1. Insert the provided CD. The CD
should automatically start the
driver installation. If your autorun
is disabled, double-click
“Setup.exe” in the root of the CD.
3. Click Finish when installation
is complete.
4. Connect the modem to your
computer’s USB port using the
provided USB cable and wait
while the modem is configured.

USB ADSL Modem User’s Manual 13
Chapter 2 - Installation
Chapter 2
Installation
5. “Shortcut toADSLUSB Modem
Connection” icon will appear on
your desktop. Double-click the
icon to open the connection
interface.
6. Enter a username and password
and click the Dial button to
connect to your Internet Service
Provider (ISP).
2.4 Windows 2000
Installing USB ADSL Modem Drivers (Cont.)

14 USB ADSL Modem User’s Manual
Chapter 2 - Installation
Chapter 2
Installation
2.5 Windows XP
Installing USB ADSL Modem Drivers
2. Click Next after reading the
Welcome screen.
1. Insert the provided CD. The CD
should automatically start the
driver installation. If your autorun
is disabled, double-click
“Setup.exe” in the root of the CD.
3. Click Finish when installation is
complete.
4. Connect the modem to your
computer’s USB port using the
provided USB cable and wait
while the modem is configured.

USB ADSL Modem User’s Manual 15
Chapter 2 - Installation
Chapter 2
Installation
2.5 Windows XP
Installing USB ADSL Modem Drivers (Cont.)
5. “Shortcut to ADSL USB
Modem Connection” icon will
appearon your desktop. Double-
click the icon to open the
connection interface.
6. Enter a username and password
and click the Dial button to
connect to your Internet Service
Provider (ISP).

16 USB ADSL Modem User’s Manual
Chapter 3 - Uninstalling Drivers
Chapter 3
Uninstalling Drivers
3. Uninstalling Drivers
3.1 Windows 98SE
Uninstalling USB ADSL Modem Drivers
1. Click Remove Modem Driver
from Windows Start menu.
2. Keep your modem connected
and click OK.
3. Click OK to restart your
computer and complete the
uninstallation.

USB ADSL Modem User’s Manual 17
Chapter 3 - Uninstalling Drivers
Chapter 3
Uninstalling Drivers
3.2 Windows Me
Uninstalling USB ADSL Modem Drivers
1. Click Remove Modem Driver
from Windows Start menu.
2. Keep your modem connected
and click OK.
3. Click OK to restart your
computer and complete the
uninstallation.

18 USB ADSL Modem User’s Manual
Chapter 3 - Uninstalling Drivers
Chapter 3
Uninstalling Drivers
3.3 Windows 2000
Uninstalling USB ADSL Modem Drivers
1. Click Remove Modem Driver
from Windows Start menu.
2. Keep your modem connected
and click OK.
3. Click OK to restart your
computer and complete the
uninstallation.

USB ADSL Modem User’s Manual 19
Chapter 3 - Uninstalling Drivers
Chapter 3
Uninstalling Drivers
3.4 Windows XP
Uninstalling USB ADSL Modem Drivers
1. Click Remove Modem Driver
from Windows Start menu.
2. Keep your modem connected
and click OK.
3. Click OK to restart your
computer and complete the
uninstallation.

20 USB ADSL Modem User’s Manual
Chapter 4 - Using the Modem
Chapter 4
Using the Modem
4. Using the Modem
4.1 Front Panel System Indicators
POWER
WAN
DATA
POWER WAN DATA Definition
OFF OFF OFF Modem not attached or computer is not ON.
ON OFF OFF Driver not installed, or ADSL line is disconnected.
ON Blinking OFF Waiting for ADSL line synchronization or
waitingfordatatrafficafterADSLconnectionready.
ON ON Blinking ADSL connection ready.
The three indicator lights on the front panel illuminate or blink according
to the system status as follows:
