ATAG KD8088AD
KD8102AD
KD8102BD
KD8140BD

Service Information No. 05/2006 IKP ..5. from -20
Page 2/16
Contents
1.0 Operating and control elements 3
2.0 Functions at a glance 3
3.0 Description of the appliance 4
3.1 Schematic diagram IKP ..50, without 4-star freezer compartment 4
3.2 Schematic diagram IKP ..54, with 4-star freezer compartment 4
4.0 Control and functional components 5
4.1 Refrigerator compartment 5
4.2 Freezer compartment 6
5.0 Refrigeration circuit 6
6.0 Special features 7
6.1 Soft stop 7
7.0 Assembly instructions 8
7.1 Evaporator sensor 8
7.1.1 Appliances without 4-star freezer compartment 8
7.1.2 Appliances with 4-star freezer compartment 8
7.2 Air sensor 9
7.3 LED interior light 9
7.4 -Only IKP 2850- fan 10
7.5 Integral PCB 11
7.6 Door magnet 13
7.7 Support rails for sectioned glass shelves 13
8.0 Technical data 14
9.0 Service menu 15
9.1 Demo mode "d0" 15
9.2 Service mode "L" 15
9.3 Sensor test (temperature display) and door contact test "E" 16
10.0 Table of error codes 16

Service Information No. 05/2006 IKP ..5. from -20
Page 3/16

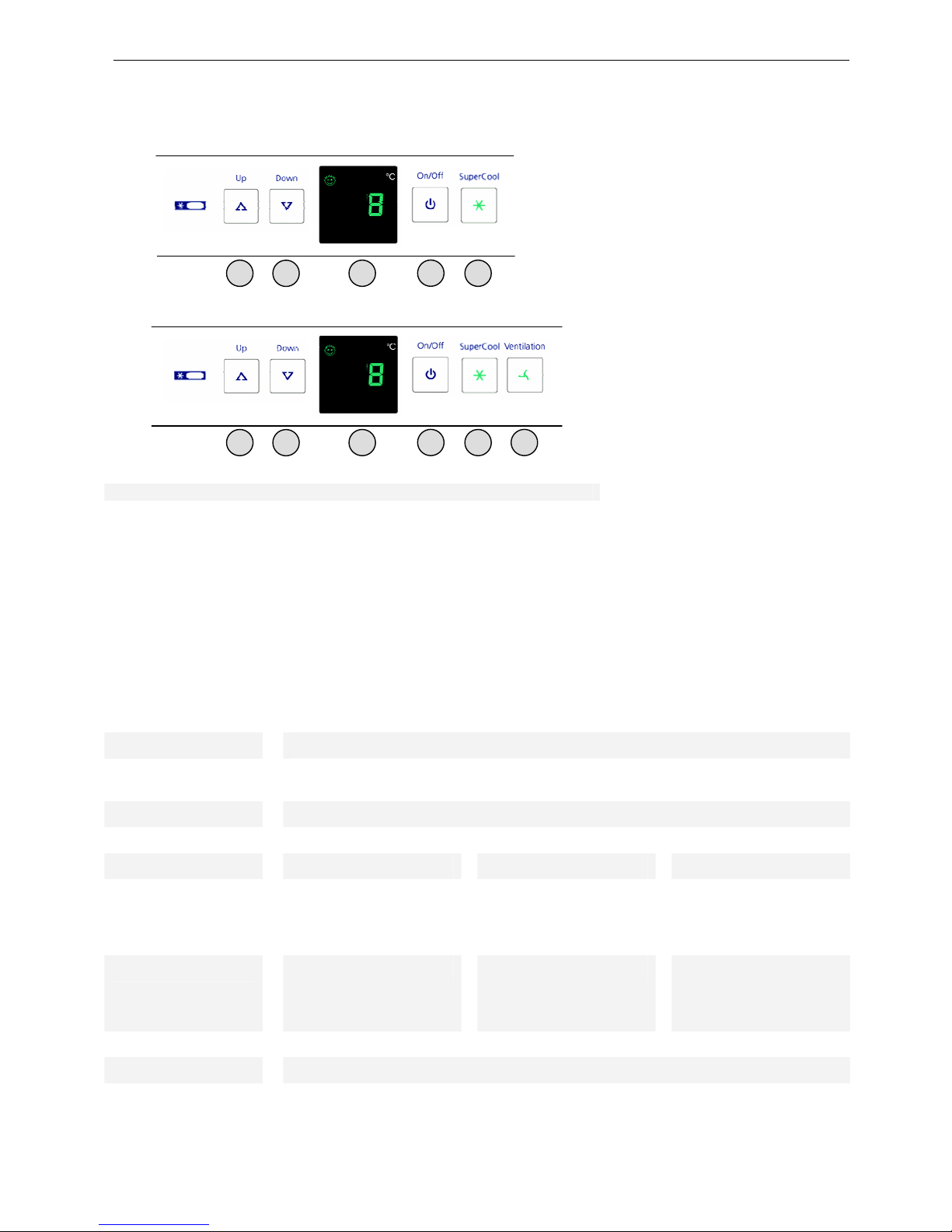

1.0 Operating and control elements
Refrigerator compartment
1 : Setting button temperature higher
2 : Setting button temperature lower
3 : Temperature display, refrigerator compartment
4 : On/Off button
5 : SuperCool function, button lit = function switched on.
6 : Ventilation function, button lit = function switched on.
2.0 Functions at a glance
IKP 2850 IKP ..50 IKP ..54
Control: Electronic control system
Temperature
display: Actual value display
Temperature alarm: No
Door alarm: No
Fan: Yes No No
Defrosting: Automatic Automatic Refrigerator
compartment: automatic
Freezer
compartment: manual
Interior light: Yes Yes Refrigerator
compartment: yes
Freezer
compartment: no
SuperCool: Yes
Service menu: Start by button combination
Refrigerating
system: 1 standard compressor
123 4 5
123 4 5 6
IKP 2850 with fan

Service Information No. 05/2006 IKP ..5. from -20
Page 4/16
3.0 Description of the appliance
The IKP ..50 are refrigerators for integrated use with a freely suspended rear wall evaporator.
The IKP ..54 are refrigerators for integrated use with a foamed-in rear wall evaporator and a 4-star freezer
compartment. The appliances are prepared for installation with a door-on-door system and are equipped with a
soft stop function. Due to its size, the IKP 2850 as the only IKP appliance has a fan for uniform temperature
distribution.
The temperature is controlled by an air sensor and an evaporator sensor.
3.1 Schematic diagram IKP ..50, without 4-star freezer compartment
3.2 Schematic diagram IKP ..54, with 4-star freezer compartment
Fig. 3.1
Fig. 3.2
Air sensor
Evaporator sensor
Foamed-in
rear wall evaporator
Fan
(Only IKP 2850)
Air sensor
Evaporator sensor
Freely suspended
rear wall evaporator

Service Information No. 05/2006 IKP ..5. from -20
Page 5/16
4.0 Control and functional components
4.1 Refrigerator compartment
Electr. control system: Series 6 electronic control system: integral PCB.
Setting range: +2°C to +9°C
Display range: 2°C to 50°C
Door alarm: No
Interior light: Position: Inside right.
Function: - Is switched on as soon as refrigerator compartment door is
opened.
- Is switched off after door has been open for 15 minutes.
Attention: 230V applied to the LEDs.
Reed PCB: Position: In front panel.
Function: Switches the interior light on when the door is opened.
Only IKP 2850:
Turns off the fan (if activated) when the door is opened.
Air sensor: Position: In light housing.
Function: - Switches the compressor off.
Evaporator sensor: Position: In IKP ..50: In the sensor pocket on the rear of the evaporator.
In IKP ..54: In sensor holder on compartment liner rear wall.
Function: Switches compressor on.
SuperCool: With SuperCool the appliance switches to the coldest control setting for 6 hours.
In IKP ..54: The freezer compartment becomes correspondingly colder.
Defrosting: Automatic during standstill phase of the compressor.
Fan:
(Only IKP 2850) Position: At the centre back of the ceiling of the compartment liner.
Function: ON: - Fan switch ON and
- Compressor ON and
- Refrigerator compartment door closed
OFF: - Fan switch OFF or
- Compressor OFF or
- Refrigerator compartment door open
During start-up the fan is activated only from an evaporator sensor
temperature of +8°C and colder.
Compressor: Function: ON: - Refrigerator compartment evaporator sensor switch-on
value
Note: On-delay time (8 mins.) must have elapsed.
OFF: - Refrigerator compartment air sensor switch-off value

Service Information No. 05/2006 IKP ..5. from -20
Page 6/16
4.2 Freezer compartment
Electronic control
system: See 4.1 Refrigerator compartment.
Setting range: Dependent on refrigerator compartment setting
Display range: No display
Compressor: See 4.1 Refrigerator compartment -compressor-
5.0 Refrigeration circuit
Evaporator: IKP ..50: Freely suspended evaporator.
IKP ..54: Foamed-in rear wall evaporator + foamed-in
wound around freezer compartment evaporator.
Injection point/
flow sequence: IKP ..50: Introduction of refrigerant in refrigerator compartment evaporator
top left.
IKP ..54: Introduction of refrigerant in freezer compartment evaporator 1st
winding at the front, then transition to the refrigerator compartment
evaporator.
Entry into refrigerator compartment evaporator: top right.
Exit from refrigerator compartment evaporator into the suction line:
top left.
Compressor: 1 standard compressor.
On-delay time of 8 mins.

Service Information No. 05/2006 IKP ..5. from -20
Page 7/16
6.0 Special features
6.1 Soft stop
Integrated on the door, the SoftSystem cushions movement when the door is closed.
The door is closed automatically from an opening angle of approx. 30°.
Cover: Disengage and detach cover.
Soft stop mechanism: Unlock retaining spring and detach soft stop mechanism from the
spherical head.
Fixing bracket of
soft stop mechanism: Undo screw and detach soft stop mechanism.
Fig. 6.1/ 1 Soft stop mechanism
Fig. 6.1/ 3 Cover, front
Fig. 6.1/ 4 Detaching soft stop mechanism from
spherical head Fig. 6.1/ 5 Soft stop mechanism
detached
Fig. 6.1/ 7 Fixing bracket
Fig. 6.1/ 2 Cover, rear
Fig. 6.1/ 6 Screw of hinge fixture

Service Information No. 05/2006 IKP ..5. from -20
Page 8/16
7.0 Assembly instructions
7.1 Evaporator sensor
7.1.1 Appliances without 4-star freezer compartment
Evaporator sensor: - Remove glass shelves and glass shelf supports.
-Undo screws of the evaporator suspension (see Fig.7.1.1/ 1)
-Swing evaporator to the left.
-Pull off the strip about 20 cm, starting from the bottom (see Fig. 7.1.1/ 2).
-Pull evaporator sensor out of sensor pocket.
7.1.2 Appliances with 4-star freezer compartment
Evaporator sensor: - Unclip evaporator sensor cover at the marked point and remove it.
-Undo screw of the evaporator sensor fastening (see Fig. 7.1.2/ 2)
-Unclip evaporator sensor from the fastening plate.
Fig. 7.1.1/ 1
Evaporator sensor position
Fig. 7.1.1/ 2 Evaporator sensor
Evaporator sensor
Fig. 7.1.2/ 1 Cover
Evaporator sensor cover
Fig. 7.1.2/ 2 Position
Evaporator sensor position
Fig. 7.1.2/ 3 Evaporator sensor
Evaporator sensor

Service Information No. 05/2006 IKP ..5. from -20
Page 9/16
7.2 Air sensor
- In appliances with 4-star compartment, first remove the evaporator sensor cover.
-Unlock the locating lugs of the light cover in arrow direction, using a short
screwdriver (see Fig. 7.2/ 1).
-Unlock light housing at rear locating lug in arrow direction (see Fig. 7.2/ 2)
-Unlock light housing at front locating lug in arrow direction (see Fig. 7.2/ 3)
-Unclip air sensor from holder on back of light housing.
7.3 LED interior light
- Disconnect appliance from mains supply as 230V are applied to LEDs!
- In appliances with 4-star compartment, first remove the evaporator sensor cover.
-Unlock the locating lugs of the light cover in arrow direction, using a short
screwdriver (see Fig. 7.2/ 1).
-Unlock LED lighting unit at marked locating lugs (see Fig. 7.3/ 1).
-Unlock light housing at rear locating lug in arrow direction (see Fig. 7.2/ 2)
-Unlock light housing at front locating lug in arrow direction (see Fig. 7.2/ 3)
-Unlock connector in arrow direction (see Fig. 7.3/ 2)
-Unlock connector coupling in arrow direction (see Fig. 7.3/ 1).
Air sensor
Fig. 7.2/ 1 Detaching light cover
Light cover
Fig. 7.2/ 2 Light housing, rear locating lug
Air sensor
Fig. 7.2/ 4 Light housing back
Fig. 7.2/ 3 Light housing, front locating lug
Fig. 7.3/ 2
LED lighting unit
Fig. 7.3/ 3 LED lighting unit
Fig. 7.3/ 1
Connector coupling

Service Information No. 05/2006 IKP ..5. from -20
Page 10/16
7.4 -Only IKP 2850- fan
- Undo fastening screws of the fan (see Fig. 7.4/ 2).
-Pull off connecting cable (see Fig. 7.4/ 3).
-Unlock locating lugs of the fan cover (see Fig. 7.4/ 4) and remove fan cover in a
forward direction.
-Lift fan motor out of the fan housing.
Fig. 7.4 / 1 Fan
Fig. 7.4/ 3 Cable routing
Fig. 7.4/ 2 Fastening screws
Fig. 7.4/ 5 Fan components
Fan casing
Fan motor
Fan cover
Fig. 7.4/ 4 Fan cover
Locating lugs
