AtGames Legends Ultimate User manual

INSTRUCTION
Manual
MODEL NO.: HA8800
www.atgames.net

Assembly Guide
Legends Ultimate Features
Quick Start Guide
HOW TO PLAY GAMES VIA
[
ARCADENETTM
]
AND
[
BYOG
]
How to Update Firmware
Arcade Play Link
[
APL
]
Featured Games
Safety Notice, FCC Statement, Warranty Info
P 2
P 6
P 7
P 8
P 8
P 8
P 9
P 10
Index

Parts
Screws Cord
Anti-Tipping Kit
Phillips head screwdriver (not included)
Cabinet top
Control panel Bottom panel
Right side panelLeft side panel
Back panel Front panel
Black screw #S2 x8
Plastic anchor x2 Screw #S3 x2 Bracket x2
Cable tie
Silver screw #S1 x10 Power adapter
Assembly Guide
•Tools Needed
Q T
Screw #S4 x2
A
B
U
C
E F G
D

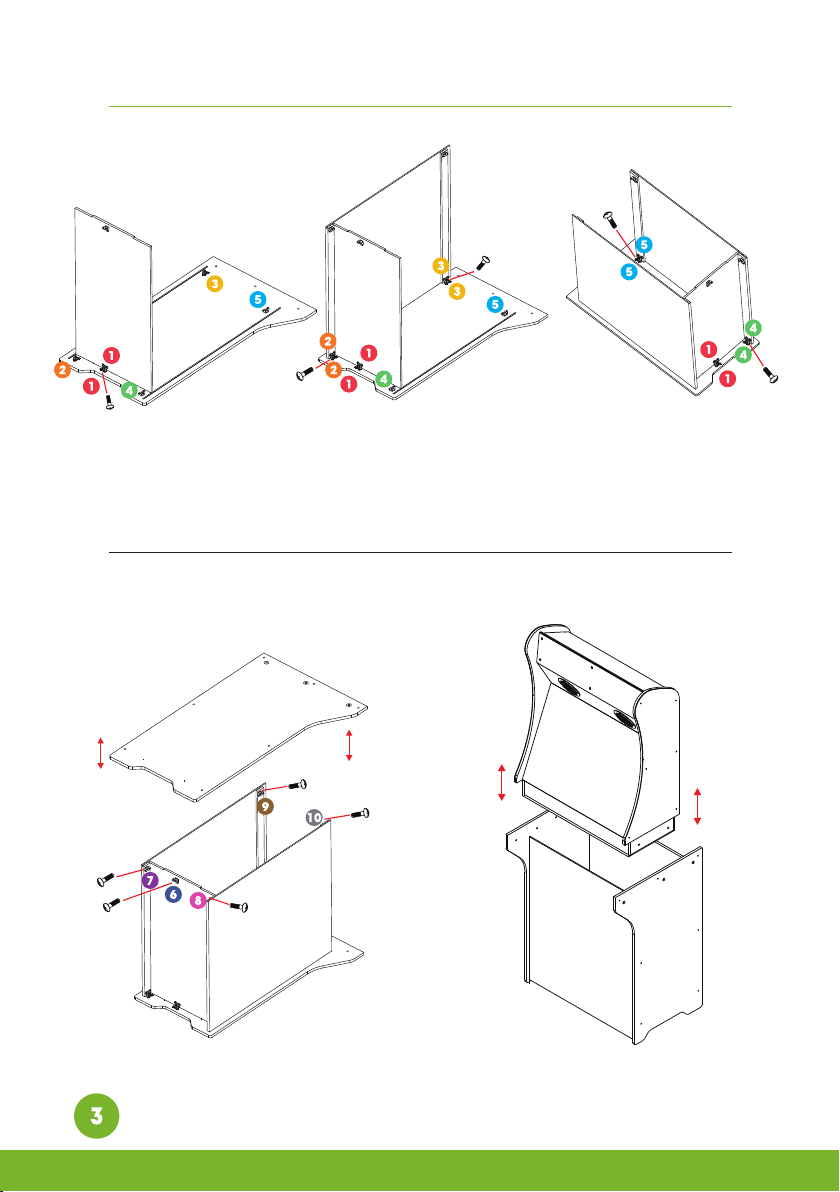

Assembly Steps
Step 3. Attach the cabinet top [A] to the bottom
part of the cabinet.
Step 1. Attach [D] and [F] so that sticker 1 aligns with sticker 1 and sticker 2 aligns
with sticker 2 and so on. Insert silver screw [S1] and tighten. Repeat
process until all 5 screws are inserted and tightened.
Step 2. Attach panel [C] on the top of [E], [F], and
[G]. Insert 5 remaining silver screws [S1]
and tighten.
S1
S1
S1
S1
S1
S1
S1
S1
S1
S1
A
C
E
FG G D
F
D D E
E
FF
G

Assembly Steps
Step 6. Insert all 8 black screws [S2] and tighten.Step 5. Insert control panel to the front of
the cabinet.
Step 4. Connect the cables to the matching slots on the control panel [B].
S2
S2
S2
NET
WORK
HDMI INPUT OUTPUT CONTROL
BUS
ANTENNA
A
B
A
B

Assembly Steps
Step 9. Fasten the cable tie [U] to connect D-Ring bracket and
[T] bracket to keep the cabinet from tipping over.
Step 8. Tighten screws [S3] on bracket [T]
against the wall.
Step 7. Drill holes against the wall and
insert plastic anchors [Q] into the
holes firmly.
WARNING
Serious or fatal crushing injuries can occur from tip-over.
To help prevent tip-over:
• Do not set any heavy objects on top of the cabinet.
• Never allow children to climb or hang on the cabinet.
Use of tip-over restraints may only reduce but not
eliminate the risk of tip-over.
Q
S3
T
U
T

1.
2.
3.
4.
5.
6.
7.
JOYSTICK P1
JOYSTICK P2
SPINNER P1
SPINNER P2
TRACKBALL
REWIND
START P1
8.
9.
10.
11.
12.
13.
14.
MENU
START P2
VOLUME ADJUSTER
POWER
HDMI PORT
USB PORT
HDMI SWITCH
Legends Ultimate Features
•Control Deck
•Front •Rear
DC POWER PORT
ETHERNET PORT
MARQUEE LIGHT BOX
STEREO
SPEAKERS
ANCHOR THE CABINET TO
PREVENT TIP-OVER ACCIDENTS

Quick Start Guide
All screenshots shown are for illustration purposes only. Actual screens may vary due to product enhancements.
1.
2.
Plug in AC adapter and press the
Power button to turn on.
Move the P1 joystick and select
from [Arcade] or [Console] to enjoy
350 pre-loaded games.
(Note: Internet connection is not required.
The games can be played offline.)
To access the internet, connect an Ethernet Cable (not included) or go to
[SETTINGS] to connect through Wi-Fi.
To connect Wi-Fi, press A to select [REFRESH WI-FI LIST] on [SETTINGS] page.
3.
4.
Select the Wi-Fi SSID you would like to connect to and press “A” at [PASSWORD] to
key-in password with the keyboard shown on the screen, and then press “A” at [CONNECT].
After the internet is connected, an update message will pop up automatically.
Please follow the instructions to update the firmware.
5.
6.

How to Update Firmware
1.
2.
3.
4.
5.
Note: The system will auto-detect if the arcade machine is connected to the internet. Or
you can simply go to the Settings menu and select [Check Version]. Follow the
instructions to have the latest firmware updated. If you encounter any issues on
firmware update, please contact: [email protected]
Power on the arcade machine.
Connect via Ethernet or Wi-Fi for internet connection.
After a short wait, a prompt will automatically display on the screen to notify
you of the most recent firmware available on the server.
Select YES to start downloading firmware from the server. [Please make sure
the internet connection is stable.]
Once the firmware has downloaded without any issue, the arcade machine will reboot
and you will have access to update mode and the main menu.
HOW TO PLAY GAMES VIA [ARCADENETTM]AND [BYOG]
To access [ArcadeNetTM] and [BYOG] for the very first time, please update the firmware.
An internet connection is always required for [ArcadeNetTM] and [BYOG]. Both services
are powered by cloud gaming technology and stream to your arcade.
Arcade Play Link [APL]
How to connect AtGames Blast! Dongles and AtGames Consoles to Legends Ultimate*
Step 1
Plug the “Blast! dongle” or connect “AtGames console” with HDMI cable in the
HDMI PORT (12.), and connect USB power cord.
Step 2
Press HDMI SWITCH (14.) button to switch to selected HDMI source.
Step 3
The Games Menu will display on the screen. Select the game you like and play!
*Legends Ultimate supports the following AtGames products:
2019: Legends Flashback (FB8660), Atari Flashback X (AR3060), Bandai Namco Arcade Blast! (WD3305), Adventure
Flashback Blast! (WD3308), Star Flashback Blast! (WD3309).
2018: Activision Flashback Blast! (WD3301), Atari Flashback Blast! Vol.1 (WD3302), Atari Flashback Blast! Vol.2
(WD3303), Legends Flashback Blast! (WD3304), Bandai Namco Flashback Blast! (WD3306). For 2018 Blast!, please
follow the instructions shown on the screen at SETTINGS to pair the dongle with Legends Ultimate.

Adventure
Aladdin
Asteroids
Asteroids Deluxe
Bad Dudes vs. Dragon Ninja
Black Widow
Bloody Wolf / Battle Rangers
Break Thru
BurgerTime
Burnin' Rubber
Centipede
Choplifter!
Crystal Castles
Donald in Maui Mallard
Express Raider / Western Express
Fighter's History
Fighter's History Dynamite / Karnov's Revenge
Fix-It Felix, Jr.
Gravitar
Heavy Barrel
Joe & Mac 2: Lost in the tropics
Joe & Mac Returns
Joe & Mac: Caveman Ninja
Jumpman Junior
Karate Champ
Lock 'n' Chase
Lunar Lander
Magical Drop / Chain Reaction
Magical Drop III
Major Havoc
Millipede
Missile Command
Peter Pepper's Ice Cream Factory
Pong
Side Pocket
Super Breakout
Super Burger Time
Super Real Darwin
Super Star Wars
Super Star Wars: Return of the Jedi
Super Star Wars: The Empire Strikes Back
Tempest
Tetris
Tetris Plus 2
The Astyanax
The Jungle Book
The Lion King
Tron
Warlords
Yars' Revenge
And many more...
Acclaim™ is a trademark of CollectorVision Games Inc. and is used under license to AtGames © 2019
CollectorVision Games Inc. ALL RIGHTS RESERVED.
CHAMPIONS WORLD CLASS SOCCER © 1993,2019 Throwback Entertainment Inc. All Rights Reserved.
JUDGE DREDD® 95
JUDGE DREDD IS A REGISTERED TRADE MARK ® and © REBELLION A/S
ALL RIGHTS RESERVED. USED UNDER LICENCE.
© 2019 Atari Interactive, Inc.
Atari and Atari logo are trademarks owned by Atari Interactive, Inc. All individual Atari game names and logos are
trademarks or registered trademarks of Atari Interactive, Inc. or its affiliates.
All other trademarks are the property of their respective owners.
© CITY CONNECTION CO., LTD.
2019 Coleco Holdings LLC
Coleco® and ColecoVision® are registered trademarks of Coleco Holdings LLC. All right reserved.
All other trademarks are the property of their respective owners.
DATA EAST and DATA EAST logo(s) are trademarks in United States and other countries or registered trademarks
in European Union and Japan of G-MODE Corporation.
© 2019 Disney. All rights reserved.
© 2019 & ™ Lucasfilm Ltd. All rights reserved.
Copyright © Piko Interactive LLC - All Rights Reserved.
TETRIS ® & © 1985~2019 TETRIS HOLDING.
Featured Games

•
•
•
Safety Notice
Do not submerge the arcade cabinet in water or expose it to extreme heat or to
strong magnetic fields. Doing so may cause permanent damage to your device.
Always use a dry towel to clean the cabinet and the control top.
Transformers are suitable for indoor use only. Transformers and power supplies for
toys are not intended to be used as toys, and the use of these products by children
shall be under the full supervision of parents.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Caution
Any changes or modi fications to this device not explicitly approved by manufacturer
could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
For Game Host
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter.
Warranty Info:
The manufacturer warrants this product to be free and clear of defects in the materials
and workmanship, under normal residential use and conditions, for a period of thirty
(30) days from the original invoice date. Shipping and handling fees are to be paid for
by the customer. To make a Warranty claim, please submit a service request here:
[email protected]
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

PO Box 1691, El Segundo, CA 90245
All rights reserved.
www.atgames.net
© 2019 AtGames Interactive
*Content and images are for reference only and subject to change.
For additional support please email:
[email protected]
