ATI Technologies Q46 Series User manual

ModelQ46/76
TurbidityMeasurement
System
HomeOfficeEuropeanOffice
AnalyticalTechnology,Inc.ATI(UK) Limited
6Iron BridgeDriveUnit 1&2GateheadBusiness Park
Collegeville, PA 19426Delph NewRoad, Delph
SaddleworthOL3 5DE
Tel: [phone]Tel: [phone]
610-917-0991
Fax: [phone]Fax: + 44(0)1457-874-468
Email: [e-mail]:[e-mail]

PRODUCT WARRANTY
AnalyticalTechnology,Inc.(Manufacturer) warrantstothe Customerthatifanypart(s)
ofthe Manufacturer's equipmentprovestobe defectiveinmaterialsorworkmanship
withinthe earlierof18 monthsof the dateof shipmentor12monthsof the dateofstart-
up,suchdefectivepartswillbe repaired orreplacedfreeofcharge.Inspectionand
repairstoproductsthoughttobe defectivewithinthewarrantyperiodwillbe completed
atthe Manufacturer's facilitiesinCollegeville,PA. Productson whichwarrantyrepairs
arerequired shall be shippedfreight prepaidtothe Manufacturer. The product(s)willbe
returnedfreightprepaidandallowed ifitisdeterminedbythe manufacturerthatthe
part(s)failed duetodefectivematerialsorworkmanship.
Thiswarrantydoesnotcoverconsumableitems,batteries,orwearitemssubject
toperiodicreplacement includinglampsandfuses.
Gassensorscarrya12 monthsfromdateofshipmentwarrantyandaresubject
toinspectionforevidenceofmisuse,abuse,alteration,improperstorage,orextended
exposuretoexcessivegasconcentrations.Shouldinspection indicatethatsensors
havefailed duetoanyoftheabove, the warrantyshall notapply.
TheManufacturerassumesnoliabilityforconsequentialdamagesofanykind,
and thebuyerbyacceptanceofthisequipmentwill assumeall liabilityforthe
consequencesofitsuseormisusebythe Customer, hisemployees, orothers. A defect
withinthe meaningofthiswarrantyisanypartofanypieceofaManufacturer's product
whichshall,when suchpartiscapableof beingrenewed,repaired,orreplaced,operate
tocondemnsuchpieceofequipment.
Thiswarrantyisinlieu ofall otherwarranties(includingwithoutlimitingthe
generalityofthe foregoingwarrantiesofmerchantabilityand fitness foraparticular
purpose),guarantees,obligationsorliabilitiesexpressed orimplied bythe Manufacturer
oritsrepresentativesand bystatuteorruleoflaw.
Thiswarrantyisvoidifthe Manufacturer's product(s)hasbeensubjecttomisuse
orabuse,orhasnotbeen operatedorstoredinaccordancewithinstructions,orifthe
serialnumberhasbeenremoved.
AnalyticalTechnology, Inc. makesnootherwarrantyexpressed orimpliedexcept
asstated above.

3
O&MManual
Rev-J(8/17)
Table of Contents
PART1-INTRODUCTION..................5
1.1 General.....................................5
1.2 StandardSystem......................5
1.3 Features...................................6
1.4 Q46/76 SystemSpecifications..7
1.5 Q46/76 Performance
Specifications....................................8
PART2–ANALYZERMOUNTING.....9
2.1 General.....................................9
2.2 WallorPipe Mount.................10
2.3 PanelMount, ACPowered
Monitor.............................................12
PART3–SENSORINSTALLATION.13
3.1 General...................................13
3.2 Flowcell Mounting...................13
3.3 In-Line Installation...................16
3.4 SubmersibleInstallation..........19
PART4–ELECTRICAL
INSTALLATION.................................20
4.1 General...................................20
4.2 ACWiring...............................22
4.3 RelayConnection ...................24
4.4 OptionalOutput/Relay
Connection......................................25
4.5 Direct SensorWiring...............26
4.6 RemoteSensorWiring............27
PART5–CONFIGURATION.............28
5.1 UserInterface.........................28
5.11 Keys.....................................29
5.12 Display.................................29
5.2 Software.................................31
5.21 SoftwareNavigation............ 31
5.22 MeasureMenu [MEASURE] 34
5.23CalibrationMenu [CAL]........35
5.24 Configuration Menu [CONFIG]36
5.25 ControlMenu[CONTROL]..39
5.26Diagnostics Menu[DIAG] ...44
PART6–CALIBRATION..................49
6.1 TurbidityCalibration................49
6.11 CalZero...............................49
6.12 CalSpan..............................50
6.2 SecondaryDryStandard........52
6.3 TemperatureCalibration.........53
PART7–PIDCONTROLLER
DETAILS............................................54
7.1 PIDDescription.......................54
7.2 PIDAlgorithm..........................54
7.3 ClassicalPIDTuning..............56
7.4 ManualPIDOverride Control..57
7.5 CommonPIDPitfalls...............57
PART8–SYSTEMMAINTENANCE.59
8.1 General...................................59
8.2 AnalyzerMaintenance............59
8.3 SensorMaintenance...............59
PART9–TROUBLESHOOTING......60
9.1 General...................................60
9.2 External..................................60
9.3 Analyzer..................................61
9.31 Display....................................62
SPARE PARTS..................................64
SPARE PARTS..................................65

4
O&MManual
Rev-J(8/17)
Table of Figures

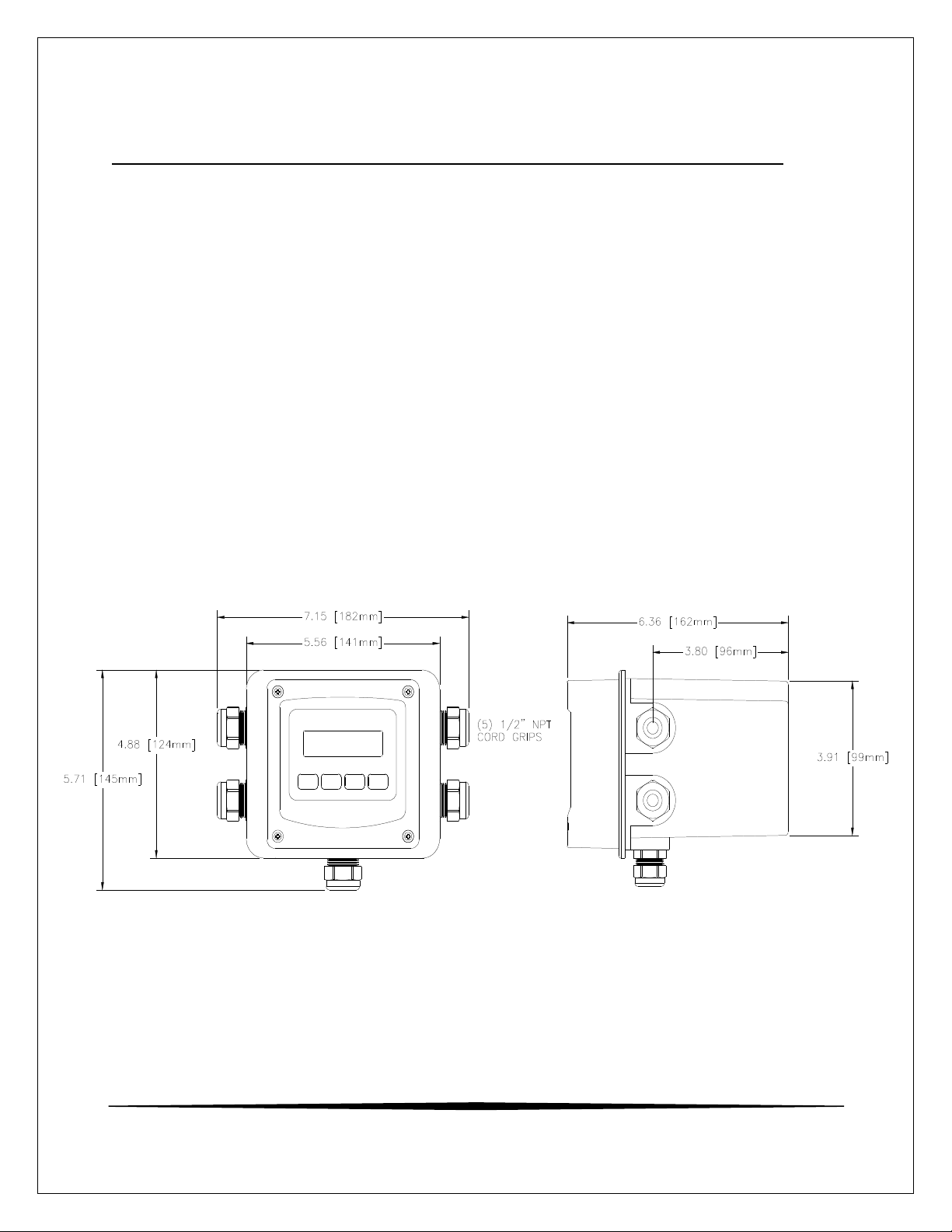

FIGURE 1–Q46 ENCLOSURE DIMENSIONS ..........................................................................9

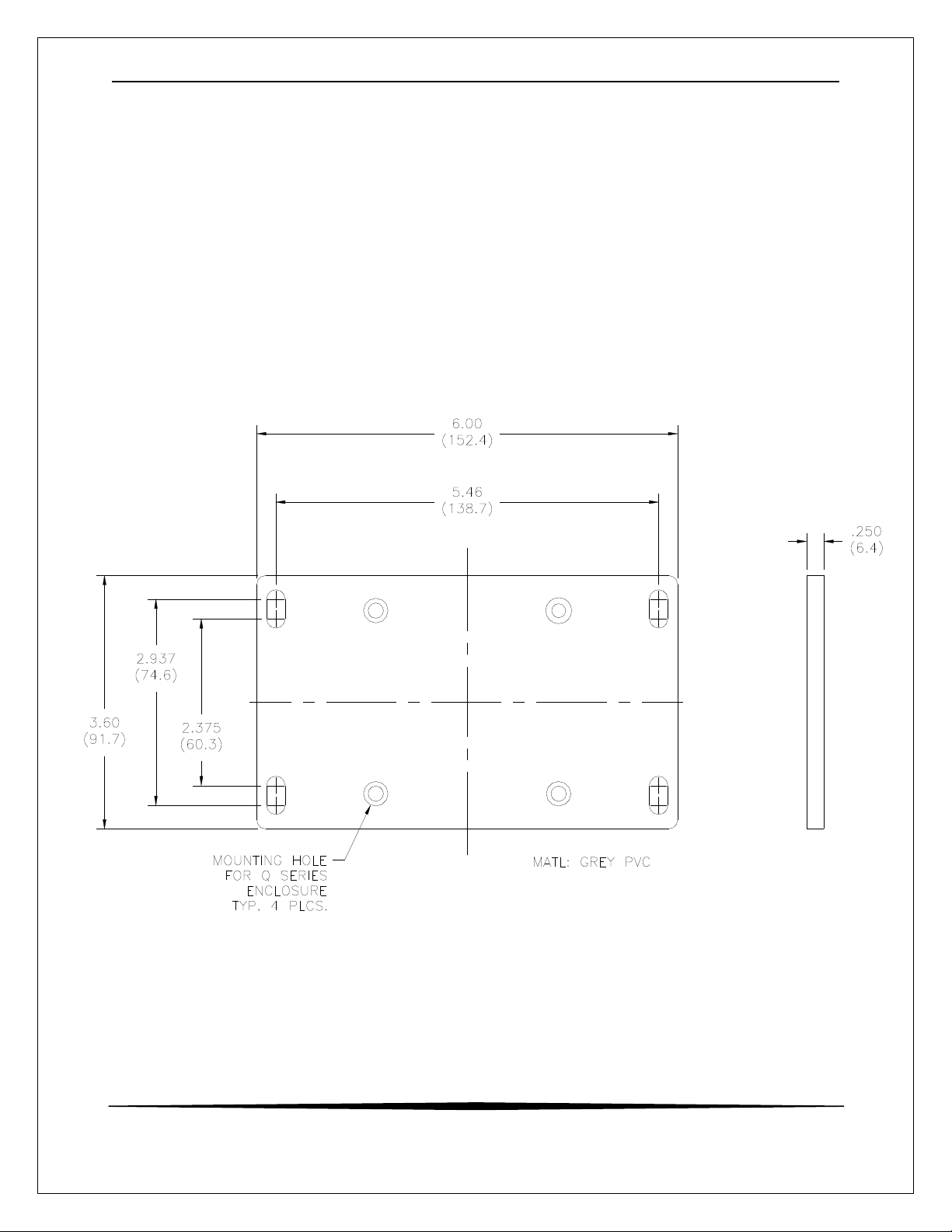

F IGURE 2-WALL OR PIPEMOUNTBRACKET .......................................................................10

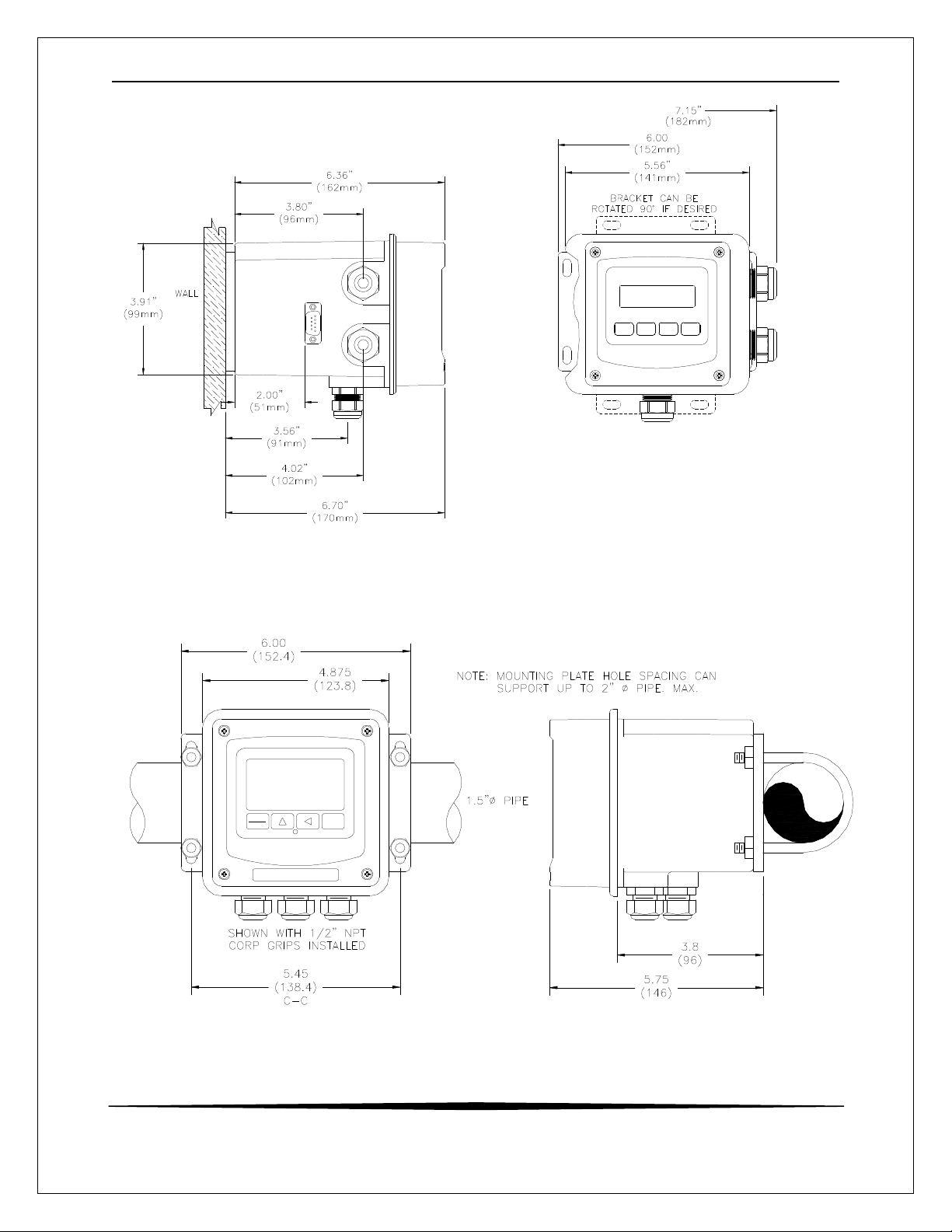

FIGURE 3-WALL MOUNTING DIAGRAM ..............................................................................11
FIGURE 4-PIPE MOUNTING DIAGRAM................................................................................11

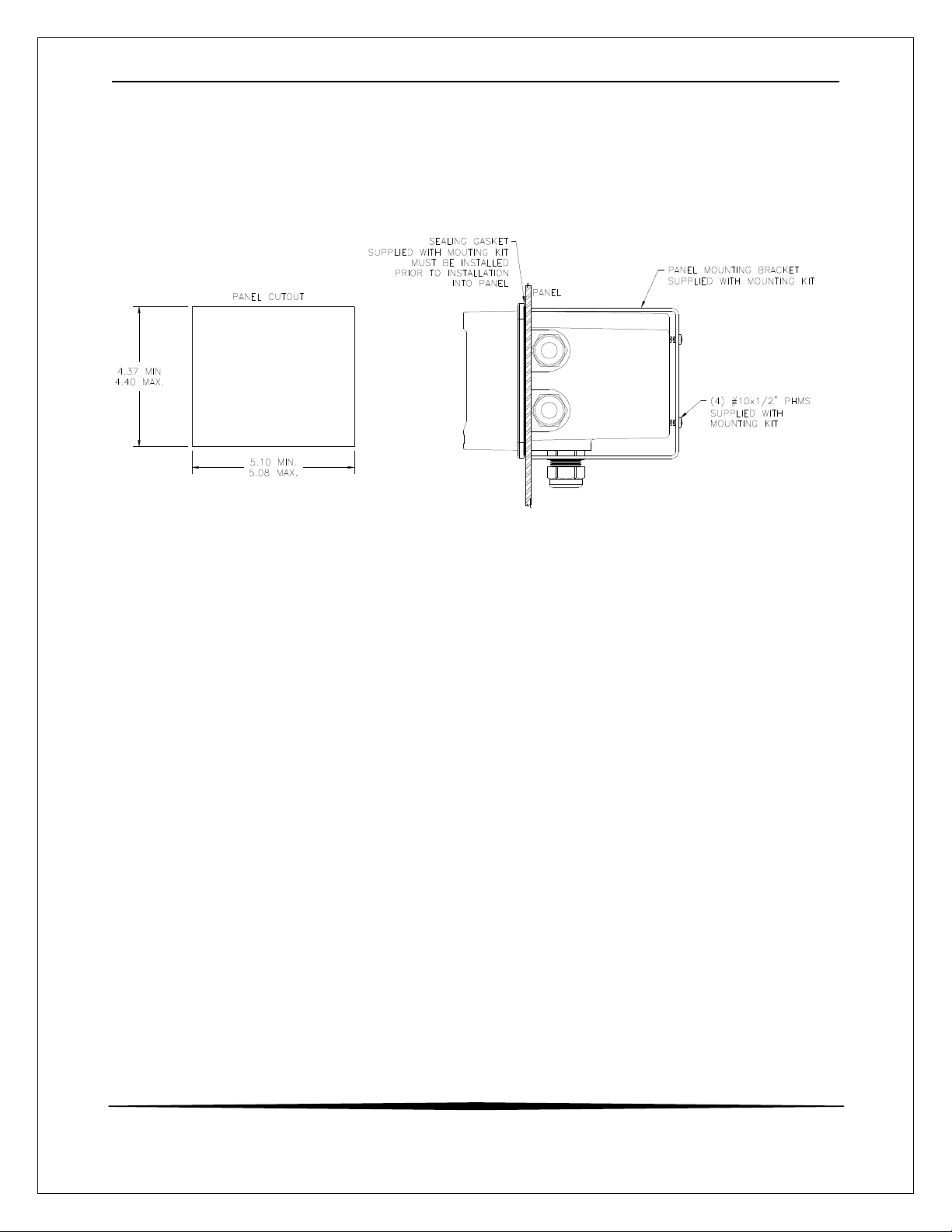

FIGURE 5-PANEL MOUNT DIAGRAM..................................................................................12
FIGURE 6-FLOWCELL DIMENSIONS ...................................................................................13
FIGURE 7-FLOWCELL CLAMP DIAGRAM.............................................................................14
FIGURE 8-SENSOR/FLOWCELL EXPLODED VIEW ...............................................................14
FIGURE 9-INLET TUBING ARRANGEMENT ..........................................................................15
FIGURE 10 -RAW WATER FLOWCELL DIMENSIONS .............................................................16

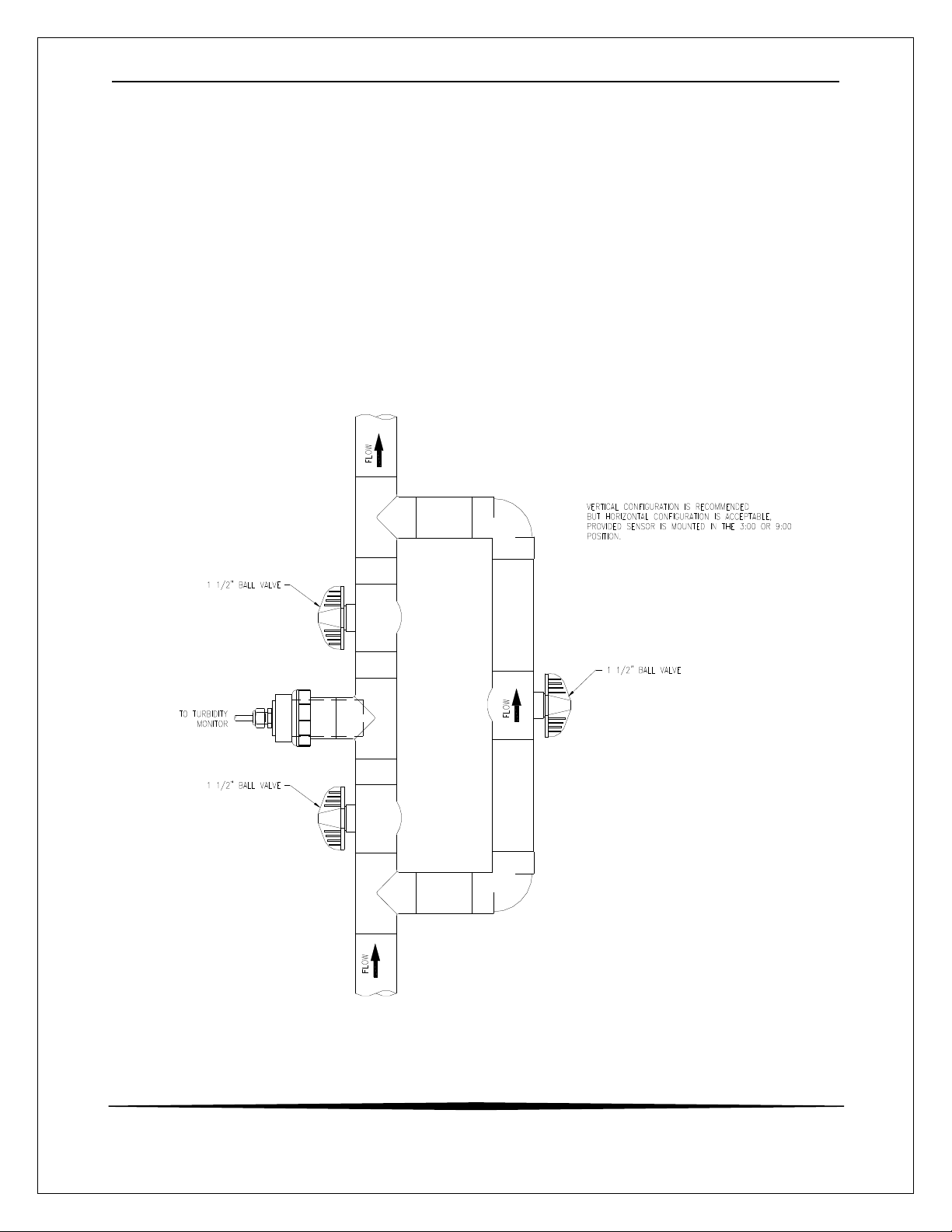

FIGURE 11 -11/2" IN-LINE INSTALLATION ..........................................................................17
FIGURE 12 -FLOW TEE EXPLODED VIEW ...........................................................................18

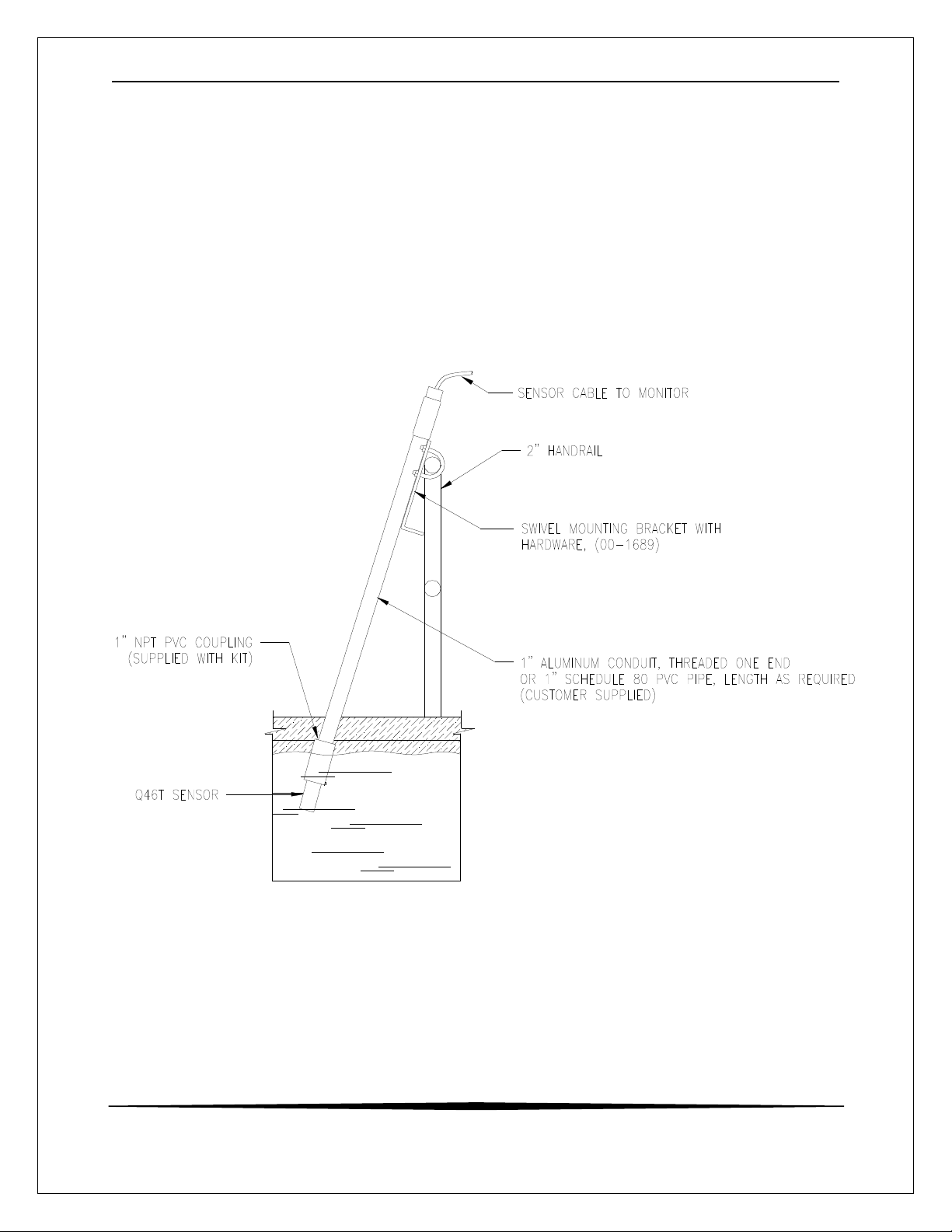

FIGURE 13 -SUBMERSION MOUNTING ASSEMBLY ...............................................................19
FIGURE 14 -AC POWER CONNECTIONS.............................................................................23
FIGURE 15 -RELAY CONTACTS .........................................................................................24
FIGURE 16 -OPTIONAL LOW POWER RELAY WIRING...........................................................25
FIGURE 17 -OPTIONAL 3RD ANALOG OUTPUT WIRING ........................................................25
FIGURE 18 -TURBIDITY SENSOR CONNECTION ...................................................................26
FIGURE 19 -REMOTE SENSOR WIRING ..............................................................................27
FIGURE 20 -USER INTERFACE ..........................................................................................28
FIGURE 21 -SOFTWARE MAP............................................................................................33
FIGURE 22 -CONTROL RELAY EXAMPLE,HYSTERESIS &PHASE OPTIONS ............................42
FIGURE 23 -ALARM RELAY EXAMPLE ................................................................................43
FIGURE 24 -DRY STANDARD DIAGRAM ..............................................................................52
FIGURE 25 -ISA PID EQUATION .......................................................................................55
FIGURE 26 -DISPLAY MESSAGES ......................................................................................63

5
O&MManual
Rev-J(8/17)
Part 1 - Introduction
1.1General
TheModelQ46/76isaversatileon-line monitoringsystemdesigned forthe
continuousmeasurementofturbidityinwater.It isintended forcontinuous
monitoringofpotablewaterfilteroutlets,rawwaterinlets,orturbiditymonitoring
ofwastewatereffluent.
Thefull scaleoperating rangeofthe systemis0-400 NTU.Actualdisplayrange
isuserprogrammablefor0-4,0-40,or0-400,and thesystemcan alsobe
programmed todisplayinunitsofPSLforapplicationswherepolystyrene latex
spheresarethe standardofmeasurement. Thebasicsensingelementused in
the turbiditysystemisan opticalsensormeasuringlightscatteredat90degrees
tothe transmitted beam.The sensorprovidesan auto-zeroingfunction toinsure
the highest sensitivityat verylowturbiditylevels.
Q46/76 Monitorsareavailableintwoelectronicversions,an ACpowered monitor
withintegralalarmrelaysand dual4-20 mAoutputcapability,and a12-24 VDC
unitwithdualoutputand relays.Optionsareavailabletoaddeitherathird4-20
mAoutputor3additionallowpowerSPSTrelays.Inaddition,adigitaloutput
optionforProfibus, Modbus,orEthernet isavailable.
1.2Standard System
ThestandardmodelQ46/76systemincludestwocomponents,theQ46 analyzer
and an opticalsensorwith30 ft. cable.Formostfiltereffluentapplications,the
sensormustbe usedinaflowchambertoavoiderrorsdue toambientlight. For
wastewatereffluentapplications,asubmersiblesensorisavailable.When
necessary,ATI’sQ-Blastair cleaningassemblycan be used withthe
submersiblesensortoreducemanualcleaning.
Forconnection ofthe sensortothe electronics,a30'cableissupplied.Uptoan
additional100feetofinterconnectcablemaybe added using#07-0100junction
box.

ATI Q46/76 TurbidityMonitorPart1-Introduction
6
O&MManual
Rev-J(8/17)
1.3Features
·StandardQ46Delectronictransmittersaredesigned tobe afullyisolated
instrumentsforoperation fromeither90-260VACor12-24 VDC powersupplies.
·Two4-20 mAanalogoutputsarestandard,and athirdanalogoutputisavailable
asanoption.Oneoutput maybeconfiguredforPIDcontrol,whileotheroutputis
programmabletotrackeitherTurbidityorTemperature.
·Drystandardavailableforquick calibrationverification.
·DigitalcommunicationoptionforProfibus-DP,Modbus-RTU, orEthernet-IP.
·Output Hold, Output Simulate, OutputAlarm, and Output DelayFunctions. All
forced changesinoutput conditionincludebumpless transfertoprovide gradual
returntoon-line signallevelsand toavoidsystemcontrolshockson bothanalog
outputs.
·Unitsprovide providesthree SPDTrelayoutputsand twoisolated analog
outputs.Softwaresettingsforrelaycontrolinclude setpoint, deadband,phase,
delay, andfailsafe.
·SelectableOutput Fail AlarmfeatureonRelayCallowssystemdiagnostic
failurestobesent toexternalmonitoringsystems.
·Large, highcontrast, customLCD displaywithLEDback light providesexcellent
readabilityinanylightconditions. The secondaryline ofdisplayutilizes5x7dot
matrixcharactersforclearmessagedisplaytwooffourmeasuredparameters
maybe on the displaysimultaneously.
·Diagnosticmessagesprovide acleardescription of anyproblemwithno
confusingerrorcodestolookup.Messagesarealsoincluded fordiagnosing
calibration problems.
·Securitylock featuretoprevent unauthorized tamperingwithtransmittersettings.
All settingscanbeviewed whilelocked,buttheycannot bechanged.
Equipmentbearingthismarkingmaynotbediscarded bytraditional
methodsinthe European communityafterAugust12 2005perEU
Directive2002/96/EC.Endusersmustreturnoldequipmenttothe
manufacturerforproperdisposal.

ATI Q46/76 TurbidityMonitorPart1-Introduction
7
O&MManual
Rev-J(8/17)
1.4Q46/76 SystemSpecifications
DisplayedParameters Maininput, 0.001 to400NTU
Sensortemperature,-10.0to50.0°C(23to122ºF)
Loop current, 4.00 to20.00 mA
Sensor slope/offset
Modelnumberand softwareversion
PIDController Status
MainParameterRanges Manualselection of one ofthe followingdisplayranges,
0-4.000, 0-40.00, or 0-400.0NTU
Power 90 -260 VAC,50/60Hz.,10 VA Maximum
or 12-24 VDC,500 mAmax.
Display 0.75”(19.1mm) high4-digitmaindisplaywithsign
12-digit secondarydisplay, 0.3"(7.6mm)5x7dotmatrix.
IntegralLED back-lightfor visibilityinthe dark.
Enclosure NEMA4X,polycarbonate, stainless steelhardware,
Mounting Options Wall,pipe,orpanelmountstandard.Wall bracketsuitable
foreither1.5” or 2”I.D. U-Boltsforpipe mounting.
Conduit Openings Five½” NPTopenings, Adaptercan beremoved to
provide a1” NPTopening inthebottom ofthe enclosure.
Gland sealsprovided butnotinstalled.
Relays, Electromechanical: Three SPDT,6amp@250 VAC, 5amp@24VDC
contacts.Softwareselection for setpoint, phase, delay,
deadband, hi-loalarm, and failsafe.A-Bindicatorson
mainLCD,and Cindicator onlower display.
Analog Outputs Two4-20 mAoutputs.Outputone programmablefor NTU
Turbidityor PID.Output2programmableforNTUor
Temperature.Maxload 450 Ohmsfor output1and 1000
ohmsforoutput2.Outputsground isolatedand isolated
from eachother. Anadditional3rd analogoptionis
available.
OutputIsolation 600 Vgalvanicisolation
OptionalRelays: Three SPST,[e-mail] for
setpoint,phase, delay, deadband, hi-loalarm, andfailsafe.

ATI Q46/76 TurbidityMonitorPart1-Introduction
8
O&MManual
Rev-J(8/17)
Ambient Temperature Analyzer Service, -20 to60 °C (-4to140 ºF)
Sensor Service, 0to55°C(23 to131°F)
Storage,-30to70°C (-22to158 ºF)
Ambient Humidity 0to95%, indoor/outdooruse,non-condensing torated
ambienttemperaturerange
Altitude Upto2000m(6562 ft)
ElectricalCertificationOrdinaryLocation,cCSAus (Certified tobothCSA and UL
standards),pollution degree 2, installation category2
EMI/RFIInfluence Designed toEN 61326-1
Weight 2.4lb.(1.1Kg.)
Sensor Optical90degreescatter
SensorMaterials PVC and acrylic
SensorCable Submersible:30ft.(10m)
Max.SensorCableLength: 100 feet(30 m), withjunction box
1.5Q46/76 PerformanceSpecifications
Accuracy 0.5%of rangeor0.03NTU
Repeatability 0.3%of rangeor0.02NTU
Sensitivity 0.1%of selectedrange
Non-linearity 0.1%of selectedrange
Warm-up Time 30 secondstorated performance(electronicsonly)
SupplyVoltageEffects ± 0.1%span
InstrumentResponse Time 60 secondsto90%of step input at lowest damping

9
O&MManual
Rev-J(8/17)
Part 2 – AnalyzerMounting
2.1General
All Q46 Seriesinstrumentsoffermaximummountingflexibility.Abracketis
included witheachunitthatallowsmountingtowallsorpipes.Choosealocation
thatisreadilyaccessibleforcalibrationsand keep inmindthatitwill be
necessarytousesolutionsduringthe calibration process.Totakefull advantage
ofthe highcontrastdisplay,mounttheinstrumentinalocation wherethe display
can beviewed fromvariousanglesand longdistances.
Locatethe instrumentincloseproximitytothe pointofsensorinstallation -this
will alloweasy access duringcalibration.Thesensor-to-instrumentdistance
shouldnotexceed 100feet(30 m).Tomaximizesignal-to-noiseratiohowever,
workwiththe shortestsensorcablepossible.The standardcablelengthofthe
turbiditysensoris30feet.
Figure1–Q46EnclosureDimensions

ATI Q46/76 TurbidityMonitorPart2–AnalyzerMounting
10
O&MManual
Rev-J(8/17)
2.2Wallor PipeMount
APVCmountingbracketwithattachmentscrewsissuppliedwitheach
transmitter(seeFigure2fordimensions).Themulti-purposebracketisattached
tothe rearoftheenclosureusingthe fourflathead screws.The instrumentis
then attachedtothewall using the fouroutermountingholesinthe bracket.
Theseholesareslottedtoaccommodatetwosizesofu-boltthatmaybe used to
pipe mountthe unit.Slotswill accommodateu-boltsdesigned for1½“or2”pipe.
Theactualcentertocenterdimensionsforthe u-boltsareshowninthe drawing.
Notethattheseslotsareforu-boltswith¼-20 threads.The1½” pipe u-bolt(2”
I.D.clearance)isavailablefromATIintype 304 stainlesssteelunderpart
number47-0005
Figure2-Wall or Pipemountbracket

ATI Q46/76 TurbidityMonitorPart2–AnalyzerMounting
11
O&MManual
Rev-J(8/17)
Figure3-Wall Mounting Diagram
Figure4-PipeMounting Diagram
ENTER
MENU
ESC

ATI Q46/76 TurbidityMonitorPart2–AnalyzerMounting
12
O&MManual
Rev-J(8/17)
2.3Panel Mount,ACPoweredMonitor
PanelmountingofanACpowered monitorusesthepanelmounting flange
molded intothe rearsection of theenclosure.
Figure5-PanelMountDiagram
Figure5providesdimensionsforthe panelcutoutrequired formounting.The
panelmountingbracketkitmustbeorderedseparately(partnumber05-0068).
Thiskitcontainsametalretainerbracketthatattachestotherearofthe
enclosure,4screwsforattachmentofthisbracket, and asealinggaskettoinsure
thatthemonitorflangeprovidesawatertightsealwhen mountedtoapanel.
Thesealinggasketmustfirstbe attached tothe enclosure.The gasketcontains
an adhesiveon one side sothatitremainsinplace.Removethe protective
paperfromthe adhesiveside ofthe gasketand slide the gasketoverthe backof
the enclosuresothatthe adhesiveside linesup withthe back ofthe enclosure
flange. Onceinplace,you can proceedtomount the monitorinthepanel.

13
O&MManual
Rev-J(8/17)
Part 3–SensorInstallation
3.1General
Themajorityofturbidityapplicationsrequirethe useofaflowcell assembly.This
method isbestwhen monitoringverylowturbidityvalues,suchasfiltereffluent.
Theflowcell used withATI’sturbiditysystemisdesigned toeliminateambient
lighteffects,andtoallowsamplepressuretobemaintainedthroughtheflowcell
minimizingair bubbleformation that cancausemeasurement errors.A bracket is
suppliedformountingthe flowcell toanyflat surface.
3.2FlowcellMounting
Figure6providesflowcell dimensions.Notethattheflowcell shouldalways
bemountedhorizontallywiththeinleton thebottom and outleton thetop.
Selectaflowcell location withsufficientclearancebelowtoallowinstallationof
the inletcalibration valvetofacilitateadjustmentofthe systemafterinstallation.
See Figure9forthe suggested tubingarrangement.
Figure6-Flowcell Dimensions

ATI Q46/76 TurbidityMonitorPart 3–SensorInstallation
14
O&MManual
Rev-J(8/17)
Figure7-Flowcell Clamp Diagram
Figure8belowprovidesadetail ofhowtheturbiditysensorisinstalled inthe
flowcell assembly.Duringinstallationofthesensor,besurethatthe O-ringis
seatedproperlyinthe grooveatthe endoftheflowcell assembly.Properseating
ofthat O-ringiscriticaltoavoidingwaterleakage.
Figure8-Sensor/FlowcellExplodedView

ATI Q46/76 TurbidityMonitorPart 3–SensorInstallation
15
O&MManual
Rev-J(8/17)
Figure9belowshowsthe recommendedinstallation tubingarrangementforthe
turbiditysystem.A3-wayvalveissupplied tofacilitatecalibrationoftheturbidity
monitor.Install the valveasshownbelowsothatturbiditystandardscan easily
be introduced intothe flowcell.
Figure9-InletTubingArrangement

ATI Q46/76 TurbidityMonitorPart 3–SensorInstallation
16
O&MManual
Rev-J(8/17)
3.3RawWaterFlowcell
Turbiditymonitoringofrawwaterwithpotentiallyhighturbiditylevelscannot be
doneusingthestandardflowcell. Forthiskindofapplication,you need aflow
chamberthatdoesnotcontainverysmall restrictionsliketheflowcontrolvalve
on the top ofthe standardflowcell. Fortheseapplications, you mayuseeither
the flowtee assemblyinthefollowingsection oramodifiedflowcell referred toa
the “rawwaterflowcell”. Thisflowcell ismodified tobypass the flowcontrol
orificeandallowsampleswithhighturbidityvaluestoflowthroughthe flowcell
without plugging. Thisflowcell uses¼” I.D. sampletubingwithstraight through
portsasshownbelow.
Figure10-Raw WaterFlowcell Dimensions

ATI Q46/76 TurbidityMonitorPart 3–SensorInstallation
17
O&MManual
Rev-J(8/17)
3.4In-LineInstallation
Turbiditysensorsmaybe installed directlyintoaflowingpipe systemprovided
thatthe waterdoesnotcontainalotofentrained air.A 1 ½” flowteeassemblyis
availableforthispurpose.Itisbesttoinstall the sensorinaverticalpipe section
withwaterflowingupward.Thisassuresthatair pocketscannotdevelop atthe
sensor.Ifinstalled inahorizontalrun ofpipe,placethe sensoratthe 3or9
o’clock position.Nevermountthesensoronthetoporbottomofthe pipe.Itis
alsogood practicetoinstall abypass systemaround the sensorformaintenance
and calibrationpurposes.
It shouldbenoted thatin-line installation isnotrecommended when normal
turbiditylevelswill be below0.5NTU.
Figure11-11/2"In-LineInstallation

ATI Q46/76 TurbidityMonitorPart 3–SensorInstallation
18
O&MManual
Rev-J(8/17)
Figure12-Flow TeeExplodedView

ATI Q46/76 TurbidityMonitorPart 3–SensorInstallation
19
O&MManual
Rev-J(8/17)
3.5SubmersibleInstallation
Thestandardturbiditysensormayalsobeused forsubmersioninstallations.
Notethatturbiditysensorsmaybeaffectedbybrightambientlight
conditions. Ifsubmergedsensorsaretobeusedoutdoors,alwaysuse the
Auto-Cleanversion ofthesensor as itcontainsalightshieldtominimize
these effects. A specialadapterisavailableformountingthe turbiditysensorto
a1”pipe. Figure13 belowshowsatypicalsubmersion mountingusingATI’s00-
1690submersion mountingkit. Thiscompletekit adaptstotypicalhandrails.
Thepipeadapteronlyispart no.00-1689 and isavailableseparatelywhen the
handrail mountingkit isnot required.
Figure13-Submersion Mounting Assembly

20
O&MManual
Rev-J(8/17)
Part 4–Electrical Installation
4.1General
TheQ46 ispowered inone oftwoways,dependingon theversion purchased.
The12-24VDC powered analyzerrequiresacustomersuppliedDC power
supply.The90-260VACversion requiresline power.Pleaseverifythetypeof
unit beforeconnectinganypower.
WARNING:DonotconnectAClinepowertotheDC version. Severe
damagewill result.
ImportantNotes:
1. Usewiringpracticesthatconformtonational,stateandlocalelectrical
codes.Forpropersafetyaswell asstablemeasuringperformance,it
isimportantthatthe earthgroundconnection be made toasolid
ground pointonTB7.TheACpowersupplyinthe transmittercontains
asingle630mAslo-blofuse(Wickmann/Littlefuse#372-0630).The
fuse F1 islocated adjacent to TB7 andiseasilyreplaceable.
2.DoNOTrunsensorcablesorinstrument4-20 mAoutputwiringinthe
sameconduitthatcontainsACpowerwiring.ACpowerwiring should
be runinadedicatedconduittopreventelectricalnoisefromcoupling
withthe instrumentationsignals.
3.Thisanalyzermustbeinstalledbyspecificallytrained personnelin
accordancewithrelevantlocalcodesandinstructionscontained inthis
operatingmanual.Observethe analyzer's technicalspecificationsand
inputratings.Properelectricaldisconnectionmeansmustbeprovided
priortotheelectricalpowerconnected tothisinstrument,suchasa
circuitbreaker-rated 250 VAC,2Aminimum.Ifone line oftheline
powermainsisnotneutral,useadouble-polemainsswitchto
disconnect the analyzer.
4.Repeated problemswithlightningstrikesdamagingsensitive
instrumentation areoften attributedtopoorlybonded earthgroundsin
the instrumentpowersource.Theprotection schemesincorporated
intothisanalyzercannotoperatetomaximumefficiencyunless the
ground connection isat its’absolutelowest impedance.
