Atop ABLELink SE5404 Series User manual

SE5404D Series
4-Port Serial Device Server
Quick Start Guide
Version 1.4 March 2013
This document is intended to provide customers with
brief descriptions about the product and assist customers
to get started. For detailed information and operation of
the product, please refer to the product user’s manual in
the product CD or Atop website.
PN: 89900377G
1. PACKAGING
Check whether your package contains following items:
◎SE5404D/ SE5404D-TB / SE5404D-Sis
◎Quick Start Guide with Warranty Card
◎Product CD
◎7-pin Terminal Block ( 2ESDVM-07P) x1
◎Four 5-pin Terminal Block for COMs
(SE5404D-S5 / SE5404D-Sis only)
Optional Accessories：
◎US Power Adapter 50500151120009G
◎EU Power Adapter 50500151120019G
◎Wall Mount Kit 202EH731000003G
◎Grounding Cable 59906861G
◎Conductive DIN-Rail Kit 201EH731000005G
◎Console Cable 50891971G
◎DB9 to TB5 Converter 59906231G
2. HARDWARE DESCRIPTION
NOTE:
1. SE5404D (RS-232/422/485 DB9 without isolation ),
2. SE5404-TB (RS-232/422/485 TB5 without isolation)
3. SE5404D-Sis (RS-422/485 TB5 with isolation)
4. Press the Default button of SE5404D to reset to the
default value

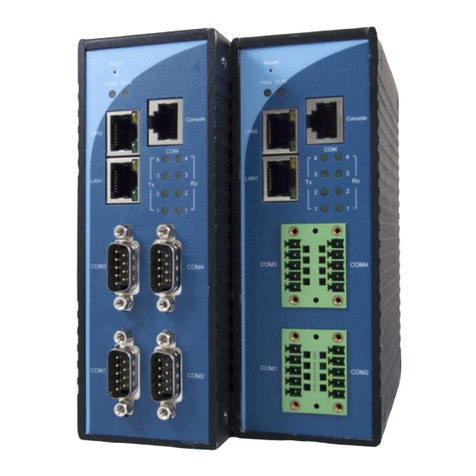

Figure 2.1. SE5404D Series interfaces
LED Indicators:
Name
Color
Status
Description
Power
Green
Off
Power is not connected
On
Power is connected
LAN
Green
Off
Ethernet Disconnected
Blinking
Data is transmitting on
Ethernet for 100Mbps
Orange
Blinking
Data is transmitting on
Ethernet for 10Mbps
COM
Green
Off
No data is transmitting on
COM port
Blinking
Data is transmitting on
COM port
RUN
Green
Off
System is not ready or
halt
Blinking
AP firmware is running
normally
Installation Procedures:
Step 1: Connect SE5404D to power source
Step 2: Connect SE5404D to the Ethernet network. Use a
standard straight-through or cross-over Ethernet
cable Always make sure the PC is on the same
network subnet as SE5404D.
Step 3: Connect SE5404D’s serial port to a serial device.
Step 4: Mount SE5404D to a Din Rail.
3 SOFTWARE SETUP
Default Settings
User Name: admin
Password: null (blank)
LAN1
LAN2
IP: 10.0.50.100
IP：192.168.1.1
Mask: 255.255.0.0
Mask: 255.255.255.0
Gateway: 10.0.0.254
Gateway: 192.168.1.254
To Access and Configure SE5404D:
There are three ways to access SE5404D.
1. SerialManager Utility (included in the CD)
2. Web Browser
3. Telnet
Note that the PC and SE5404D should be in the same
subnet. If not, please your PC’s network settings or use
SerialManager to change the network settings of
SE5404D.

3 PIN ASSIGNMENTS
9-Pin D-Sub (SE5404D):
Pin
RS-232
RS-422
RS-485
1
DCD
N/A
N/A
2
RXD
TXD+
N/A
3
TXD
RXD+
DATA+
4
DTR
N/A
N/A
5
SG
SG
SG
6
DSR
N/A
N/A
7
RTS
RXD-
DATA-
8
CTS
TXD-
N/A
9
RI
N/A
N/A
5-Pin Terminal Block (SE5404D-TB / SE5404D-Sis):
Pin
RS-232
RS-422
RS-485
1
RXD
TXD+
N/A
2
CTS
TXD-
N/A
3
TXD
RXD+
DATA+
4
RTS
RXD-
DATA-
5
SG
SG
SG
Warranty Policy
Warranty Conditions
Products supplied by Atop Technologies are covered in
this warranty for sub-standard performance or defective
workmanship. The warranty is not,
however, extended to goods damaged in the following
circumstances:
(a) Excessive forces or impacts
(b) War or an Act of God: wind storm, fire, flood, electric
shock, earthquake
(c) Use of unqualified power supply, connectors, or
maintenance procedure
(d) Replacement with unauthorized parts
RMA and Shipping Costs Reimbursement
Customers shall always obtain an authorized "RMA"
number from Atop before
shipping the goods to be repaired to Atop. When in
normal use, a sold product shall
be replaced with a new one within 3 months after
purchase. The shipping cost from
the customer to Atop will be reimbursed by Atop.
After 3 months and still within the warranty period, it is up
to Atop whether to replace the unit with a new one;
normally, as long as a product is under warranty, all
parts and labor are free of charge to the customers.
After the warranty period, the customer shall cover the
cost for parts and labor.
Three months after purchase, the shipping cost from the
customer to Atop will not
be reimbursed, but the shipping cost from Atop to the
customer will be paid by Atop.
Limited Liability
Atop shall not be held responsible for any consequential
losses from using Atop’s
product.
Warranty Period
The Warranty Certification will not be effective until an
authorized stamp issued by Atop’s overseas agents.
Purchase Date: / / (yyyy/mm/dd)
Serial Number:
※ATOP Customer Services and Supports
1. Please contact your local dealers or Atop technical
support center at the following numbers.
[phone] (Atop Taiwan)
[phone] (Atop China)
2. Please report the defected problems via Atop’s Web
site or E-mail account
Web Site:www.atop.com.tw e-mail: [email protected]
Web Site:www.atop.com.cn e-mail: [email protected]
Product Categories
Warranty
Ethernet Switches
5 Years
Wireless
Serial Device Servers
Modbus Gateways
Embedded Device Servers
Din-Rail Power Supplies
3 Years
Power Adaptors
1 Year
Antennas
Other Accessories
