AU Tool BT360 User manual

Autool BT360 Battery System Tester
Trademark
AUTOOL Technology Co, Ltd. has registered its trademarks in several countries
including China, the trademark is .
With regard to the other trademark, service logo, domain, icon and company name
mentioned in this manual, they shall all belong to AUTOOL and its other affiliated
company, in other countries without the registration yet of these trademark, service
logo, domain name, icon and company name of AUTOOL, here we announce they
are owned by AUTOOL. Any company or person shall not use the trademark,
service logo, domain name, icon and company name of AUTOOL before getting
approved by AUTOOL with written certificates. Please visit our website
www.autooltech.com or email at [e-mail] to contact us.
Attention
Non- technical person shall not change, disassemble or repair the product,
otherwise all losses caused by this shall be bared by the user himself.

Please do not scratch, bend, twist or stretch the wires. Do not place the wires
in high temperature. Do not press hard or decompose the on-board charging
adapter.

Please do not place nails, pins, and other small debris on the charging port, in
order to avoid damaging the charging connector.

Do not place the product in unstable place such as high altitude area, slope,
or shelf.

This product is powered by electricity and should not be used as a toy for
children.

To avoid short circuit, do not immerse the product in water or other liquid.
Please try to use the power supply and power cord supplied by manufacturer
as standard.

Please do not expose this product to strong light or high temperature when
it’s not at use.

Autool BT360 Battery System Tester
Table of Contents
Chapter 1 Product Summary....................................................................................... 1
1.1 Product Profile...............................................................................................1
1.2 Product Function...........................................................................................1
1.3 Technical Parameters...................................................................................2
1.4 Working Environment Requirement........................................................... 3
Chapter 2 Tester Structure...........................................................................................3
Chapter 3 Operation..................................................................................................... 4
3.1 Pre-Test.......................................................................................................... 4
3.1.1 Connect Tester................................................................................. 4
3.1.2 Key Description................................................................................4

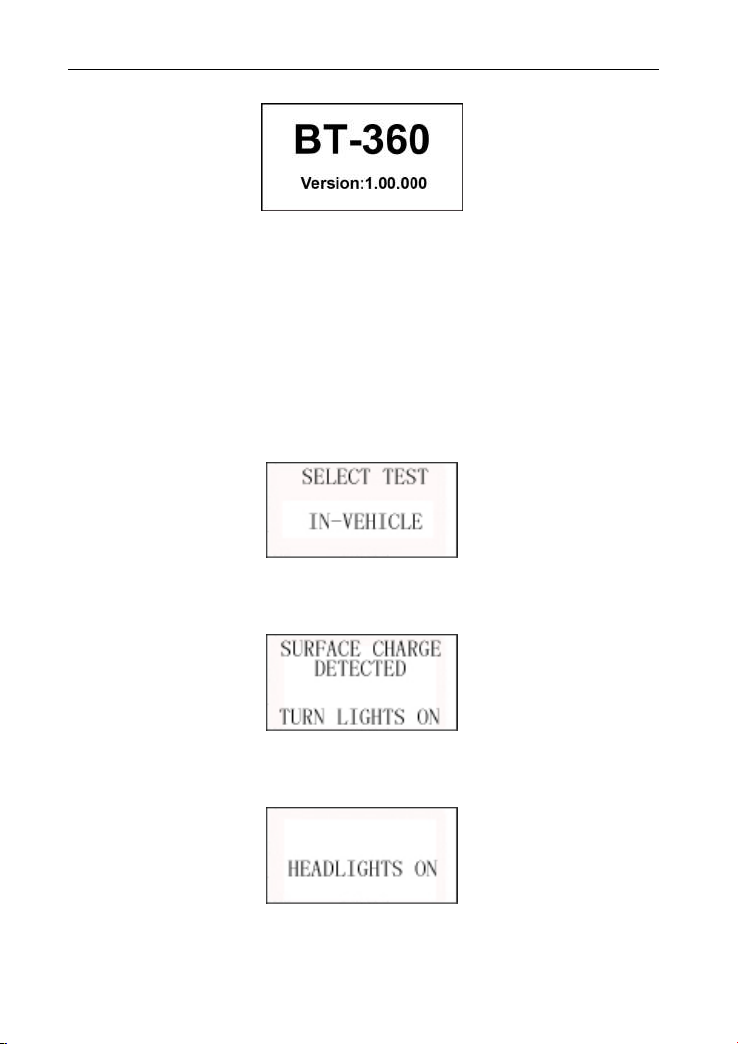

3.2 Tester Startup................................................................................................ 4
3.3 Select Language........................................................................................... 5
3.4 Battery Test....................................................................................................5

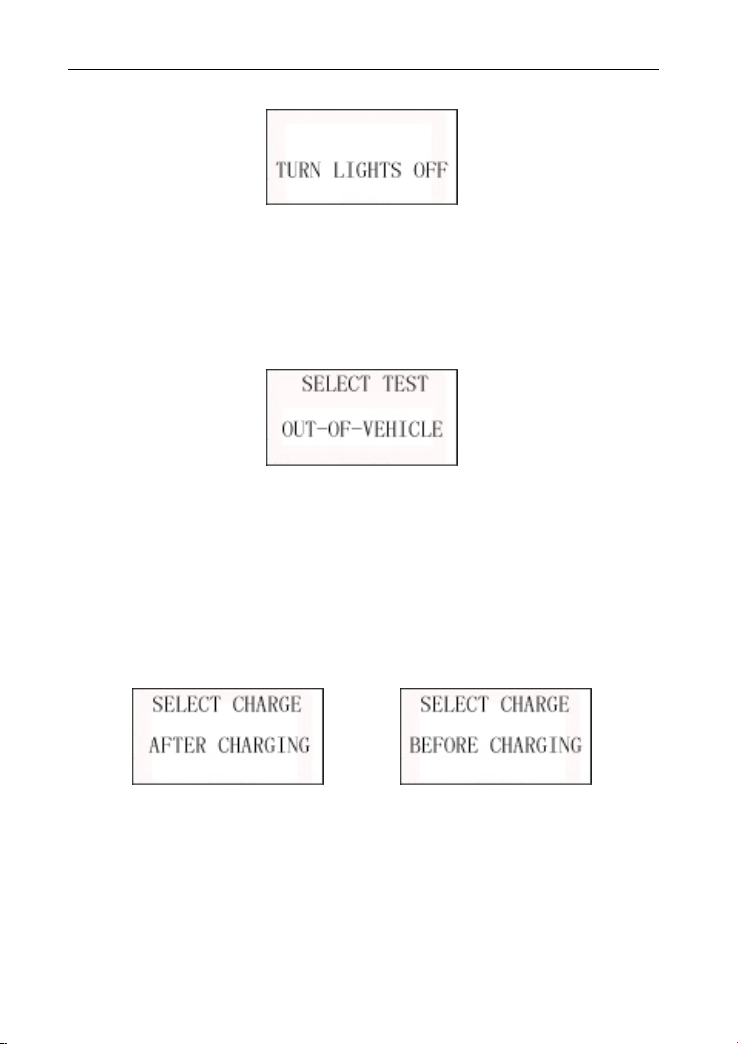

3.4.1 IN-VEHICLE or OUT-OF-VEHICLE.............................................. 6
3.4.2 Select Battery Charge State.......................................................... 7

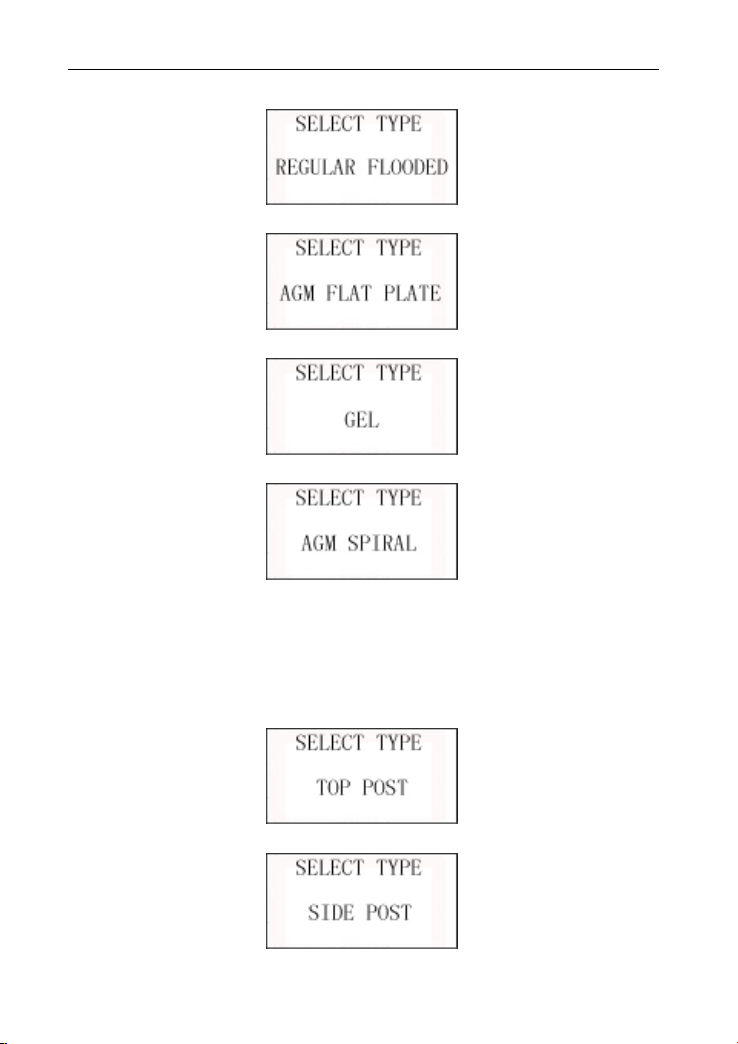

3.4.3 Select Battery Type......................................................................... 7
3.4.4 Battery System Standard and Rating........................................... 9
3.4.5 Battery Test Result........................................................................ 11

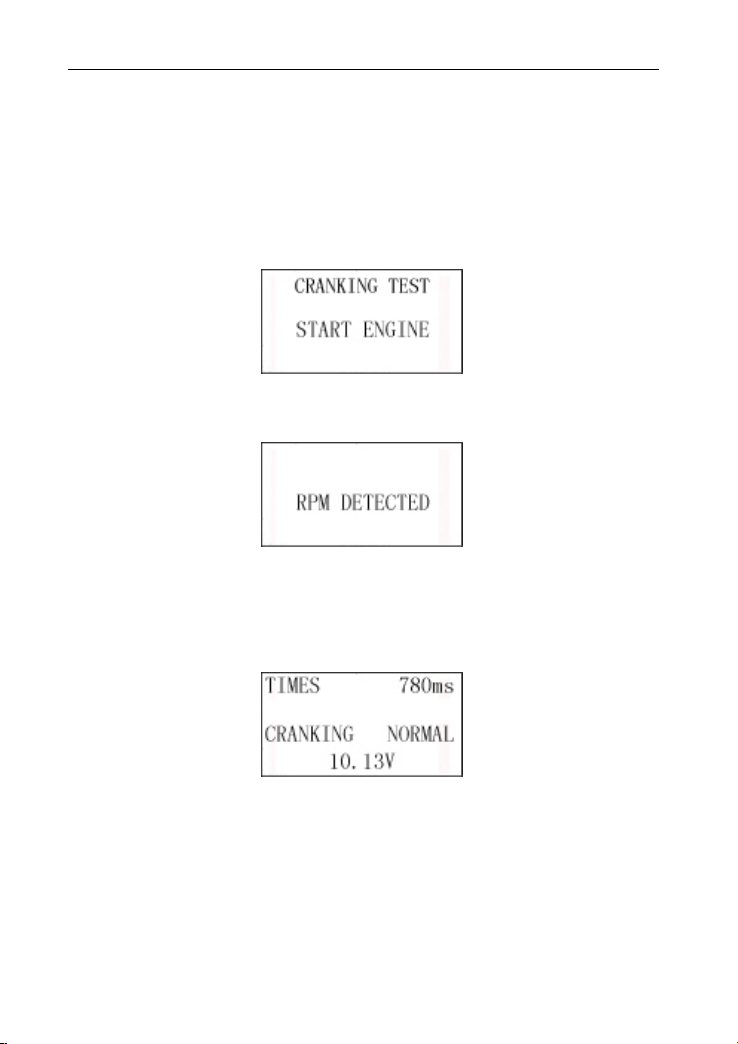

3.5 Cranking Test.............................................................................................. 13

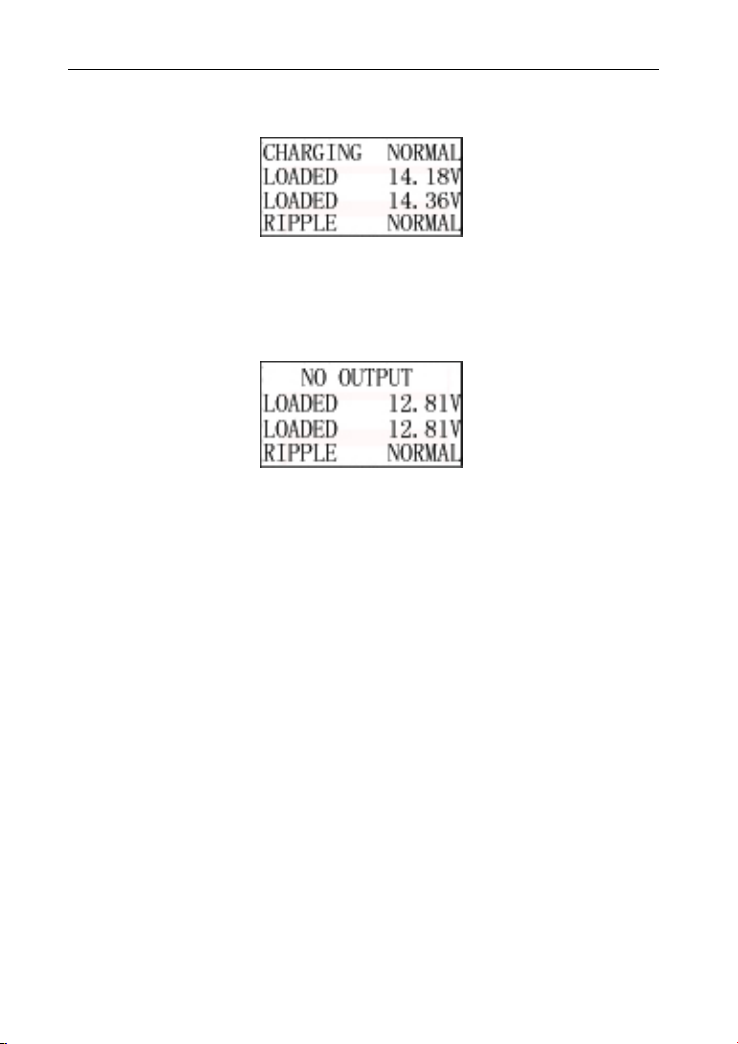

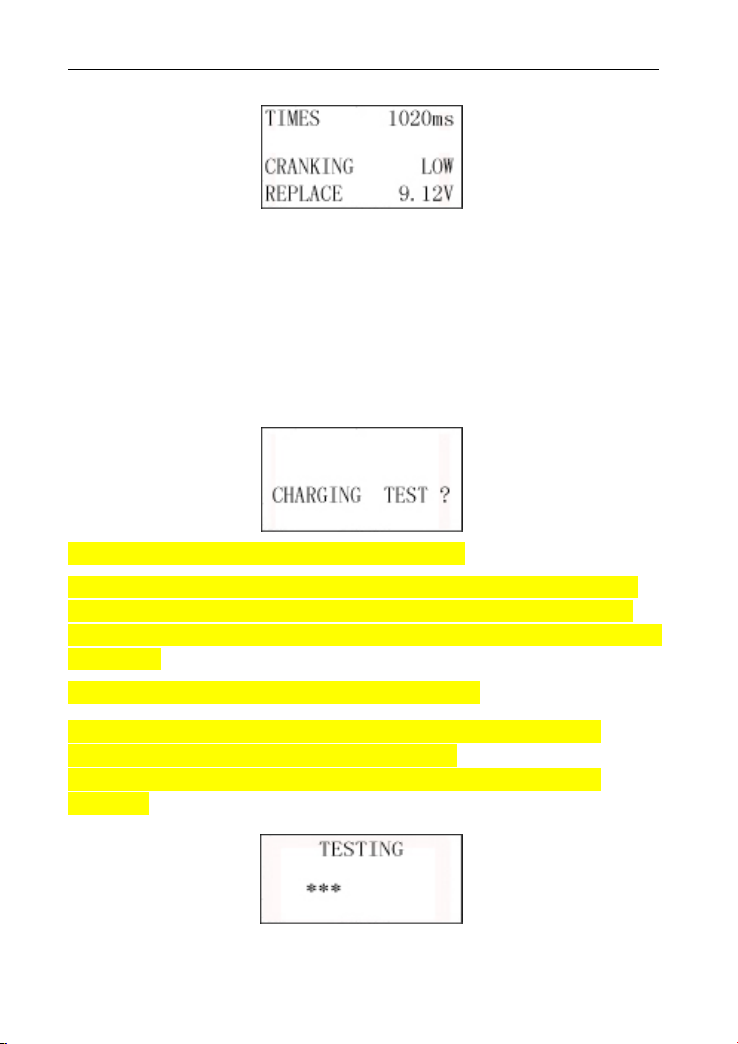

3.6 Charging System and Rectifier Diode Test............................................. 14
Chapter 4 Daily Maintenance....................................................................................16
4.1 Eliminate Common Fault........................................................................... 16
4.1.1 Screen Not Light......................................................................................16
Chapter 5 Warrantry Service...........................................................................16

AUTOOL Autool BT360 Battery System Tester
1
I. Product Summary
1.1 Product Profile
BT-360 Battery Tester adopts currently the world's most advanced
conductance testing technology to easily, quickly and accurately measure the
actual cold cranking amps capability of the vehicle starting battery, healthy
state of the battery itself, and common fault of the vehicle starting system and
charging system, which can help maintenance personnel to find the problem
quickly and accurately, thus to achieve quick vehicle repair.
1. Test all automotive cranking lead acid battery, including ordinary lead acid
battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
2. Directly detect bad cell battery.
3. Polarity reverse connection protection, reverse connection will not damage
the tester or affect the vehicle and battery.
4. Directly test the battery with power shortage, no need to fully charge it
before testing.
5. Testing standards include currently the world's majority of battery
standards, CCA, JIS, DIN, IEC, EN, SAE, GB.
6. Support multi-languages, customer can select different language package,
which includes: English, Russian, Spanish, French, German, etc. Other
customized language version are also provided.
1.2 Product Function
Main functions of BT-360 battery tester include: battery test, cranking test,
charging test and other additional functions.
Battery test is mainly targeted to analyze the battery healthy status to
calculate the actual cold cranking capability of the battery and the aging extent,
which provide reliable analysis evidence for the test and maintenance of the
battery. It notifies the user to replace battery in advance when the battery
getting aged.
Cranking test is mainly to test and analyze the starting motor. Through testing
the actual required cranking current and cranking voltage of the starting motor,

AUTOOL Autool BT360 Battery System Tester
2
it can find out whether the starting motor works fine. There are several reasons
why the starting motor is abnormal: lubricating system fault causing the
starting loaded torque increasing or rotor friction of the starting motor causing
the increasing friction of the starting motor itself.
Charging test is to check and analyze the charging system, including
generator, rectifier, rectifier diode, etc., thus to find out whether the output
voltage of the generator is normal, the rectifier diode works fine and the
charging current is normal. Suppose one of the above mentioned parts is not
in normal situation, it will lead to over charge or incomplete charge of the
battery, thus the battery will be quickly damaged and also greatly shorten the
using life of other loaded electrical appliance.
Additional functions include: Set language, voltmeter and screen brightness
adjustment.
1.3 Technical Parameters
1. Cold Cranking Amps Measure Range:
Measure Standard Measure Range
CCA 100-2400
JIS 26A17--245H52
DIN 100-2200
IEC 100-2200
EN 100-2400
SAE 100-2400
GB 30-220Ah
BCI 100-2400
MCA 100-2400
CA 100-2400
2. Voltage Measure Range: 6.5-30VDC.

AUTOOL Autool BT360 Battery System Tester
3
1.4 Working Environment Requirement
Working Environment Temp.: -20°C-50°C
It is applicable for automotive manufacturers, automotive maintenance and
repair workshops, automotive battery factories, automotive battery distributors,
and educational organizations, etc.
2. Tester Structure
BT360 mainly consists of battery tester main unit and testing cables.
BT360 Battery Tester main unit cover is made of ABS acid-resistant plastic.
