User Manual
AUTOOL BT 660
Battery System Tester
OK
MENU
BT 660

Trademark
AUTOOL Technology Co, Ltd. has registered its trademarks in
several countries including China, the trademark is . With
regard to the other trademark, service logo, domain name, icon
and company name mentioned in this manual, they shall all
belong to AUTOOL and its other affiliated company, in other
countries without the registration yet of these trademark, service
logo, domain name, icon and company name of AUTOOL, here
we announce they are owned by AUTOOL. Any company or
person shall not use the trademark, service logo, domain name,
icon and company name of AUTOOL before getting approved by
AUTOOL with written certificates. Please visit our website
www.autooltech.com or email to [email protected] to
contact us.
Product Introduction
Battery Conductance Tester BT-660 adopt currently the world’s
most advanced conductance testing technology to easily, quickly
and accurately measure the actual cold cranking amps capability
of the vehicle starting battery, healthy state of the battery itself,
and common fault of the vehicle starting system and charging
system, which can help maintenance personnel to find the
problem quickly and accurately, thus to achieve quick vehicle
repair.
Product specification
One year warranty and lifetime maintenance.
Application: 12V automotive cranking lead acid battery and
12V/24V car system test
•
•
•
100-3000
100-3000
100-3000
100-3000
26A17-245H52
Measure Range:
100-2500
100-2500
100-2500
100-3000
30AH-220AH
DIN
IEC
EN
SAE
GB
CA
MCA
JIS
Working Environment Temp:-12℃-50℃.
Special test clip: Double conductance Kelvin clamp.
Housing Material: Acid-resistant ABS plastic.
Measure Range: 30AH-200AH.
Voltage Measure Range: 7-30VDC.
•
•
•
•
•
Connect the red test clamp with battery anode and the black one
with cathode, the tester will power on automatically. Voltage
battery below 7.0VDC can’t be tested properly, then press OK
key to continue.
According to the tester, you can press UP/DOWN key to choose:
How to use
•
•
④ Review Data
⑤ Print Data
⑥ Export Data to Computer
Battery Test
Select the battery test and press OK key to continue:
Battery Type: select your battery type, usually is “Regular Flood”.
Input testing standard: the standard which you can see the front
of the battery, such as CCA/BCI/DIN. If you can’t find any info
about the standard, you can choose GB standard. Choose GB
standards would lead little tolerance.
① Battery Test
② Cranking Test
③ Charging Test
•
•
12
CCA
BCI

Input rated capacity; you can see the starting current standards
in front of the battery. Such as BCI/300A.
Then press OK key to start testing.
•
•

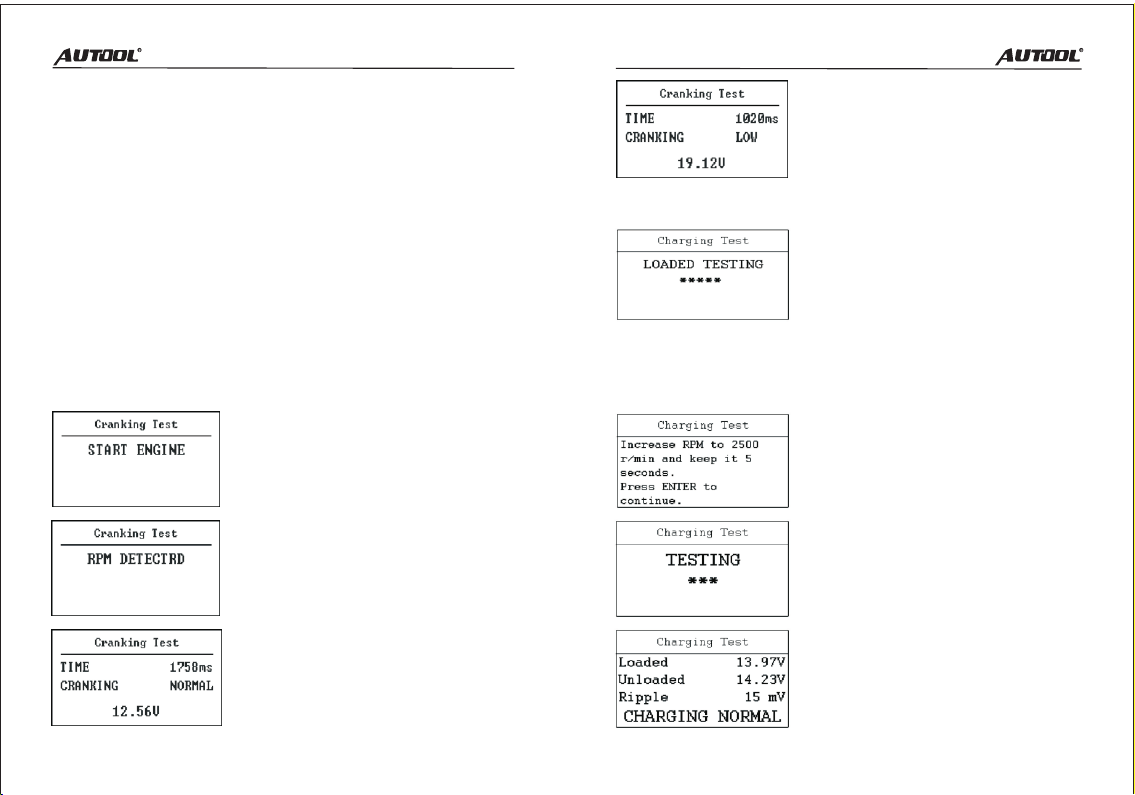

Starting the engine as prompted,
tester will automatically coplete the
cranking test and display the result.
Normally, cranking voltage value lower
than 9.6V is regarded as abnormal and
it is OK if it is higher than 9.6V.
Test result of the tester includes actual
cranking voltage & actual cranking time.
When cranking test is abnormal,
battery test result will also be
displayed at the same time.
Note
For power loss battery (such as a vehicle for a long time on
hold,the battery is not charged in time; forget to close the lights,
the doors resulting in serious loss of battery electric vehicle and
can not be started, etc.), in the actual testing process may also
be prompted to “Please replace the battery,” for such batteries,
please consult the battery manufacturers, and then tested.
Cranking Test
Following:
This is for the convenience of the
maintenance personnel to quickly
know the whole state of the starting
system according to the data.
Charging Test
When enter the charging test, tester
will prompt “Loaded testing”
NOTE: Do not shut down the engine during the test. All electrical
appliance and device are in OFF state. Turn on/off any electrical
appliance in the vehicle during the test will affect the accuracy of
the test result.
Operate accordingly to increase the
engine rotating speed to 2500turns,
and keep for 5 seconds.
Tester starts the charging volt test
after increase rev detected.
After the test finished, tester displays
the effective ,charging ,volts, tipple
test result and charging test result.
34
•
•
••
•
•
•
•

NOTE: If no increase rev detected, it shall be the fault of
generator regulator or connection with battery failed. Tester will
try 3 times to further detect, if still failed, it will skip the increase
rev detect and the test result displays “No Volt Output”.
Check the connection between generator and battery, then retest.
Charging Test Result
Additional Function
Press”Menu” to enter additional function:
Charging Volt:
Normal. The generator output normal, no problem detected.
Charging Volt:
Low. Check drive belt of the generator whether slip or running
off.Check the connection between generator and battery is
normal or not. If both of the drive belt and the connection are
in good condition, follow the manufacturer’s suggestion to
eliminate generator fault.
Charging Volt:
Hight. Since most of the vehicle generators are using internal
regulator, the generator assembly has to be replaced.(Some
old style cars are using external regulator, then directly
replace the regulator.) The normal high volt of the voltage
regulator is maximum 14.7±0.5V. If charging volt is too high, it
will overcharge the battery. Therefore, the battery life will be
shortened and troubles will be caused.
No Volt Output:
No generator volt output is detected. Check the generator
connection cable, the drive belt of generator and engine
whether normal or not.
•
•
•
•
Diode Test:
Through the test of charging current ripple, tester will find out
whether the diode is normal or not. When ripple volt is too high,
it proves at least one diode is damaged. Check and replace the
diode.
Review Data:
After entering the forth function, then press OK key you can
view the final test result.
Print Data:
About Printing function, please contact with customer service.
Export Data:
Contact this battery tester to computer with Data Line, you can
d o w n l o a d t h e p r i n t s o f t w a r e f r o m o u r w e b a t
www.atuooltech.com If any questions, please contact us.
•
••
•
LANGUAGE
Support Multi-languages, such as English French Spanish etc,
details please check the package and the listing.
Time adjustment
Adjust system time.
•
•
56
•

Product is bought through non-official AUTOOL purchase
channel.
Product failure is caused by incorrect use of the product, use
for other wrong purpose or human factors.
Disclaimer: The AUTOOL Technology Co, Ltd. reserves the right
to change product designs and specifications without prior notice.
The physical appearance and color may differ from those shown
in the instruction manual, please refer to the actual product. If
you have any questions, please contact the dealer or the Autool
service center. The company have the final explanation right of
product and shall not bear any consequences due to
misunderstanding.
•
•
Warranty not Covered
in Conditions Listed Below:
Warranty
There are 3 years' warranty for AUTOOL product main unit and 1
year warranty for the accessories since the day the customers
have received the product parcel.
Warranty Access
Repair or replace the equipment will be done according to the
specific fault conditions;
We guarantee that all replacement parts, accessories or
equipment are brand new;
When there is a product breakdown that can not be solved
within 90 days, customer should provide video and pictures as
proof, we will bear the freight cost and provide customer the
accessories in need to replace. After receiving the product for
more than 90 days, the customer shall bear the freight cost,
we will provide the accessory for free to replace.
•
•
•
