Audient iD24 User manual

10in | 14out
Audio Interface
Manual

Welcome to your
new Audient iD24
Audio Interface
Inside the box:
• iD24
• USB Type C Cable
• Quick Start Guide
To help get you started please visit
audient.com/products/iD24
to download the latest software
and firmware.
Features include:
• 2 x Class-A Audient Console Mic
Preamps
• Class Leading AD/DA Converters
• 1 x Discrete JFET Instrument Input
• Main and Alt Speaker Outputs
• 1 x Independent Dual Headphone
Output
• 1 x ADAT Input & Output
• 2 x Fully Balanced Inserts
• Ultra-low Latency DSP Mixer
• Audio Loop-back
• ScrollControl
• 3 x User Defined Function Keys
• Dedicated Dim and Cut Controls
• +48V, Pad, and HPF Switches
• USB 3.0 Compliant
• 24bit/96kHz
• Word Clock Output
• All-Metal Design
• Free Software + Plugins

Contents
iD24 Overview 4
5
7
8
9
12
14
15
16
17
17
17
18
18
18
18
19
21
21
23
23
24
24
24
25
25
25
26
27
28
30
33
35
36
37
38
39
40
41
42
43
44
45
46
48
50
51
54
55
56
57
58
Hardware Features:
Software Features:
DAW Setups:
Installation:
Safety Information
Declaration of Conformities
Mac Installation
Windows Installation
iD App & Firmware Update
Microphone & Line Input
Instrument Input
Phantom Power Switch
-10db Pad
High Pass Filter
Balanced Inserts
Insert Normalling
Patching Inserts
Direct Access to ADC
Digital Inputs and Outputs
Monitor Controls
F-Keys
Word Clock Output
Hardware Metering
Speaker Outputs
Status LED
Headphone Outputs
Kensington Lock
iD Button
Input Channel Types
Channel Features
Mastering Section Features
System Panel Features
The Routing Matrix
Setting Up Talkback
Save & Loading Presets
Audio Loop-back
Keyboard Shortcuts
Using the Loop-back Mixer
Adjusting Output Channels
Menu & Task Bar Icon
Firmware Update
Pro Tools Setup
Logic Pro Setup
Cubase/Nuendo Setup
Ableton Setup
Troubleshooting & FAQ
Technical Specifications
Dimensions
Warranty
Service & Contact
Glossary
3

4

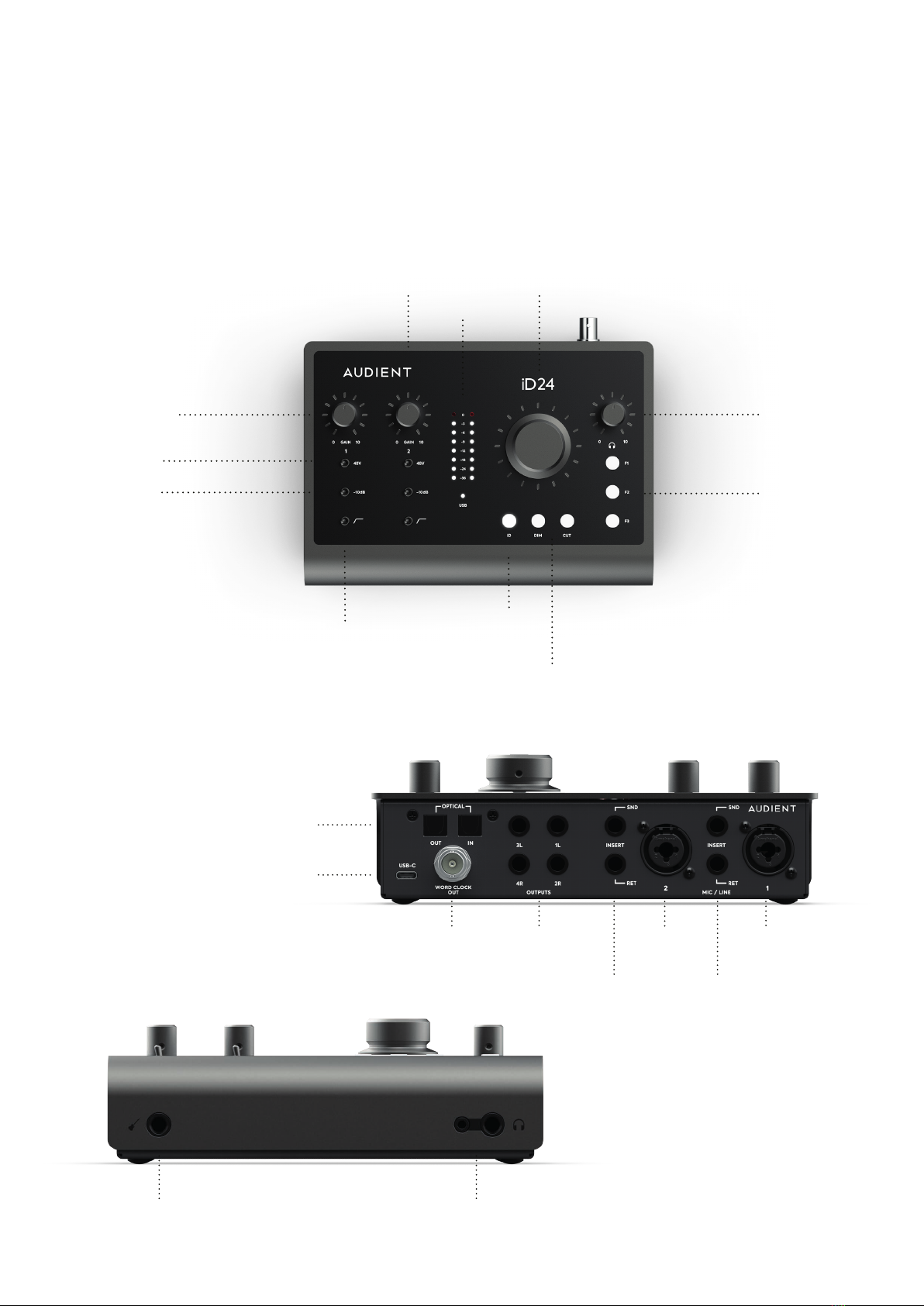

iD24 Overview
iD
Button
High Pass
Filter
Monitor
Dim + Cut
Headphone
Volume
Control
Function
Keys
Main Meters
Volume Control
Channel 1
(Mic/Line Input)
Channel 2 (Mic/Line Input)
48V
-10dB Pad
USB-C
Connection
Optical
In + Out
Mic/Line
Input 1
Mic/Line
Input 2
Insert 2
Send + Return
Insert 1
Send + Return
Instrument
Input
Dual Headphone
Outputs
2 x Speaker
Outputs
Word Clock
Output

5
Important Safety Instructions
Please read all of these instructions and save them for later reference before connecting and
powering up iD24.
The iD24 itself does not operate with any high voltage mains supply inside the unit but appropriate
safety measures should still be adhered to regarding the USB supply.
Consult a qualified technician if you suspect diculties. Do not attempt to tamper with the power
supply or mains voltages - HAZARDOUS TO HEALTH. To reduce risk of fire or electrical shock,
DO NOT expose this apparatus to rain or moisture.
Safety Information
No user serviceable parts inside.
Please refer servicing to qualified
service personnel. You can find more
information at support.audient.com
WARNING!

6
Important Safety Instructions
1. Read these instructions
2. Keep these instructions
3. Heed all warnings
4. Follow all instructions
5. Do not use this equipment near water
6. Clean only with dry cloth
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other equipment
(including amplifiers) that produce heat
8. Only use attachments/accessories specified by the manufacturer
9. Unplug this equipment during lightning storms or when unused for long periods of time
10. Refer all servicing to qualified service personnel. Servicing is required when the equipment
has been damaged in any way, such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the equipment, the equipment has been exposed to
rain or moisture, does not operate normally, or has been dropped
11. For products that are a mains powered device: The equipment shall not be exposed to dripping
or splashing and no objects filled with liquids (such as vases) shall be placed on the equipment
Safety Information

7
Declaration of Conformities
FCC Part 15B
This apparatus has been tested and found to comply with the limits of a class-A digital device, pursuant to Part 15B of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Re-orient or relocate the receiving antenna
2. Increase the separation between the equipment and receiver
3. Connect the equipment into an outlet on a dierent circuit from that
to which the receiver is connected
4. Consult the dealer or an experienced radio/TV technician for help
We, Audient Ltd, Aspect House, Herriard, Hampshire, RG25 2PN, UK,
01256 381944, declare under our sole responsibility that the product iD24
complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
2. This device must accept any interference received,
including interference that may cause undesired operation
Audient Ltd has conformed where applicable, to the European Union’s Directive
EN 63000:2018 on Restrictions of Hazardous Substances (RoHS) as well as the following
sections of California law which refer to RoHS, namely sections 25214.10, 25214.10.2, and 58012,
Health and Safety Code; Section 42475.2, Public Resources
We, Audient Ltd, declare that the product, the iD24, to which this declaration
relates, is in material conformity with the appropriate CE standards and
directives for an audio product designed for consumer use.
We, Audient Ltd, declare that the product, the iD24, to which this declaration
relates, is in material conformity with the appropriate UKCA standards and
directives for an audio product designed for consumer use.

Installation

9
Mac Installation
System Requirements
macOS 10.11.6 (El Capitan) or Later
Mac Intel CPU or Apple Silicon
1GB RAM Minimum
1. Download the latest iD
Software
Head to our website for the latest version
of our iD Mixer:
audient.com/products/downloads/
id24
Drag the downloaded app into your
application folder to install it.
2. Connect iD24
Using the USB cable provided, connect
iD24 to your computer’s USB port.
USB - C

10
3. Status LED
Once connected to your computer and
powered on, the white status LED on iD24 will
illuminate.
If at any time the status LED turns o during
normal operation please check all connections
and if further problems develop please
contact Audient support.
4. Double Checking Connectivity
To ensure iD24 has been detected by your
computer and correct clocking sources are
set-up, navigate to:
Macintosh HD > Applications >
System Preferences
Check that iD24 is set as your audio device.
It’s recommended to disable system sounds.
It’s also worth checking Audio MIDI Setup
(found in Mac HD > Applications > Utilities).
Window > Show Audio Window
Here you should see iD24 report with 10
inputs and 14 outputs. The clock source is
configured in the iD app. See page 24 for
more details.

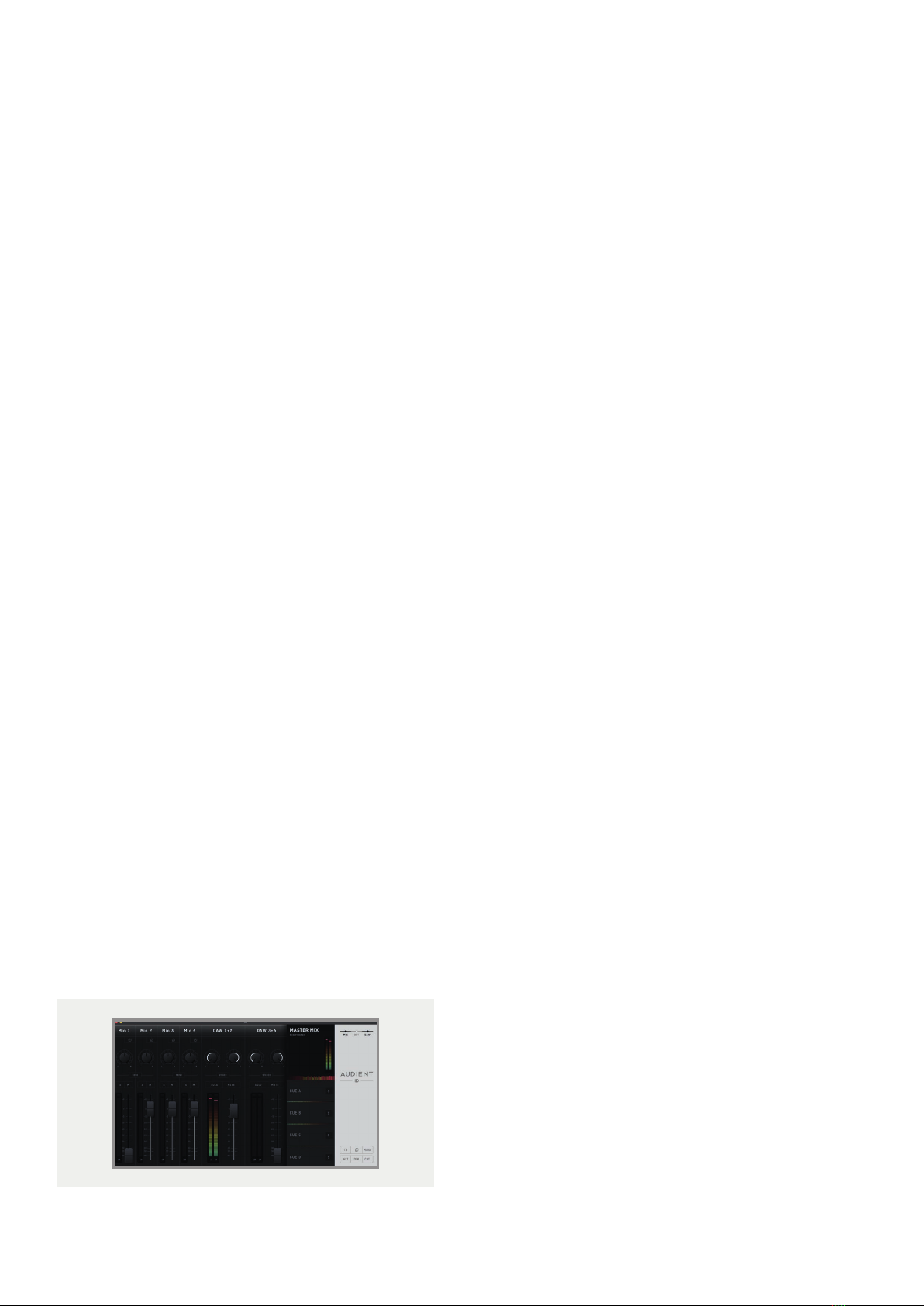

5. Open the iD Mixer
Run the iD Software. It will appear as an icon
in the Menu bar of MacOS. Click on this and
select ‘Open Mixer Software’.
Mac Installation

Mac Installation
11

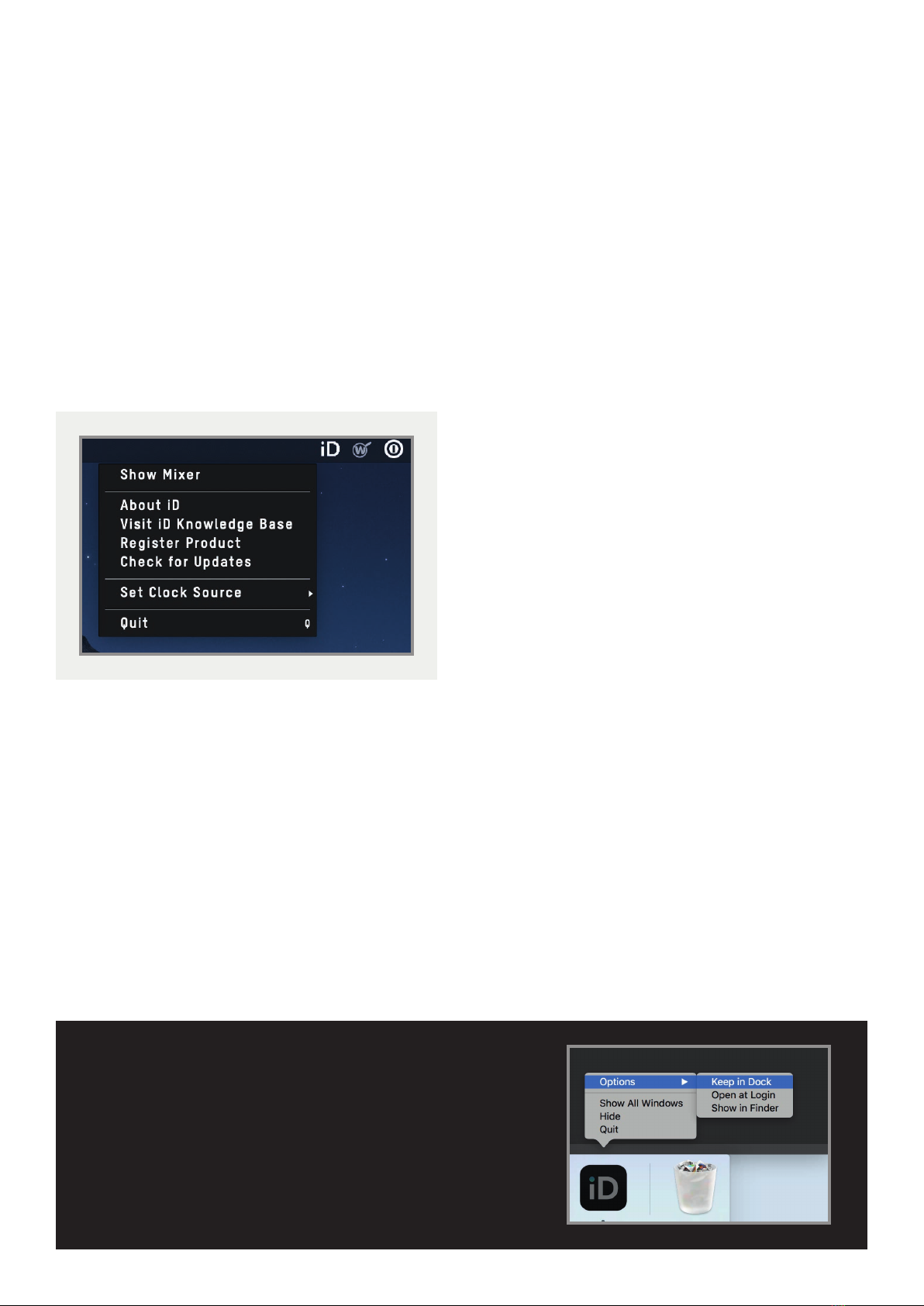

Menu/Task Bar Icons
On MacOS, the iD icon appears in the menu
bar in the top right hand corner of the screen.
This gives you quick access to various functions
of the iD24.
Show Mixer
If the mixer window has been hidden, this will
bring it back to the forefront.
Quit
Fully closes the iD Software Mixer application.
About iD
Displays information regarding the current
version of the iD Software Mixer application
and firmware.
Visit iD Knoweldge Base
Opens a browser windows for the Audient
Helpdesk with helpful articles and FAQs.
Check for Updates
The iD app will check with the Audient update
server for any available firmware updates for
iD24.
Top Tip
Right click on the iD icon in the Dock and select
Keep in Dock to have quick access to the iD mixer
app at all times.

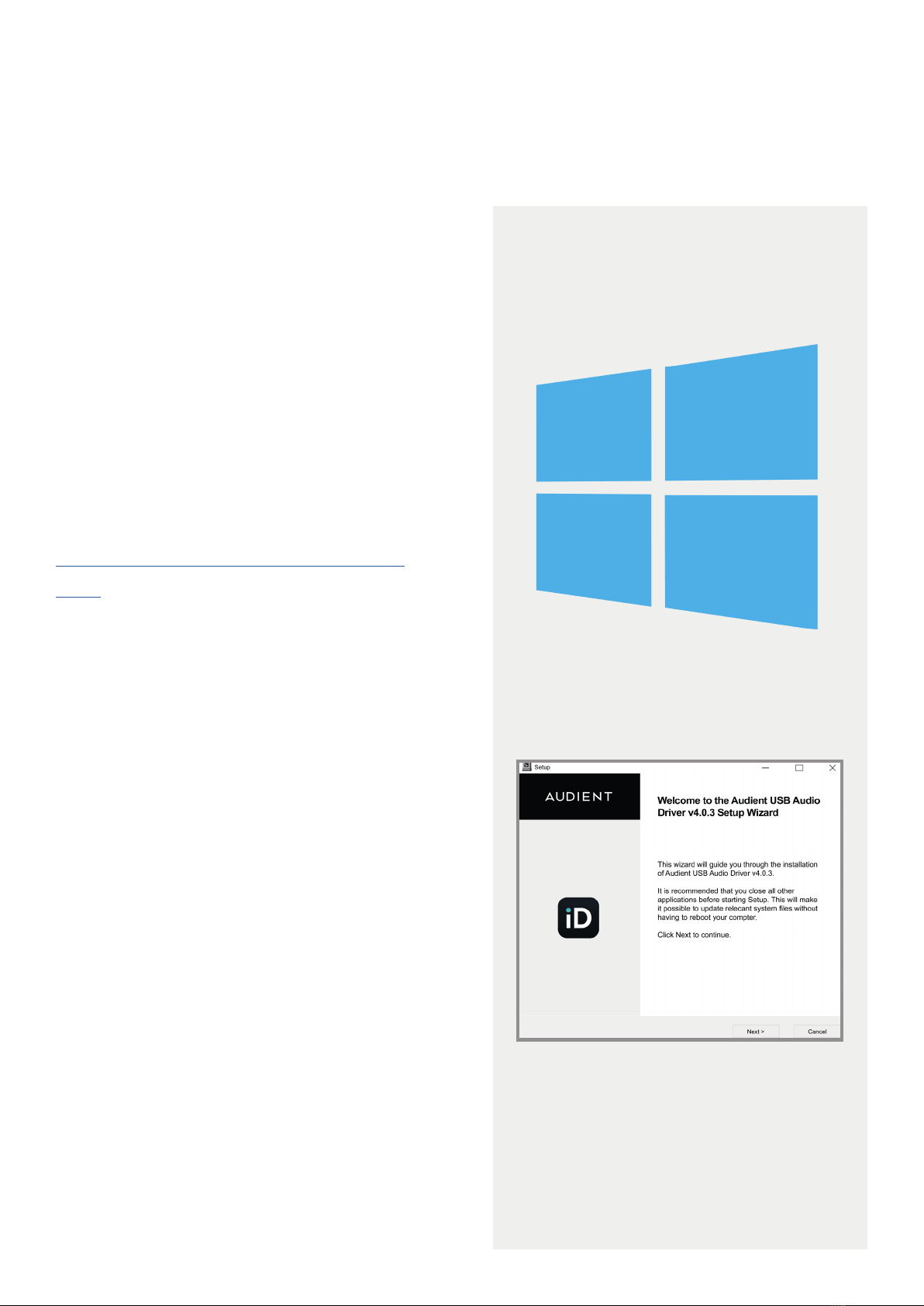

Windows System Requirements:
Windows 10 or later (32 or 64 bit)
Intel Core 2 @1.6Ghz, or AMD equivalent
1GB RAM Minimum
1. Download the iD24 Software
Head to our website for the latest version of
our iD Windows Installer:
audient.com/products/downloads/
iD24
2. Connect iD24
Using the USB cable provided, connect iD24 to
your computer’s USB port.
3. Run iD Mixer Setup
Double click on the installer to run the iD mixer
setup and follow the on-screen instructions.
4. Reboot PC
Reboot your PC to make sure that all the
drivers have been installed.
Windows Installation
12

4. Check Connectivity
The USB status LED will illuminate as soon
as iD24 has achieved stable communication
and should remain solidly lit during operation
of the unit until power down.
To double check the connection, go to PC
sound settings by following:
PC Settings > Control Panel > Hardware and
Sound > Sound
Here you can make it the computer’s default
sound device by selecting the unit and clicking
“Set Default Device” on both the Playback
and Recording Tabs.
iD Icon
Once installed, the iD icon can be found in the
Windows system tray (it may be in the hidden
icons area):
• Double-click to open the iD24 mixer
window when iD24 is connected.
• Right-click to quit or change sample rate
and buer size.
For mixing, a buer size of 256 should be
perfect. For tracking, experiment with lower
buer size values.
Various factors including how powerful your
computer is, and how processor hungry your
project is, will aect how low you can get
the buer size settings before you get audio
instability.
More information on optimisation can be
found on our support site.
13

iD App & Firmware Update
14
Launch the iD Mixer Application
Launch the iD24 Software Mixer application
by finding it in the following folder:
Mac OS
Macintosh HD > Applications > iD
Windows
Start > All Programs > Audient > iD
On macOS, the iD app will launch into the
Menu bar, in the top right corner of the
screen. Click on the small iD icon to access
the features of the application.
On Windows, the iD app will launch into
the system tray, typically in the bottom right
corner of the screen. Right click on the iD icon
to access the features of the application.
For more information on the mixer application
feature set, please refer to page 28 onwards
of this manual.
Check for Firmware Updates
If your computer is connected to the internet,
the iD app will check for firmware updates
whenever a unit is connected. If there is a
firmware update available then the iD app
will notify you.
You can manually check for updates by going
to the Help menu and selecting ‘Check
for Updates’. It will notify you if you’re on the
latest version of firmware or if you need to
update.
Registration With Audient ARC
When you first open the iD Software Mixer
a window will open asking you to register
your unit to Audient ARC. Simply follow the
instructions on-screen to create an account
and register your unit.
This will give you access to free innovative
software and services; meaning you’ll have
everything you need to get recording straight
away.
If you plan on registering the product at a
later time, then you can simply close the
registration window. You’ll see the window
again the next time you use the unit.

Hardware Features

16
Microphone Preamplifiers
& Line Inputs

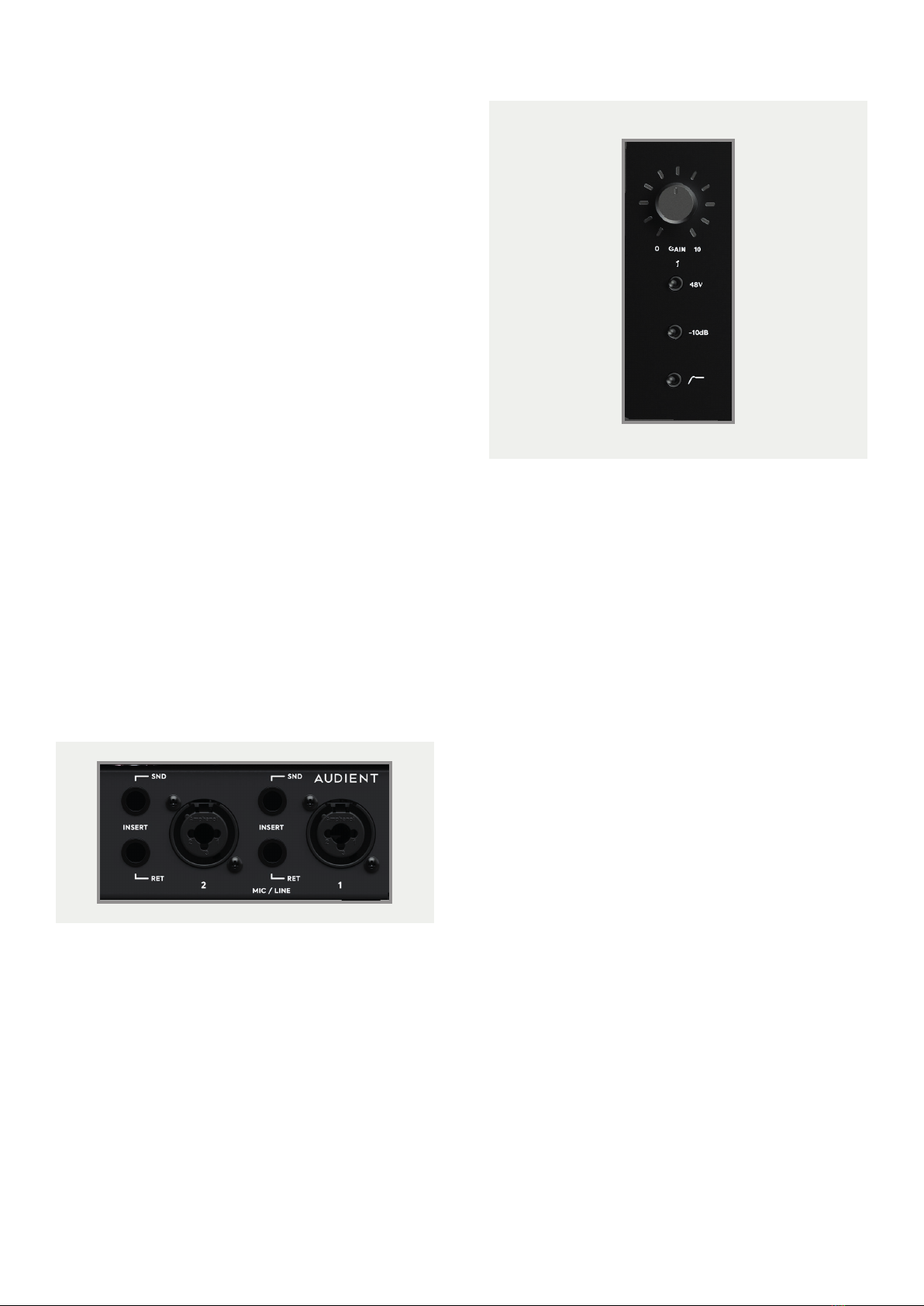

iD24 features two classic Audient Console
microphone preamplifiers. These preamps
are based on designs from Audient’s classic
consoles and are the same that are used
across our entire ‘iD interface range’.
The design features discrete Class-A circuitry
providing exceedingly low distortion and
noise performance. From a sonic point of
view, iD24 is fast, open and detailed.
Amphenol ™ XLR/TRS Jack combi-connectors
provide microphone and line inputs. The line
inputs are padded by -10dB before passing
through the microphone preamplifiers to
minimise clipping on line-level signals.
The microphone preamplifiers
feature:
• • 58 dB of clean gain
• • >2.8kΩ input impedance which
provides a punchy tone from any
microphone transducer type

Instrument Input
iD24 employs a discrete class-a JFET
instrument (D.I) input on channel one which
is easily accessible on the front of the unit.
The JFET circuitry adds a tiny bit of colour
and harmonics to the signal, making it sound
great on guitars and basses.
Plugging in a TS (tip-sleeve unbalanced) jack
will override the mic signal and turn channel
one into a fully-fledged, fantastic-sounding
instrument input.
Phantom Power Switch
There is an independent phantom power
switch for each microphone channel. This
provides full phantom power (48V ±4v, 10mA
per channel) to the microphone connected to
this channel.
Please note that the iD24 will only send
phantom power to XLR connections, the TRS
line inputs will not receive phantom power.
-10dB Pad
Both inputs feature a switchable hardware
-10dB pad to help lower signal level when
recording particularly hot sources such as
drums.
17

18

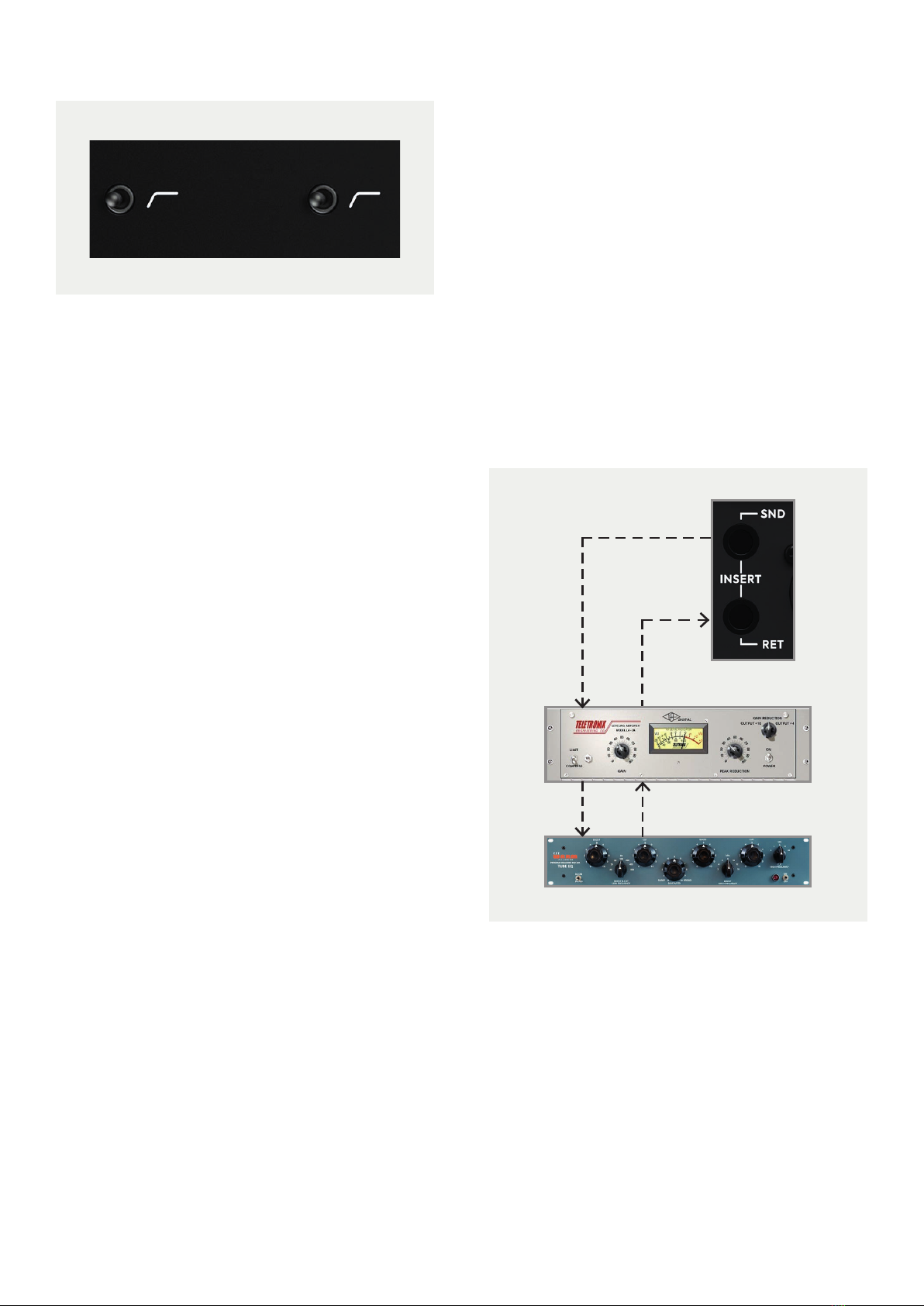

High Pass Filter
Each pre-amp also includes a switchable
hardware high pass filter that will remove
frequencies below roughly 80Hz. This is good
for removing rumble and room noise from
your recordings.
Balanced Inserts & Returns
On both input channels, the iD24 features
a dedicated insert allowing you to connect
outboard gear to your recording chain;
Just like the workflow you would find on an
Audient console!
The two channels feature an electronically
balanced send and an electronically
balanced return, all before the analogue to
digital (AD) converters.
Insert your favourite hardware EQ and
compressor into the insert and with the
super clean Audient preamps you can build
vocal chains that will rival the best out there!
Insert Normalling
The Insert send and return jacks are half-
normalled meaning you don’t need to patch
the two together when not in use. The internal
signal chain is only broken when a jack is
plugged into the return.
Plugging a jack into the Insert send will split
the signal which can be useful for parallel
processing.
Patching Inserts
To incorporate your favourite processing
before conversion, simply patch the iD24
Insert send into the first piece of gear in your
processing chain. Then take the output of the
last device in the chain and patch this into the
iD24 Insert return.

19
Direct Access to ADC
The Insert return connection on the iD24
is an electronically balanced input stage
that directly drives the analogue to digital
converter (ADC) for that channel. As such,
this is a great place to input signals directly
to the ADC, bypassing the internal Audient
preamplifiers and minimising any colouration
of the signal.
This makes it useful to patch in external
microphone preamplifiers without adding
additional colouration or noise. It is also
handy for using the iD24’s outputs to drive
external eects before returning them into
your DAW using the insert returns.
Please note; the digital calibration level of
the iD24’s converters is 0dBFS = +12.5dBu.

20
Neutrik
Neutrik
D.I 1
Auto
Sense
Input
Select
ADC
+58dB
+58dB
ADC
Insert
Insert
Direct
Monitor
Path
(software
controlled)
CH1
CH2
OPTICAL
IN 1
Microphone Input
XLR Combi Female
Pin 1: Chassis Ground Pin
Pin 2:Hot (+ve)
Pin 3: Cold (-ve)
Input Impedance: >2.8k ohm
Maximum Input Level: +12dBu
Line Input
1/4” TRS Combi Jack
Tip: Hot (+ve)
Ring: Cold (-ve)
Sleeve: Chassis Ground
Input Impedance: >8k ohm
Maximum Input Level: +22dBu
DI Input
1/4” TS Jack
Tip: Hot (+ve)
Sleeve: Ground
Input Impedance: >500K Ohms
Insert Sends
1/4” TRS Jack
Tip: Hot (+ve)
Ring: Cold (-ve)
Sleeve: Chassis Ground
Output Impedance: >100 ohm
Maximum Output Level: +22dBu
Insert Return
1/4” TRS Jack
Tip: Hot (+ve)
Ring: Cold (-ve)
Sleeve: Chassis Ground
Input Impedance: >10k ohm
Maximum Input Level: +12.5dBu
Digital Reference: 0dBFS = +12.5dBU
Optical Inputs
TOSLink Optical Connector
ADAT: 8 channels @ 48kHz
ADAT SMUX: 4 channels @ 96kHz
S/PDIF: 2 Channels @ All sample rates
Input Specs
Class A Mic Preamplifer, Inserts, A/D converters and
Optical Input Block Diagram
USB
OUT
Auto
Sense
Input
Select
Hardware Features
