HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
1
Thank you for purchasing the HR7012 Rear Seat Video Headrest System. Before operating this
system read this manual thoroughly and retain it for future reference.
WELCOME
The HR7012 is a versatile Rear Seat Video
Headrest System and is available in three
dierent congurations (please refer to
page 2 for a detailed description of each
of the congurations). Each of the three
congurations come with two replacement
video monitor headrests referred to as either
“M1” or “M2” in this manual. Both the M1
and M2 feature a 7” Monitor equipped with
easy to use front panel controls and auxiliary
connection options. The system allows the
users to watch the same DVD/Video Source on
both monitors simultaneously or individual
DVD/Video Sources on either monitor.
The full function wireless remote control
operates either monitor by selecting Monitor
Select “M1” or “M2” button.
HR7012M: is a 7” LCD monitor with
a built-in DVD player that allows the
user to select from several sources
(DVD/USB, M2, AV-IN, AUX MEDIA,
and GAME* Source). The monitor has
a built-in infrared audio transmitter
channel.
HR7012S: is a 7” LCD monitor (No
DVD)that allows the user to select
from several sources (M1, AV-IN,
AUX MEDIA, and GAME* Source).
The monitor has a built-in infrared
audio transmitter channel.
* GAME Optional
The HR7012 Rear Seat Video Headrest
System is set-up and adjusted with easy The
HR 7012 Rear Seat Video Headrest System is
set-up and adjusted with easy to use menus
that are accessed using the remote control or
the front panel buttons.
The supplied two-channel wireless Infrared
(IR) headphones have an A-B switch that
allow the users to select the audio from
either M1 on “CH. A” or M2 on ”CH. B”
• The M1 monitor will only respond to
the remote control when the Monitor
Select “M1” button is pressed.
• The M2 monitor will only respond to
the remote control when the Monitor
Select “M2” button is pressed.
(Optional wired headphones allow the user
to listen to audio from the system through
the 1/8” jack located on the front of each
monitor.)
Licensed under one or more of the following patents: Patent NOS. 7,245,274, 6,899,365, and
6,678,892.

2
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

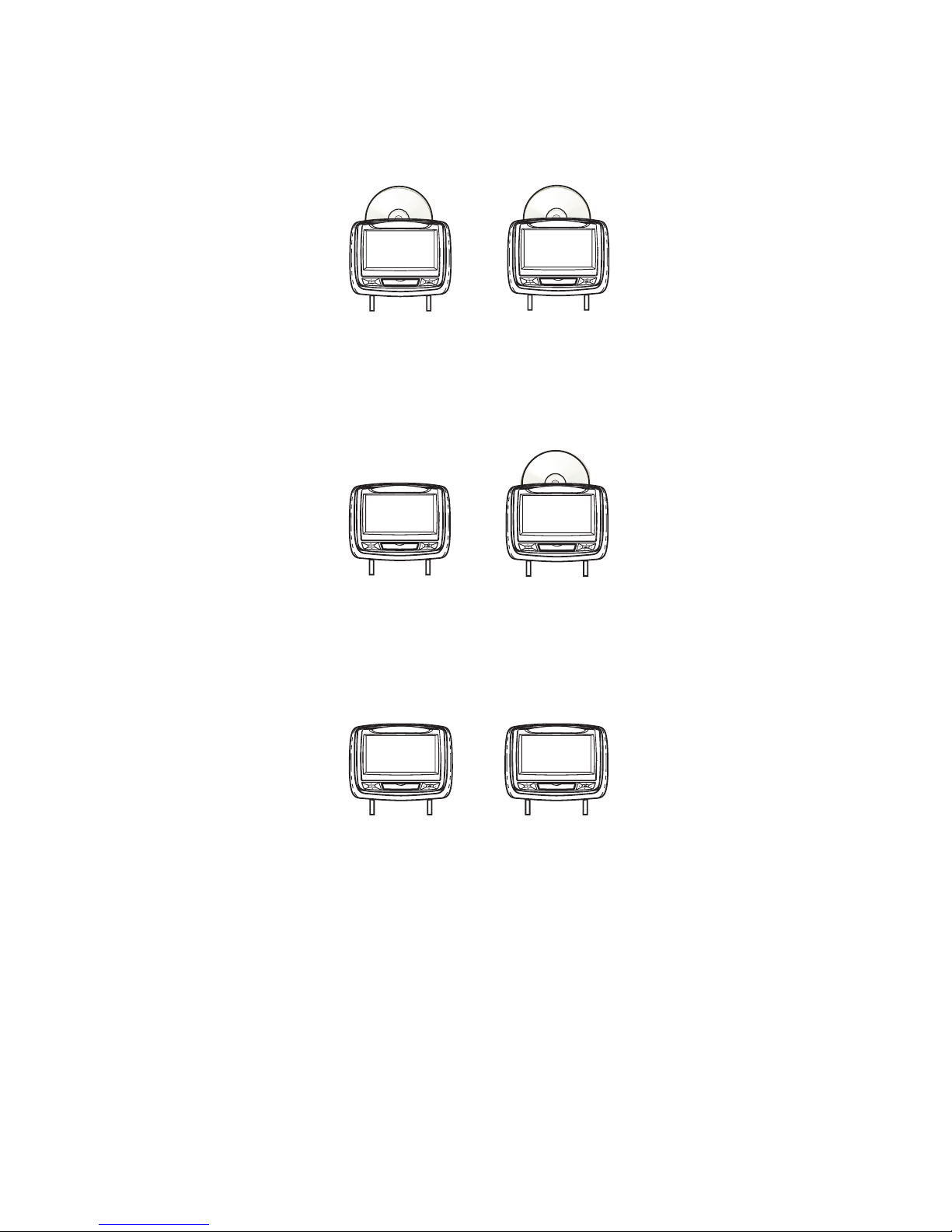

HR7012 REAR SEAT VIDEO HEADREST SYSTEM CONFIGURATIONS
Available in three congurations as follows:
Conguration 1: Model DD7012
Two 7” LCD monitors with a built-in DVD player (HR7012M) (Figure 1.)
Conguration 2: Model DM7012
One 7” LCD monitor with a built-in DVD player (HR7012M) and One 7” LCD monitor (screen
only) (HR7012S) (Figure 2.)
NOTE: When the M2 Monitor is set to the M1 source and to “AUTO ON”, M2 will turn ON
automatically when M1 is in playback mode. (See page 26)
Conguration 3: Model MM7012
Two 7” LCD monitors (HR7012S) (screens only) connected to automotive head unit (radio)
with built-in DVD player or external DVD, Blu-ray player or other A/V source. (Figure 3.)
NOTE: When the Monitors are set to the “A/V” IN source and “AUTO ON” is selected both
monitors will turn ON automatically when a video signal is received from a external source.
(See page 26)
Your system may have an additional A/V (Audio/Video) input such as Conguration 3 above
and/or an optional Game Pack (HR7012GP).
HR7012 New Features:
1. When an optional Game Pack is installed, either monitor can be designated as “Player 1”.
Selection is based on a “rst come, rst serve” basis. The second monitor will automatically
become “Player 2”.
2. AUTO “M1 ON” of the HR7012S (M2) monitor(s) when the HR7012M (M1) is rst
turned ON. This is done by selecting “M1” in the Default AUTO ON/OFF sub-menu.
(See page 26)
3. AUTO “ON” of the HR7012S (M2) monitor(s) when a video source is detected.
This is done by selecting “ON” in the Default AUTO ON/OFF sub-menu.
(See page 26)
4. 100 Channel FM Modulator.
SP
HR7012S
(M2) +
SP
HR7012M
(M1)
Figure 2
SP
HR7012M
(M2) +
SP
HR7012M
(M1)
Figure 1
SP SP
HR7012S
(M2)
HR7012S
(M1)
+
Figure 3

3
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
The HR7012 Rear Seat Video Headrest
System consists of:
1. Two factory matched Headrests with
7-inch Color TFT-LCD Display Screen
(800x480) 16:9 aspect ratio. (See
conguration options on previous page)
2. Two Wireless Infrared (IR) Headphones
equipped with volume control and A/B
switch to select between “M1” and “M2”.
Note: The wireless IR headphones must
be used within a line of sight from the
transmitter as infrared transmission,
like visible light, travels only in an
unrestricted line of sight.
3. Two Infrared (IR) Transmitters for
listening to audio signal through Wireless
IR Headphones.
4. One wireless FM transmitter used to
listen to audio (M1 only) through the
vehicle’s FM radio by tuning to one of 100
frequencies. Try each station frequency
until you achieve a clear audio signal.
Note: Whenever the FM transmitter
is active, regular radio reception may
be poor. Turn the FM transmitter
o to allow normal radio reception
PRODUCT FEATURES
5. Two sets of Audio/Video (AUX)
Signal Input Jacks (yellow, white
and red) used to connect items
such as a DVD player, video game
device, or other audio/video devices.
Two 1/8-inch (3.5mm) Wired Stereo
Headset Jacks that can be used with any
standard stereo headphones.
6. USB Port (HR7012M only) used to connect
a USB memory device (eg. thumb drive)
Content on the USB device can be played
by selecting “DVD” as the video source.
The USB device will automatically start
up upon connection, thereby overriding
the DVD disc. Disconnect the USB device
to play DVD’s and CD’s.
7. Remote Sensor on the Front Panel.
8. One Full Function Remote Control to
operate either headrest by selecting “M1”
or “M2”.”
9. Control Buttons on the Front Panel
POWER, SOURCE, VOLUME UP/DOWN,
STOP, EJECT, MENU/SELECT.
10. OSD (On Screen Display) menus.

4
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
Safety Precaution
For safety reasons, when changing a video
disc it is recommended that the vehicle
not be in motion, and that you do not
allow children to unfasten safety belts to
change a disc or make any adjustments to
the system. System adjustments can be
accomplished using the remote control unit,
while safety belts remain fastened. Enjoy
your entertainment system but remember
that the safety of all passengers remains the
number one priority.
CAUTION
Always run the vehicle’s engine while using
the HR7012 Rear Seat Video Headrest
System. Using this system without running
the engine can result in battery drainage.
To avoid the risk of battery drainage, please
remember to turn o the device when the
vehicle is not in use for long periods of time.
Important Notice
An LCD Panel and/or Video Monitor may be
installed in a motor vehicle and visible to the
driver if the LCD Panel or Video Monitor is
used for vehicle information, system control,
rear or side observation or navigation. If
the LCD Panel or Video Monitor is used for
television reception, video or DVD play, the
LCD Panel or Video Monitor must be installed
so that these features will only function when
the vehicle is in “park” or when the vehicle’s
parking brake is applied.
An LCD Panel or Video Monitor used for
television reception, video or DVD play that
operates when the vehicle is in gear or when
the parking is not applied must be installed
to the rear of the driver’s seat where it will
not be visible, directly or indirectly, to the
operator of the motor vehicle.
CAUTIONS

5
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
Turn ON the Monitors (M1 and M2).
1. Press the Power ON/OFF button. The
power indicator will light up red.
2. Insert a DVD, CD, MP3 disc into the disc
slot located on top of the M1 monitor
(disc label toward user). Push down
gently on the disc until the player pulls
the disc in (Do Not force disc) or connect
a video source through the jacks on the
front panel.
3. Tilt the monitor to a comfortable
viewing position.
4. The supplied wireless IR headphones
have an ”A-B” switch used to select
the audio from either the “M1” or
“M2” monitor. When sitting in front
of the M1 screen, use the CH. A setting.
When sitting in front of the M2 screen,
use the CH. B setting. Set the headset
to the proper channel and press the
Power On/O switch. The power
indicator will light up red. Turn the
volume down to its lowest setting
before putting the headphones on.
QUICK START GUIDE
5. When the DVD menu appears, select
the menu item using the UP/DOWN
buttons and press Enter or Play button.
6. If audio playback through the
vehicle radio is preferred, use the FM
transmitter ON/OFF button on the
remote control. Set the vehicle radio to
the channel selected on the M1 monitor.
If interference with a local radio station
occurs, set the FM modulator to one
of the other 100 radio frequencies
using the Channel Select buttons on
the remote control or front panel.
Note: To operate the M1 screen, press
M1 on the remote control. To operate
the M2 screen, press M2.
7. To turn OFF either M1 or M2, press and
hold the Power ON/OFF button for 5
seconds or turn the vehicle OFF.

6
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
For best disc operation , it is important that
you read this section completely.
DVD Region Coding
The HR7012M and the DVD are coded by
region. These region codes must match in
order for the DVD to play. If the codes do not
match, the DVD will not play. The HR7012M
code is set to region 1. Playback of any other
region will not work in the HR7012M.
Type of Discs the HR7012M Will Play
• DVD-Video: DVD containing video.
• CD-DA: CD containing musical or sound
content only.
• CD-Video: CD contains movie only.
• CD-R/RW: A disc that containing audio les
(for example, a CD-R with downloaded
MP3 les), MPEG, or JPEG les.
Note: The following discs will NOT play in the
HR7012M, Optical disc- CD-1, CD-ROM, and
DVD-ROM Mini disc- CDG (audio only, not
graphics), Blu-ray.
Loading and Playing Discs
Before loading a disc, make sure that it is
compatible with the player.
Press the POWER button to turn the system
ON. Load the disc (label facing the user) into
the disc slot. The disc will load automatically
and begin to play.
Note: Some discs may start at the root menu,
where play must be selected to start movie.
Notes on Discs
• Do not touch the disc surface. Handle the
disc by the edge.
• It is important that discs are clean prior to
use.
• If disc is not clean, use a commercially
available cleaning cloth to gently wipe
the disc from the center out. (Figure 4)
Note: Do not use solvents such as benzene,
thinner, cleaners, or antistatic spray
intended for analog discs.
• Keep discs protected in their cases or
disc magazines when not in use. Do not
subject discs to heat/high temperature.
Avoid leaving discs in a parked vehicle or
on a dashboard/rear tray.
• Do not use discs that have after-market
Paper or plastic labels/stickers attached.
The following malfunctions may result
from using such discs:
• Inability to eject a disc (due to a label
or sticker peeling o and jamming the
eject mechanism).
• Inability to read audio data correctly
(i.e., playback skipping, or no playback)
due to heat shrinking of a sticker or
label causing a disc to warp.
• Use only standard, round discs. If you
insert irregular, non-round, shaped discs
they may jam in the DVD player or not play
properly.
Figure 4
GENERAL OPERATING INSTRUCTIONS

7
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
S
AUDIO
R
VEDIO AUDIO
L
Figure 5
1
13
2
10
119
15
14
13
12
7
3
4
5
6
8
16
1
13
2
10
119
15
14
13
12
7
3
4
5
6
8
16
FRONT PANEL CONTROLS
1. DVD disc insertion slot
(Figures 5 and 6).
2. IR TRANSMITTER and IR SENSOR
IR Transmitter: is used to broadcast audio
signal to the wireless IR headphones.
IR Sensor: is used to receive signals from
the remote control (Figures 5 and 6).
3. Play Button (HR7012M)
This button is used to begin playback of
the disc or USB media inserted (Figure 5).
4. EJECT Button
This button is used to eject the disc
(Figure 6).
5. SOURCE Button (HR7012M)
This button is used to select the DVD/
USB, M1/M2, AV/AUX, MEDIA or GAME
(optional) (Figure 5).
6. STOP Button
This button is used to stop the playback
of the disc or USB media in use (Figure 5).
7. POWER Button
This button is used to turn the HR7012M/
HR7012S ON and OFF (Figures 5 and 6).
(press and hold for 5 seconds to turn
OFF)
8. AUX Jacks (RCA Type)
The Jacks are intended for temporary
connection of an additional AV source
such as a video game device, or other
audio/video devices. To play the external
device, connect to the AUX Jacks, press
the SOURCE button on the front panel of
the HR7012M or on the remote control
until “AUX” appears on the screen and
press PLAY on the connected source
(Figures 5 and 6).
9. USB PORT
This port is used to connect a USB device
for playback of content. To view content,
select “DVD” as the video source and
insert the USB device. The USB device
will start automatically and take priority
over the DVD. To play DVD’s, disconnect
the USB device from the port (Figure 5) .
10. Protective Cover
Used to protect and cover the Headset/
Earbud jack, AV Input jacks and USB
port when not in use (Figures 5 and 6).
HR7012M

8
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
11. 1/8”Wired Headset/Earbud Output Jacks
These jacks are used to connect two
standard wired headphones/earbuds
(Figures 5 and 6).
12. MENU/SELECT Button
This button is used to display and select
options on the main Setup Menu when a
disc or USB media is not inserted. When a
disc or USB media is inserted, this button
is used to display and select available
Disc/Media option (Figures 5 and 6).
13. VOLUME Direction Buttons
These buttons are used to raise and lower
the volume. (Figures 6).
14. NEXT / RIGHT Button (HR7012M)
This button is used to skip to the next
chapter or track during playback of a disc
(Figure 5).
15. PREVIOUS / LEFT Button (HR7012M)
This button is used to skip to the previous
chapter or track during playback of a disc
(Figure 5).
16. 7-inch TFT LCD Display Screen
(800 x 480) (Figure 5 and 6).
17. PIX Button (HR7012S)
This button is used to control levels of
Brightness, Contrast, Color, Tint and to
Reset all picture adjustment levels to
original factory settings (Figure 6)
18. SOURCE Button (HR7012S)
This button is used to select the M1/
M2, AV/AUX, MEDIA or GAME (optional)
(Figure 6).
19. LEFT/RIGHT Buttons (HR7012S)
These buttons are used to navigate
menu selections on the screen
(Figures 6).
Warnings
• Do not use any solvents or abrasive
cleaning materials when cleaning the
screen. Use only a lightly dampened lint
free cloth to wipe the screen if it is dirty.
• Lock the front panel in the fully closed
position when not in use. Do not put
pressure on the screen, caution children to
avoid touching or scratching the screen..
FRONT PANEL CONTROLS continued
HR7012S
Figure 6
SP
AUDIO
R
VEDIO AUDIO
L
8
13
2
10
11
19
19
13
12
7
17
13
18
16
13

9
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
REMOTE CONTROL AND HEADPHONE BATTERY INSTALLATION
Installation of the Remote Control Battery
Figure 7
Figure 8 Figure 9
The remote control comes with a battery already installed with a Pull Tab to prevent battery
discharge. Remove the Pull Tab before attempting to use the remote. (Figure 7).
Note: The remote control will only operate this device. It is not a universal remote control and
will not control other equipment.
Remote control
Back View
CR2025
3V
Protective Pull Tab (Clear Plastic )
(1) (2) (1)
1. While holding the remote control, insert thumbnail into the battery door side notch (1) and
index ngernail into battery door upper notch (2) and slide battery holder open (Figure 8).
2. Install one CR2025 battery (1) (Figure 9).
Note: Make sure that the proper polarity (+ or -) is observed.
3. Slide the battery holder back into the remote control until it locks (Figure 10).

10
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
The wireless IR headphone unit requires two AAA batteries.

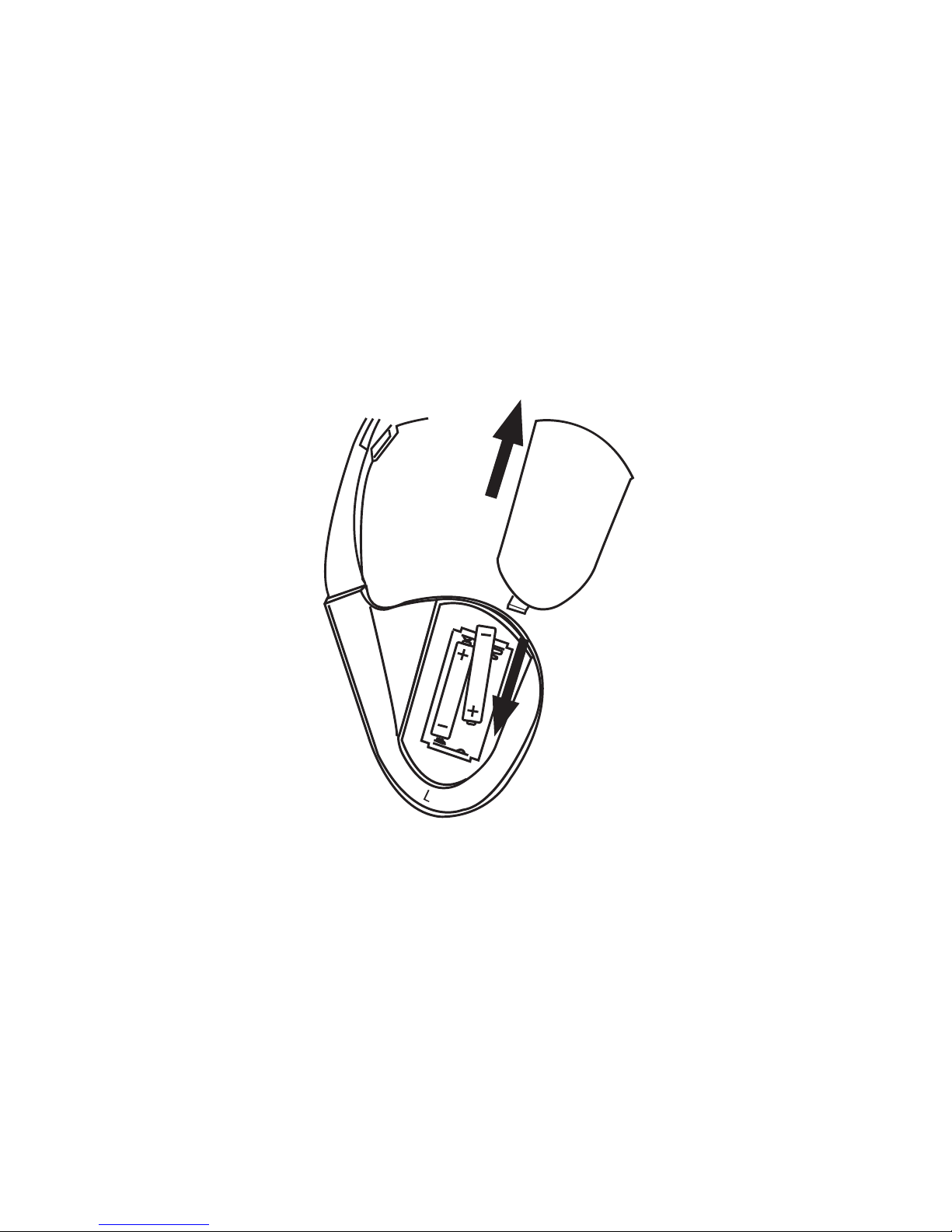

1. Locate the battery compartment cover on the left earphone.
2. While holding the left earphone in one hand, press down on the battery compartment
cover and slide it UP and OFF in the direction shown. (Figure 10)
3. Insert two AAA batteries (included), carefully following the markings inside to ensure the
batteries are inserted properly ( “+”and “-” ends in the correct positions.)
4. Replace the battery compartment cover. (Figure 10)
Installation of the Headphone Batteries
HEADPHONE BATTERY INSTALLATION
Figure 10

11
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
• Always keep the monitors, remote control
and headphones clean and dry.
• Always seek qualied personnel to
perform repairs to the system or individual
components of the system. Never attempt
your own repairs.
• Do not drop remote control and
headphones or expose to strong impacts.
• Do not expose monitors, remote control
and headphones to direct sunlight for
extended periods of time.
• Always ensure that the battery is
correctly installed in the remote control
and headphones with the positive and
negative sides in the direction as shown in
the battery compartment.
• Use one CR2025(3V) Lithium battery
(160MAh) in the remote control.
Do not use dierent types.
• Use two AAA(1.5v) Alkaline batteries
in each of the headphones.
Do not use dierent types.
• Do not use old batteries in the remote
control or headphones.
• When the battery fails to function, replace
it immediately.
• Remove the battery if the remote control
and headphones are not used for a month
or longer.
• Keep all batteries out of the reach of
children. Should the battery be swallowed,
immediately consult a doctor.
• When disposing used batteries, please
comply with governmental regulations
or environmental rules that apply in your
area.
BATTERY CAUTIONS AND WARNINGS
Cautions and Warnings

12
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

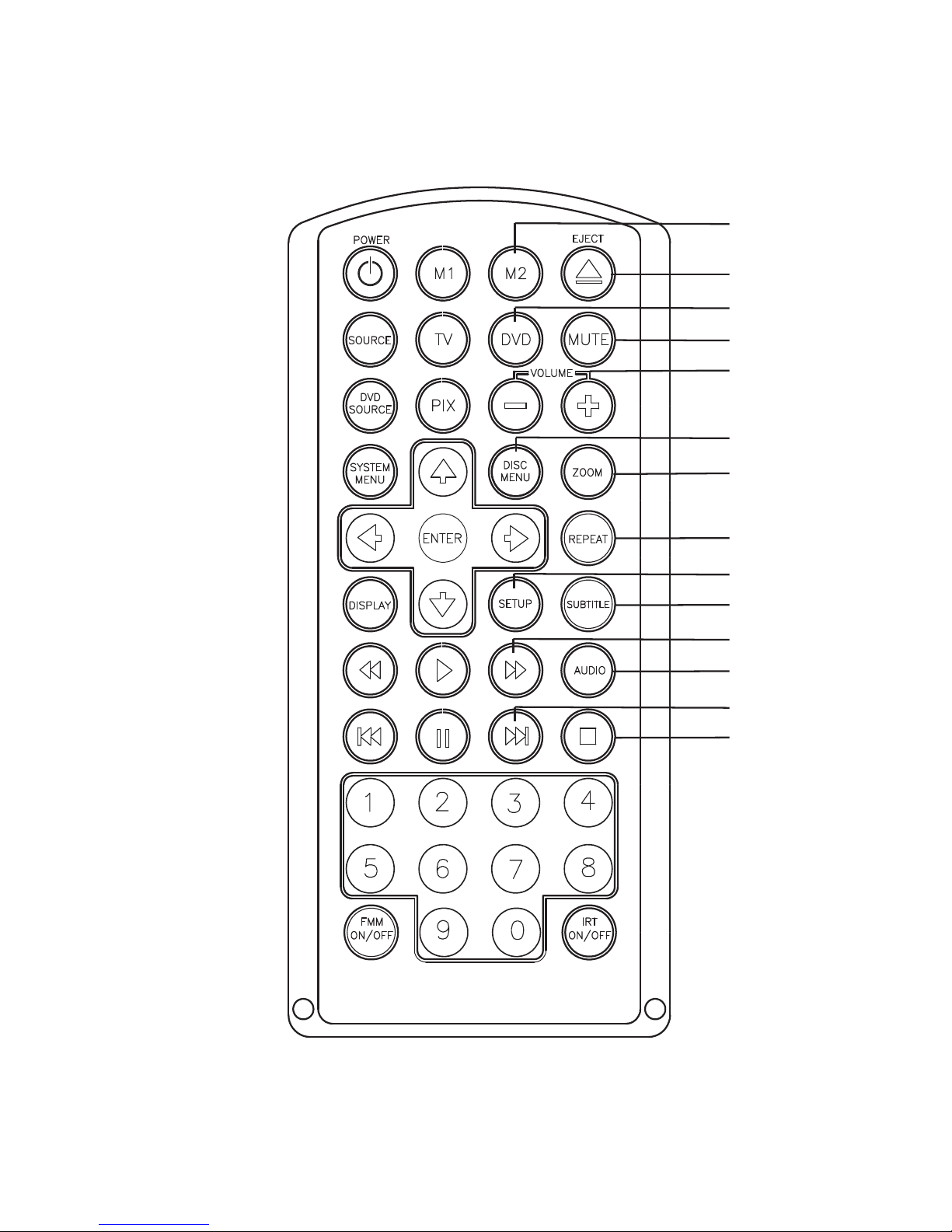

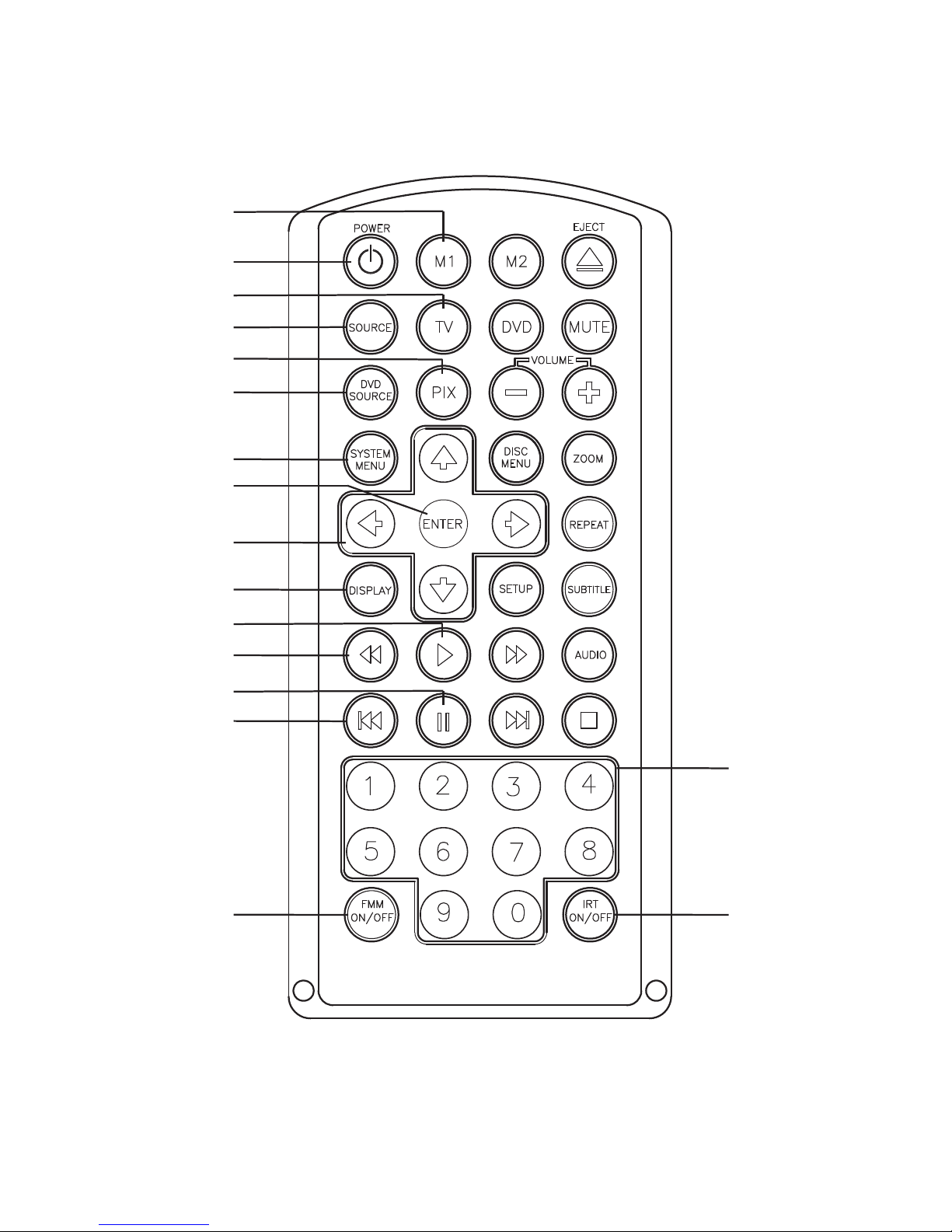

REMOTE CONTROL OPERATION
Figure 11
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15) (16)
(17)

13
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
1. (M1) Monitor Select
Press this button to select and control
HR7012M (M1) Monitor. (Figure 11)
2. POWER
Press this button to turn the system ON.
Press the button again to turn the system
OFF. (Figure 11)
3. TV (not applicable)
Note: If this button is pressed the remote
control will not control DVD functions
until the DVD button is pressed again.
(Figure 11)
4. SOURCE
Press this button to change the AV source
between DVD/USB and a connected AUX
source. (Figure 11)
5. PIX
This button is used to make picture
adjustments. Each time the button
is pressed, the adjustment OSD
cycles through bars for BRIGHTNESS,
CONTRAST, COLOR, TINT, and RESET.
Once the desired adjustment bar is
displayed, use the UP/DOWN button
to adjust the setting. The bar display
will automatically disappear if no
adjustments are made within 6 seconds
or if any button is pressed. (Figure 11)
6. DVD Source
This button is used to switch connected
sources (DVD and USB). This button
is only active when remote control is
in the DVD mode and a USB device is
connected. (Figure 11)
7. SYSTEM MENU
This button is used to make system setup
adjustments. Each time the button is
pressed, the adjustment OSD cycles
through bars for VOLUME CONTROL,
PICTURE CONTROL, FM MODULATOR,
OSD LANGUAGE, IRT ON/OFF, and
DEFAULT DVD ON/OFF (MI) or DEFAULT
AV AUTO ON/OFF (M2). (Figure 11)
8. ENTER
Press this button to make an OSD
selection or begins playback
of the DVD/USB. (Figure 11)
9. UP/DOWN/LEFT/RIGHT Arrows
Press these buttons to navigate the
menu selection on the screen. (Figure 11)
10. DISPLAY
Press this button to display current disc
information while the disc is playing.
Press UP/DOWN arrow buttons to select
the Title or Chapter. For Title/Chapter
selection, use the numeric buttons to
enter the desired Title/Chapter selection.
(Figure 11)
11. PLAY Button
Press this button to initiate play mode
when a disc is loaded in the disc
compartment. (Figure 11)
12. SCAN BACKWARD Button
Press this button to search in the
backward direction. Press repeatedly to
change the search speed from 2, 4, 8, and
16 times the normal speed. (Figure 11)
13. PAUSE Button
Press this button to pause the playback of
a disc. Pressing pause again or pressing
the Play button will resume normal
playback. (Figure 11)
14. PREV Button
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File. Press this button
briey during play to step back to the
previous Chapter for DVD-video or
Track/File for VCD, SVCD, MP3, CD, etc.
(Figure 11)
15. FMM ON/OFF
This button is used to turn the wireless
FM Modulator ON and OFF. (Figure 11)
16. IRT ON/OFF
This button is used to turn the Infrared
Transmitter ON and OFF for Wireless
IR Headphones. Pressing M1 then the
IRT ON/OFF button will control the IR
Transmitter for M1. Pressing M2 then
the IRT ON/OFF button will control the IR
Transmitter for M2. (Figure 11)
17. Numbers
Decimal number: 0 to 9; and +100: Add
100. Used for selecting tracks on a disc.
(Figure 11)
REMOTE CONTROL OPERATION (continued)

14
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
REMOTE CONTROL OPERATION (continued)
(31)
(30)
(29)
(28)
(27)
(26)
(25)
(24)
(23)
(22)
(21)
(20)
(19)
(18)
Figure 12

15
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
18. STOP
Press this button to stop
playback of disc. (Figure 12)
19. NEXT Button
When a disc has more than one
Chapter, Track, or File, you can move
to another Chapter/Track/File. Press
the button briey during play to select
the next Chapter for DVD-video or
Track/File for VCD, SVCD, MP3, CD, etc.
(Figure 12)
20. AUDIO
Press this button to display and
select the available AUDIO languages
in DVD mode. Each time you press
the button, the language changes.
Note: The audio languages vary
from disc to disc. (Figure 12)
21. SCAN FORWARD Button
Press this button to search in the
forward direction. Press repeatedly
to change the search speed from 2,
4, 8, and 16 times the normal speed.
(Figure 12)
22. SUBTITLE
Press this button. If the current disc
has dierent subtitle options, this
now appears on the screen. Press
this button repeatedly until you
have reached your desired subtitle
option. (Figure 12) NOTE: The Subtitle
selections vary from disc to disc
23. SETUP (Unit must be set DVD source)
Press this button to navigate the Setup
Menu. Please refer to the following pages
to congure the system: General Setup
Page, Audio Setup Page, Preference Page,
and Password Setup Page. (Figure 12)
24. REPEAT
Press this button to switch the repeat
mode by CHAPTER, TITLE, ALL and
cancel while playing DVD-video. Other
disc types such as VCD, CD, and SVCD
that only have two repeat modes
that can be selected: TRACK and ALL
Note: Both repeat functions of VCD
and SVCD need the PBC status set
to ON when available. (Figure 12)
25. ZOOM
Press this button to enlarge the
picture in the movie by 2x, 3x, and
4x, or shrink the picture in the movie
by 1/2, 1/3, and 1/4. (Figure 12)
26. DISC MENU
Press this button to access the
menu of the DVD in play. (Figure 12)
27. VOLUME DOWN (-) or UP (+)
Press this button to increase or
decrease the volume for the wired
headphones or select the level of the
picture adjustments when the unit is in
picture adjustment mode. (Figure 12)
28. MUTE
Press this button to mute the sound
transmitted to the headphones. “MUTE”
will be displayed on the screen. Pressing
the button again restores sound to
the previously set level. (Figure 12)
29. DVD Mode Select
Press this button to control
DVD functions. (Figure 12)
30. EJECT
Press this button to eject the disc from the
disc slot. (Figure 12) (HR7012M only)
31. (M2) Monitor Select
Press this button to select and control
HR7012 (M2) Monitor. (Figure 12)
REMOTE CONTROL OPERATION (continued)

16
HR7012 REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual
The System Menu allows the user to personalize the HR7012 settings. It is used in the initial setup
to adjust the picture quality and customize an adjustable functions. Once the initial settings
are customized, they will remain the same until modied or reset to the factory default settings.
NOTE: System Menu changes are best made without a DVD inserted into the unit.
This section describes how to adjust and set settings using the six setup screens (Figure 13):
1. VOLUME CONTROL
2. PICTURE CONTROL
3. FM MODULATOR (M1 Only)
4. OSD LANGUAGE
5. IRT ON/OFF
6. DEFAULT DVD ON/OFF HR7012M
DEFAULT AUTO ON/OFF (HR7012S)
Using the System Menu
Navigating and selecting available settings in the System Menu is accomplished using the
Remote Control buttons (Figure 14), or the Front Panel buttons (Figure 15).
Follow the steps outlined in this section to select and customize each of the six adjustable
functions (Sub-Menus) listed above, and refer to the sections that apply.
NOTE: Press and Hold the MENU/SELECT button for 5 seconds to access the System Menu.
HR7012M HR7012S
MENU
SELECT
MENU
SELECT
SYSTEM
MENU UP,DOWN,
LEFT and
RIGHT
DIRECTION
BUTTONS
ENTER
BUTTON
Figure 14
Figure 15
SYSTEM MENU
HR7012S (M2)HR7012M (M1)
Figure 13
