Aumuller USKM Training manual

!
!
Warranty claims require proper and profes-
sional assembly, installation and maintenance
in accordance with national regulations and
manufacturer‘s instructions of the drives.
The safety instructions in the supplied pro-
duct documentation are to be observed.
Strictly observe the information given in this
and in the instructions for installation of
drives when mounting the USKM.
Details can be found on our website
www.aumueller-gmbh.de
Keep this instruction over the lifetime of the
product.
USKM (Control module) 24V
• The control module USKM allows up to 3 drives
respectively locking drives to be connected.
• The USKM is congurable - via DIP switches - as:
- multiple control module with up to 3 drives or
- sequential control module with up to 2 locking
drives.
• The control module USKM has a post cycle locking.
• The control module USKM has a cut-off current
surveillance.
• The cut-off current of the connected drives - is individually
adjustable for each drive - via DIP switch.
• A LED indicates status and error messages.
• Several control modules USKM can be connected in a
line. The maximum output current of the control unit or
the motor line must not be exceeded.
Assembly and Commissioning Instructions
USKM (Control module)
Rated voltage: 24V DC +/- 20%, (max. 2 Vss)
Close circiut current: < 50 mA
Connections: max. 3 drives; s < 300 mm
Rated current per drive: max. 2,5 A
Drive type: S1, S2, S3, FV1, OFV1
Protection rating: IP54
Ambient temperature range: min. - 5 °C ... + 70 °C
Surf. mount. plastic housing: 110 x 110 x 66 mm
Feature / Equipment: DIP switches for settings,
connection terminals: 2,5 mm².
Part.-No.: 512140
Application: Control module with 3 outputs and individual settuble cut-off
current, monitored motion run, delayed sequence control.
Functions: external load dependent cut-off switch (max. 1,25 A),
motion-monitoring up to 3 drives / locking drives,
max. 2 sequential controls.

Assembly Instruction
USKM
COMMISSIONING
COMMISSIONING
• The maximum output current of the control unit may not
be exceeded.
• In SHEV systems (smoke and heat ventilation) a „line
end module“ must always be installed in the last USKM
for line monitoring.
• The running direction of the drives must coin-
cide with the activated direction as well as with the
LED status display. Otherwise, change the connections
to the control unit or to the drives.
• The maximum length of sypply lines between drives
and control module is 10 meters. Pay attention to
the required wire cross-section of a supply line.
¢Mount the USKM and connect it to the control unit.
¢Establish the connection at outputs 1- 3in accordance
with the desired application (see chapter: CONNETION AT
THE USKM AND SETTING THE DIP SWITCHES).
¢Prior to start-up, the DIP switches for the components
to be used must be set and checked (see chapter:
CONNETION AT THE USKM AND SETTING THE DIP SWITCHES).
The LED status display provides information for visual
monitoring and targeted troubleshooting.
3 51 2 4
ON
1 1 2 2 3 3 4 5 4 5 4 5
OMRON
XXXXX
OMRON
XXXXX
OMRON
XXXXX
1 2 3 4 5 6 7 8 9 10
BNBU
M2
M1
V10
V14
V11 V12 V13
BK
BK
WH
EMB 7300
EMB 8000
(DM / DMX)
LZ1
LZ6
+
+
-
-
1
2
3
1
14
5 1 5
2
4
2
4
3
1 5
2
43
3
321
2 211
2

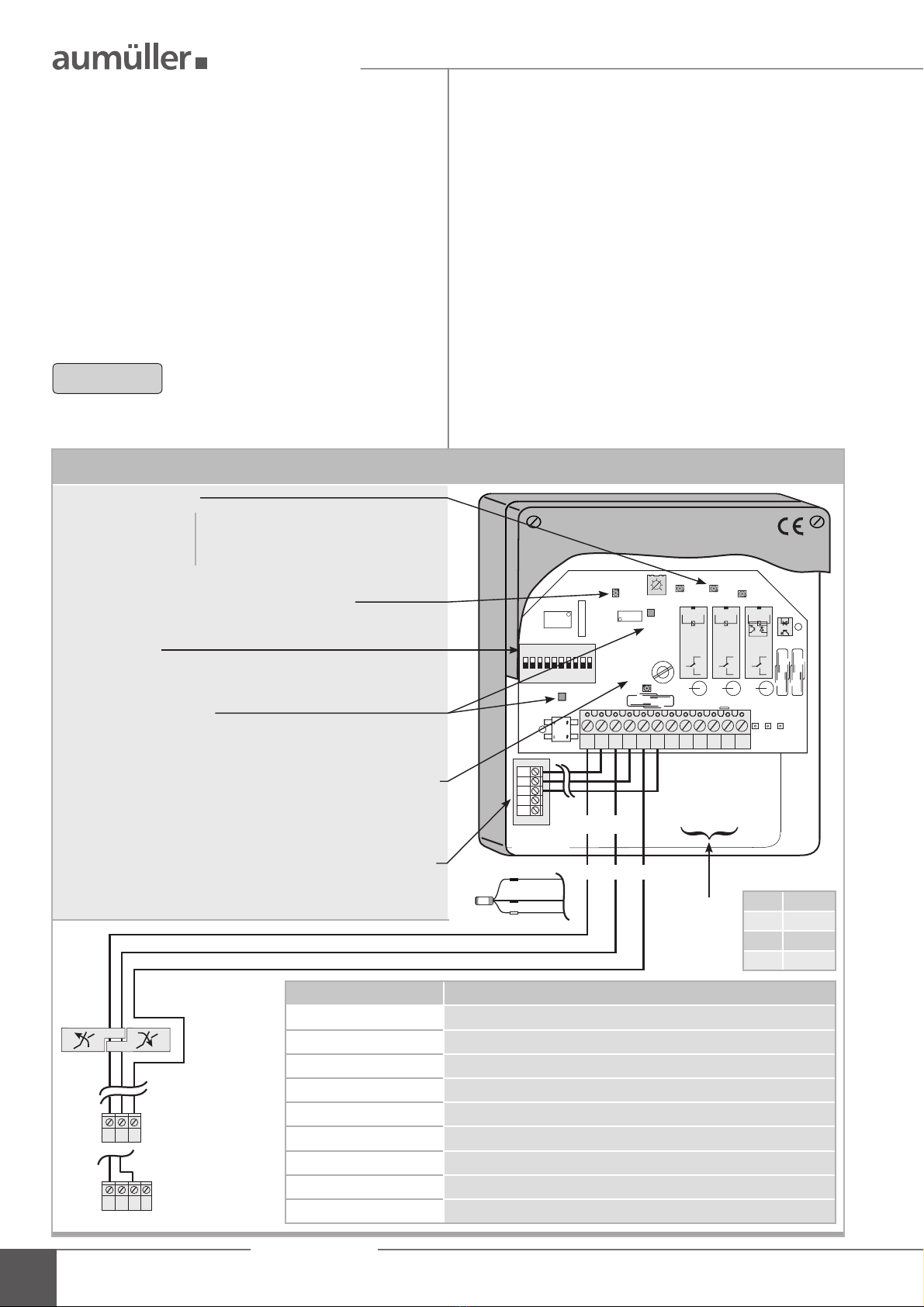

Control module: USKM
NOTE
If the USKM is miscongured, the
LED status display indicate the error by
red continuous light and the USKM is
out of operation.
V10 = LED status display (see table below)
V14 = LED status display for the drive running direction
at terminals 1 and 2:
red = OPEN / green = CLOSE / OFF = Stop
MP1 (-) and MP2 (+)
Measuring point: measuring the run-on time (v = t)
Connections to the next module or line end module
for monitoring the line to the control unit,
connect the module
DIP switches
for setting the operating mode
BK = black
BN = brown
BU = blue
WH = white
Natural
ventilation
control unit
SHEV
control unit
Connection
dependent on
module function
24V DC control unit
Note the max. current
consumption of the drives!
Output 3
Line end
module 70 M
Output 2 Output 1
LED status display
V11 = Output 1
V12 = Output 2
V13 = Output 3
green = motor is running in the
open or close direction
OFF = motor is switched off
V10 LED status display State
OFF USKM no voltage at terminal 1 and 2 (line stop)
green continuous light USKM is ready for operation; drives / locking drives are STOPED
green slowly blinks at least one connected drive is running
green fast blinks at least one connected locking drive is running
red continuous light the DIP switches are incorrectly set; the USKM is out of operation
red slowly blinks at least one output is switched OFF due to undercurrent
red fast blinks at least one output is switched OFF due to overcurrent
red-green slowly blinks line voltage <18 V; USKM is switched OFF due to undercurrent
red ash Special mode; check the setting of the DIP switches

Assembly Instruction
USKM
COMMISSIONING / RUN-ON TIME
3
Multiple or sequential control module
With the function multiple control module two or three
drives are operated simultaneously.
In the sequence control mode, the drives are connected
in series - depending on the selected sequence control. Here
the shutdown of a drive is the start signal of the next drive.
Post cycle locking
As soon as the USKM has switched off the drives and
locking drives in one running direction, it does not permit
any further operation - in this direction.
Only after reversing the polarity of the input voltage - in the
opposite direction - the USKM is reactivated.
Cut-off current surveillance
The current consumption of the connected drives and
locking drives is permanently monitored. When the set
value has been exceeded, the USKM switches off the
connected motor. If a drive stops, for example, because of a
defected cable, the USKM recognizes this as undercurrent.
All connected drives and locking drives are switched OFF.
Switch-off function for drives with internal
load dependent cut-off switch (e.g. OFV1)
These drives switch off by its own, if the current con-
sumption drops below a certain trashold. This state is not
displayed on the USKM as an error message.
If the current consumption of the drive exceeds the set
trashold (max. 2,4 A), this is signaled as a fault (the
LED status display indicates red fast blinks) and all motors
are switched off.
ON
OMRON
XXXXX
OMRON
XXXXX
OMRON
XXXXX
1 2 3 4 5 6 7 8 9 10
M2
M1
V10
V14
V11 V12 V13
1 5 1 5
2
4
2
4
3
1 5
2
43
3
Changing the factory set run-on time of 2
seconds can lead to drive and window case-
ment demage.
For damage - caused by the change of the
run-on time - AUMÜLLER assumes no liability.
Larger screwdriver can lead to mechanical
damage.
!
!
2
3
1
Run-on time (time values and voltage values)
Seconds 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0
Volt 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0
The run-on time is the internal switch-off-time set at the
USKM for the monitoring of the parallel operation of 2 or
3 drives. It determines the misaligment between the
drive-strokes, which results from the multiplication of the
run-on time and the speed of the drives.
The run-on time between the switch-off point of the rst
drive - by overload or low voltage - and the forced shut-
down of the other drives in parallel operation, can be set on
the circuit board with a potentiometer Œin the range of
0 to 5 seconds. The factory setting is 2 seconds.
¢Operate the potentiometer Œwith a screwdriver
(size 0).
The set run-on time can be measured with a stopwatch.
An error must be simulated to a drive output and the time
must be measured in which the other drives operated in
parallel running mode are switched off.
Alternatively, the DC voltage at the two measuring points
MP1 (-) •and MP2 (+) Žhas to be measured - with a
digital multimeter - and converted into time according to
the formula t = V.
SETTING THE RUN-ON TIME IN PARALLEL RUN WITH MULTI-DRIVE OPERATION

Assembly Instruction
USKM
DIP SWITCHES
The DIP switches must be correctly set for proper operation.
SETTING THE DIP SWITCHES
DIP SWITCHES / RESET / SPECIAL SWITCHING
Cut-off current
Drives S1 and FV1 USKM
Output 1Output 2Output 3
DIP switches 1 2 3 4 5 6
cut-off current: 0,8 A OFF OFF OFF OFF OFF OFF
cut-off current: 0,9 A OFF ON OFF ON OFF ON
cut-off current: 1,25 A ON OFF ON OFF ON OFF
Drive with S2 / S3 and
OFV1
Total current consumption:
max. per drive = 2,4 A
ON ON ON ON ON ON
The cut-off current must be set for each output and is dependent on
the drive type.
Cut-off current: 1x PL6 - S1 = 0,9 A
1x PL10 - S1 = 0,9 A
1x FV1 - S1 = 0,8 A
Number: drives / locking drives
Drives Locking drives
DIP switches 7 8 DIP switches 9 10
number: 0OFF OFF number: 0OFF OFF
number: 1ON OFF number: 1ON OFF
number: 2OFF ON number: 2OFF ON
number: 3ON ON number: 3ON ON
The outputs must be occupied from left to right, whereby the drives
are rst connected and then the locking drives.
Outputs that are congured as a drive-output cause simultaneous,
parallel opening and closing.
Outputs that are congured as a locking drive-output operate as
sequence control. If drives are to open and close in sequence, they
must be congured as locking drives. The cut-off current has to be set
according to the drive type.
Exception: In a system with 2 locking drives the number of locking
drives must be set ON / ON (DIP 9/10), if the two locking drives has
to open and close simultaneously in parallel.
In case of improper setting, the LED status display V10 signaled red
continuous light and the USKM is out of operation.
INDIVIDUAL, SPECIAL SWITCHING
4
DIP switch Connection at the drive
DIP 1 / 2 Cut-off current for output 1
Dependent on
drive type
DIP 3 / 4 Cut-off current for output 2
DIP 5 / 6 Cut-off current for output 3
DIP 7 / 8 Number of drives (0- 3)
DIP 9 / 10 Number of locking drives (0- 3)
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
RESET THE USKM
¢Set DIP switch 7 - 10 to OFF.
¢Interrupt the voltage on the terminals 1 and 2.
¢When disconnected, make the new adjustment of the
DIP switches.
Individual, special switching may only be car-
ried out after previously consulting with the
manufacturer. Contact our Service.
!

Assembly Instruction
USKM

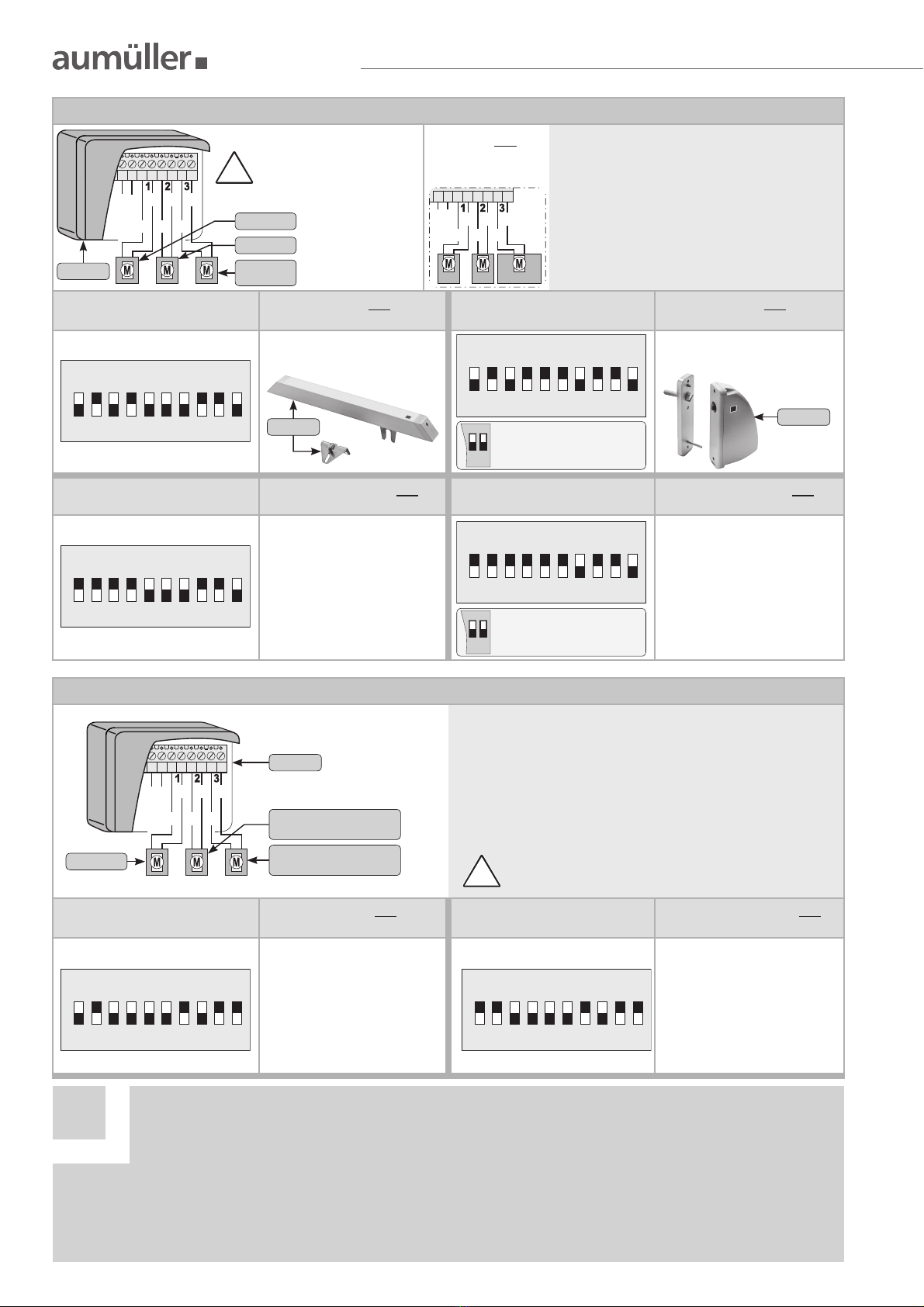

CONNECTION AT THE USKM (OUTPUT 1 - 3) AND SETTING THE DIP SWITCHES
1xdrive und 1xlocking drive FV1 / OFV1 - controlled via USKM
Setting the DIP switches 1x drive with S1 and
1x FV1 (with S1) Setting the DIP switches 1x drive with S1 und 1x OFV1 (with S1)
1x PL6 - S1 + 1x FV1
1x PL10 - S1 + 1x FV1
1x PL6 - S1 + 1x OFV1
1x PL10 - S1 + 1x OFV1
Setting the DIP switches 1x drive with S2 / S3 and
1x FV1 (with S1) Setting the DIP switches 1x drive with S2 / S3 und 1x OFV1 (with S1)
2x LKS - S2 + 1x FV1
2x PLA6 - S3 + 1x FV1
2x PLA8 - S3 + 1x FV1
2x PLA101 - S3 + 1x FV1
2x PLA116 - S3 + 1x FV1
Total current consumption:
max. per drive = 2,4 A
2x LKS - S2 + 1x FV1
2x PLA6 - S3 + 1x FV1
2x PLA8 - S3 + 1x FV1
2x PLA101 - S3 + 1x FV1
2x PLA116 - S3 + 1x FV1
Total current consumption:
max. per drive = 2,4 A
BUBU
BN
frei
BN
3 3 4 4 4 555
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
USKM
Output 1 - 3
Locking drive
FV1 / OFV1
drive 1
Locking drives
only with S1 possible.
!
Functional sequence:
First the locking drive (FV1 / OVF1) open,
then the drive (1).
When closing rst the drive (1) starts,
then the locking drive (FV1 / OVF1).
5
2drives - controlled via USKM
Setting the DIP switches 2x drive with S1
2x PL6 - S1
2x PL10 - S1
Setting the DIP switches 2x drive with S2 / S3
2x LKS - S2
2x PLA6 - S3
2x PLA8 - S3
2x PLA101 - S3
2x PLA116 - S3
Functional sequence:
All drives open and close simultaneously.
In order to compensate the misaligment, the run-on time (0 - 5
seconds) may need to be corrected (factory setting = 2 seconds).
3drives - controlled via USKM
Setting the DIP switches 3x drive with S1
3x PL6 - S1
3x PL10 - S1
Setting the DIP switches 3x drive with S2 / S3
3x LKS - S2
3x PLA6 - S3
3x PLA8 - S3
3x PLA101 - S3
3x PLA116 - S3
Functional sequence:
All drives open and close simultaneously.
In order to compensate the misaligment, the run-on time (0 - 5
seconds) may need to be corrected (factory setting = 2 seconds).
BUBU
BN
frei
BN
3 3 4 4 4 555
BUBU
BN
BU
BNBN
3 3 4 4 4 555
USKM CONNECTION / DIP SWITCHES
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
USKM USKM
drive 3
drive 2
drive 1
Output 1 - 3 Output 1 - 3
drive 2drive 1
Only possible
for drives with
a stroke of max.
300 mm.
!
DIP switch 3and 4- from
OFV1 - are set to ON !
3 4
OFF
ON
DIP switch 3and 4- from
OFV1 - are set to ON !
3 4
OFF
ON
free
OFV1
FV1

AUMÜLLER AUMATIC GMBH
Gemeindewald 11
86672 Thierhaupten
Tel. [phone]
Fax [phone]
[e-mail]
www.aumueller-gmbh.de
AUMÜLLER AUMATIC GMBH
Gemeindewald 11
86672 Thierhaupten
Tel. [phone]
Fax [phone]
[e-mail]
9000004701_V2.0_KW30/16
USKM CONNECTION / DIP SWITCHES
BUBU
BN
BU
BNBN
3 3 4 4 4 555
USKM
drive 3
Output 1 - 3
locking drive 2
(FV1 / OFV1)
locking drive 1
(FV1 / OFV1)
2xdrives und 1xlocking drive FV1 / OFV1 - controlled via USKM
Setting the DIP switches 2x drive with S1 and
1x FV1 (with S1) Setting the DIP switches 2x drive with S1 and 1x OFV1 (with S1)
2x PL6 - S1 + 1x FV1
2x PL10 - S1 + 1x FV1
2x PL6 - S1 + 1x OFV1
2x PL10 - S1 + 1x OFV1
Setting the DIP switches 2x drive with S2 / S3 and
1x FV1 (with S1) Setting the DIP switches 2x drive with S2 / S3 and 1x OFV1 (with S1)
2x LKS - S2 + 1x FV1
2x PLA6 - S3 + 1x FV1
2x PLA8 - S3 + 1x FV1
2x PLA101 - S3 + 1x FV1
2x PLA116 - S3 + 1x FV1
Total current consumption:
max. per drive = 2,4 A
2x LKS - S2 + 1x FV1
2x PLA6 - S3 + 1x FV1
2x PLA8 - S3 + 1x FV1
2x PLA101 - S3 + 1x FV1
2x PLA116 - S3 + 1x FV1
Total current consumption:
max. per drive = 2,4 A
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
DIP switch 3and 4- from
OFV1 - are set to ON !
3 4
OFF
ON
DIP switch 3and 4- from
OFV1 - are set to ON !
3 4
OFF
ON
BUBU
BN
BU
BNBN
3 3 4 4 4 555
BNBN
BL
BU
BNBL
3 3 4 4 4 555
FV1 / OFV1PL6PL6
USKM FV1 /
OFV1
drive 2
drive 1
Connection only for:
2x PL6 + 1x FV1
2x PL6 + 1x OFV1
Only possible for drives with
a stroke of max. 300 mm.
Locking drives
only with S1 possible.
!
ON
1 102 983 4 5 76
ON
1 102 983 4 5 76
1xdrive and 2xlocking drives FV1 / OFV1 - controlled via USKM
Setting the DIP switches 1x Antrieb mit S1 und
2x FV1 (mit S1) Setting the DIP switches 1x Antrieb mit S2 / S3 und 2x FV1 (mit S1)
1x PL6 - S1 + 2x FV1
1x PL10 - S1 + 2x FV1
1x LKS - S2 + 2x FV1
1x PLA6 - S3 + 2x FV1
1x PLA8 - S3 + 2x FV1
1x PLA101 - S3 + 2x FV1
1x PLA116 - S3 + 2x FV1
Total current consumption:
max. per drive = 2,4 A
The two locking drives running in parallel.
Locking drives only with S1 possible.
!
Functional sequence:
First the two locking drives (FV1 / OVF1) opens - running in parallel -,
then opens the drive (3).
When closing rst starts the drive (3), then the two locking drives
(FV1 / OVF1).
In order to compensate the misaligment, the run-on time (0 - 5
seconds) may need to be corrected (factory setting = 2 seconds).
Functional sequence:
First the locking drive (FV1 / OVF1) opens,
after that - simultaneously - the drives (1 + 2).
When closing rst the both drives (1 + 2) starts,
then the locking drive (FV1 / OVF1).
In order to compensate the misaligment, the run-on
time (0 - 5 seconds) may need to be corrected
(factory setting = 2 seconds).
OFV1
FV1
