Autel MaxiSys SCR User manual

3
Trademarks
Autel®,MaxiSys
®,MaxiDAS ®, MaxiScan®,MaxiCheck ®,MaxiRecorder ®,and
MaxiDAS®are trademarks of Autel Intelligent Technology Corp., Ltd., registered
in China, the United States and other countries. All other marks are trademarks
or registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the
latest information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While
information of this manual has been carefully checked for accuracy, no
guarantee is given for the completeness and correctness of the contents,
including but not limited to the product specifications, functions, and
illustrations.
Autel will not be liable for any direct, special, incidental, indirect damages or any
economic consequential damages (including the loss of profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully, paying
extra attention to the safety warnings and precautions.
For Services and Support
pro.autel.com
www.autel.com
1‐855‐288‐3587/1‐855‐AUTELUS (North America)
0086‐755‐86147779 (China)
S[email protected]om

4
For technical assistance in all other markets, please contact your local selling
agent.
Safety Information
For your own safety and the safety of others, and to prevent damage to the
device and vehicles upon which it is used, it is important that the safety
instructions presented throughout this manual be read and understood by all
persons operating or coming into contact with the device.
There are various procedures, techniques, tools, and parts for servicing vehicles,
as well as in the skill of the person doing the work. Because of the vast number
of test applications and variations in the products that can be tested with this
equipment, we cannot possibly anticipate or provide advice or safety messages
to cover every circumstance. It is the automotive technician’s responsibility to
be knowledgeable of the system being tested. It is crucial to use proper service
methods and test procedures. It is essential to perform tests in an appropriate
and acceptable manner that does not endanger your safety, the safety of others
in the work area, the device being used, or the vehicle being tested.
Before using the device, always refer to and follow the safety messages and
applicable test procedures provided by the manufacturer of the vehicle or
equipment being tested. Use the device only as described in this manual. Read,
understand, and follow all safety messages and instructions in this manual.
Safety Messages
Safety messages are provided to help prevent personal injury and equipment
damage. All safety messages are introduced by a signal word indicating the hazard
level.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
deathorseriousinjurytotheoperatorortobystanders.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
deathorseriousinjurytotheoperatorortobystanders.

5
Safety Instructions
The safety messages herein cover situations Autel is aware of. Autel cannot know,
evaluate or advise you as to all of the possible hazards. You must be certain that any
condition or service procedure encountered does not jeopardize your personal safety.

6
DANGER
When an engine is operating, keep the service area WELL VENTILATED or attach a
building exhaust removal system to the engine exhaust system. Engines produce
carbon monoxide, an odorless, poisonous gas that causes slower reaction time and
can lead to serious personal injury or loss of life.
SAFETY WARNINGS
Always perform automotive testing in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving
or hot engine parts.
Operate the vehicle in a well‐ventilated work area, for exhaust gases are
poisonous.
Put the transmission in PARK (for automatic transmission) or NEUTRAL (for
manual transmission) and make sure the parking brake is engaged.
Put blocks in front of the drive wheels and never leave the vehicle
unattended while testing.
Be extra cautious when working around the ignition coil, distributor cap,
ignition wires and spark plugs. These components create hazardous voltages
when the engine is running.
Keep a fire extinguisher suitable for gasoline, chemical, and electrical fires
nearby.
Do not connect or disconnect any test equipment while the ignition is on or
the engine is running.
Keep the test equipment dry, clean, free from oil, water or grease. Use a
mild detergent on a clean cloth to clean the outside of the equipment as
necessary.
Do not drive the vehicle and operate the test equipment at the same time.
Any distraction may cause an accident.
Refer to the service manual for the vehicle being serviced and adhere to all
diagnostic procedures and precautions. Failure to do so may result in
personal injury or damage to the test equipment.
To avoid damaging the test equipment or generating false data, make sure
the vehicle battery is fully charged and the connection to the vehicle DLC is
clean and secure.
Do not place the test equipment on the distributor of the vehicle. Strong
electro‐magnetic interference can damage the equipment.

7
List
1.product description...................................................................................................................8
1.1 Maxi SCR – Urea Pump Tester............................................................8
2.SCR Diagnostic operation.....................................................................................................10
3.Regulatory compliance information................................................错误！未定义书签。

MaxiSCR
8
1.Product description
MaxiSys SCR Urea pump intelligent diagnosis system is a professional car
urea pump intelligent diagnosis solution. Convenient, fast and efficient
intelligent diagnosis of urea pumps, nitrogen and oxygen sensors,
temperature and liquid level sensors on and off the vehicle。
1.1 Maxi SCR –UreaPumpTester
Function Description

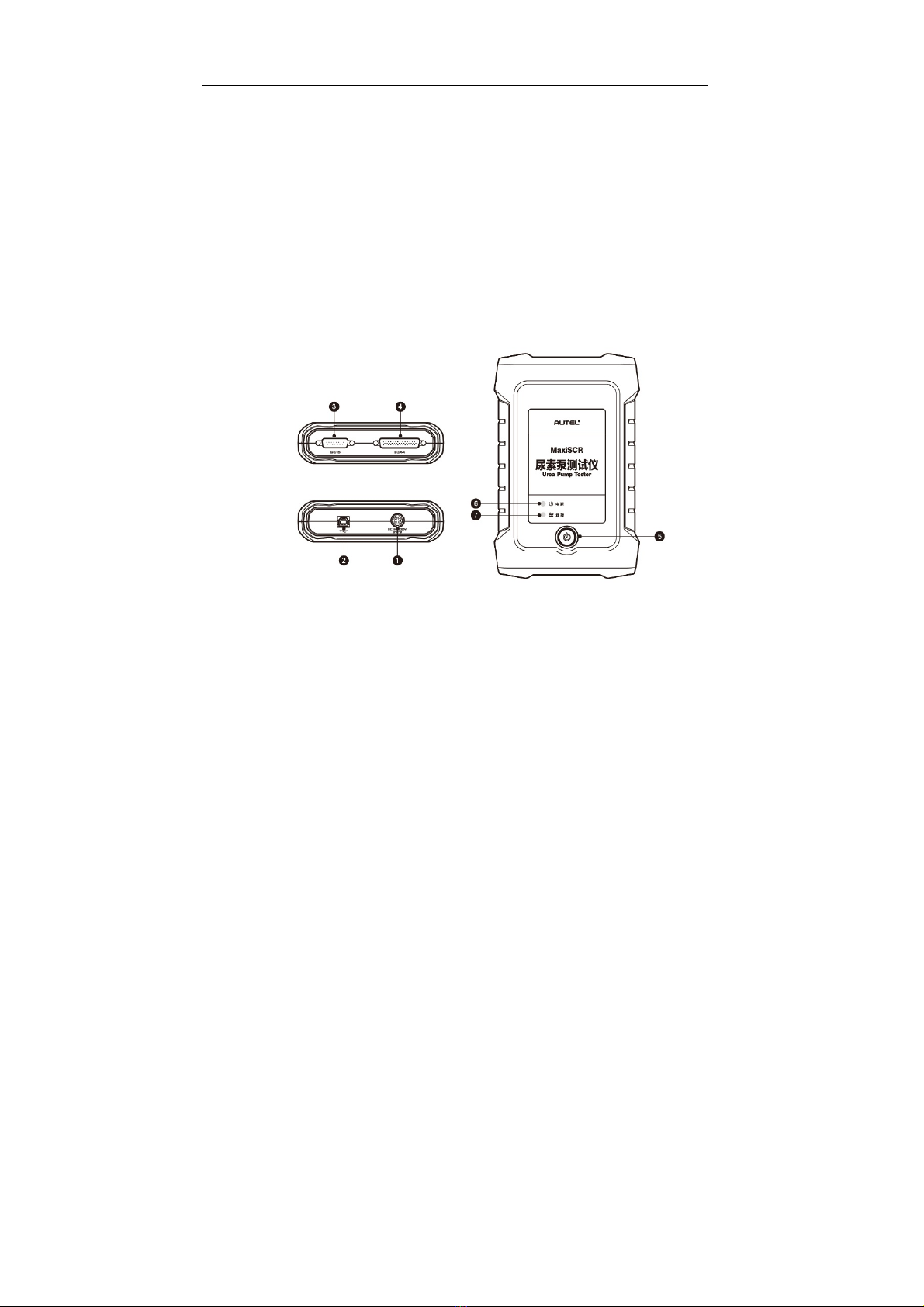

Fig 2-1 VCI SCR illustration
1.Power input
2.USB(Type-A)
3.DB15 socket
4.DB44 socket

MaxiSCR
9
5.Power switch
6.Power LED indication
7.State LED indication
Power
The device can be powered by AC/DC adapter: 12V~36V
Technical Specification
Item Description
Rating 12V~36V
Interface
USB typeB
Power adapter socket
DB44
DB15
Connection USB2.0
2.4G blue tootch
Operation -10~50℃
Storage -20~60℃
Size 220.4x142.6x40mm
Weight 600g

MaxiSCR
10
2 SCR Operation
The diagnostic program establishes a data connection with the vehicle's
urea pump through the MaxiSCR urea pump tester equipment. It can read
theinformationofthevehicle'sureapump,nitrogenoxygensensor,and
liquid level temperature sensor, view the data stream parameters, and
perform action tests.
2.1 Establish vehicle communication
Establish communication between MaxiSCR system and vehicle urea
pump:
1. Connect the female adapter of the test main line to the MaxiSCR urea
pump test main line interface, and tighten the captive screws.
2. Connect the 44-pin male adapter of the 44PIN test main line to the
urea pump test harness, the other end of the urea pump test harness is
connected to the urea pump diagnostic interface, and connect to the
MaxiSCR device power supply.
3. Turn on the MaxiSys tablet diagnostic device. Make sure that the
tablet's built-in battery has sufficient power or DC power is connected.
4. Establish the communication between MaxiSys tablet diagnostic
equipment and MaxiSCR device equipment through Bluetooth pairing.
5. After the MaxiSCR device and MaxiSys tablet diagnostic device are
connected, the VCI button on the navigation bar at the bottom of the
screen will display a green “√” icon, indicating that the device is ready
to start urea pump diagnosis according to the tablet prompt.
2.2 No communication prompt
A: If the MaxiSys tablet diagnostic device is not successfully connected
with the MaxiSCR device, an "error" message will be displayed on the
screen. The "error" message indicates that the tablet diagnostic device

MaxiSCR
11
is not communicating properly with the Maxi SCR device and therefore cannot
enter the vehicle control module. In this case, the following checks or measures
are required:
 Check whether the MaxiSCR device is powered on.
 When using a wireless connection, check whether the network configuration is
correct or whether the paired devices are correct.
 If communication is interrupted suddenly due to signal loss during the diagnosis,
check whether there is any object causing signal interference.
 Check whether the MaxiSCR equipment is placed correctly. Place the MaxiSCR
device face up.
 Try to get as close to MaxiSCR equipment as possible to get more stable signal
and faster communication speed.
 When using a wired connection, check whether the cable connection between
the tablet diagnostic device and the MaxiSCR device is good.
Check whether the Bluetooth or USB indicator on the MaxiSCR device is lit.
Check whether the fault indicator on the MaxiSCR device is lit. If the fault
indicator is lit, there may be a communication error between the devices.
At this time, you can try to re‐establish the connection; if this method is
invalid, it may indicate that the device hardware is faulty. In this case, you
need to contact technical support
B: If the MaxiSCR device cannot establish normal communication, a prompt message will
appear on the screen and provide the corresponding inspection instructions. The
possible causes of this problem are as follows:
 The MaxiSCR device cannot establish a communication connection with the
vehicle.

MaxiSCR
12
 The vehicle is not equipped with the selected system.
 The vehicle or MaxiSCR connector is loose.
 The vehicle fuse is blown.
 The wiring of the vehicle, data cable or connector is faulty.
 There is a circuit failure in the data cable or connector.
 The entered vehicle identification code is incorrect.
3 Compliance Information
FCC COMPLIANCE FCC ID: WQ8MAXISYSSCR
This device complies with Part 15 of the FCC rules and Industry Canada’s
license‐exempt RSSs. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Cet appareil est conforme aux CNR exempts de licence d’Industrie
Canada. Son fonctionnement est soumis aux deux conditions suivantes:
1. Ce dispositif ne peut causer des interferences; et
2. Ce dispositif doit accepter toute interférence, y compris les
interférences qui peuvent causer un mauvais fonctionnement de
l’appareil.
WARNING
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate

MaxiSCR
13
the equipment.
NOTE
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐ Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
FCC WARNING STATEMENT
This equipment complies with FCC radiation exposure limits set forth for

MaxiSCR
14
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your
body.
RoHS COMPLIANCE
This device is declared to be in compliance with the European RoHS
Directive 2011/65/EU.
CE COMPLIANCE
This product is declared to conform to the essential requirements of the
following Directives and carries the CE mark accordingly:
EMC Directive 2014/30/EU
RED Directive 2014/53/EU
