1 Reference manuals
© Copyright Reserved Autonics Co., Ltd. 9
1Reference manuals
1.1 Instruction manual
It describes an overview of Remote I/O, definitions of terms, installation environment,
mounting/removing method, wiring and troubleshooting.
1.2 Coupler manual
It describes the overview, specification, demensions, memory map and troubleshooting of each
communication
1.3 Module manual
It describes the demensions, specification, connections and diagnosis function of each module.
1.4 DAQMaster user manual
DAQMaster, a device integration management program, provides the expanded user convenience.
You can use the module setting, real-time control, and monitoring/diagnosis function of input/output
signal (except ARIO-C-PN and ARIO-C-PB). Also, you can arrange products through virtual mode
and recommended sorting.

2 Digital I/O Module [ARIO-S-DI/DO]
10 © Copyright Reserved Autonics Co., Ltd.
2Digital I/O Module [ARIO-S-DI/DO]
2.1 Specifications
Type
Digital input module
Digital output module
Model
4CH
ARIO-S-DI04N
ARIO-S-DI04P
ARIO-S-DO04N
ARIO-S-DO04P
8CH
ARIO-S-DI08N
ARIO-S-DI08P
ARIO-S-DO08N
ARIO-S-DO08P
I/O common
NPN
PNP
NPN
PNP
Input Voltage
Turn ON: min. 7VDCᜡ
Turn OFF: max. 0.4VDCᜡ
ㅡ
Output leakage voltage
ㅡ
Max. 1.2VDCᜡ
I/O signal level※1
24VDCᜡ±10%
I/O current
consumption
4CH
Max.6mA/CH, 4CH/COM
ㅡ
8CH
Max. 6mA/CH, 8CH/COM
Rated output
current
4CH
ㅡ
Max. 500mA/CH, 4CH/COM
8CH
Max. 500mA/CH, 8CH/COM
On delay time
Max. 0.5ms
Off delay time
Max.1.5ms
Power consump. (ABUS)
5VDCᜡ, max.100mA (max. 0.5W)
Internal
communication
Transmission
speed
4Mbps
Installation method
DIN rail mounting

2 Digital I/O Module [ARIO-S-DI/DO]
© Copyright Reserved Autonics Co., Ltd. 11
Type
Digital input module
Digital output module
Insulation resistance
100MΩ(at 500VDCᜡmegger)
I/O to inner circuit: photocoupler isulated
Dielectric strength
1000VAC 50/60Hz for 1 min
Noise immunity
±500V the square wave noise (pulse width: 1 ㎲) by the noise simulator
Vibrati
on
Mechanical
0.7mm amplified at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z
direction for 1 hour
Malfunction
0.5mm amplified at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z
direction for 10 min.
Shock
Mechanical
300m/s²(approx. 30G) in each X, Y, Z direction for 3 times.
Malfunction
100m/s²(approx. 10G) in each X, Y, Z direction for 3 times.
Enviro
nment
Ambient temp.
-10 to 55℃, storage: -25 to 70℃
Ambient humi.
35 to 85%RH, storage: 35~85%RH
Protection structure※2
IP20 (IEC standards)
Material
Terminal: polyamide6, Body: modified polyphenylene oxide,
Base: polyamide6, poly oxy methylene
Approval
Weight※3
Approx. 108g (approx. 75g)
※1. Power supply is from ARIO-P Series. Normal operation is available when I/O power voltage is
supplied.
※2. Autonics test standard
※3. The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※For connecting the modules, consider power concumption of the sensors and drivers connected
the ARIO coupler. In case of one coupler module connecting, the ARIO digital module is available to
connect up to 8 units.

2 Digital I/O Module [ARIO-S-DI/DO]
12 © Copyright Reserved Autonics Co., Ltd.

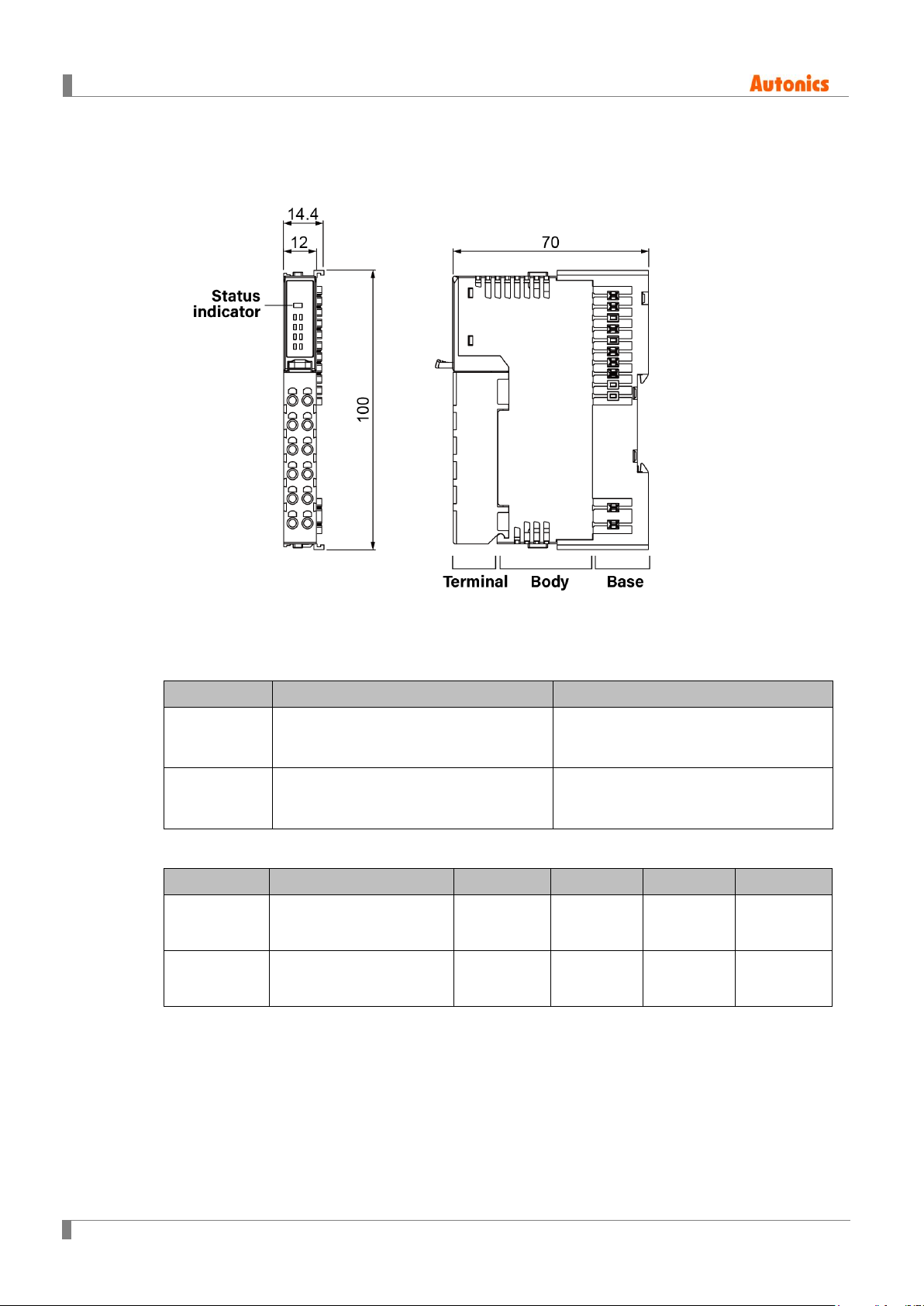

2.2 Dimensions
2.3 Status indicator
(1) Definition
LED color
ON
OFF
Green
Normal operation
Internal network (ABUS) is operating
Stop operating, communication error,
module failure
Red
Module failure, error in module
components
(error in main and auxiliary MCU)
Normal operation
(2) Status
LED color
Flashing
Flashing 1
Flashing 2
Flashing 3
Flashing 4
Green
Waiting state for the
internal network (ABUS)
ㅡ
ㅡ
ㅡ
ㅡ
Red
Error in the internal
network (ABUS)
ㅡ
ㅡ
ㅡ
ㅡ

2 Digital I/O Module [ARIO-S-DI/DO]
© Copyright Reserved Autonics Co., Ltd. 13

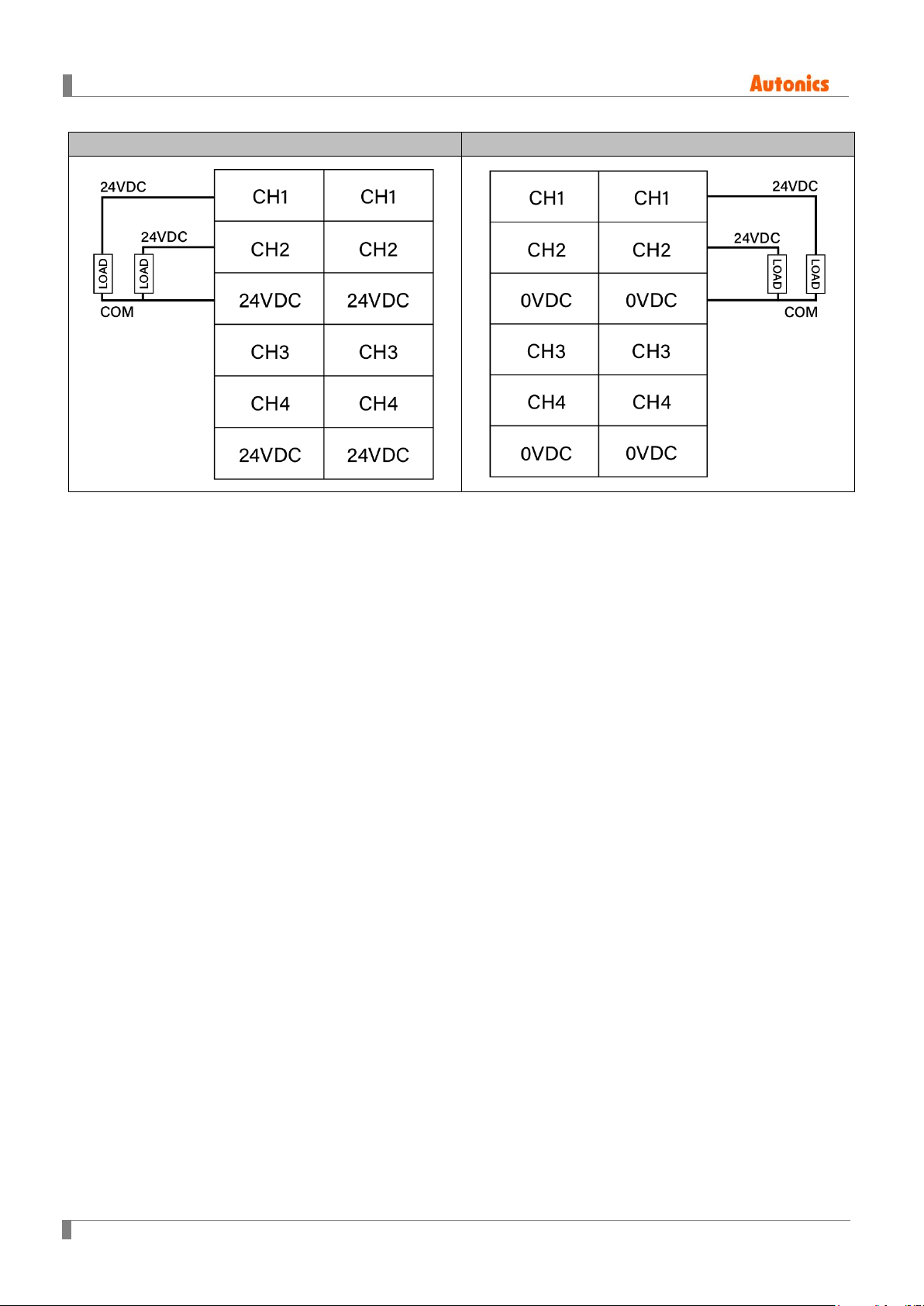

2.4 Wiring diagram
ARIO-S-DI04N
ARIO-S-DI04P
ARIO-S-DI08N
ARIO-S-DI08P
ARIO-S-DO04N
ARIO-S-DO04P

2 Digital I/O Module [ARIO-S-DI/DO]
14 © Copyright Reserved Autonics Co., Ltd.
ARIO-S-DO08N
ARIO-S-DO08P

3 Analog I/O module [ARIO-S-AI/AO]
© Copyright Reserved Autonics Co., Ltd. 15
3Analog I/O module [ARIO-S-AI/AO]
3.1 Specifications
Type
Analog input module
Analog output module
Model
2CH
ARIO-S-AI02V1
ARIO-S-AI02C1
ARIO-S-AO02V1
ARIO-S-AO02C1
4CH
ARIO-S-AI04V1
ARIO-S-AI04C1
ARIO-S-AO04V1
ARIO-S-AO04C1
I/O method
Voltage input
Current input
Voltage output
Current output
I/O range
Rated range
-10 to 10VDCᜡ
0 to 20mA
-10 to 10VDCᜡ
0 to 20mA
Allowable range
-11 to 11VDCᜡ
0 to 22mA
ㅡ
ㅡ
Accuracy
Room temp.
±0.3% F.S.
Out of room temp.
±0.6% F.S.
Input impedance
Min. 1MΩ
Max. 250Ω
ㅡ
Load resistance
ㅡ
Min. 5kΩ
Max. 350Ω
Status indicator ON condition
Below -1V or
over 1V
Over 1mA
Below -1V or
over 1V
Over 1mA
Resolution
12bit
Power
consumption
ABUS
5VDCᜡ, max. 180mA
(max. 0.9W)
5VDCᜡ, max. 100mA
(max. 0.5W)
I/O
24VDCᜡ, max. 15mA
(max. 0.36W)
24VDCᜡ, max. 60mA
(max. 1.44W)
Internal communication
Transmission speed: 4Mbps
Installation method
DIN rail mounting

3 Analog I/O module [ARIO-S-AI/AO]
16 © Copyright Reserved Autonics Co., Ltd.
Type
Analog input module
Analog output module
Insulation resistance
100MΩ(at 500VDCᜡmegger)
I/O to inner circuit: photocoupler isulated, between channels: non-insulated
Dielectric strength
1000VAC 50/60Hz for 1 min
Noise immunity
±500V the square wave noise (pulse width: 1 ㎲) by the noise simulator
Vibration
Mechanical
0.7mm amplified at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z
direction for 1 hour
Malfunction
0.5mm amplified at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z
direction for 10 min.
Shock
Mechanical
300m/s²(approx. 30G) in each X, Y, Z direction for 3 times.
Malfunction
100m/s²(approx. 10G) in each X, Y, Z direction for 3 times.
Environment
Ambient
temp.
-10 to 55℃, storage: -25 to 70℃
Ambient
humi.
35 to 85%RH, storage: 35~85%RH
Protection structure※1
IP20 (IEC standards)
Material
Terminal: polyamide6, Body: modified polyphenylene oxide,
Base: polyamide6, poly oxy methylene
Approval
Weight※2
Approx. 108g (approx. 75g)
※1. Autonics test standard
※2. The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation
※Power supply is from ARIO-P Series. Normal operation is available when I/O power voltage is supplied.
For connecting the modules, consider power concumption of the sensors and drivers connected the ARIO
coupler.In case of one coupler module connecting, the ARIO analog module is available to connect up to 4
units.

3 Analog I/O module [ARIO-S-AI/AO]
© Copyright Reserved Autonics Co., Ltd. 17
3.2 Dimensions
3.3 Status indicator
(1) Definition
LED color
ON
OFF
Green
Normal operation
Internal network (ABUS) is operating
Stop operating, communication error,
module failure
Red
Module failure, error in module
components
(error in main and auxiliary MCU)
Normal operation
(2) Status
LED color
Flashing
Flashing 1
Flashing 2
Flashing 3
Flashing 4
Green
Waiting state for the
internal network (ABUS)
ㅡ
ㅡ
ㅡ
ㅡ
Red
Error in the internal net-
work (ABUS)
ㅡ
ㅡ
ㅡ
ㅡ

3 Analog I/O module [ARIO-S-AI/AO]
18 © Copyright Reserved Autonics Co., Ltd.
3.4 Wiring diagram
ARIO-S-AI02V1
ARIO-S-AI02C1
ARIO-S-AI04V1
ARIO-S-AI04C1
ARIO-S-AO02V1
ARIO-S-AO02C1

3 Analog I/O module [ARIO-S-AI/AO]
© Copyright Reserved Autonics Co., Ltd. 19
ARIO-S-AO04V1
ARIO-S-AO04C1

4 Power module [ARIO-P]
20 © Copyright Reserved Autonics Co., Ltd.
4Power module [ARIO-P]
4.1 Specifications
(1) Slim Remote ABUS Power Module
Model
ARIO-P-B
Power
supply
ABUS (external
consumption)
24VDCᜡ, max. 320mA
(max. 7.5W, max. 160mA/CH, 2CH/COM)
ABUS (internal
supply)
5VDCᜡ, max. 1,500mA (max. 7.5W)
Installation method
DIN rail mounting
Insulation resistance
100MΩ(at 500VDCᜡmegger)
Dielectric strength
1000VAC 50/60Hz for 1 min
Noise immunity
±500V the square wave noise (pulse width: 1 ㎲) by the noise
simulator
Vibration
Mechanical
0.7mm amplified at frequency of 10 to 55Hz (for 1 min) in each X,
Y, Z direction for 1 hour
Malfunction
0.5mm amplified at frequency of 10 to 55Hz (for 1 min) in each X,
Y, Z direction for 10 min.
Shock
Mechanical
300m/s²(approx. 30G) in each X, Y, Z direction for 3 times.
Malfunction
100m/s²(approx. 10G) in each X, Y, Z direction for 3 times.
Environment
Ambient temp.
-10 to 55℃, storage: -25 to 70℃
Ambient humi.
35 to 85%RH, storage: 35~85%RH
Protection structure※1
IP20 (IEC standards)
Material
Terminal: polyamide6, Body: modified polyphenylene oxide,
Base: polyamide6, poly oxy methylene
Approval
Weight※2
Approx. 108g (approx. 75g)
※1. Autonics test standard
※2. The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※The ARIO digital module is available to connect up to 8 units, and theARIO analog and special
module are available to connect up to 4 units.
※For connecting the modules, consider power concumption of the sensors and drivers connected
the ARIO power module.
