Autonics SCM Series User manual

S-28
SCM Series
SCM-US48I
Features
● Available to transmit signals to max. 1.2km by
converting USB signal to RS485 signal
● Realizing electrical insulation (2500V RMS) between
USB port and RS485 port through RS485 transceiver.
● Improved stability and durability with built-in protection circuit
● Easy connections between devices with bus power supplied
from USB host controller without external power supply
● Offering USB 2.0 A/B type cable with built-in ferrite core
for noise reduction
● Various operating systems supported
(Windows 98, 98SE, ME, 2000, Server 2003, XP, Vista, 7)
● User friendly features through compatibility with USB 1.1 and USB 2.0
USB to Serial converter (converting signal USB to Serial)
SCM-38I
Features
● Built-in surge protection circuit
● The insulation type of signal line
(insulating RS232C and RS485)
● Create Tx-Enable signal automatically
RS232C to RS485 converter (converting signal RS232C to RS485)
SCM-US
※Specifically designed to connect to
particular Autonics and Konics products
which support the PC loader port.
Features
● Applicable OS: Windows 98, 98SE, ME, 2000,
Server 2003, XP, Vista, 7
● Both USB 1.1 and USB 2.0 compatible
● Data transmission / power supply indicating LED
● Easy to connect with PC
Some products requires the dedicated converter cable
(EXT-US, sold separately)
● Built-in protection circuit
● Ferrite core cable for noise reduction
● Non-isolation type
USB to Serial converter (converting signal USB to Serial)
Please read “Caution for your safety” in operation
manual before using.
SCM-WF48
Wi-Fi/RS485, USB wireless communication converter
(converting Wi-Fi to RS485, USB)
Features
Converting USB or RS485 signal to Wi-Fi signal and wireless
communication up to max. 100m
Compact size (W48×H25×L76.3mm, except antenna)
Built-in surge protection circuit, reverse polarity protection circuit
Supports AP mode and station mode
Varous mounting methods (DIN rail, panel)

S-29
Communication Converter
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software
SCM-WF48
Specifications
Model SCM-WF48
Power supply 24VDC
Allowable voltage
range 12-28VDC
Communication type RS485, USB, WiFi
Isolation resistance
Min. 200MΩ (at 500VDC megger between external terminal and case)
Protection circuit Reverse polarity protection circuit, surge protection circuit
Dielectric strength 1,000VAC 50/60Hz for 1 min (between external terminal and case)
Noise resistance
±500V the square wave noise (pulse width: 1㎲) by the noise simulator
Vibration 1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock 500m/s2 (approx. 50G) in each X, Y, Z direction for 3 times
Environ
-ment
Ambient
temp. -10 to 55℃, storage: -20 to 60℃
Ambient
humi. 35 to 80%RH, storage: 35 to 80%RH
Protection IP20 (IEC standards)
Mounting DIN rail or panel mounting
Accessories USB 2.0 Mini B type cable (length: 1m): 1
Connector for RS-485 (4-pin, male type): 1
Accessory
Weight※1Approx. 160g (approx. 57g)
Standard specifications
Connection RS-485
Standard EIA RS-485
Protocol Modbus RTU
Communication
method 2-wire half duplex
Synchronous method Asynchronous
Effective com. distance Max. 800m
Communication
speed※14800, 9600 (default), 19200, 38400, 57600, 115200bps
Data bi※15-bit, 6-bit, 7-bit, 8-bit (default)
Stop bit※11-bit (default), 2-bit
Parity bit※1None (default), Even, Odd
Multi-drop Max. 31 multi-drop
Connection type 4-wire screw terminal (2-wire communication method)
RS-485 communication specifications
Protocol TCP/IP (IPv4)
Standard 802.11b/g/n (IEEE 802.11b) compatible
Communication
speed Max. 11Mbps
Frequency
range 2.4 to 2.497GHz
Security WEP, WPA, WPA2-PSK, Enterprise
Antenna 2dBi external antenna
Communication
distance Max. 100m
WiFi communication specifications USB communication specifications
Power 5V, 500mA
Standard USB 2.0 (compatible sub-transmission)
Communication
method 2-wire half duplex
Connections USB 2.0 Mini B type (male)
Communication
distance Max. 1m ± 30%
※1: The weight is with packaging and the weight in parentheses is only unit weight.
※Environment resistance is rated at no freezing or condensation.
※1: You can set communication speed and stop bit, parity bit by DAQMaster.

S-30
SCM Series
SCM-US48I / SCM-38I / SCM-US
Specifications
Model SCM-US48I SCM-38I SCM-US
Power supply 5VDC USB bus power※112-24VDC ±10% 5VDC USB bus power※1
Power consumption Max. 1W Max. 1.7W Max. 1W
Max. com speed※21,200 to 115,200bps (recommended: 9,600bps)
Communication type Half duplex type
Available com. distance USB: Max. 1m ± 30%
RS485: Max.1.2km Max. 1.2km 1.5m (not extension)
Multi-drop Max. 31 multi-drop
-
Protocol※2
Data bit 5-bit, 6-bit, 7-bit, 8-bit -
Stop bit 1-bit, 2-bit -
Parity bit None, Even, Odd -
Connection type
USB: USB 2.0 B type (male) RS232: D-sub 9-pin USB: USB 2.0 A type (male)
RS485: 4-wire screw terminal (2-wire communication type) Earphone jack
(4 pole stereo phone plug)※3
Isolation type Isolation Non-isolation
Dielectric strength
● Between terminals and case:
200VAC 50/60Hz for 1 min
● Between USB and RS485:
2500VAC 50/60Hz for 1 min
● Between terminals and case:
200VAC 50/60Hz for 1 min
● Between RS232C and RS485:
2500VAC 50/60Hz for 1 min
-
Insulation resistance Min. 100MΩ (at 500VDC megger) -
Noise strength ±500V the square wave noise (pulse width: 1㎲) by the noise
simulator
-
Vibration Mechanical 0.75mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 1 hour
Malfunction 0.5mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 10 min
Shock Mechanical 300m/s2 (approx. 30G) in each X, Y, Z direction for 3 times
Malfunction 100m/s2 (approx. 10G) in each X, Y, Z direction for 3 times
Environ
-ment
Ambient
temp. -10 to 55℃, storage: -20 to 60℃
Ambient
humi. 35 to 85%RH, storage: 35 to 85%RH
Approval
Accessory USB 2.0 AB type connector
(length: 1m)
-
Unit weight Approx. 34.5g Approx. 46g Approx. 41g
※1: USB bus power is supplied from PC or USB host controller.
※2: Protocol and communication speed are set by Hyper terminal. DAQMaster, ParaSet, Modbus Poll.
When communicating with Autonics products, set communication speed to 9,600bps.
※3: Some products requires the EXT-US(converter cable, sold separately).
※There might be some differences in the specication above depending on PC environment.
※Environment resistance is rated at no freezing or condensation.

S-31
Communication Converter
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software
93.4
35.3
25
108.5
39 45
76.3
41.52-Ø3.5
SCM-WF48
Part Description
SCM-WF48
2
1
5
6
3 7
8
4
RS485
(default)
USB
Dimensions
(unit: mm)
1. WiFi antenna
: Antenna for transmitting and receiving WiFi
communication data.
It may be broken when excessive pressure is applied.
2. Fixing screw hole: Used for mounting the unit on a panel.
3. Rail Lock: Used for fixing this unit at DIN rail mounting.
4. Communication method switch
: Switch for select communication method.
7. RS485 connector: Used for connecting RS485
communication cable.
8. USB connector: Used for connecting a PC, etc.
with an USB cable.
6. Indicator: Indicator for statue of AP mode and Station mode.
5. Terminating resistance switch
: Switch for whether using terminating resistance
(120 Ω, 1% (F) grade chip resistance, 1/4 W).
(only when selecting RS485 communication method.)
RT OFF
(default)
RT: Uses terminating resistances.
OFF: Not use terminating
resistance.
Mode
State AP mode Station mode
Green ON Power ON Power ON
Red ON AP ready AP connection is
complete
OFF No power
※
For setting SCM-WF48 via
DAQMaster, set USB.

S-32
SCM Series
Dimensions
20±5 20±5
1,000±30
USB B Type USB A Type
USB 2.0 AB type cable
SCM-US48I
3-Ø4
38
75.5
39
25.6
23.5
※USB 2.0 AB type cable is including the product and is also sold separately.
(model: USB AB CABLE)
(unit: mm)
※LED indicator
1. O.P.R: Power
2. A.C.C: Rx/Tx data transmission
52
40.3
18
12
8
8
4.5
12
Ø2.5×4P-1.5m
VCC
RxD GND
TXD
12
18
O.P.R
A C.C
SCM-US
SCM-38I 3-Ø4
38
75.5
81.7
39
8
9
23.5
25.6
EXT-US (converter cable, sold separately)
8.8
4.9
8200
19.7
Ø11.5
23.5

S-33
Communication Converter
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software
Installations
SCM-US48I & SCM-38I
Number of layers
(N)
"A" size
(23N+0.5)
"B" size
(23N-3)
1 23.5mm 20mm
246.5mm 43mm
3 69.5mm 66mm
4 92.5mm 89mm
There is no Serial Port in SCM-US48I.
'B' (Length of screw)
M3 screw bolt
Panel
'A' (Height of layer)
Comprehensive Device Management Program (DAQMaster)
DAQMaster is the comprehensive device management program.
Set the communication method switch of SCM-WF48 as USB, and connect this unit and a PC with USB cable.
You can set the communication setting for SCM-WF48 by DAQMaster.
Visit our website (www.autonics.com) and download DAQMaster.
< DAQMaster screen >< Computer specication for using software >
Item Minimum requirements
System IBM PC compatible computer with Intel Pentium Ⅲ or above
Operating system Microsoft Windows 98/NT/XP/Vista/7/8/10
Memory 256MB or more
Hard disk More than 1GB of free hard disk space
VGA 1024×768 or higher resolution display
Others RS-232 serial port (9-pin), USB port
SCM-WF48
①
②
Rail Lock DIN rail
Fixing
screw hole
③
Mounting to and removing from DIN rail
Mounting
1) Hang up the backside holder on a DIN rail.
2) Press the unit toward ① direction until it snaps.
Removing
1) Pull rail locks of the backside of this unit to ② direction.
2) Pull the unit to ③ direction. .
Mounting to panel
1) This unit is able to mount on a panel with two fixing screws at center of both sides.
2) For mounting the unit, use M3 screws. Tighten screws with 0.4 N.m torque

S-34
SCM Series
Example of Connections
Cable connections
USB 2.0 Mini
B type (male)
USB 2.0
A type (male)
A B VG
+RS485
-RS485
Ground
24VDC
SCM-WF48
Computer
※ Before using this unit, set the communication method switch of SCM-WF48 as USB, and connect this unit and a PC
with USB cable. You can set the communication setting for SCM-WF48 by DAQMaster.
Station mode
AP mode
※ One wireless router can connect
max. up to 254 units of SCM-WF48.
SCM-WF48
SCM-WF48
Wireless router
WiFi
WiFi
RS485
RS485
SCM-WF48
WiFi or
USB connection RS485 Connectable max. 31 units of
Autonics products which support
communication
Connectable max. 31 units of
Autonics products which support
communication
Connectable max. 31 units of
Autonics products which support
communication
Connection of SCM-WF48 and Multi-drop
SCM-WF48
B(-)
A(+)
ON OFF
GND
V(24VDC)
Terminating resistance (120Ω)
A(+) B(-) A(+) B(-) A(+) B(-)
RS485
DEVICE
#1
A(+)
B(-)
...
RS485
DEVICE
#2
RS485
DEVICE
#30
RS485
DEVICE
#31
SCM-WF48
WiFi or
USB connection
Computer
Computer

S-35
Communication Converter
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software
SCM-38I
G: GROUND
V: 12-24VDC input
RS485 signal line
B (-)
A (+)
A B V G
ON OFF
● Terminating resistance selection
ON: Using terminating resistance
OFF: Not using terminating resistance
A (+)
SCM-US48I
Computer
USB RS485
B (-)
ON OFF
USB 2.0
B type (male)
A (+) B (-) A (+) B (-) A (+) B (-)
B (-)
A (+)
RS485
DEVICE
#1
RS485
DEVICE
#2
RS485
DEVICE
#30
RS485
DEVICE
#31
Terminating
resistance
(100 to 120Ω)
● Multi-drop connection method with PC
Computer
RS232C RS485
RXD-RXD
TXD-TXD
GND-GND
RS485
DEVICE
#1
RS485
DEVICE
#2
RS485
DEVICE
#30
RS485
DEVICE
#31
RS232C Cable
...
B (-)
GND
VCC
(12-24VDC)
A (+) B (-) A (+) B (-) A (+) B (-)
B (-)
A (+)
Terminating
resistance
(100 to 120Ω)
A (+)
ON OFF
● RS232C cable connection
①① ①①
②② ②②
⑥⑥
⑥⑥
⑦⑦ ⑦⑦
⑧⑧ ⑧⑧
⑨⑨ ⑨⑨
③③ ③③
④④
④④
⑤⑤
⑤⑤
Computer Computer
<Standard connection> <Using Auto-loop Back>
DCD
DSR
RXD
RTS
TXD
CTS
DTR
RI
GND
DCD
DSR
RXD
RTS
TXD
CTS
DTR
RI
GND
SCM-38I SCM-38I
※When the software of the communication driver uses Auto-loop Back, please connect as the above.
SCM-US
Computer
USB
Serial
USB 2.0
A type (male)
EXT-US
(converter cable, sold separately)※1
Autonics and KONICS products
which support the PC loader port
※1: Some products requires the dedicated converter cable(EXT-US, sold separately) to connect SCM-US. Do not apply
excessive force to the converter cable. It may cause damage to the unit. Do not bend cable and connector part. It may
cause damage to the unit.

S-36
SCM Series
Driver Installation
USB Driver Installation
● SCM-WF48
※ It describes based on Windows 7 operating system.
Installation method may be different by operating system
of PC.
When PC is connected INTERNET and the unit is
connected with PC via USB port, PC searches and installs
the driver automatically.
If auto driver installation is fail, follow the below order to
install the driver.
1) Visit our web site (www.autonics.com) and download
SCM-WF48 Driver .
2) Unzip the downloaded file at the desired directory.
3) Connect the unit at USB port of the PC and run
CDM21216_Setup.exe at the directory.
4) FTDI CDM Drivers dialog box appears. Click Extract .
Files are extracted.
5) Device Driver Installation Wizard dialog box appears.
Click Next.
7) Driver installation is completed.
※ After installing the driver, you can check the driver
installation at Device Manager.
Enter [Start]-[Control Panel]-[Device Manager] and
extend Ports (COM & LPT) and USB Serial Port (COM4)
to check SCM-WF48 connection.
6) License Agreement dialog box appears. Select I
accept this agreement and click Next.

S-37
Communication Converter
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software
1) Visit our website (www.autonics.com) to download USB
Driver.
2) Unzip the downloaded 'SCM-US48I.zip', or 'SCM-US.
zip' at any directory.
3) When connecting product with USB port, 'Found
New Hardware Wizard" will appear automatically. 'Do
you want to search software by connecting 'Window
Update'?. Click 'No' button and the following window will
be displayed to proceed Driver installation.
Select 'Install from a list or specific location' (Advanced)'
(S) and click 'Next'.

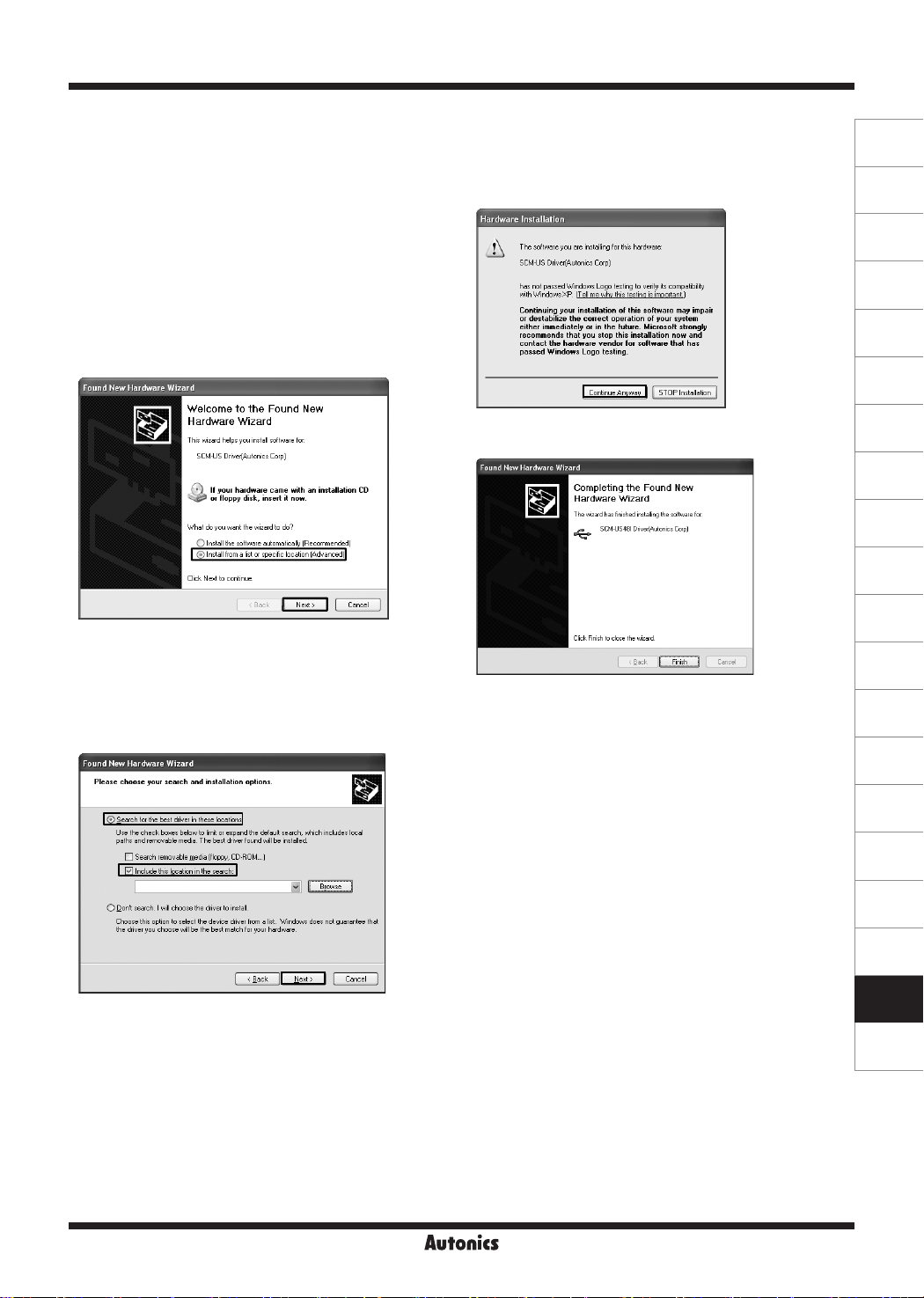

4)Select 'Search for best driver in these locations' and
'include this location in the search' continuously.
Click the 'Browse' button.
5)When 'Browse Folder' window is displayed, select 'SCM-
US\Driver' for SCM-US48I, SCM-US, and click 'Finish'.
Click 'Next' to proceed with the USB Driver installation.
6) Hardware installation message will appear while Found
New Hardware Wizard is running. Click 'Continue
Anyway' to proceed with installation.
7) The following window will be displayed if the USB Driver
is installed properly. Click the 'Finish' button.
● SCM-US48I, SCM-US

S-38
SCM Series
※This Driver Installation is described based on the
procedure for Windows XP.
There might be some differences in the specification
above depending on OS.
Serial Port Driver Installation
1) After installing USB Driver, Serial Port (COM port),
'Found New Hardware Wizard' will appear (Serial
Port Driver installation follows the same procedures
described in installing USB Driver).
2) After selecting 'Install from a list or specific location
(advance)', click 'Next' button. The following window will
be displayed for 'Search and installation options'
3) Because a driver location was selected when installing
USB driver, click 'Next' button.
4)Hardware installation message will appear while Found
New Hardware Wizard is running. Click 'Continue
Anyway' to proceed with installation.
5)'Completing the Found New Hardware wizard' will be
displayed if the Serial Port Driver is installed properly.
Click the 'Finish' button.
※Verify that drivers were installed properly with the
windows Device Manager after finishing USB Driver and
Serial Port Driver installation.
Open the folder [My computer], open the system folder
(click right), click the hardware tab, and click the Device
Manager Button. Then, make sure that 'SCM-US48I
Driver (Autonics Corp)' or 'SCM-US Driver (Autonics
Corp)' is found in 'Common Serial Bus Controller'
category and 'Port (COM and LPT) is found in 'SCM-
US48I Serial Port (COM ) or 'SCM-US Serial Port (COM
)'.

S-39
Communication Converter
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software
Proper Usage
● In case of connecting PC with SCM-WF48, SCM-US48I or SCM-US, when changing PC USB port and connecting this
unit to another (changed) USB port, USB driver will be reinstalled. This is not a malfunction.
● When connecting SCM-US or SCM-US48I communication module, please connect PC first. Then, connect RS485
communication product afterward. When disconnecting the units, remove the unit in reverse order.
● Using the twisted pair cable (AWG24), which is suitable to RS485 communication is recommended. If the Twisted pair
cable is not used, be sure preserving identically the length of A (+) and B (-) cables.
● In case of SCM-WF48, Attach terminating resistances (120 Ω) at the both ends of communication cable when connecting
RS485. After connecting SCM-38I, SCM-US48I with RS485 communication DEVICE, be sure to attach the terminating
resistor (100 to 120Ω).
● In case of connect PC with SCM-WF48, SCM-US48I, or SCM-US , No. of COM Port will be numbered in order.
This is not a malfunction. (e.g. COM 14, COM 15, ..., COM 256)
● When connecting SCM-WF48, SCM-US48I or SCM-US with USB cable, check COM port number before communication.
It may take some time for computer to detect the cable after the cable is connected. (This is not a malfunction.)
● When connecting PC with SCM-WF48, SCM-US48I or SCM-US, do not use the extension cable to extend USB cable
length. It may cause a malfunctions.
● Be cautious when using SCM-WF48, SCM-US as non-isolated type.
● Check the connection, disconnection and short of communication cable before supplying the power to SCM-WF48.
● Only use Autonics products that are available for SCM-US.
● Observe the rated voltage.
● 24VDC power supply should be insulated and limited voltage/current or Class 2, SELV power supply device.
● To avoid malfunctions due to noise, do not place the unit close to a high-voltage power line.
● Proper application environment
(Avoid following environments for unit to be used.)
• Where severe vibration or shock exists
• Where close to a strong alkali or strong acid
• Where direct rays of light exist
• Where near facilities generating strong magnetic forces or electric noise.
● Storage
Keep the unit -20 to 60℃, 35 to 85%RH with avoiding direct rays of light. It is recommended to keep the unit package as
it is.
● This unit may be used in the following environments.
• Indoor
• Altitude: Under 2,000m
• Pollution degree 2
• Installation category II
