Autoscript ELP 15 PLUS User manual

ELP 15 PLUS
On-Camera Prompter
ELP 15 PLUS
On-Camera Prompter
www.autoscript.tv
EN
Part No. ELP15PLUS-ME

Copyright © 2014
All rights reserved.
Original Instructions: English
All rights reserved throughout the world. No part of this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph,
magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
Disclaimer
The information contained in this manual is believed to be correct at the time of printing. Vitec Videocom
Ltd reserves the right to make changes to the information or specifications without obligation to notify any
person of such revision or changes. Changes will be incorporated in new versions of the publication.
We are making every effort to ensure that our manuals are updated on a regular basis to reflect changes
to product specifications and features. Should this manual not contain information on the core functionality
of your product, please let us know. You may be able to access the latest revision of this manual from our
website.
Vitec Videocom Ltd reserves the right to make changes to product design and functionality without
notification.
Trademarks
All product trademarks and registered trademarks are the property of The Vitec Group Plc.
All other trademarks and registered trademarks are the property of their respective companies.
Published by:
Vitec Videocom Ltd
Supports Technical Publications Department
Western Way, Bury St Edmunds
Suffolk IP33 3TB
United Kingdom
Email: [email protected]

1
Contents
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
On-Camera Prompter Key Components. . . . . . . . . . . . . . . . . . . 4
Prompter Installation Components . . . . . . . . . . . . . . . . . . . . . . . 5
Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Prompter Monitor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Prompter Monitor Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting the Camera and Extrusion . . . . . . . . . . . . . . . . . . . . . 7
Mounting the Prompter Monitor . . . . . . . . . . . . . . . . . . . . . . . . . 9
Assembling and Fitting the Hood . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the Prompter Assembly Position . . . . . . . . . . . . . . . . 12
Fitting the Reflective Glass Panel. . . . . . . . . . . . . . . . . . . . . . . 13
Fitting the Light Shield Cloth. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

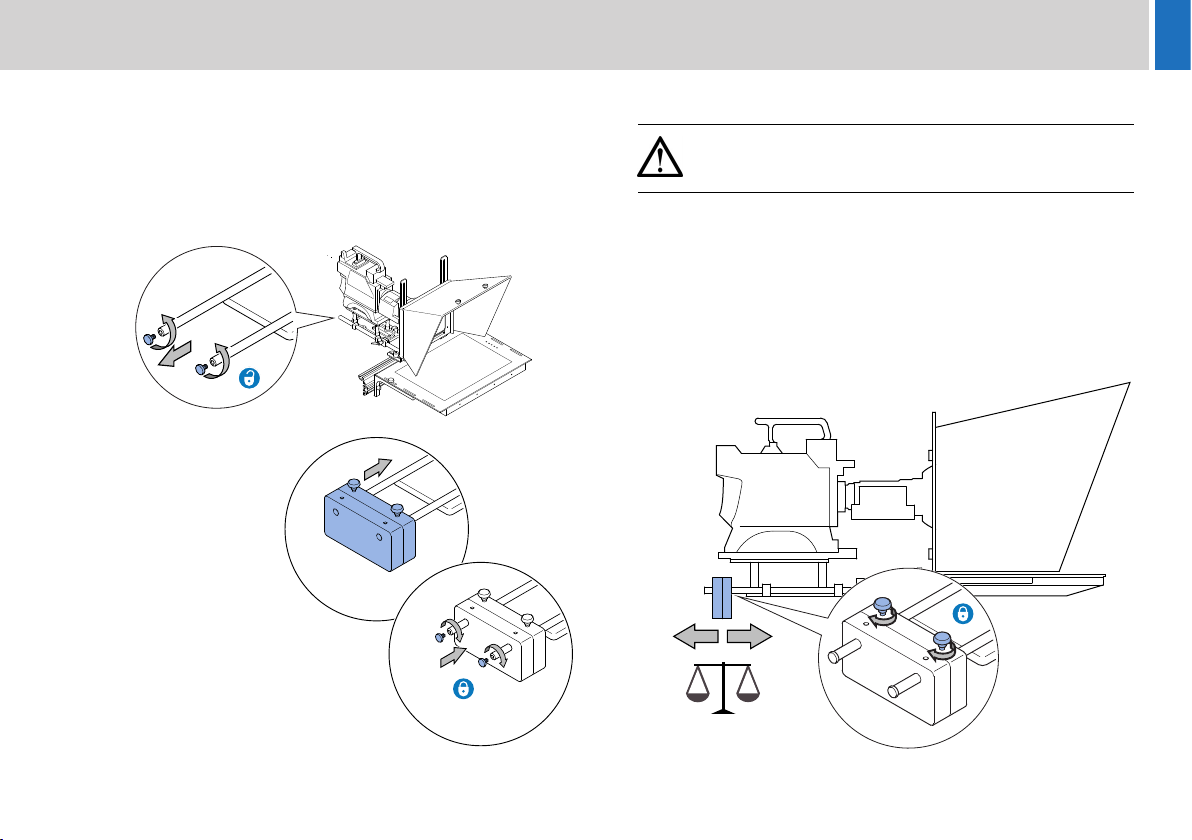

Fitting the Counterbalance Weights . . . . . . . . . . . . . . . . . . . . . 15

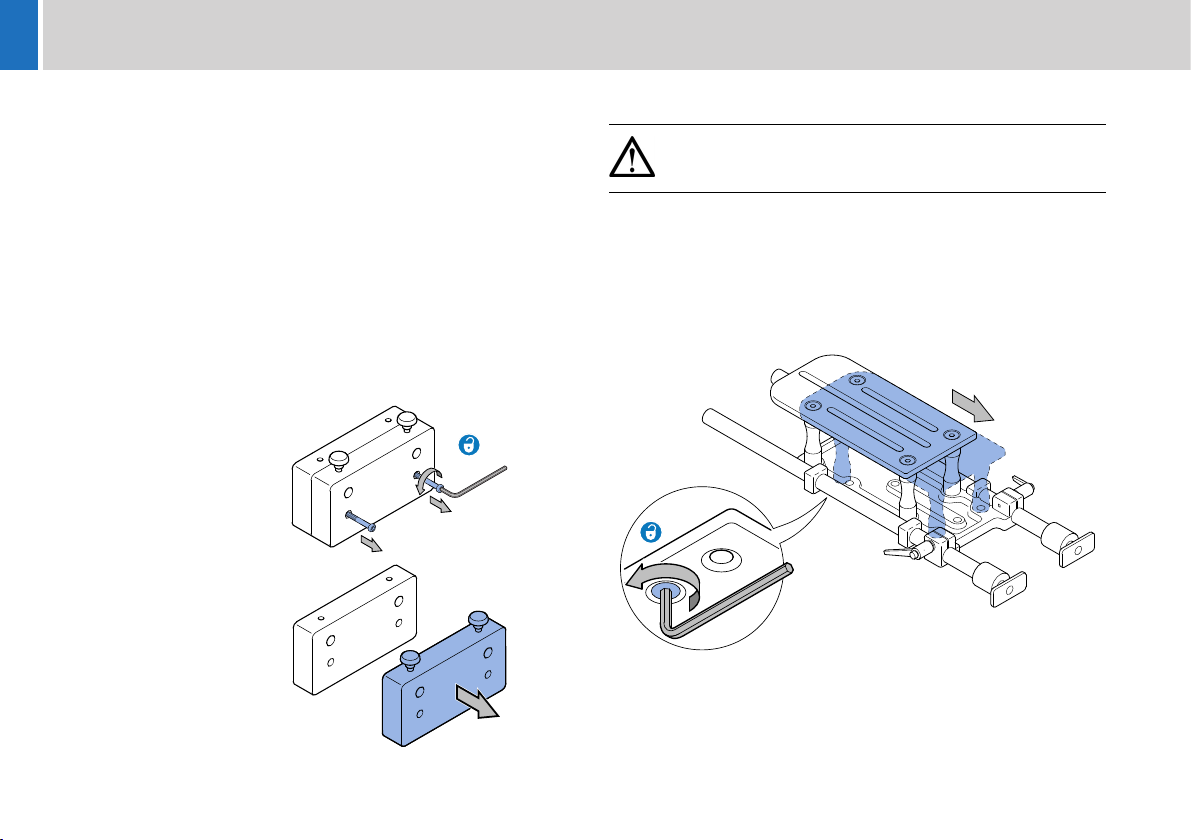

Balancing and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the Prompter Monitor. . . . . . . . . . . . . . . . . . . . . . . 17
Powering Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Control Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Monitor Function OSD Menus . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
General Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2
Safety
Important information on the safe installation and operation of
this product. Read this information before operating the product.
For your personal safety, read these instructions. Do not operate
the product if you do not understand how to use it safely. Save
these instructions for future reference.
Warning Symbols Used in these Instructions
Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury and
avoid possible damage to the product.
Intended Use
The ELP 15 PLUS on-camera prompter has been designed to provide
a high quality teleprompting facility for television broadcasting.
The prompter is intended for use by television camera operators within
a TV studio environment or on outside broadcasts (OB) when protected
from weather by a suitable waterproof cover.
Health and Safety
Electrical Connection
WARNING!
Where there is a risk of personal injury or injury to others,
comments appear supported by the warning triangle symbol.
Where there is a risk of damage to the product, associated
equipment, process or surroundings, comments appear
supported by the word ‘Caution’.
ELECTRIC SHOCK
Where there is a risk of electric shock, comments appear
supported by the hazardous voltage warning triangle.
WARNING! Risk of personal injury or injury to others. All
personnel must be fully trained and adhere to correct manual
handling techniques and Healthy & Safety regulations. It is
the responsibility of the local organisation to enforce safe
working practices at all times.
WARNING! Risk of personal injury or injury to others.
Care must be taken when handling and installing the
reflective glass panels. Always store spare glass panels in
the original packaging.
WARNING! Risk of electric shock. Always check cables for
signs of damage. Damaged cables can cause personal injury
and/or damage the equipment.
CAUTION! This product must be connected to a power
supply of the same voltage (V) and current (A) as indicated
on the product. Refer to the technical specifications for the
product.
CAUTION! Only use the power cable specified for this
product and certified for the country of use.
CAUTION! Using alternative power sources will invalidate
the system EMC liability.
CAUTION! Always use a fuse of the correct type and rating
for the product. Refer to the Technical Specifications for the
product.

3
Safety and About this Manual
Mounting and Installation
Water, Moisture and Dust
Ventilation
Operating Environment
Cleaning
Maintenance
About this Manual
This manual describes the installation of the ELP 15 PLUS onto a
suitable camera support as part of a full prompting system, using the
range of compatible mounting equipment available for various camera
configurations.
WARNING! Before attempting to install or adjust the
prompter assembly, the tilt axis of the head support must be
securely locked horizontally.
WARNING! Do not install this product onto a camera
support or other equipment that is not designed to support
the weight of the product and its payload.
WARNING! Always ensure that all power and auxiliary
communications cables are routed so that they do not
present any danger to personnel. Take care when routing
cables in areas where robotic equipment is in use.
WARNING! Protect the product from water, moisture and
dust. The presence of electricity near water can be
dangerous.
WARNING! When using this product outside, protect from
rain using a suitable waterproof cover.
WARNING! Slots and openings are intended for ventilation
purposes to ensure reliable operation of the product, and
protect it from overheating. Do not block or cover any slots
and openings.
CAUTION! The product should not be used outside the
operating temperature limits. Refer to the product technical
specifications for the operating limits for the product.
WARNING! Risk of electric shock. Always disconnect and
isolate the product from the power supply before cleaning.
CAUTION! Do not use solvent or oil-based cleaners,
abrasives or wire brushes.
WARNING! Servicing or repair of this product must only be
performed by qualified and trained electrical engineers.
WARNING! The fitting of non-approved parts and
accessories, or the carrying out of non-approved alterations
or servicing can be dangerous and could affect the safety of
the product. It may also invalidate the terms and conditions
of the product warranty.

4
Components and Connections
On-Camera Prompter Key Components
The illustration below highlights the key components used in a typical
prompter installation.
1
2
34
5
6
7
8
9
1Camera mounting plate
2Counterbalance weights
3Blackout cloth
4Hood
5Reflective glass
6LED TFT monitor display
7Monitor mounting brackets
8Main prompter mounting extrusion
9Hood mounting brackets

5
Components and Connections
Prompter Installation Components

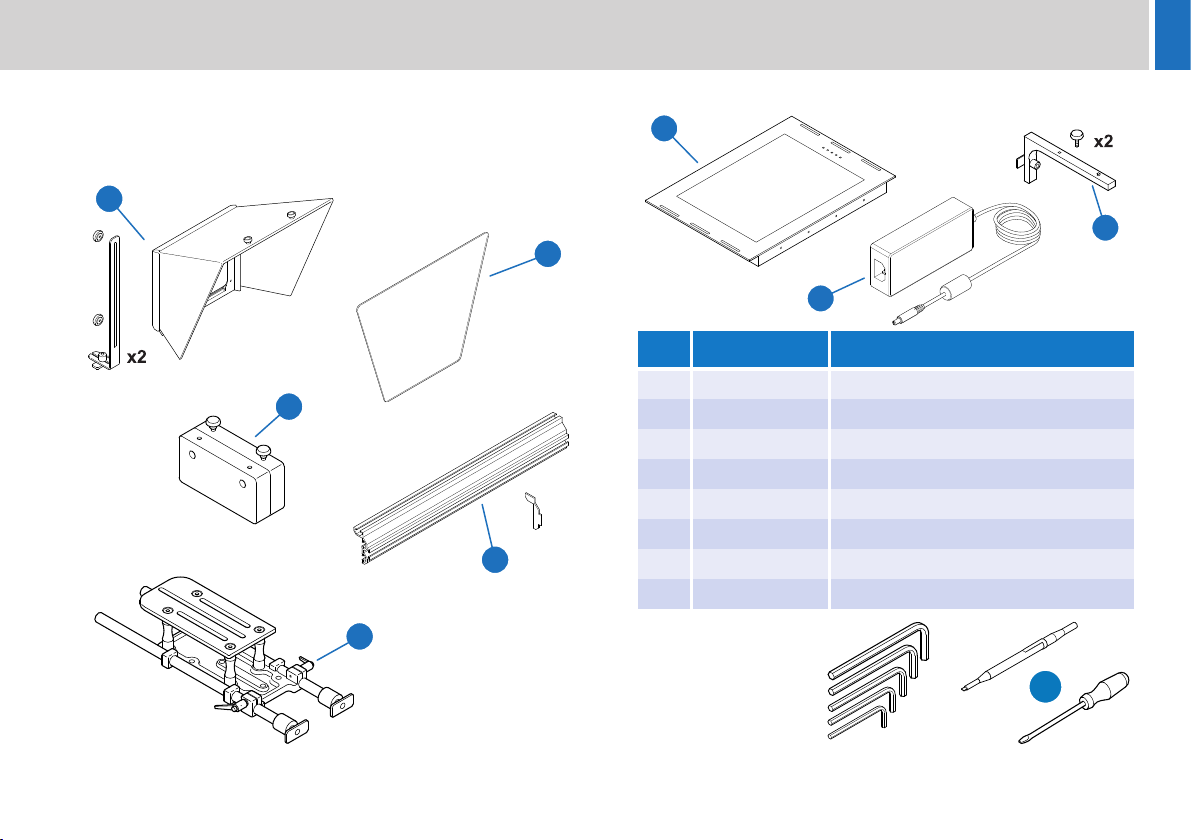

The following section describes the range of component parts available
for a complete prompter installation using the ELP 15 PLUS monitor.
Box Contents
Tools Required
• Metric Allen key set.
• Potentiometer
adjustment tool or
small screwdriver.
1
2
4
3
x2
5
No. Part Description
1 FH-S Folding hood (unassembled)
2 RGFH-S Reflective glass panel
3 EXT-M Extrusion
4 MT-RED Camera mounting plate
5 CBMT-R Counterbalance weights
6 ELP15PLUS-M Prompter monitor
7 MT-ELP Monitor mounting brackets
8 PSU-CP 12 VDC power supply
6
8
7
OR

6
Components and Connections

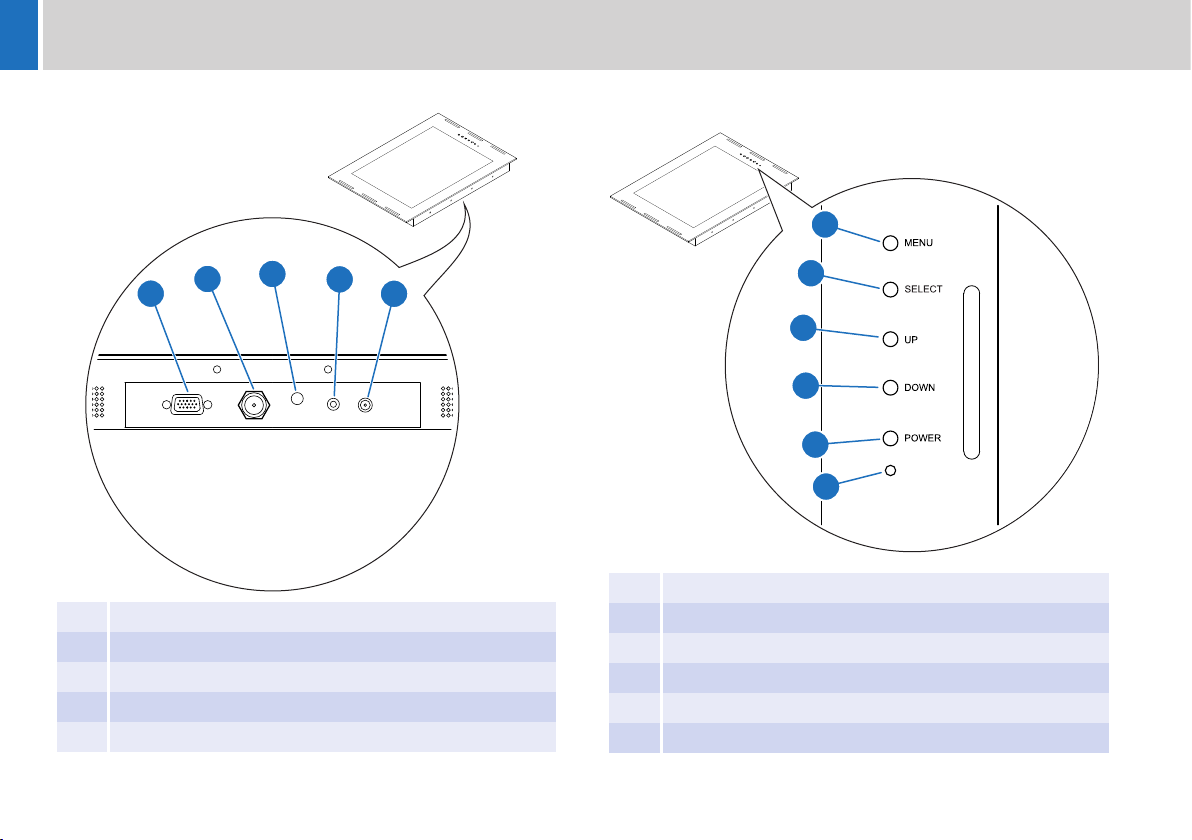

Prompter Monitor Connections Prompter Monitor Control Panel
1VGA IN socket
2Composite video IN socket
3Power indicator LED
412 VDC OUT accessory socket
512 VDC IN power socket
12345
1Menu button
2Selection button
3Up navigation button
4Down navigation button
5Power button
6Power indicator LED
1
2
3
4
5
6

7
Installation

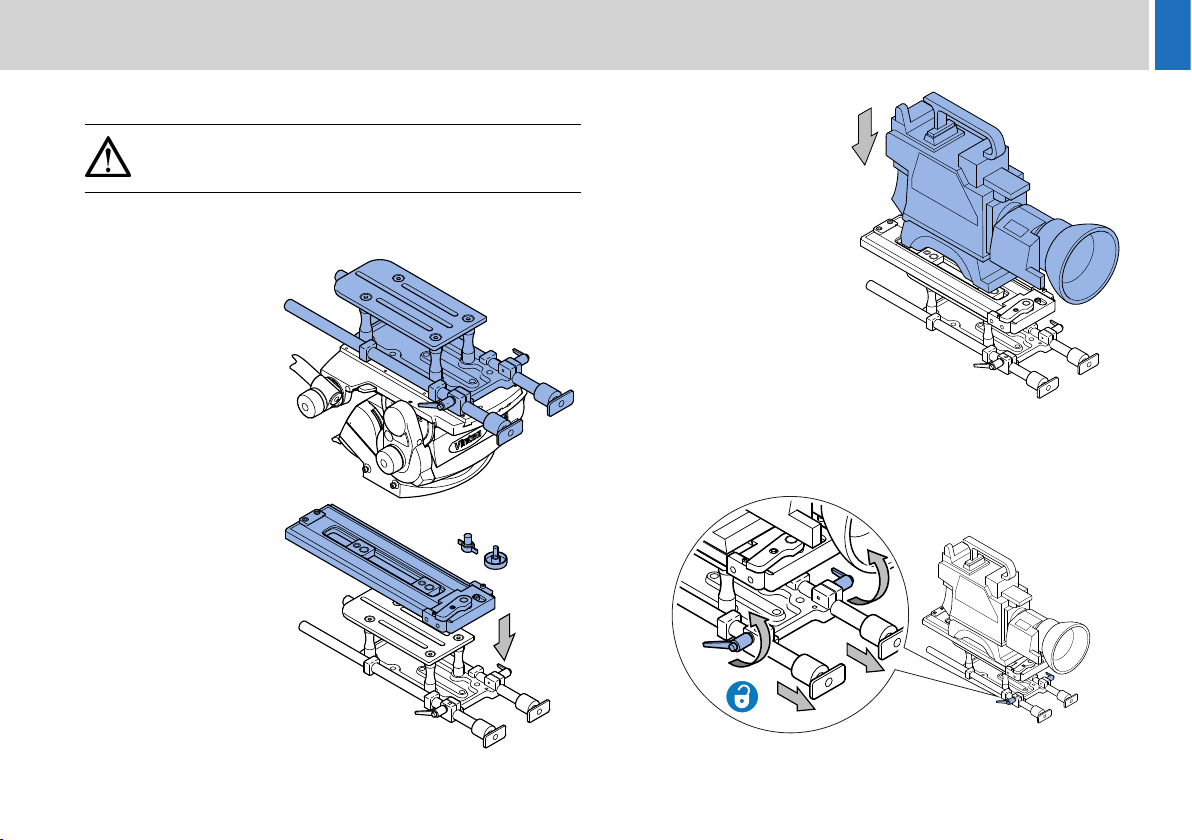

Mounting the Camera and Extrusion
A camera mounting plate must be fitted between the head support and
the camera body to allow installation of the prompter system.
1. Fit the MT-RED
mounting plate to the
camera support.
2. Fit the mounting plate
for the camera being
used to the top of the
MT-RED mounting
plate, using the fixing
screws provided.
3. Firmly clip the camera
into position on the
mounting plate.
4. Undo the clamps securing the telescopic rods. If necessary, slide
the rods forwards to improve access.
WARNING! Before attempting to install or adjust the
prompter assembly, the tilt axis of the head support must be
securely locked horizontally (tilt axis).

8
Installation
5. Remove the two protective end caps from the extrusion.
6. Slide the extrusion over the clamps on the end of the rods.
7. Centralise the extrusion, aligning the marker with the centre of the
camera lens.
8. Turn the rods to tighten the clamps onto the rear of the extrusion.
The clamps can be tightened securely by using an Allen key as a
lever through the holes in the rods.

9
Installation

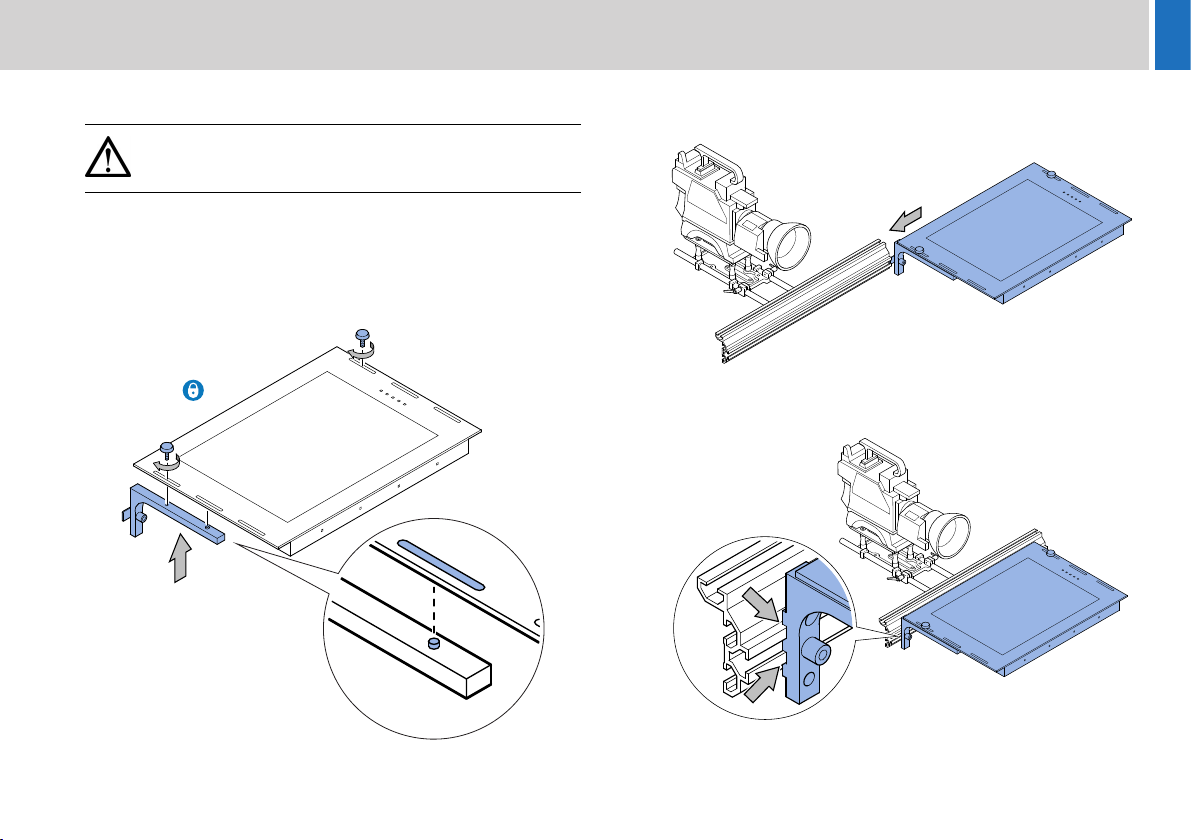

Mounting the Prompter Monitor
When the extrusion is fitted and correctly secured to the camera mount,
the prompter monitor can be fitted.
1. Fit the mounting brackets to the monitor. Ensure that the dowel pin
is seated in the slot on the monitor. Do not fully tighten the fixing
screws at this point.
2. Align the clamps on the monitor brackets with the slot in the front
of the extrusion and slide the assembly into position.
3. Ensure that the indents on the mounting brackets are correctly
seated on the extrusion.
WARNING! Before attempting to install or adjust the
prompter monitor assembly, the tilt axis of the head support
must remain securely locked horizontally.

10
Installation

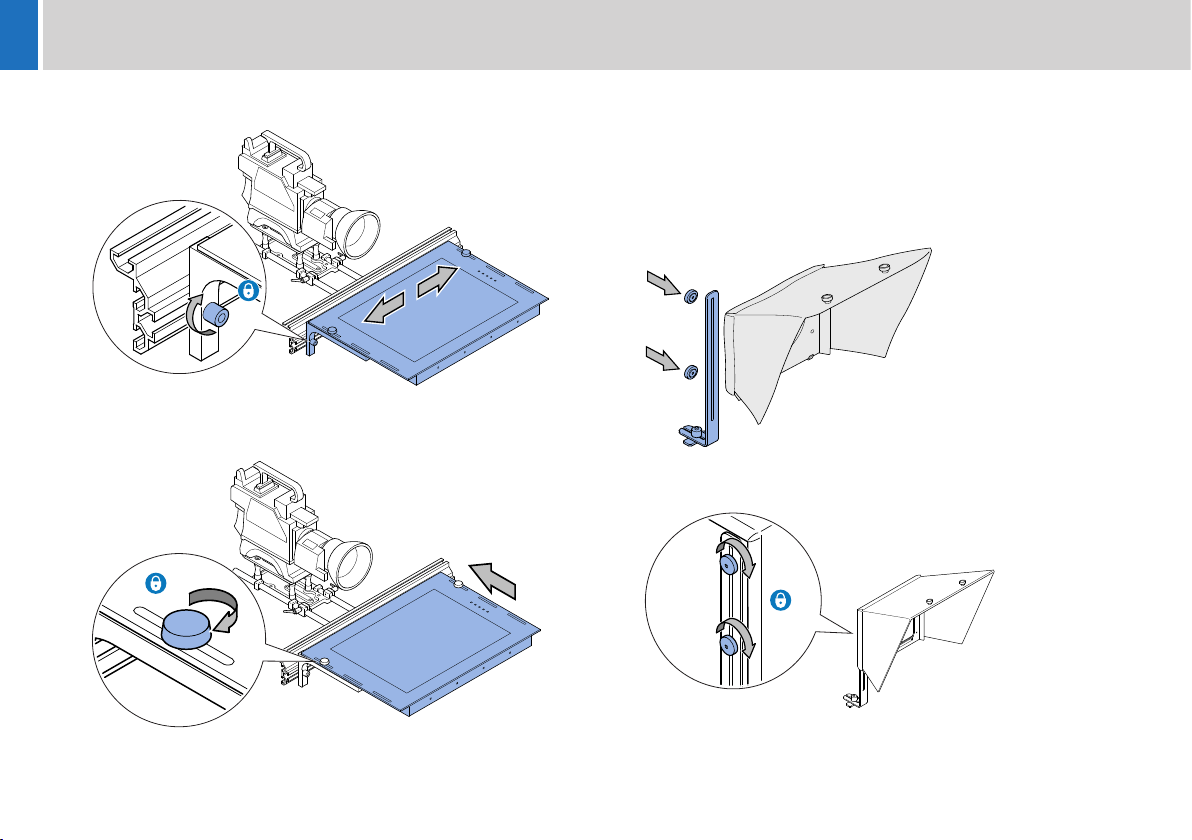

4. Centralise the monitor on the extrusion and tighten the two fixing
screws.
5. Fully push the monitor back towards the extrusion. Tighten the two
fixing screws to secure the monitor in position.
Assembling and Fitting the Hood
The standard folding hood (FH-S) is recommended for use with the
ELP15 PLUS on camera prompter. Fixing brackets are supplied for use
with the hood.
1. Align the slot in the hood bracket and the two clamping knobs with
the two threaded studs on the rear of the hood.
2. Tighten the clamping knobs to secure the hood bracket in position.

11
Installation
3. Repeat steps 1 and 2 for
the opposite hood bracket.
4. Align the clamps on the ends of the hood brackets with the slot in
the top of the extrusion. Slide the hood assembly onto the
extrusion.
Fitting the Extrusion End Caps
Firmly press the extrusion end caps
into place at both ends of the extrusion.
Adjusting the Hood Position
The vertical and horizontal position of the hood must be adjusted to
centralise it with the camera lens.
1. Loosen the four clamping knobs on the rear slides of the hood
mounting brackets.
WARNING! Risk of personal injury or injury to others.
When the hood has been installed, the supplied extrusion
end caps must be fitted.

12
Installation
2. Adjust the vertical position of the hood on the slides to centralise it
with the camera lens and fully re-tighten the clamping knobs.
3. Adjust the horizontal position of the hood in the extrusion slot to
centralise it with the camera lens. Tighten the clamping knobs to
secure the hood in position.
Adjusting the Prompter Assembly Position
The horizontal position of the prompter assembly must be adjusted to
optimise its position relative to the camera lens.
1. Loosen the clamp handles on the MT-RED mounting plate and
move the prompter assembly back until the hood overlaps the
camera lens.
2. Re-tighten the clamp handles to secure the assembly.

13
Installation
Fitting the Reflective Glass Panel
When the hood has been installed, the reflective glass panel can be
fitted to the prompter assembly.
Panel Orientation
For the ELP 15 PLUS prompter to display images, it is essential that the
reflective side of the glass is installed facing outwards. The reflective
side of the glass can be established as follows:
Carefully hold a blunt
object such as a coin
against the surface of the
glass.
If the object is being held
against the reflective side,
there will be no gap (depth
of the glass) before the
reflection.
Fitting the Glass Panel
The installation procedure for the glass panel is the same on all types
of hood, although there are more fixing screws on the larger hoods.
1. Remove all the screw
fixings from the top of the
hood to release the top
glazing bar.
2. Carefully position the glass panel on the bottom glazing bar inside
the hood.
WARNING! Risk of personal injury or injury to others.
Care must be taken when handling and installing the
reflective glass panels. Always store spare glass panels in
the original packaging.
WARNING! Only use the correct size glass panel designed
for the installed hood.

14
Installation
3. With the glass supported at all times, replace the top glazing bar
and secure with the screw fixings. Fitting the Light Shield Cloth
The light shield cloth is built in to the hood and must be fitted around the
camera lens to prevent light entering behind the glass. This is essential
for the prompter to display text clearly.
Fit the light shield cloth around the camera lens and pull the drawstring
to fully exclude incidental light.
CAUTION! Ensure that the light shield cloth is only loosely
fitted around the body of the servo lens to allow it to
continue operating freely.

15
Installation
Fitting the Counterbalance Weights
The prompter installation must have counterbalance weights fitted to
the rear of the mounting to compensate for the front-heavy effect of the
prompter monitor and hood.
1. Unscrew the end caps from the mounting rods protruding from the
rear of the mounting plate.
2. Carefully slide the
counterbalance
weights onto the rods.
3. Refit the end caps
securely.
Balancing and Adjustments
Balancing is achieved by correctly positioning the counterbalance
weights. Other adjustments can also be made to the prompter
assembly position if this is a requirement of the installation.
Basic Balancing
1. Slide the counterbalance weights along the rods and secure in
position with the two clamping screws. Unlock the tilt axis and
check the fore and aft balance of the payload.
WARNING! After fitting or adjusting the prompter assembly
and any accessories, the payload must be correctly re-
balanced.

16
Installation
2. If the payload is not correctly balanced, lock the tilt axis and:
a) If the payload is falling forward (front heavy), move the
counterbalance weights further back on the rods.
b) If the payload is falling backwards (rear heavy), move the
counterbalance weights further forward on the rods.
3. Secure the counterbalance weights and re-check the balance.
Splitting the Counterbalance weights
If the counterbalance weights have too much effect even in the closest
mounting position, one half can be removed.
1. If fitted, remove the counterbalance weights from the prompter
assembly.
2. Using a 4 mm Allen
key, remove the two
screws securing the
weights together.
3. Separate the weights
and refit one of the
halves with the
clamping screws.
Additional Adjustments
Additional adjustments can be made to the MT-RED camera mounting
plate if balancing cannot be achieved or there are specific requirements
for an installation.
The top camera mounting plate can be moved to offset the position of
the camera, by removing the bottom screws with a 4 mm Allen key and
reseating the assembly in the other four screw holes.
Camera Support Adjustments
If necessary, further balancing and positional adjustments can be made
to the camera head support (manual or robotic).
WARNING! Before attempting to adjust the prompter
assembly, the tilt axis of the head support must be securely
locked horizontally (tilt axis).

17
Installation
Connecting the Prompter Monitor
The connections panel is located at the rear of the monitor.
Video Connection
Composite Video Connection
VGA Connection
This connection allows a PC VGA signal to be displayed on the monitor.
Accessory DC Connection
Provides a 12V DC supply to operate external accessories such as the
Autoscript +TallyPlus+.
Power Connection
For more information on the specifications of the connection sockets,
see the section Connections Data on page 23.
Connection using composite video or HD/SDI to the
prompter monitor must always be made with screened
75Ωcoaxial cable.The video cable screen must be
connected to earth (ground) at both ends.
Video IN
VGA IN
CAUTION! The accessory DC out socket is intended for
use with approved Autoscript accessories only. Do not
exceed the current output limit of the product when
powering auxiliary devices.
CAUTION! Only use a regulated 12V DC power source
capable of supplying at least 3A.
12V DC OUT
12V DC IN

18
Installation

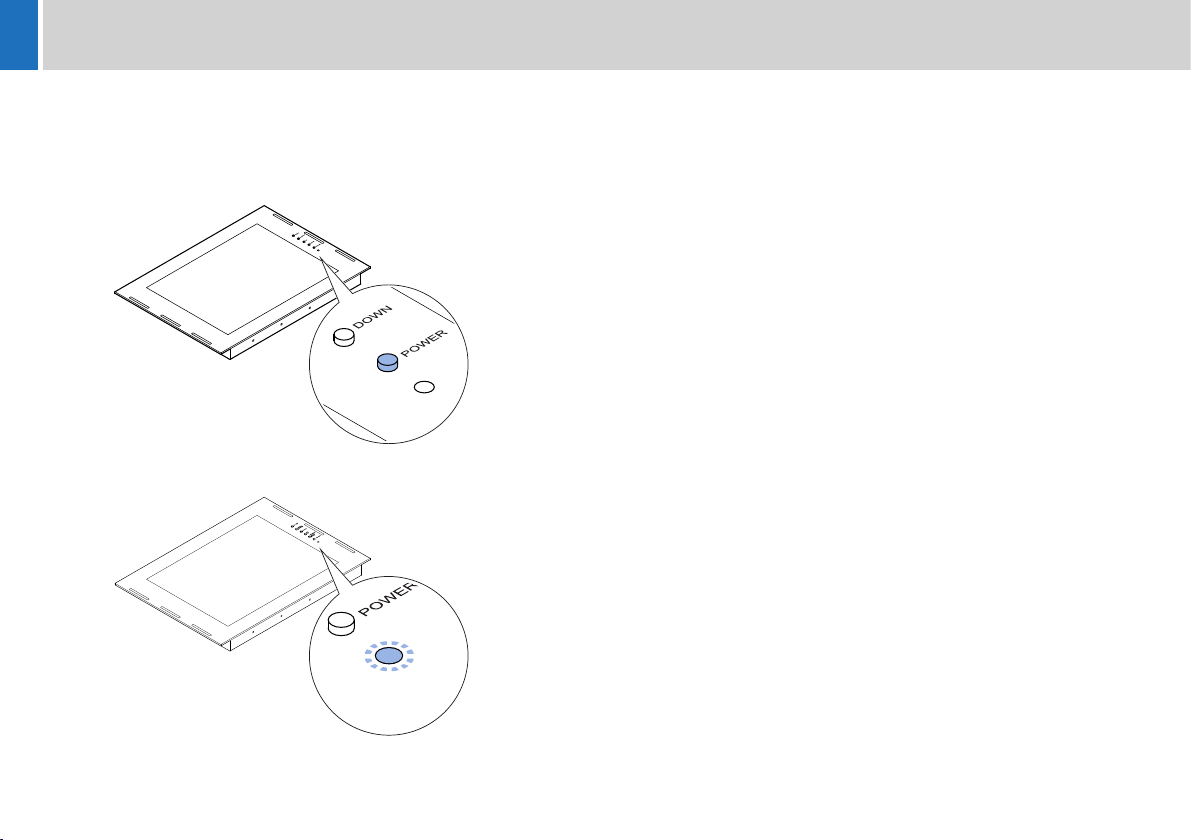

Powering Up
Before powering up, ensure that all external cable connections have
been secured correctly.
To power up, depress the on/off power switch.
If power is present, the power indication LED will illuminate.
