Autoscript XBOXLITE User manual

Xbox Lite
Field and Studio Prompting System
Xbox Lite
Field and Studio
Prompting System
Part Nos. XBOXLITE
www.autoscript.tv
EN
HC-5
HC-7

Copyright © 2014
All rights reserved.
Original Instructions: English
All rights reserved throughout the world. No part of this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph,
magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
Disclaimer
The information contained in this manual is believed to be correct at the time of printing. Vitec Videocom
Ltd reserves the right to make changes to the information or specifications without obligation to notify any
person of such revision or changes. Changes will be incorporated in new versions of the publication.
We are making every effort to ensure that our manuals are updated on a regular basis to reflect changes
to product specifications and features. Should this manual not contain information on the core functionality
of your product, please let us know. You may be able to access the latest revision of this manual from our
website.
Vitec Videocom Ltd reserves the right to make changes to product design and functionality without
notification.
Trademarks
All product trademarks and registered trademarks are the property of The Vitec Group Plc.
All other trademarks and registered trademarks are the property of their respective companies.
Published by:
Vitec Videocom Ltd
Supports Technical Publications Department
Western Way, Bury St Edmunds
Suffolk IP33 3TB
United Kingdom
Email: [email protected]

1
Contents
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
XBOXLITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
HC-5 Desktop Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
HC-7 Hand Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
WP-XLITE Package - Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting and Installing on a Host PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Video Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
XBox System Connections - Typical Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
General Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2
Safety
Important information on the safe installation and operation of
this product. Read this information before operating the product.
For your personal safety, read these instructions. Do not operate
the product if you do not understand how to use it safely. Save
these instructions for future reference.
Warning Symbols Used in these Instructions
Safety cautions are included in these instructions. These safety
instructions must be followed to avoid possible personal injury and
avoid possible damage to the product.
Intended Use
The XBox Lite and associated products have been designed to provide
a prompting text display and control system as part of a high quality
teleprompting facility for television broadcasting.
The XBox Lite system is intended for use by television presenters and
camera operators, installed within a television studio environment, or
on outside broadcasts (OB) when protected from weather by a suitable
waterproof cover.
Electrical Connection
Mounting and Installation
Water, Moisture and Dust
WARNING!
Where there is a risk of personal injury or injury to others,
comments appear supported by the warning triangle symbol.
Where there is a risk of damage to the product, associated
equipment, process or surroundings, comments appear
supported by the word ‘Caution’.
ELECTRIC SHOCK
Where there is a risk of electric shock, comments appear
supported by the hazardous voltage warning triangle.
WARNING! Risk of electric shock. Always check cables for
signs of damage. Damaged cables can cause personal injury
and/or damage the equipment.
CAUTION! The products must be connected to a power
supply of the same voltage (V) and current (A) as indicated
on the products. Refer to the technical specifications for the
products.
CAUTION! Only use the power cable specified for the
products and certified for the country of use.
CAUTION! Using alternative power sources will invalidate
the system EMC liability.
WARNING! Always ensure that all power and auxiliary
communications cables are routed so that they do not
present any danger to personnel. Take care when routing
cables in areas where robotic equipment is in use.
WARNING! Protect the product from water, moisture and
dust. The presence of electricity near water can be
dangerous.
WARNING! When using this product outside, protect from
rain using a suitable waterproof cover.

3
Safety and About this Guide
Ventilation
Operating Environment
Cleaning
Maintenance
About this Guide
This guide describes the installation of the XBox Lite and associated
products as part of a full prompting system, using the range of
compatible equipment and connecting cables available for various
configurations.
The XBox Lite prompting system consists of the following main
products:
WARNING! Slots and openings are intended for ventilation
purposes to ensure reliable operation of the product, and
protect it from overheating. Do not block or cover any slots
and openings.
CAUTION! The product should not be used outside the
operating temperature limits. Refer to the product technical
specifications for the operating limits for the product.
WARNING! Risk of electric shock. Always disconnect and
isolate the product from the power supply before cleaning.
CAUTION! Do not use solvent or oil-based cleaners,
abrasives or wire brushes.
WARNING! Servicing or repair of this product must only be
performed by qualified and trained electrical engineers.
WARNING! The fitting of non-approved parts and
accessories, or the carrying out of non-approved alterations
or servicing can be dangerous and could affect the safety of
the product. It may also invalidate the terms and conditions
of the product warranty.
Part No. Description
XBOXLITE XBox Lite hardware interface for WinPlus-Xlite
HC-5 USB 3 button desktop controller
HC-7 USB 2 button hand speed scroll controller

4
Components and Connections
XBOXLITE HC-5 Desktop Controller
1Power indicator LED
2USB socket
3Video out socket
4DC power in socket
3
1
2
4
1‘Next story’ button
2‘Previous story’ button
3‘Back to top of script’ button
4Scroll speed rotary dial
3
2
4
1

5
Components and Connections

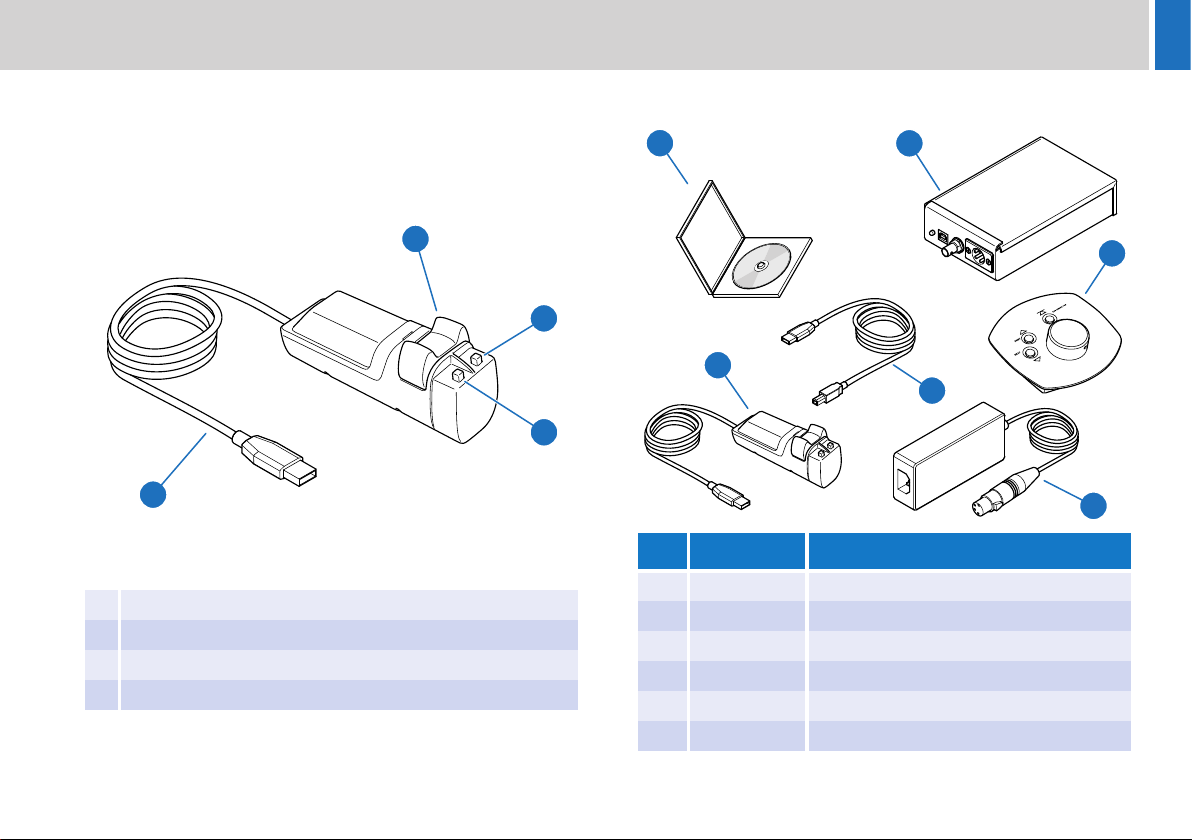

HC-7 Hand Controller WP-XLITE Package - Box Contents
1Hard-wired USB connecting cable
2Scroll speed thumb control
3‘Next story’ button
4‘Previous story’ button
3
2
4
1
No. Part Description
1 A5000-5937 WinPlus Xlite software CD
2 XBOXLITE XBox Lite hardware interface
3 HC-5 Desk controller
4 USB-C USB connecting cable, x2
5 PSU-XLR 12V DC power supply
6 HC-7 Hand controller (optional accessory)
1
5
2
3
4
6

6
Installation
Connecting and Installing on a Host PC
The XBox Lite and associated controllers are connected by USB to the
host PC running WinPlus Lite. They must be installed as USB hardware
to function.
Before Installing any hardware on the host PC, run the setup program
ualXXXX.exe from the supplied CD. Alternatively, click on the X-lite
install button on the CD front page. The default install path is:
Installing the XBox Lite
1. Connect a 12V DC power source to the XBox Lite, typically using
the XLR power supply provided. Alternatively a suitable battery
source can be used on outside broadcasts. When power is
present the LED indicator is illuminated.
2. Using the USB cable provided, connect the XBox Lite to the host
PC running WinPlus.
3. The computer will detect the XBox Lite and start the “add new
hardware” routine.
4. Click to select manual install and browse to C:\Program
Files\Pciwplus32XL\Autoscript Device Drivers for 32 Bit O/S or
C:\Program Files (x86)\Pciwplus32XL\Autoscript Device
Drivers for 64 Bit O/S.
5. Windows XP reports a warning that the drivers are not approved
by Microsoft - press Continue.
32 Bit
O/S
C:\Program Files\Pciwplus32XL\Autoscript Device
Drivers
64 Bit
O/S
C:\Program Files (x86)\Pciwplus32XL\Autoscript
Device Drivers
12VDC
USB-C

7
Installation

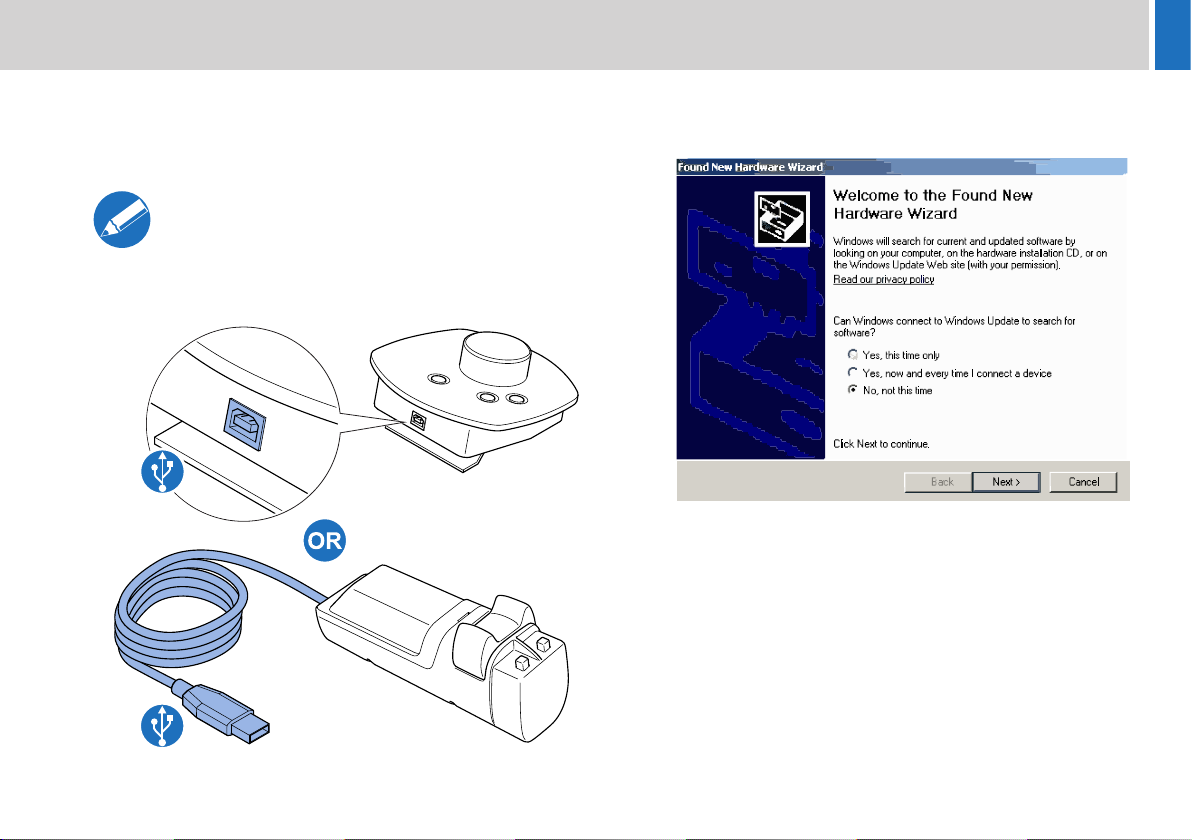

Installing the Desktop or Hand Controller
The following procedure applies to both the HC-5 desktop and HC-7
hand controllers. Select the appropriate driver for the controller being
installed.
1. Connect the HC-5 or HC-7 to the host PC running WinPlus.
2. The host PC will detect the controller and launch the “Found New
Hardware Wizard”.
3. The Wizard will prompt to connect to Windows Update to find the
appropriate software for the XBox:
a) Click to select No, not this time.
b) Click the Next button to continue.
Only one USB controller (desktop or hand) can be
connected and operated at a time.
HC-5
HC-7

8

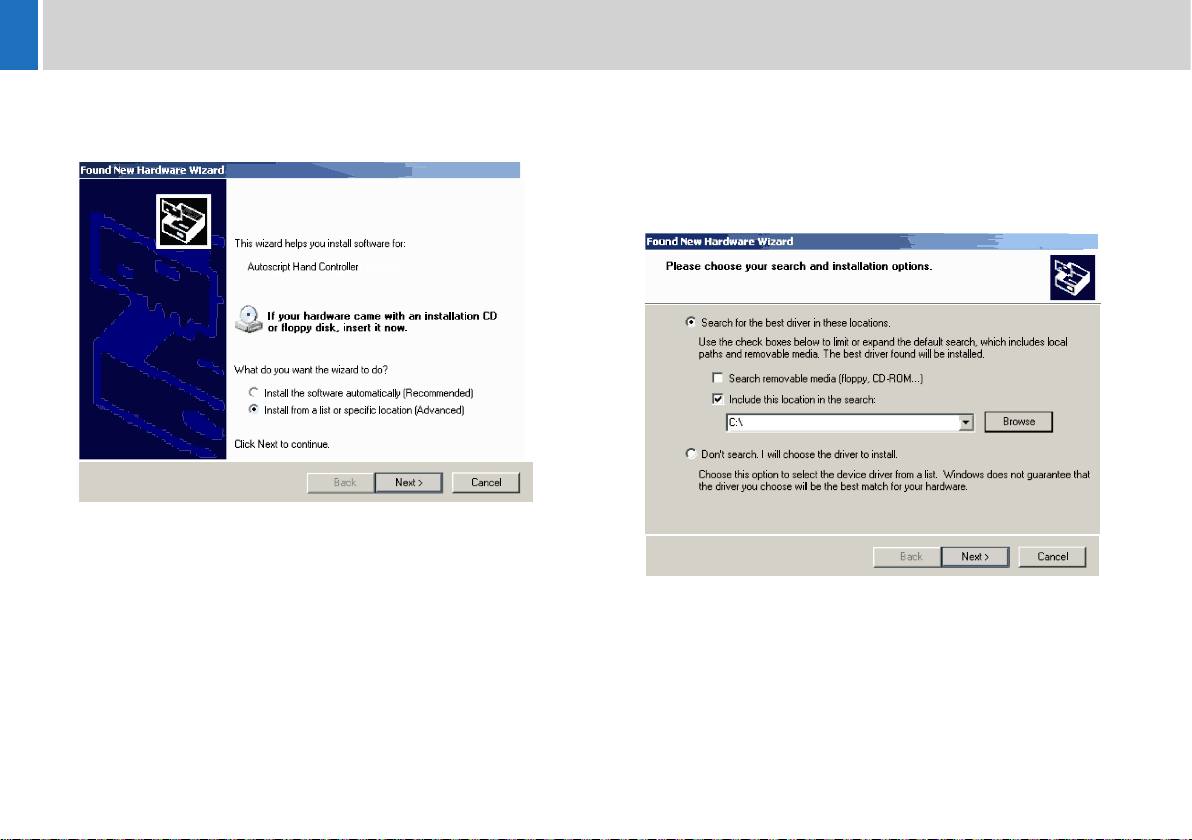

Installation
4. In the next window click to select Install from a list or specific
location (Advanced).
5. Click the Next button to continue.
6. In the search and installation options window:
a) Click to unselect Search removable media.
b) Click to select Include this location in the search.
c) Click the Browse button.
7. Browse to C:\Program Files\Pciwplus32XL\Autoscript Device
Drivers for 32 Bit O/S or C:\Program Files (x86)
\Pciwplus32XL\Autoscript Device Drivers for 64 Bit O/S.
8. Click OK.

9
Installation
9. The Wizard will now copy and install the driver files.
10. Click the Finish button to exit the Wizard.

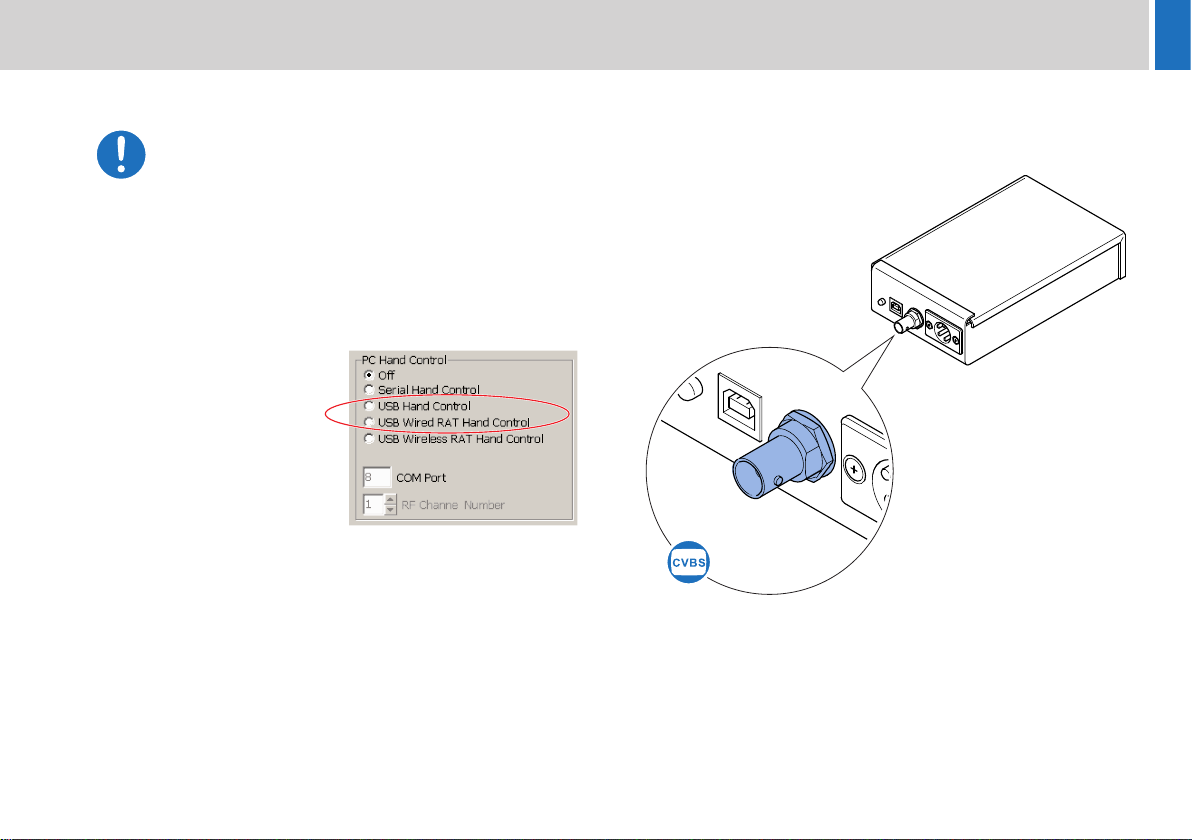

11. From the main menu in the WinPlus software, click to select
Options > Configuration.
12. In the Configuration window click to select the PC-Card tab.
13. In the PC Hand Control
field select the appropriate
controller for use.
Video Connection
A standard composite video output is provided for connection to a
prompter monitor.
IMPORTANT! Windows will go through the Wizard
process twice - one time to install the USB hand
control driver and a second time to install the serial to
USB adapter (software only).

10
Installation

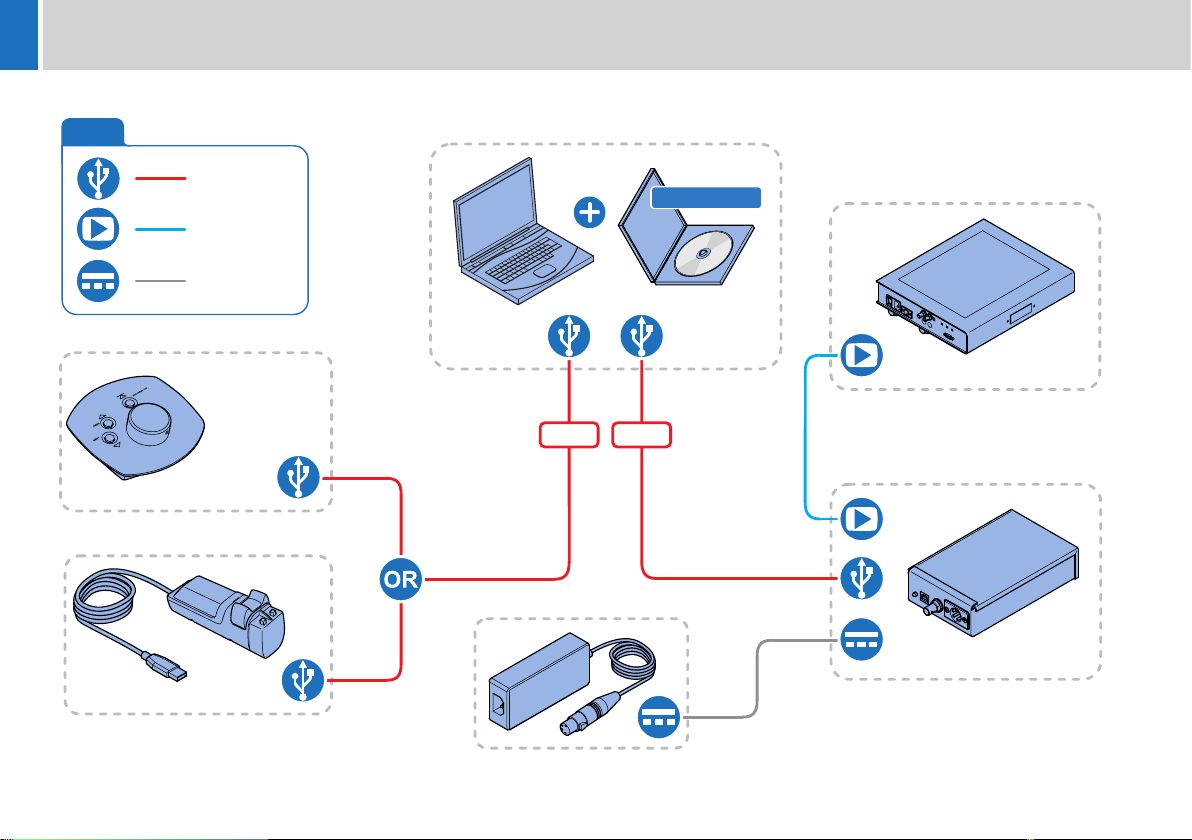

XBox System Connections - Typical Installation
WinPlus Lite Host PC
Key
USB
connections
Video
connection
XBox Lite
Prompter Monitor
Typically located
on a desk with
the WinPlus Lite
host PC. USB-C
HC-5 Desktop Controller
Software CD
USB-C
Power
connection
HC-7 Hand Controller
PSU-XLR (12V DC)

11
Maintenance
Routine Maintenance
The XBox Lite requires minimal routine maintenance, apart from
checking the connections and overall operation periodically.
Routine checks
During use, check the following:
• Check cables for signs of wear or damage. Replace as necessary.
• Check that all cables are connected properly.
Cleaning
During normal use the only cleaning required should be a regular wipe
over with a dry, lint-free cloth. Dirt accumulated during storage or
periods of disuse may be removed with a vacuum cleaner. Particular
attention should be paid to all connection ports on the XBox Lite.
WARNING! Risk of electric shock. Disconnect and isolate
the product from the power supply before cleaning.

12
Troubleshooting
Fault Check Comments
The XBox Lite is not powering up. Check that the DC power source is connected and
secured.
See the section Installing the XBox Lite on
page 6.
The XBox Lite is powered up, but not
controlling the prompted text.
Check that any USB connections to controllers are
correct and secured.
See the section Installing the XBox Lite on
page 6.
The prompter monitor is not
displaying text.
Check that the video connection is correct and
secured. See the section Video Connection on page 9.
Ensure that quality screened cable has been used
for the video signal and that the screen is earthed
at both ends.

13
Technical Specification
Physical Data*
*Excluding controls and connectors.
Environmental Data
Operating temperature range . . . . . . +5°C to +40°C (+41°F to +104°F)
Storage temperature range . . . . . . . .-20°C to +60°C (-4°F to +140°F)
Electrical Data
DC power input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12V DC
DC power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA
Connections Data
DC Power In Socket
Connector type: 4 pin XLR plug.
Composite Video Connection
Connector type: BNC Connector.
USB Connection
Conforms to USB 2.0 standard.
Technical specifications are subject to change without notice.
XBox Lite Desktop
Controller
Hand
Controller
Width* 97 mm
(3.8 in)
133 mm
(5.2 in)
30 mm
(1.2 in)
Length* 138 mm
(5.4in)
124 mm
(4.9 in)
110 mm
(4.3 in)
Height* 40 mm
(1.6 in)
53 mm
(2.1 in)
45 mm
(1.8 in)
Weight 0.24 kg
(0.53 lb)
0.6 kg
(1.32 lb)
0.15 kg
(0.33 lb)
Pin Signal
1GROUND
4+12V DC
Pin Signal
Tip Video
Sleeve Ground

14
General Notices
FCC Certification
FCC Notice
This product complies with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference with
radio communications. Operation of this product in a residential area is
likely to cause harmful interference, in which case you will be required
to correct the interference at your own expense.
FCC Warning
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
FCC Declaration of Conformity
This product complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1.This product may not cause harmful interference.
2.This product must accept any interference received, including
interference that may cause undesired operations.
Declaration of Conformity
Vitec Videocom Limited declares that this product has been
manufactured in accordance with BS EN ISO 9001:2008.
This product complies with the following EU Directives:
• Low Voltage Directive 2006/95/EC
• EMC Directive 2004/108/EC
Compliance with these directives implies conformity to applicable
harmonized European standards (European Norms) which are listed on
the EU Declaration of Conformity for this product or product family. A
copy of the Declaration of Conformity is available upon request.
Environmental considerations
ROHS Compliance Statement
Vitec Videocom Limited is compliant with the European Union Directive
2002/95/EC Restrictions of Hazardous Substances (RoHS) that
restricts the use of hazardous substances in Electrical and Electronic
Equipment.
XBOXLITE, ,
HC-7
HC-5

15
General Notices
European Union Waste of Electrical and Electronic
Equipment (WEEE) Directive (2002/96/EC)
This symbol marked on the product or its packaging indicates that this
product must not be disposed of with general household waste. In
some countries or European Community regions separate collection
systems have been set up to handle the recycling of electrical and
electronic waste products. By ensuring this product is disposed of
correctly, you will help prevent potentially negative consequences for
the environment and human health. The recycling of materials helps
conserve natural resources.
Visit our website for information on how to safely dispose of this product
and its packaging.
In countries outside the EU:
Dispose of this product at a collection point for the recycling of electrical
and electronic equipment according to your local government
regulations.
Pollution statement
This equipment is designed for operation in Pollution Degree 2
environments.

AV
Autoscript
itec Group brand
Publication part No. XBOXLITE-4980/1
www.autoscript.tv
