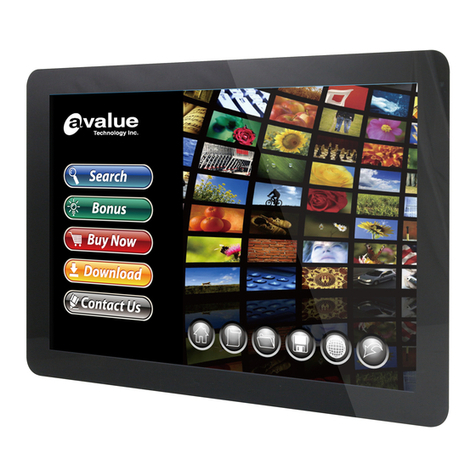

Avalue Technology OFT-10W01 User manual

Part No. E2017OT10A3R
OFT-10W01
10.1" Open Frame Tablet
Quick Reference Guide
5th Ed –13 November, 2018
Copyright Notice
Copyright 2018 ALL RIGHTS RESERVED.

OFT-10W01
2 OFT-10W01 Quick Reference Guide
Federal Communication Commission Interference Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice:
(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that only the supplied
power cord by used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

Quick Reference Guide
OFT-10W01 Quick Reference Guide
3
FCC RF Radiation Exposure Statement
This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65 and found compliant
to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF
Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far
below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a
manner that the potential for human contact during normal operation is minimized. When nearby
persons has to be kept to ensure RF exposure compliance, in order to comply with RF exposure limits
established in the ANSI C95.1 standards, the distance between the antennas and the user should not
be less than 20 cm.

OFT-10W01
4 OFT-10W01 Quick Reference Guide
WARNING
“CAUTION – Use suitable mounting apparatus to avoid risk of injury.”
“CAUTION – This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures”
“CAUTION –Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.”
“CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved
and complies with the safety standard of your particular country.”
“WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply
mains with protective earth.”

Quick Reference Guide
OFT-10W01 Quick Reference Guide
5
WiFi information :
Product Description
IEEE 802.11 b/g/n Wireless LAN and Bluetooth
Combo LGA Module
WLAN Standard
IEEE 802.11b/g/n, Wi-Fi compliant
Bluetooth Standard
Bluetooth 2.1+Enhanced Data Rate (EDR) / BT4.0
Major Chipset
Realtek RTL8723BS
WiFi PID/VID
B723 / 024C
Antenna Type
PIFA
Operating Conditions
Temperature
Operating: 0~70 oC ; Storage: -20~85 oC
Electrical Specifications
Frequency Range
WLAN: 2.4 GHz Band 2.412-2.472 GHz Bluetooth:
2400~2483.5MHz
Number of Channels
802.11b: USA, Canada and Taiwan : 1 ~ 11 Most
European Countries : 1 ~ 13 Japan : 1 ~ 13
802.11g: USA and Canada : 1 ~ 11 Most European
Countries : 1 ~ 13
802.11n: USA and Canada : 1 ~ 11 Most European
Countries : 1 ~ 13
Modulation
WLAN: DSSS, OFDM, BPSK(9/6Mbps),
QPSK(18/12Mbps), DBPSK(1Mbps), DQPSK(2Mbps),
CCK(11/5.5Mbps), 16-QAM(36/24Mbps), 64-QAM
(72.2/54/48Mbps)
Bluetooth: GFSK (1Mbps), Π/4DQPSK (2Mbps) and
8DPSK (3Mbps)

OFT-10W01
6 OFT-10W01 Quick Reference Guide
Content
1. Getting Started............................................................................................................7
1.1 Safety Precautions ................................................................................................7
1.2 Packing List...........................................................................................................7
1.3 System Specifications ...........................................................................................8
1.4 System Overview.................................................................................................10
1.4.1 Right View.................................................................................................................................. 10
1.4.2 Left View .................................................................................................................................... 10
1.5 System Dimensions.............................................................................................11
1.5.1 Front and Rear side ................................................................................................................... 11
1.5.2 Installing Extend Brackets.......................................................................................................... 12
1.5.3 Front and Rear side (With Extend Bracket)............................................................................... 13
1.6 Flush Mounting Concept ..........................................................................................14
1.7 Panel Mounting ........................................................................................................15
1.8 Wall Mounting Concept............................................................................................23
1.9 Wall Mounting...........................................................................................................24
2. Hardware Configuration...........................................................................................32
2.1 BCX11 Overviews....................................................................................................33
2.2 BCX11 Connector list...............................................................................................35
2.3 Ethernet LED behavior.............................................................................................36
2.4 Evaluation Cable Kit (Optional) ................................................................................36
2.5 BCX11 Connectors settings .....................................................................................37
2.5.1 Touch button board connector (JTB1)........................................................................................... 37
2.5.2 General purpose I/O connector (JDIO1)........................................................................................ 37
2.5.3 RS-232 connector (J232-1)............................................................................................................ 38
2.5.4 RS-485 connector (J485-1)............................................................................................................ 38
2.5.5 USB connector (JCAM1)................................................................................................................ 39
2.5.6 AMPLIFIER_L (JAMP_L)............................................................................................................... 39
2.5.7 AMPLIFIER_R (JAMP_R).............................................................................................................. 40
2.5.8 A-MIC connector (JAMIC1)............................................................................................................ 40
2.5.9 I2C connector (JSEN1).................................................................................................................. 41
2.5.10 DC Power-in connector (JDCIN3)................................................................................................ 41
2.6 FCC..........................................................................................................................42
2.7 Android Rotate Setting.............................................................................................44

Quick Reference Guide
OFT-10W01 Quick Reference Guide
7
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x OFT-10W01 Open Frame Tablet

OFT-10W01
8 OFT-10W01 Quick Reference Guide
1.3 System Specifications
Board Specification
Processor
Intel Atom Z3735F
System Memory
2GB DDR3L RAM
Storage
8GB or 32GB eMMC
RF
WIFI
WIFI 802.11 b/g/n/
System Specification
Internal I/O
MIO
1 x RS232 (TX/RX) / RS485 header
1 x 16 bit GPIO header
1 x USB header
1 x I2C header (Optional)
1 x eDP & Dual channel 24bit LVDS
1 x backlight control & power
2 x speaker header (1.2W stereo)
1 x A-MIC header
1 x Touch Button connector header
1 x DC input 4pin header
External I/O
USB
2 x USB 2.0
1 x micro USB Client (Android only)
LAN
1 x 10/100 Ethernet
Display
1 x HDMI
Audio
1 x Head phone jack
SD
1 x Micro SD slot
Power-in
1 x DC jack
Mechanical & Environmental
Power
Requirement
12V to 24V DC input
Power Type
DC Jack
DC input 4pin header
Optional Powered LAN 802.3AT (10” only)
Operating Temp.
0°C ~ 40°C
Storage Temp.
-20°C ~ 60°C
Operating
Humidity
0% ~ 90% Relative Humidity, Non-condensing

Quick Reference Guide
OFT-10W01 Quick Reference Guide
9
LCD Characters
Panel
Resolution
1280 x 800
Luminance
350
View Angle
(H+-/V+-)
85°/85°
Touch
Touch
PCAP
Surface
hardness
6H
Note: Specifications are subject to change without notice.

OFT-10W01
10 OFT-10W01 Quick Reference Guide
1.4 System Overview
1.4.1 Right View
1.4.2 Left View
Connectors
Label
Function
Note
HP
Audio line-out connector
HDMI
HDMI connector
USB
2 x USB 2.0 connector
DCIN
DC power-in connector
SD
Micro SD card slot
Micro USB
Micro USB connector
LAN
RJ-45 Ethernet

Quick Reference Guide
OFT-10W01 Quick Reference Guide
11
1.5 System Dimensions
1.5.1 Front and Rear side
(Unit: mm)

OFT-10W01
12 OFT-10W01 Quick Reference Guide
1.5.2 Installing Extend Brackets
Step1. Locate brackets on both sides, matching the holes on the monitor.
Step2. Insert and fasten 16 screws on each side of the monitor to secure Mounting brackets.
Note: Brackets sold separately.

Quick Reference Guide
OFT-10W01 Quick Reference Guide
13
1.5.3 Front and Rear side (With Extend Bracket)
(Unit: mm)

OFT-10W01
14 OFT-10W01 Quick Reference Guide
1.6 Flush Mounting Concept

Quick Reference Guide
OFT-10W01 Quick Reference Guide
15
1.7 Panel Mounting
(Installation
surface)
(Opening dimension)
(Opening dimension) (Opening dimension)
A
A
(Panel thickness)
(Unit: mm)

OFT-10W01
16 OFT-10W01 Quick Reference Guide
Step1-1. Locate brackets on both sides, matching the holes on the monitor.
Step1-2. Insert and fasten 12 screws on each side of the monitor to secure Mounting brackets.
2
Hexagon Stud
12
1
BCX11_10W1_ASSY
1
Item
Part Name
Quantity

Quick Reference Guide
OFT-10W01 Quick Reference Guide
17
Step2. Insert and fasten 4 screws on each side of the monitor to secure Front bracket.
2
Hexagon Stud
12
1
BCX11_10W1_ASSY
1
Item
Part Name
Quantity

OFT-10W01
18 OFT-10W01 Quick Reference Guide
Step3. Insert and fasten 8 screws to secure Bracket T/B.
5
Bracket T/B
2
4
Screw
8
3
Front Bracket
1
Item
Part Name
Quantity

Quick Reference Guide
OFT-10W01 Quick Reference Guide
19
(Outside of the wall)
Step4. Insert BCX11 10”Open frame into the wall.
6
Wall
1
Item
Part Name
Quantity

OFT-10W01
20 OFT-10W01 Quick Reference Guide
(Inside of the wall)
Step5. Fasten 4 screws to secure Panel mount brackets and insert it into Bracket/TB.
5-1
8
Panel mount Screw
4
7
Panel mount Bracket
4
5
Bracket T/B
2
Item
Part Name
Quantity
