Avaya G700 Instruction Manual

Quick Start for Hardware Installation:
Avaya G700 Media Gateway
and
Avaya S8300 Media Server
555-233-150
Issue 8
February 2007

© 2007 Avaya Inc.
All Rights Reserved.
Notice
While reasonable efforts were made to ensure that the information in this
document was complete and accurate at the time of printing, Avaya Inc. can
assume no liability for any errors. Changes and corrections to the information
in this document may be incorporated in future releases.
For full support information, please see the complete document,
Avaya Support Notices for Hardware Documentation, document number
03-600759.
To locate this document on our Web site, simply go to
http://www.avaya.com/support and search for the document number in
the search box.
Documentation disclaimer
Avaya Inc. is not responsible for any modifications, additions, or deletions to
the original published version of this documentation unless such modifications,
additions, or deletions were performed by Avaya. Customer and/or End User
agree to indemnify and hold harmless Avaya, Avaya's agents, servants and
employees against all claims, lawsuits, demands and judgments arising out of,
or in connection with, subsequent modifications, additions or deletions to this
documentation to the extent made by the Customer or End User.
Link disclaimer
Avaya Inc. is not responsible for the contents or reliability of any linked Web
sites referenced elsewhere within this documentation, and Avaya does not
necessarily endorse the products, services, or information described or offered
within them. We cannot guarantee that these links will work all of the time and
we have no control over the availability of the linked pages.
Warranty
Avaya Inc. provides a limited warranty on this product. Refer to your sales
agreement to establish the terms of the limited warranty. In addition, Avaya’s
standard warranty language, as well as information regarding support for this
product, while under warranty, is available through the following Web site:
http://www.avaya.com/support.
Copyright
Except where expressly stated otherwise, the Product is protected by copyright
and other laws respecting proprietary rights. Unauthorized reproduction,
transfer, and or use can be a criminal, as well as a civil, offense under the
applicable law.
Avaya support
Avaya provides a telephone number for you to use to report problems or to ask
questions about your product. The support telephone number
is 1-800-242-2121 in the United States. For additional support telephone
numbers, see the Avaya Web site: http://www.avaya.com/support.

Issue 8 February 2007 3
Chapter 1: Before You Go to the Installation Site . . . . . . . . . . . . . 5
Other documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
License file, software, and firmware . . . . . . . . . . . . . . . . . . . . . . . . . 5
Laptop requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 2: Conduct Equipment Inventory . . . . . . . . . . . . . . . . . 7
Chapter 3: Mount Media Gateway . . . . . . . . . . . . . . . . . . . . . 13
Chapter 4: Install Octaplane Stacking Module. . . . . . . . . . . . . . . 15
Chapter 5: Connect Media Gateways . . . . . . . . . . . . . . . . . . . 17
Chapter 6: Install S8300 Media Server . . . . . . . . . . . . . . . . . . . 19
Chapter 7: Install Media and Expansion Modules. . . . . . . . . . . . . 21
Chapter 8: Install USB Modem and CD-ROM Drive . . . . . . . . . . . . 23
Chapter 9: Install UPS and Apply Power. . . . . . . . . . . . . . . . . . 25
Chapter 10: Connect the Laptop — G700 without an S8300 . . . . . . . 27
Chapter 11: Connect the Laptop — G700 with S8300 . . . . . . . . . . . 29
Contents

Contents
4 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server

Issue 8 February 2007 5
Chapter 1: Before You Go to the Installation Site
The following activities must be completed before going to an installation site.
Other documents
Obtain access to the following documentation:
●The G700/S8300 Installation guide: Installation and Upgrades for Avaya G700 Media
Gateway and Avaya S8300 Media Server, 555-234-100.
●The documentation library on CD, installed on your laptop, or accessible from the Avaya
Support web site: Documentation for Avaya Communication Manager, Media Gateways
and Servers, 03-300151.
License file, software, and firmware
The following tasks must be completed before you can install an Avaya S8300 Media Server
and Avaya G700 Media Gateway.
To do before you install the S8300 and G700
1. Meet with the customer to complete the Electronic Preinstallation Worksheet. The
Electronic Preinstallation Worksheet contains specific information about the customer’s
network configuration and telephony requirements. This information is required to use the
Avaya Installation Wizard to configure the Avaya IP solution.
Note:
Note: To use the Avaya Installation Wizard, Release 2.0 or later of Communication
Manager must be installed on the media server. If a pre-2.0 release of the
Communication Manager is installed on the media server, the software must be
upgraded before the Avaya Installation Wizard can be used.
Note:
Note: The current release of the Avaya Installation Wizard supports only an
English-language operating system.
2. If you are using the Avaya Installation Wizard to generate basic translations on an S8300
primary controller in a G700, get the customer’s Name and Number list file and the Custom
Templates. Copy these files to your laptop. The Electronic Preinstallation Worksheet
contains instructions for the Name/Number and Custom Templates files.

Before You Go to the Installation Site
6 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server
3. Retrieve the required license file from Remote Feature Activation (RFA).
Note:
Note: As of Communication Manager Release 3.1, the Avaya Installation Wizard no
longer requires the inclusion of the FEAT_DADMIN login permissions in the
license in order to generate basic translations. However, for Business Partners,
the license may still include the FEAT_DADMIN login permissions.
4. Obtain a password (authentication) file from Authentication File System (AFS).
5. Obtain the most recent versions of software and firmware on CD-ROM. Check for and
download the most recent versions of firmware from http://support.avaya.com or, if
necessary, from the Download Center.
6. Determine if the customer purchased a USB CD-ROM drive as part of the order. If the order
does not include a USB CD-ROM drive, obtain a USB CD-ROM drive for temporary use at
the site.
7. The technician will be advised if ProVision will be used in addition to the Avaya Installation
Wizard. ProVision can be used to upload all of the Communication Manager translations.
Information on the Avaya Installation Wizard options for ProVision is in the Electronic
Preinstallation Worksheet.
Laptop requirements
The laptop PC that you use to access the S8300 and/or G700 and to launch the Avaya
Installation Wizard must meet the following requirements:
●A minimum display resolution of 800 by 600
●10/100 ethernet card installed
●Windows 95 or later
●Internet Explorer 5.0 or later
●A serial communication interface
Once you have verified that all the above activities are completed, you can begin product
hardware installation following the instructions in this guide.

Issue 8 February 2007 7
Chapter 2: Conduct Equipment Inventory
The following list of equipment contains items that may not be needed for your configuration —
those items are specified as "optional" and may not be included in your inventory.
Avaya G700 Media Gateway Chassis
Optional Avaya S8300B Media Server
Optional Avaya S8300C Media Server
Optional Avaya MM710 T1/E1 Media
Module
Optional Avaya MM711 Analog Media
Module
Note:
Note: The Analog and the DCP
media modules look similar.
Check their labels to verify
the module type.
Optional Avaya MM712
DCP Media Module
Note:
Note: The DCP and the Analog
media modules look similar.
Check their labels to verify
the module type.
Optional Avaya MM714 4FXS x 4FXO
Analog Media Module
V2
V3
V4
EXT1 EXT2
V1
ALM PWR CPU MSTR LNK COL Tx Rx FDX FC Hspd LAG
51 52 53 54 55 56 57 58
59 60 61 62 63 64 65 66
EXT1 EXT2
ALM
TST
ACT
OK TO
REMOVE
SHUT DOWN
SERVICES USB1 USB2
S8300C LAO 092006
ALM
APP
ACT
OK TO
REMOVE
S8300C
C_V1
SHUT DOWN
SERVICES USB 1 USB 2 USB 3
(,$$'&(
(26,(060
62 (,
(7
$/0
767
$&7
6,*
AVAYA
ALM
TST
ACT
12345678
AVAYA
ALM
TST
ACT
12345678

Conduct Equipment Inventory
8 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server
Optional Avaya MM716 24-port Analog
Media Module
Optional Avaya MM717 24-port DCP Media
Module.
Note:
Note: Endpoints connected to this
media module must be
in-building only.
Optional Avaya MM720 8-port BRI Media
Module
Optional Avaya MM722 2-port BRI Media
Module
Optional Avaya MM760 VoIP Media Module
Optional Expansion Module.
Optional C360 Converged Stackable
Switch:
C363T/C363-PWR
C364T/C364-PWR
Optional X330STK Octaplane
Stacking Module.
mmdc716 LAO 102505
ALM
TST
ACT
MM716
ANALOG
VH0
ALM
TST
ACT
AVAYA
ALM
TST
ACT
X330T16
51 52 53 54 55 56 57 58
59 60 61 62 63 64 65 66

Issue 8 February 2007 9
Optional USB modem.
Material ID: 700235526
Optional CD-ROM or DVD/CD-RW drive:
●Teac USB CD-ROM Drive. Material
ID: 700289580.
●Addonics USB DVD/CD-RW Drive.
Material ID: 700406267
(Available with S8300C only)
●DVD/CD-RW drive for S8300/S8400.
Material ID: 700406267
Optional industrial-strength Compact Flash
card and Compact Flash drive available
through your Avaya sales representative.
Optional Uninterruptable Power Supply
(UPS) for AC-Powered Gateways Only.
Note:
Note: A stand-alone version of the
UPS is shown.
h1dccfla LAO 110306

Conduct Equipment Inventory
10 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server

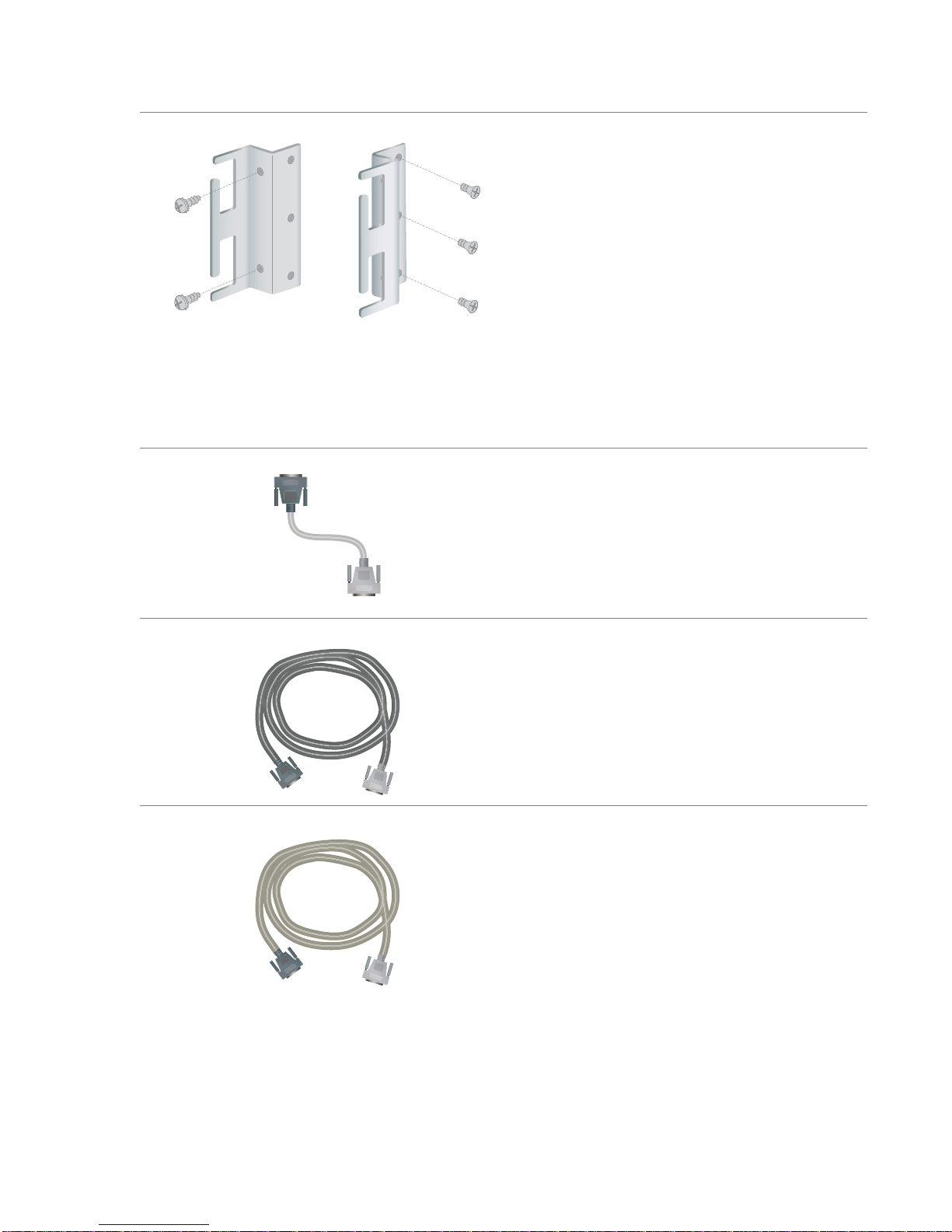

Screw Packet and Rack Mount Brackets
For each bracket:
●three flat-head machine screws
attach the bracket to the G700
●two round-head lock-washer machine
screws attach the bracket to the rack
Note:
Note: There are four sizes of
lock-washer screws in the
packet for attaching the
bracketsto the rack. Use the
appropriate size screws to
match the specific hole size
of the rack.
Optional X330SC Short Cable.
Note:
Note: The X3300SC Short Cable
is sometimes shipped
attached to the X3300STK
Octaplane Stacking Module.
Optional X3300RC Redundancy Cable.
Optional X3300 LC Long Cable.

Issue 8 February 2007 11
Optional USB Cable and Adapter for use
with the USB modem.
Crossover Ethernet Cable (CAT5)
Serial or "Console" Cable and Adapter
Ground wire.

Conduct Equipment Inventory
12 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server
Optional AC Power Cord
Optional DC Power Cord.
Feet used for table mounting.

Issue 8 February 2007 13
Chapter 3: Mount Media Gateway
1. Wear an anti-static ground wrist strap
and attach to an approved ground.

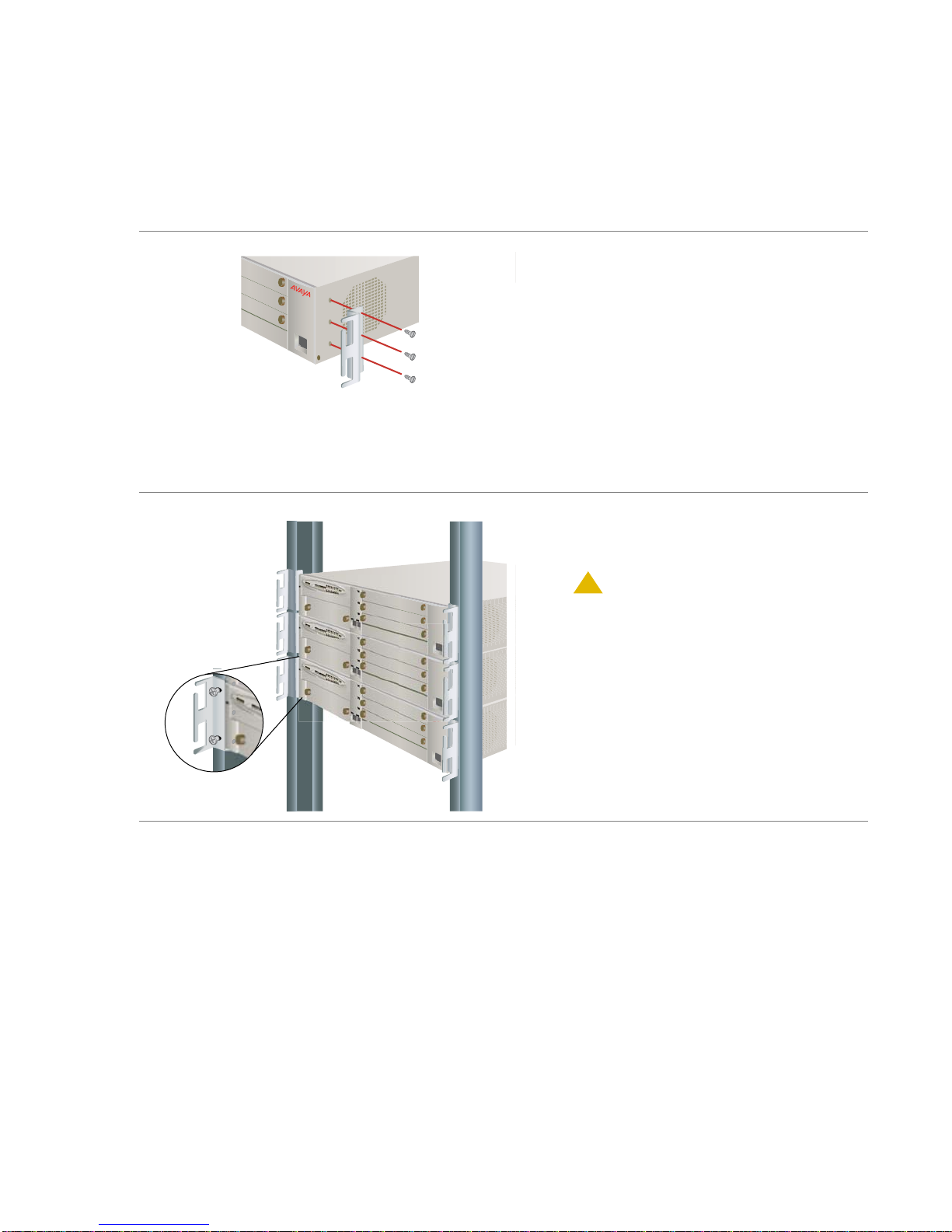

2. For rack mount, install the mounting
brackets on the left and right sides of
the gateway chassis using the
flathead screws from the bracket
packet.
Note:
Note: The brackets can also be
installed in the middle of the
chassis.
3. Lift the media gateway chassis and
mount in a rack using two lock-washer
screws for each bracket.
!CAUTION:
CAUTION: The weight of the media
gateway is unevenly
distributed and may require
two persons to mount in the
rack.

Mount Media Gateway
14 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server

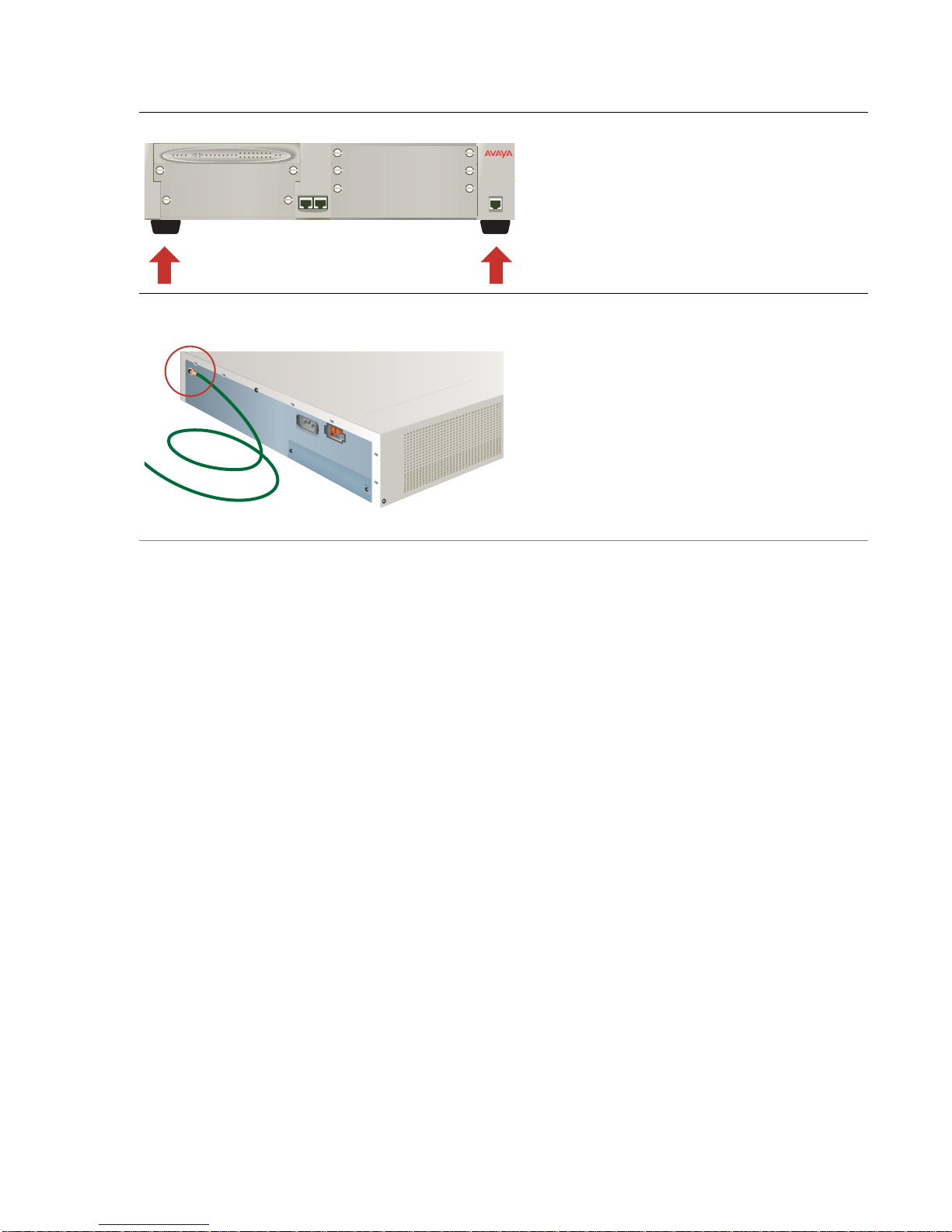

4. For desktop mount. Install feet using
plastic push rivets.
5. Connect the ground wire to the ground
conductor on the back of the media
gateway.
6. Attach the other end of the ground
wire to an approved ground.
V2
V3
V4
EXT1 EXT2
V1
ALM PWR CPU MSTR LNK COL Tx Rx FDX FC Hspd LAG
51 52 53 54 55 56 57 58
59 60 61 62 63 64 65 66
EXT1 EXT2

Issue 8 February 2007 15
Chapter 4: Install Octaplane Stacking Module
Note:
Note: Complete these steps only if you are connecting more than one G700 Media
Gateway in a stack configuration.
1. Remove the blank faceplate from
the Octaplane slot on the back of
the media gateway.
2. Align the X330STK Octaplane
Stacking Module with the interior
guides and insert until firmly
seated
!WARNING:
WARNING: To prevent damage to
equipment, handle the
module by the
faceplate or edge.
3. Tighten the captive screws.

Install Octaplane Stacking Module
16 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server

Issue 8 February 2007 17
Chapter 5: Connect Media Gateways
Note:
Note: Complete these steps only if you are connecting more than one G700 Media
Gateway in a stack configuration.

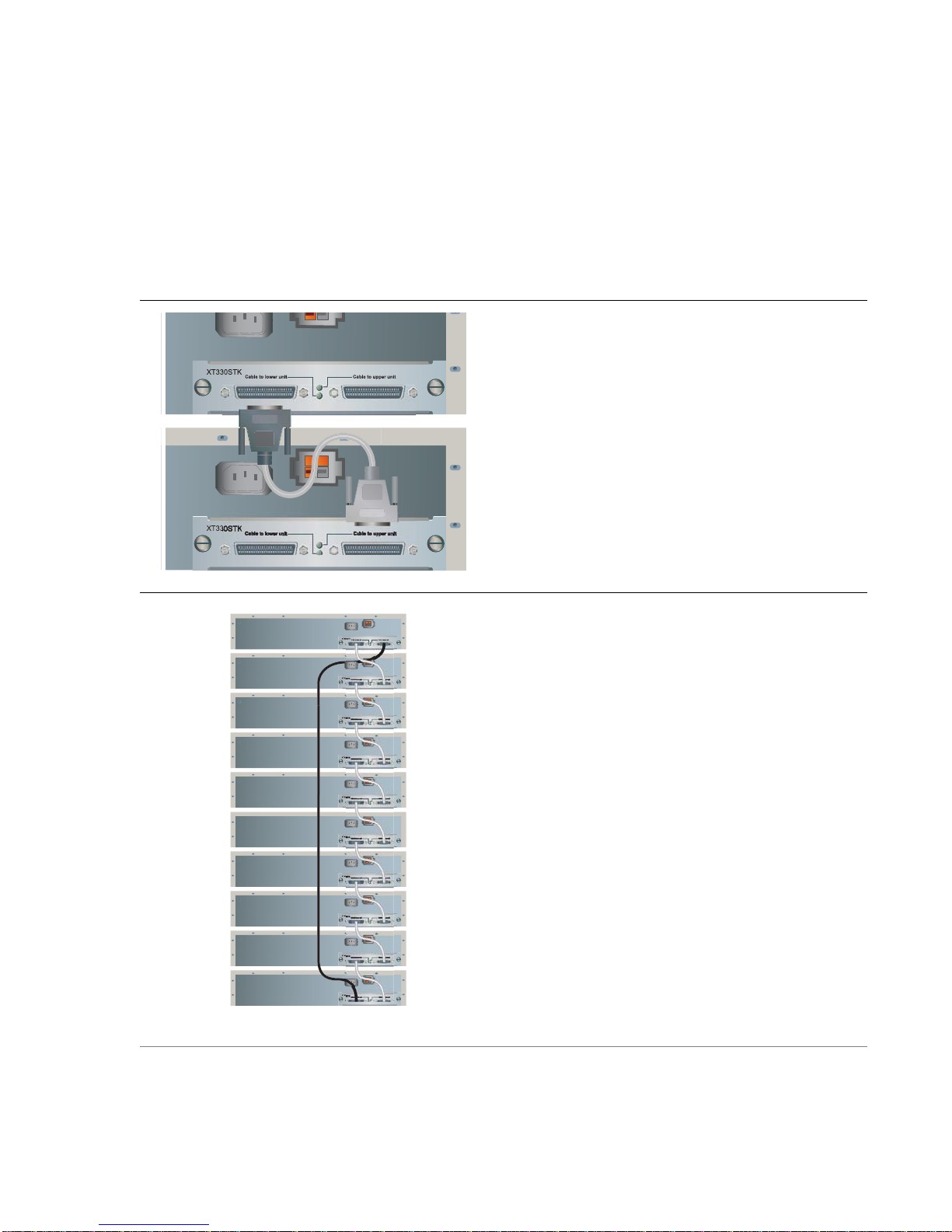

1. Using the gray X330SC short cables,
connect the media gateways from the
bottom up:
●Connect the light gray connector to the
port labeled “Cable to upper unit.”
●Connect the dark gray connector to the
port labeled “Cable to lower unit.”
●Repeat both steps until all units in the
stack are connected (maximum of 10
units).
2. For single-stack redundancy, connect the
bottom unit and the top unit using the
black X330RC redundancy cable:
●Connect the light gray connector to the
port labeled “Cable to upper unit: on
the top unit of the stack.
●Connect the dark gray connector to the
port labeled “Cable to lower unit” on
the bottom unit of the stack.
Single-stack redundancy

Connect Media Gateways
18 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server

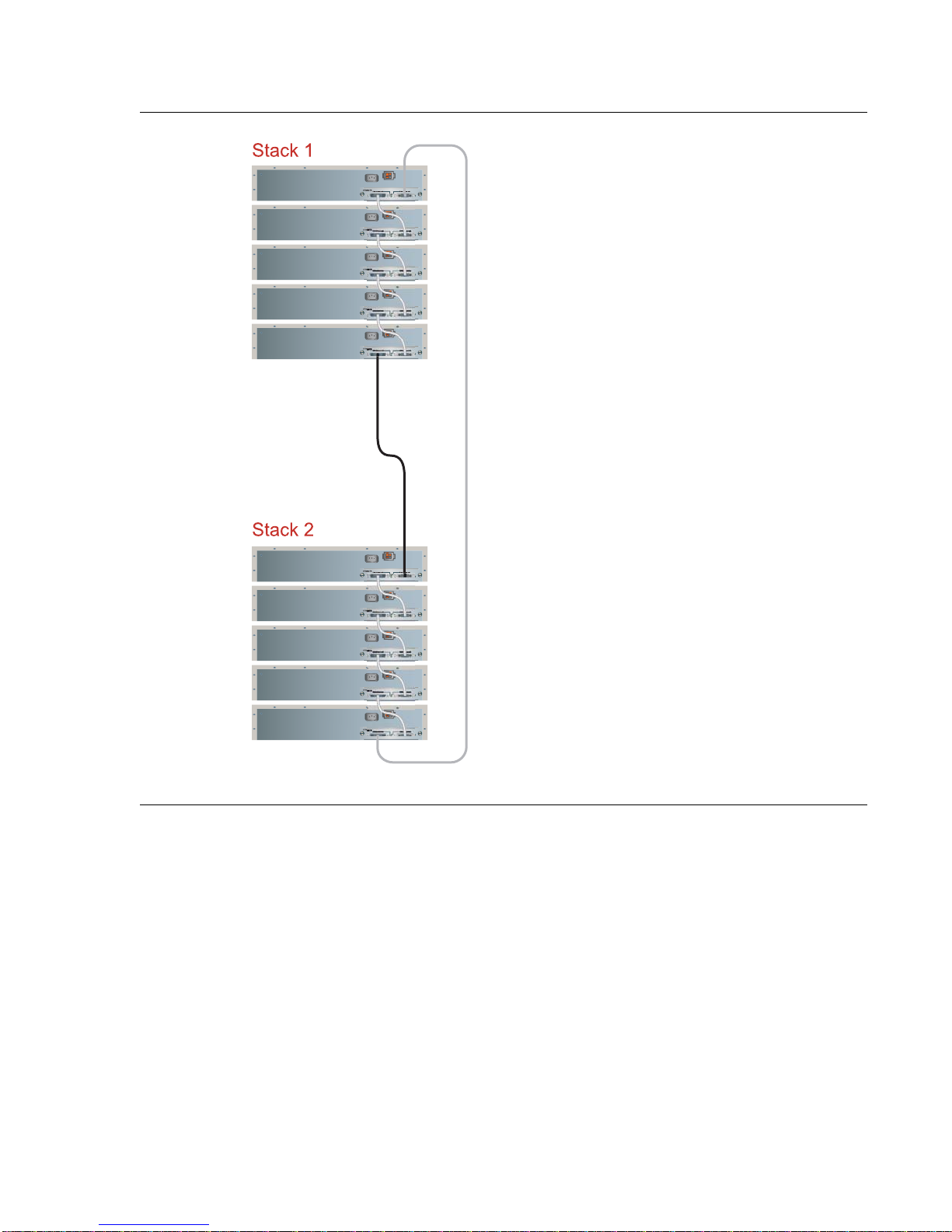

3. For multiple stack redundancy, connect
the stacks using the black X330RC
redundancy cable and the gray X330LC
long cable:
●Connect the light gray connector of the
black X330RC redundancy cable to the
port labeled “Cable to upper unit” on
the top unit of the stack 2.
●Connect the dark gray connector of the
black X330RC redundancy cable to the
port labeled “Cable to lower unit” on
the top unit of the stack1.
●Connect the light gray connector of the
gray X3300LC long cable to the port
labeled “Cable to upper unit”on the top
unit of the stack 1.
●Connect the dark gray connector of the
gray X330LC long cable to the port
labeled “Cable to lower unit” on the
bottom unit of the stack 2.
Multiple-stack redundancy

Issue 8 February 2007 19
Chapter 6: Install S8300 Media Server
Note:
Note: Complete these steps if you are installing an S8300 Media Server (configured as
the primary controller or as a Local Survivable Processor).

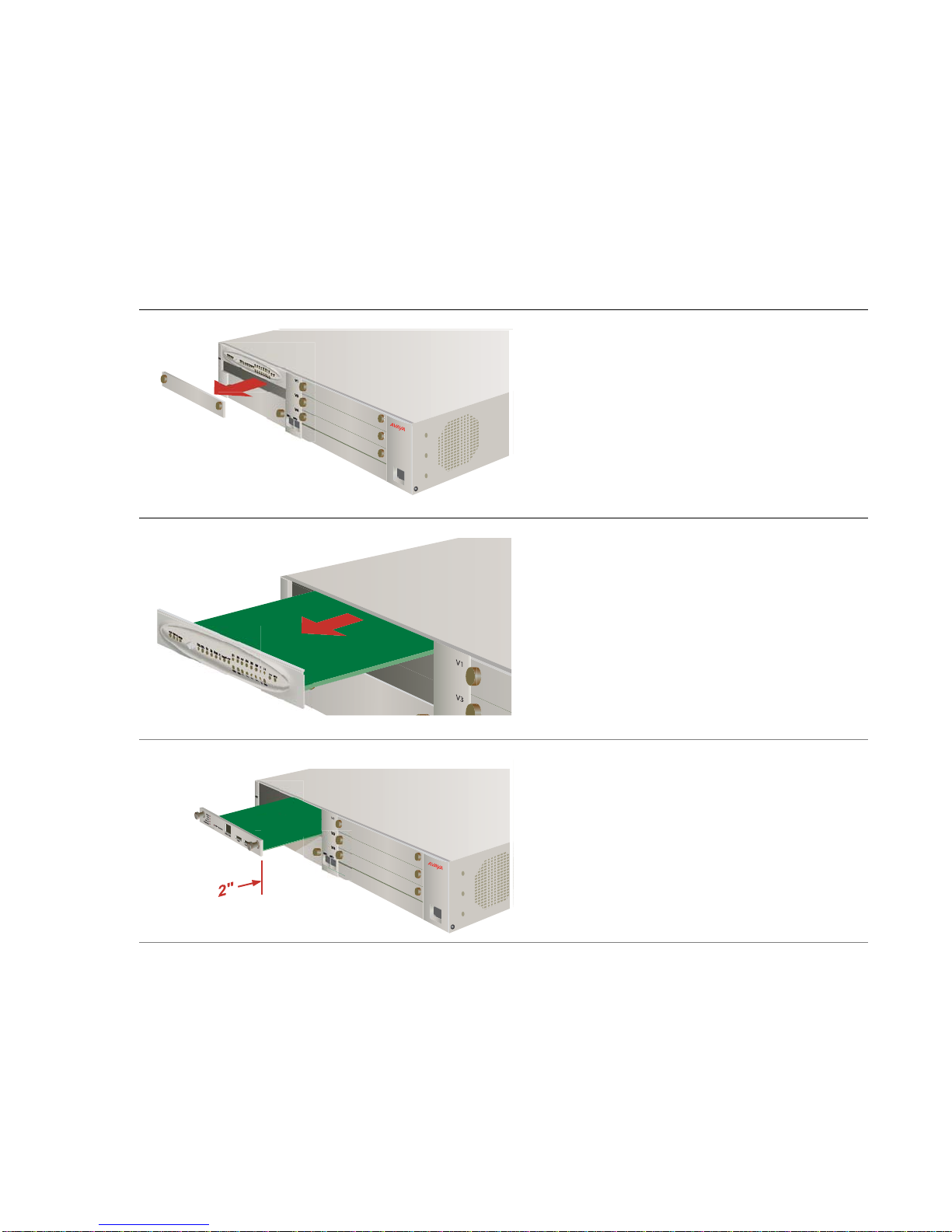

1. From the front of the G700 Media
Gateway, remove the blank faceplate
from slot V1.
2. For an S8300B, remove the LED
module (located above slot V1) and
place in an anti-static bag.
For an S8300C, you do not need to
remove the LED module.
3. Align the S8300 Media Server with the
lower interior guides.
For an S8300B, insert about 2" into slot
V1.
For an S8300C, insert all the way into
slot V1 until the faceplate is flush with
the LED module.

Install S8300 Media Server
20 Quick Start for Hardware Installation: G700 Media Gateway & S8300 Media Server
4. For an S8300B, align the LED module
with the upper interior guides and
insert until the faceplate is flush with
the S8300B Media Server.
5. For an S8300B, continue inserting both
modules together until firmly seated.
!WARNING:
WARNING: Failure to seat both modules
together could result in
equipment damage.
6. Tighten the captive screws on the
S8300.
V2
V3
V4
EXT1 EXT2
V1
ALM PWR CPU MSTR LNK COL Tx Rx FDX FC Hspd LAG
51 52 53 54 55 56 57 58
59 60 61 62 63 64 65 66
EXT1 EXT2
ALM
TST
ACT
OKTO
REMOVE
SHUT DOWN
SERVICES USB1 USB2
