AVer Box type User manual

AVer Box type Camera
Installation Guide

Table of Contents
IMPORTANT SAFEGUARD.................................................................................................1
PACKAGE CONTENTS.......................................................................................................2
OPTIONAL ACCESSORIES................................................................................................2
BOX IP CAMERA PARTS....................................................................................................3
FRONT PANEL ....................................................................................................................3
REAR PANEL ......................................................................................................................3
CS-MOUNT LENS ...............................................................................................................4
IP CAMERA INSTALLATION...............................................................................................4
CONNECTING THE LENS.......................................................................................................4
DEPLOYING NETWORK ........................................................................................................5
Network Connection via Ethernet Switch....................................................................5
Connect the power adapter to DC12V port of camera................................................5
Power over Ethernet Connection................................................................................6
RJ45 LED ........................................................................................................................6
CONNECTING EXTERNAL DEVICES TO I/OTERMINAL BLOCK....................................................7
POWER LED......................................................................................................................7
INTERNAL CONNECTION DIAGRAM OF DI/DO.........................................................................7
ADJUSTING THE CS-MOUNT RING.........................................................................................8
FOCUSING THE IPCAMERA WITH BNC MONITOR .................................................................10
TECHNICAL SPECIFICATIONS ..............................................................................................11
FX2000 (E)/FX3000-R (E) ...........................................................................11
FCC NOTICE (CLASS B) ..................................................................................................15
NOTICE..............................................................................................................................15
WARNING..........................................................................................................................15
GOVERNING LAW AND YOUR RIGHTS ..........................................................................17

1
ENGLISH
Important Safeguard
Do not use power supply with different voltage
other than DC 12V / PoE.
Keep this unit away from direct heat or sunlight.
Unplug the power of this unit as soon as smoke
or unusual odor is detected.
Do not expose this unit to rain or high humidity
environment.
Do not attempt to service this unit by yourself.
Always refer all servicing to qualified service
personnel.
Unplug the power supply before cleaning. Use
only a lens cleaning cloth and never use
benzine, thinner, or other solvent for cleaning.
Keep the IP camera housing close and prevent
the dust from getting in the housing.
Do not place the unit in unsteady surface and
also do not drop the unit.

2

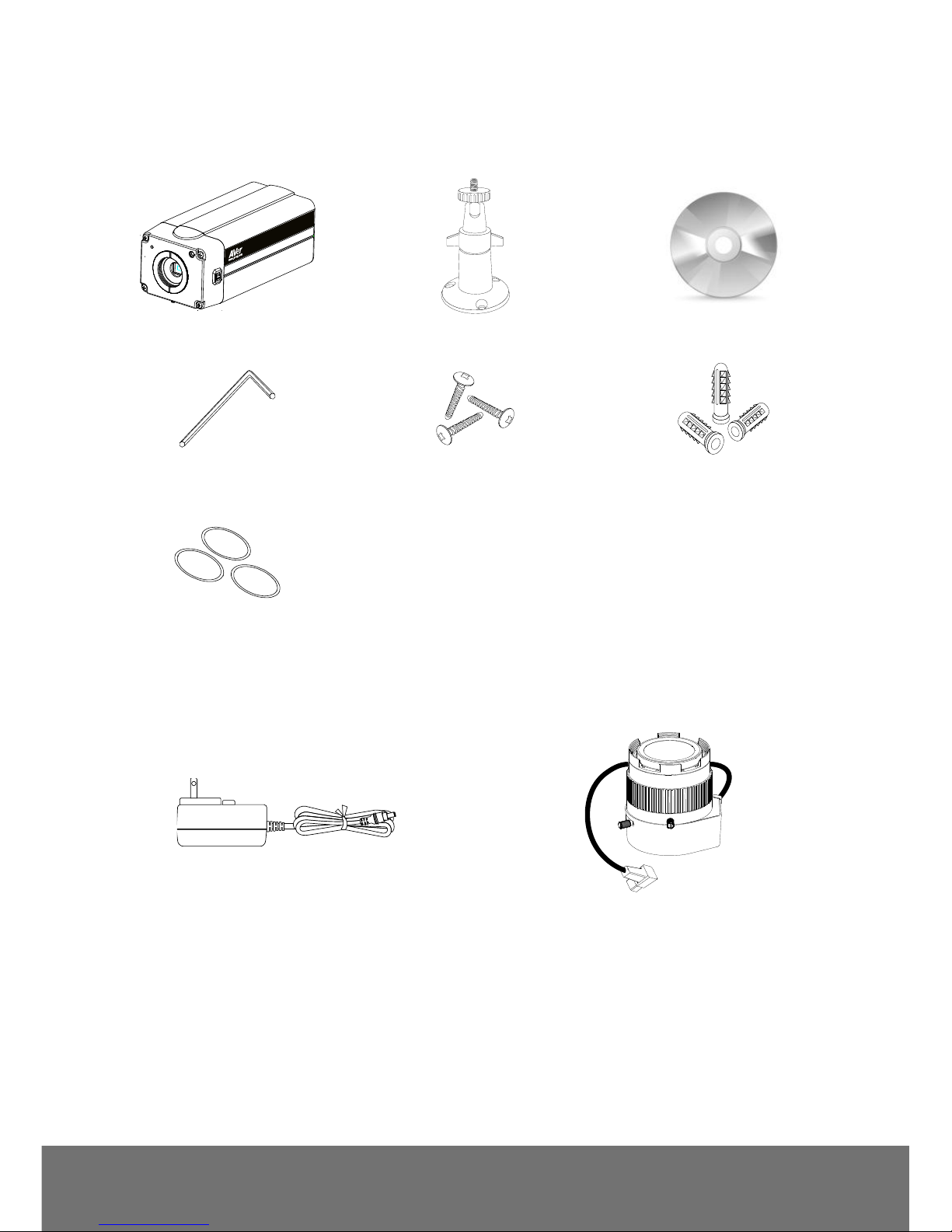

Package Contents
The following items are included in the package.
AVer Box type Camera
Camera stand
Software & Manual CD
L-type Hex Wrench
3 Screws
3 Plastic Anchors
3 Lens Ring Pad
Optional Accessories
Power Adapter (12V, 2A)
CS-mount Lens
* The power adapter will vary depending on the
standard power outlet of the country where it is
sold. Depending on your package the power
adapter maybe included.

3
ENGLISH

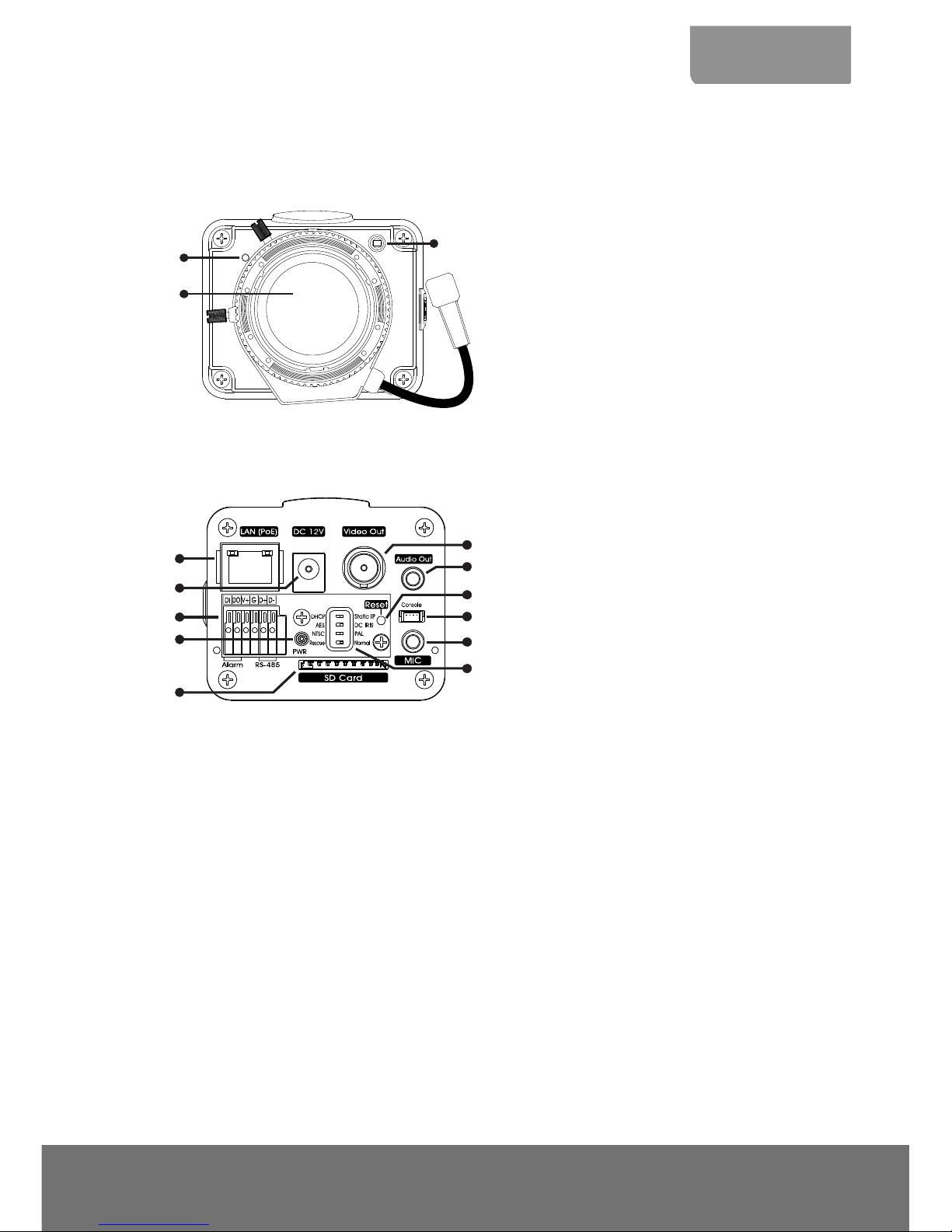

BOX IP Camera Parts
Front Panel
(1)
(2)
(3)
(1) Built-in MIC
(2) Lens
(3) Light Sensor
Rear Panel
(5)
(3)
(1)
(2)
(6)
(10)
(11)
(9)
(7)
(4)
(8)
(1) RJ45 Ethernet Port
(2) DC 12V
(3) I/O Terminal Block
(4) Power LED Indicator
(5) SD card slot
(6) Video Out
(7) Audio Out
(8) Reset button
(9) Console
(10) MIC
(11) DIP switch
DHCP/Static: Switch IP mode
to DHCP (dynamic IP) or
Static (fixed IP) mode.
AES/DC IRIS: Select AES
(automatic shutter) or DC
IRIS.
NTSC/PAL: Set to NTSC or
PAL mode.
Rescue/Normal: N/A
[Note] The reset button will set all the configuration settings back to factory default.

4
CS-Mount Lens
(1)
(3)
(2)
(1) Zoom controller
(2) Focus controller
(3) DC-Iris control cable
IP Camera Installation
This section provides useful tips on how to adjust the IP camera to meet your needs.
Connecting the Lens
1. Screw in the CS-mount lens clockwise to
the CS-mounting ring. Make sure the lens
adhesive cover is removed when using it for
the first time.
2. Connect the CS-mount lens cable to the
socket.

5
ENGLISH
Deploying Network

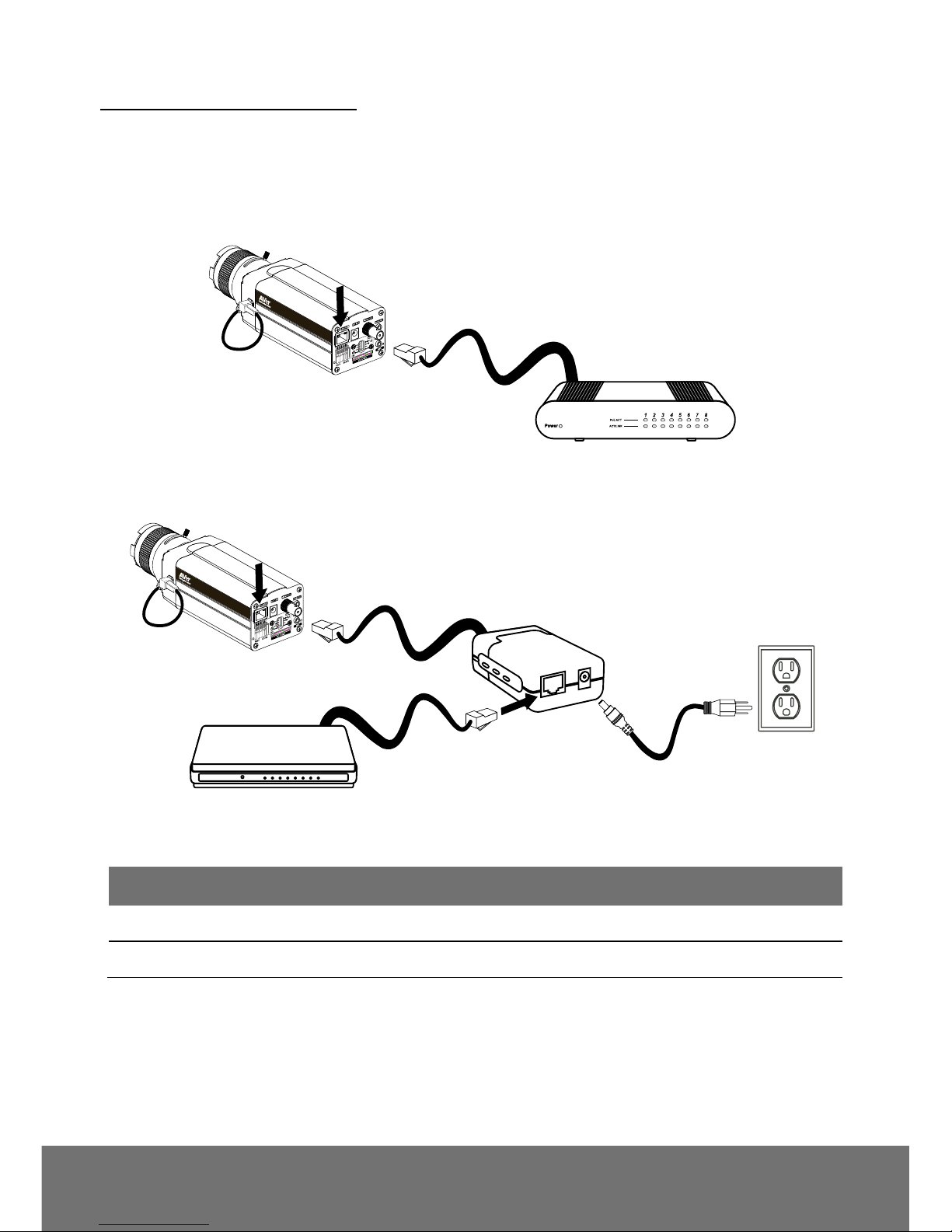

Network Connection via Ethernet Switch
Connect the RJ45 cable from the Ethernet switch to RJ45 Ethernet jack of camera
Ethernet Switch
Connect the power adapter to DC12V port of camera
Power Adapter Wall Outlet

6
Power over Ethernet Connection
Box type camera is fully complied with PoE standard. It allows you to use PoE enabled switch or PoE
injector to transmit data and power thru single Ethernet cable.
PoE Enabled Switch Connection Diagram
PoE Switch
PoE Injector Connection Diagram
Ethernet Switch
PoE Injector
Power cable
Wall outlet
RJ45 LED
LED
Status
Blinking Green
Connected to 100 Base-T mode and also transmitting and receiving data.
Steady Yellow
Connected to the Internet.

7
ENGLISH
Connecting External Devices to I/O Terminal Block
(5)
(1)
(2)
(3)
(4)(6)
(1) Alarm Data In
(2) Alarm Data Out
(3) Power 12V support 200mA
(4) Ground
(5) RS-485 (+)
(6) RS-485 (-)
Power LED
LED
Status
Steady Red
Power on
Blinking Red
Firmware update complete
No Light
Power off
Internal Connection Diagram of DI/DO

8
Adjusting the CS-mount Ring
1. Unplug the CS-mount lens cable from the
socket.
2. Unscrew the CS-mount lens
counterclockwise.
3. Place one lens ring pad.
4. Screw the CS-mount lens and connect the
CS-mount lens cable to the socket. Check if
the IP camera can display proper image. If
not, repeat step 3 and 4 to add the next ring.
If all the rings are used up and still the IP
camera cannot display proper image.
Remove all the rings and continue to next
step.
5. Using the L-type hex wrench loosen the bolt
underneath the IP camera.
