Preface
The FD1020 is a 1 / 4” Mega-Pixel CMOS sensor IP camera with a built-in web server. The user can
view real-time video via IE browser. It supports H.264, and M-JPEG video compression, providing
smooth and high video quality. The video can be stored in Micro SD card and playback remotely.
With a user friendly interface, it is an easy-to-use IP camera for security applications.
Product Specifications
Real Time HD 720P
Digital Wide Dynamic Range
Adjustable Shutter Speed
3D+2D Digital Noise Reduction
Adjustable Sense Up
Day & Night Manual Switch Time Control
Power over Ethernet
Built-in IR LED, 5M Available
2-way Audio
H.264/ M-JPEG Compression
Micro SD Card Backup(Optional)
Support iPhone/Android/Mac
SDK for Software Integration
Free Bundle 32CH Recording Software

2
Specifications
Hardware
CPU
Multimedia SoC
RAM
128MB
Flash
16M
Image sensor
1 / 4” Mega-Pixel CMOS sensor
Lens type
2.8mm @ F1.8
ViewAngle
74.1°(H), 48.9°(V)
Shutter time
1/10~1/24,000 sec
Min.illumination
Color : 0.3 Lux (IR LED ON)
B / W: 0 Lux (IR LED ON)
ICR
Mechanism IR cut Filter
Audio Input/Output
G.711(64K) and G.726(32K,24K)
Input : Mic built-in
Output: External Line out
IR distance
5 Meter
Power Over Ethernet
Yes
Power Consumption
DC 12V Max: 2.52W(IR ON); 1.92W(IR Off)
PoE Max: 802.3af, 3.36W (IR ON); 2.88W(IR Off)
Operation Temperature
0°C ~ 45°C
Dimensions
100mm () x 49mm (H)
Weight
180g
Network
Ethernet
10/ 100 Base-T
Network Protocol
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access
list, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP,
DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour

3
System
Video Resolution
1280x800@30fps,1280x720@30fps,800x600@30fps,
640x480@30fps, 320x240@30fps, 176x144@30fps
Video Adjust
Brightness, Contrast, Hue, Saturation, Sharpness,
AGC, Shutter Time, Sense-up, D-WDR, Lens
Distortion Correction, Flip, Mirror, Day&Night
adjustable, Red Gain and Blue Gain, Denoise, Anti fog
Triple Streaming
Yes
Image snapshot
Yes
Full screen monitoring
Yes
Privacy Mask
Yes, 5 different areas
Compression format
H.264/ M-JPEG
Video bitrate adjust
CBR, VBR
Motion Detection
Yes, 3 Different Areas
Triggered action
Mail, FTP, Save to SD card, SAMBA, DO
Pre/ Post alarm
Yes (Pre: 5 secs/ Post: 5 secs)
Security
Password protection, IP address filtering, HTTPS
encrypted data transmission, QoS/DSCP
Firmware upgrade
HTTP mode, can be upgraded remotely
Simultaneous connection
Up to 10
Audio
Yes, 2-way (mono)
MicroSD/SDHC card management
Recording trigger
Motion Detection, IP check, Network break down (wire
only),Schedule, DI
Video format
AVI, JPEG
Video playback
Yes
Delete files
Yes

4
Web browsing requirement
OS
Windows 7, XP
Microsoft® IE 8.0 or above
[Note] Please enable “Compatibility View” while using
IE 10 or above.
Hardware Suggested
iOS 4.3 or above,Android 1.6 or above.
Mobil support
Intel Dual Core 2.53G
RAM: 1024MB
Graphic card: 128MB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

5
Package contents
Item
Descriptions
1. FD1020
2. Power Adaptor (Optional item)
3. Wall plus
4. Screw
5. CD (User’s Manual and Quick Guide, NVR
software included)

6
Product Installation
Monitor Setting
1. Right-click on the desktop. Select “ Properties”
2. Change “Color quality” to “Highest (32-bit)”.

7
Hardware Installation and I/O Pin Assignment
1. Product Overview

8
2. Installation
a. Open the camera cover by pressing the two sides as shown in the following figures:

9
b. Use screws to secure the camera on the ceiling or the wall.
[Note] Do not lock it completely because you might need to adjust the lens angle
later.
c. Unscrew the lens to adjust the angle.
d. After adjusting the lens,screw it tight. Repeat steps b and c as you need during the
whole process.

10

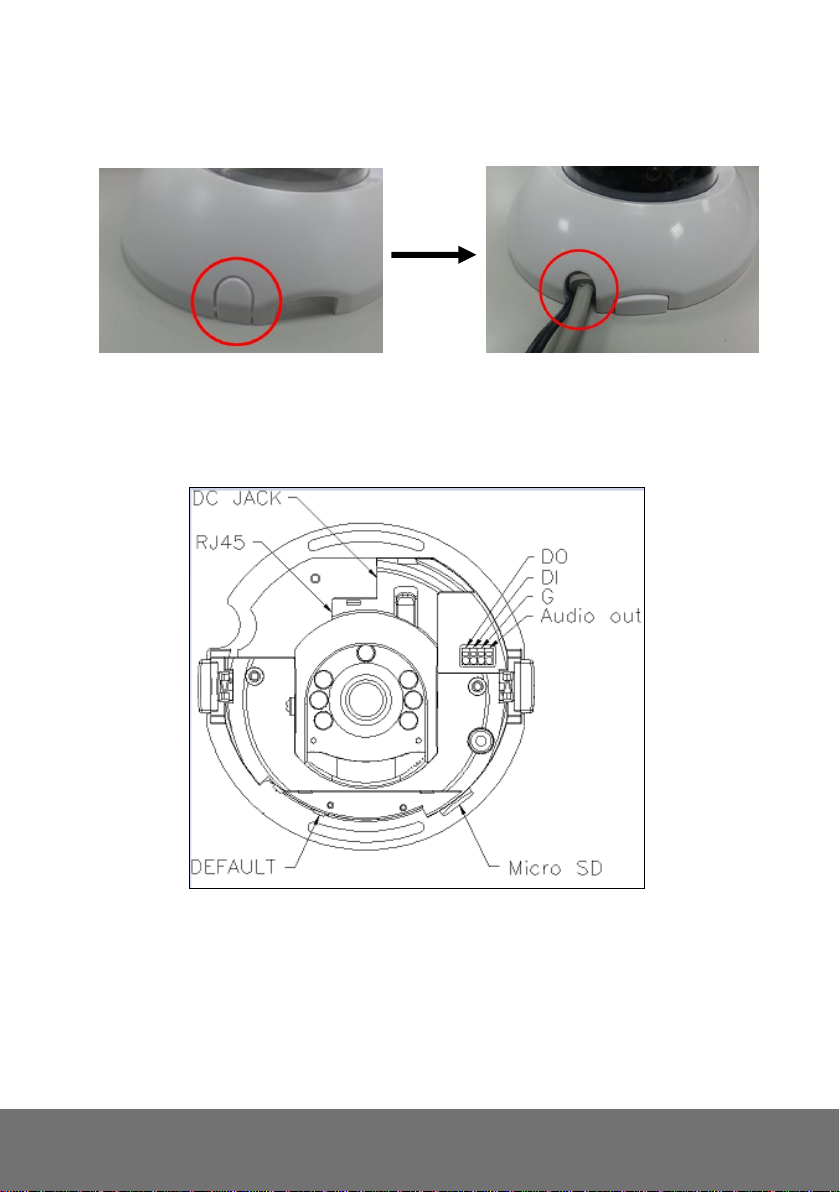

e. Connect the Ethernet and Power adaptor.
f. Break the cover hole carefully and plug-in the Ethernet and power adaptor.
g. After finishing step b and c, screw tight the camera on the ceiling or wall.
h. Close the camera cover.
3. Connector Instruction

11
4. I/O Configuration
a. Connect the G (GND) & DO pin to the external relay (buzzer) device.
b. Connect the G (GND) & DI pin to the external trigger device.
When no event occurs, the DO output is 5V (DO and GND are disconnected). When the camera
detects events it will trigger and external alarm, DO output is 0V (DO and GND are connected).

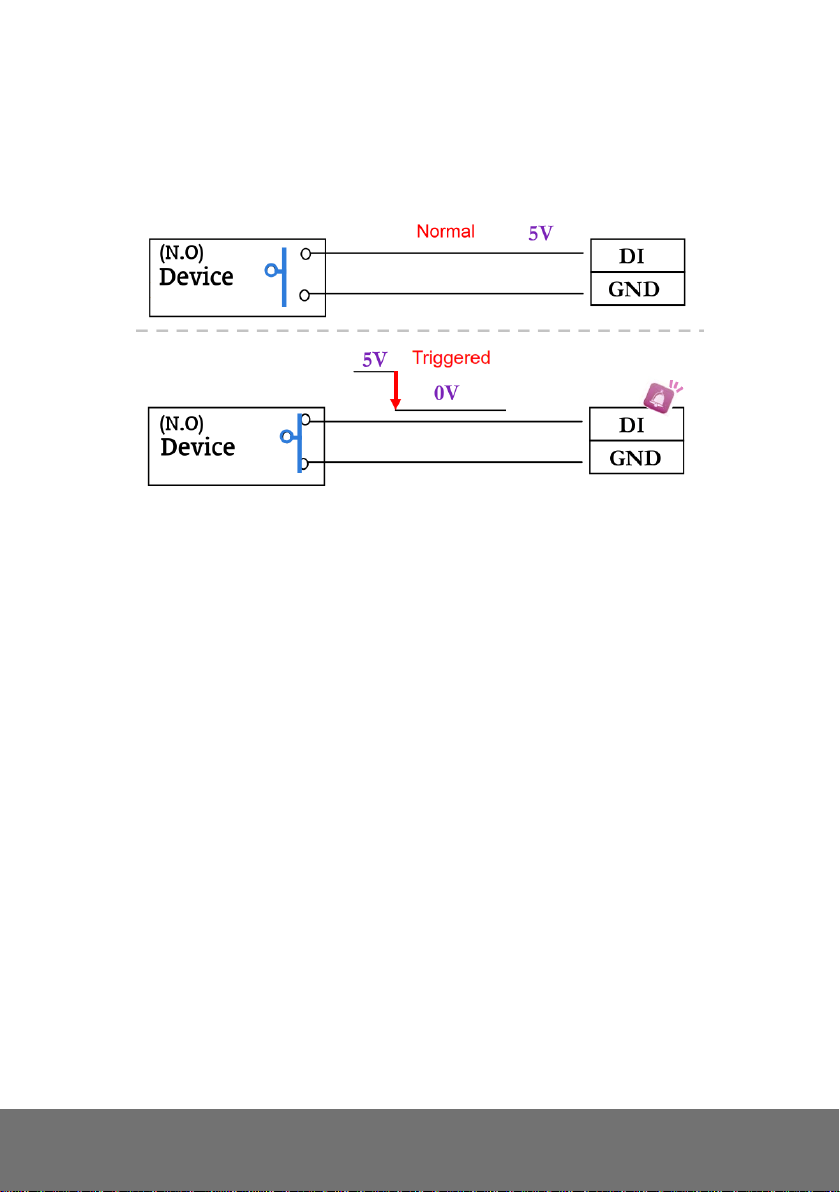

If you select N.O on Input sensor setting, when the switch contacts are opened, the camera input
alarm will be triggered and will execute the action user has set, for example, send a snapshot to
E-mail address.

12
If you select N.C in Input sensor setting, when the switch contacts are closed, the camera input
alarm will be triggered and will execute the action user has set, for example, send a snapshot to
E-mail address.
c. I/O PIN definition
GND (Ground): Initial state is LOW
DO (Digital Output): DC 5V
DI (Digital Input): Max. 50mA, DC 5V

13
Power Over Ethernet (PoE)
Set up the IP camera through Power over Ethernet (PoE). PoE is a technology that integrates power
into a standard LAN infrastructure. It enables power to be provided to the network device, such as an
IP camera, using the same cable as that used for network connection. It eliminates the need for power
outlets at the camera locations.
[Note] 802.3af, 15.4W PoE Switch is recommended.
Ethernet
PoE Switch
PoE IP Camera
PoE IP Camera
Ethernet Cable
Ethernet Cable

14
IP Assignment
There are two ways to find IP Camera:
Finding IP Camera by using “NXU Lite recording software”
Finding IP Camera by using “AVer IPCam Utility”
Finding IP Camera by using “NXU Lite recording software”
1. The NXU Lite software is in the attached software CD. Before launching it, please install the
software first. During the installing process, users will be required to input a User name and
Password for login NXU Lite system. Users can define the User name and Password as wishes.
Please refer to NXU Lite user manual for detailed installation instruction.
2. To run the application, double-click on your PC desktop or click Start > Programs > DVR >
NXU Lite. For security purpose, some of the features would require you to enter User name and
Password before it can be accessed. When the Authorization dialog box appears, key in your User
ID and Password. (If this is the first time, enter the one you have registered when installing the
software.
Click it to call out virtual
keyboard.

15
3. Click “Setup”button.
4. Click “Add IPCam”button.

16

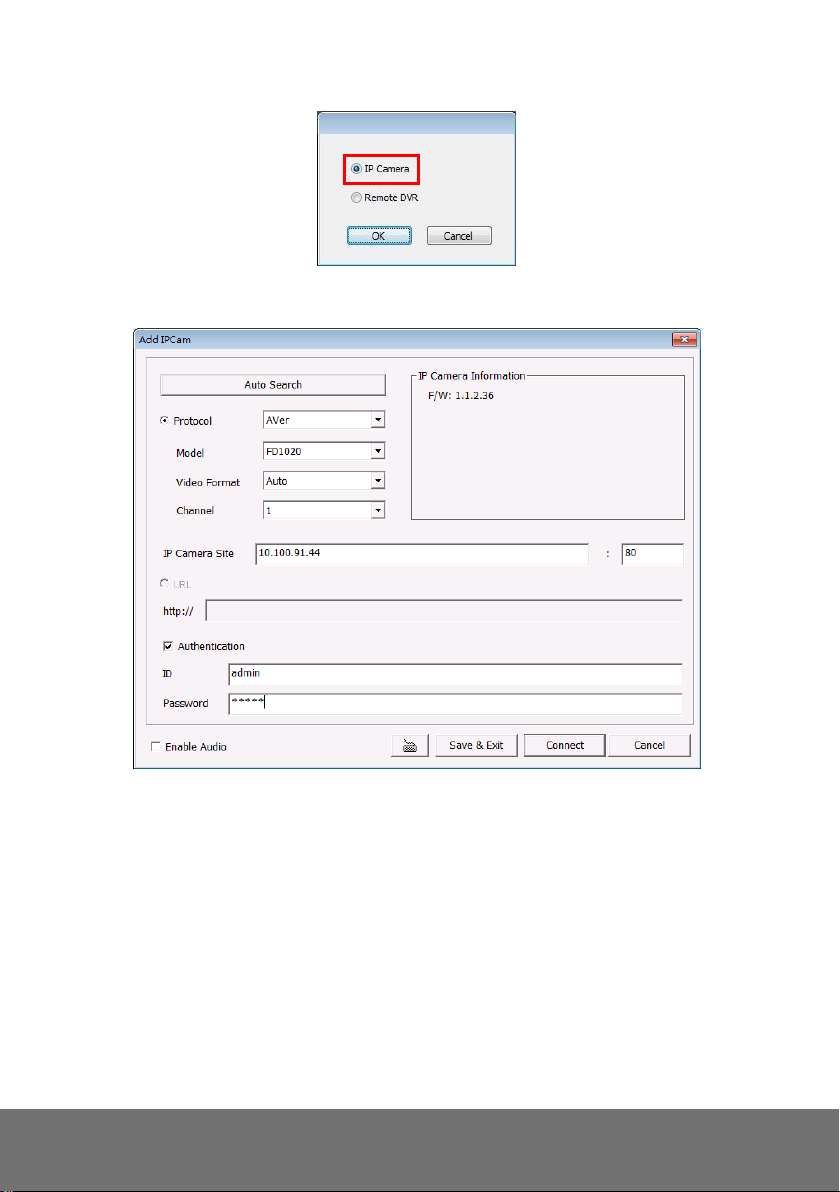

5. Select “IP Camera”item.
6. Enter IP Camera’s ID and Password (default is admin/admin) and click “Auto Search”to find
camera.
