User Manual
AVerCaster SE510
SE510
English

1
Disclaimer
All the screen shots in this documentation are only example images. The images may vary depending on
the product and software version. Information presented in this documentation has been carefully checked
for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this
documentation is subject to change without notice.
Copyright and Trademark Information
© 2015 by AVerMedia Technologies, Inc. All rights reserved. No part of this publication, in whole or in part, may
be reproduced, transmitted, transcribed, altered or translated into any language in any form by any means
without the written permission of AVerMedia Technologies, Inc. Information and specication contained in this
manual are subject to change without notice and do not represent a commitment on the part of AVerMedia.
For more information, please refer to www.avermedia.com.
AVerMedia and NexStream are trademarks or registered trademarks of AVerMedia Technologies, Inc.
Headquarters
Address No.135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Website http://solutions.avermedia.com/professional
Support T[email protected]
Telephone [phone]
Edition: 1.0
Date: 08/26/2015

1
Table of Contents
About This Manual 2
Introduction 3
Getting Started 4
Management Interface 6
Congurations for Streaming 7
Watching Streaming Contents – VLC 9
Watching Streaming Contents – Ustream 10
Settings 12
Updating Firmware (PC Only) 14

2
3
About This Manual
This manual instructs users on how to set up, configure and use an
AVerCaster SE510 (or SE510) streaming box and NexStream application
to stream HDMI or composite signals to a number of users in an IP
network.
This manual is intended for system administrators or system integrators
who want to use IP stream services with SE510s. The manual assumes
readers are familiar with basic networking and streaming concepts. The
purpose of this document is to provide readers an overview of some
main functions of the SE510 interfaces and some basic instructions on
how to set up streaming tasks and how to watch streaming contents with
supported media players.

2
3
Introduction
The AVerCaster SE510, developed by AVerMedia, is the solution to provide
top-notch functions from HDMI and Composite inputs to IP streaming services.
The following includes some basic information about the AVerCaster SE510,
such as specications, network considerations, compatible clients, etc.
Input Signals HDMI
Composite (CVBS) with RCA L/R audio
Output Signals
(for preview)
HDMI
Composite (CVBS) with L/R audio, in 3.5 mm adapter
Input Video Format
Auto-detected
CVBS: 480i, 576i
HDMI: 480p, 576p, 720p24/25/50/60, 1080i50/60, 1080p24/25/30
Input Audio Format Analog from RCA
HDMI embedded: 16/20/24 bit LPCM 32/44.1/48K sample rate
Encoded Video Format
H.264 High/Main/Baseline prole
Resolution 320x240–1920x1080
Frame rate 24, 25, 30, 50, 60, depending on input signal
Bit rate 500 Kbps–8 Mbps
Encoded Audio Format AAC-LC mono/stereo
Bit rate 64–512 Kbps
Streaming protocols RTMP publish
HLS pull-mode (for preview)
Physical Buttons
Start/stop streaming
Reset to factory default
WIFI 2.4 G / 5 G switch
Ethernet RJ45 port supporting 10/100 Mbps links
Static/DHCP/Auto IP assignment
WIFI 802.11 a/b/g/n, 2.4 G / 5 G
Access point and client mode simultaneously
Operating Environment Temperature: 0–50°C/32–122°F
Humidity: 0–80Temperature: 0–50°C/32–122°F% RHNC
Storage Environment Temperature: -30–65°C/-22–149°F
Humidity: 0–90% RHNC
Power 12 V / 1.5 A: 18 W Maximum
Weight 380 g
Dimensions 132 mm (W) x 218 mm (L) x 43 mm (H)
Administration
Web UI supporting IE, Firefox, Safari, Chrome browser
Finder APP supporting iPad, Android Pad, Windows, Mac OS
HTTP+JSON API for integration and remote control
Supported Clients &
Software
VLC Media Player for Windows, Linux, or Mac
AVerMedia CMS & AVerReceiver
Wowza
Adobe Media Server

4
5
Getting Started
You can capture HDMI or composite signals from an external AV input
source. You can also decide the environment and streaming conditions
of each input signal. Please note that HDCP-protected video cannot be
streamed.
The following is a brief overview of the steps to set up IP streaming.
Step 1: Install your SE510
Before using your SE510, make sure the device is properly connected and
powered-on. Please refer to the Quick Installation Guide in the package for
hardware installation. To make sure the trafc of streaming is not blocked,
turn off your rewall or security programs beforehand.
Step 2: Install NexStream
Before streaming, install NexStream from the installation CD on your PC/
Mac or download the NexStream app to your mobile device to set up your
SE510.
Step 3: Detect your SE510
Run NexStream and click to nd your SE510. Your PC/Mac/
smart device and SE510 must be under the same local area network.

4
5
Step 4: Log In to NexStream
After your SE510 is found, click it to enter NexStream. When the login
page appears, enter your password. (Default password: avermedia)
Step 5: Start streaming
See next section for more details.
Other Support
For more support, email us at T[email protected].

6
7
Management Interface
NexStream allows administrators to manage and set up the IP streaming
service. After logging in the system, you can see the management
interface. The functions of each sections are as follows:
1Video and audio input selection
2Device name
3Settings (language, time/date, password, rmware update, etc.)
4Refresh button
5Preview screen
6Streaming platform and settings
7Streaming quality and settings
8Stream/Stop button
1
23
5
8
7
6
4

6
7
Congurations for Streaming
The SE510 supports two types of sources – HDMI and Composite.
Please see the the following instructions on how to stream properly.
Setting Up Live Streaming
Before setting up, make sure that an HDMI or a composite source is
connected to the corresponding port on the back of the device.

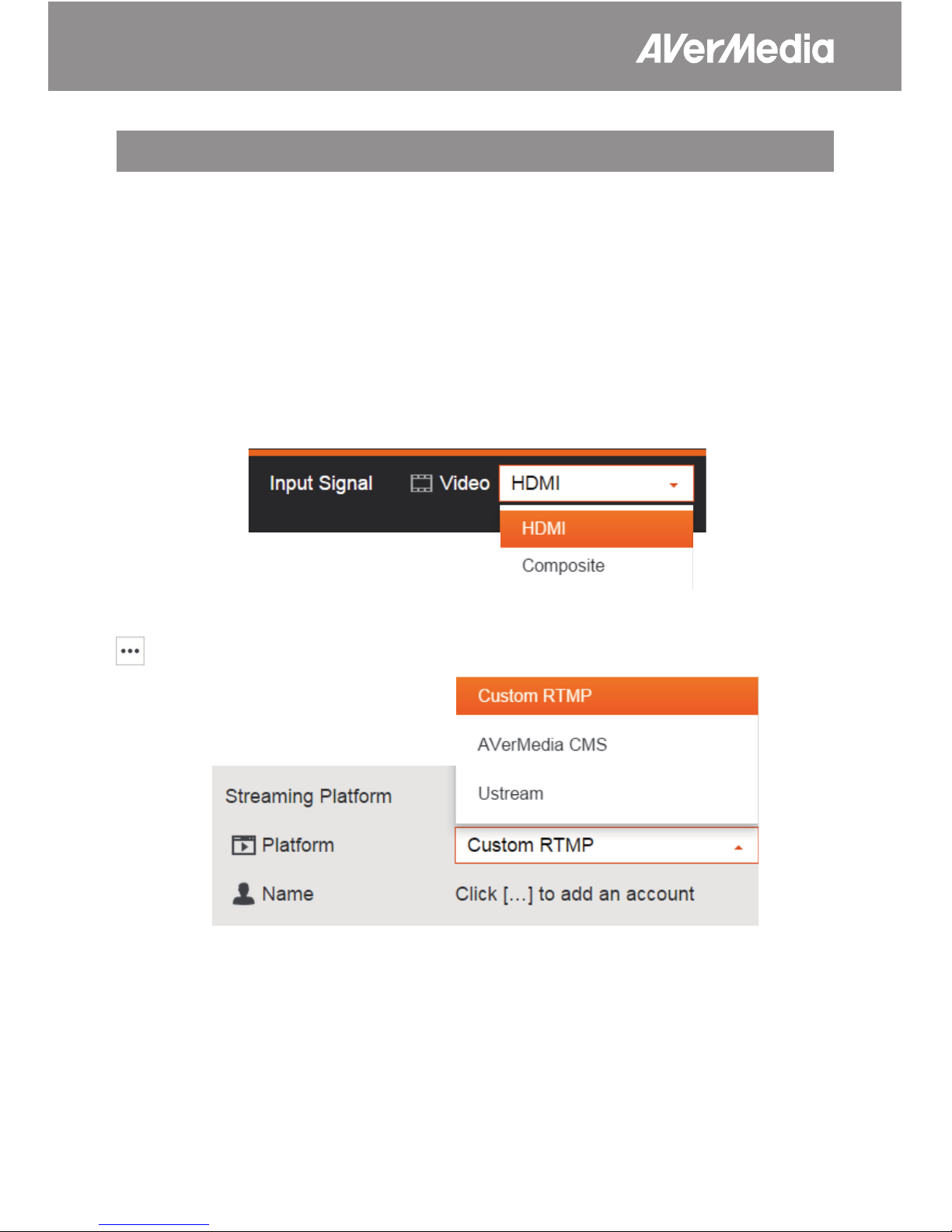

Step 1: Select a signal as video input.
Step 2: Select a Streaming Platform from the drop-down menu. Or click
to add a custom account.
Make sure to enter all the required fields properly when setting up a
custom RTMP account.

8
9
Step 3: Select a streaming quality for your content.
Or click to add a new quality prole.
Step 4: Click to start streaming.

8
9
Watching Streaming Contents – VLC
You can watch streaming contents on popular media player like VLC media
player.
Step 1: Open VLC and go to Media > Open Network Stream...
Step 2: Under the Network tab, enter your RTMP broadcast address
then click Play to start watching. (During RTMP streaming, the broadcast
address might be different, please consult your CDN administrator.)

10
11
Watching Streaming Contents – Ustream
AVerCaster SE510 allows you to broadcast on UStream.
Step 1: Go to Streaming Platform and click .
Step 2: Select UStream as your streaming platform and log in to your
Ustream account.
Step 3: Click to start streaming.

10
11
Step 4: Search the channel name on Ustream.com and start enjoying the
live streaming on Ustream.
Note: When encountering streaming difficulties, you can test your
bandwidth with the Ustream Network Test Tool and obtain recommended
encoding. Link: https://ustream.zendesk.com/entries/22962268-Internet-
connection-and-recommended-encoding-settings#bandwidth

12
13
Settings
Click to access various settings that are listed below.
Select Language (PC Only)
Set Time and Date
Edit Device Name
Change Password
Update Firmware

12
13
Restore Faculty Defaults
Report Problems
To report problems, click and email your downloaded log
les to us at T[email protected].

14 15
Updating Firmware (PC Only)
Step 1: Click to pull down Settings and select Update Firmware.
Step 2: Click Product Page to download the latest rmware.
Step 3: Click Choose File and select the downloaded rmware le.
Step 4: Click Update to begin.
Note: Do not operate the device or remove network cable during rmware
update as they will cause malfunction to the device.

14 15
