AVS RM43B User manual

OWNER’S MANUAL
AVS RM43B
OEM REPLACEMENT MIRROR MONITOR
Version: 07.2016
0800 438 862 or 09 476 8052
www.avscarsecurity.com
PRECAUTIONS FOR USE
The mirror monitor is made of glass. Do not subject it to mechanical
shock such as dropping the monitor.
Do not apply excessive force to the monitor surface or adjoining areas
as this may cause the colour tone to change.
Do not attempt to disassemble the monitor.
Warranty details can be found at www.avscarsecurity.com.
CLEANING
Spray glass cleaner onto a paper towel or soft cloth then gently wipe
the surface of the mirror monitor. DO NOT spray glass cleaner directly
onto the mirror monitor as this may damage the screen.
To clean the camera gently wipe the lens with a soft, clean cloth. If a
spot on the lens cannot be wiped o with the cloth add a very small
amount of mild detergent to the cloth. DO NOT use a degreasing agent,
wax or glass coating on the camera. DO NOT apply excessive force
otherwise you may alter the angle and position of the camera.
Warranty details can be found at www.avscarsecurity.com.
SAFETY PRECAUTIONS
Any rear view mirror monitor and camera system is designed as a visual
aid when reversing or manoeuvring the vehicle. Please be aware that
normal driving precautions must be followed.
The image on the screen may be a little dierent from the actual
conditions so always visually check the surrounding conditions before
reversing. Back up slowly. Do not depend solely on the rear view mirror
and camera system.
The displayable range varies depending on vehicle loads and road
conditions.
Do not leave a tailgate open when using the system.
Objects under or around the bumper cannot be displayed.

INTRODUCTION
Thank you for choosing this product from the AVS Safety Range.
The AVS RM43B OEM rear view mirror monitor is designed to replace
your factory mirror, adding reversing safety and convenience while
retaining the original mirror style.
The mirror monitor’s super bright 4.3” screen with in-built ambient light
sensor and high reectivity allows the LCD screen to show a clear and
bright image whether it be a bright day or dark night.
The mirror will automatically show the reversing camera image when
reverse gear is engaged. Otherwise the reversing screen disappears and
the unit looks and performs like a factory mirror.
With dual video inputs the monitor can be connected to a camera and
other video source such as an in-car DVD player.

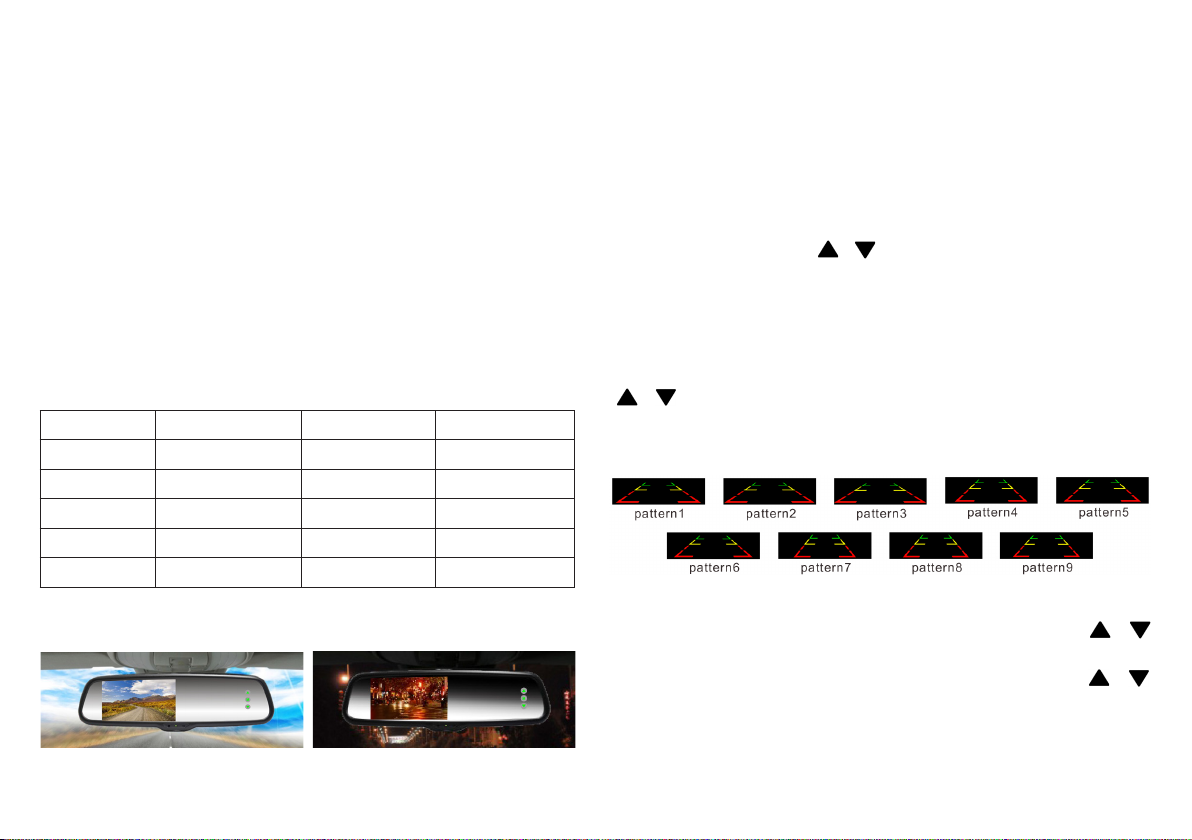

PRODUCT SPECIFICATIONS
Panel: TFT LCD (digital) Power supply: DC12V
Screen size: 4.3” Brightness: 1500cd/m2
Resolution: 480x272 OSD menu: Yes
Aspect ratio: 16:9 Signal system: PAL/AUTO/NTSC
Power: 3.6W working Consumption: 0.5W standby
Video input: AV1 - DVD etc AV2 - camera 2-way
LCD BRIGHTNESS AUTO ADJUSTMENT
In strong sunlight the LCD will
automatically brighten.
At night or in low light the LCD will
automatically dim.
The LCD brightness will automatically adjust itself gradually along with
ambient light change to ensure the image is clearly visible.
OPERATING INSTRUCTIONS
If there is a signal from V1 or V2, the monitor will turn on automatically
and display the image. If there is no signal the screen will turn o.
Press Mto enter the menu and then repeat to scroll through the menu
items to the one you want to change (such as brightness or contrast or
parking lines on/o ). Press or to adjust the feature.
We recommend feature adjustments are carried out by your AVS
installer.
PARKING LINE PATTERN SELECTION
Press Mto enter the menu and repeat to nd Parking line type. Press
or to select the most suitable parking line pattern for the car size
and camera angle.
Note: Parking line ON/OFF must also be turned ON.
PARKING LINE ADJUSTMENT
Press Mand repeat to nd the Parking line X feature then press or
to adjust the parking lines horizontally from 0-40 (default is 20).
Press Mand repeat to nd the Parking line Y feature then press or
to adjust the parking lines vertically from 0-40 (default is 40).
Note: Parking line ON/OFF must also be turned ON.
