Aztech DSL8800GR Instructions for use

DSL8800GR(S)
WIRELESS-N DUALBAND CONCURRENT
GIGABIT ROUTER WITH BUILT-IN ADSL2+ MODEM
Easy Start Guide
Version 1.0

2
DSL8800GR(S) EASY START GUIDE
DSL8800GR(S) EASY START GUIDE
Contents
SECTION 1: Package Contents
SECTION 2: Setting Up your Device
Setup for ADSL Subscribers
Setup for Fibre Subscribers
Setting Up your Internet Connection
Accessing the Web User Interface
Modifying the Connection for first use
Default Network Name and Network Key
Connecting to your Wireless Network
Configuring the 2.4GHz and 5.0GHz Wireless
Troubleshooting Tips
Aztech Technical Support Details
•
•
3.
3.
3.
3.
3.
SECTION 3:

DSL8800GR(S) EASY START GUIDE
3
DSL8800GR(S) EASY START GUIDE
SECTION 1: Package Contents

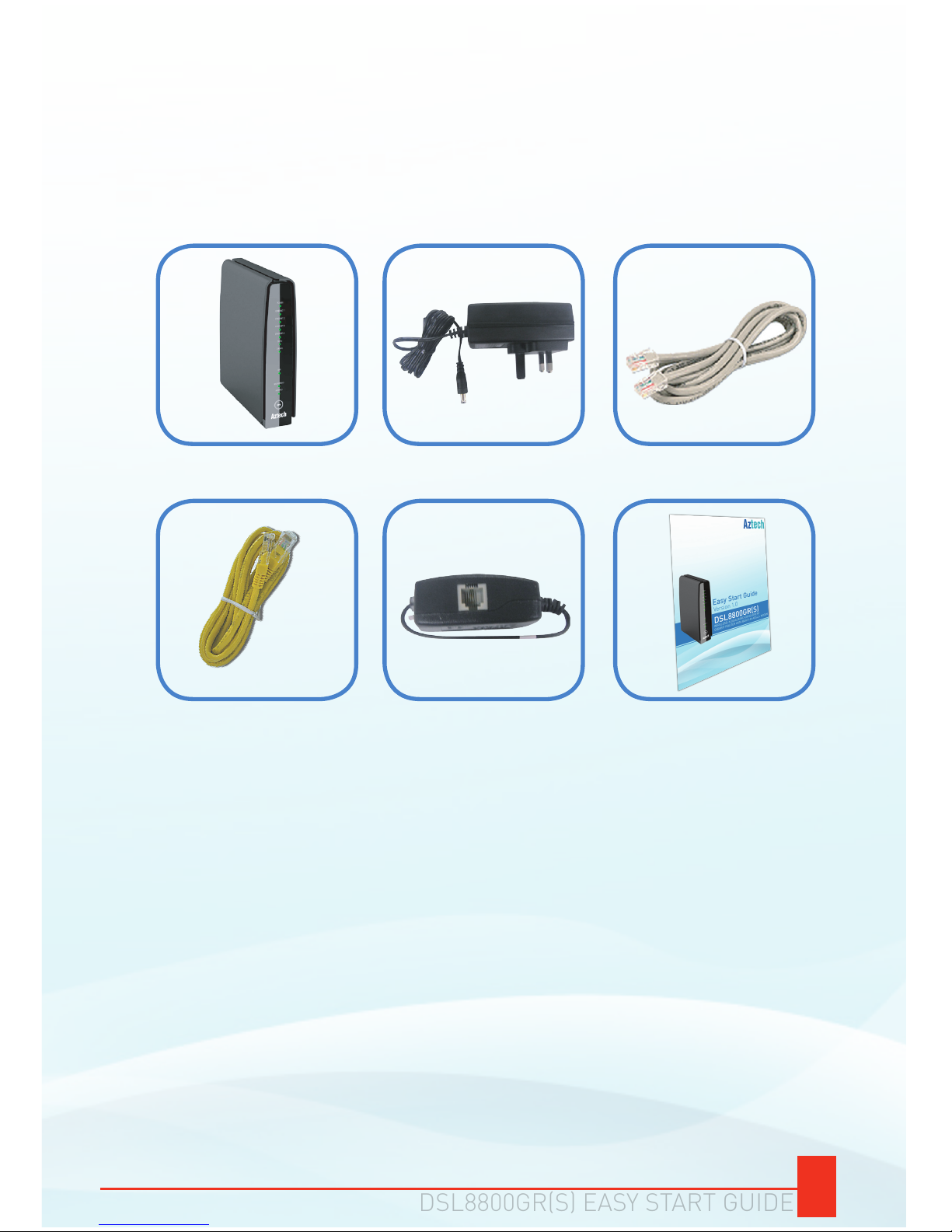

The following items are included in your DSL8800GR(S) package.
DSL8800GR(S) Power Adapter
Ethernet Cable DSL Microfilter
NOTE: Please contact your Dealer if any of the following items
below are missing from your package.
This Easy Start Guide along with the User Manual which provides a more
advanced guide to this product is downloadable on our Aztech Support Website
(www.aztech.com/support).
Telephone Cable
Easy Start Guide
The Easy Start Guide will help you setup your DSL8800GR(S) router
and connect to the Internet, however, before proceeding with the
installation, please prepare your internet account settings given
by your Internet Service Provider.

4
DSL8800GR(S) EASY START GUIDE
DSL8800GR(S) EASY START GUIDE
Using an Ethernet cable
included in the package,
connect your Ethernet device
to your DSL8800GR(S) router
through both of the devices’
available Ethernet ports.
Connect the DSL Microfilter
provided in the package to an
available phone jack in your
house.
Connect your telephone to
the PHONE port of the DSL
Microfilter.
Using the telephone cable
includedinthepackage,connect
one end to the DSL port of your
DSL8800GR(S) and connect its
other end to the ADSL port of
your DSL Microfilter.
Connect the power adapter to
your DSL8800GR(S) device and
plug the power adapter to the
power outlet.
Turn ON your Ethernet device.
a.
b.
c.
d.
e.
f.
SECTION 2: Setting Up Your Hardware
For ADSL Subscribers, kindly follow the steps provided below. You may
also use the diagram provided as reference:
WARNING: Please ensure that
all involved Ethernet devices are
switched OFF first before setting up.
Due to the various devices that can be connected to the router, these
devices would be referred to as Ethernet devices. An Ethernet device
can either be computers, routers, gaming consoles, hubs, IPTV, set-top
boxes etc.
DSL8800GR(S)
DSL Microfilter
PSTN Phone
Desktop/PC
b
c
d
e
a
NOTE: Ensure that your desktop is
already plugged.
Power
Adapter

DSL8800GR(S) EASY START GUIDE
5
DSL8800GR(S) EASY START GUIDE
For Fibre Subscribers, kindly follow the steps provided below. You may
also use the diagram provided as reference:
Using an Ethernet cable
included in the package,
connect your Ethernet device
to your DSL8800GR(S) router
through both of the devices’
available Ethernet ports.
Connect another Ethernet
cable to the Ethernet port of
your ONT, and its other end
to the Ethernet port of your
DSL8800GR(S) router.
Connect the power adapter
of your DSL8800GR(S) and
plug the power adapter to
the power outlet.
Turn ON your Ethernet
device.
a.
b.
c.
d.
Power
Adapter
ONT
Desktop/PC
NOTE: Ensure that your ONT device
is already plugged.
c
b
a
DSL8800GR(S)
LED CHECK:
Please wait for approximately 5 minutes. The
POWER and the BROADBAND LEDs should now be
in stable GREEN (not blinking), if not, kindly check
if all steps have been done correctly. It is strongly
advised NOT to proceed to the next section unless
the LED behaviors work as suggested.

6
DSL8800GR(S) EASY START GUIDE
DSL8800GR(S) EASY START GUIDE
SECTION 3: Setting Up Your Internet
Connection
The Web User Interface is used to configure your router’s settings.
It can easily be accessed through any Web Browser.
3.1 ACCESSING THE WEB USER INTERFACE
Open your web browser.
Type-in 192.168.1.254 on the address bar and then press Enter.
You will be prompted to enter a username and password for
authentication. Type admin as its username and admin as its
password then click Log In.
a.
b.
c.
To access the Web User Interface :
You will be redirected to your DSL8800GR(S) Web User Interface’s
Quick Setup page.

DSL8800GR(S) EASY START GUIDE
7
DSL8800GR(S) EASY START GUIDE
3.2 MODIFYING THE CONNECTION FOR FIRST USE
Your router has an auto connection feature that automatically detects
active connections on its Ethernet WAN and DSL port. Different presets
would be shown on the Selected Profile Preset for each selected Service
provider.
Before proceeding, it is important to take note of the following:
ADSL Subscribers are advised to consult their respective Internet
Service Providers for the details of their internet connection access.
Take note that it is important to ensure that you have followed the
setup on Section 2 for ADSL subscribers.
Fibre Subscribers, however, need not to configure their Internet
Connection method since these are already pre-configured in ONT
devices and are loaded in your router once connected except for
TM Unifi subscribers.
•
•
On the Web User Interface, click Quick Internet Setup.
The DSL8800GR(S) has an AUTO-DETECT feature that
automatically detects if the connection is ADSL or FIBRE.
If prompted to input a Username and Password, input correctly
the Username and Password given to you by your Internet
Service provider and press the Connect button.
a.
b.
c.
To modify the Connection for first use:
NOTE: You may change the Connection Method, however, It is
strongly advised that the Connection method is left to AUTO.

8
DSL8800GR(S) EASY START GUIDE
DSL8800GR(S) EASY START GUIDE
LED CHECK:
The POWER, BROADBAND, ETHERNET and
INTERNET LEDs should now be GREEN (the
ETHERNET LAN LED will be blinking if there
is activity on the port). If not, close your web
browser, redo Section 3 and ensure that you
enter your Username and Password correctly
(if applicable).

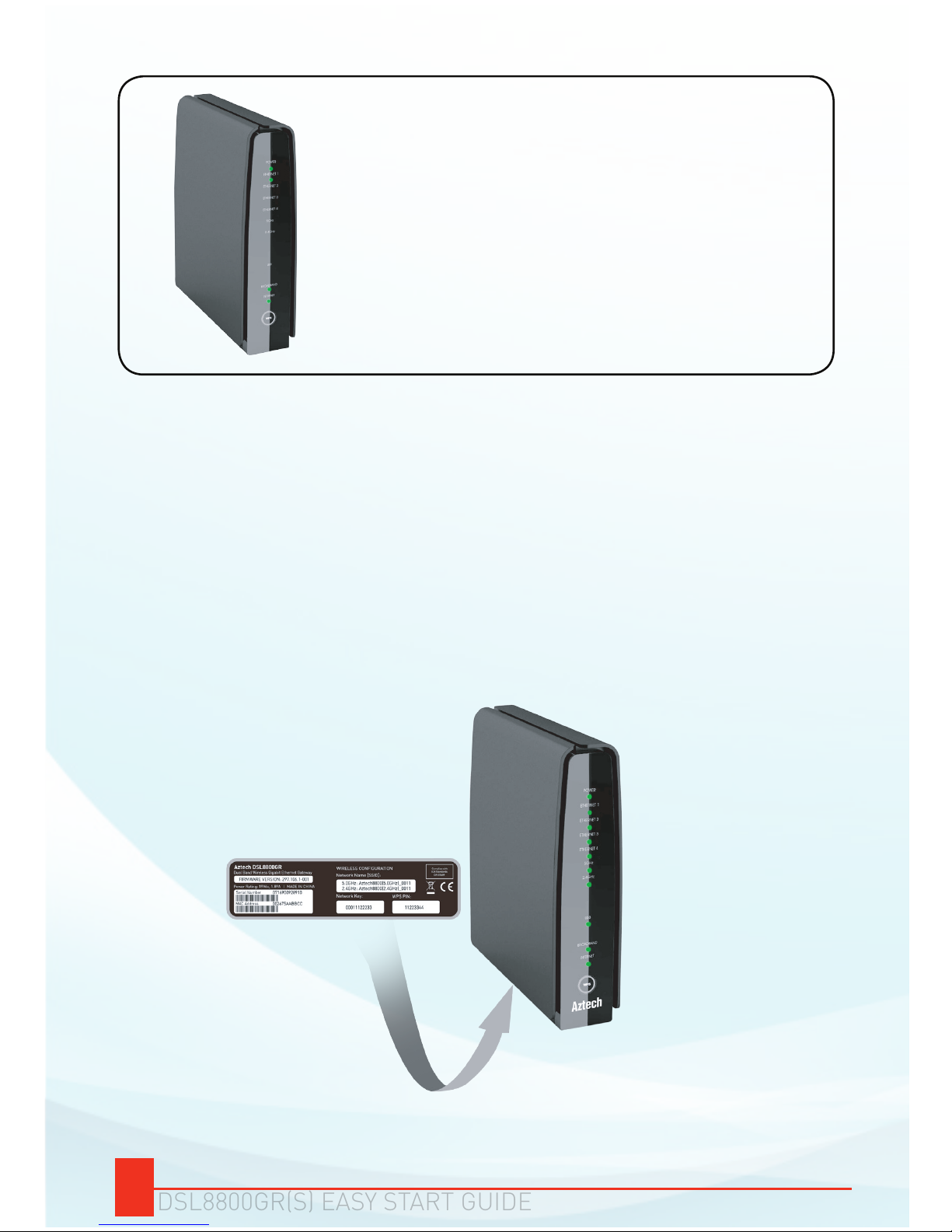

Every DSL8800GR(S) device has been programmed with a unique Wireless
Network Name (SSID) and a default Network Key (password). These details
are displayed on the sticker located underneath your DSL8800GR(S) as
seen below.
3.3 DEFAULT NETWORK NAME AND NETWORK KEY
NOTE: There is an SSID assigned for both 2.4GHz and 5.0GHz wireless
bands, however, only one network key is assigned for both wireless
bands.
*Label sticker can be found
underneath your device.

DSL8800GR(S) EASY START GUIDE
9
DSL8800GR(S) EASY START GUIDE
3.4 CONNECTING TO YOUR NETWORK
Kindly refer and follow your respective operating system’s instructions:
If you are using Windows 7:
On the system tray, click the Wireless
icon, the Available Wireless Networks
window would appear.
a.
On the Available Wireless Networks
window, select your own wireless network
and click the Connect button.
The default wireless network name and
network key can be seen on the label
sticker of your DSL8800GR(S) as shown
on 3.3.
NOTE: If the wireless network name is not on the
list, click the button to refresh the available
wireless networks list.
b.
You will be prompted to enter a network
security key. Key in the correct network
key of the wireless network.
c.
On the Set Network Location window,
double click Home Network, then click
the Close button to complete the setup.
d.
Once the wireless has succesfully
connected, the wireless icon on the
system tray would reflect the signal
strength of your router.
e.
b
c
d
a
e

10
DSL8800GR(S) EASY START GUIDE
DSL8800GR(S) EASY START GUIDE

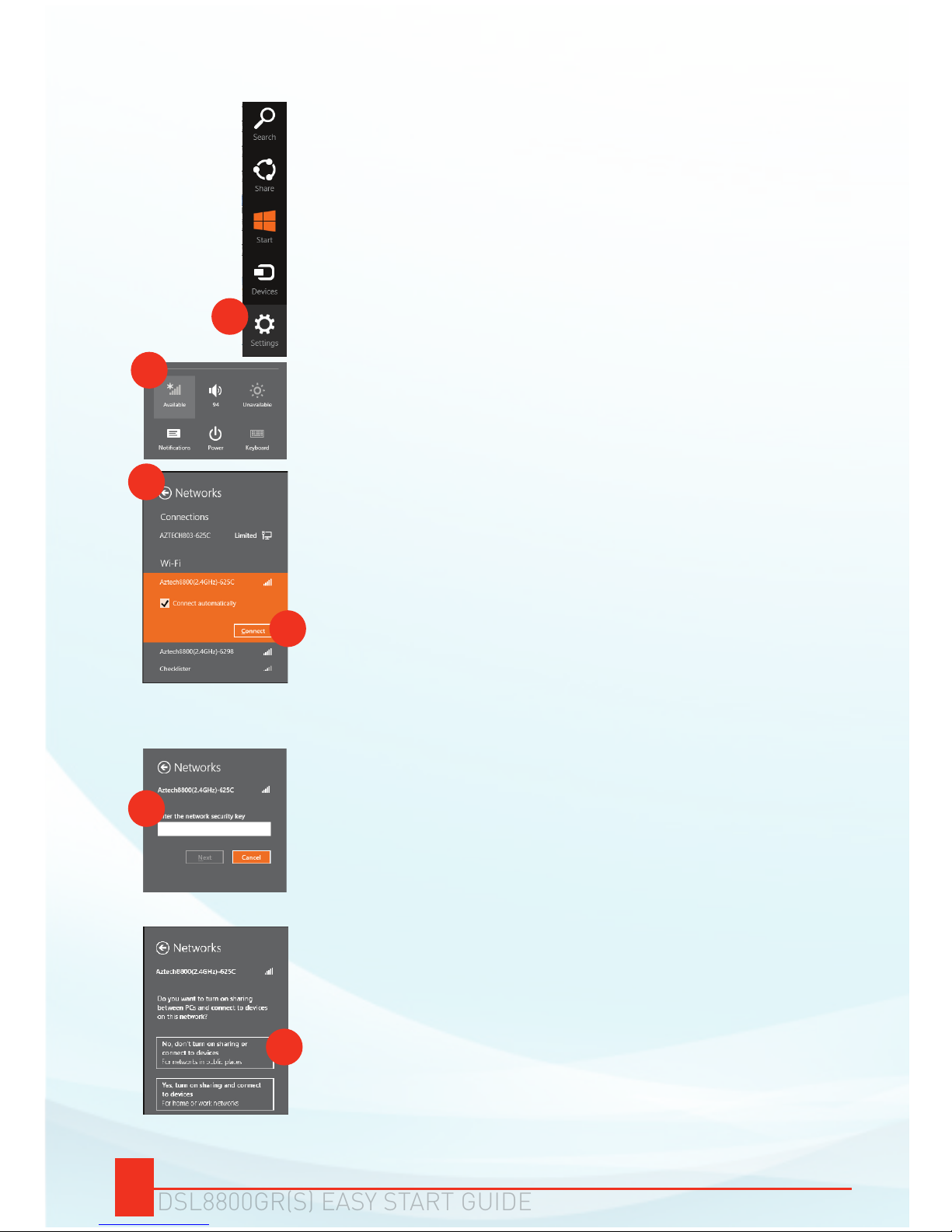

If you are using Windows 8:
Move your mouse cursor to the lower right corner
of the screen. The Charms Bar will appear.
Click Settings.a.
Click the Wi-Fi Icon.
From the Network List, select your own wireless
network.
NOTE: The default SSID can be seen on the
device sticker label as indicated on Section
3.3.
Click the Connect button.
You may tick the Connect Automatically
checkbox if you want your device to
connect to the network without entering the
password again.
b.
c.
d.
Input the correct network security key and then
click Next.
NOTE: The default network security key is
found on the device sticker label as indicated
on Section 3.3.
e.
If you are prompted to turn on sharing, choose
“Yes, turn on sharing and connect to devices”.
f.
a
b
c
d
e
f

DSL8800GR(S) EASY START GUIDE
11
DSL8800GR(S) EASY START GUIDE
On the Web User Interface click Quick Setup. On the sub-menu
click the Wireless tab.
By default, the Wireless features is enabled.
If you wish to hide the SSID from active scans, simply tick the
Non-Broadcast SSID check box.
Input your desired SSID or Wireless Network Name.
a.
b.
c.
d.
3.5 CONFIGURING THE 2.4GHz and 5.0GHz WIRELESS
The Web User Interface allows you to configure the 2.4GHz and 5.0GHz
wireless bands. Kindly read and follow the definitions and instructions
below in configuring your wireless bands.
NOTE: The 5.0GHz SSID can only be detected if your end device supports
5.0GHz wireless interfaces.
The status Connected would be displayed
beside your wireless network name indicating
a successful connection.
g.
g

12
DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE
DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE
Select your preferred Network Authentication Encryption. By
default this is selected as Mixed WPA2/WPA-PSK.
Enter your preferred Network Key.
Click the Save/Apply button to save and apply wireless settings.
e.
f.
g.

DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE
13
DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE
LED INDICATORS BEHAVIOUR
Each LED indicator in your DSL8800GR(S) router aims to indicate activity
in your device and even in your network.
LED
NAME BEHAVIOR DESCRIPTION
Power Off No power is supplied to the device
Green (Steady) Device is connected to a power supply
Ethernet
1-4
Off There is no device connected to the corresponding
port.
Green (Steady) There is a device connected to the corresponding port
Green (Blinking) A device connected to the corresponding port is
actively transmitting/receiving data
5GHz/
2.4GHz
Off Corresponding wireless interface is disabled.
Green (Steady) Corresponding wireless interface is enabled.
Green (Blinking) Corresponding wireless interface is actively
transmitting/receiving data.
USB
Off There is no USB device connected to the
corresponding USB port.
On There is a USB device connected to the corresponding
USB port.
Broadband
Off No device is connected to the corresponding port.
Green (Steady) There is a device connected to the corresponding port.
Green (Blinking) Attempting to detect and connect to a network.
Internet
Off Modem turned off or unavailable.
Red Device failed to establish a connection
Green (Steady) Device has successfully established a connection
Green (Blinking) The Device is actively transmitting /receiving data.
WPS Off WPS disabled/inactive
Green (Blinking) WPS authentication in-progress
TROUBLESHOOTING TIPS

14
DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE
DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE
Q1: What is the default IP address, Username and Password to login to
the DSL8800GR(S) Web User Interface?
A1: The default IP address is 192.168.1.254 . Simply type admin as its
username and admin as its password.
Q2: How can I reset the DSL8800GR(S) to the factory default?
A2: Press and hold the Reset button at the back panel of the DSL8800GR(S)
for 10 seconds then release.
Q3: How do I upgrade the firmware of my DSL8800GR(S) router? Is it
advisable to do so?
A3:Whenloggedintotheweb-basedsetuppage,clickDeviceAdministration>
Firmware Upgrade > Choose File. It is strongly recommended to only
update your firmware if advised by your ISP or if it has been released and
advised by Aztech to be stable.
Q4: Is it better to use the 5.0GHz wireless band compared to 2.4GHz?
A4: The internet surfing experience is likely to improve on 5.0GHz with
probably lesser wireless interference, however the 5.0GHz SSID can only
be detected if your end device supports 5.0GHz wireless interface as well.
FREQUENTLY ASKED QUESTIONS

DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE
15
DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE
AZTECH TECHNICAL SUPPORT DETAILS
Service Center Address:
31 Ubi Road 1 Aztech Building
Lobby B 5th Floor
Singapore 408694
Hotline: [phone]
Email: [email protected]om
Operating Hours
Monday to Friday: 9:00 AM to 6:15 PM
Saturday: 9:00 AM to 1:00 PM
(Except Public Holidays)

Copyright © 2013 Aztech Technologies Pte Ltd (CRN:199800635M ). All rights reserved.
