1. INTRODUCTION
Dear consumer!
We congratulate you with a B.Well infrared thermometer
buying! Thank you for choosing our product!
Product was designed, verified and supervised by B.Well
Swiss AG, Switzerland.
Applied Swiss control system assures high quality endurance
and safety of all B.Well products.
The B.Well company is guaranteeing that this thermometer
is made of high quality materials and meets current national
and international safety standards.
Thanks to the infrared technology, this thermometer takes
temperatures in seconds by measuring heat generated
by the eardrum, the surface skin of the forehead or other
objects.
It has the following advantages:
1) 2 in 1 unique design: it can take ear temperature and
forehead temperature., i.e. one for two functions.
2) Instant measurement: it provides you the reading in
seconds.
3) Convenient, economic, probe cover free, waterproof
probe and easy to clean.
4) High speed accurate scan provides you precise reading of
the temperature.
5) Automatically convert the forehead measuring to ear
measuring by taking off the front cover.

5
Instructions for use
En
WF-1000
6) Auto power off for power saving.
7) Low-battery indicator, warning indication for measuring
range.
It is so convenient and easy.
2. INTENDED PURPOSE
Infrared thermometers are used for measuring body tem-
perature by measuring the heat generated by the eardrum or
the surface skin of the forehead.
3. PRECAUTIONS
When using this product, please be sure to follow all the
notes listed below. Any action against these notices may
cause injury or affect the accuracy.
1. Do not disassemble, repair, or remodel the thermometer.
2. Be sure to clean the thermometer lens each time after
usage.
3. Avoid direct finger contact with the lens.
4. No modification of this equipment is allowed.
5. It is recommended that user may take 3 temperatures. If
they are different, use the highest reading.
6. Do not expose the thermometer to extreme temperature,
very high humidity, or direct sunlight.
7. Avoid extreme shock or dropping the device.
8. Before the measurement, patients and thermometer

6
Instructions for use
En
WF-1000
should stay in steady state room condition for at least
30 minutes.
9. Avoid measuring temperature in 30 minutes after exer-
cise, bathing, or returning from outdoor.
10. To protect the environment, dispose of empty batteries
at appropriate collection sites according to national or
local regulations.
11. It is ill-advised to disassemble the thermometer.
12. Please use the thermometer solely for its intended purpose.
13. Carefully hold the device when in use to avoid dropping
the device.
14. Allow one minute between successive measurements as
slight variations may occur if measurements are taken over
a short period of time. Use average temperatures instead.
15. There are no absolute body temperature standards. Keep
reliable records of your personal temperature to serve as
a reference for judging a fever.
16. Under any circumstances, the temperature taking result
is ONLY for reference. Before taking any medical action,
please consult your physician.
17. It is recommended calibrate the device every 1 year.
18. Please keep this device away from pets, pests, and children.
19. Danger of explosion if battery is incorrectly replaced.
Replace only with the same type recommended by the
manufacturer, discard used batteries according to the
manufacturer’s instructions.
4. CONTRAINDICATIONS
Contraindications: are not revealed

7
Instructions for use
En
WF-1000
5. PRODUCT IDENTIFICATION
Forehead / Cover cap
Probe tip
Power / Scan button
Battery
compartment
lid
LCD

8
Instructions for use
En
WF-1000

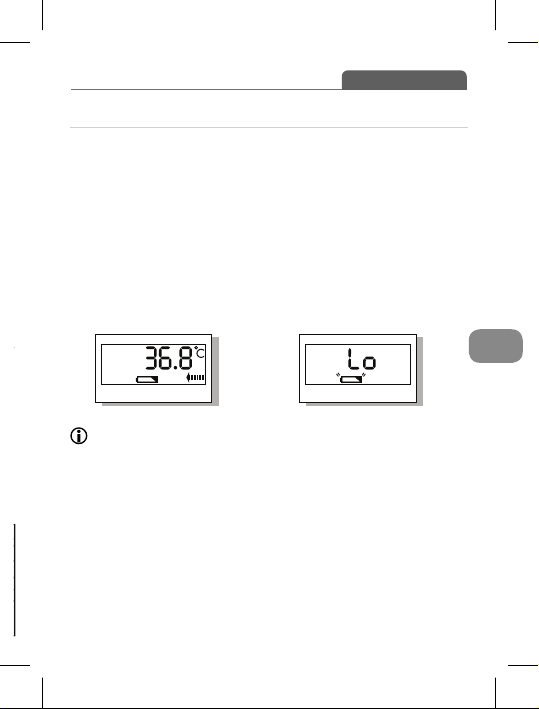

6. DESCRIPTION OF LCD DISPLAY
Measurement display
°C or °F
Celsius Scale or Fahrenheit Scale
“Measurement in progress” symbol
Battery warning symbol
Last memorized
Forehead Scan Mode
Ear Scan Mode
Object Scan Mode
Temperature Display
Error

9
Instructions for use
En
WF-1000
7. WHAT IS A “NORMAL” TEMPERATURE?
Although the generally accepted “normal” temperature
reading is 36.6˚C, temperature readings can vary from 35.2˚C
to 36.8˚C and still may be considered “normal”. Variations in
temperature can be attributed to activities such as exercise,
smoking, eating and drinking. Your temperature is lower in
the morning than in the afternoon.
Other variations may be due to the location of the tempera-
ture reading. While the axillary temperature follows the
guidelines previously described, an oral temperature is gen-
erally 0.5˚C higher. Rectal temperature will be 1.0˚C higher.
Infrared forehead temperature readings are equivalent to
oral temperature readings.
MEASURING METHODS NORM
Ear measurement 35,5 – 37,5
Forehead measurement 35,5 – 37,3
Tips for measuring human temperature
Bear in mind that the thermometer needs to have been in the
room in which the measurement is taken for at least
30 minutes before use.
NOTE:
• Some people produce different readings in their left and
right ear. In order to record temperature changes, always
measure a person’s temperature in the same ear.
• The ear thermometer may be used by children only under
adult supervision. Measurement is usually possible over

10
Instructions for use
En
WF-1000
the age of 6 months. In infants under 6 months, the ear
canal is still very narrow so the temperature of the ear-
drum often cannot be recorded and the result displayed
is often too low.
• The measurement must not be taken in an ear affected
by inflammatory diseases (e.g. discharging pus or secre-
tion), after possible ear injuries (e.g. eardrum damage) or
in the healing period after operative procedures. In all of
these cases, please consult your doctor.
• Use of the thermometer on different persons can be inap-
propriate in the event of certain acute infectious diseases
because of the possible spread of germs despite cleaning
and disinfection. If you have any doubts, please consult
your doctor.
• This thermometer may only be used without a disposable
protective cover.
• If you have been lying on one ear for some time, the tem-
perature is slightly raised. Wait a little while or measure
in the other ear.
• As ear wax can affect the measurement, you should clean
the ear before measuring if necessary.

11
Instructions for use
En
WF-1000
8. HOW TO TAKE YOUR TEMPERATURE
To switch from ear scan mode to forehead scan mode,
simply take off the Cover cap. To switch from forehead scan
mode to ear scan mode, put on the Cover cap again. It is
recommended to use your thumb to pull from either side of
the Cover cap to remove it easily.
* When taking the forehead temperature, the reading is
provided for reference only because the condition of skin is
likely affected by the surroundings.
Measuring body temperature in the ear
1) Press the Power/ Scan button for 1 second to switch the
thermometer on. All symbols appear in the display at first.
The last temperature measured will appear.
As soon as the Ear measurement mode “ “ appears
in the display, the device is ready for use.
Following a successful self test, the device emits a beep.
2) Make sure that the sensor
tip and also the ear canal
are clean. As the ear canal
is slightly curved, you have
to pull the ear slightly up
and backwards before
inserting the sensor tip.

12
Instructions for use
En
WF-1000
This is important so that the sensor tip can be pointed
directly at the eardrum.
3) Insert the sensor tip into ear canal carefully and then
press the Power/Scan button for 1 second and release.
4) The end of the measuring time is signaled with a short
beep and the measured value appears on the display.
Measuring body temperature on the forehead
1) Please note that the forehead/temples must be free from
sweat and cosmetics and that taking medication and
skin irritations can distort the result when measuring
temperature on the forehead.
2) Make sure that the Forehead/Cover cap is put on. Press
the Power/Scan button for 1 second to switch the ther-
mometer on. Following a successful self test, the device
emits a beep.

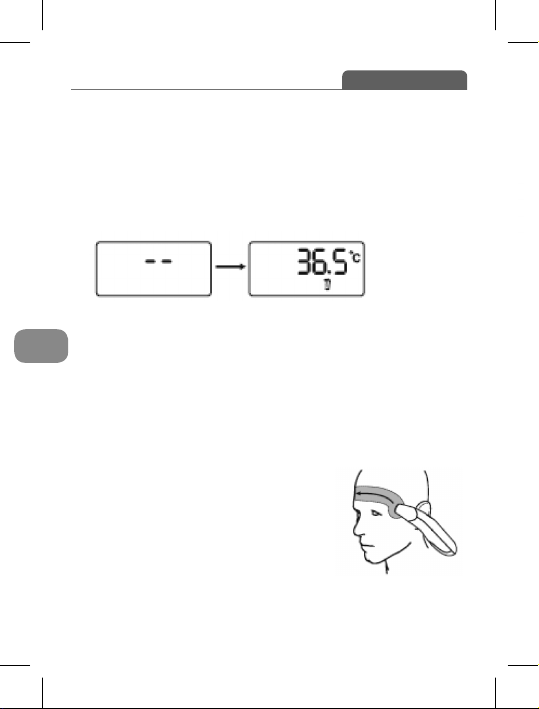

3) Place the measuring head with the
Forehead/Cover cap fitted on the
temples, hold on the Power/Scan
button and move the thermometer
smoothly over the forehead to the
other temple.

13
Instructions for use
En
WF-1000
4) Release the button. The end of the measuring time is sig-
nalled with a short beep and the measured value appears
on the display.

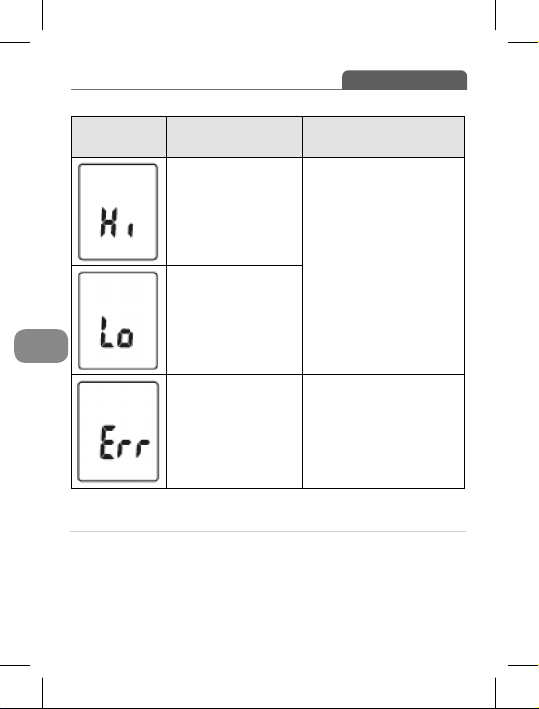

The screen displays “Lo” or “Hi” when the temperature
measured is out of the measurement range. (See Figure 1,
2, 3, 4)
The mark “Err” appears if the operating temperature is
NOT within 15°C (59°F) and 35°C (95°F). (see Figure 5)
If the temperature is lower than 34°C or higher than 43°C,
the display shows “ “ for object temperature.
Figure 5
Figure 1
Figure 3
Figure 2
Figure 4

14
Instructions for use
En
WF-1000
To ensure a long battery life, this thermometer will be
automatically power-off after every one minute idling.
Measuring the temperature of air, water surface, and items:
Make sure the cap is on the thermometer. Turn on the
thermometer. If you wish to measure the temperature at a
specific spot or water temperature, point the thermometer to
the spot, water surface (as close to water as possible, but do
not immerse the thermometer in water), or surface of an item
(bring the thermometer close to the object so that there is no
distance). Press the measurement button once.
The temperature measured will be displayed on the screen.
9. CLEANING INSTRUCTIONS
Lens/ Measurement Sensor:
Gently clean with an alcohol swab. Do not use water to wash
the thermometer lens directly.
Thermometer:
Clean with a soft, dry cloth.
Do not use water to rinse the device.

15
Instructions for use
En
WF-1000
m
10. BATTERY REPLACEMENT
The low battery symbol will be shown at the lower part of
the screen during the low battery power.
Replace the battery as soon as possible.
However, you may continue to use it (see Figure 6).
When the battery power comes to the lowest value, the
screen displays a “Lo” sign, the battery symbol on the screen
blinks and beep sounds are triggered (see Figure 7).
It cannot work until the battery is replaced. At this moment,
press any button to turn it off.
NOTE:
• When changing the batteries, use batteries of the same
type, make and capacity.
• Do not use rechargeable batteries.
• Use batteries free from heavy metals.
To replace the battery:
1. Open the battery case by sliding off the cover on the back
of the unit.
2. Remove used battery.
Figure 6 Figure 7

16
Instructions for use
En
WF-1000
3. Replace with a lithium 3V CR2032 battery in designated
area.
The larger part of the battery should be facing up. You
should still be able to see the “+” sign when battery is
installed.
4. Slide the cover back on. Unit is ready for immediate use
Dispose of used batteries in accordance with the applicable
legal regulations. Never dispose of batteries in the normal
household waste.
2
1

17
Instructions for use
En
WF-1000
NOTE:
Please keep the battery away from children. Do not store the
battery at a high temperature.
It is recommended to remove the batteries if the unit will not
be used for an extended period of time.
11. TROUBLESHOOTING
1. Consistent low temperature readings.
• The Probe is not positioned properly.
The probe tip must be snugged and fully seated against
the opening of the ear canal. Failure to properly position
the probe may lead to a low temperature reading (see
“How to take your temperature” part).
• The Probe lens is dirty.
Clean the lens with a piece of soft, alcohol-moistened cot-
ton cloth thoroughly (see “Cleaning instructions” part).
2. Low battery warning.
• Battery power is too low to take the measurement.
Replace the battery (see “Battery replacement” part).
3. Error codes
When a malfunction or incorrect temperature measure-
ment occurs, an error message will appear as described
below.

18
Instructions for use
En
WF-1000
12. APPLIED STANDARDS
This product conforms to the provisions of the EC directive
MDD (93/42/ EEC).The following standards apply to design
and/or manufacturing of the products:
LCD Display Cause Solution
The temperature mea-
sured is higher than
50°C (122°F)
Operate the thermometer
only between the specified
temperature ranges. If nec-
essary, clean the sensor tip.
In the event of a repeated
error message, contact
your retailer or Customer
Services.
The temperature
measured is
lower than
10°C (50°F)
The operating
temperature
is not in the range
16°C~40°C
(60,8°F~104°F)
Operate the thermometer
only between the specified
temperature ranges.

19
Instructions for use
En
WF-1000
• ISO 80601-2-56
Medical electrical equipment –
Part 2-56: Particular requirements for basic safety
and essential performance of clinical thermometers
for body temperature measurement
• IEC/EN 60601-1
Medical electrical equipment –
Part 1: General requirement for safety
• IEC/EN 60601-1-2
Medical electrical equipment –
Part 2: Collateral standard: Electromagnetic
compatibility – Requirements and tests
13. PRODUCT SPECIFICATIONS
Measuring range 10°C ~ 50°C (50˚F ~ 122˚F)
Human Body: 34°C ~ 43°C ±0,2°C (93,2˚F ~ 109,4˚F ±0,1°F)
Object measurement: 10°C ~ 33,9°C / 43,1°C ~ 50°C ±5%
(50°F ~ 93,02°F / 109,58°F ~ 122°F) ±5%
Display resolution 0,1°C (0,05˚F)
Operating environment 15˚C ~ 35˚C (59˚F ~ 95˚F)
with relative humidity up to 95%
(non condensing).
Storage / Transportation -25˚C ~ 55˚C (-13˚F ~ 131˚F)
environment with relative humidity up to 95%
(non condensing).
Power supply 1 × 3V CR2032 Size
Lithium Battery

20
Instructions for use
En
WF-1000
Weight ~ 51g (with batteries)
Dimensions ~ 110 × 34 × 50mm (W × D × H)
Additional Features 1. POST (Power-On-Self-Test)
2. Scanning Mode: Continuous
scanning, automatic latch of
maximum temperature reading.
3. Out of operating temperature
(Lo/HI) Indication.
4. Low battery power checking.
5. Waterproof lens and probe cover free.
14. THERMOMETER SET
Thermometer set
1. Thermometer
2. Battery 1 × CR2032 LI, 3V
3. Instructions for use
15. UTILIZATION
The unit must be utilized in accordance with current
standards separately from domestic wastes.
For utilizing it is necessary to contact special organizations
licensed to make utilization.
