BABI ANGEL MONITOR User manual

BABI ANGEL ALARM
USER MANUAL

Product Name
BABI ANGEL ALARM
Product Code
BAA1001
Alarm Dimensions
82*78*33mm
Operating Temperature
-20°C to +70°C
Charger Input
DC 5V 0.5A
Communication Technology
Bluetooth Low Energy V4.2
Transmission Power
3.5mW
Alarm Input
(Rechargeable)
3.7V Li-Po Battery,
750mAh, 2.775Wh
Operating Range
Up to 75m (Open Spaces)
High Quality Speaker
4Ω 3W
Product Specification:
Note: Please read this manual carefully before using the device, and
observe the safety rules listed and keep it for future reference.
1

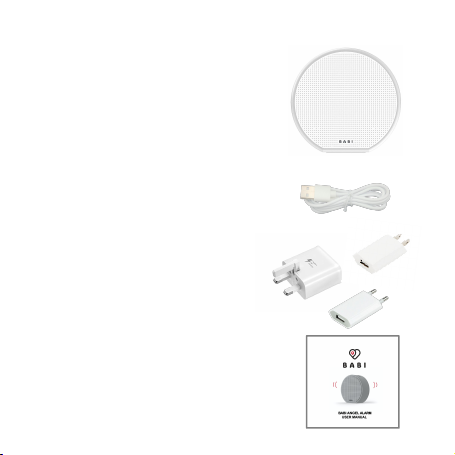

What is in the Box:
1 x BABI Angel Alarm
1 x USB to Micro USB Cable
1 x Power Adapter USB Charger
1 x User Manual Booklet
2

Product Description:
BABI Angel Alarm is an accessory device designed to be used with a
BABI Angel Monitor Bracelet. For those who do not want to use a smart
phone App, this product works directly with the Babi Angel Monitor
bracelet as the primary alarm. For those using the BabiCare mobile
phone App, this device can be used as a secondary primary alarm.
Note: One BABI Angel Alarm can will work with up to 4 Babi Angel
monitor bracelets. The Angel Alarm will receive alerts from the angel
monitor bracelet directly when:
1. The infants Body Temperature is out of range;
2. The Blood Oxygen Level is out of range;
3. The Heart Beat Rate is out of range;
4. The connection with the bracelet is lost;
5. The bracelet is removed;
6. The infant awake (continual movement is registered).
The Angel Alarm will sound some audio alert sounds followed by a verbal
message advising the relative problem or notification. A Red LED light
will flash as a visual alert. These alerts will continue until any button is
pressed on top of the alarm device.
Modes of Operation:
1. Stand Alone Mode: The device is used without a mobile phone App
and is the primary alarm source. Note: Up to 2 Babi Angel Alarm
units can be used at the same time per bracelet.
2. Dual Use Mode: The device is used together with a mobile phone
App by which both the device and App will both be primary alarms.
3

Using the BABI Angel Alarm:
Setting up and using the BABI Angel Alarm is the same for both modes
of operation.
1) First charge the device for a minimum 2 hours. Plug the USB cable
into the back on the device and into the power adapter.
2) While charging, a Green LED light will flash.
3) When the Green LED light stops flashing and is fixed Green, the
device will be fully charged and ready to use.
4) Ensure the device is switched on by pressing the button until
the Green LED light appears and a verbal confirmation is heard.
5) When the device is used for the first time, when disconnected from
the charger, the LED light will flash Blue, this indicates the device
needs to be paired with the Babi Angel Monitor Bracelet so they
communicate together. (Note: 1 Babi Angel Alarm device can be
used with up to 4 Babi Angel Monitor bracelets)
4

Power On and Off switch Button
Increase Volume control Button
Decrease Volume control Button
Language Selection Button
+
Press Together for Pairing the Devices
+
P r e s s T o g e t h e r f o r A c t i v a t i n g a n d
Deactivating the Audio “Listen In” function
+
P r e s s T o g e t h e r f o r A c t i v a t i n g a n d
Deactivating the movement sensor function
/ / /
Press Any Button to Turn Of f an Alar m
raised
5

Setup the Babi Angel Alarm:
1. When the device has a flashing Blue LED light, the device
pairing is required, press the Power and Language Buttons at
the same time, the Blue LED light will flash faster until the
devices are paired and are communicating. There will be a
verbal con firmation message given when the de vice is
connected.
2. The LED light will return to a fixed Green to confirm the device
battery is charged and power is on.
3. Se lect the r equi r ed langua g e : Press a n d depress the
Language button until the required language is communicated
verbally.
4. To Enable or Disable the Audio “Listen In” function, press the
Power and +VOL buttons together. Until a verbal confirmation
message is received: Baby Audio Monitor is ON or Baby Audio
Monitor is OFF
5. To Enable or Disable the Movement sensor function, press the
Power and -VOL buttons together. Until a verbal confirmation
message is received: Baby Movement Sensor is ON or Baby
Movement Sensor is OFF.
6. To set the alarm device volume:
a) Press +VOL button to increase volume
b) Press -VOL button to decrease the volume
6
+
+
+

Using the Babi Angel Alarm:
1. Once the device is paired and setup and ready to use. The alarm
device can be left connected to the power adapter which will
keep the device batteries charged at all times.
2. The Babi Angel Alarm will now connected to the angel monitor
bracelet will communicate with each other. The Angel alarm will
be on standby waiting for instruction from the angel monitor
bracelet which is continously monitoring the infant.
3. When the health parameters monitored are normal, the battery
level is ok and power is on, the bracelet is fitted or no movement
is sensed. The Alarm unit will not sound any audio alerts, not
communicate any notifications verbally or give any visual LED
light flashing alert. Until there is a situation that requires an alarm
or a verbal notification.
4. When the Body Temperature goes out of the prefix safety
ra nge the R e d LED l i g h t at fr o n t of t h e alarm w i l l flash
continuously, three loud sounding alerts are sounded, followed
by a verbal notification: «Temperature out of range» followed by
3 loud alerts. This will repeat until the user presses any one of
the 4 buttons on the device as an acknowledgement that the
alarm has be received and a preventive action will be taken.
7

5. When the Heart Rate goes out of the prefix safety range the
Red LED light at front of the alarm will flash continuously, three
lou d s ounding a l e r ts are s o u n ded fol l o w e d by a verba l
notification: «Heart Beat Rate Out of Range» followed by 3 loud
alerts. This will repeat until the user presses any one of the 4
buttons on the device as an acknowledgement that the alarm
has be received and a preventive action will be taken.
6. When the Blood Oxygen Level goes out of the prefix safety
ra nge the R e d LED l i g h t at fr o n t of t h e alarm w i l l flash
continuously, three loud sounding alerts are sounded followed
by a verbal notification: «Blood Oxygen Level out of range»
followed by 3 loud alerts. This will repeat until the user presses
any one of the 4 buttons on the device as an acknowledgement
that the alarm has be received and a preventive action will be
taken.
7. When the Movement Sensor is activated indicating Awake
State Activity, the Red LED light at front of the alarm will flash
continuously, three loud sounding alerts are sounded followed
by a verbal notification: «Movement Detected» followed by 3
loud alerts. This will repeat until the user presses any one of the
4 buttons on the device as an acknowledgement that the alarm
has be received and a preventive action will be taken.
8

8. When the Bracelet is Removed by the infant or by itself, the
Red LED light at front of the alarm will flash continuously, three
lou d s ounding a l e r ts are s o u n ded fol l o w e d by a verba l
notification: «Bracelet Removed» followed by 3 loud alerts. This
will repeat until the user presses any one of the 4 buttons on the
device as an acknowledgement that the alarm has be recieved
and a preventive action will be taken.
9. W h e n t h e b r a c e l e t L o s e s C o n n e c t i o n due to bad
communication or loss of power, the Red LED light at front of the
alarm will flash continuously, three loud sounding alerts are
sounded followed by a verbal notification: «Connection Lost»
followed by 3 loud alerts. This will repeat until the user presses
any one of the 4 buttons on the device as an acknowledgement
that the alarm has be recieved and a preventive action will be
taken.
10. When the bracelet Battery has a Low Level charge a verbal
notification is given the Red LED light will flash, three loud
sounding alerts are sounded followed by a verbal notification:
«Battery Low» the device will then need to be put on charge.
9

Warranty
The product is guaranteed against any non-conformity defect with
normal operational conditions of use, as provided by the instructions
for use. The warranty shall not therefore apply in the case of damages
caused by improper use, wear or accidental damage events. For the
duration of warranty on conformity defects please refer to the specific
provisions of national laws applicable in the country of purchase, where
provided.
General Warnings
• Do Not allow any packaging materials (plastic bags, cardboard
boxes, etc.) that can be hazardous to be left with a child.
• Before using the device, make sure that is not damaged, otherwise
contact the dealer and do not use the device.
• To prevent the risk of overheating, ensure the product is not
exposed to excess heat, naked flames or direct sunlight.
• While the device is not waterproof, its is recommended that the
immersion in water should be avoided.
• This product contains a lithium polymer rechargeable battery the
necessary precautions must be taken when disposed of.
10

User Responsibility
Babi Angel Alarm is designed to receive alarms and notifications to
alert the user of the any potential health parameters changes of an
infant whilst they are asleep. The product communicates with the Babi
Angel Monitor bracelet and receives data to raise an emergency alarm
as a preventive action and allow an early intervention of necessary
action to be taken to ensure the safety of the infant. This product does
not guarantee the overall health of an infant, it is a monitoring device
alarm unit which alerts certain criteria as laid out in tis manual. The
product does not eliminate users’ responsibility for the overall care of
any infant whilst they sleep. Whilst the device indicates there are
potential parameters changes as an early warning device whilst the
infant is asleep, it does not guarantee that the user will conclusively
prevent any unpreventable, misfortunate circumstance or fatality. This
product is an alarm device controlled by the monitoring device and
cannot be responsible for any unpreventable occurrences or guarantee
anything in terms of the state of health of any infant or in the case that
the user takes no action on the alerts provided.
The use of this product is as a principal alarm with both visual and
audio alerts. It is the responsibility of the user to ensure that:
1) The Alarm device connects to the Babi angel monitor bracelet.
2) The Bracelet and Alarm is charged and in working order.
3) The Bluetooth connection is paired and switched ON.
4) The Alarm device Volume is loud enough to ensure that the user
will be awoken when an alarm is raised.
11

Note: This is a safety monitoring alarm device and it must be
switched ON to be effective.
Declaration of Conformity
BABI Ltd hereby declares that Babi Angel Alarm is in conformity with
the essential requirements and the related established by EU
directives. The product is CE Certified and is EMC, RED, REACH
and ROHS complaint. The product is FCC and IC certified. All the
relative documents and certifications are available upon request.
Manufacturer
BABI Ltd.
Unit 906, 9/F Prosperity Center,
No.25 Chong Yip Street, Kwun Tong,
Kowloon, Hong Kong, SARC
MADE IN CHINA
Customer Service
For additional information and assistance, please contact the email
address:
[email protected] or [email protected]
12

FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any inte rference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interferenceto radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures: 13

· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician
for help.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without
restriction.
14

Baby Safety Products
www.babisit.com
