Baby Jogger City Elite 2 User manual

©2019 Baby Jogger NWL0000979844B 7/19
CITY
ELITE®2
Pushchair
ASSEMBLY INSTRUCTIONS
INSTRUCTIONS D’ASSEMBLAGE
INSTRUCCIONES DE MONTAJE
ISTRUZIONI PER IL MONTAGGIO
GEBRAUCHSANLEITUNG
NÁVOD K SESTAVENÍ
SAMLINGSANVISNINGER
KOKOAMISOHJEET
ΟΔΗΓΙΕΣ ΣΥΝΑΡΜΟΛΟΓΗΣΗΣ
UPUTE ZA SASTAVLJANJE
ÖSSZESZERELÉSI UTASÍTÁSOK
MONTAGE-INSTRUCTIES
MONTERINGSANVISNING
INSTRUKCJA MONTAŻU
INSTRUÇÕES DE MONTAGEM
INSTRUCȚIUNI DE ASAMBLARE
ИНСТРУКЦИИ ПО СБОРКЕ
UPUTSTVA ZA SASTAVLJANJE
NÁVOD NA MONTÁŽ
NAVODILA ZA SESTAVO
MONTERINGSINSTRUKTIONER
MONTAJ TALİMATLARI

IMPORTANT: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
Your child’s safety may be aected if you do not follow these instructions.

2
1 Handlebar
2 Handlebar Fold Button
3 Canopy
4 Auto-Lock
5 Harness Pads
6 Harness Buckle
7 Crotch Strap Pad
8 Fold Strap
9 Rear Wheel
10 Rear Wheel Release Button
11 Leg Support
12 Footwell
13 Storage Basket
14 Front Wheel
15 Swivel/Lock
16 Front Wheel Release Button
17 Parking Brake
18 Seat Recline Strap
1
2
3
8
9
4
13 14
1516
10
9
6
11
7
12
5
18
17
8
4

3
3
5
4
1
76
2
CLICK!

4
8
11
910
1312
CLICK!

5
16
15
17
14
SNAP!
SNAP!

6
20
19
18
21
22

7
28
26
27
24
25
23

8
30
31
29
32
SNAP!
CLICK!

9
39
37 38
36
34
35
A
B
33

10
43 44
42
C
B
A40
A
B
C
41

11
WARNING
IMPORTANT - Read carefully and keep for
future reference.
Your child’s safety may be aected if you
do not follow these instructions.
WARNING
• Never leave the child unattended.
• Always use the restraint system.
• This product is not suitable for running or
skating
• Ensure that all the locking devices are
engaged before use.
• To avoid injury, ensure that the child is
kept away when unfolding and folding
this product.
• To prevent injury, remove Child Tray or
Belly Bar accessory when folding or
unfolding the stroller.
• Do not let the child play with this product.
ADDITIONAL SAFETY INFORMATION
• This pushchair seats one passenger.
NEVER allow more than one child at a
time on this pushchair.
• The seat unit is suitable for one child
from birth up to 22 kg.
• Total weight load recommended for this
pushchair is 28 kg.22 kg in the seat, 1 kg
in the seat back pocket, and 4.5 kg in the
basket.Excessive weight may cause a
hazardous unstable condition to exist.
•For car seats used in conjunction with
a chassis, this vehicle does not replace
a cot or a bed.Should your child need
to sleep, then it should be placed in a
suitable pram body, cot or bed.
• Any load attached to the handle and/
or on the back of the backrest and/or
on the sides of the vehicle will aect the
stability of the vehicle.
• For new born babies we recommend
always to use the most reclined seat
position.
• Lock the brakes before loading and
unloading your child and whenever the
pushchair is not moving.
• Ensure that the brake is properly
engaged by moving the pushchair
slightly back and forth.
• Pushchair is not meant to be used
for transporting children up or down
stairs or escalators.Damage resulting
to pushchair will not be covered under
warranty.
• Accessories which are not approved by
Baby Jogger shall not be used.
• Watch out for cars - never assume that a
driver can see you and your child.
• The passenger shall remain seated (no
standing in the pushchair).
• Use only replacement parts supplied or
approved by Baby Jogger.
max 22 kg
EN

12
EN FRAME

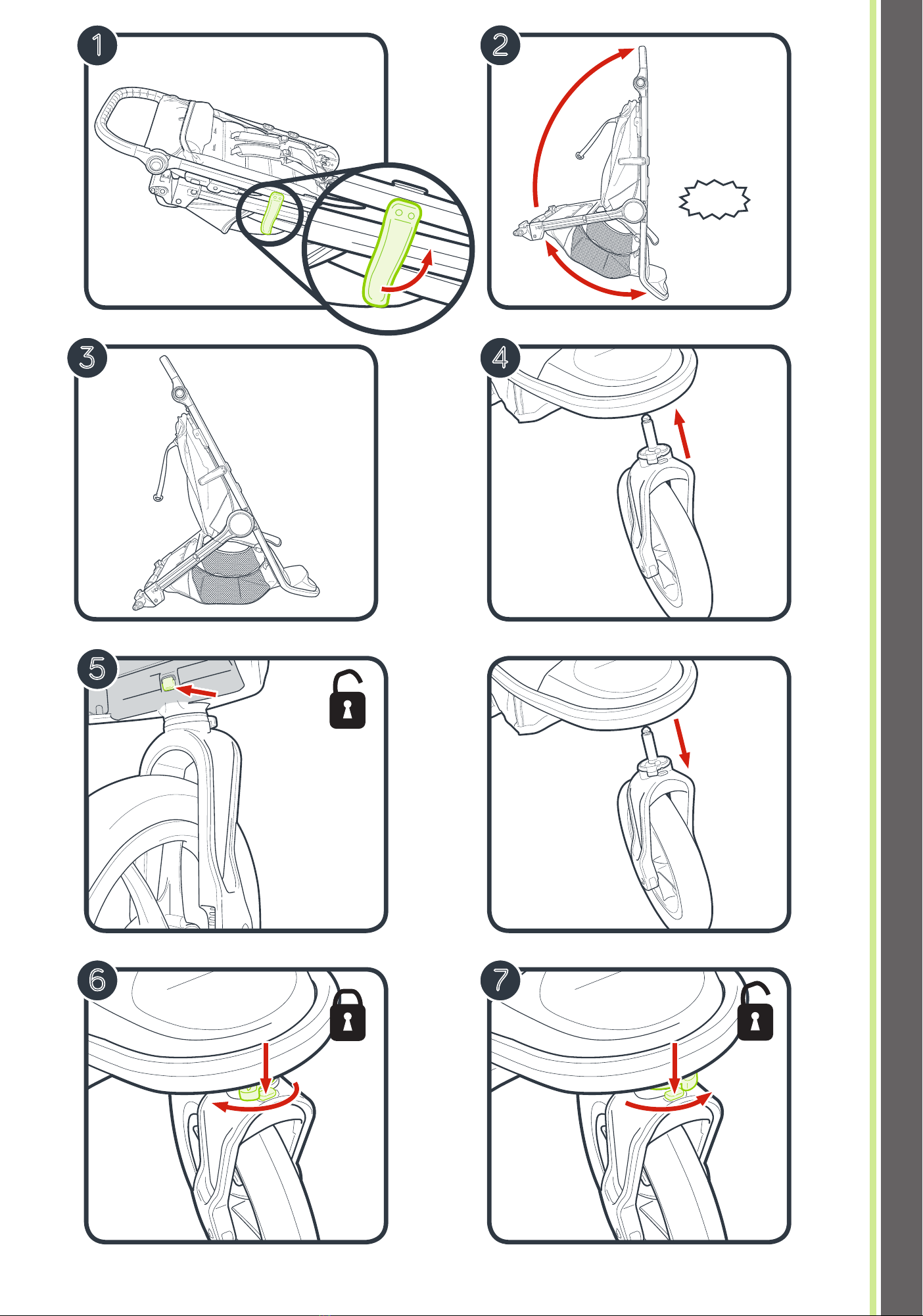

1 Unpack the stroller frame from the box
and set the wheels aside.
Unlock the stroller by pulling the auto-
lock lever.
2 Unfold the stroller by pulling the
handlebar away from the frame.The
stroller will lock into place and you will
hear a click.
3 Place the stroller in the upright
position.
WARNING: Ensure that all the locking
devices are engaged before use.
FRONT WHEEL
4 Installation
• Lay stroller on its back so the
handlebar is resting on the floor.
• Attach the front wheel by sliding it into
the front wheel mount until it clicks.
Gently pull on the front wheel to make
sure it is properly attached.
5 Removal
• While pressing the front wheel release
button, gently slide the front wheel out
of the front wheel mount.
SWIVEL FEATURE
6 Push the swivel button down and
rotate to the left to lock the front wheel
assembly in a fixed position for long
distance strolling.
7 Push the swivel button down and
rotate to the right to allow the front
wheel assembly to swivel.
WARNING: When loading and
unloading child, lock the front wheel
in a fixed position.Although the
front wheel of your stroller locks, it is
not intended for jogging or exercise
purposes.
REAR WHEELS

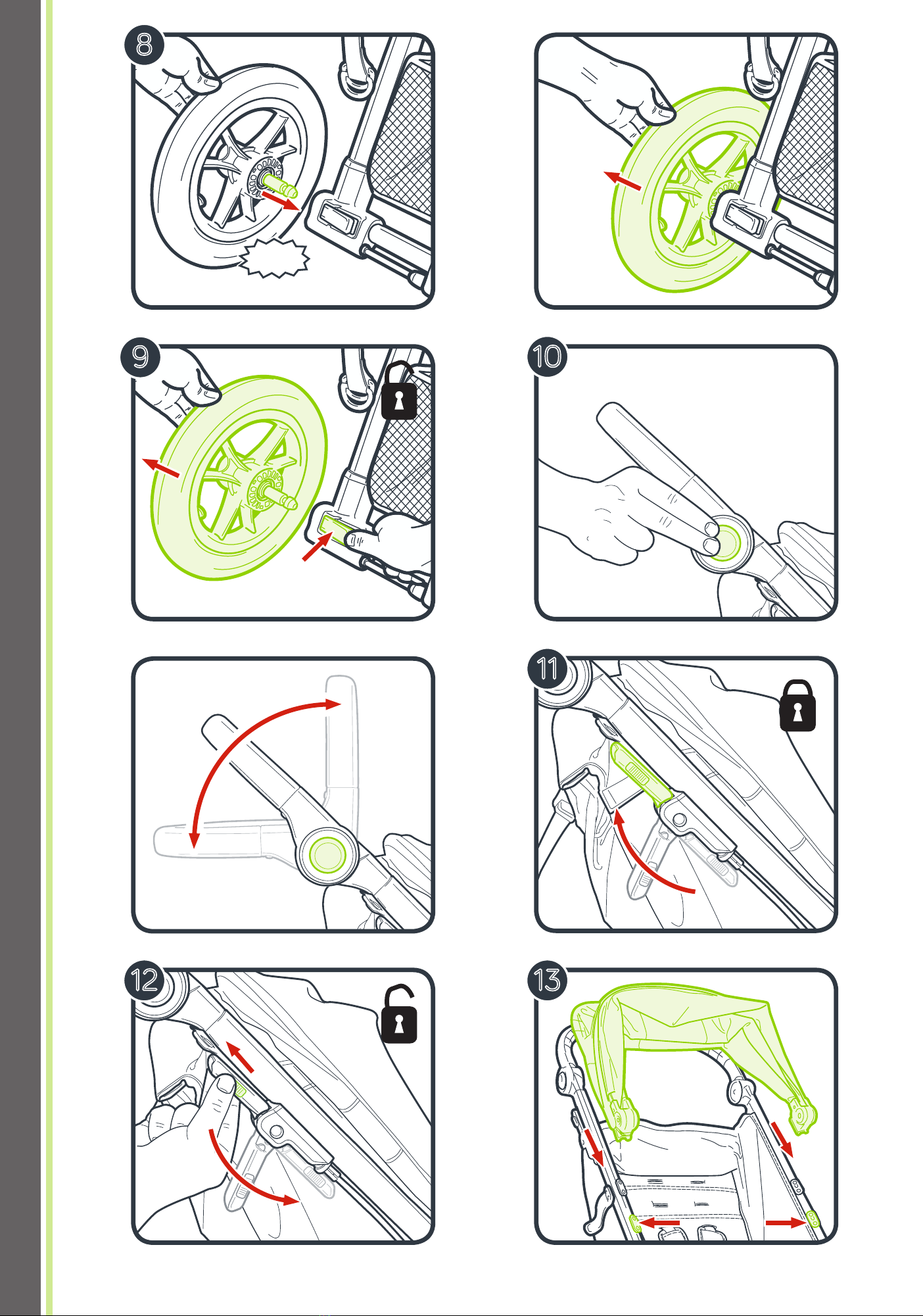

8 Installation
• Align the rear wheel axle with the
wheel mount on the stroller frame and
insert it into the wheel mount until it
locks into place.You will hear a click.
• Gently pull on the rear wheel to make
sure it is properly attached.
9 Removal
• While pressing down on the wheel
release button, gently slide the rear
wheel out of the wheel mount.
HANDLE
10 Press the handle release buttons on
both sides and rotate up or down to
the new position.
BRAKE
11 To Lock the Brakes: gently pull the
Brake Lever into upright position until it
clicks into place.
12 To Release the Brakes: Pinch the gray
tabs and pull the lever towards you.
Push the Brake Lever down until it is
parallel with the frame.
WARNING:Lock the brakes before
loading and unloading your child and
whenever the stroller is not moving.
CANOPY
13 Attach the canopy to the frame by
sliding the canopy onto one of two
mounting brackets.
NOTE: When using a City Go/Graco or
Britax car seat, the canopy must be in
the top position.For all other carseats,
canopy must be removed.
14 Snap the two snaps to the stroller
frame.
15 Zip the back of the seat to the canopy
top.Attach the 2 fastening strips on
teh side of the canopy.
16 Pull forward to open canopy and push
backwards to close canopy.
17 To use the canopy window, roll the
shade up towards the top and secure
with the elastic and button.
18 To use the side vents, lift the vent cover
and the magnet will attach to the
canopy bow.
ADJUSTING SAFETY HARNESS
19 From the back of the seat, undo the
fastening strip and open the pocket to
locate the plastic square stopper.Turn
stopper and pass through the openings
in the PE board and seat fabric.

13
EN
20 Reinsert stopper at seat opening
closest to child’s shoulders.Pass back
through seat fabric and PE board.Tug
on strap to ensure stopper is locked.
Repeat on both sides.
WARNING: Avoid serious injury from
falling or sliding out.Always properly
adjust and fasten safety harness.
WARNING: Always use the crotch
strap in combination with the shoulder
straps and waist belt.
21 Slide the harness pads up to access
plastic guide on strap.
22 Hold the plastic guide and pull strap to
tighten or loosen.
USING SAFETY HARNESS
23 Insert side strap buckle into harness
buckle on both sides.
24 Insert connected harness and side
strap buckles into the sides of the
crotch buckle.
25 Press button on crotch buckle to
release.
RECLINE THE SEAT
26 Pinch the clamp behind the seat, and
slide it down to desired recline.
27 Pull seat down on both sides to match
the clamp position.Reverse steps to
return to the upright position.
WARNING: When making adjustments
to the stroller seat, make sure child’s
head, arms, and legs are clear of
moving seat parts and stroller frame.
28 For extra ventilation, roll up the seat
back flap and secure with elastic and
button.
LEG SUPPORT
29 To use the leg support, lift the front of
the seat pad.
30 Rotate the support arm out and lower
the seat pad.Lock the support arm.
31 To lower leg support, reverse the steps.
FOLDING
• Remove your child from the seat.
• Disengage front wheel swivel locks.
• Remove all attachments and all items
from basket.
32 Press buttons on both sides of frame.
Rotate handle up.
WARNING: To prevent injury, remove
Child Tray or Belly Bar accessory when
folding or unfolding the stroller.
33 AInsert finger into loop and pull up,
then
BPull up on the “Pull to Fold” folding
handle and let the frame collapse.
34 Make sure the auto-lock lever clicks
into place.
35 Place stroller upright in standing
position.
BASKET REMOVAL
36 From the front of the stroller, unsnap
the 2 snaps and pull the straps out of
foot well.
37 Lift basket o the hook.
38 From the back, lift the top of basket o
the tab on both sides of frame.
39 Remove the strap from the D clamp
on both sides of frame.
REMOVING THE SEAT PAD
40 Flip the stroller over to expose the seat
bottom.
AUnfasten the 2 fastening strips and
pull then out of the stroller frame.
BUnfasten the fastening strip and pull
them out of the sides of the stroller
frame.
CUnscrew the right carabiner hook
and pull strap out from the seat pad.
41 Flip the seat back over on its wheels.
Pull seat fabric up and o of buttons.
42 Starting from the bottom, slide the seat
pad out from stroller frame on both
sides.
43 From the top, slide the seat pad out of
the frame on both sides.
44 Remove seat pad.
Reverse the steps to reattach the seat pad
to the frame.

14
CARE AND MAINTENANCE
To preserve the longevity of your pushchair,
it is important to perform simple, regular
maintenance.From time to time, make sure
that the joints and folding areas are still in
good condition.If you hear any squeaking
or feel tension, you can take your pushchair
to a local bike shop for added lubrication.
All repairs should only be carried out by an
authorized dealer.
WASHING
Seat Fabric
• You can hand wash your pushchair’s seat
in cold water with a mild detergent.
• Be sure to remove the metal frame and
PE boards from the seat before washing.
• Do not use solvents, caustic or abrasive
cleaning materials.
• To minimize shrinkage, simply reattach
the seat to the frame to dry.
• Do not press, iron, dry clean, tumble dry
or wring the fabric.
• If the seat covers need to be replaced,
only use parts from a Baby Jogger
Authorized Dealer.They are the only
ones that are guaranteed to have been
safety tested and designed to fit this
seat.
Plastic/Metal Parts
• Wipe clean using a mild soap and warm
water.
• You must not remove, dismantle or alter
any part of the seat folding mechanism
or brakes.
Wheel Care
• The wheels can be cleaned using a
damp cloth.They will need to be dried
completely with a soft towel or cloth.
STORING
• Sunshine can fade seat fabric and
dry out tires, so storing your pushchair
indoors will prolong its good looks.
• DO NOT store outside.
• Ensure that the pushchair is dry before
storing for prolonged periods.
• Always store the pushchair in a dry
environment.
• Store the pushchair in a safe place when
not in use (i.e.where children cannot
play with it).
• DO NOT place heavy objects on top of
the pushchair.
• DO NOT store the pushchair near a
direct heat source such as a radiator or
fire.
EN

15
Baby Jogger warrants that the frame is free of manufacturer defects for the lifetime of
the product.Manufacturer’s defects include but are not limited to the breaking of welds
and frame tube damage.Textile or soft side materials and all other components shall be
warranted for one year from the date of purchase (except for tubes and tires).Proof of
purchase is required to make a warranty claim and the warranty is only extended to the
original purchaser.
THIS WARRANTY DOES NOT COVER:
• Normal wear and tear
• Corrosion or rust
• Incorrect assembly, or the installation of third party parts or accessories not compatible
with the original design
• Accidental or intentional damage, abuse or neglect, or use on stairs or escalators.
• Commercial use
• Improper storage/care of the unit
This warranty specifically excludes claims for indirect, incidental, or consequential
damages.The implied warranties of merchantibility and fitness for a particular purpose is
according to the specific warranty period for this model unit at time of purchase.Some
states do not allow the exclusion or limitation of incidental or consquential damages, so
the above limitations or exclustions may not apply to you.This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.To know
what your legal rights are in your state, consult your local or state consumer aairs oce
or your State’s Attorney General.
If your pushchair was purchased outside of the United States, please contact the distributor
in the country nearest you.Their contact information can be found on our website at
http://www.babyjogger.com/retailers/#international. Claims for warranty outside of the
country in which the product was purchased may incure shipping charges.

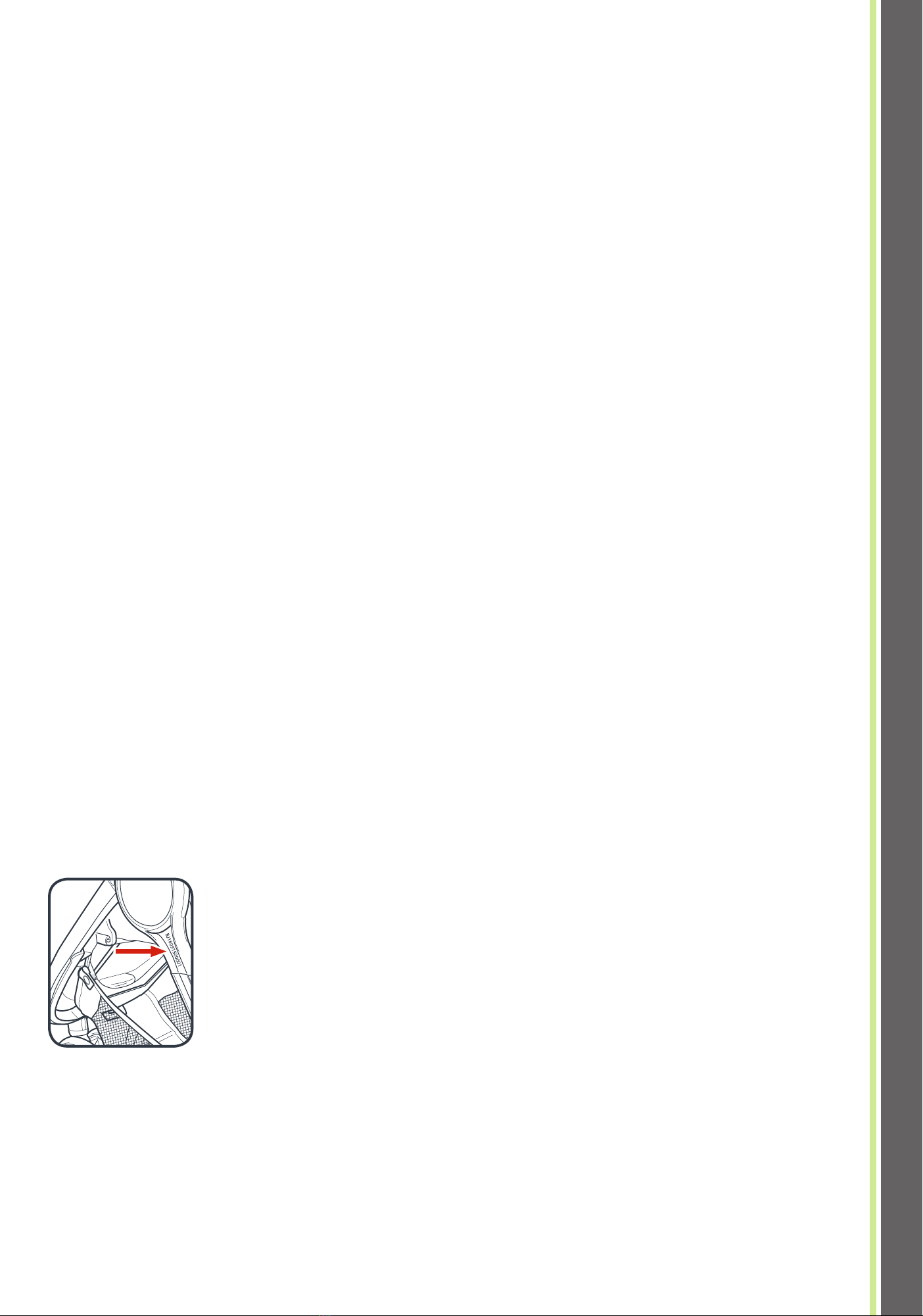

NOTE: When contacting Baby Jogger distributor regarding your
pushchair, please have your pushchair’s serial number ready.It can be
located just below the hub on the outside of rear leg.
Baby Jogger’s Limited Lifetime Warranty: EN
