Babybee DUO2 User manual
DUO2Double Two Seat Set Manual
babybeeprams.com.au IMPORTANT! Keep For Future Reference
Australian Safety Standard: AS/NZS 2088:2013
2
Welcome aboard
and thanks for
choosing Babybee
The safety of your family is our number one priority.
Please take the time to carefully read this manual and all
warning notices on pages 21-23 before getting started.
Incorrect assembly or use can result in serious injury or
death.
3
Read me rst
Before we start, there are a few important things
that you need to be aware of:
Safety
To prevent injury from choking, carefully remove and
immediately move out of reach all protective packaging.
Never leave your child unattended with the pram or
packaging.
WARNING
If you decide that the DUO2is not the
perfect pram for you, we offer a free
return policy when the pram is returned
in original condition and packaging (with
no signs of use). Please be mindful of
this when un-boxing and setting up.
Refer to our website for full terms and
conditions.
If at any stage you require assistance
with set up or use, please refer to the
Contact Us menu on our website for
support, instructional videos and FAQs.
Or feel free to email us anytime at
Return Policy Support
Enjoy the ride, from all of us at Babybee
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Stroller Frame + Basket
2 x Stroller Seats
2 x Double Adaptors
2 x Seat Liners
2 x Belly Bars
2 x Harness Cover Sets
2 x Rain Covers
2 x UV Covers (located in
Seat footrest pocket)
2 x Rear Wheels
2 x Front Wheels
Handlebar Bag
What’s in the box
Please check that you have all the correct parts
before getting started.
4
1 2 3
4
5
6
789 10
11
5
6. Step 1: Setting up your frame
8. Step 2: Double or single mode
9. Congurations
12. Step 3: Setting up your seats
14. Using your DUO2 - Seats
- Rear brake
- Front swivel wheels
15. Using your DUO2- Rear wheels
- Basket
- Reclining the seat
- Footrest
16. Using your DUO2- Safety harness
17. Using your DUO2- Seat Canopy
- Handlebar
- Bassinet ventilation
18. Maintenance tips
20. Warranty Information
21. Safety Information
Contents
To open the frame from the
folded position, release the
black frame lock located on
the side of the frame.
Lift the handlebar upwards.
Place your foot on the brake
bar to secure the frame while
it opens. Ensure you hear the
frame ‘click’ into place.
To attach the rear wheels
push the release buttons
located on the sides of the
brake bar and then insert
each wheel pin into the sides
of the brake bar until you hear
a ‘click’.
Give them a tug to ensure
they are attached securely.
Step 1
Setting up your frame
6
7
Next, insert each front
wheel pin into the center of
the socket ensuring you
hear them ‘click’ in.
ensure they are secure.
Your frame is now
set up
When using the stroller in single
mode, the double adaptors must
be removed. The bassinet or seat
can be attached directly into the
central connectors.
Note: if using a car capsule, you will
capsule adaptors (sold separately).
When using the stroller in double
the two sets of double adaptors.
central connectors for the “top
position”. To remove them simply
push the buttons on the side and
The second set will slide onto the
guides at the front of the frame
for the “lower position”. To remove
them you will need to release the
tab at the top of the connector
Step 2
Double or Single mode?
8
There is an increased risk of the stroller tipping if used in double
mode with only one child in the seat. Please be mindful of this and
hold the stroller at all times if you are doing so.
WARNING
9
Congurations
was designed to be as versatile as possible to accommodate the
changing needs of your family.

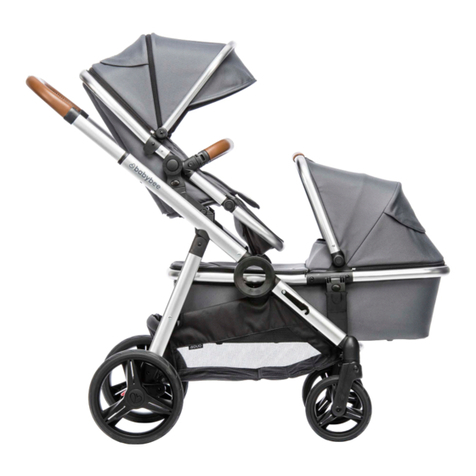

Single mode
2 Bassinets
10
2 Seats
Seat and Bassinet
11
Car Capsules
Line up the seat connectors with
the frame and press downwards.
Listen for the ‘click’ and ensure it is
securely locked in place.
To recline the seat press the large,
round buttons on the sides of the
seat connectors and tilt the seat
forward or back.
To remove the seat press the oval
buttons on the sides of the seat
connectors and lift up.
Note: The seat can be faced
in the forward or rear facing
position.
Step 3
Setting up your seats
12
This stroller seats two passengers with a maximum weight limit of
20kg each. The stroller seats are not suitable for children under 6
months. Do not allow your child to climb unassisted into the stroller.
WARNING
13
Next attach the plastic canopy
connectors onto the sides of
the frame (TIP: attach from top
to bottom). You’ll notice a round
guide on each side, the connectors
should attach
over these guides.
Note: For additional headroom
you can attach the canopy
connectors higher up the frame,
above the guides.
Finally, insert the belly bar into the
belly bar sockets on the seat frame.
ensure its secure.
Note: To remove from one side or
both, press the button on the side
you want to release, and pull the
belly bar out.
Please ensure that your child correctly wears the tted and adjusted
safety harness at all times with all 5 straps secured.
Never leave the harness buckled when not tted to your child.
WARNING
Any vehicle with moving parts needs to be used and treated with care and
given regular maintenance to remain safe and in good condition. Please be gentle,
looking and feeling newer for longer
Using your DUO
14
‘Normal’ usage
When stopped, use the brake at all times by pressing down on the bottom of the red
brake paddle with your foot until you feel it click into place. To start travelling again
you go!
Rear brake
When travelling quickly along straight surfac
es or across uneven terrain, the front wheels
may spin or cause what’s commonly known
as “wheel shudder”.
To lock the front swivel wheels into place,
press down on the wheel lock buttons
(located on the back of the wheel sockets).
To go back to 360’ swivel mode press the
buttons up again.
To remove the wheels you will need to use
press in the silver button located on the
wheel hub. Please take care whilst doing this.
Front swivel wheels
OFF ON
15
To remove the rear wheels, press the button
located on the brake bar and pull the wheel
Rear wheels
basket has been tested to hold
may cause the basket to break.
Basket
Press the large, round buttons located on the
sides of the seat connectors and recline the
seat to the desired position.
Reclining the seat
Lift the foot rest and it will click into the
highest position. To release, press both
footrest buttons simultaneously
and lower.
Note: Do not put downward pressure on the
footrest until the buttons are completely
depressed or it will feel stuck and not
move.
Never let children sit on the footrest or
climb into the seat using the footrest.
Doing so may snap or damage the footrest.
Adjusting the footrest
Always engage the brake before placing your child in the stroller.
Using your DUO2
16
Safety harness
To secure the harness:
Attach each of the 4 harness
straps into the central buckle.
Adjust the length of each strap
Always give the harness a tug to
ensure it’s secure.
To release press the button in
the middle of the buckle.
1.
2.
3.
4.
To lengthen or adjust the harness:
1.
2.
3.
height, thread the shoulder strap
through the appropriate slot on
the seat.
Ensure it is thread through the
corresponding slot of the seat
liner.
Adjust the strap length using the
buckle as required.
Always use the harness when your child is in the
stroller. Always adjust the harness appropriately for
your child’s size.
WARNING
17
Adjust the canopy as needed to protect your child from the sun and wind. For
maximum protection, use the zip to extend the canopy to its maximum length.
For more headroom move the canopy conectors higher up the frame.
Seat canopy
Push the button in the middle of the handlebar and pull or push to your desired
height. It may require a slight ‘jiggle” to adjust.
Adjusting the handlebar
The bassinet has an inbuilt sun visor. Please be gentle when pulling this out to
avoid the rod weakening over time. The head end of the bassinet fabric can also be
Adjusting the bassinet ventilation
Supervise your baby in the bassinet at all times. When adjusting the canopy, do not
put pressure on the canopy until the buttons are completely depressed or it will stick
and not move.
Regular maintenance should
include
Inspecting the locking devices, levers,
joints, buttons, brakes, wheels, safety
are secure, moving freely and in fully
working order.
If any parts of the pram have become
the cause. Then try a light application
of a sprayable silicone lubricant,
ensuring that it penetrates between the
components.
‘Silicone Lubricant’, other lubricants can
deteriorate the plastic parts of your pram
available from Supercheap Auto,
Bunnings and most hardware stores.
Preventing rust & mold
After exposure to wet or damp
conditions (especially trips to the beach,
snow or in the rain), leave the pram
fully open in a warm, well ventilated
environment to prevent rust and mold.
You may need to dry with a soft, lint
free cloth. Left damp, it will encourage
mildew, mold or rust to form, damaging
the pram.
Correct Use
has been designed for urban
living and weekend adventures which
means it’s ideal for walking on sealed
footpaths, in shopping centers, cafes
clearly place more stress on the frame
and wheels and cause it to wear out
faster. For this reason we recommend
“weekend adventures” and not regular
Tips for maintaining your pram
18
Excessive wear can reduce the effectiveness and
safety of your pram. To keep your DUO2in good
working condition and ensure that it lasts as long
as possible, it will require regular maintenance and
you will need to service your pram every 6 months.
Ensure children are not present when applying silicon lubricant or
allowing it to dry. Always spray outside or in a well ventilated area.
Wipe away excess solution before use.
WARNING
POISONOUS, TOXIC SUBSTANCE. USE WITH CARE
19
Storage
e the pram in direct sunlight
for prolonged periods of time to avoid
colour fade.
on top of it.
Store the pram in a dry, well ventilated
and safe place.
Spare Parts
The brakes and wheels are subject to
normal wear and should be replaced if
necessary.
Spare parts are available for purchase
on the Spare Parts page of our website:
babybeeprams.com.au
If the part you require is not listed please
email us for a quote.
Cleaning Instructions
sh down the pram
and remove any dirt or dust making sure
you get into all the nooks and crannies
(i.e inside the wheel hubs, inside the
joints from all folding parts etc).
You could also give it a good vacuum.
wool.
All plastic, fabric and metal parts of
the pram may be sponged clean with
a soft cloth in warm water and a mild
detergent.
Wipe dry with a soft towel or cloth and
allow all parts to dry thoroughly before
using.
The seat liner and bassinet mattress
liner are machine washable on a delicate
setting (maximum water temperature of
them looking newer for longer.
Do not
merse the seat or canopy in
water, sponge clean only.
using ammonia, bleach, solvents, caustic
Failing to adhere to these maintenence
and cleaning instructions could damage
void your warranty.
Do not clean your pram with
children around.
Do not dismantle or alter
any part of the folding
mechanisms, frame, brake
axel or wheels for cleaning or
any other reason.
Do not use if any part is
broken, torn or missing.
Replacement parts are
available from our website or
by contacting us.
WARNING
Your DUO2comes with a 3 year defects
warranty to cover against faults in
materials and workmanship when your
pram is used under normal conditions,
according to our user manuals and
technical specications.
Please note: this excludes your free
accessories and accessories sold
separately.
addition to other rights and
remedies under the law in relation to
consumer goods:
cannot be excluded under the Australian
You are entitled to a replacement or refund
for a major failure and for compensation for
any other reasonably foreseeable loss or
damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to be
of acceptable quality and the failure does
not amount to a major failure.
The warranty period starts from the date
that your pram is dispatched from our
warehouse and is valid in Australia only.
To make a claim email us at:
detailed description, video and/or
photos of the defect and a photo of the
batch number, which is located inside the
back of your basket.
best way to resolve any defects or faults.
Babybee reserves the right to repair,
exchange or replace the damaged item
with a replacement part. Some parts may
be replaced with newer model parts as the
pram is improved over time.
The warranty is not valid in the following
cases:
•
improper assembly, care or use as outlined
in our user manual:
•
accident, airline or transport damage;
• Normal wear and tear, including
scratches to the frame or colour fading of
the fabrics;
•
normal handling and daily use;
•
environmental conditions.including high
humidity, salt spray. snow or due to lack of
regular maintenance.
• Products that are purchased
secondhand or from an unauthorised
distributor;
•
compatible with the product and/or not
manufactured by Babybee Prams;
• If you or a third party has attempted to
modify or repair the pram without having
received written permission from Babybee
Prams.
•
original purchaser (i.e. no longer valid if
gifted or sold to another individual)
•
conditions (i.e. leaving in car on hot days)
•
colour or design.
Warranty Information
20
Other manuals for DUO2
2
Table of contents
Other Babybee Stroller manuals
Babybee
Babybee ROVER 3 Bassinet User manual
Babybee
Babybee MIO User manual
Babybee
Babybee ROVER User manual
Babybee
Babybee DUO2 User manual
Babybee
Babybee Bassinet User manual
Babybee
Babybee rover3 User manual
Babybee
Babybee ROVER Bassinet User manual
Babybee
Babybee DUO User manual
Babybee
Babybee DUO3 User manual
Babybee
Babybee DUO3 User manual
